NISSAN ALMERA N16 2003 Electronic Repair Manual

SMT143DC

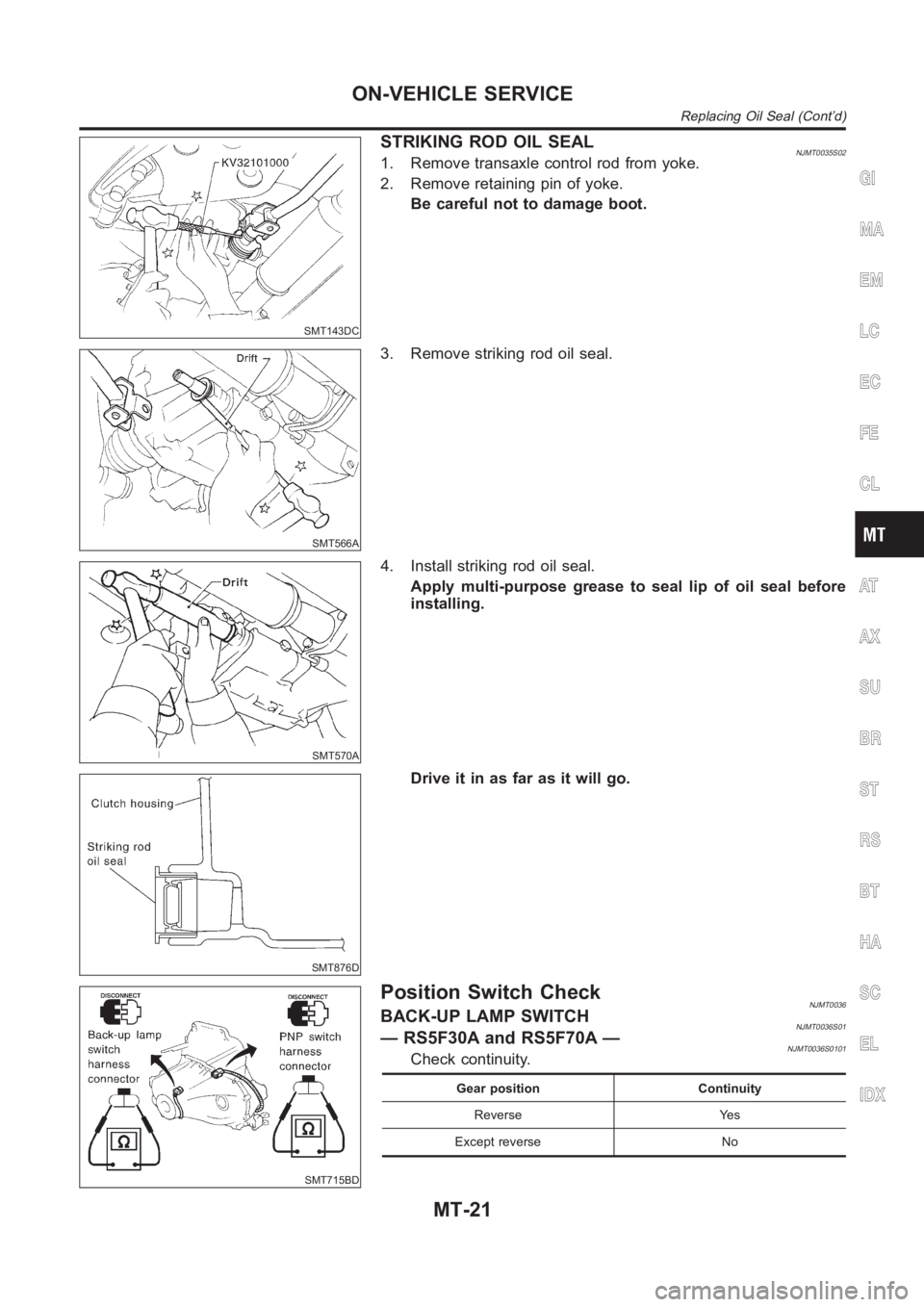

STRIKING ROD OIL SEALNJMT0035S021. Remove transaxle control rod from yoke.
2. Remove retaining pin of yoke.
Be careful not to damage boot.
SMT566A
3. Remove striking rod oil seal.
SMT570A
4. Install striking rod oil seal.
Apply multi-purpose grease to seal lip of oil seal before
installing.
SMT876D
Drive it in as far as it will go.
SMT715BD
Position Switch CheckNJMT0036BACK-UP LAMP SWITCHNJMT0036S01— RS5F30A and RS5F70A —NJMT0036S0101Check continuity.
Gear position Continuity
Reverse Yes
Except reverse No
GI
MA
EM
LC
EC
FE
CL
AT
AX
SU
BR
ST
RS
BT
HA
SC
EL
IDX
ON-VEHICLE SERVICE
Replacing Oil Seal (Cont’d)
MT-21

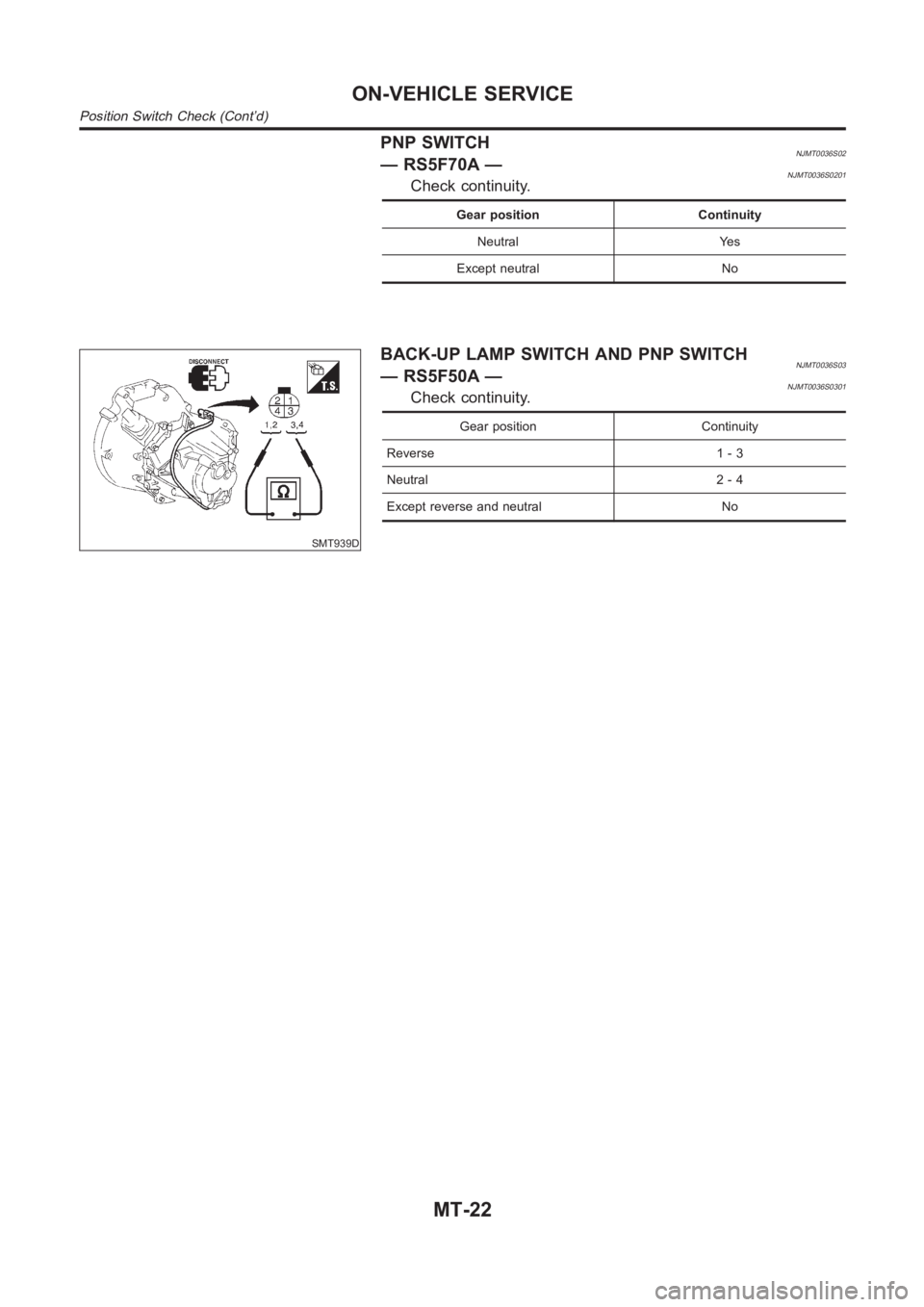

PNP SWITCHNJMT0036S02— RS5F70A —NJMT0036S0201Check continuity.
Gear position Continuity
Neutral Yes
Except neutral No
SMT939D
BACK-UP LAMP SWITCH AND PNP SWITCHNJMT0036S03— RS5F50A —NJMT0036S0301Check continuity.
Gear position Continuity
Reverse 1 - 3
Neutral 2 - 4
Except reverse and neutral No
ON-VEHICLE SERVICE
Position Switch Check (Cont’d)
MT-22

NJMT0008
SMT928D

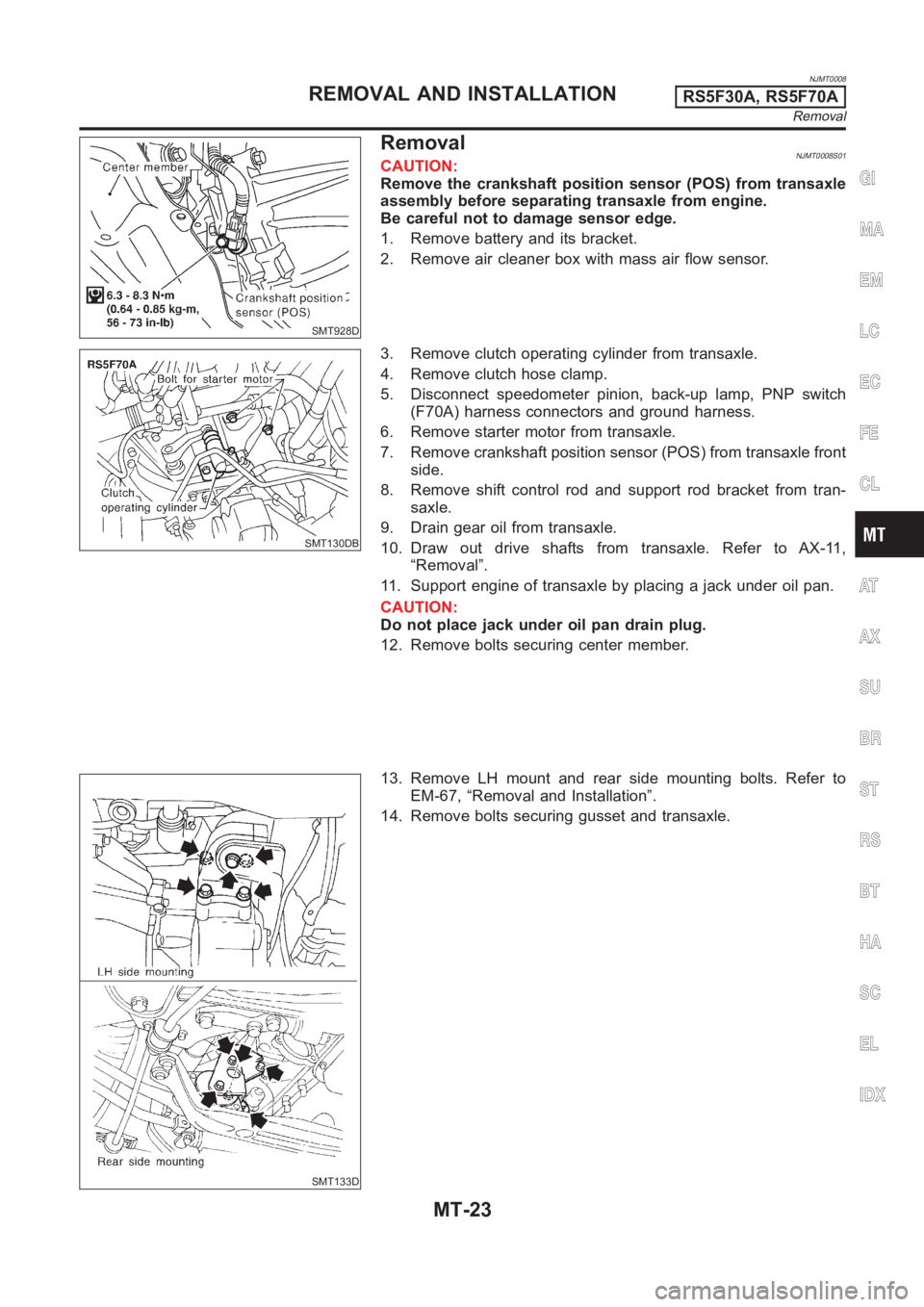

RemovalNJMT0008S01CAUTION:
Remove the crankshaft position sensor (POS) from transaxle
assembly before separating transaxle from engine.
Be careful not to damage sensor edge.
1. Remove battery and its bracket.
2. Remove air cleaner box with mass air flow sensor.
SMT130DB
3. Remove clutch operating cylinder from transaxle.
4. Remove clutch hose clamp.
5. Disconnect speedometer pinion, back-up lamp, PNP switch
(F70A) harness connectors and ground harness.
6. Remove starter motor from transaxle.
7. Remove crankshaft position sensor (POS) from transaxle front
side.
8. Remove shift control rod and support rod bracket from tran-
saxle.
9. Drain gear oil from transaxle.
10. Draw out drive shafts from transaxle. Refer to AX-11,
“Removal”.
11. Support engine of transaxle by placing a jack under oil pan.
CAUTION:
Do not place jack under oil pan drain plug.
12. Remove bolts securing center member.
SMT133D
13. Remove LH mount and rear side mounting bolts. Refer to
EM-67, “Removal and Installation”.
14. Remove bolts securing gusset and transaxle.
GI
MA
EM
LC
EC
FE
CL
AT
AX
SU
BR
ST
RS
BT
HA
SC
EL
IDX
REMOVAL AND INSTALLATIONRS5F30A, RS5F70A
Removal
MT-23

SMT652C

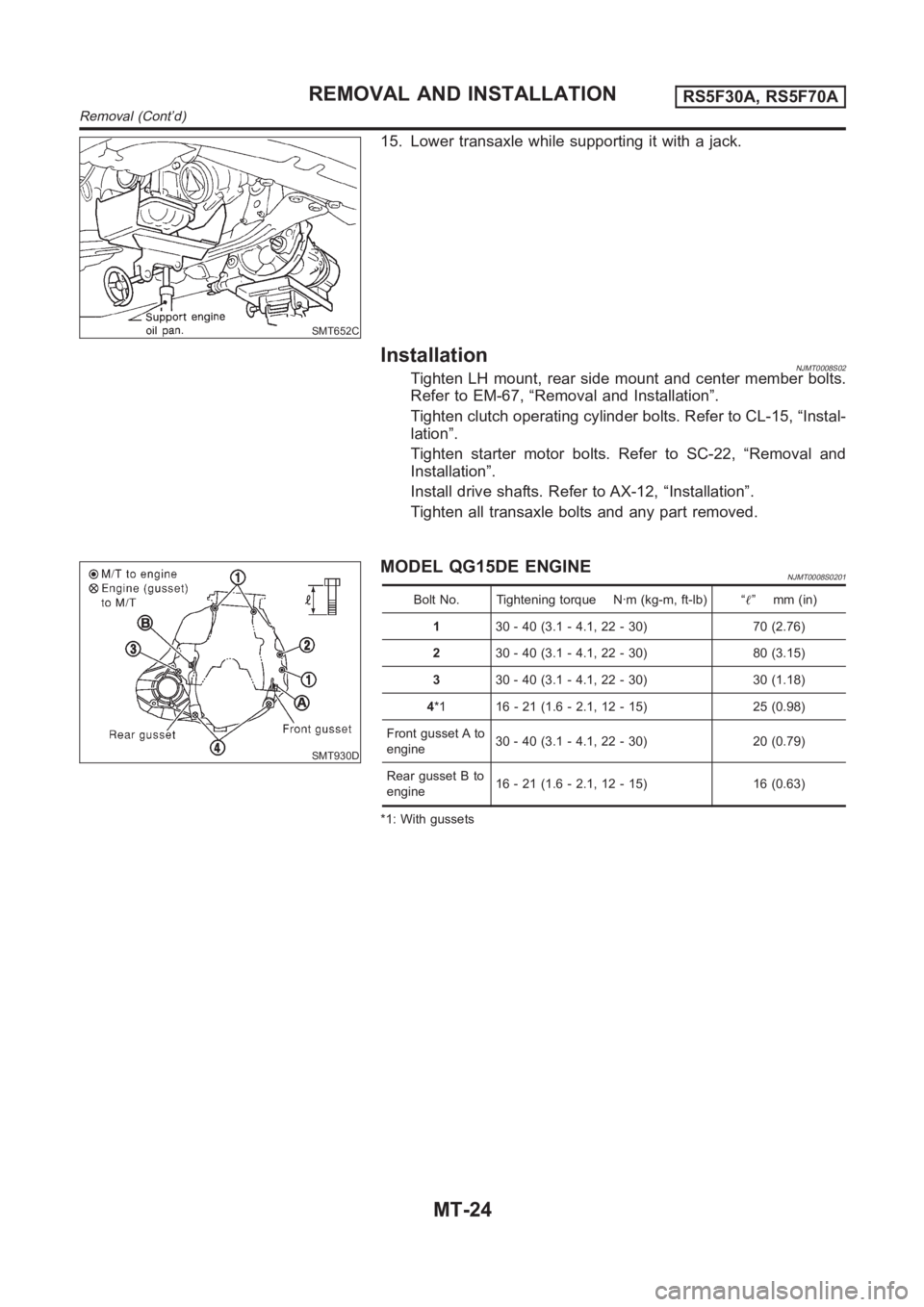

15. Lower transaxle while supporting it with a jack.
InstallationNJMT0008S02Tighten LH mount, rear side mount and center member bolts.
Refer to EM-67, “Removal and Installation”.
Tighten clutch operating cylinder bolts. Refer to CL-15, “Instal-
lation”.
Tighten starter motor bolts. Refer to SC-22, “Removal and
Installation”.
Install drive shafts. Refer to AX-12, “Installation”.
Tighten all transaxle bolts and any part removed.
SMT930D
MODEL QG15DE ENGINENJMT0008S0201
Bolt No. Tightening torque N·m (kg-m, ft-lb) “” mm (in)
130 - 40 (3.1 - 4.1, 22 - 30) 70 (2.76)
230 - 40 (3.1 - 4.1, 22 - 30) 80 (3.15)
330 - 40 (3.1 - 4.1, 22 - 30) 30 (1.18)
4*1 16 - 21 (1.6 - 2.1, 12 - 15) 25 (0.98)
Front gusset A to
engine30 - 40 (3.1 - 4.1, 22 - 30) 20 (0.79)
Rear gusset B to
engine16 - 21 (1.6 - 2.1, 12 - 15) 16 (0.63)
*1: With gussets
REMOVAL AND INSTALLATIONRS5F30A, RS5F70A
Removal (Cont’d)
MT-24

SMT931D
MODEL QG18DE ENGINE=NJMT0008S0202
Bolt No. Tightening torque N·m (kg-m, ft-lb) “” mm (in)
131 - 40 (3.1 - 4.1, 23 - 29) 70 (2.76)
231 - 40 (3.1 - 4.1, 23 - 29) 80 (3.15)
316 - 21 (1.6 - 2.2, 12 - 15) 25 (0.98)
431 - 40 (3.1 - 4.1, 23 - 29) 30 (1.18)
A31 - 40 (3.1 - 4.1, 23 - 29) 20 (0.79)
B31 - 40 (3.1 - 4.1, 23 - 29) 20 (0.79)
C15 - 20 (1.5 - 2.1, 11 - 15) 17.5 (0.69)GI
MA
EM
LC
EC
FE
CL
AT
AX
SU
BR
ST
RS
BT
HA
SC
EL
IDX
REMOVAL AND INSTALLATIONRS5F30A, RS5F70A
Installation (Cont’d)
MT-25

NJMT0090
SMT928D

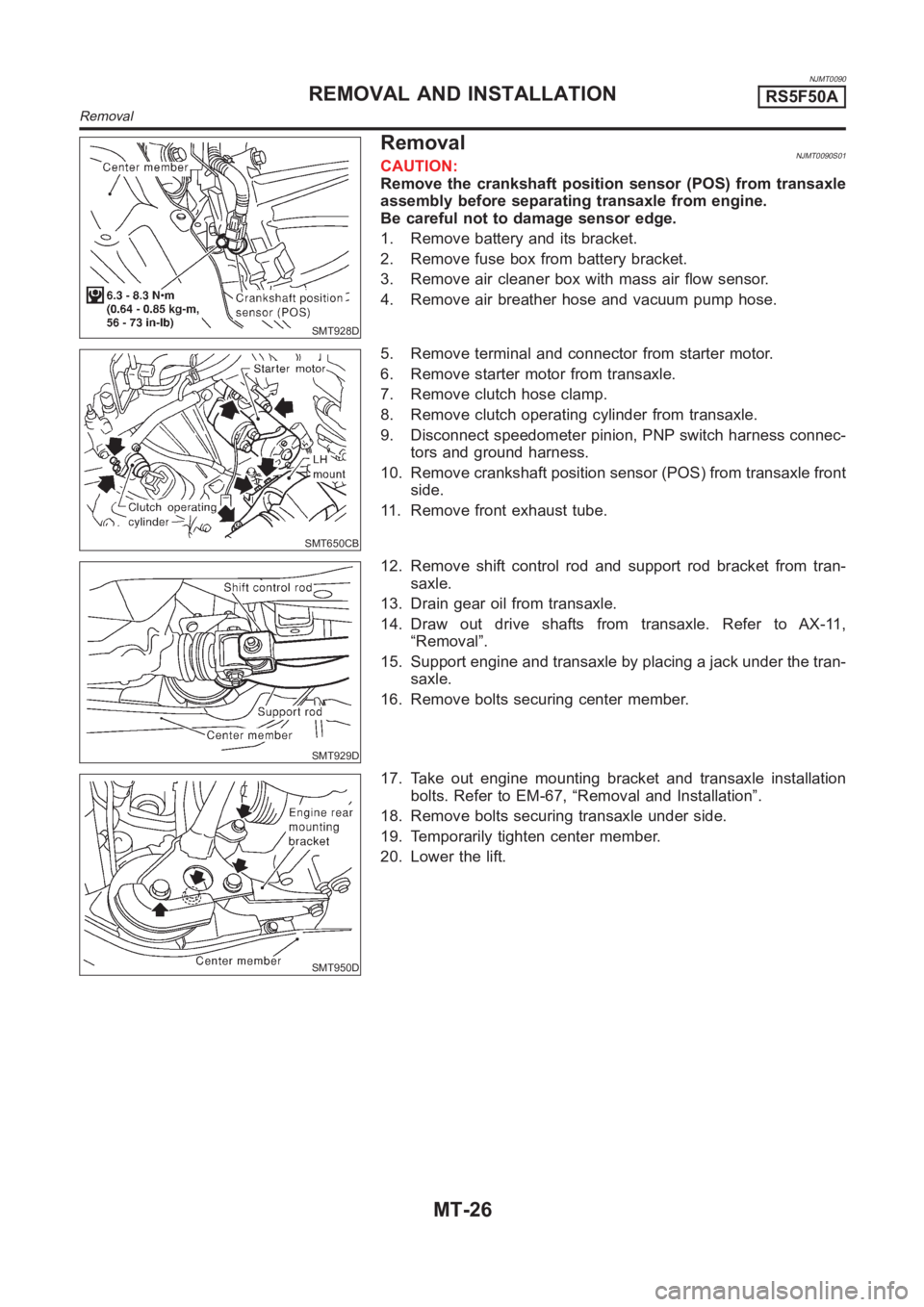

RemovalNJMT0090S01CAUTION:
Remove the crankshaft position sensor (POS) from transaxle
assembly before separating transaxle from engine.
Be careful not to damage sensor edge.
1. Remove battery and its bracket.
2. Remove fuse box from battery bracket.
3. Remove air cleaner box with mass air flow sensor.
4. Remove air breather hose and vacuum pump hose.
SMT650CB
5. Remove terminal and connector from starter motor.
6. Remove starter motor from transaxle.
7. Remove clutch hose clamp.
8. Remove clutch operating cylinder from transaxle.
9. Disconnect speedometer pinion, PNP switch harness connec-
tors and ground harness.
10. Remove crankshaft position sensor (POS) from transaxle front
side.
11. Remove front exhaust tube.
SMT929D
12. Remove shift control rod and support rod bracket from tran-
saxle.
13. Drain gear oil from transaxle.
14. Draw out drive shafts from transaxle. Refer to AX-11,
“Removal”.
15. Support engine and transaxle by placing a jack under the tran-
saxle.
16. Remove bolts securing center member.
SMT950D
17. Take out engine mounting bracket and transaxle installation
bolts. Refer to EM-67, “Removal and Installation”.
18. Remove bolts securing transaxle under side.
19. Temporarily tighten center member.
20. Lower the lift.
REMOVAL AND INSTALLATIONRS5F50A
Removal
MT-26

SMT940D
SMT951D

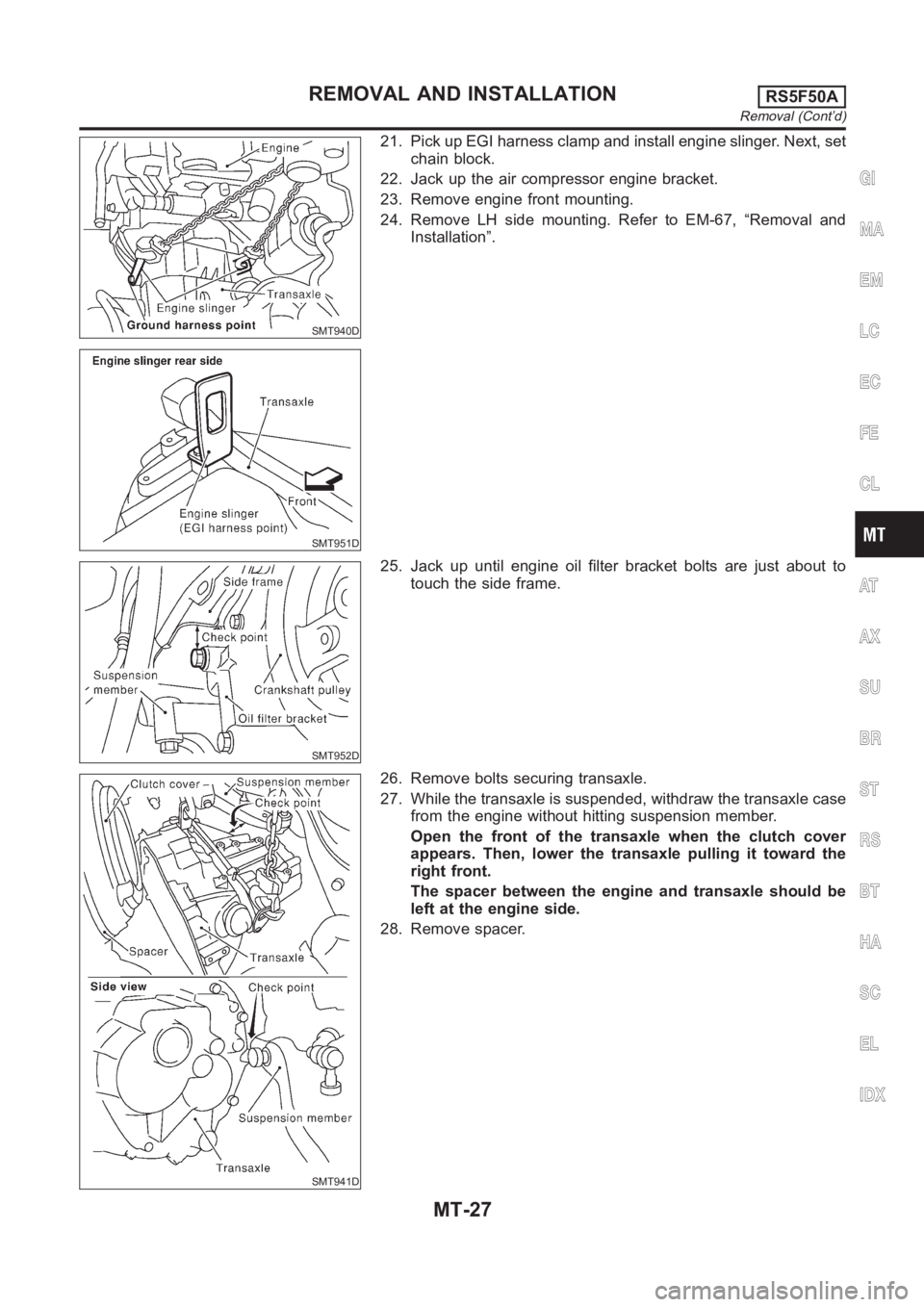

21. Pick up EGI harness clamp and install engine slinger. Next, set
chain block.
22. Jack up the air compressor engine bracket.
23. Remove engine front mounting.
24. Remove LH side mounting. Refer to EM-67, “Removal and
Installation”.
SMT952D
25. Jack up until engine oil filter bracket bolts are just about to
touch the side frame.
SMT941D
26. Remove bolts securing transaxle.
27. While the transaxle is suspended, withdraw the transaxle case
from the engine without hitting suspension member.
Open the front of the transaxle when the clutch cover
appears. Then, lower the transaxle pulling it toward the
right front.
The spacer between the engine and transaxle should be
left at the engine side.
28. Remove spacer.
GI
MA
EM
LC
EC
FE
CL
AT
AX
SU
BR
ST
RS
BT
HA
SC
EL
IDX
REMOVAL AND INSTALLATIONRS5F50A
Removal (Cont’d)
MT-27

SMT941D
InstallationNJMT0090S021. Put transaxle under the engine compartment.
2. Set chain block on transaxle and hang.
3. Lift up transaxle case so as not to hit against the side frame
and suspension member.
4. Assemble transaxle to engine.
Tighten LH mount, rear side mount and center member bolts.
Refer to EM-67, “Removal and Installation”.
Tighten clutch operating cylinder bolts. Refer to CL-15, “Instal-
lation”.
Tighten starter motor bolts. Refer to SC-22, “Removal and
Installation”.
Install drive shafts. Refer to AX-12, “Installation”.
Tighten all transaxle bolts and any part removed.
SMT932D
MODEL YD ENGINENJMT0090S0201
Bolt No. Tightening torque N·m (kg-m, ft-lb) “” mm (in)
140 - 49 (4.0 - 5.0, 29 - 36) 70 (2.76)
230.4 - 36.3 (3.1 - 3.7, 23 - 26) 60 (2.36)
330.4 - 36.3 (3.1 - 3.7, 23 - 26) 55 (2.17)
REMOVAL AND INSTALLATIONRS5F50A
Installation
MT-28

NJMT0038

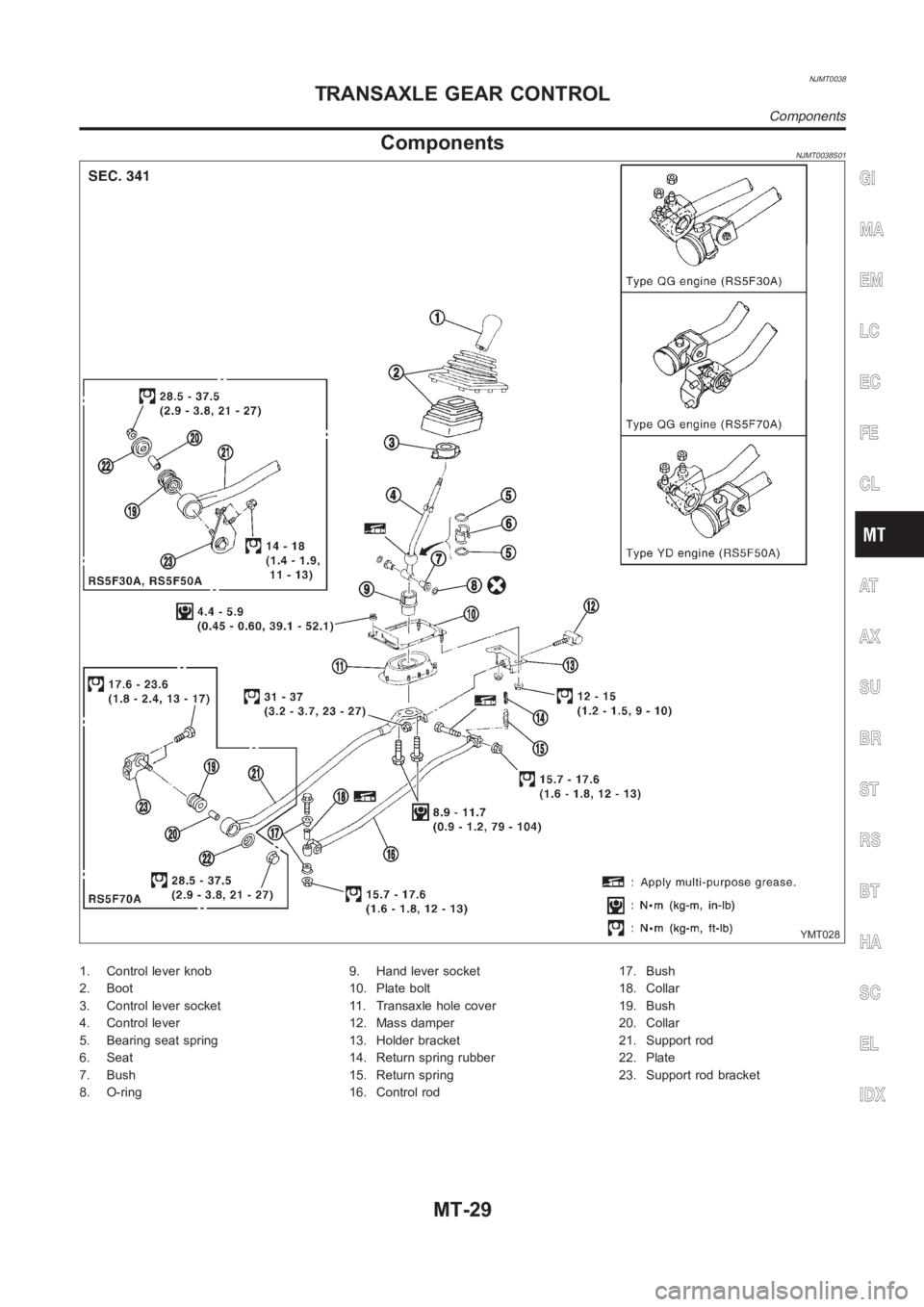

ComponentsNJMT0038S01
YMT028
1. Control lever knob
2. Boot
3. Control lever socket
4. Control lever
5. Bearing seat spring
6. Seat
7. Bush
8. O-ring9. Hand lever socket
10. Plate bolt
11. Transaxle hole cover
12. Mass damper
13. Holder bracket
14. Return spring rubber
15. Return spring
16. Control rod17. Bush
18. Collar
19. Bush
20. Collar
21. Support rod
22. Plate
23. Support rod bracket
GI
MA
EM
LC
EC
FE
CL
AT
AX
SU
BR
ST
RS
BT
HA
SC
EL
IDX
TRANSAXLE GEAR CONTROL
Components
MT-29

NJMT0039

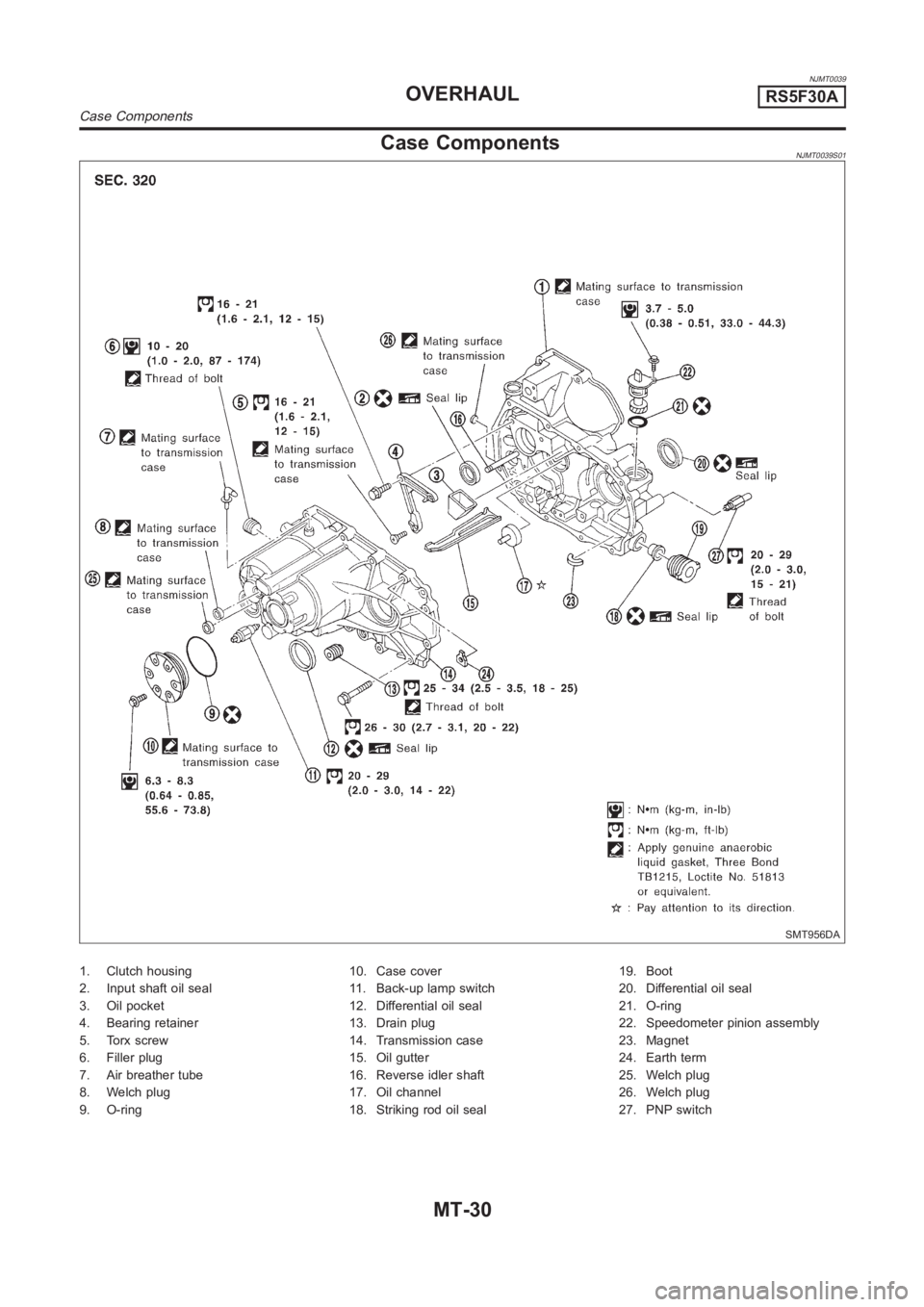

Case ComponentsNJMT0039S01
SMT956DA
1. Clutch housing
2. Input shaft oil seal
3. Oil pocket
4. Bearing retainer
5. Torx screw
6. Filler plug
7. Air breather tube
8. Welch plug
9. O-ring10. Case cover
11. Back-up lamp switch
12. Differential oil seal
13. Drain plug
14. Transmission case
15. Oil gutter
16. Reverse idler shaft
17. Oil channel
18. Striking rod oil seal19. Boot
20. Differential oil seal
21. O-ring
22. Speedometer pinion assembly
23. Magnet
24. Earth term
25. Welch plug
26. Welch plug
27. PNP switch
OVERHAULRS5F30A
Case Components
MT-30
