NISSAN ALMERA N16 2003 Electronic Repair Manual

TROUBLE DIAGNOSES FOR SYMPTOMS
AT-235
[EURO-OBD]
D
E
F
G
H
I
J
K
L
MA
B
AT

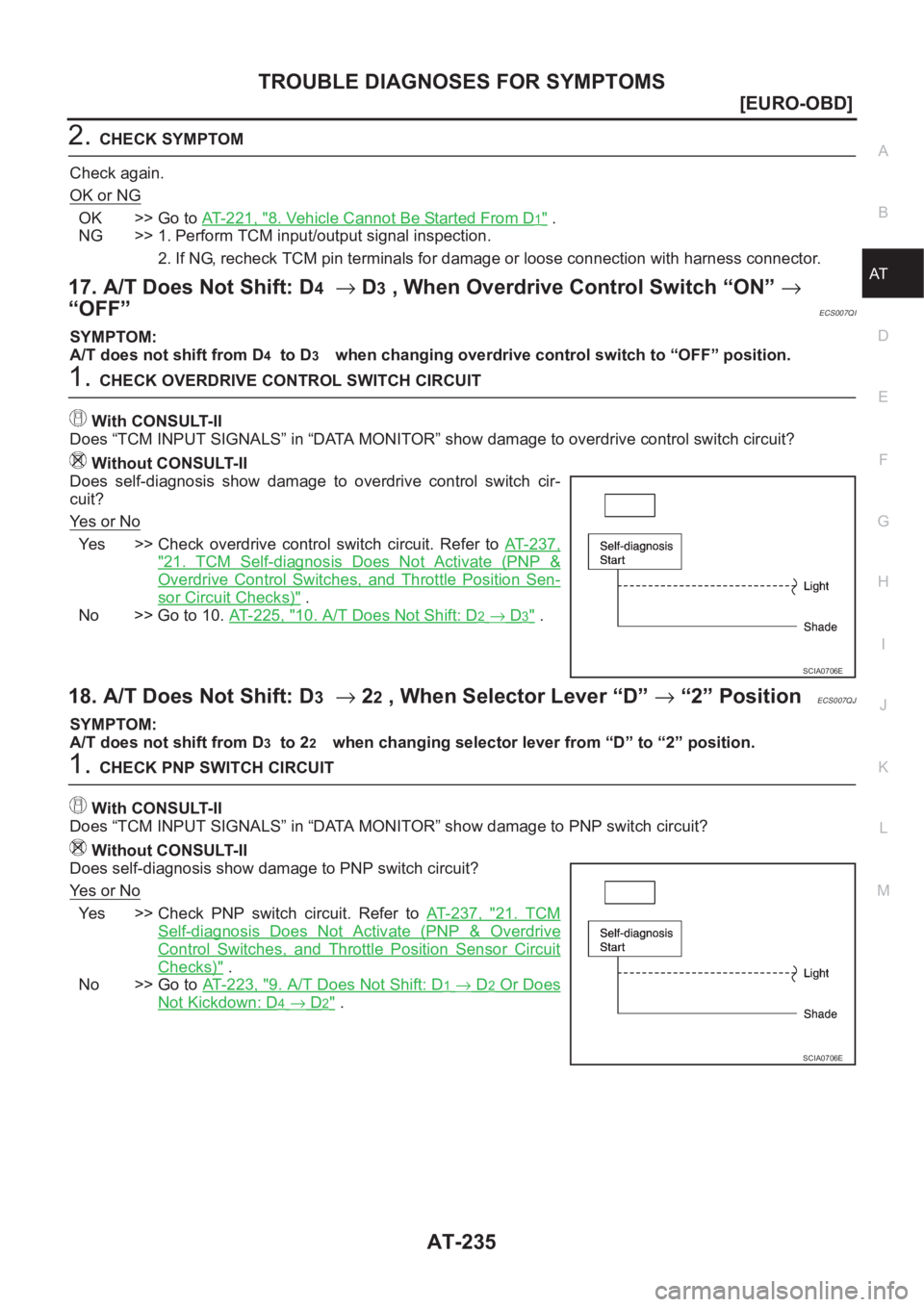

2.CHECK SYMPTOM
Check again.
OK or NG
OK >> Go to AT-221, "8. Vehicle Cannot Be Started From D1" .
NG >> 1. Perform TCM input/output signal inspection.
2. If NG, recheck TCM pin terminals for damage or loose connection with harness connector.
17. A/T Does Not Shift: D4→ D3 , When Overdrive Control Switch “ON” →
“OFF”
ECS007QI
SYMPTOM:
A/T does not shift from D
4 to D3 when changing overdrive control switch to “OFF” position.
1.CHECK OVERDRIVE CONTROL SWITCH CIRCUIT
With CONSULT-II
Does “TCM INPUT SIGNALS” in “DATA MONITOR” show damage to overdrive control switch circuit?
Without CONSULT-II
Does self-diagnosis show damage to overdrive control switch cir-
cuit?
Ye s o r N o
Yes >> Check overdrive control switch circuit. Refer to AT- 2 3 7 ,
"21. TCM Self-diagnosis Does Not Activate (PNP &
Overdrive Control Switches, and Throttle Position Sen-
sor Circuit Checks)" .
No >> Go to 10. AT- 2 2 5 , "
10. A/T Does Not Shift: D2→ D3" .
18. A/T Does Not Shift: D3→ 22 , When Selector Lever “D” → “2” PositionECS007QJ
SYMPTOM:
A/T does not shift from D
3 to 22 when changing selector lever from “D” to “2” position.
1.CHECK PNP SWITCH CIRCUIT
With CONSULT-II
Does “TCM INPUT SIGNALS” in “DATA MONITOR” show damage to PNP switch circuit?
Without CONSULT-II
Does self-diagnosis show damage to PNP switch circuit?
Ye s o r N o
Yes >> Check PNP switch circuit. Refer to AT- 2 3 7 , "21. TCM
Self-diagnosis Does Not Activate (PNP & Overdrive
Control Switches, and Throttle Position Sensor Circuit
Checks)" .
No >> Go to AT- 2 2 3 , "
9. A/T Does Not Shift: D1→ D2 Or Does
Not Kickdown: D4→ D2" .
SCIA0706E
SCIA0706E

AT-236
[EURO-OBD]
TROUBLE DIAGNOSES FOR SYMPTOMS

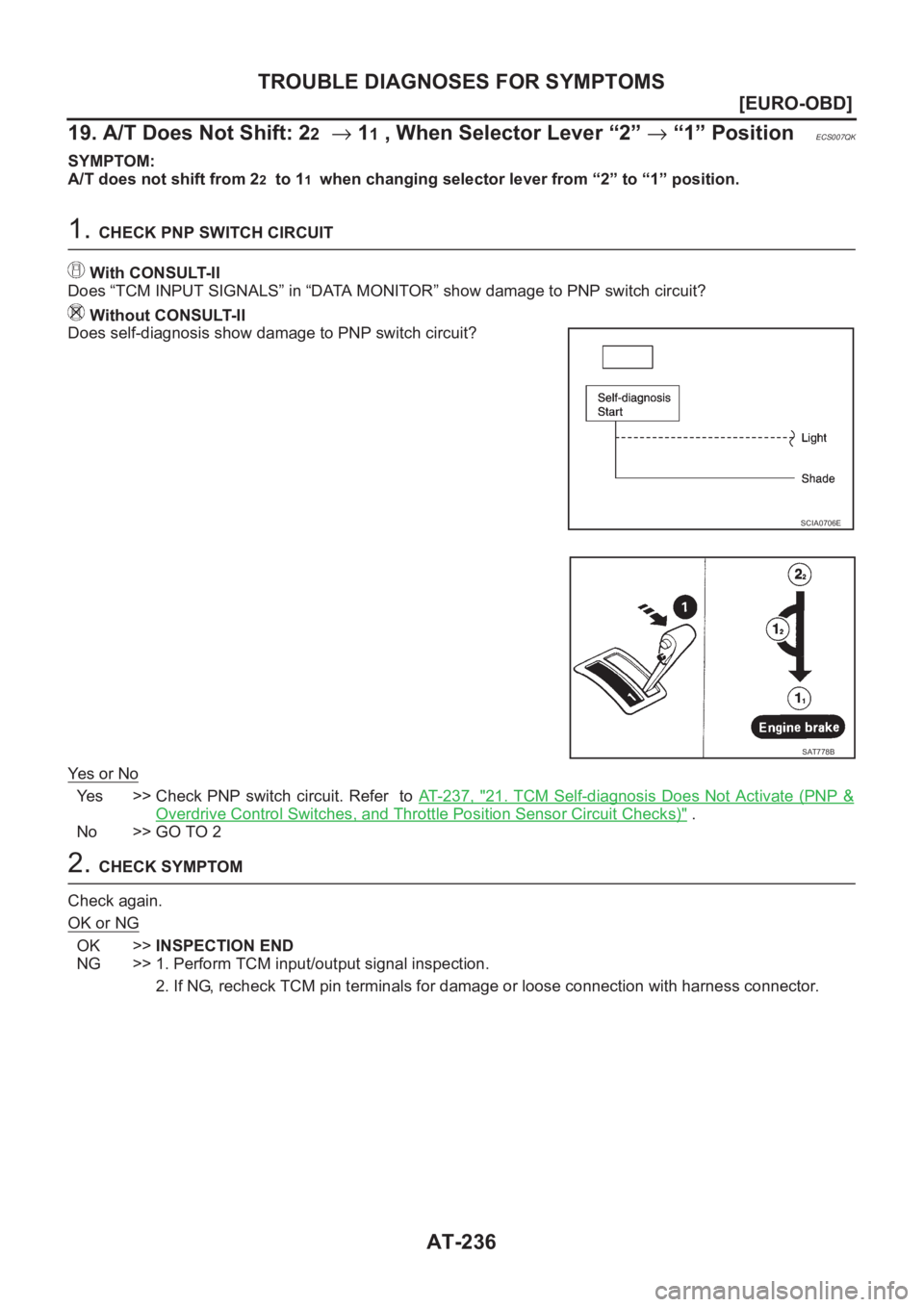

19. A/T Does Not Shift: 2
2→ 11 , When Selector Lever “2” → “1” PositionECS007QK
SYMPTOM:
A/T does not shift from 2
2 to 11 when changing selector lever from “2” to “1” position.
1. CHECK PNP SWITCH CIRCUIT
With CONSULT-II
Does “TCM INPUT SIGNALS” in “DATA MONITOR” show damage to PNP switch circuit?
Without CONSULT-II
Does self-diagnosis show damage to PNP switch circuit?
Ye s o r N o
Yes >> Check PNP switch circuit. Refer to AT- 2 3 7 , "21. TCM Self-diagnosis Does Not Activate (PNP &
Overdrive Control Switches, and Throttle Position Sensor Circuit Checks)" .
No >> GO TO 2
2. CHECK SYMPTOM
Check again.
OK or NG
OK >>INSPECTION END
NG >> 1. Perform TCM input/output signal inspection.
2. If NG, recheck TCM pin terminals for damage or loose connection with harness connector.
SCIA0706E
SAT778B

TROUBLE DIAGNOSES FOR SYMPTOMS
AT-237
[EURO-OBD]
D
E
F
G
H
I
J
K
L
MA
B
AT

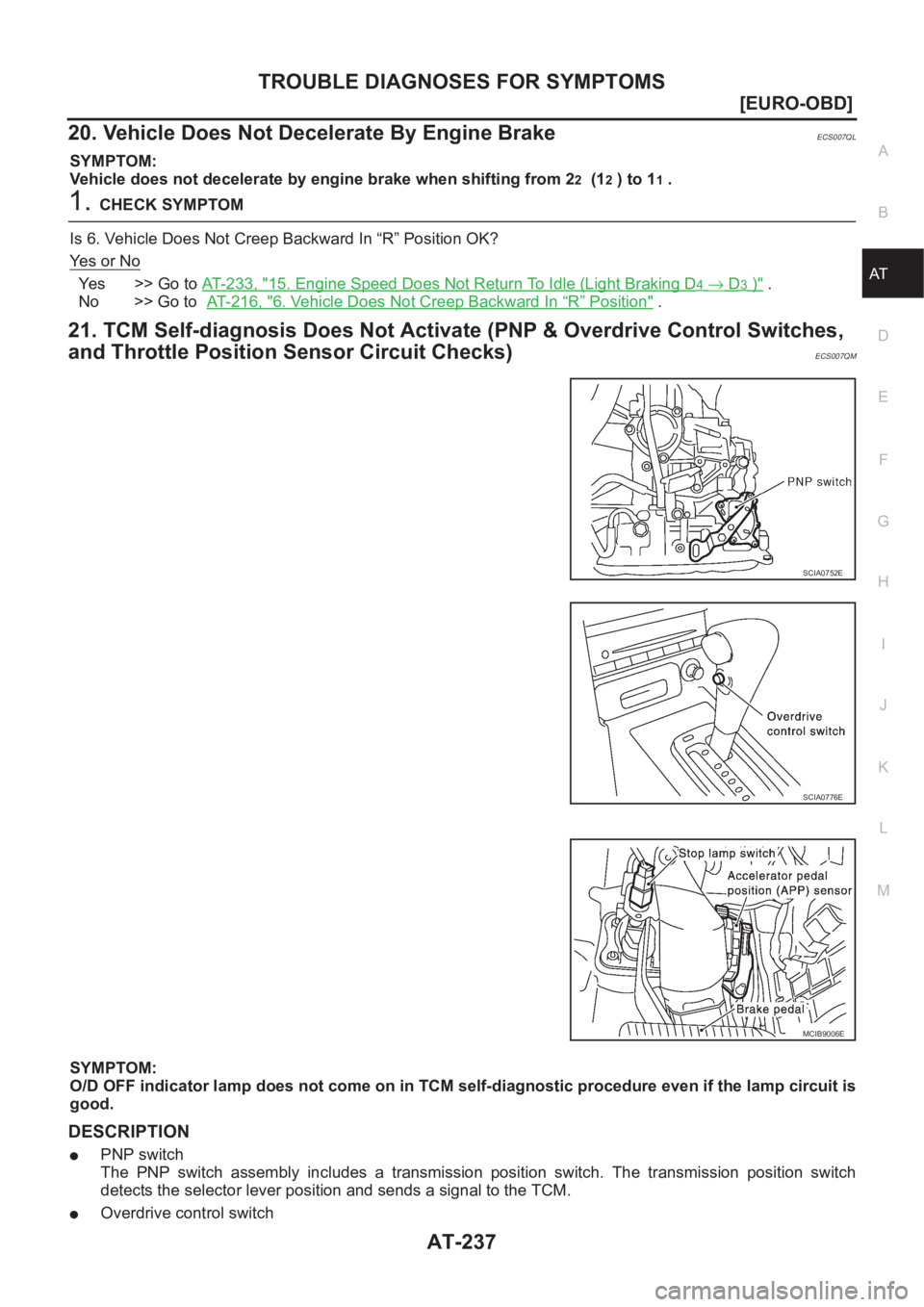

20. Vehicle Does Not Decelerate By Engine BrakeECS007QL
SYMPTOM:
Vehicle does not decelerate by engine brake when shifting from 2
2 (12 ) to 11 .
1.CHECK SYMPTOM
Is 6. Vehicle Does Not Creep Backward In “R” Position OK?
Ye s o r N o
Yes >> Go to AT-233, "15. Engine Speed Does Not Return To Idle (Light Braking D4→ D3 )" .
No >> Go to AT- 2 1 6 , "
6. Vehicle Does Not Creep Backward In “R” Position" .
21. TCM Self-diagnosis Does Not Activate (PNP & Overdrive Control Switches,
and Throttle Position Sensor Circuit Checks)
ECS007QM
SYMPTOM:
O/D OFF indicator lamp does not come on in TCM self-diagnostic procedure even if the lamp circuit is
good.
DESCRIPTION
●PNP switch
The PNP switch assembly includes a transmission position switch. The transmission position switch
detects the selector lever position and sends a signal to the TCM.
●Overdrive control switch
SCIA0752E
SCIA0776E
MCIB9006E

AT-238
[EURO-OBD]
TROUBLE DIAGNOSES FOR SYMPTOMS

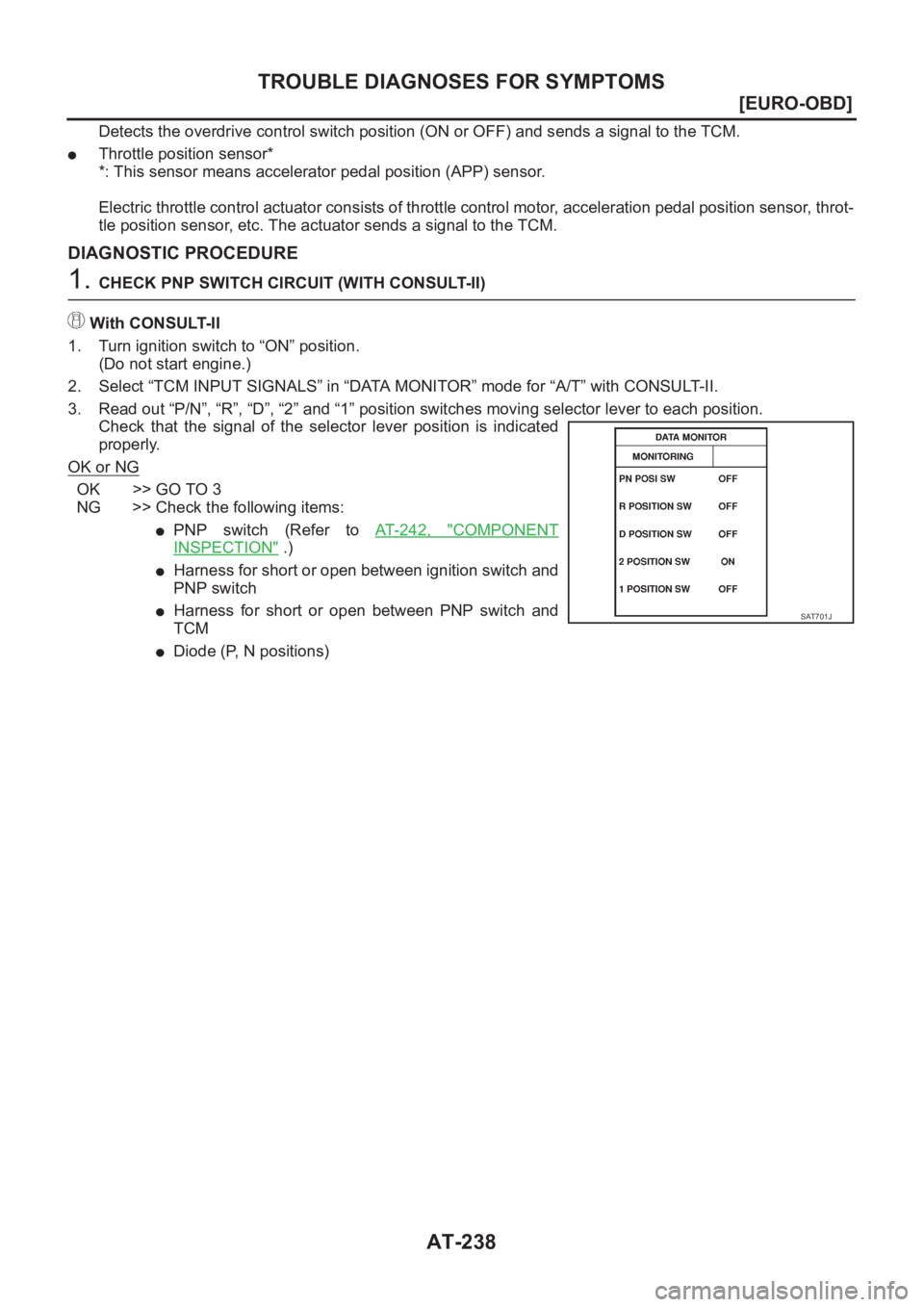

Detects the overdrive control switch position (ON or OFF) and sends a signal to the TCM.
●Throttle position sensor*
*: This sensor means accelerator pedal position (APP) sensor.
Electric throttle control actuator consists of throttle control motor, acceleration pedal position sensor, throt-
tle position sensor, etc. The actuator sends a signal to the TCM.
DIAGNOSTIC PROCEDURE
1. CHECK PNP SWITCH CIRCUIT (WITH CONSULT-II)
With CONSULT-II
1. Turn ignition switch to “ON” position.
(Do not start engine.)
2. Select “TCM INPUT SIGNALS” in “DATA MONITOR” mode for “A/T” with CONSULT-II.
3. Read out “P/N”, “R”, “D”, “2” and “1” position switches moving selector lever to each position.
Check that the signal of the selector lever position is indicated
properly.
OK or NG
OK >> GO TO 3
NG >> Check the following items:
●PNP switch (Refer to AT- 2 4 2 , "COMPONENT
INSPECTION" .)
●Harness for short or open between ignition switch and
PNP switch
●Harness for short or open between PNP switch and
TCM
●Diode (P, N positions)
SAT701J

TROUBLE DIAGNOSES FOR SYMPTOMS
AT-239
[EURO-OBD]
D
E
F
G
H
I
J
K
L
MA
B
AT

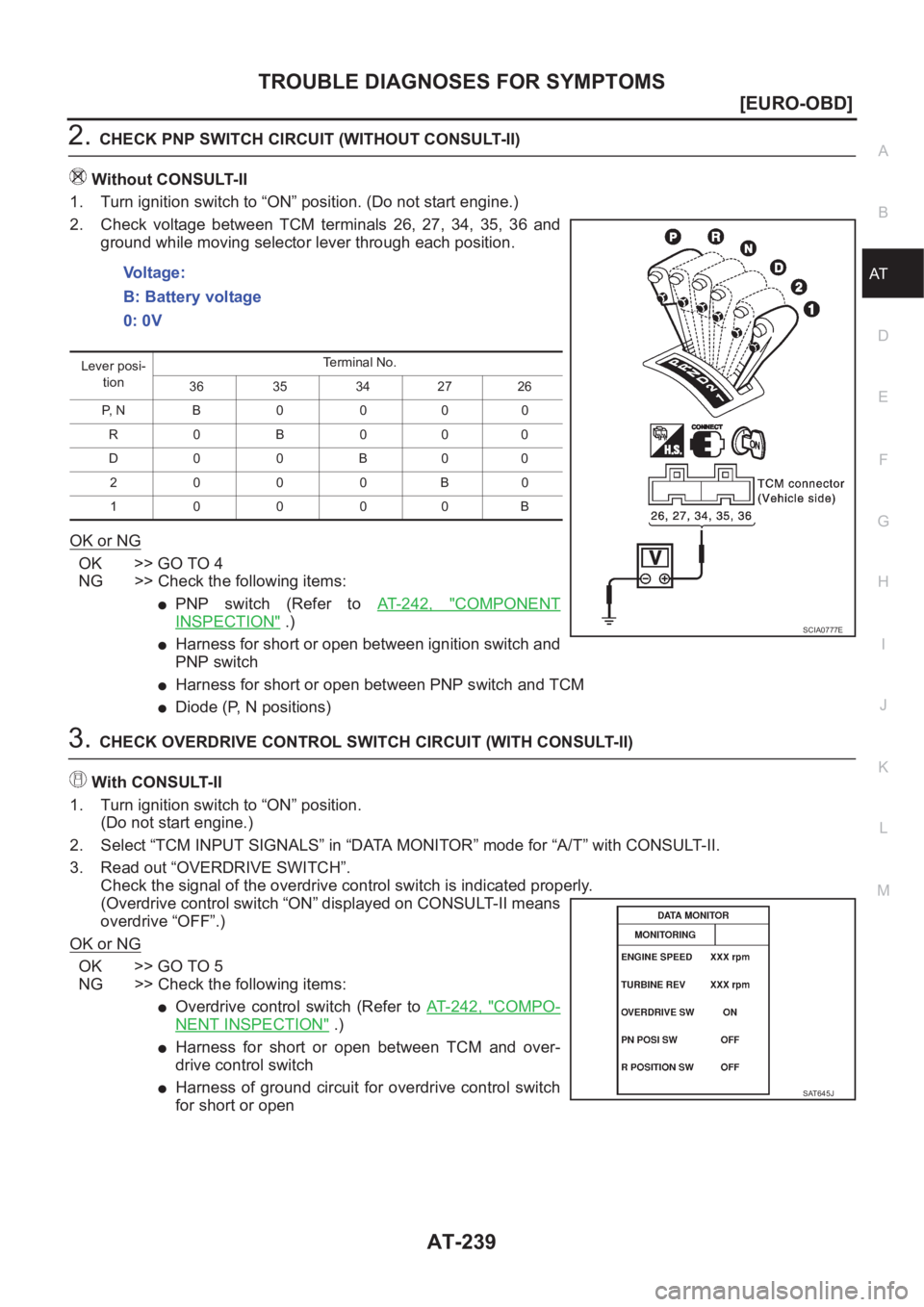

2.CHECK PNP SWITCH CIRCUIT (WITHOUT CONSULT-II)
Without CONSULT-II
1. Turn ignition switch to “ON” position. (Do not start engine.)
2. Check voltage between TCM terminals 26, 27, 34, 35, 36 and
ground while moving selector lever through each position.
OK or NG
OK >> GO TO 4
NG >> Check the following items:
●PNP switch (Refer to AT- 2 4 2 , "COMPONENT
INSPECTION" .)
●Harness for short or open between ignition switch and
PNP switch
●Harness for short or open between PNP switch and TCM
●Diode (P, N positions)
3.CHECK OVERDRIVE CONTROL SWITCH CIRCUIT (WITH CONSULT-II)
With CONSULT-II
1. Turn ignition switch to “ON” position.
(Do not start engine.)
2. Select “TCM INPUT SIGNALS” in “DATA MONITOR” mode for “A/T” with CONSULT-II.
3. Read out “OVERDRIVE SWITCH”.
Check the signal of the overdrive control switch is indicated properly.
(Overdrive control switch “ON” displayed on CONSULT-II means
overdrive “OFF”.)
OK or NG
OK >> GO TO 5
NG >> Check the following items:
●Overdrive control switch (Refer to AT- 2 4 2 , "COMPO-
NENT INSPECTION" .)
●Harness for short or open between TCM and over-
drive control switch
●Harness of ground circuit for overdrive control switch
for short or open Vo l t a g e :
B: Battery voltage
0: 0V
Lever posi-
tionTerminal No.
36 35 34 27 26
P, N B 0 0 0 0
R0B000
D0 0B00
2000B0
10000B
SCIA0777E
SAT645J

AT-240
[EURO-OBD]
TROUBLE DIAGNOSES FOR SYMPTOMS

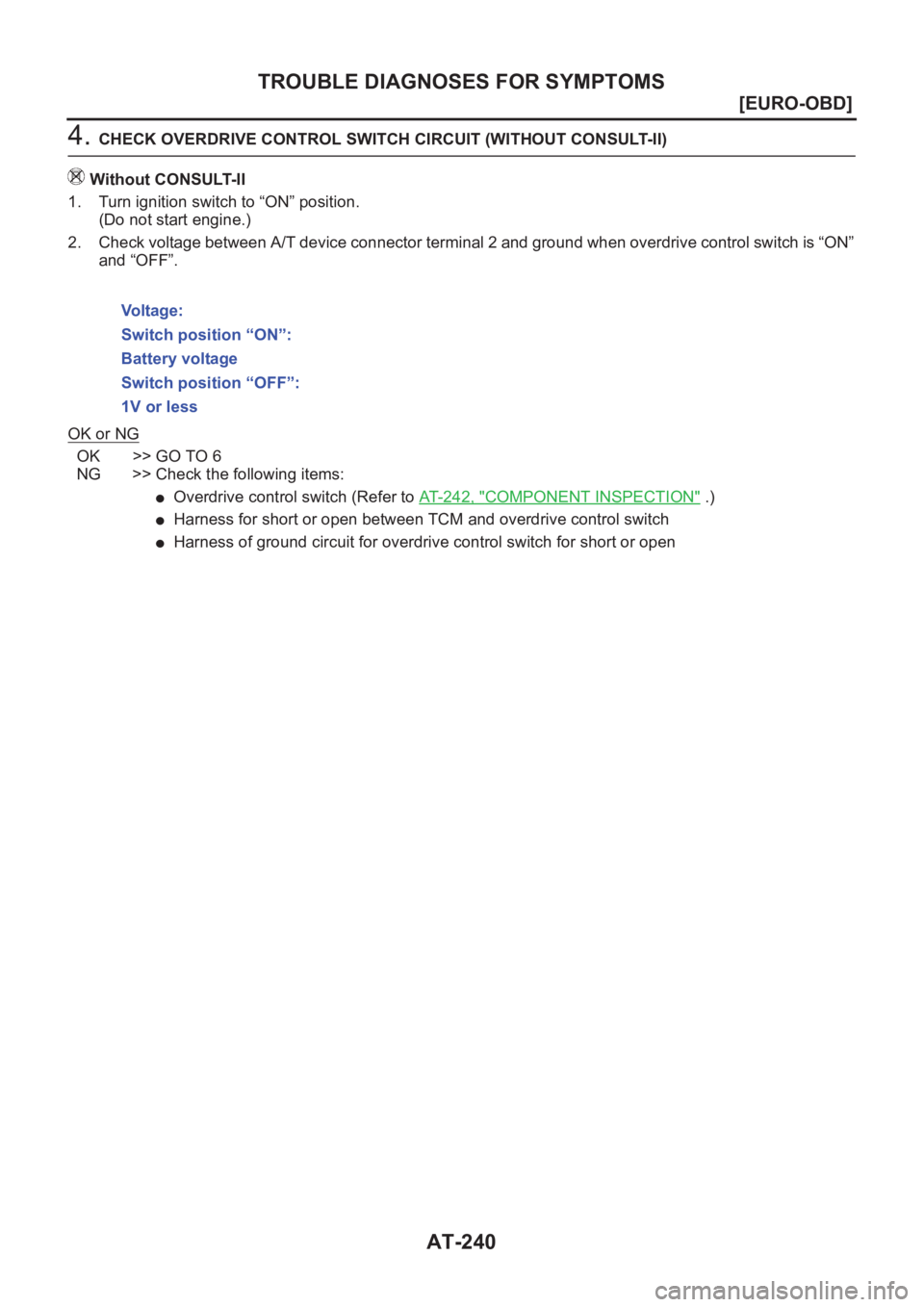

4. CHECK OVERDRIVE CONTROL SWITCH CIRCUIT (WITHOUT CONSULT-II)
Without CONSULT-II
1. Turn ignition switch to “ON” position.
(Do not start engine.)
2. Check voltage between A/T device connector terminal 2 and ground when overdrive control switch is “ON”
and “OFF”.
OK or NG
OK >> GO TO 6
NG >> Check the following items:
●Overdrive control switch (Refer to AT-242, "COMPONENT INSPECTION" .)
●Harness for short or open between TCM and overdrive control switch
●Harness of ground circuit for overdrive control switch for short or open
Voltage:
Switch position “ON”:
Battery voltage
Switch position “OFF”:
1V or less

TROUBLE DIAGNOSES FOR SYMPTOMS
AT-241
[EURO-OBD]
D
E
F
G
H
I
J
K
L
MA
B
AT

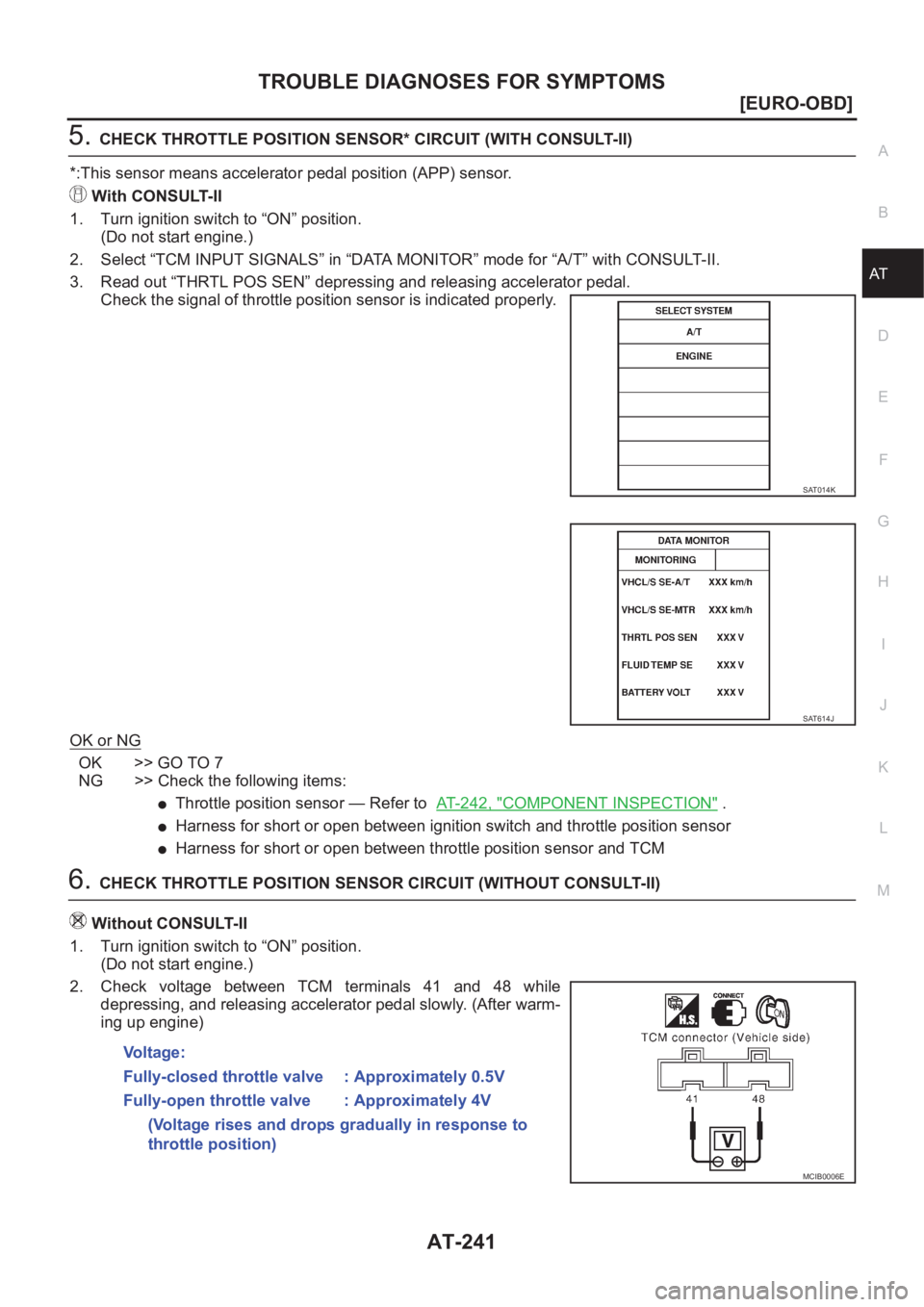

5.CHECK THROTTLE POSITION SENSOR* CIRCUIT (WITH CONSULT-II)
*:This sensor means accelerator pedal position (APP) sensor.
With CONSULT-II
1. Turn ignition switch to “ON” position.
(Do not start engine.)
2. Select “TCM INPUT SIGNALS” in “DATA MONITOR” mode for “A/T” with CONSULT-II.
3. Read out “THRTL POS SEN” depressing and releasing accelerator pedal.
Check the signal of throttle position sensor is indicated properly.
OK or NG
OK >> GO TO 7
NG >> Check the following items:
●Throttle position sensor — Refer to AT-242, "COMPONENT INSPECTION" .
●Harness for short or open between ignition switch and throttle position sensor
●Harness for short or open between throttle position sensor and TCM
6.CHECK THROTTLE POSITION SENSOR CIRCUIT (WITHOUT CONSULT-II)
Without CONSULT-II
1. Turn ignition switch to “ON” position.
(Do not start engine.)
2. Check voltage between TCM terminals 41 and 48 while
depressing, and releasing accelerator pedal slowly. (After warm-
ing up engine)
SAT014K
SAT614J
Vo l t a g e :
Fully-closed throttle valve : Approximately 0.5V
Fully-open throttle valve : Approximately 4V
(Voltage rises and drops gradually in response to
throttle position)
MCIB0006E

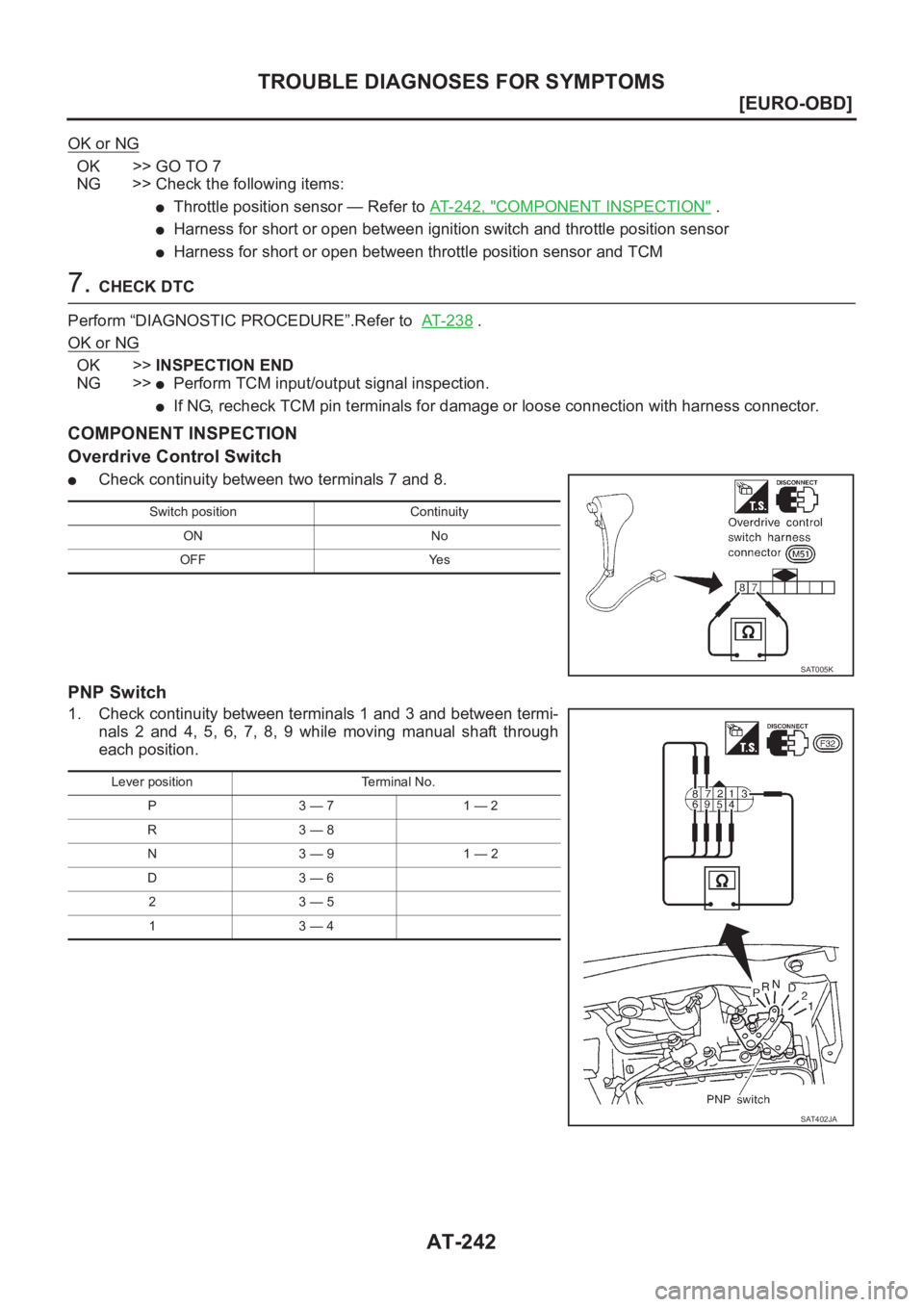

AT-242
[EURO-OBD]
TROUBLE DIAGNOSES FOR SYMPTOMS
OK or NG
OK >> GO TO 7
NG >> Check the following items:
●Throttle position sensor — Refer to AT- 2 4 2 , "COMPONENT INSPECTION" .
●Harness for short or open between ignition switch and throttle position sensor
●Harness for short or open between throttle position sensor and TCM
7. CHECK DTC
Perform “DIAGNOSTIC PROCEDURE”.Refer to AT- 2 3 8
.
OK or NG
OK >>INSPECTION END
NG >>
●Perform TCM input/output signal inspection.
●If NG, recheck TCM pin terminals for damage or loose connection with harness connector.
COMPONENT INSPECTION
Overdrive Control Switch
●Check continuity between two terminals 7 and 8.
PNP Switch
1. Check continuity between terminals 1 and 3 and between termi-
nals 2 and 4, 5, 6, 7, 8, 9 while moving manual shaft through
each position.
Switch position Continuity
ON No
OFF Yes
SAT005K
Lever position Terminal No.
P3 — 71 — 2
R3 — 8
N3 — 91 — 2
D3 — 6
23 — 5
13 — 4
SAT402JA

TROUBLE DIAGNOSES FOR SYMPTOMS
AT-243
[EURO-OBD]
D
E
F
G
H
I
J
K
L
MA
B
AT
2. If NG, check again with manual control cable disconnected from
manual shaft of A/T assembly. Refer to step 1.
3. If OK on step 2, adjust manual control cable. Refer to AT- 4 0 8 ,
"Control Cable Adjustment" .
4. If NG on step 2, remove PNP switch from A/T and check conti-
nuity of PNP switch terminals. Refer to step 1.
5. If OK on step 4, adjust PNP switch. Refer to AT- 4 0 8 , "
Park/Neu-
tral Position (PNP) Switch Adjustment" .
6. If NG on step 4, replace PNP switch.
Throttle Position Sensor*
*: This sensor means accelerator pedal position (APP) sensor.
Refer to AT-181, "
DTC P1705 ACCELERATOR PEDAL POSITION (APP) SENSOR" .
SAT089JA

AT-244
[EXC.F/EURO-OBD]

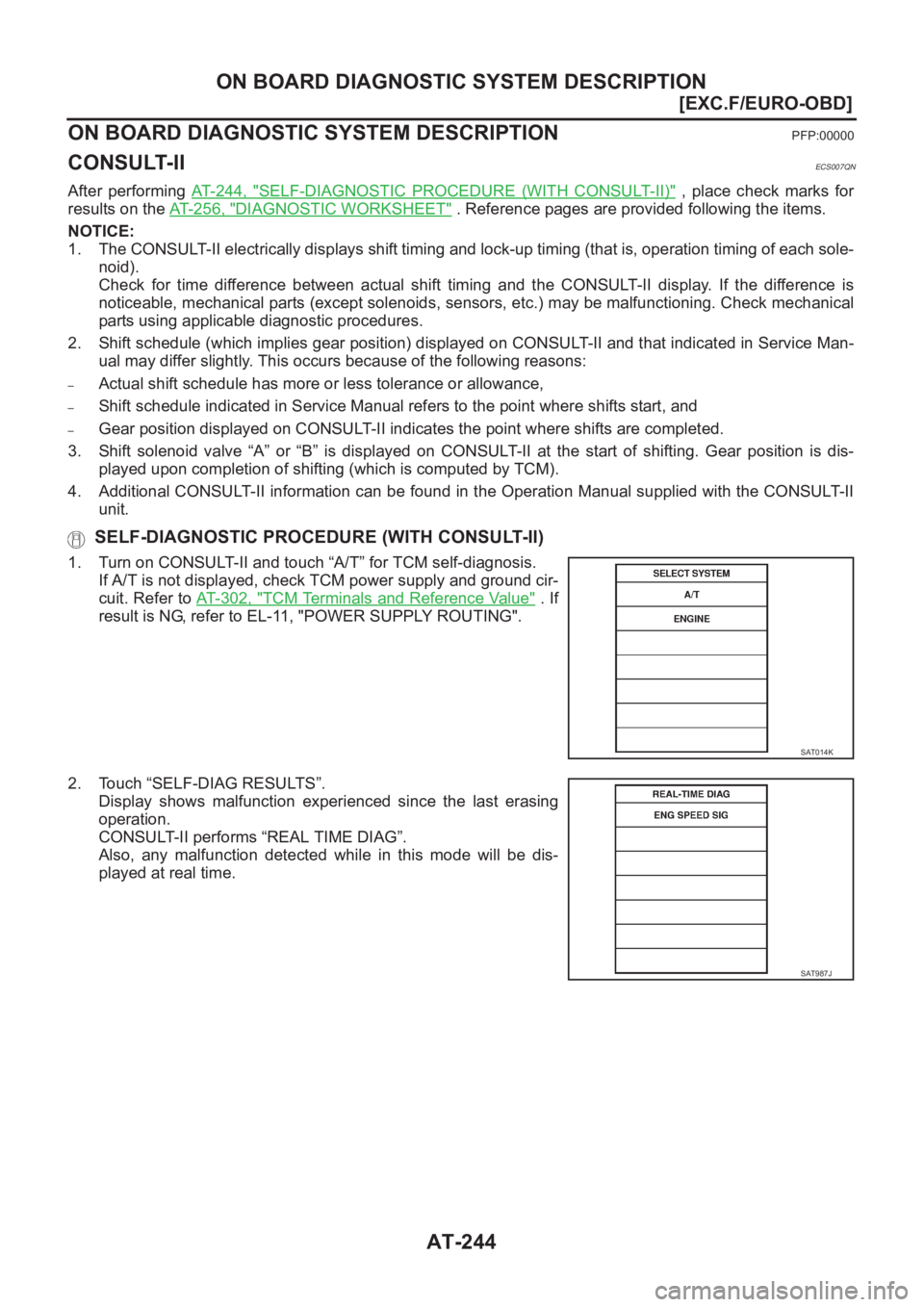

ON BOARD DIAGNOSTIC SYSTEM DESCRIPTION
[EXC.F/EURO-OBD]ON BOARD DIAGNOSTIC SYSTEM DESCRIPTIONPFP:00000
CONSULT-IIECS007QN
After performing AT- 2 4 4 , "SELF-DIAGNOSTIC PROCEDURE (WITH CONSULT-II)" , place check marks for
results on the AT-256, "
DIAGNOSTIC WORKSHEET" . Reference pages are provided following the items.
NOTICE:
1. The CONSULT-II electrically displays shift timing and lock-up timing (that is, operation timing of each sole-
noid).
Check for time difference between actual shift timing and the CONSULT-II display. If the difference is
noticeable, mechanical parts (except solenoids, sensors, etc.) may be malfunctioning. Check mechanical
parts using applicable diagnostic procedures.
2. Shift schedule (which implies gear position) displayed on CONSULT-II and that indicated in Service Man-
ual may differ slightly. This occurs because of the following reasons:
–Actual shift schedule has more or less tolerance or allowance,
–Shift schedule indicated in Service Manual refers to the point where shifts start, and
–Gear position displayed on CONSULT-II indicates the point where shifts are completed.
3. Shift solenoid valve “A” or “B” is displayed on CONSULT-II at the start of shifting. Gear position is dis-
played upon completion of shifting (which is computed by TCM).
4. Additional CONSULT-II information can be found in the Operation Manual supplied with the CONSULT-II
unit.
SELF-DIAGNOSTIC PROCEDURE (WITH CONSULT-II)
1. Turn on CONSULT-II and touch “A/T” for TCM self-diagnosis.
If A/T is not displayed, check TCM power supply and ground cir-
cuit. Refer to AT- 3 0 2 , "
TCM Terminals and Reference Value" . If
result is NG, refer to EL-11, "POWER SUPPLY ROUTING".
2. Touch “SELF-DIAG RESULTS”.
Display shows malfunction experienced since the last erasing
operation.
CONSULT-II performs “REAL TIME DIAG”.
Also, any malfunction detected while in this mode will be dis-
played at real time.
SAT014K
SAT987J
