NISSAN ALTIMA COUPE 2013 D32 / 4.G Navigation Manual

BASIC OPERATION
1. Press SETTING.
2. Select “Navigation”.
3. Select “Address Book”.
4. Select the preferred item.
Available setting items
●“Stored Location”:
Edits the information of a stored home and
Address.
“EDITING THE STORED HOME
AND ADDRESS” (page 6-14) ●
“Stored Routes”:
Edits the information of a stored route.
“EDITING THE STORED
ROUTE” (page 6-23)
● “Stored Tracking”:
Edits the information of a stored tracked
route.
“EDITING THE STORED
TRACKING” (page 6-24)
● “Avoid Area”:
Edits the information of a stored Avoid Area.
“EDITING THE AVOID AREA”
(page 6-26)
● “Delete Stored Items”:
Deletes a stored location or route.
“DELETING ALL STORED
ITEMS” (page 6-33)
● “Transfer Address Book”:
Imports or exports the data of the stored
items using a USB memory.
EDITING THE STORED HOME AND
ADDRESS
1. Select “Stored Location”.
2. Select the stored home location or pre- ferred stored address.
INFO:
Selecting “Sort” displays a list of various sort
functions.
To use the sort functions, stored locations must
be set in advance.
“MINOR ADJUSTMENT OF THE
HOME OR STORED ADDRESS”
(page 6-15)
NST0025NST0026
6-14Storing a location/route

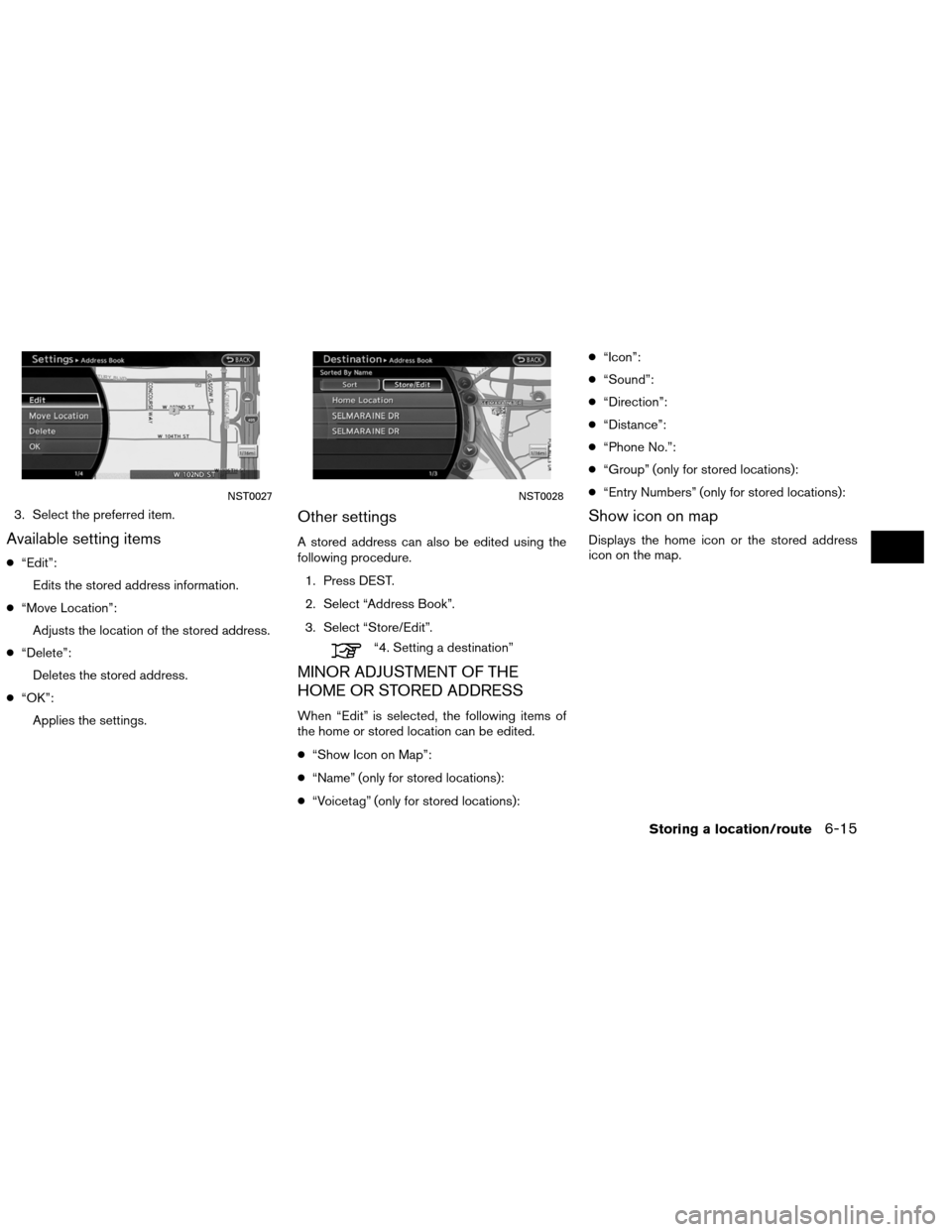

3. Select the preferred item.
Available setting items
●“Edit”:
Edits the stored address information.
● “Move Location”:
Adjusts the location of the stored address.
● “Delete”:
Deletes the stored address.
● “OK”:
Applies the settings.
Other settings
A stored address can also be edited using the
following procedure.
1. Press DEST.
2. Select “Address Book”.
3. Select “Store/Edit”.
“4. Setting a destination”
MINOR ADJUSTMENT OF THE
HOME OR STORED ADDRESS
When “Edit” is selected, the following items of
the home or stored location can be edited.
● “Show Icon on Map”:
● “Name” (only for stored locations):
● “Voicetag” (only for stored locations): ●
“Icon”:
● “Sound”:
● “Direction”:
● “Distance”:
● “Phone No.”:
● “Group” (only for stored locations):
● “Entry Numbers” (only for stored locations):
Show icon on map
Displays the home icon or the stored address
icon on the map.
NST0027NST0028
Storing a location/route6-15

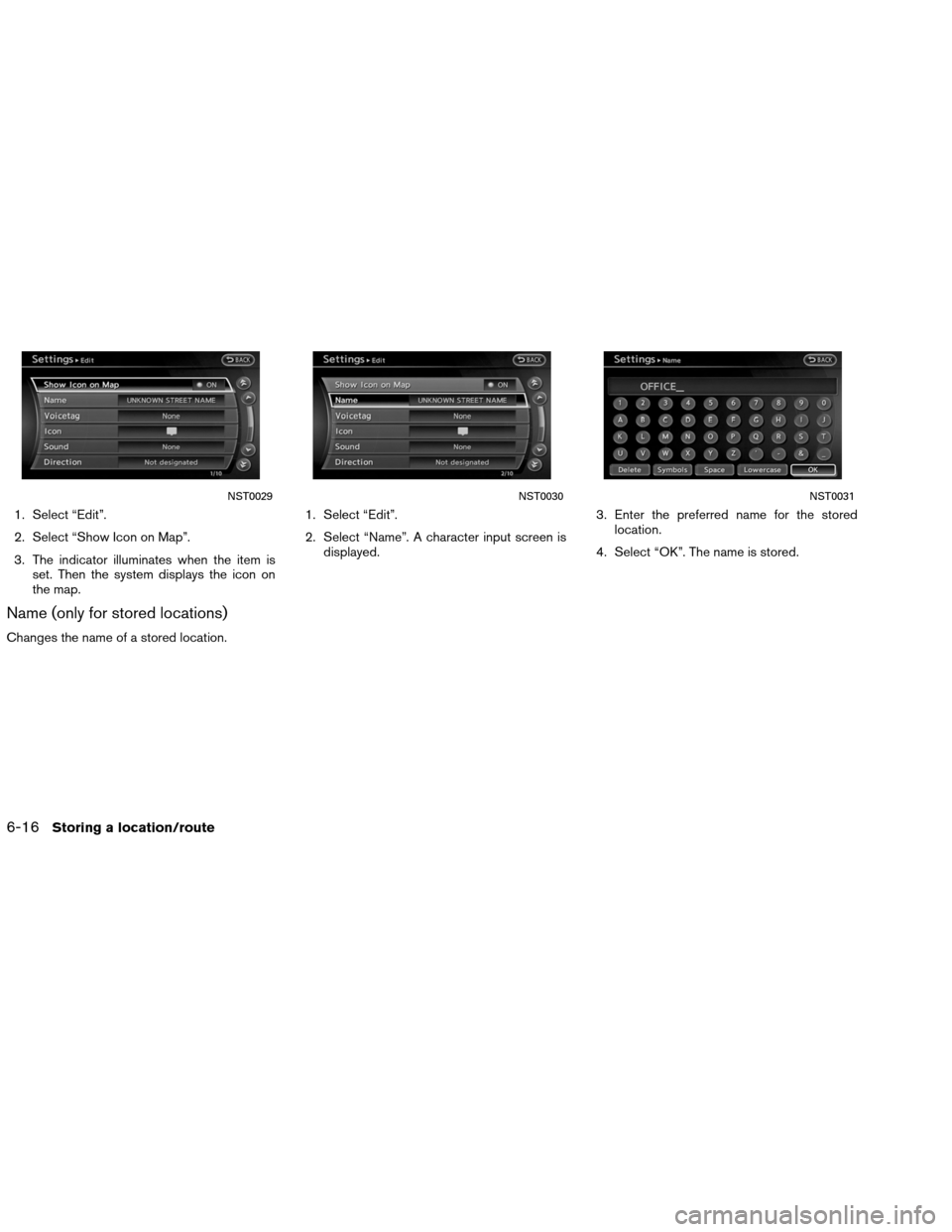

1. Select “Edit”.
2. Select “Show Icon on Map”.
3. The indicator illuminates when the item isset. Then the system displays the icon on
the map.
Name (only for stored locations)
Changes the name of a stored location. 1. Select “Edit”.
2. Select “Name”. A character input screen is
displayed. 3. Enter the preferred name for the stored
location.
4. Select “OK”. The name is stored.
NST0029NST0030NST0031
6-16Storing a location/route

Voicetag (only for stored locations)
1. Select “Voicetag”2. Select “Store”.
3. A beep sounds, and the system enters the
voice command reception mode.
4. Speak the name/word to be used as Voicetag.
5. The Voicetag is stored, provided the system recognizes it.
INFO:
● A Voicetag cannot be stored, overwritten or
played while driving.
● The Address Book can store up to 100
Voicetags.
● Select Playto confirm the stored Voicetag.
● Select Delete to delete a stored Voicetag.
If a Voicetag is already stored, select Restore
to re-record the Voicetag.
NST0032NST0033NST0034
Storing a location/route6-17

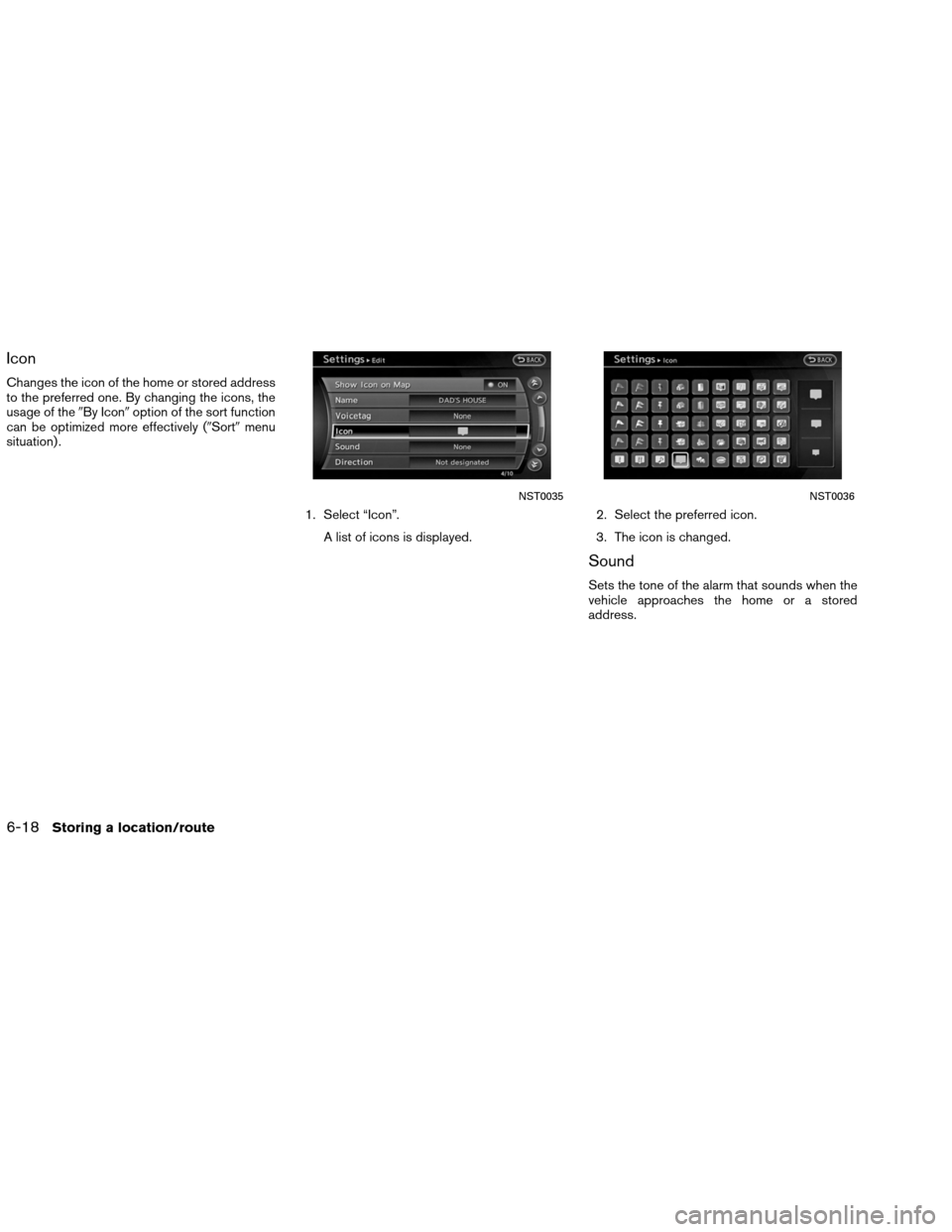

Icon
Changes the icon of the home or stored address
to the preferred one. By changing the icons, the
usage of theBy Iconoption of the sort function
can be optimized more effectively (Sort menu
situation) .
1. Select “Icon”.A list of icons is displayed. 2. Select the preferred icon.
3. The icon is changed.
Sound
Sets the tone of the alarm that sounds when the
vehicle approaches the home or a stored
address.
NST0035NST0036
6-18Storing a location/route

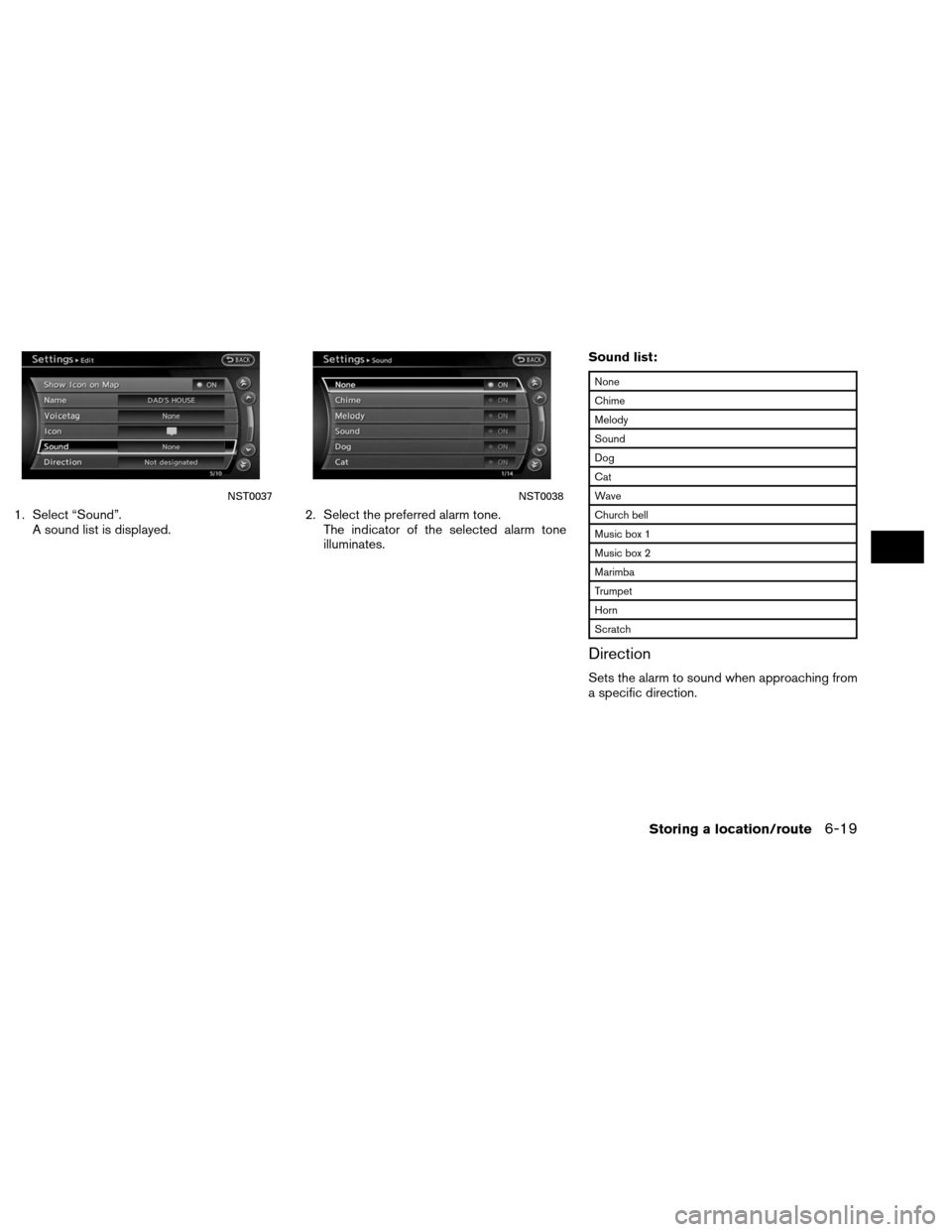

1. Select “Sound”.A sound list is displayed. 2. Select the preferred alarm tone.
The indicator of the selected alarm tone
illuminates. Sound list:
None
Chime
Melody
Sound
Dog
Cat
Wave
Church bell
Music box 1
Music box 2
Marimba
Trumpet
Horn
Scratch
Direction
Sets the alarm to sound when approaching from
a specific direction.
NST0037NST0038
Storing a location/route6-19

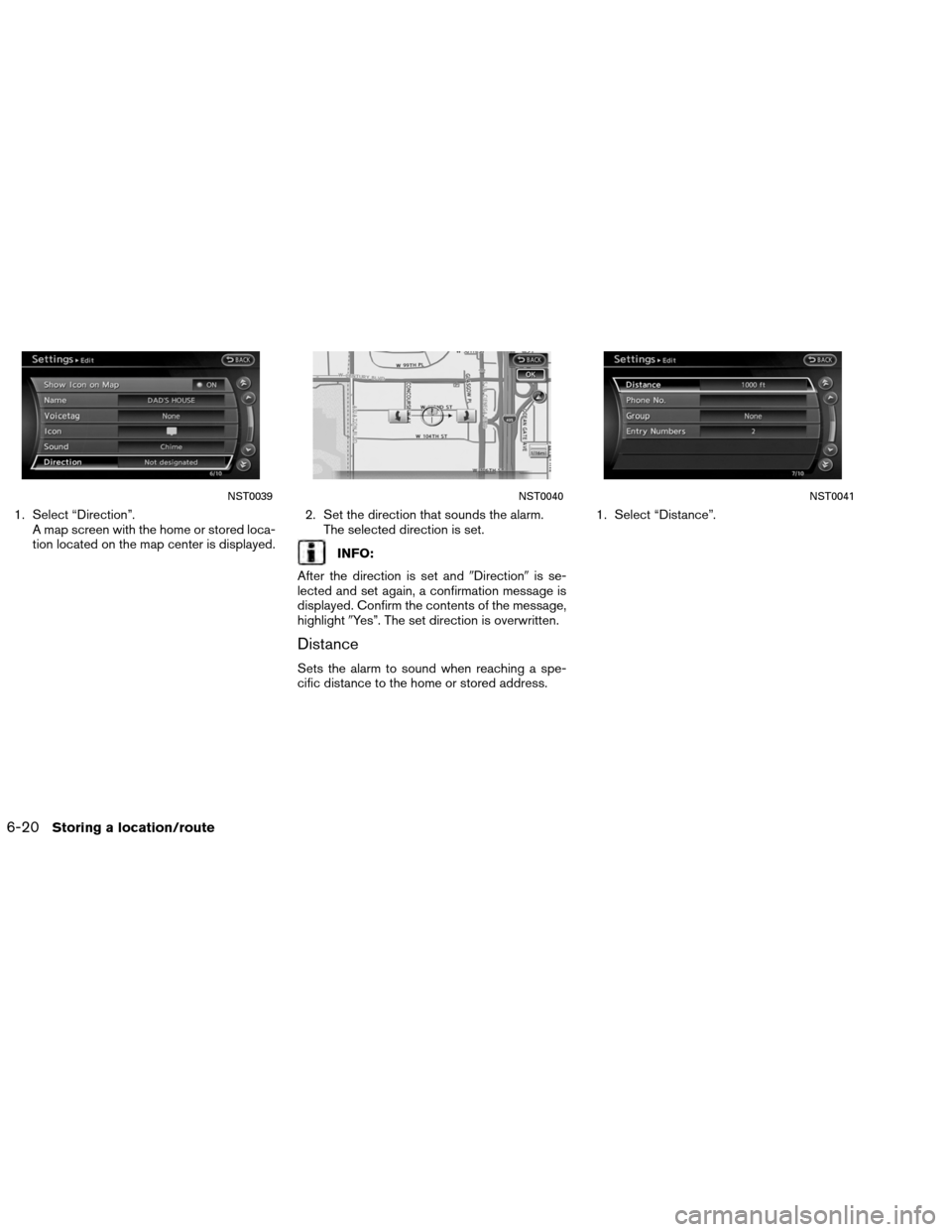

1. Select “Direction”.A map screen with the home or stored loca-
tion located on the map center is displayed. 2. Set the direction that sounds the alarm.
The selected direction is set.
INFO:
After the direction is set and Directionis se-
lected and set again, a confirmation message is
displayed. Confirm the contents of the message,
highlight Yes”. The set direction is overwritten.
Distance
Sets the alarm to sound when reaching a spe-
cific distance to the home or stored address. 1. Select “Distance”.
NST0039NST0040NST0041
6-20Storing a location/route

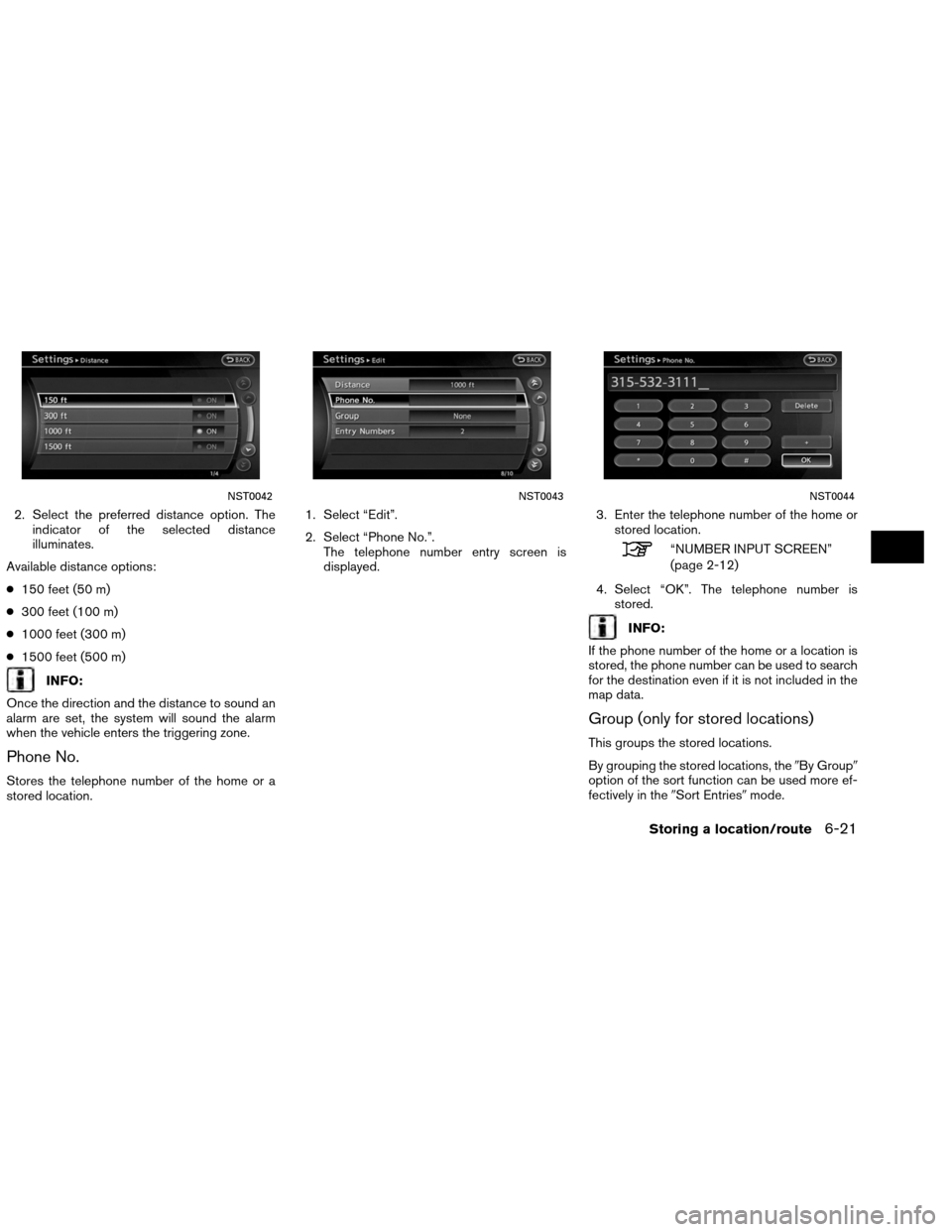

2. Select the preferred distance option. Theindicator of the selected distance
illuminates.
Available distance options:
● 150 feet (50 m)
● 300 feet (100 m)
● 1000 feet (300 m)
● 1500 feet (500 m)
INFO:
Once the direction and the distance to sound an
alarm are set, the system will sound the alarm
when the vehicle enters the triggering zone.
Phone No.
Stores the telephone number of the home or a
stored location. 1. Select “Edit”.
2. Select “Phone No.”.
The telephone number entry screen is
displayed. 3. Enter the telephone number of the home or
stored location.
“NUMBER INPUT SCREEN”
(page 2-12)
4. Select “OK”. The telephone number is stored.
INFO:
If the phone number of the home or a location is
stored, the phone number can be used to search
for the destination even if it is not included in the
map data.
Group (only for stored locations)
This groups the stored locations.
By grouping the stored locations, the By Group
option of the sort function can be used more ef-
fectively in the Sort Entriesmode.
NST0042NST0043NST0044
Storing a location/route6-21

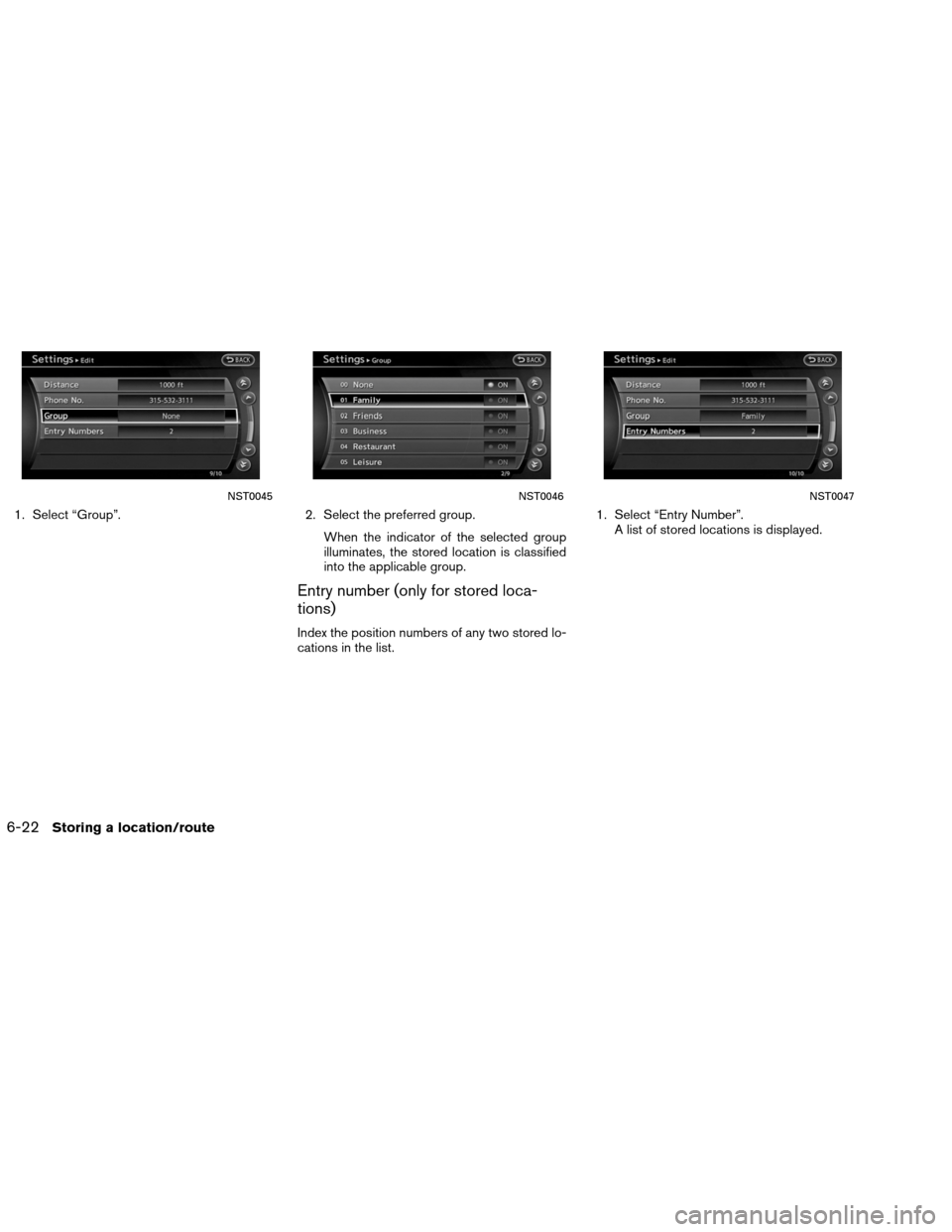

1. Select “Group”.2. Select the preferred group.
When the indicator of the selected group
illuminates, the stored location is classified
into the applicable group.
Entry number (only for stored loca-
tions)
Index the position numbers of any two stored lo-
cations in the list. 1. Select “Entry Number”.
A list of stored locations is displayed.
NST0045NST0046NST0047
6-22Storing a location/route

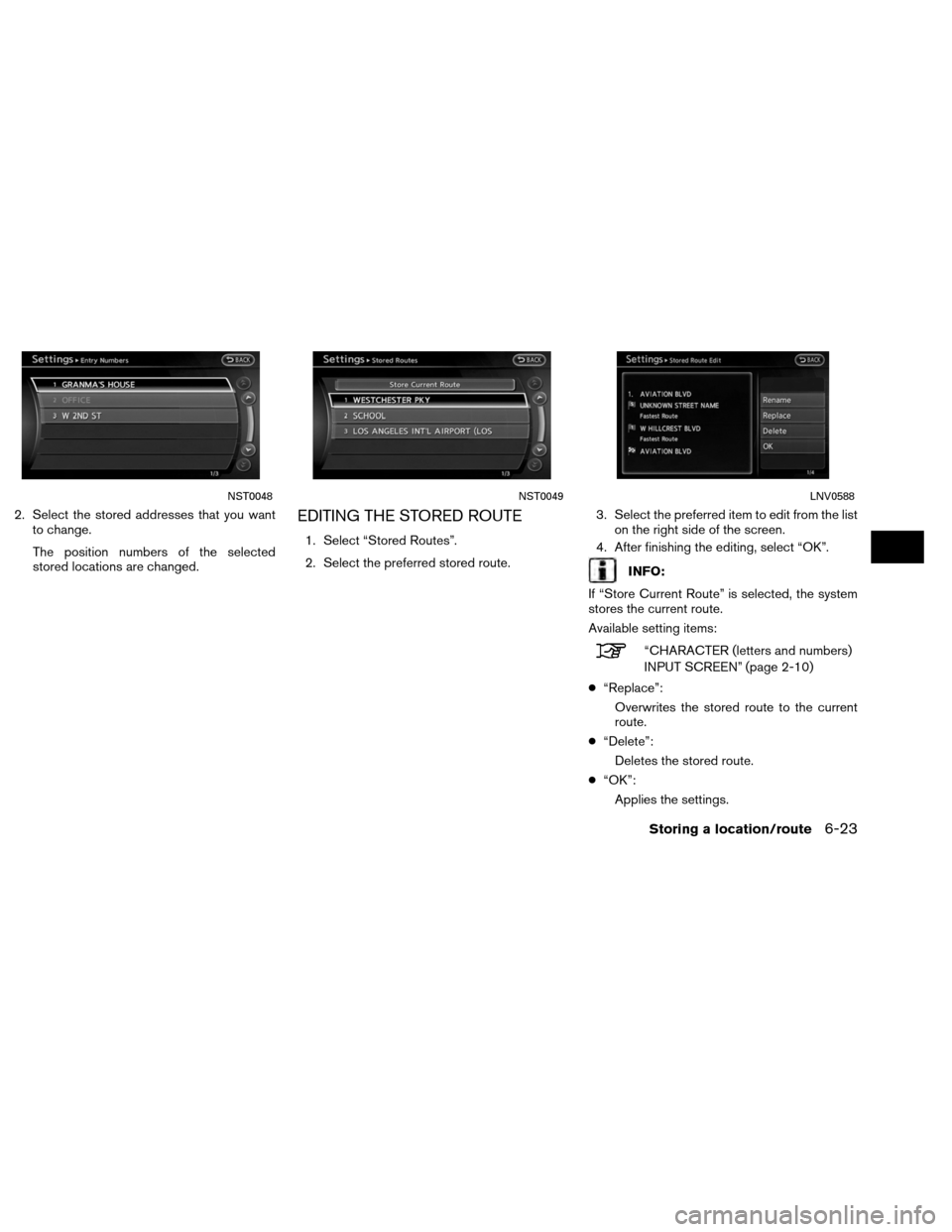

2. Select the stored addresses that you wantto change.
The position numbers of the selected
stored locations are changed.EDITING THE STORED ROUTE
1. Select “Stored Routes”.
2. Select the preferred stored route. 3. Select the preferred item to edit from the list
on the right side of the screen.
4. After finishing the editing, select “OK”.
INFO:
If “Store Current Route” is selected, the system
stores the current route.
Available setting items:
“CHARACTER (letters and numbers)
INPUT SCREEN” (page 2-10)
● “Replace”:
Overwrites the stored route to the current
route.
● “Delete”:
Deletes the stored route.
● “OK”:
Applies the settings.
NST0048NST0049LNV0588
Storing a location/route6-23
