NISSAN ALTIMA COUPE 2013 D32 / 4.G Navigation Manual

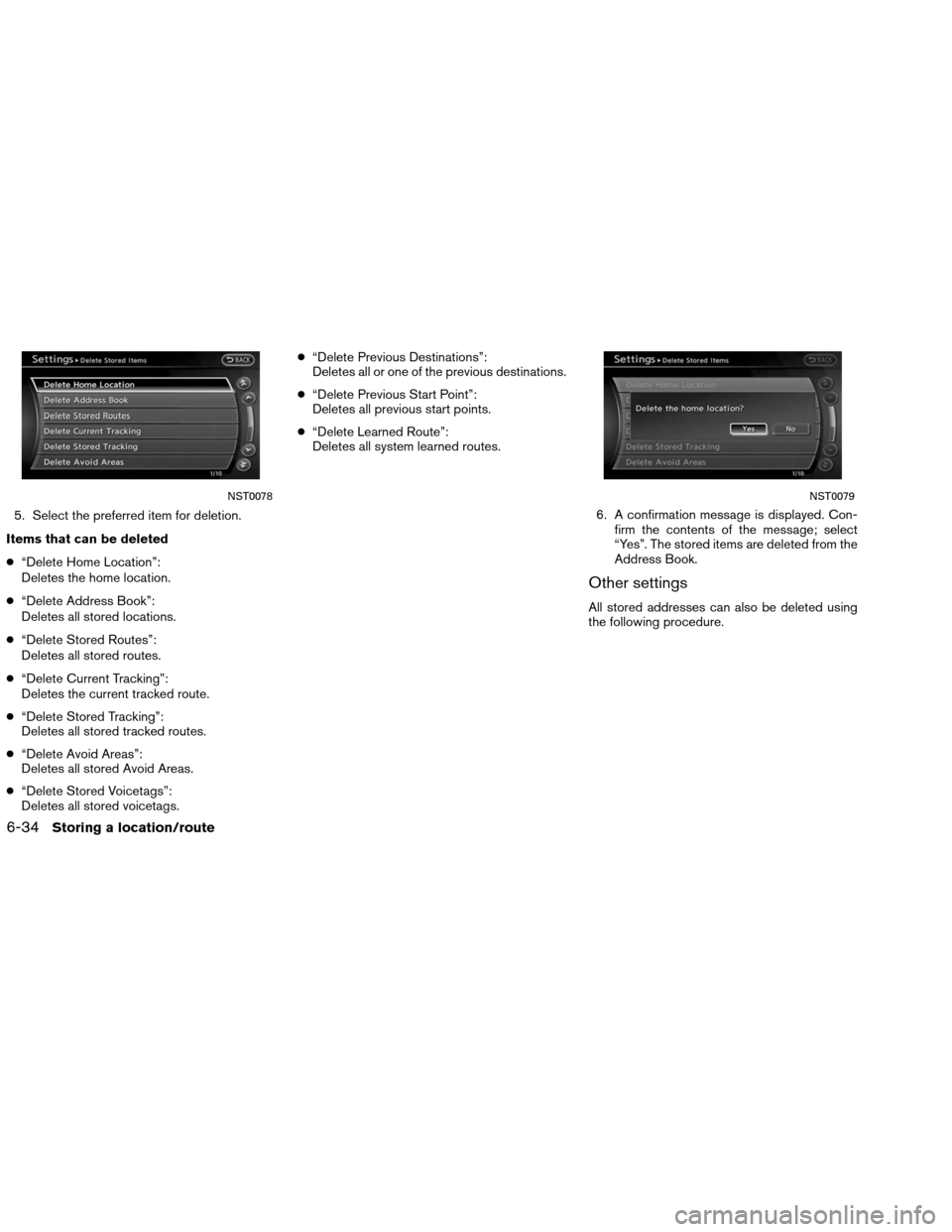

5. Select the preferred item for deletion.
Items that can be deleted
● “Delete Home Location”:
Deletes the home location.
● “Delete Address Book”:
Deletes all stored locations.
● “Delete Stored Routes”:
Deletes all stored routes.
● “Delete Current Tracking”:
Deletes the current tracked route.
● “Delete Stored Tracking”:
Deletes all stored tracked routes.
● “Delete Avoid Areas”:
Deletes all stored Avoid Areas.
● “Delete Stored Voicetags”:
Deletes all stored voicetags. ●
“Delete Previous Destinations”:
Deletes all or one of the previous destinations.
● “Delete Previous Start Point”:
Deletes all previous start points.
● “Delete Learned Route”:
Deletes all system learned routes.
6. A confirmation message is displayed. Con-firm the contents of the message; select
“Yes”. The stored items are deleted from the
Address Book.
Other settings
All stored addresses can also be deleted using
the following procedure.
NST0078NST0079
6-34Storing a location/route

1. Press DEST.
2. Select “Address Book”.
3. Select “Store/Edit”.
4. Select “Delete All Addressbook Entries”.
“4. Setting a destination”
INFO:
This procedure applies only for deleting a stored
home or address. A stored route, tracking or
avoid area cannot be deleted using this
procedure. The information of the stored home and ad-
dresses can be exported and imported using a
USB memory.
1. Insert a USB memory device into the vehi-cle’s USB port and press SETTING.
INFO:
Refer to the vehicle Owner’s Manual for the lo-
cation of the USB connector. 2. Select “Navigation”.
NST0080NST0075
TRANSFERRING INFORMATION
TO/FROM THE ADDRESS BOOK
Storing a location/route6-35

3. Select “Address Book”.4. Select “Transfer Address Book”.5. Select “Download Address Book to USB”
or “Download Address Book from USB”.
NST0076NST0081NST0082
6-36Storing a location/route

6. Select a stored item. The “ON” indicatorilluminates. 7. Select “Download”.
INFO:
● Do not remove the USB memory until
the system completely imports or ex-
ports the data.INFO:
If the USB memory already has the data for a
stored address, a confirmation message is
displayed. Once overwritten, the original data
cannot be recovered.
NST0083NST0084NST0085
Storing a location/route6-37

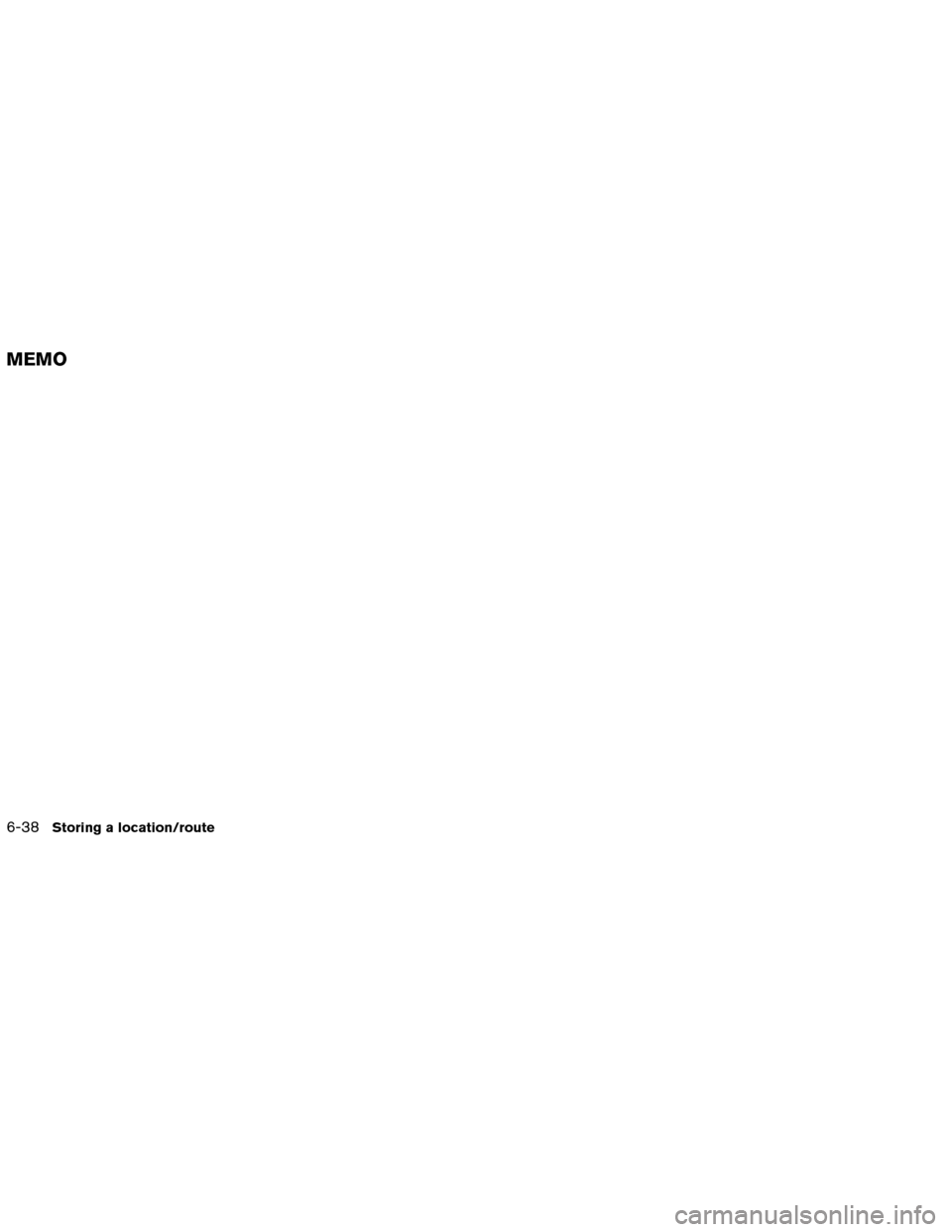

6-38Storing a location/route
MEMO

7 Viewing technical information
Information screen.................................7-2
Basic operation ................................7-2
Viewing information about current vehicle location .....7-3
Basic operation ................................7-3
Viewing available traffic information ..................7-4
Basic operation ................................7-4
Info on route ...................................7-5
Nearby traffic info. . . ............................7-6
Display urgent traffic information .................7-7
Traffic information on map .......................7-7
Traffic information settings .......................7-9 Viewing available weather information
...............7-10
Displaying weather information screen ...........7-11
Destination weather on suggested route
screen ....................................... 7-21
Automatically display warning/watches ...........7-21
Map update ...................................... 7-23
Viewing navigation system version information .......7-24
Basic operation ............................... 7-24
Viewing GPS current location information ...........7-25
Basic operation ............................... 7-25

This screen sets or displays various information
that is helpful for using the vehicle safely and
comfortably.
Available items include the vehicle information,
Traffic Info. setup, current location information,
GPS information, Voice recognition list and map
version.
INFO:
A NavTraffic subscription is necessary to view
Traffic Info.
A NavWeatherXM subscription is necessary to
view Weather Info.
BASIC OPERATION
1. Press INFO.
2. Select the preferred item.
Available items
● “Where am I?”:
Displays information regarding the current
vehicle location.
“VIEWING INFORMATION
ABOUT CURRENT VEHICLE
LOCATION” (page 7-3)
● “Traffic Info”:
Allows Traffic Info setup.
“VIEWING AVAILABLE TRAFFIC
INFORMATION” (page 7-4) ●
“Weather Info”:
Displays weather information.
“VIEWING AVAILABLE
WEATHER INFORMATION”
(page 7-10)
● “Map Update”:
Display the map version and enable updat-
ing of the map data.
“MAP UPDATE” (page 7-23)
● “Navigation Version”:
Displays the current navigation system
version.
“VIEWING NAVIGATION SYS-
TEM VERSION INFORMATION”
(page 7-24)
● “GPS Position”:
Displays GPS information regarding the
current vehicle location.
“VIEWING GPS CURRENT
LOCATION INFORMATION”
(page 7-25)
● “Voice Recognition”:
Displays the voice recognition list.
“9. Voice recognition”
LNV2009
INFORMATION SCREEN
7-2Viewing technical information

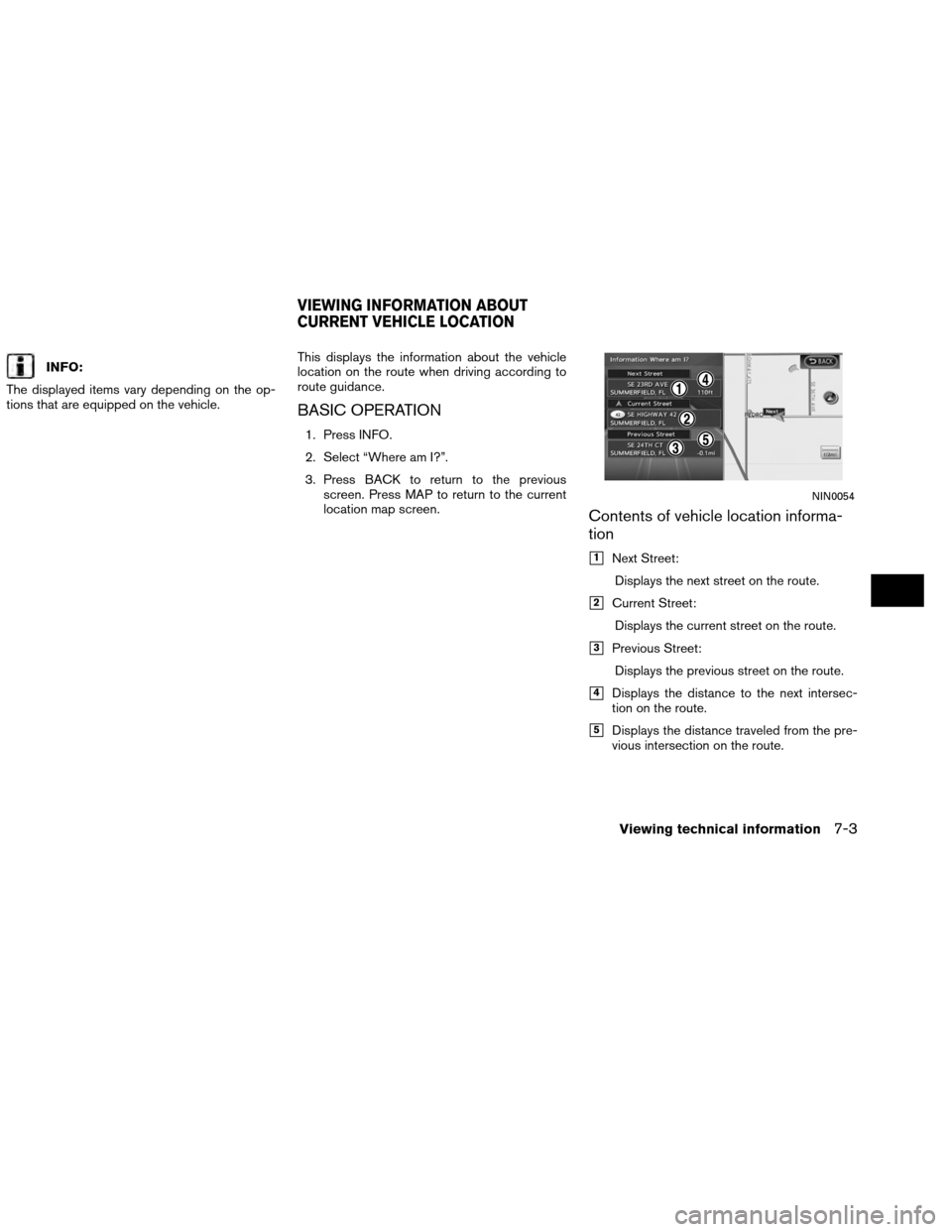

INFO:
The displayed items vary depending on the op-
tions that are equipped on the vehicle. This displays the information about the vehicle
location on the route when driving according to
route guidance.
BASIC OPERATION
1. Press INFO.
2. Select “Where am I?”.
3. Press BACK to return to the previous
screen. Press MAP to return to the current
location map screen.
Contents of vehicle location informa-
tion
1Next Street:
Displays the next street on the route.
2Current Street:Displays the current street on the route.
3Previous Street:Displays the previous street on the route.
4Displays the distance to the next intersec-
tion on the route.
5Displays the distance traveled from the pre-
vious intersection on the route.
NIN0054
VIEWING INFORMATION ABOUT
CURRENT VEHICLE LOCATION
Viewing technical information7-3

NavTraffic information is a subscription service
offered by SiriusXM Satellite Radio.
This service provides real-time information re-
garding traffic flow, accidents, road construction
and other incidents, where available.
NavTraffic combines information from commer-
cial and public traffic data providers including
government departments of transportation,
police, emergency services, road sensors, cam-
eras and aircraft reports. The traffic information
is broadcast to the vehicle by the SiriusXM
satellites. Available traffic information on the
route the driver selected is shown on the naviga-
tion screen so traffic conditions between you
and the destination are known. Three types of
real-time traffic information for major roadways
are shown on the navigation system:
●Unscheduled traffic data for example, acci-
dents and disabled vehicles.
● Scheduled traffic data, for example road con-
struction and road closures.
● Traffic flow information (rate of speed data) .
mWARNING
NavTraffic information is not a substi-
tute for attentive driving. Traffic condi-
tions change constantly and emer-
gency situations can arise without
warning. Relying only on NavTraffic in-
formation may lead to a collision and
could result in serious personal injury.
NOTE:
Flow information is provided only for
roads equipped with traffic sensors and is
not available in all markets covered by the
service. Flow data may not be available on
portions of a road that is under
construction.
NavTraffic information is available in limited
markets. To subscribe or to check if this service
is available in the area:
call 1-866–635–2349 or see
www.siriusxm.com/navtraffic
INFO:
If a contract is not completed for NavTraffic traf-
fic information service, a message appears, and
it will not be possible to check the information on
the traffic information system.
BASIC OPERATION
1. Press INFO.
2. Select “Traffic Info”.
3. Press BACK to return to the previous screen.
Press MAP to return to the current location
map screen.
Available items
● “Info on Route”:
Displays the list of traffic information found
on the recommended route from the current
vehicle location to the destination.
● “Nearby Traffic Info”:
Displays the list of traffic information around
the current vehicle location.
LNV2010
VIEWING AVAILABLE TRAFFIC IN-
FORMATION
7-4Viewing technical information

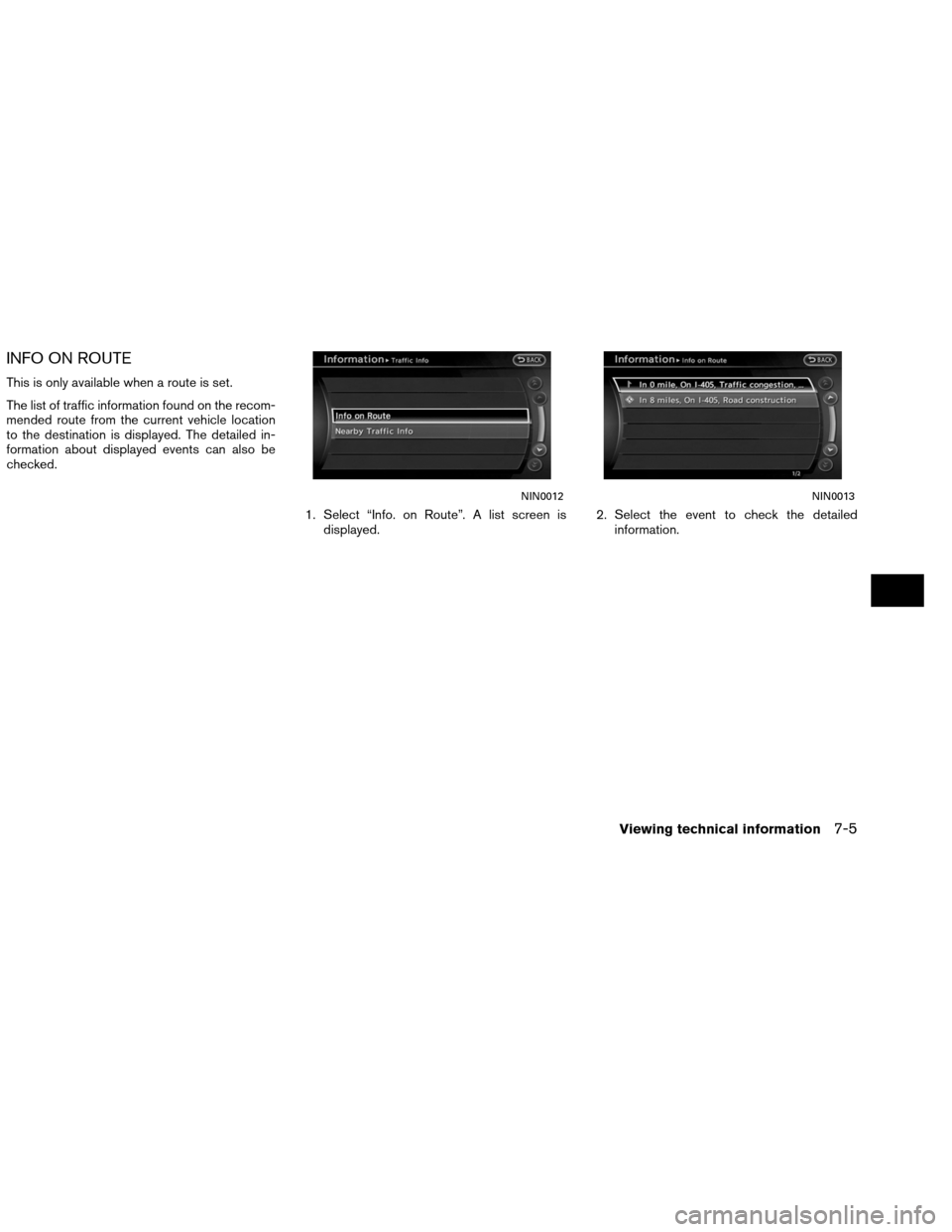

INFO ON ROUTE
This is only available when a route is set.
The list of traffic information found on the recom-
mended route from the current vehicle location
to the destination is displayed. The detailed in-
formation about displayed events can also be
checked.1. Select “Info. on Route”. A list screen isdisplayed. 2. Select the event to check the detailed
information.
NIN0012NIN0013
Viewing technical information7-5
