NISSAN ALTIMA HYBRID 2008 L32A / 4.G First Responders Guide

NISSAN ALTIMA HYBRID 2008 L32A / 4.G First Responders Guide https://www.carmanualsonline.info/img/5/219/w960_219-0.png NISSAN ALTIMA HYBRID 2008 L32A / 4.G First Responders Guide

Page 11 of 27

NISSAN ALTIMA HYBRID 2008 L32A / 4.G First Responders Guide - 11-
 DANGER:

Page 12 of 27

NISSAN ALTIMA HYBRID 2008 L32A / 4.G First Responders Guide - 12-

Page 13 of 27

NISSAN ALTIMA HYBRID 2008 L32A / 4.G First Responders Guide - 13-
Supplemental Restraint System (SRS) and Seat Belt Pre-tensioners
1. Supplemental curtain side-impact
air bags
2. Supplementalseat-mountedside-
impact air bags
3.Supplemental front-impact air
bag

Page 14 of 27

NISSAN ALTIMA HYBRID 2008 L32A / 4.G First Responders Guide - 14-
Emergency Response
On arrival, first responders should follow their standard operating procedures for vehicle incidents.
Emergencies involving the Altima Hybrid may be handled like other automob

Page 15 of 27

NISSAN ALTIMA HYBRID 2008 L32A / 4.G First Responders Guide - 15-
Vehicle Cut Sheet

Page 16 of 27

NISSAN ALTIMA HYBRID 2008 L32A / 4.G First Responders Guide - 16-
NOTE:
Repositioningthe power seats and operating the power trunk release must be done prior to12 volt battery
disconnection.
Extrication
1. Immobilize the vehicle
a.Move the shift lever to the P

Page 17 of 27

NISSAN ALTIMA HYBRID 2008 L32A / 4.G First Responders Guide - 17-
4. Open the trunk using one of the following methods:

Page 18 of 27

NISSAN ALTIMA HYBRID 2008 L32A / 4.G First Responders Guide - 18-

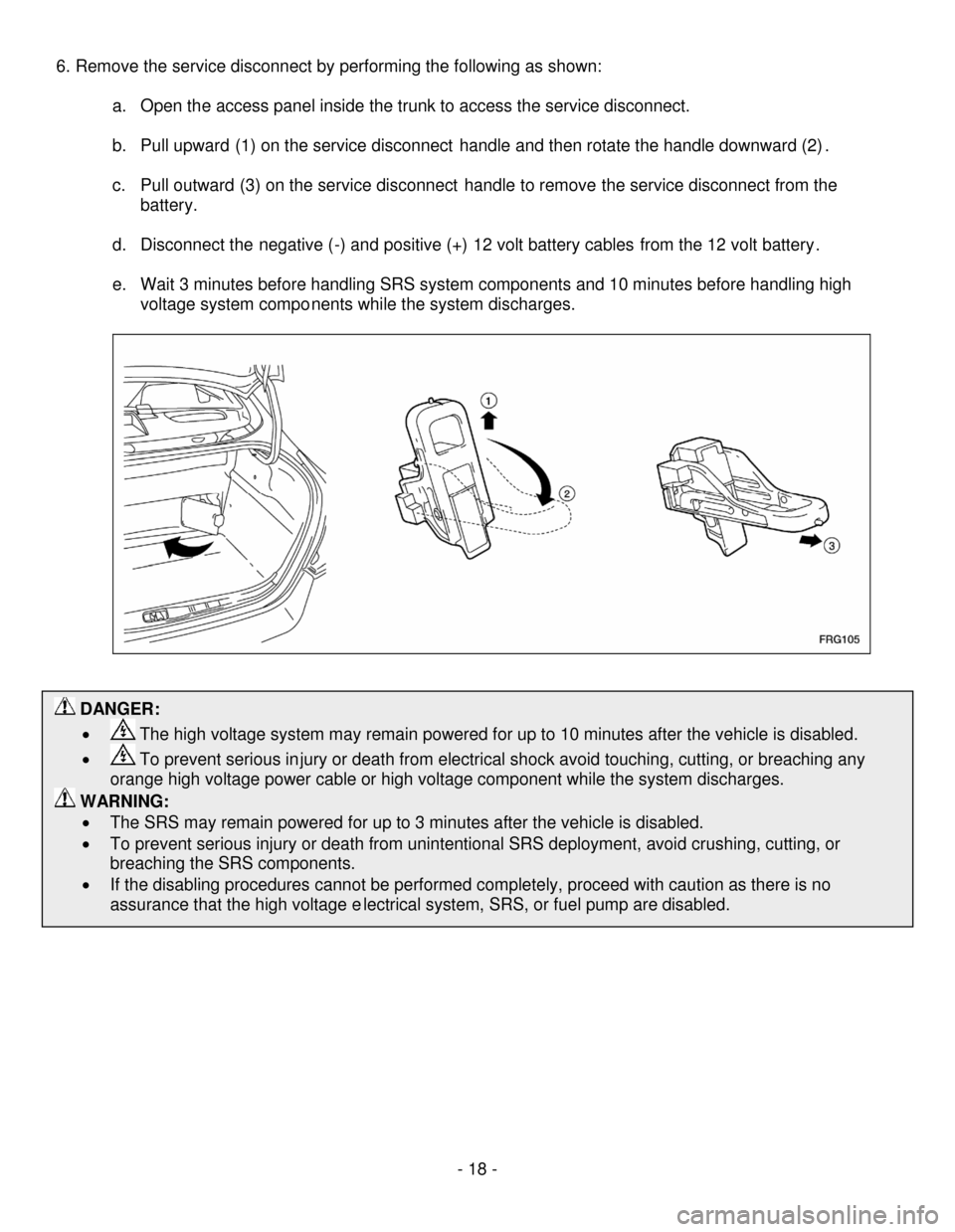

DANGER:

Page 19 of 27

NISSAN ALTIMA HYBRID 2008 L32A / 4.G First Responders Guide - 19-
AlternativeHigh Voltage SystemShut Down Procedure
NOTE:
If the service disconnect procedure cannot be performed, the following alternative shut down procedure is
acceptable.
A.Locate the fuse/fu

Page 20 of 27

NISSAN ALTIMA HYBRID 2008 L32A / 4.G First Responders Guide - 20-
7. Accessingtheoccupants
