NISSAN ALTIMA HYBRID 2010 L32A / 4.G Navigation Manual

The navigation system starts when the ignition
switch is turned to the ACC or ON position.
NOTE:
Do not keep the navigation system on with
the engine stopped. Doing so may dis-
charge the vehicle battery. When you use
the navigation system, always keep the en-
gine running.
To ensure safe driving, some functions cannot be
operated or have limited operation while driving.Park the vehicle in a safe location and then oper-
ate the navigation system.
NGT0019
STARTING THE SYSTEM FUNCTIONS DISABLED WHILE DRIV-
ING
2-4Getting started

MENU SCREENS AND THEIR PUR-
POSES
Press the DEST, ROUTE, INFO,or SET-
TING button to display the corresponding menu
screen.
How to select a menu item
Example: DEST screen
1. Select the preferred menu item by touching
the corresponding key on the screen. The
next screen is displayed.
2. Press BACK to return to the previous
screen without applying any changes.
3. Press MAP to return to the current location
map screen without applying any changes.
INFO:
●Depending on the menu selected, pressing
MAP may not return the display to the current
location map screen.
●An item can also be selected by moving the
steering wheel switch up and down.
USING CONTROLS TO ADJUST
VALUES, LEVELS, ETC.
There are two main methods to control the navi-
gation system: the touch panel and the steering
wheel switch. Use these controls to adjust the
volume of phone and voice guidance, the display
brightness, etc.
How to adjust
1. Select the preferred setting item and press
SELECT. The color of the corresponding
adjustment item changes.
2. Use one of the controls to increase or de-
crease the indicated value.
3. Press SELECT or BACK to apply the
setting.
INFO:
●The volume of phone and voice guidance, the
display brightness, etc. can be adjusted by
moving the ENTER switch on the steering
wheel up and down.
●These same adjustments can also be per-
formed using the touch panel operation.
“Adjusting the volume and oth-
ers” (page 2-8)
START MENU
While in the map view, the start menu can be
displayed using the steering wheel switch.
MENU SCREEN TYPES AND HOW TO
OPERATE
Getting started2-5

1. Press and hold ENTER on the steering
wheel switch.
2. Select the preferred item and push ENTER.
INFO:
ENTER on the steering wheel switch can be
used to display the start menu only when the
map or status screen is displayed.
Available items
●“Destination”:
Displays the destination screen. It is the same
screen that appears when DEST is pushed.
“4. Setting a destination”●“Route”:
Displays the route screen. It is the same
screen that appears when ROUTE is pushed.
“5. Route guidance”
●“Info”:
Displays the information screen. It is the same
screen that appears when INFO is pushed.
“7. Viewing technical information”
●“Settings”:
Displays the settings screen. It is the same
screen that appears when SETTING is
pushed.
“8. Other settings”
NGT0023
2-6Getting started

LIST SCREEN
After searching for a point of interest, a list
screen is displayed.
Depending on the list displayed, it can be sorted.
Items displayed in a list:
1Select the preferred item from the list. If a lo-
cation or facility name is not completely dis-
played (due to length) , highlight the item
with the steering wheel switch to display the
hidden part of the name.
2Distance from the current location
3Direction to the point of interest
4If the entire list cannot be displayed on the
screen, the system displays the total number
of items in the list and the entry number of
the selected item. Touch the page down ar-
row to scroll the list.
5An item that starts with the selected letter
will be displayed at the top of the list.
6Select SORT to sort the list in the original
order.
7When the list is sorted by the shortest
distance, the selected location can be con-
firmed in the preview on the right side of the
screen.
8Select REFINE to modify search conditions.
NGT0024
Getting started2-7

Here, the operation examples performed with the
touch panel operation are described.
SELECTING THE ITEM
When the item is touched, the next screen is
displayed.
ADJUSTING THE VOLUME AND
OTHERS
Touch “+” or “-” located on the right and left of
the bar graph to perform the adjustment.
NGT0025NGT0026
TOUCH SCREEN OPERATION
2-8Getting started

SCROLLING THE MESSAGE OR
LIST
Touch the up arrow to scroll up the page one
item at a time, or touch the double up arrow to
scroll up an entire page.
Touch the down arrow to scroll down the page
one item at a item , or touch the double down ar-
row to scroll down an entire page.
INPUTTING LETTERS AND NUM-
BERS
1. Touch the letter or number.
2. To delete a character, touch “Delete”. Touch
and hold “Delete” to delete all of the
characters.
CHARACTER (letters and numbers)
INPUT SCREEN
When setting a destination, searching for a facil-
ity or editing the stored locations, etc. alphanu-
meric characters must be entered into the
system.
NGT0027NGT0028
HOW TO INPUT LETTERS AND NUM-
BERS
Getting started2-9

1. Use the touch panel to select a character on
the displayed keyboard.2. Select the desired character. The high-
lighted character is entered.3. Select “Delete” to delete the last character
entered.
Touch and hold “Delete” to delete all the
characters entered.
Select “Space” to enter a space.
LNV0564LNV0565LNV0566
2-10Getting started

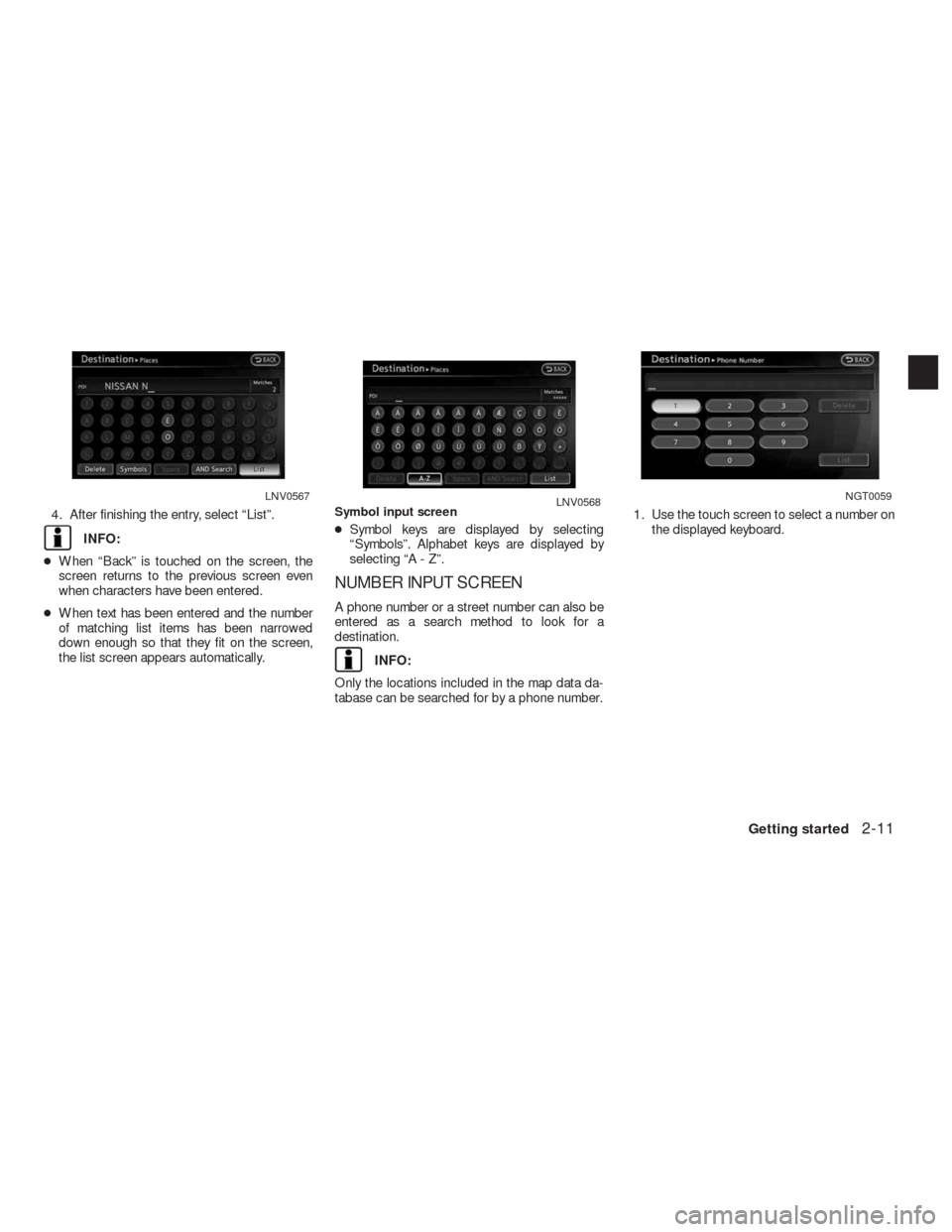

4. After finishing the entry, select “List”.
INFO:
●When “Back” is touched on the screen, the
screen returns to the previous screen even
when characters have been entered.
●When text has been entered and the number
of matching list items has been narrowed
down enough so that they fit on the screen,
the list screen appears automatically.●Symbol keys are displayed by selecting
“Symbols”. Alphabet keys are displayed by
selecting “A - Z”.
NUMBER INPUT SCREEN
A phone number or a street number can also be
entered as a search method to look for a
destination.
INFO:
Only the locations included in the map data da-
tabase can be searched for by a phone number.1. Use the touch screen to select a number on
the displayed keyboard.
LNV0567
Symbol input screenLNV0568NGT0059
Getting started2-11

2. Select “Delete” to delete the last number
entered.
Touch and hold “Delete” to delete all the
numbers entered.3. After finishing the entry, select “List”.
INFO:
●When “Back” is touched on the screen, the
screen returns to the previous screen even
when numbers have been entered.Select the map menu key while the current loca-
tion map screen or a scrolled map screen is dis-
played to display the menu corresponding to that
screen.
This menu can be used to access helpful func-
tions quickly, such as setting a destination and
searching for points of interest nearby.
“Menu screen types and how to oper-
ate” (page 2-5)
NGT0061NGT0062
MAP MENU SCREEN
2-12Getting started

CURRENT LOCATION MAP
SCREEN
If the “Map Menu” key is touched while the cur-
rent location map screen is displayed, the follow-
ing options are available.
●“Store Location”:
Store the current vehicle location in the Ad-
dress Book. The stored location can be re-
trieved as necessary to set it as a destination
(waypoint) .
”Storing a location” (page 6-2)
●“Nearby Places”:
Search for points of interest near the current
vehicle location, such as restaurants and gas
stations, etc.
“Finding a nearby place”
(page 4-7)●“Map View”:
Perform map operations such as the switch-
ing of map type and the setting of map orien-
tation and scale.
“Map settings” (page 3-2)
●“Map Icons”:
Display certain points of interest near the cur-
rent vehicle location on the map, such as res-
taurants and gas stations, etc.
“Displaying map icons”
(page 3-21)
●“Store Tracking”:
Store in the Address Book the route travelled
from the starting point to the current location.
“Storing a tracked route”
(page 6-9)
SCROLLED LOCATION MAP
SCREEN
If the “Map Menu” key is touched while a scrolled
map screen is displayed, the following options
are available.
●“New Dest”:
Set the destination to the map location where
the screen was touched. If a destination is al-
ready set, the location will be set as the new
destination.
“Setting a point on the map”
(page 4-32)
NGT0029NGT0030
Getting started2-13
