NISSAN ALTIMA HYBRID 2010 L32A / 4.G Navigation Manual
Page 21 of 312
●“Add to Route”:
Set the map location where the screen was
touched to set a destination or a waypoint.
This is available only when the suggested
route is already set.
“Setting a destination or waypoint”
Search for points of interest near the map lo-
cation where the screen was touched and set
them as a destination or waypoint.
Use the same search method as the one for
Finding a nearby place”
Store in the address book the map location
where the screen was touched. The stored lo-
cation can be retrieved to set it as a destina-
tion or waypoint.
Storing a location” (page 6-2)
Delete a stored location, destination or
waypoint. To delete it, place the cross pointer
over the corresponding icon.●“Incident Detail”:
Display the details of the traffic information
This function can be selected only when the
traffic information icon is displayed.
Place the cross pointer over the icon you want
Please note that incident details are a feature of
Traffic Information, and that an XM NavTraffic
subscription is required in order to receive Traffic
HOW TO STORE HOME LOCATION
If a home location is already stored in the Ad-
dress Book, it can be easily retrieved to set the
route to the stored home location.
The procedure to store the home location is the
same as for storing any other location.
“4. Setting a destination”
As an example, the procedure for storing the
home location by searching for a destination by
address is described here.
STORING YOUR HOME
Page 22 of 312
1. Press DEST.
2. Select “Home (Add New)”.3. A confirmation message is displayed. Con-
firm the contents of the message, select
“Yes”.4. Select “Street Address”. A character input
screen is displayed.
Page 23 of 312
5. Enter the address of the home location, se-
The map screen is displayed.
“Finding an address”
(page 4-5)6. Touch the screen to adjust the home loca-
tion if necessary. Select “OK”.7. A message is displayed and the home loca-
tion is stored.

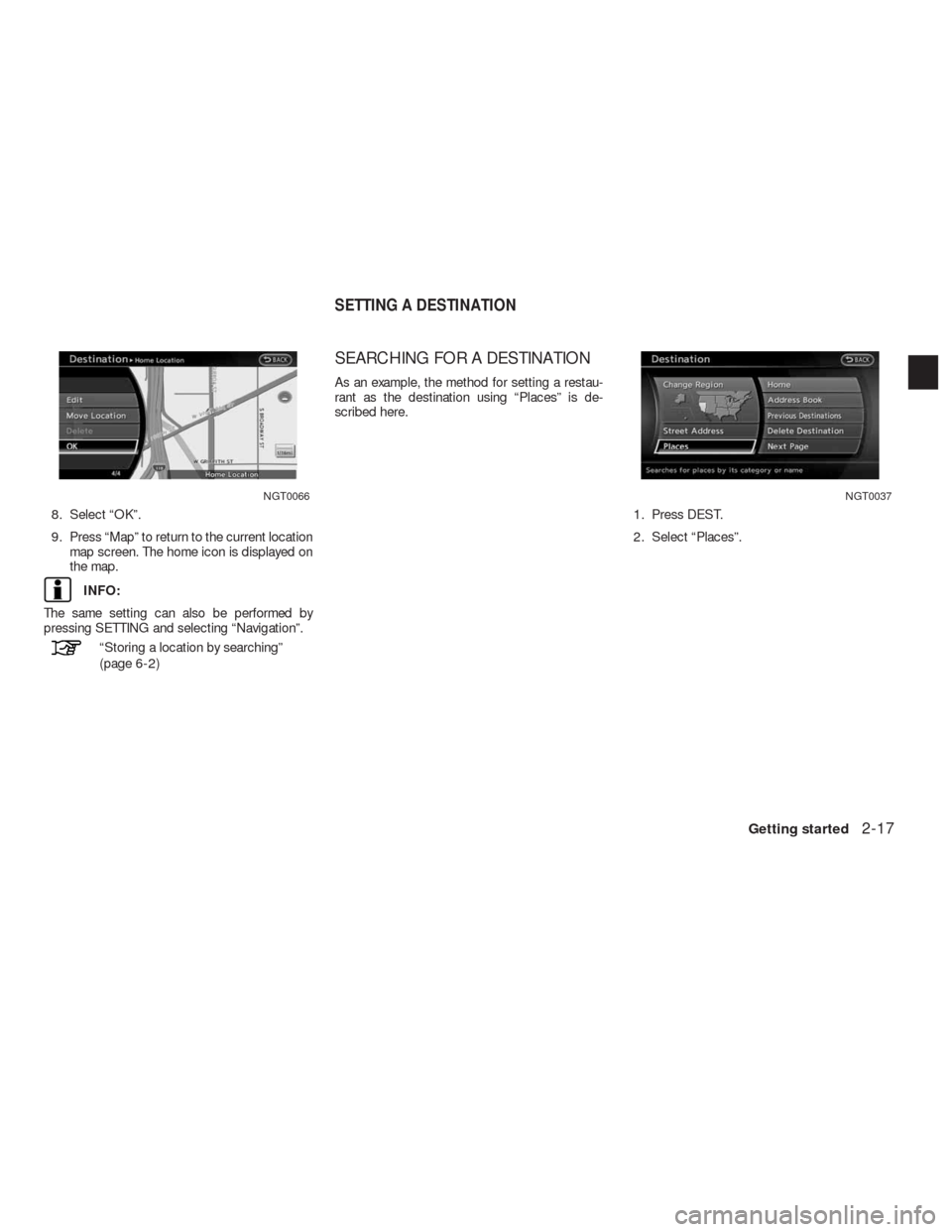

Page 24 of 312
8. Select “OK”.
9. Press “Map” to return to the current location
map screen. The home icon is displayed on
The same setting can also be performed by
pressing SETTING and selecting “Navigation”.
“Storing a location by searching”
SEARCHING FOR A DESTINATION
As an example, the method for setting a restau-
rant as the destination using “Places” is de-
1. Press DEST.
2. Select “Places”.
SETTING A DESTINATION
Page 25 of 312
3. Select “Nearby RESTAURANT”.
The search can be narrowed down by selecting
“All Categories or Name” or “ZAGAT” on this
By selecting “All Categories or Name”, the area,
name of facility, etc. can be further specified. By
selecting “ZAGAT”, restaurants registered in the
ZAGATdatabase can be searched and sorted
by its rating regarding food, decor, cost, and
service.4. Select the preferred restaurant from the list.INFO:
●The position of the selected location is
displayed in the preview on the right side
of the screen.
●If there is a route already in progress, only
places along the current route will be
listed. Turn off “Show Along Route” at the
top of list to display all nearby places.5. The entire route is shown on the map. Se-
lect “Start” after confirming the location of
the displayed destination.
●The system sets the destination to the
selected location and starts calculating a
●Even after setting a destination, the loca-
tion of the destination can be adjusted,
the route can be stored, etc. if necessary.
“Procedures after setting a
destination” (page 5-2)
STARTING ROUTE GUIDANCE
After setting the destination and performing
route calculation, the suggested route is
Page 26 of 312
1. Select “Start”. 2. Once route guidance is started, the system
navigates through the guide points using vi-
sual and voice guidance.3. When approaching a guide point, the sys-
tem automatically changes to the split
screen and shows an enlarged view of the
intersection in the left screen.
Press MAP to switch to the full map screen.
Page 27 of 312
4. When arriving at the destination, route guid-
ance automatically ends.
CANCELING A ROUTE
Delete a route that is already set according to
the following procedure.1. Press ROUTE.
2. Select “Cancel Route”.3. A confirmation message is displayed. Se-
●If a route is cancelled, “Cancel Route”
changes to “Resume Route”.
Select “Resume Route” to reactivate the can-
This is available only until a new route is set or
a currently set destination is deleted.
●The above step does not delete the destina-
tion that has been set. To delete a destination,
press DEST and select “Delete Destination”.
Delete destination” (page 4-33)
Page 28 of 312
HOW TO VIEW MAP SCREEN
The navigation system displays various informa-
tion on the map screen.
Indicates the current vehicle location and
the direction of travel.
Displays the vehicle location, with which the
route is set, as the starting point.
Indicates a guide point on the route.
Displays locations between the starting
point and the destination. A maximum of 5
waypoints can be set.
Indicates the destination location of the
route guidance.When you reach your destination, the ad-
dress will be displayed on the map screen.
Appears in bold yellow during route
7Map menu icon:
Touch the icon to display the Map Menu
“Map menu screen” (page 2-12)
Indicates the setting of the map: north al-
ways pointing up or the vehicle’s direction
always pointing up on the display. Touch the
icon to change this setting.
Indicates the scale of the map.
Touch the icon to display the scale bar. This
allows the map scale to be adjusted.
“Operating with the touch opera-
tion” (page 3-5)
Displays the name of the street that the ve-
hicle is currently driving on.
Page 29 of 312
TURNING VOICE GUIDANCE
Voice guidance can be activated or deactivated
and the volume adjusted.
1. Press ROUTE.
2. Select “Guidance Settings”.3. Select “Guidance Voice”. The indicator illu-
minates if voice guidance is activated.
Voice guidance can also be activated or deacti-
vated using the following procedure.
SETTING THE VOICE GUIDANCE
Page 30 of 312
1. Press SETTING.
2. Select “Volume and Beeps”.
3. Select “Guidance Voice”.
ADJUSTING VOICE GUIDANCE
The voice guidance volume can be adjusted.1. Press ROUTE.
2. Select “Guidance Settings”.3. Select “Guidance Volume”.
