NISSAN ALTIMA HYBRID 2010 L32A / 4.G Navigation Manual

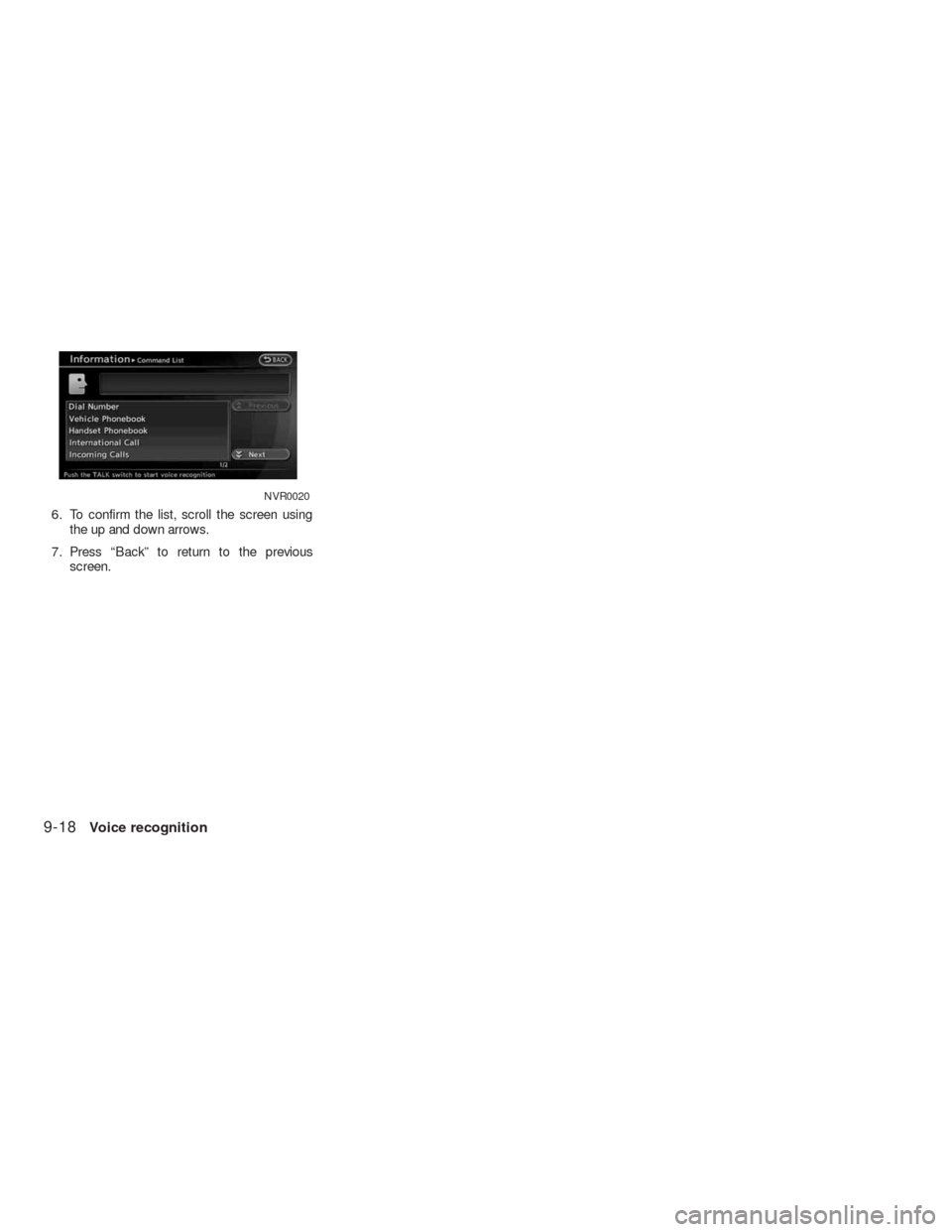

6. To confirm the list, scroll the screen using
the up and down arrows.
7. Press “Back” to return to the previous
screen.
NVR0020
9-18Voice recognition

Command list
NAVIGATION COMMAND ACTION
Home Sets a route to your home location.
Address Sets a route to the street address that you specify.
Places Sets a route to a facility near the current vehicle location
Address Book Sets a route to a location stored in the Address Book.
Previous Destinations Sets a route to a previously entered destination.
Previous Start Point Sets a route to the previous starting point.
Minimize Freeway Route Sets the route search condition to minimize the usage of freeways.
Fastest Route Sets the route search condition to find the fastest time.
Shortest Route Sets the route search condition to find the shortest distance.
Cancel Route Stops the current route but can be resumed by using “Route”.
Delete Destination Deletes the entire route (destination and waypoints) .
Birdview ™ Map Displays the map in Birdview™(3D) .
Planview Map Displays the map in Plan View (2D) .
North Up Locks the map to make North always point up.
Heading Up Locks the vehicle indicator to make it always point up.
Zoom In<1 to 13>Increases the magnification of the map by the number of steps specified.
Zoom Out<1 to 13>Decreases the magnification of the map by the number of steps specified.
Voice Guidance On/Off Turns the navigation guidance on and off.
Guidance Voice Repeat Speaks the current navigation guidance.
INFO:
The words in italics are variable.
Voice recognition9-19

INFORMATION COMMAND ACTION
Where am I? Displays the current location.
Traffic Information Turns the traffic information system on or off.
Weather Information Displays weather information.
Weather Map Displays the weather map.
PHONE ACTION
Dial Number Makes a call to a spoken phone number.
Vehicle Phonebook Makes a call to a contact that is stored in the Vehicle Phonebook.
Handset Phonebook Makes a call to a contact that is stored in the mobile phone.
Incoming Calls Makes a call to the incoming call number.
Outgoing Calls Makes a call to the dialed number.
Missed Calls Makes a call to the Missed calls number.
International Call Makes an international call by allowing more than 10 digits to be spoken.
AUDIO COMMAND ACTION
Music Box Turns on the “Music Box” hard disk drive audio system.
CD Starts to play a CD.
FM Turns to the FM band, selecting the station last played.
AM Turns to the AM band, selecting the station last played.
XM Turns to the XM Satellite band, selecting the channel last played.
USB Turns on the USB memory.
Bluetooth Audio Turns on the Bluetooth audio player.
AUX Turns on the AUX.
9-20Voice recognition

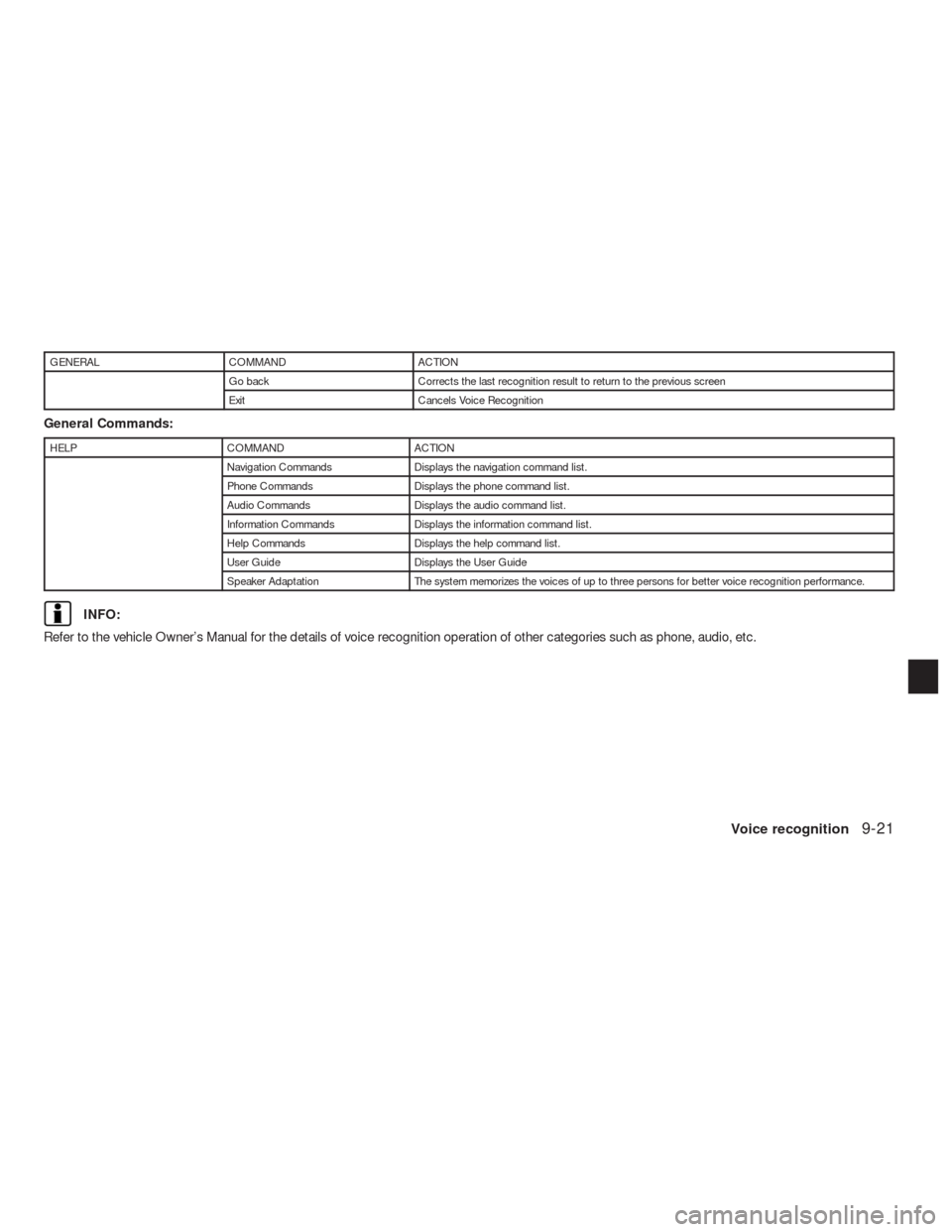

GENERAL COMMAND ACTION
Go back Corrects the last recognition result to return to the previous screen
Exit Cancels Voice Recognition
General Commands:
HELP COMMAND ACTION
Navigation Commands Displays the navigation command list.
Phone Commands Displays the phone command list.
Audio Commands Displays the audio command list.
Information Commands Displays the information command list.
Help Commands Displays the help command list.
User Guide Displays the User Guide
Speaker Adaptation The system memorizes the voices of up to three persons for better voice recognition performance.
INFO:
Refer to the vehicle Owner’s Manual for the details of voice recognition operation of other categories such as phone, audio, etc.
Voice recognition9-21

CONFIRMING HOW TO USE VOICE
COMMANDS
It is possible to confirm how to use voice com-
mands by accessing a simplified User Guide,
which contains basic instructions and tutorials
for several voice commands.
Basic operation
1. Press INFO.
2. Select “Others”.
3. Select “Voice Recognition”.
4. Select “User Guide”.
5. Select the preferred item.
Available items:
●“Getting Started”:
Describes the basics of how to operate the
voice recognition system.
●“Let’s Practice”:
Mode for practice following the system voice.
●“Using the Address Book”:
Tutorial for entering a destination by the Ad-
dress Book.
●“Finding a Street Address”:
Tutorial for entering a destination by street
address.
●“Placing Calls”:
Tutorial for making a phone call by voice
command operation. Refer to the vehicle
Owner’s Manual for details.
●“Help on Speaking”:
Displays useful tips regarding speaking for
correct command recognition by the system.
●“Voice Recognition Settings”
Describes the available voice recognition
settings.
●“Adapting the System to Your Voice”
Tutorial adapting the system to the user’s
voice.
Getting Started
Before using the voice recognition system for
the first time, it is possible to confirm how to use
commands by viewing the Getting Started sec-
tion of the User Guide.
NVR0021
9-22Voice recognition

1. Select “Getting Started”.
2. To confirm the page, scroll the screen using
the up and down arrows.
Practicing voice commands
Practice for using the voice recognition function
can be performed by repeating a phone number
after the system announces it.1. Select “Let’s Practice”.
2. Practice voice commands in accordance
with the audio guidance.
Tutorials on the operation of the voice
recognition system
When selecting “Using the Address Book”,
“Finding a Street Address” or “Placing Calls”,
the system displays tutorials on how to perform
these operations using voice recognition.
Example: With “Using the Address Book”
selected1. Select “Using the Address Book”. The tuto-
rial starts.
NVR0022NVR0024NVR0023
Voice recognition9-23

2. The voice guide demonstrates how to
speak when giving commands.
3. When the tutorial is completed, the system
automatically switches to the Menu screen.
Useful tips for correct operation
It is possible to display useful speaking tips that
may help the system to accept a voice command
correctly.1. Select “Help on Speaking”.
2. To confirm the page, scroll the screen using
the up and down arrows.
Voice recognition settings
The settings for easy operation of the voice rec-
ognition system are displayed.1. Select “Voice Recognition Settings”.
2. To confirm the page, scroll the screen using
the up and down arrows.
Adapting the system to your voice
The voice recognition system is equipped with a
learning function to adapt to the user’s voice for
better recognition. It is possible to confirm how
to operate the learning function through this
tutorial.
NVR0025LNV0602LNV0603
9-24Voice recognition

1. Select “Adapting the System to Your Voice”.
The tutorial starts.2. The voice guide demonstrates the steps
that have to be performed.
3. When the tutorial is completed, the system
automatically switches to the Menu screen.
USING THE SYSTEM
Initialization
When the ignition switch is pushed to the ON
position, Voice Recognition is initialized, which
takes a few seconds. When completed, the sys-
tem is ready to accept voice commands.
If
is pressed before the initialization
completes, the display will show the message:
“System not ready”.
BEFORE STARTING
To get the best recognition performance out of
Voice Recognition, observe the following:
●The interior of the vehicle should be as quiet
as possible. Close the windows to eliminate
the surrounding noises (traffic noise and vi-
bration sounds, etc.) , which may prevent the
system from correctly recognizing the voice
commands.
●Wait until the tone sounds before speaking a
command.
●Speak in a natural conversational voice with-
out pausing between words.
GIVING VOICE COMMANDS
1. Presslocated on the steering wheel
switch.
NVR0029NVR0030
Voice recognition9-25

2. A list of commands appears on the screen,
and the system announces, “Please say a
command”.
3. After the tone sounds and the icon on the
screen changes from
to,
speak a command.
Operating tips
●If the command is not recognized, the system
announces, “Please say again”. Repeat the
command in a clear voice.
●Press “Back” once to return to the previous
screen.
●To cancel the command, press and
hold
. The message, “Voice cancelled”
will be announced.●Press
to stop the voice prompt and
give the command at once. Remember to wait
for the tone before speaking.
●To adjust the volume of the system feedback,
push the volume control buttons “+” or “”on
the steering wheel switch or use the audio
system volume knob while the system is mak-
ing an announcement.
How to speak numbers
NISSAN Voice Recognition requires a certain
way to speak numbers when giving voice
commands. Refer to the following examples.
General rule:
Only single digits 0 (zero) to 9 can be used. For
example, if speaking 500, “five zero zero” can be
used, but “five hundred” cannot.
Examples:
1-800-662-6200
“One eight zero zero six six two six two zero
zero”Improving Recognition of Phone numbers:
Recognition of phone numbers can be improved
by saying the phone number in 3 groups of
numbers. For example, to call 800-662-6200,
say “Eight Zero Zero” first, and the system will
then ask to speak the next three digits. Then, say
“Six Six Two”. After recognition, the system will
then ask to speak the last 4 digits. Say, “Six Two
Zero Zero”. Using this method of phone digit en-
try can improve recognition performance.INFO:
For best recognition, speak “zero” for the num-
ber “0” and “oh” for the letter “o”.
NVR0032
9-26Voice recognition

SYSTEM FEEDBACK ANNOUNCE-
MENT MODES
It is possible to select two modes, long or short,
for the announcement by the system.
How to set
1. Press SETTING.
2. Select “Others”.
3. Select “Voice Recognition”.4. Select “Minimize Voice Feedback”. The indi-
cator illuminates, and the system announce-
ment mode switches to the short mode.
5. Press “Back” to return to the previous
screen. Press MAP to return to the current
location map screen.SETTING THE ALTERNATE COM-
MAND MODE
This mode enables the operation of the display
and audio through Voice Recognition. When this
mode is active, an expanded list of commands
can be spoken after pressing
, and the
voice command menu prompts are turned off.
Note that in this mode the recognition success
rate may be affected because the number of
available commands and ways of speaking each
command are increased.This mode can be turned on or off.
How to set
1. Press SETTING.
2. Select “Others”.
3. Select “Voice Recognition”.
LNV0604NVR0034
Voice recognition9-27
