NISSAN ALTIMA HYBRID 2010 L32A / 4.G Navigation Manual

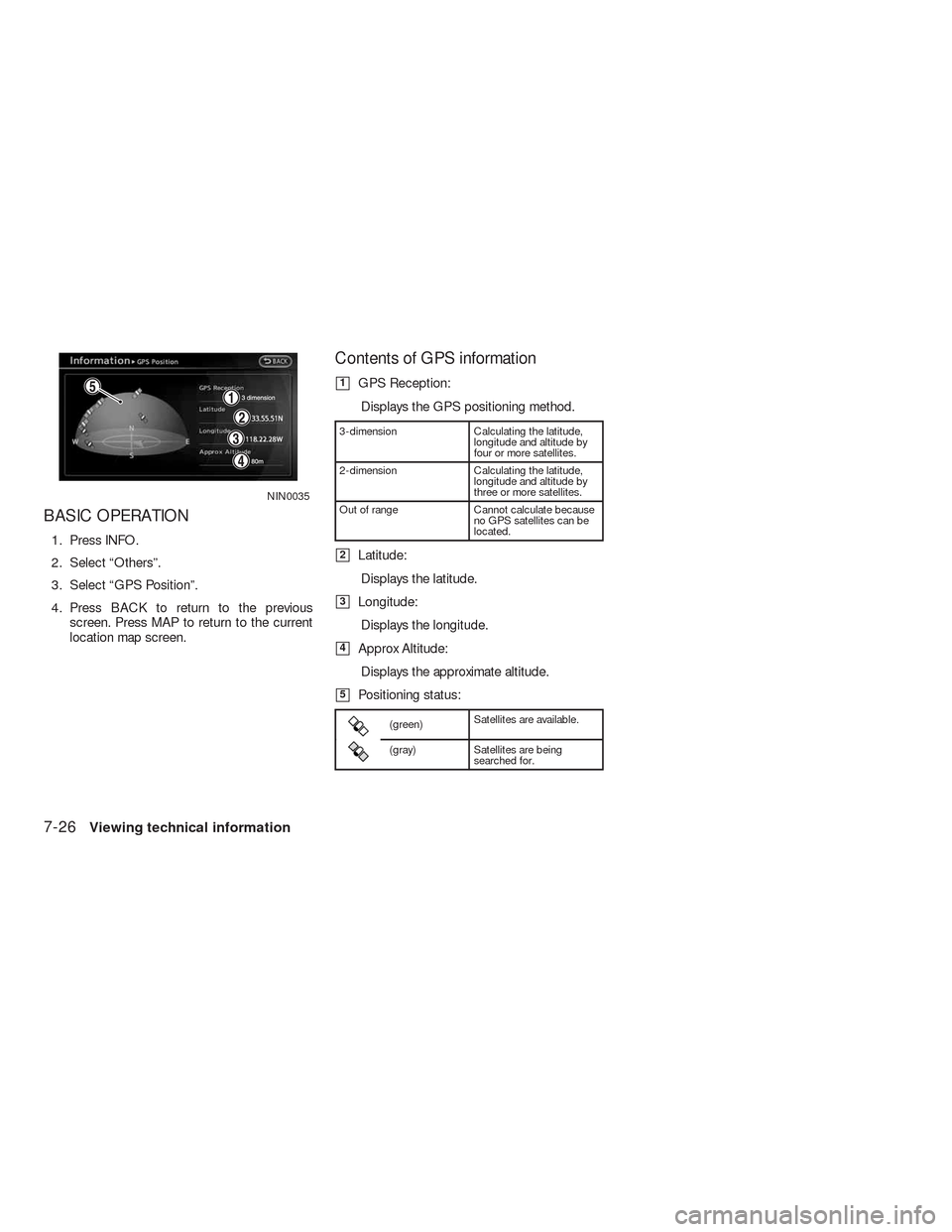

BASIC OPERATION
1. Press INFO.
2. Select “Others”.
3. Select “GPS Position”.
4. Press BACK to return to the previous
screen. Press MAP to return to the current
location map screen.
Contents of GPS information
1GPS Reception:
Displays the GPS positioning method.
3-dimension Calculating the latitude,
longitude and altitude by
four or more satellites.
2-dimension Calculating the latitude,
longitude and altitude by
three or more satellites.
Out of range Cannot calculate because
no GPS satellites can be
located.
2Latitude:
Displays the latitude.
3Longitude:
Displays the longitude.
4Approx Altitude:
Displays the approximate altitude.
5Positioning status:
(green)Satellites are available.
(gray) Satellites are being
searched for.
NIN0035
7-26Viewing technical information

8 Other settings
Settings screen...................................8-2
Basic operation................................8-2
Display settings...................................8-3
Basic operation................................8-3
Display adjustment.............................8-3
Basic operation................................8-4
Setting color theme.............................8-7
Navigation setting.................................8-7
Basic operation................................8-7
Speed limit indication on map . ...................8-8Other navigation settings........................8-9
Delete stored items............................8-15
Reset all navigation settings to default...........8-16
Volume adjustment...............................8-17
Basic operation...............................8-17
Clock settings....................................8-18
Basic operation...............................8-18
Language and unit settings........................8-19
Language settings.............................8-19
Unit settings..................................8-20

The navigation system can be customized to
make it easier for you to use.
BASIC OPERATION
1. Press SETTING.
2. Select the preferred setting item.
Available setting items
●“Navigation”:
Adjust various settings of the navigation
system.
“Navigation setting” (page 8-7)
●“Audio”:
Refer to the vehicle Owner’s Manual.
●“Phone”:
Refer to the vehicle Owner’s Manual.
●“Bluetooth”:
Set BluetoothAudio and Phone. Refer to the
vehicle Owner’s Manual.●“Volume and Beeps”:
”Volume adjustment” (page 8-17)
●“Display”:
“Display settings” (page 8-3)
●“Clock”:
“Clock settings” (page 8-18)
●“Others”:
– “Comfort”:
This item is displayed when the ignition
switch is in the ON position.
Refer to the vehicle Owner’s Manual.
– “Language & Units”:
“Language & unit settings”
(page 8-19)
– “Voice Recognition”:
“System feedback announce-
ment modes” (page 9-27)
INFO:
The displayed items vary depending on the
equipped options.
NSE0001
SETTINGS SCREEN
8-2Other settings

This menu turns on and off the display, adjust the
image quality of the navigation screen and
change the color of the menu screen.
BASIC OPERATION
1. Press SETTING.
2. Select “Display”.
3. Select the preferred adjustment item.Available setting items
●“Display Adjustment:
Turn on and off the display and adjust the
image quality of the navigation screen.
●“Color Theme”
Set the color of the menu screen.
DISPLAY ADJUSTMENT
This menu turns on and off the display and ad-
justs the image quality of the navigation screen.
NSE0002NSE0003
DISPLAY SETTINGS
Other settings8-3

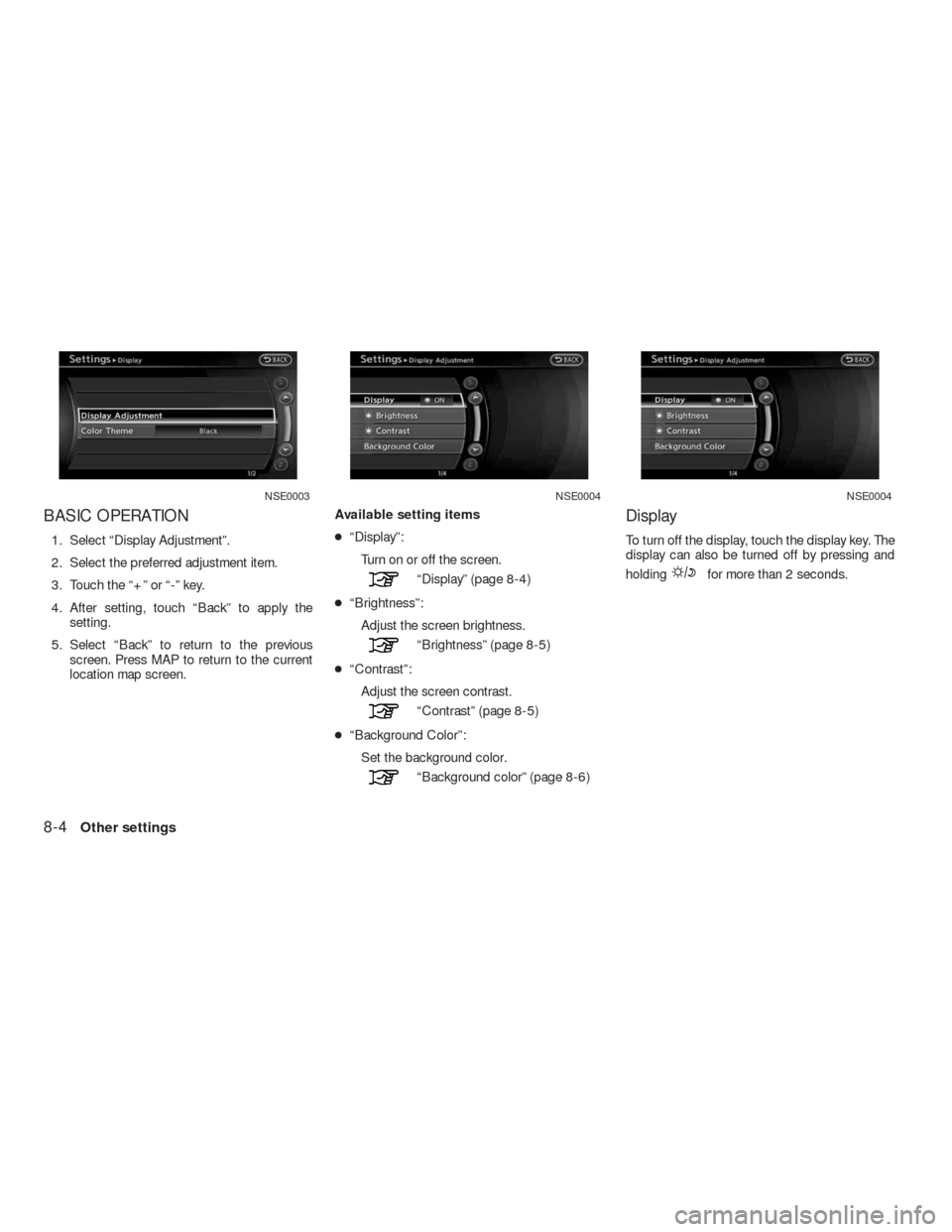

BASIC OPERATION
1. Select “Display Adjustment”.
2. Select the preferred adjustment item.
3. Touch the “+” or “-” key.
4. After setting, touch “Back” to apply the
setting.
5. Select “Back” to return to the previous
screen. Press MAP to return to the current
location map screen.Available setting items
●“Display”:
Turn on or off the screen.
“Display” (page 8-4)
●“Brightness”:
Adjust the screen brightness.
“Brightness” (page 8-5)
●“Contrast”:
Adjust the screen contrast.
“Contrast” (page 8-5)
●“Background Color”:
Set the background color.
“Background color” (page 8-6)
Display
To turn off the display, touch the display key. The
display can also be turned off by pressing and
holding
for more than 2 seconds.
NSE0003NSE0004NSE0004
8-4Other settings

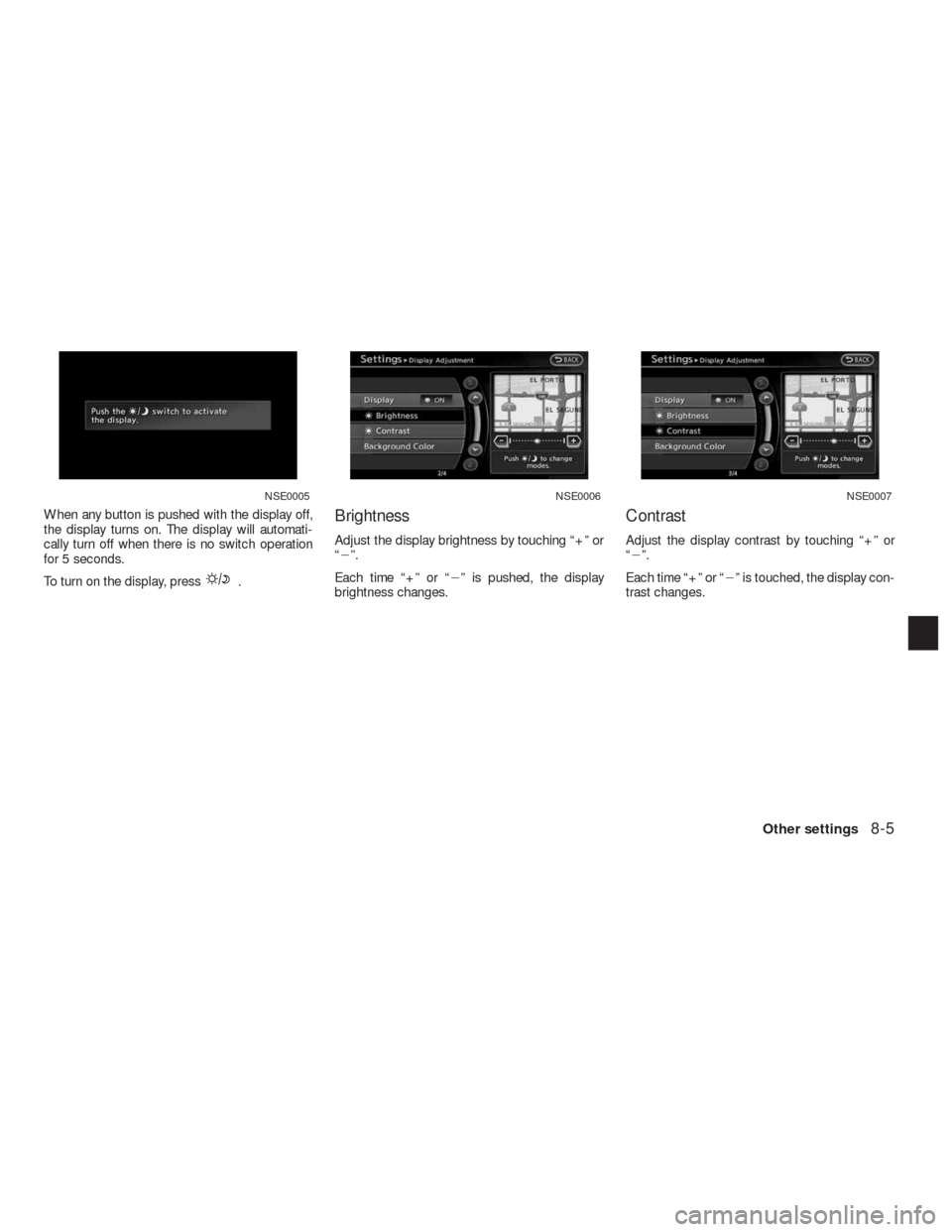

When any button is pushed with the display off,
the display turns on. The display will automati-
cally turn off when there is no switch operation
for 5 seconds.
To turn on the display, press
.
Brightness
Adjust the display brightness by touching “+” or
“”.
Each time “+” or “” is pushed, the display
brightness changes.
Contrast
Adjust the display contrast by touching “+” or
“”.
Each time “+” or “” is touched, the display con-
trast changes.
NSE0005NSE0006NSE0007
Other settings8-5

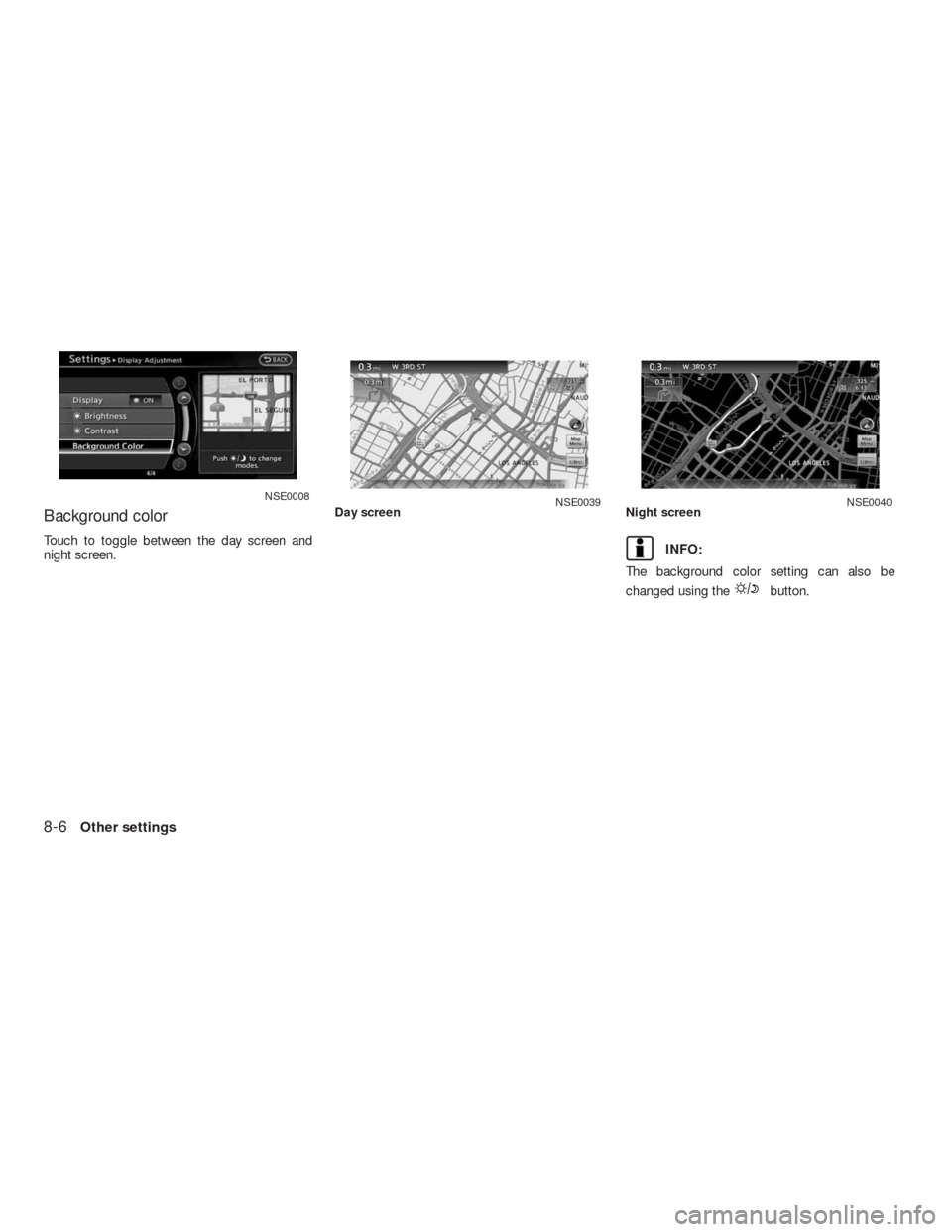

Background color
Touch to toggle between the day screen and
night screen.INFO:
The background color setting can also be
changed using the
button.
NSE0008
Day screenNSE0039Night screenNSE0040
8-6Other settings

SETTING COLOR THEME
1. Select “Color Theme”.2. Select the preferred menu color.
The navigation system can be set in details to
meet the preference.
BASIC OPERATION
1. Press SETTING.
2. Select “Navigation”.
3. Select the preferred setting item.
Available setting items
●“Address Book”:
Store locations and routes, and edit the
stored items.
“Storing a location” (page 6-2)
NSE0010NSE0011NSE0012
NAVIGATION SETTING
Other settings8-7

●“Map View”:
Set the display method and the direction of
the map.
“Changing the map view”
(page 3-11)
●“Map Icons”:
Set the map icons to display on the map.
“Displaying map icons”
(page 3-21)
●“Guidance settings”:
Set the various functions for the route
guidance.
“Guidance settings” (page 5-28)
●“Route Settings”:
Change the routing preferences.
“Detailed route settings”
(page 5-34)
●“Traffic Info Setting”:
Set the various functions of the XM Nav-
Trafficinformation system.
“Traffic information settings”
(page 7-10)●“Weather Info Setting”:
Set the functions of the XM NavWeather™
information system.
●“Speed Limit Info”:
Display speed limit information.
●“Others”:
Display other setting items.
“Other navigation settings”
(page 8-9)
●“Deletes stored information”:
Delete stored locations and the home set-
ting in the Address Book.
“Delete stored items”
(page 8-15)
●“Delete All Previous Destinations”:
Delete all previous destinations.
“Delete stored items”
(page 8-15)
●“Delete Previous Starting Point”:
Delete all previous starting points.
“Delete stored items”
(page 8-15)●“Reset all Navigation Settings to Default”:
Reset all of the settings to default.
“Reset all navigation settings to
default” (page 8-16)
SPEED LIMIT INDICATION ON MAP
Turn the “Speed Limit Information” display on or
off. The indicator light illuminates when the
speed limit display function is set to on.
8-8Other settings

1. Select “Speed Limit Info”. 2. Select “Speed Limit Indication on Map” to
toggle the function between on and off. The
indicator light illuminates when the speed
limit display function is set to on.OTHER NAVIGATION SETTINGS
Basic operation
1. Press SETTING.
2. Select “Navigation”.
3. Select “Others”.
4. Select the preferred setting item.
Available setting items
●“Audio Display on Map”:
Allows the audio information to be dis-
played at all times.
“Displaying the audio information
on the map screen” (page 8-10)
NSE0041NSE0013NSE0016
Other settings8-9
