keyless NISSAN ALTIMA HYBRID 2010 L32A / 4.G Owners Manual

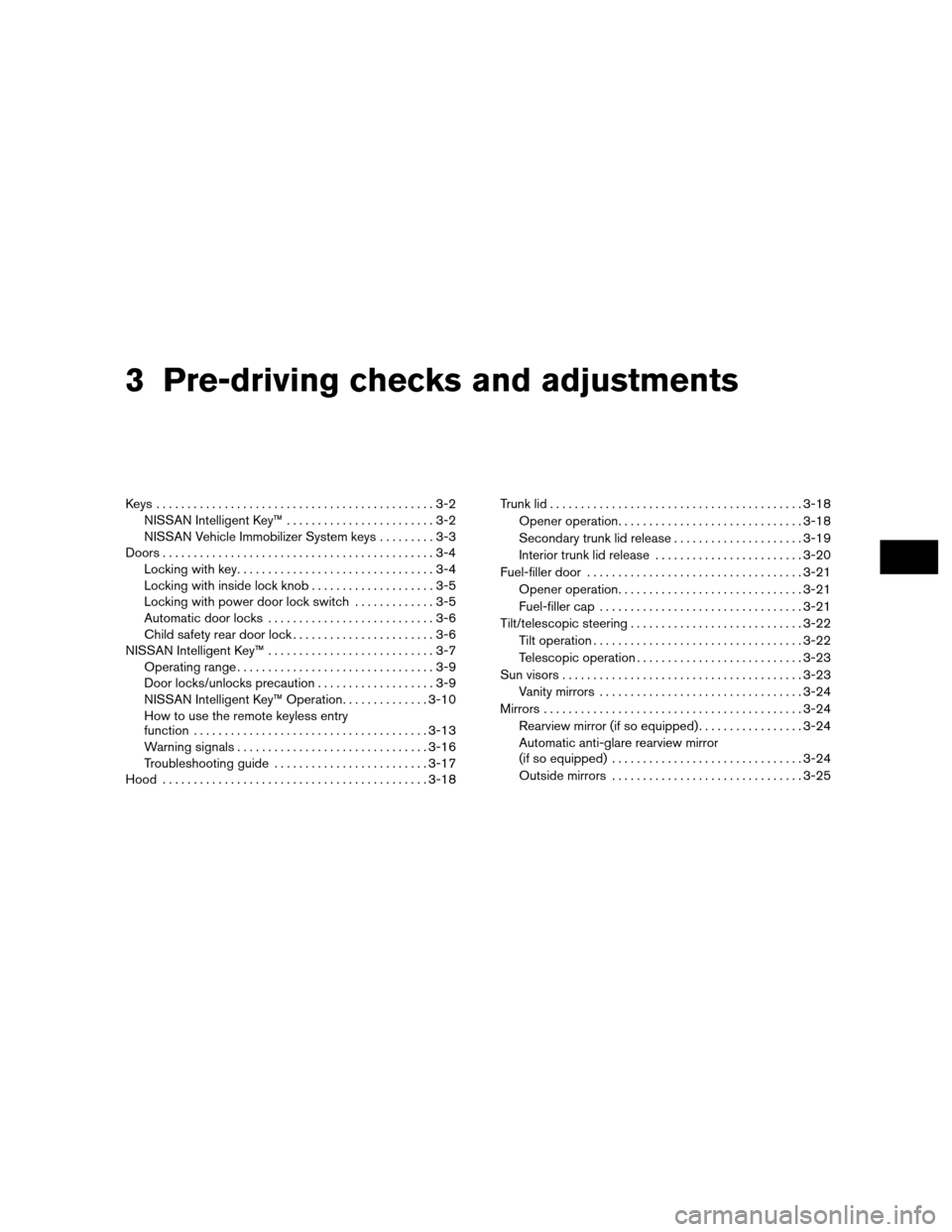

3 Pre-driving checks and adjustments
Keys .............................................3-2NISSAN Intelligent Key™ ........................3-2
NISSAN Vehicle Immobilizer System keys .........3-3
Doors ............................................3-4
Locking with key ................................3-4
Locking with inside lock knob . ...................3-5
Locking with power door lock switch .............3-5
Automatic door locks . . .........................3-6
Child safety rear door lock .......................3-6
NISSAN Intelligent Key™ . . .........................3-7
Operating range ................................3-9
Door locks/unlocks precaution ...................3-9
NISSAN Intelligent Key™ Operation ..............3-10
How to use the remote keyless entry
function ...................................... 3-13
Warning signals ............................... 3-16
Troubleshooting guide ......................... 3-17
Hood ........................................... 3-18Trunk lid
......................................... 3-18
Opener operation .............................. 3-18
Secondary trunk lid release .....................3-19
Interior trunk lid release ........................ 3-20
Fuel-filler door ................................... 3-21
Opener operation .............................. 3-21
Fuel-filler cap ................................. 3-21
Tilt/telescopic steering ............................ 3-22
Tilt operation .................................. 3-22
Telescopic operation ........................... 3-23
Sun visors ....................................... 3-23
Vanity mirrors ................................. 3-24
Mirrors .......................................... 3-24
Rearview mirror (if so equipped) .................3-24
Automatic anti-glare rearview mirror
(if so equipped) ............................... 3-24
Outside mirrors ............................... 3-25

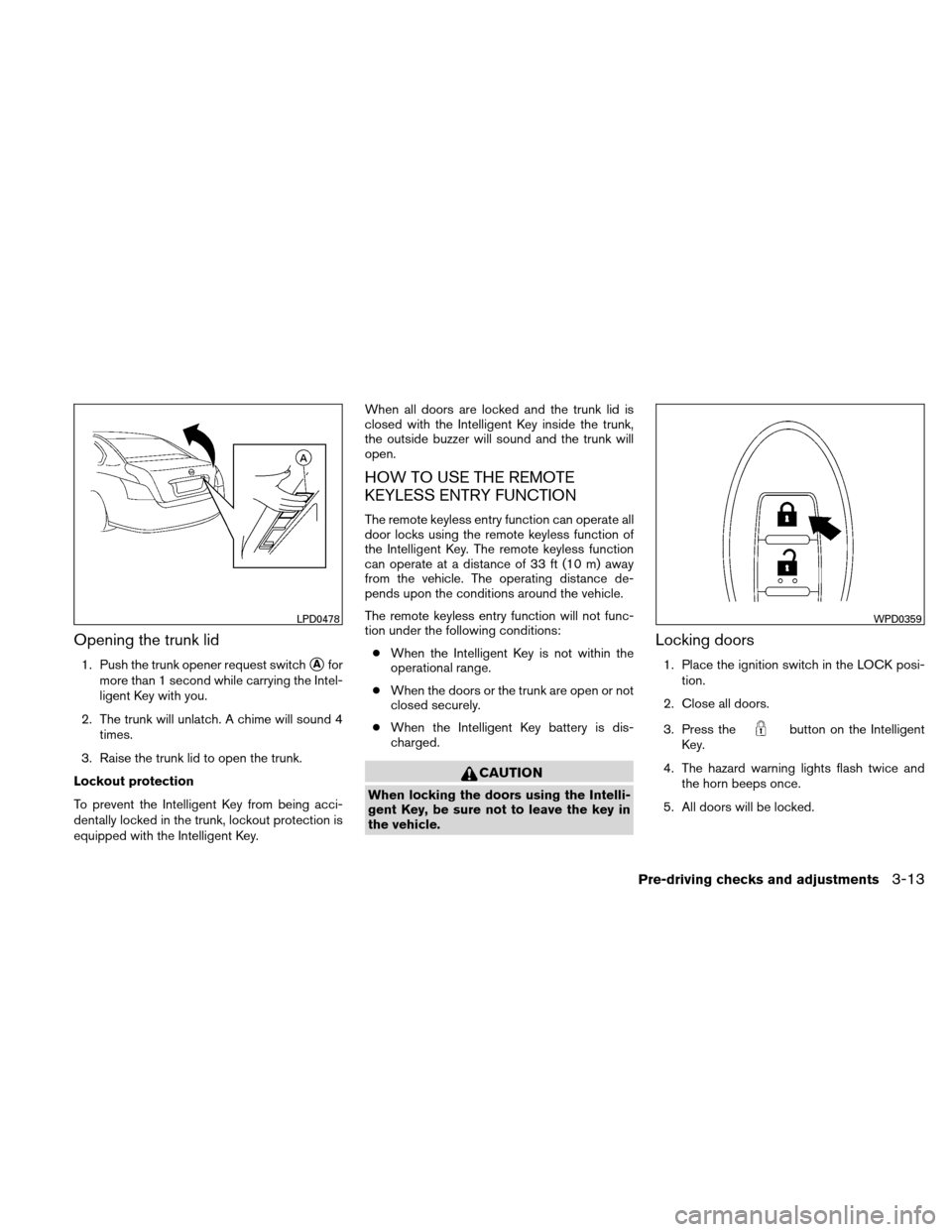

Opening the trunk lid
1. Push the trunk opener request switchAfor
more than 1 second while carrying the Intel-
ligent Key with you.
2. The trunk will unlatch. A chime will sound 4 times.
3. Raise the trunk lid to open the trunk.
Lockout protection
To prevent the Intelligent Key from being acci-
dentally locked in the trunk, lockout protection is
equipped with the Intelligent Key. When all doors are locked and the trunk lid is
closed with the Intelligent Key inside the trunk,
the outside buzzer will sound and the trunk will
open.
HOW TO USE THE REMOTE
KEYLESS ENTRY FUNCTION
The remote keyless entry function can operate all
door locks using the remote keyless function of
the Intelligent Key. The remote keyless function
can operate at a distance of 33 ft (10 m) away
from the vehicle. The operating distance de-
pends upon the conditions around the vehicle.
The remote keyless entry function will not func-
tion under the following conditions:
● When the Intelligent Key is not within the
operational range.
● When the doors or the trunk are open or not
closed securely.
● When the Intelligent Key battery is dis-
charged.
CAUTION
When locking the doors using the Intelli-
gent Key, be sure not to leave the key in
the vehicle.
Locking doors
1. Place the ignition switch in the LOCK posi-
tion.
2. Close all doors.
3. Press the
button on the Intelligent
Key.
4. The hazard warning lights flash twice and the horn beeps once.
5. All doors will be locked.
LPD0478WPD0359
Pre-driving checks and adjustments3-13

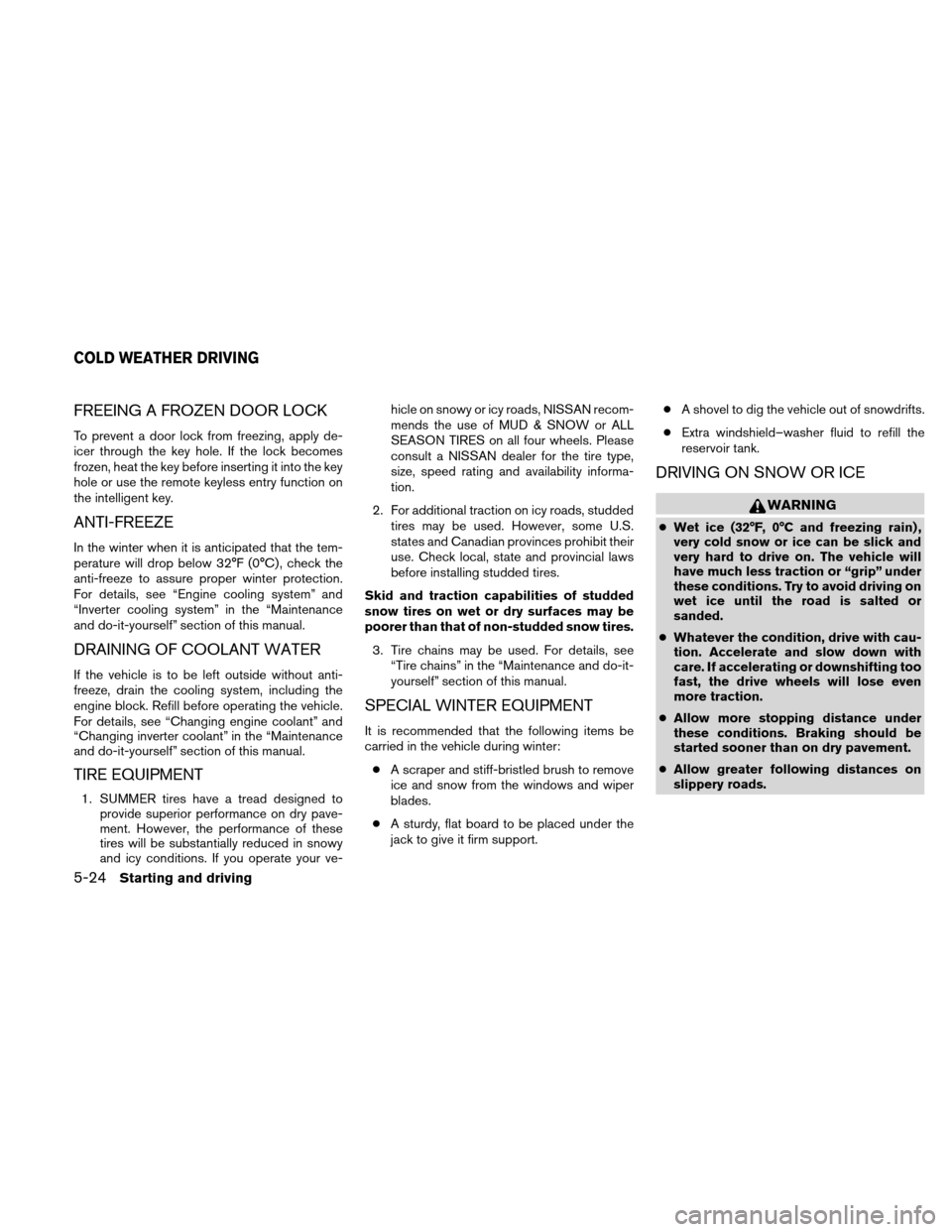

FREEING A FROZEN DOOR LOCK
To prevent a door lock from freezing, apply de-
icer through the key hole. If the lock becomes
frozen, heat the key before inserting it into the key
hole or use the remote keyless entry function on
the intelligent key.
ANTI-FREEZE
In the winter when it is anticipated that the tem-
perature will drop below 32°F (0°C) , check the
anti-freeze to assure proper winter protection.
For details, see “Engine cooling system” and
“Inverter cooling system” in the “Maintenance
and do-it-yourself” section of this manual.
DRAINING OF COOLANT WATER
If the vehicle is to be left outside without anti-
freeze, drain the cooling system, including the
engine block. Refill before operating the vehicle.
For details, see “Changing engine coolant” and
“Changing inverter coolant” in the “Maintenance
and do-it-yourself” section of this manual.
TIRE EQUIPMENT
1. SUMMER tires have a tread designed toprovide superior performance on dry pave-
ment. However, the performance of these
tires will be substantially reduced in snowy
and icy conditions. If you operate your ve- hicle on snowy or icy roads, NISSAN recom-
mends the use of MUD & SNOW or ALL
SEASON TIRES on all four wheels. Please
consult a NISSAN dealer for the tire type,
size, speed rating and availability informa-
tion.
2. For additional traction on icy roads, studded tires may be used. However, some U.S.
states and Canadian provinces prohibit their
use. Check local, state and provincial laws
before installing studded tires.
Skid and traction capabilities of studded
snow tires on wet or dry surfaces may be
poorer than that of non-studded snow tires. 3. Tire chains may be used. For details, see “Tire chains” in the “Maintenance and do-it-
yourself” section of this manual.
SPECIAL WINTER EQUIPMENT
It is recommended that the following items be
carried in the vehicle during winter:
● A scraper and stiff-bristled brush to remove
ice and snow from the windows and wiper
blades.
● A sturdy, flat board to be placed under the
jack to give it firm support. ●
A shovel to dig the vehicle out of snowdrifts.
● Extra windshield–washer fluid to refill the
reservoir tank.
DRIVING ON SNOW OR ICE
WARNING
● Wet ice (32°F, 0°C and freezing rain) ,
very cold snow or ice can be slick and
very hard to drive on. The vehicle will
have much less traction or “grip” under
these conditions. Try to avoid driving on
wet ice until the road is salted or
sanded.
● Whatever the condition, drive with cau-
tion. Accelerate and slow down with
care. If accelerating or downshifting too
fast, the drive wheels will lose even
more traction.
● Allow more stopping distance under
these conditions. Braking should be
started sooner than on dry pavement.
● Allow greater following distances on
slippery roads.
COLD WEATHER DRIVING
5-24Starting and driving

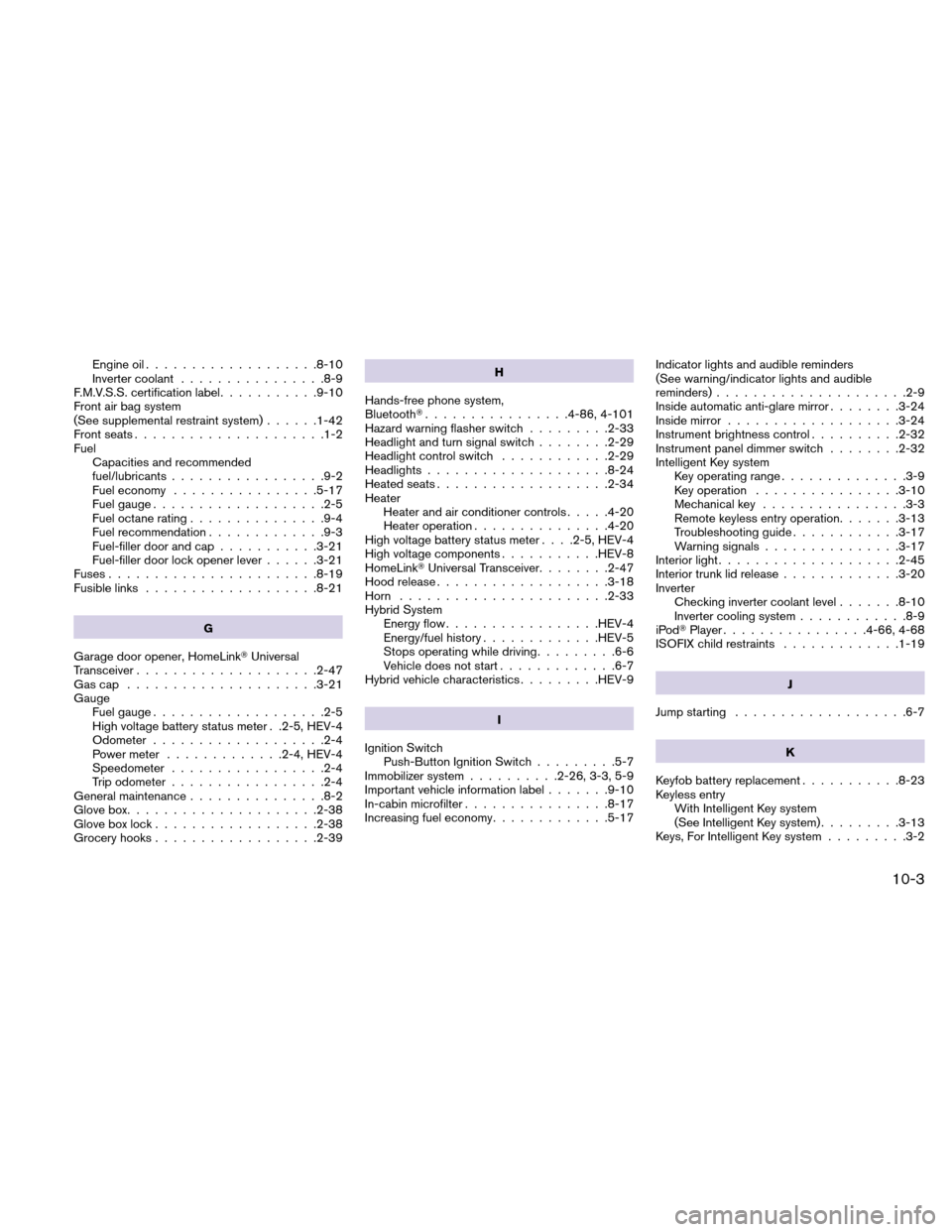

Engine oil...................8-10
Inverter coolant ................8-9
F.M.V.S.S. certification label ...........9-10
Front air bag system
(See supplemental restraint system) ......1-42
Front seats .....................1-2
Fuel Capacities and recommended
fuel/lubricants .................9-2
Fuel economy ................5-17
Fuel gauge ...................2-5
Fuel octane rating ...............9-4
Fuel recommendation .............9-3
Fuel-filler door and cap ...........3-21
Fuel-filler door lock opener lever ......3-21
Fuses .......................8-19
Fusible links ...................8-21
G
Garage door opener, HomeLink Universal
Transceiver ....................2-47
Gascap .....................3-21
Gauge Fuel gauge ...................2-5
High voltage battery status meter . .2-5, HEV-4
Odometer ...................2-4
Power meter .............2-4, HEV-4
Speedometer .................2-4
Trip odometer .................2-4
General maintenance ...............8-2
Glove box .....................2-38
Glove box lock ..................2-38
Grocery hooks ..................2-39 H
Hands-free phone system,
Bluetooth ................4-86, 4-101
Hazard warning flasher switch .........2-33
Headlight and turn signal switch ........2-29
Headlight control switch ............2-29
Headlights ....................8-24
Heated seats ...................2-34
Heater Heater
and air conditioner controls .....4-20
Heater operation ...............4-20
High voltage battery status meter . . . .2-5, HEV-4
High voltage components ...........HEV-8
HomeLink Universal Transceiver ........2-47
Hood release ...................3-18
Horn .......................2-33
Hybrid System Energy flow .................HEV-4
Energy/fuel history .............HEV-5
Stops operating while driving .........6-6
Vehicle does not start .............6-7
Hybrid vehicle characteristics .........HEV-9
I
Ignition Switch Push-Button Ignition Switch .........5-7
Immobilizer system ..........2-26, 3-3, 5-9
Important vehicle information label .......9-10
In-cabin microfilter ................8-17
Increasing fuel economy .............5-17 Indicator lights and audible reminders
(See warning/indicator lights and audible
reminders)
.....................2-9
Inside automatic anti-glare mirror ........3-24
Inside mirror ...................3-24
Instrument brightness control ..........2-32
Instrument panel dimmer switch ........2-32
Intelligent Key system Key operating range ..............3-9
Key operation ................3-10
Mechanical key ................3-3
Remote keyless entry operation .......3-13
Troubleshooting guide ............3-17
Warning signals ...............3-17
Interior light ....................2-45
Interior trunk lid release .............3-20
Inverter Checking inverter coolant level .......8-10
Inverter cooling system ............8-9
iP

od Player ................4-66, 4-68
ISOFIX child restraints .............1-19
J
Jump starting ...................6-7
K
Keyfob battery replacement ...........8-23
Keyless entry With Intelligent Key system
(See Intelligent Key system) .........3-13
Keys, For Intelligent Key system .........3-2
10-3
