ECO mode NISSAN CUBE 2012 3.G Quick Reference Guide

To view detailed instructional videos regarding these and other features, please go to www.nissanownersinfo.mobi.10
first drive features
06 D
eFr OSTING rear wINDO w aND OuTSIDe HeaTeD MI rrOr S (if so equipped)

Push the rear window defroster switch
to turn the system on or off.

This function automatically turns off after approximately 15 minutes.
07 a/C B
uTTON

Press the a/C button to manually turn the A/c on or off.
08 OuTSID
e aIr CI rCu LaTION B uTTON

Press the outside air button to draw fresh air into the vehicle; the indicator light on
the button will illuminate.

Press and hold the outside air circulation button for more than 1.5 seconds to set
automatic outside air circulation mode.
09 aI
r re CIrCu LaTION B uTTON

Press the air recirculation button to recirculate air inside the vehicle; the indicator
light on the button will illuminate. This system is used to avoid outside odors and helps to
adjust the inside vehicle temperature more effectively.

The air recirculation mode can only be selected if the air flow mode co\
ntrol is in the
following positions:
,
or .
10 OFF B
uTTON

Press the OFF button to turn the climate control system off.
for more information, refer to the “Instruments and controls (section 2)” and the “Heater, air conditioner, audio and
phone systems (section 4)” of your Owner’s Manual.

BLueTOOTH® HaNDS-Free PHONe SYSTeM (if so equipped)
With an overhead microphone and sound
transmitted through the audio system speakers,
the Bluetooth
® Hands-free Phone System utilizes
Bluetooth wireless technology and voice recognition
to provide hands-free cellular phone communication.

A cellular telephone should not be used while driving
so full attention may be given to vehicle operation.*
SYSTe M OPeRATin G TiPS
close all windows. Surrounding noises may interfere
with system operation and performance.

Press the
button on the steering wheel to activate
voice recognition.

Wait for the tone before speaking.

Begin speaking a command within 5 seconds of the
tone.

Speak in a clear and natural voice without pausing
between words.

Look straight ahead and avoid speaking too loudly or too softly.

To go back to the previous command, say “Go back” or “correction.”

To cancel a voice recognition session, simply wait 5 seconds, say
“cancel” or “Quit,” or press the
button for 5 seconds.
TrIP COMPuTer
With the ignition switch in the ON position, trip
computer
01 modes can be selected by pressing the
trip computer mode switch 02 on the instrument panel.

The following modes can be selected in the display:

Trip A – measures the distance of one specific trip.

Trip B – measures the distance of a second specific trip.

current fuel consumption – displays the current fuel
consumption.

distance to empty (dte) – displays the estimated distance to empty (dte) the vehicle can be
driven before refueling.

Average fuel consumption – displays the average fuel consumption since the last res\
et.
for more information, refer to the “Instruments and controls (section 2)” of your Owner’s Manual.
01
02
To view detailed instructional videos regarding these and other features,
please go to www.nissanownersinfo.mobi.14
system guide
*Some jurisdictions prohibit the use of cellular telephones while drivin\
g.

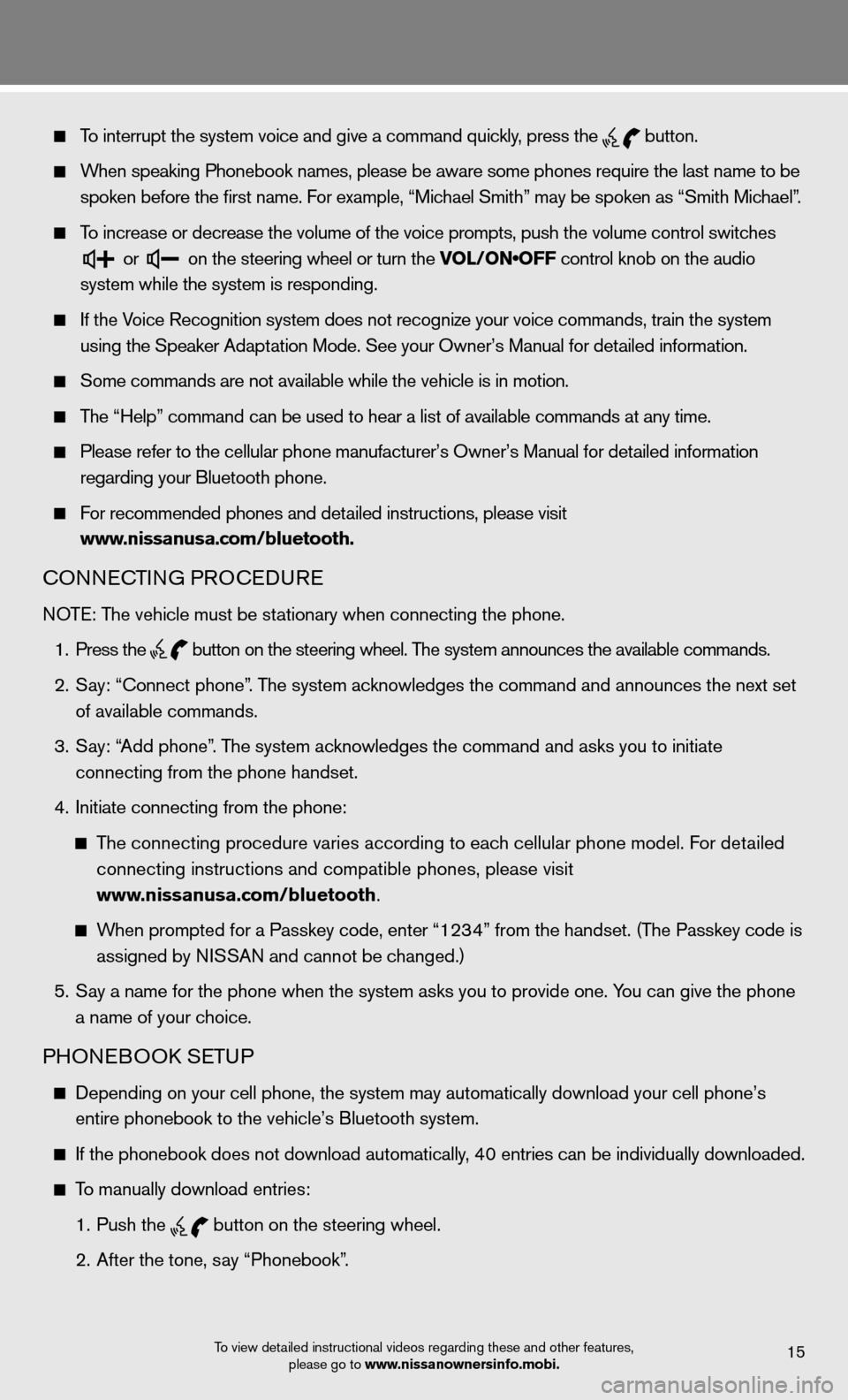

To interrupt the system voice and give a command quickly, press the
button.


When speaking Phonebook names, please be aware some phones require the la\
st name to be
spoken before the first name. f or example, “Michael Smith” may be spoken as “Smith Michael”.

To increase or decrease the volume of the voice prompts, push the volume \
control switches

or
on the steering wheel or turn the VOL/ON•OFF control knob on the audio

system while the system is responding.

if the Voice Recognition system does not recognize your voice commands, train th\
e system
using the Speaker Adaptation Mode. See your Owner’s Manual for detailed information.

Some commands are not available while the vehicle is in motion.

The “Help” command can be used to hear a list of available commands\
at any time.

Please refer to the cellular phone manufacturer’s Owner’s Manual f\
or detailed information
regarding your Bluetooth phone.

for recommended phones and detailed instructions, please visit
www.nissanusa.com/bluetooth.
cOnnec TinG PROcedu Re
n OTe: The vehicle must be stationary when connecting the phone.
1. Press the

button
on the steering wheel. The system announces the available commands.

2. Say: “connect phone”. The system acknowledges the command and announces the next set
of available commands.
3. Say: “Add phone”. The system acknowledges the command and asks you to initiate
connecting from the phone handset.
4. initiate connecting from the phone:

The connecting procedure varies according to each cellular phone model. f or detailed
connecting instructions and compatible phones, please visit
www.nissanusa.com/bluetooth.

When prompted for a Passkey code, enter “1234” from the handset. (The Passkey code is
assigned by ni SSAn and cannot be changed.)
5. Say a name for the phone when the system asks you to provide one. You can give the phone
a name of your choice.
PHOne BOOk SeTu P
depending on your cell phone, the system may automatically download your \
cell phone’s
entire phonebook to the vehicle’s Bluetooth system.

if the phonebook does not download automatically, 40 entries can be individually downloaded.

To manually download entries:
1. Push the

button on the steering wheel.

2. After the tone, say “Phonebook”.
To view detailed instructional videos regarding these and other features,
please go to www.nissanownersinfo.mobi.15
