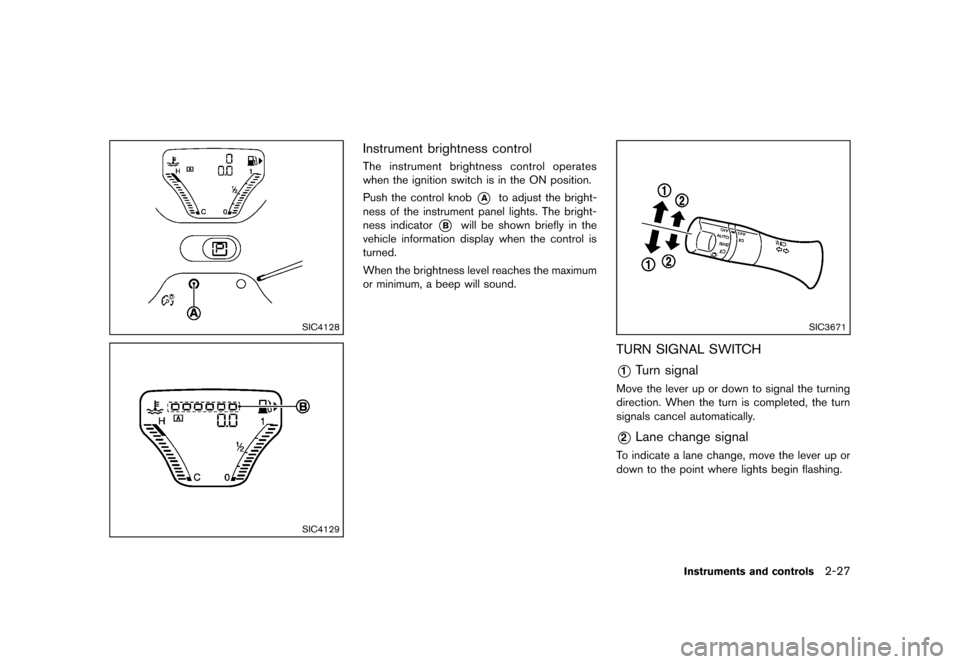

Instrument brightness controlGUID-79927396-7528-4B6E-81A6-E8C246DFBF09The instrument brightness control operates
when the ignition switch is in the ON position.
Push the control knob
*Ato adjust the bright-
ness of the instrument panel lights. The bright-
ness indicator
*Bwill be shown briefly in the
vehicle information display when the control is
turned.
When the brightness level reaches the maximum
or minimum, a beep will sound.
SIC3671
TURN SIGNAL SWITCHGUID-81F2817D-E99F-494B-895B-E090C8AA67AD
*1Turn signalGUID-FC00F55A-7A8A-47C3-946D-AAEA2D15C1C6Move the lever up or down to signal the turning
direction. When the turn is completed, the turn
signals cancel automatically.
*2Lane change signalGUID-CDCD43EE-7902-4C8B-A98A-FEC11F640AA7To indicate a lane change, move the lever up or
down to the point where lights begin flashing.
Instruments and controls2-27
Condition:
Page 102 of 331
Black plate (100,1)
[ Edit: 2012/ 7/ 19 Model: Z12-D ]
2-28Instruments and controls

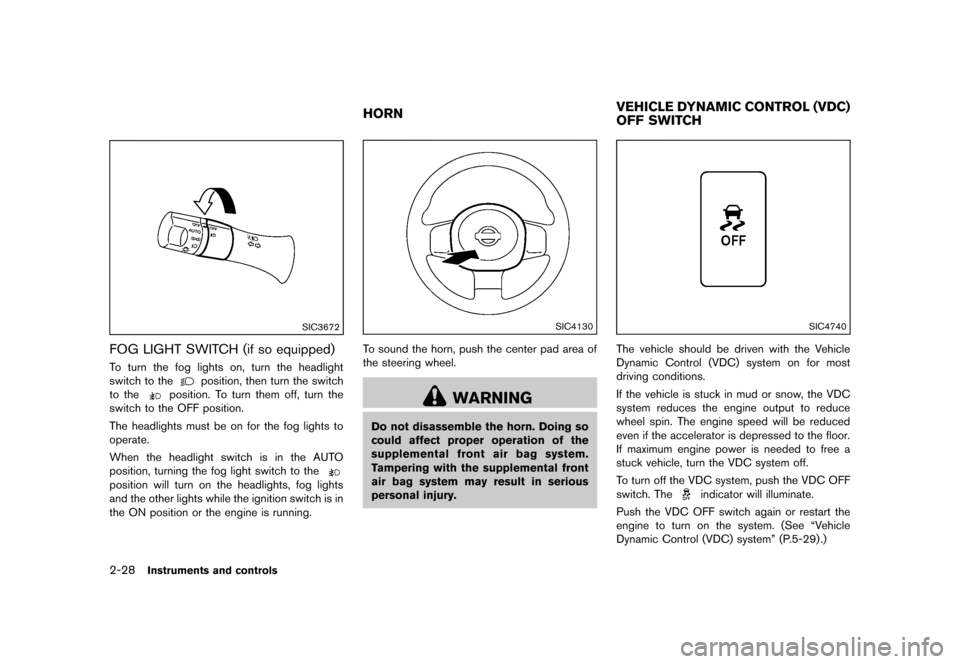

SIC3672
FOG LIGHT SWITCH (if so equipped)GUID-BE05DC32-2CEF-4B90-B1C5-16E6E80250F3To turn the fog lights on, turn the headlight
switch to the
position, then turn the switch
to the
position. To turn them off, turn the
switch to the OFF position.
The headlights must be on for the fog lights to
operate.
When the headlight switch is in the AUTO
position, turning the fog light switch to the
position will turn on the headlights, fog lights
and the other lights while the ignition switch is in
the ON position or the engine is running.
GUID-9120CE54-A049-44B2-90C6-5884075F479C
SIC4130
To sound the horn, push the center pad area of
the steering wheel.
WARNING
Do not disassemble the horn. Doing so
could affect proper operation of the
supplemental front air bag system.
Tampering with the supplemental front
air bag system may result in serious
personal injury.
GUID-BE81FE91-7D54-4CC9-8253-D71B102DD1CD
SIC4740
The vehicle should be driven with the Vehicle
Dynamic Control (VDC) system on for most
driving conditions.
If the vehicle is stuck in mud or snow, the VDC
system reduces the engine output to reduce
wheel spin. The engine speed will be reduced
even if the accelerator is depressed to the floor.
If maximum engine power is needed to free a
stuck vehicle, turn the VDC system off.
To turn off the VDC system, push the VDC OFF
switch. The
indicator will illuminate.
Push the VDC OFF switch again or restart the
engine to turn on the system. (See “Vehicle
Dynamic Control (VDC) system” (P.5-29) .)
HORN VEHICLE DYNAMIC CONTROL (VDC)
OFF SWITCH
Condition:
Page 103 of 331
Black plate (101,1)
[ Edit: 2012/ 7/ 19 Model: Z12-D ]
GUID-1E506E8A-D662-4A9F-A1C5-41FFBB69488B
WARNING
Do not use or allow occupants to use
the seat heater if you or the occupants
cannot monitor elevated seat tempera-
tures or have an inability to feel pain in
those body parts in contact with the
seat. Use of the seat heater by such
people could result in serious injury.
CAUTION
.The battery could run down if the
seat heater is operated while the
engine is not running.
. Do not use the seat heater for
extended periods or when no one
is using the seat.
. Do not put anything on the seat
which insulates heat, such as a
blanket, cushion, seat cover, etc.
Otherwise, the seat may become
overheated.
. Do not place anything hard or heavy
on the seat or pierce it with a pin or
similar object. This may result in damage to the heater.
. Any liquid spilled on the heated seat
should be removed immediately
with a dry cloth.
. When cleaning the seat, never use
gasoline, thinner, or any similar
materials.
. If any malfunctions are found or the
heated seat does not operate, turn
the switch off and have the system
checked by a NISSAN dealer.
SIC2770
The seats are warmed by built-in heaters. The
switches located on the center console can be
operated independently of each other.
1. Start the engine.
2. Select heat range.
*1For high heat, push the HI (High) side of the
switch.
*2For low heat, push the LO (Low) side of the
switch.
The indicator light in the switch*3will
illuminate when the heater is on.
3. To turn off the heater, return the switch to the level position. Make sure the indicator
light goes off.
Instruments and controls2-29
HEATED SEATS (if so equipped)
Condition:
Page 104 of 331
Black plate (102,1)
[ Edit: 2012/ 7/ 19 Model: Z12-D ]
2-30Instruments and controls
The heater is controlled by a thermostat,
automatically turning the heater on and off.
The indicator light will remain on as long as
the switch is on.
When the vehicle’s interior is warmed, or
before you leave the vehicle, be sure to turn
off the switch.
GUID-2D05D92C-F69F-40EA-AFA3-99D76EDC12A0

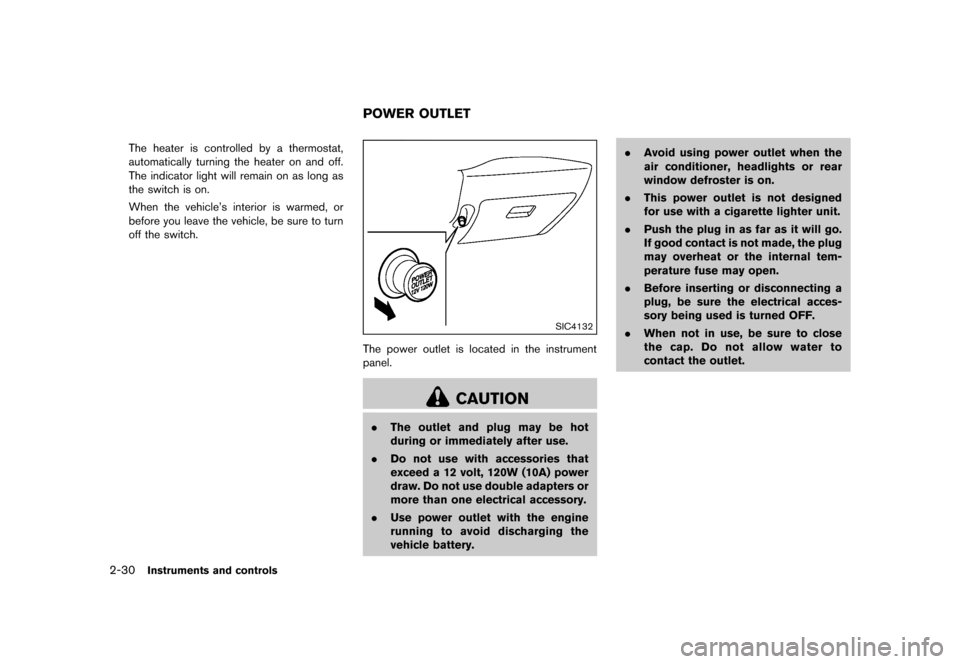

SIC4132
The power outlet is located in the instrument
panel.
CAUTION
.The outlet and plug may be hot
during or immediately after use.
. Do not use with accessories that
exceed a 12 volt, 120W (10A) power
draw. Do not use double adapters or
more than one electrical accessory.
. Use power outlet with the engine
running to avoid discharging the
vehicle battery. .
Avoid using power outlet when the
air conditioner, headlights or rear
window defroster is on.
. This power outlet is not designed
for use with a cigarette lighter unit.
. Push the plug in as far as it will go.
If good contact is not made, the plug
may overheat or the internal tem-
perature fuse may open.
. Before inserting or disconnecting a
plug, be sure the electrical acces-
sory being used is turned OFF.
. When not in use, be sure to close
the cap. Do not allow water to
contact the outlet.
POWER OUTLET
Condition:
Page 105 of 331
Black plate (103,1)
[ Edit: 2012/ 7/ 19 Model: Z12-D ]
GUID-945FA47A-EB17-41BE-894F-70680D9CC454CUP HOLDERSGUID-6CE59DC5-C85D-465B-82AB-207D3B606311
CAUTION
.Avoid abrupt starting and braking
when the cup holder is being used
to prevent spilling the drink. If the
liquid is hot, it can scald you or your
passenger.
. Use only soft cups in the cup holder.
Hard objects can injure you in an
accident.

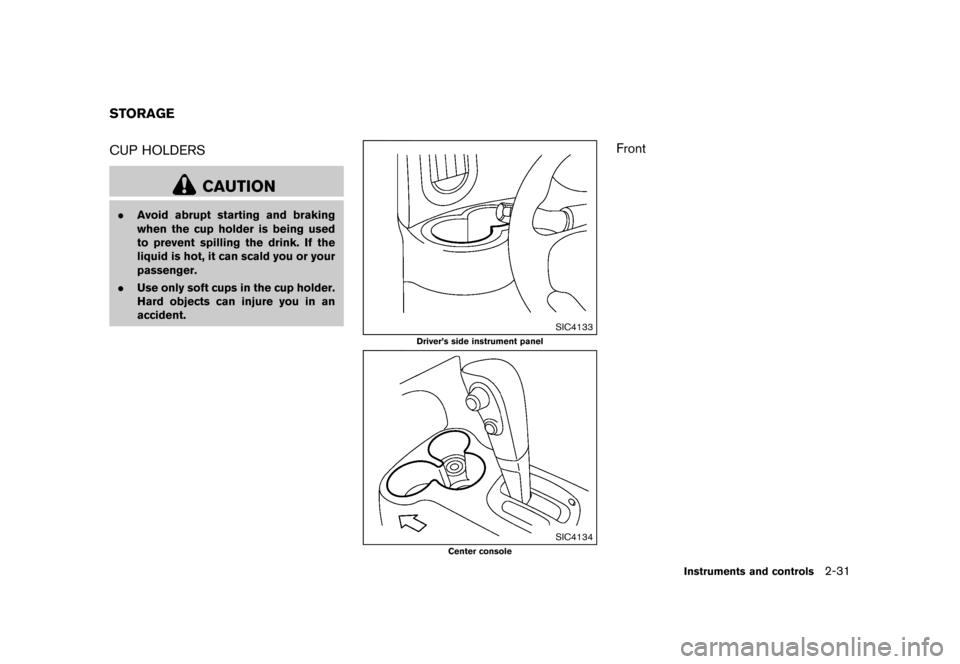

SIC4133
Driver’s side instrument panel
SIC4134
Center console
FrontGUID-EFD2825F-3746-4453-9902-F2B54A59F28E
Instruments and controls2-31
STORAGE
Condition:
Page 106 of 331
Black plate (104,1)
[ Edit: 2012/ 7/ 19 Model: Z12-D ]
2-32Instruments and controls

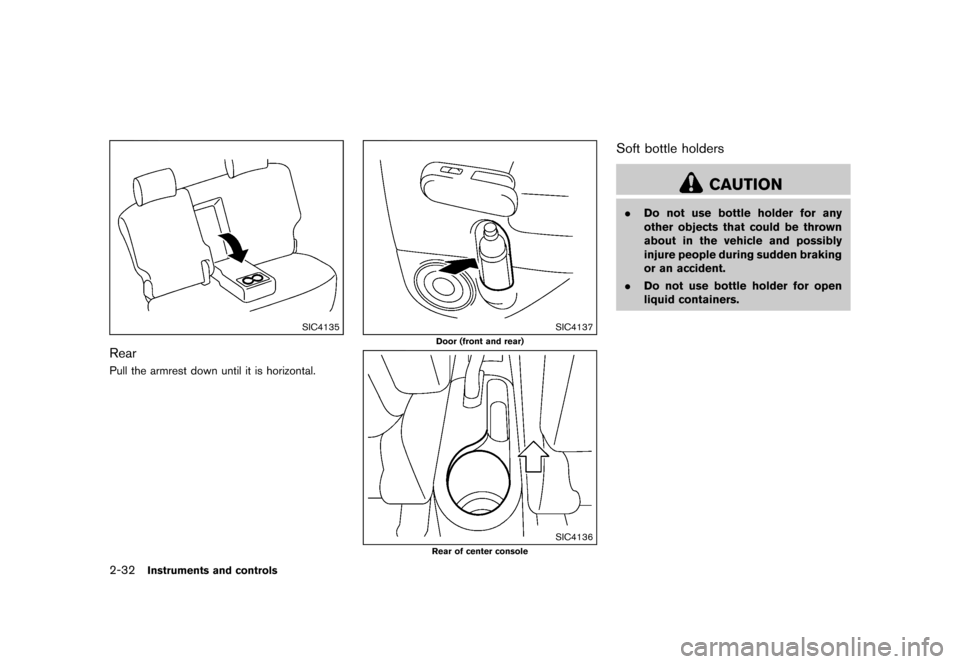

SIC4135
RearGUID-1AF15B69-AFCF-4CBC-A51F-00E686B30047Pull the armrest down until it is horizontal.
SIC4137
Door (front and rear)
SIC4136
Rear of center console
Soft bottle holdersGUID-8497CB07-C0AF-486A-B052-60BFB13876EB
CAUTION
.Do not use bottle holder for any
other objects that could be thrown
about in the vehicle and possibly
injure people during sudden braking
or an accident.
. Do not use bottle holder for open
liquid containers.
Condition:
Page 107 of 331
Black plate (105,1)
[ Edit: 2012/ 7/ 19 Model: Z12-D ]
SIC4138

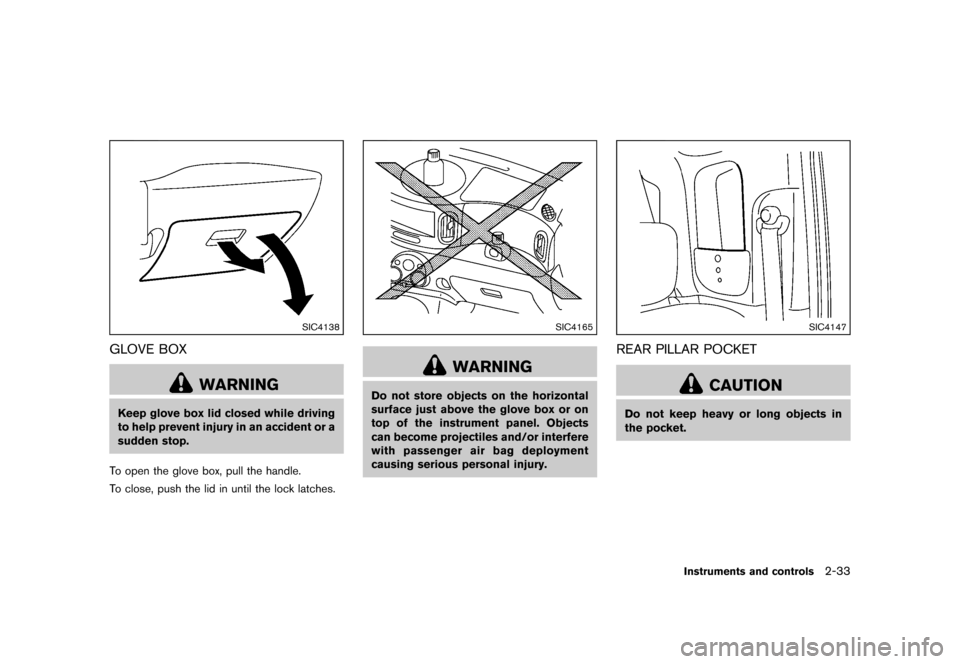

GLOVE BOXGUID-400E9A5C-5A22-46EE-9F61-79D7C2EB5223
WARNING
Keep glove box lid closed while driving
to help prevent injury in an accident or a
sudden stop.
To open the glove box, pull the handle.
To close, push the lid in until the lock latches.
SIC4165
WARNING
Do not store objects on the horizontal
surface just above the glove box or on
top of the instrument panel. Objects
can become projectiles and/or interfere
with passenger air bag deployment
causing serious personal injury.
SIC4147
REAR PILLAR POCKETGUID-56D74CC3-4A3F-44F1-9101-862D64BE81E4
CAUTION
Do not keep heavy or long objects in
the pocket.
Instruments and controls2-33
Condition:
Page 108 of 331
Black plate (106,1)
[ Edit: 2012/ 7/ 19 Model: Z12-D ]
2-34Instruments and controls
SIC4141

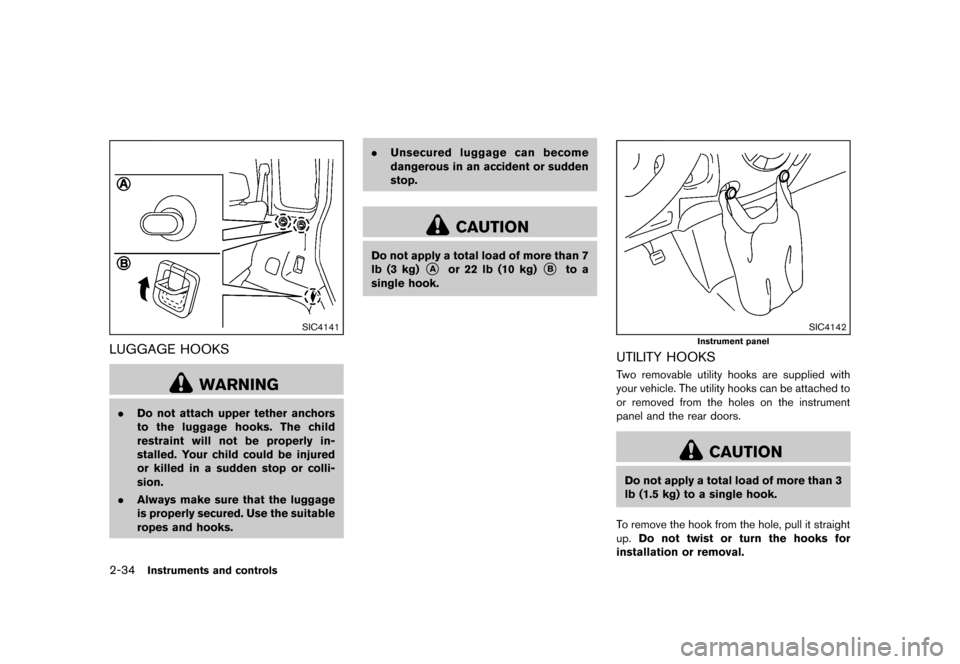

LUGGAGE HOOKSGUID-D1E44DD1-BE4B-402B-85DB-3131362C6396
WARNING
.Do not attach upper tether anchors
to the luggage hooks. The child
restraint will not be properly in-
stalled. Your child could be injured
or killed in a sudden stop or colli-
sion.
. Always make sure that the luggage
is properly secured. Use the suitable
ropes and hooks. .
Unsecured luggage can become
dangerous in an accident or sudden
stop.
CAUTION
Do not apply a total load of more than 7
lb (3 kg)
*Aor 22 lb (10 kg)*Bto a
single hook.
SIC4142
Instrument panel
UTILITY HOOKSGUID-DEB07D4A-A80D-4F15-9C45-11B16AC78BF7Two removable utility hooks are supplied with
your vehicle. The utility hooks can be attached to
or removed from the holes on the instrument
panel and the rear doors.
CAUTION
Do not apply a total load of more than 3
lb (1.5 kg) to a single hook.
To remove the hook from the hole, pull it straight
up. Do not twist or turn the hooks for
installation or removal.
Condition:
Page 109 of 331
Black plate (107,1)
[ Edit: 2012/ 7/ 19 Model: Z12-D ]

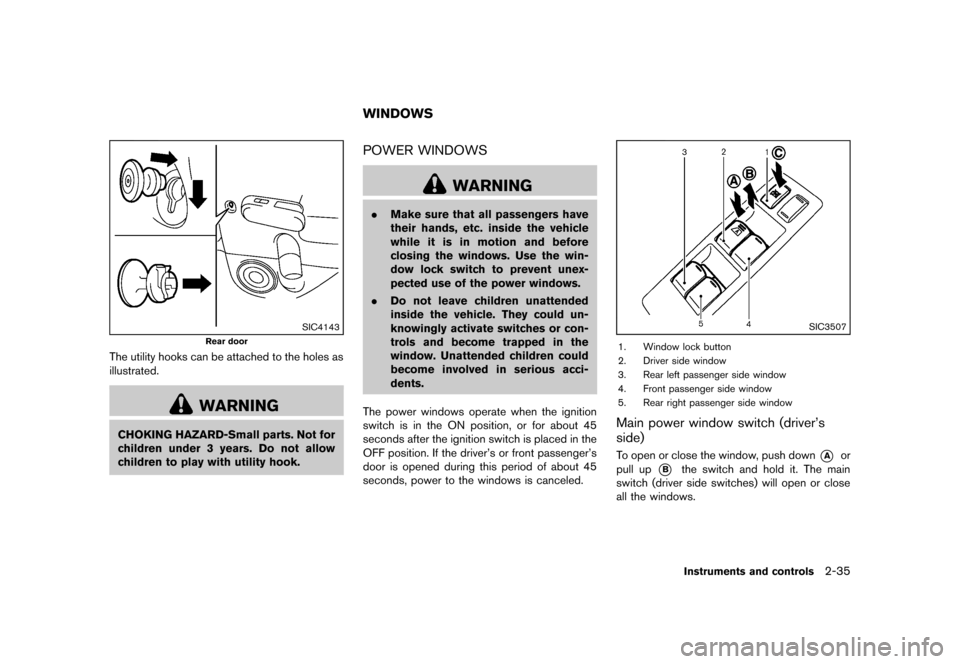

SIC4143
Rear door
The utility hooks can be attached to the holes as
illustrated.
WARNING
CHOKING HAZARD-Small parts. Not for
children under 3 years. Do not allow
children to play with utility hook.
GUID-F2D034E5-E06C-45F4-BB27-80E5785D843EPOWER WINDOWSGUID-D850B834-1D67-46B2-A202-BFAF9E98AE86
WARNING
.Make sure that all passengers have
their hands, etc. inside the vehicle
while it is in motion and before
closing the windows. Use the win-
dow lock switch to prevent unex-
pected use of the power windows.
. Do not leave children unattended
inside the vehicle. They could un-
knowingly activate switches or con-
trols and become trapped in the
window. Unattended children could
become involved in serious acci-
dents.
The power windows operate when the ignition
switch is in the ON position, or for about 45
seconds after the ignition switch is placed in the
OFF position. If the driver’s or front passenger’s
door is opened during this period of about 45
seconds, power to the windows is canceled.
SIC3507
1. Window lock button
2. Driver side window
3. Rear left passenger side window
4. Front passenger side window
5. Rear right passenger side window
Main power window switch (driver’s
side)
GUID-EC156C3E-517A-4CD9-9A4C-F78278E9218FTo open or close the window, push down*Aor
pull up
*Bthe switch and hold it. The main
switch (driver side switches) will open or close
all the windows.
Instruments and controls2-35
WINDOWS
Condition:
Page 110 of 331
Black plate (108,1)
[ Edit: 2012/ 7/ 19 Model: Z12-D ]
2-36Instruments and controls

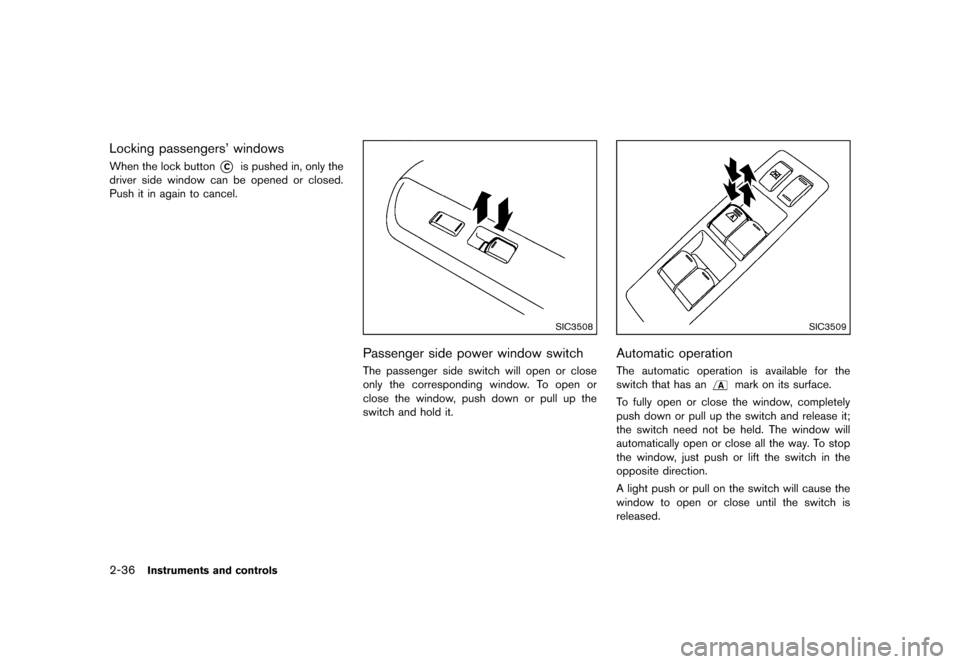

Locking passengers’ windowsGUID-6F81C207-028E-4113-BA2E-B6913C005FE5When the lock button*Cis pushed in, only the
driver side window can be opened or closed.
Push it in again to cancel.
SIC3508
Passenger side power window switchGUID-879B184A-275F-4226-A5AB-A41B7756707FThe passenger side switch will open or close
only the corresponding window. To open or
close the window, push down or pull up the
switch and hold it.
SIC3509
Automatic operationGUID-060949F5-EEF2-4E59-AD19-C3B1B783B621The automatic operation is available for the
switch that has an
mark on its surface.
To fully open or close the window, completely
push down or pull up the switch and release it;
the switch need not be held. The window will
automatically open or close all the way. To stop
the window, just push or lift the switch in the
opposite direction.
A light push or pull on the switch will cause the
window to open or close until the switch is
released.
Condition:
