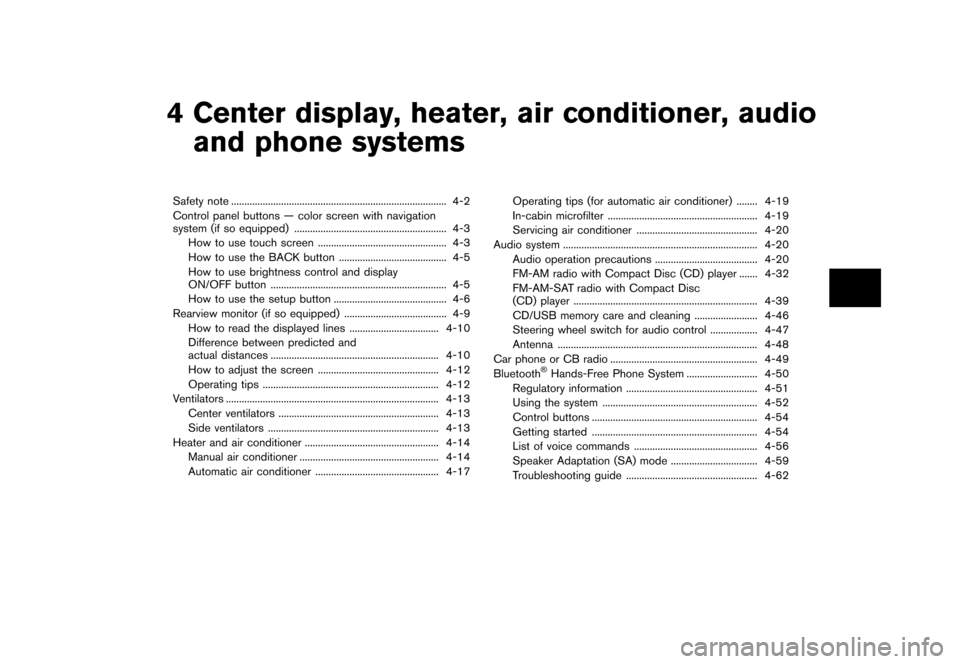

4 Center display, heater, air conditioner, audioand phone systems
Safety note ...
........................................................................\
.......... 4-2
Control panel buttons — color screen with navigation
system (if so equipped) ...
.......................................................... 4-3
How to use touch screen ...
................................................. 4-3
How to use the BACK button ...
......................................... 4-5
How to use brightness control and display
ON/OFF button ...
................................................................... 4-5
How to use the setup button ...
........................................... 4-6
Rearview monitor (if so equipped) ...
....................................... 4-9
How to read the displayed lines ...
.................................. 4-10
Difference between predicted and
actual distances ...
................................................................ 4-10
How to adjust the screen ...
.............................................. 4-12
Operating tips ...
................................................................... 4-12
Ventilators ...
........................................................................\
......... 4-13
Center ventilators ...
............................................................. 4-13
Side ventilators ...
................................................................. 4-13
Heater and air conditioner ...
................................................... 4-14
Manual air conditioner ...
..................................................... 4-14
Automatic air conditioner ...
............................................... 4-17 Operating tips (for automatic air conditioner)
...
........ 4-19
In-cabin microfilter ...
......................................................... 4-19
Servicing air conditioner ...
.............................................. 4-20
Audio system ...
........................................................................\
.. 4-20
Audio operation precautions ...
....................................... 4-20
FM-AM radio with Compact Disc (CD) player ...
....... 4-32
FM-AM-SAT radio with Compact Disc
(CD) player ...
...................................................................... 4-39
CD/USB memory care and cleaning ...
........................ 4-46
Steering wheel switch for audio control ...
.................. 4-47
Antenna ...
........................................................................\
.... 4-48
Car phone or CB radio ...
........................................................ 4-49
Bluetooth
®Hands-Free Phone System ...
........................... 4-50
Regulatory information ...
.................................................. 4-51
Using the system ...
........................................................... 4-52
Control buttons ...
............................................................... 4-54
Getting started ...
............................................................... 4-54
List of voice commands ...
............................................... 4-56
Speaker Adaptation (SA) mode ...
................................. 4-59
Troubleshooting guide ...
.................................................. 4-62
Condition:
Page 144 of 331
Black plate (142,1)
[ Edit: 2012/ 7/ 19 Model: Z12-D ]
4-2Center display, heater, air conditioner, audio and phone systems
GUID-3277B037-7E99-4F0F-9D91-8B84E3F4E75B

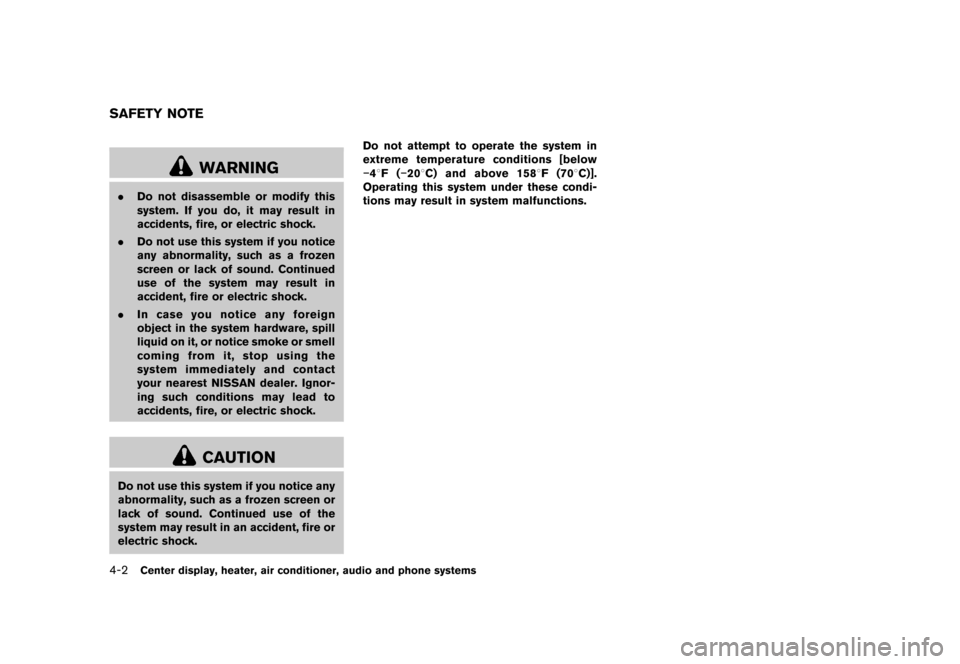

WARNING
.Do not disassemble or modify this
system. If you do, it may result in
accidents, fire, or electric shock.
. Do not use this system if you notice
any abnormality, such as a frozen
screen or lack of sound. Continued
use of the system may result in
accident, fire or electric shock.
. In case you notice any foreign
object in the system hardware, spill
liquid on it, or notice smoke or smell
coming from it, stop using the
system immediately and contact
your nearest NISSAN dealer. Ignor-
ing such conditions may lead to
accidents, fire, or electric shock.
CAUTION
Do not use this system if you notice any
abnormality, such as a frozen screen or
lack of sound. Continued use of the
system may result in an accident, fire or
electric shock. Do not attempt to operate the system in
extreme temperature conditions [below
−48F (−208C) and above 1588F (708C)].
Operating this system under these condi-
tions may result in system malfunctions.
SAFETY NOTE
Condition:
Page 145 of 331
Black plate (143,1)
[ Edit: 2012/ 7/ 19 Model: Z12-D ]
GUID-77BE3028-5610-4B98-B29B-706550CA7BEC
SAA3377

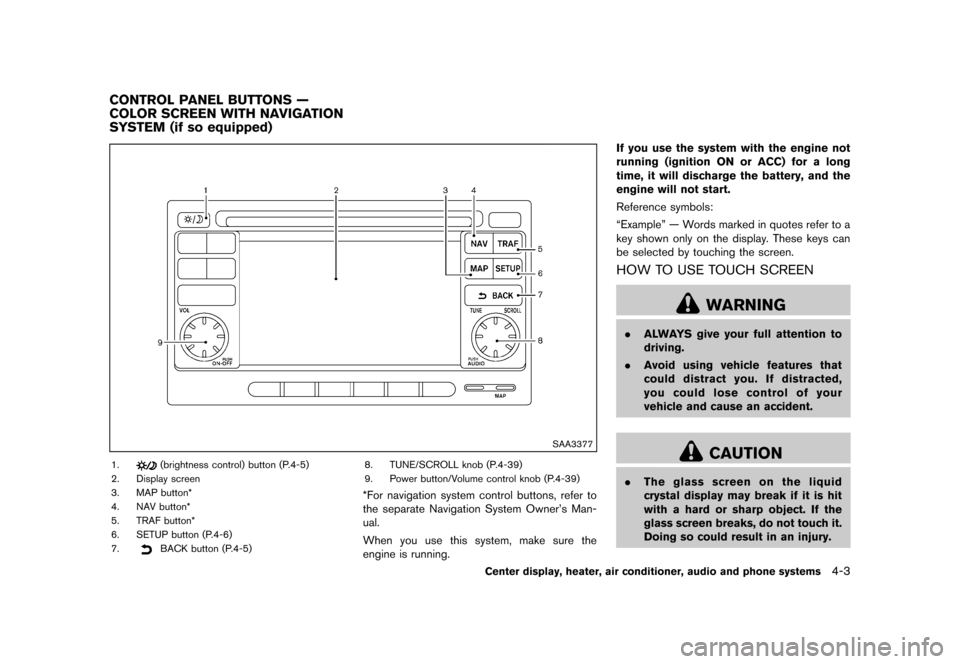

1.(brightness control) button (P.4-5)
2. Display screen
3. MAP button*
4. NAV button*
5. TRAF button*
6. SETUP button (P.4-6)
7.
BACK button (P.4-5) 8. TUNE/SCROLL knob (P.4-39)
9. Power button/Volume control knob (P.4-39)
*For navigation system control buttons, refer to
the separate Navigation System Owner’s Man-
ual.
When you use this system, make sure the
engine is running. If you use the system with the engine not
running (ignition ON or ACC) for a long
time, it will discharge the battery, and the
engine will not start.
Reference symbols:
“Example” — Words marked in quotes refer to a
key shown only on the display. These keys can
be selected by touching the screen.
HOW TO USE TOUCH SCREENGUID-57FAF9F1-1C70-421C-B85C-FA7E4F3E4877
WARNING
.
ALWAYS give your full attention to
driving.
. Avoid using vehicle features that
could distract you. If distracted,
you could lose control of your
vehicle and cause an accident.
CAUTION
.The glass screen on the liquid
crystal display may break if it is hit
with a hard or sharp object. If the
glass screen breaks, do not touch it.
Doing so could result in an injury.
Center display, heater, air conditioner, audio and phone systems4-3
CONTROL PANEL BUTTONS —
COLOR SCREEN WITH NAVIGATION
SYSTEM (if so equipped)
Condition:
Page 146 of 331
Black plate (144,1)
[ Edit: 2012/ 7/ 19 Model: Z12-D ]
4-4Center display, heater, air conditioner, audio and phone systems
.To clean the display, never use a
rough cloth, alcohol, benzine, thin-
ner or any kind of solvent or paper
towel with a chemical cleaning
agent. They will scratch or deterio-
rate the panel.
. Do not splash any liquid such as
water or car fragrance on the dis-
play. Contact with liquid will cause
the system to malfunction.
To help ensure safe driving, some functions
cannot be operated while driving.
The on-screen functions that are not available
while driving will be “grayed out” or muted.
Park the vehicle in a safe location and then
operate the navigation system.

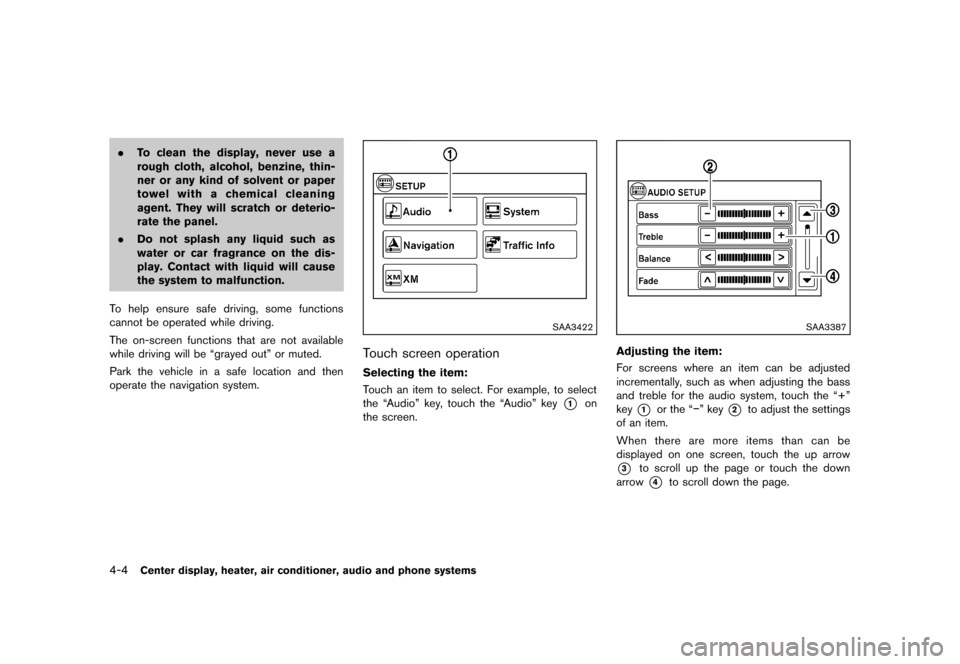

SAA3422
Touch screen operationGUID-FC23526F-C8C5-41C8-B9C0-A148C4063B84
Selecting the item:GUID-D73A39BF-43C8-459F-9C24-47B7F579C407Touch an item to select. For example, to select
the “Audio” key, touch the “Audio” key
*1on
the screen.
SAA3387
Adjusting the item:GUID-D73A39BF-43C8-459F-9C24-47B7F579C407For screens where an item can be adjusted
incrementally, such as when adjusting the bass
and treble for the audio system, touch the “+”
key
*1or the “−” key*2to adjust the settings
of an item.
When there are more items than can be
displayed on one screen, touch the up arrow
*3to scroll up the page or touch the down
arrow
*4to scroll down the page.
Condition:
Page 147 of 331
Black plate (145,1)
[ Edit: 2012/ 7/ 19 Model: Z12-D ]
SAA3388
Other items are adjusted by selecting one of a
set number of conditions. For example, the
Display Mode can be set to “Automatic”, “Day”
or “Night”. To adjust this type of item, touch the
item
*1. The item will cycle through the
available settings and the red indicator lights
to the left of the setting condition
*2will come
on or turn off accordingly.
SAA3389
Inputting characters:GUID-D73A39BF-43C8-459F-9C24-47B7F579C407Touch the letter key*1.
There are some options available when inputting
characters.
. 123/ABC:
Changes the available character set to
numbers.
. Space:
Inserts a space.
. Delete:
Deletes the last inputted character with one
touch. Touch and hold the “Delete” key to
delete all of the characters. .
OK:
Completes the character input.
Touch screen maintenanceGUID-A4823E65-BFE5-4A50-B65C-14122429C051If you clean the display screen, use a dry, soft
cloth. If additional cleaning is necessary, use a
small amount of neutral detergent with a soft
cloth. Never spray the screen with water or
detergent. Dampen the cloth first and then wipe
the screen.
HOW TO USE THE BACK BUTTONGUID-87B8408C-3651-43D0-B233-0418E1C24249Push theBACK button to return to the
previous screen.
HOW TO USE BRIGHTNESS CON-
TROL AND DISPLAY ON/OFF BUTTON
GUID-E9EE7E00-DCD0-45C7-A1E2-7ACE9FE652D9To change the display brightness, push the
button. Pushing the button again will change the
display to the day or the night display.
If no operation is performed within 5 seconds,
the display will return to the previous display.
Push and hold the
button for more than two
seconds to turn the display off. Push the button
again to turn the display on.
Center display, heater, air conditioner, audio and phone systems4-5
Condition:
Page 148 of 331
Black plate (146,1)
[ Edit: 2012/ 7/ 19 Model: Z12-D ]
4-6Center display, heater, air conditioner, audio and phone systems
SAA3390

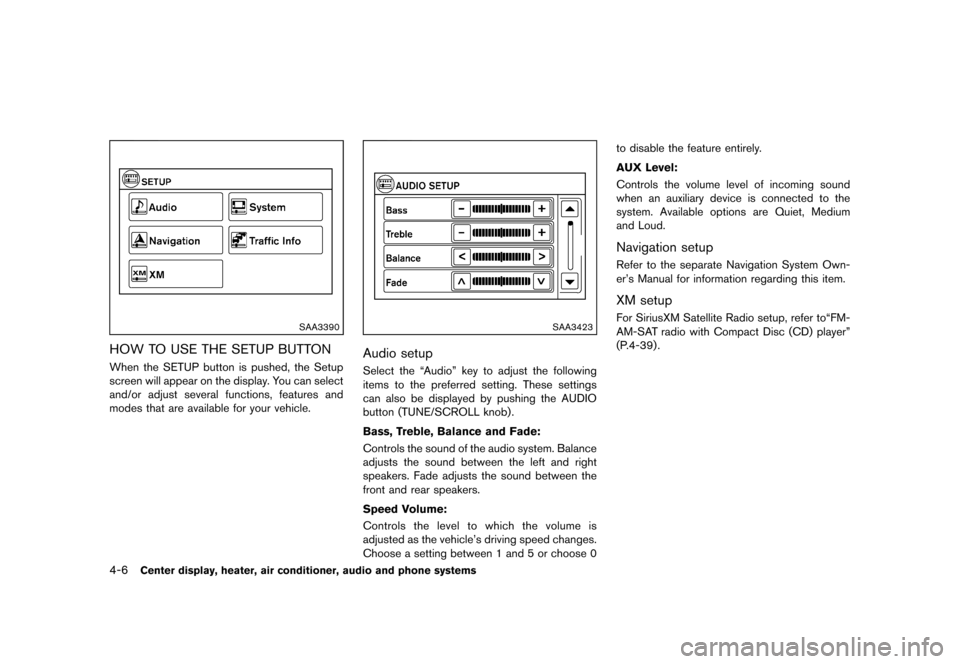

HOW TO USE THE SETUP BUTTONGUID-4CBDAAF0-0590-45C2-9BBB-172B1E828580When the SETUP button is pushed, the Setup
screen will appear on the display. You can select
and/or adjust several functions, features and
modes that are available for your vehicle.
SAA3423
Audio setupGUID-6668D6AE-8BA9-459C-A310-B33FF4E574EFSelect the “Audio” key to adjust the following
items to the preferred setting. These settings
can also be displayed by pushing the AUDIO
button (TUNE/SCROLL knob).
Bass, Treble, Balance and Fade:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407Controls the sound of the audio system. Balance
adjusts the sound between the left and right
speakers. Fade adjusts the sound between the
front and rear speakers.
Speed Volume:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407Controls the level to which the volume is
adjusted as the vehicle’s driving speed changes.
Choose a setting between 1 and 5 or choose 0to disable the feature entirely.
AUX Level:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407Controls the volume level of incoming sound
when an auxiliary device is connected to the
system. Available options are Quiet, Medium
and Loud.
Navigation setupGUID-961A6B3F-9394-47AC-A1CD-119DE37AEF59Refer to the separate Navigation System Own-
er’s Manual for information regarding this item.
XM setupGUID-3FB403E1-0D60-408E-8DEE-E5C33C563C4DFor SiriusXM Satellite Radio setup, refer to“FM-
AM-SAT radio with Compact Disc (CD) player”
(P.4-39) .
Condition:
Page 149 of 331
Black plate (147,1)
[ Edit: 2012/ 7/ 19 Model: Z12-D ]
SAA3391
System setupGUID-EC7C78CB-1EBE-4086-B4DC-75C30B49DF24Select the “System” key to select and/or adjust
various functions of the system. A screen with
additional options will appear.
SAA3392

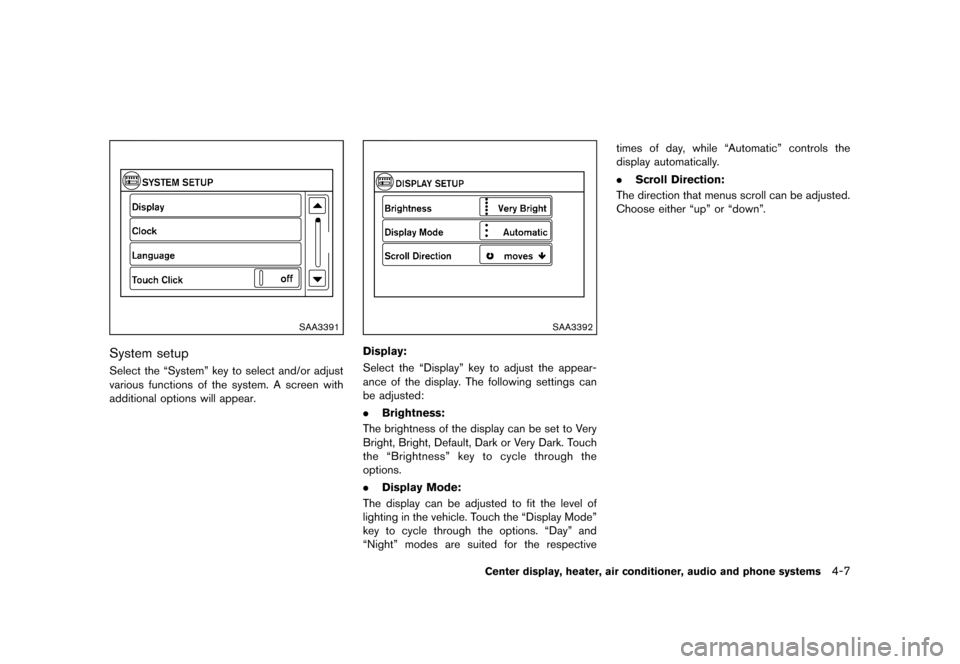

Display:GUID-D73A39BF-43C8-459F-9C24-47B7F579C407Select the “Display” key to adjust the appear-
ance of the display. The following settings can
be adjusted:
.Brightness:
The brightness of the display can be set to Very
Bright, Bright, Default, Dark or Very Dark. Touch
the “Brightness” key to cycle through the
options.
. Display Mode:
The display can be adjusted to fit the level of
lighting in the vehicle. Touch the “Display Mode”
key to cycle through the options. “Day” and
“Night” modes are suited for the respective times of day, while “Automatic” controls the
display automatically.
.
Scroll Direction:
The direction that menus scroll can be adjusted.
Choose either “up” or “down”.
Center display, heater, air conditioner, audio and phone systems4-7
Condition:
Page 150 of 331
Black plate (148,1)
[ Edit: 2012/ 7/ 19 Model: Z12-D ]
4-8Center display, heater, air conditioner, audio and phone systems
SAA3393

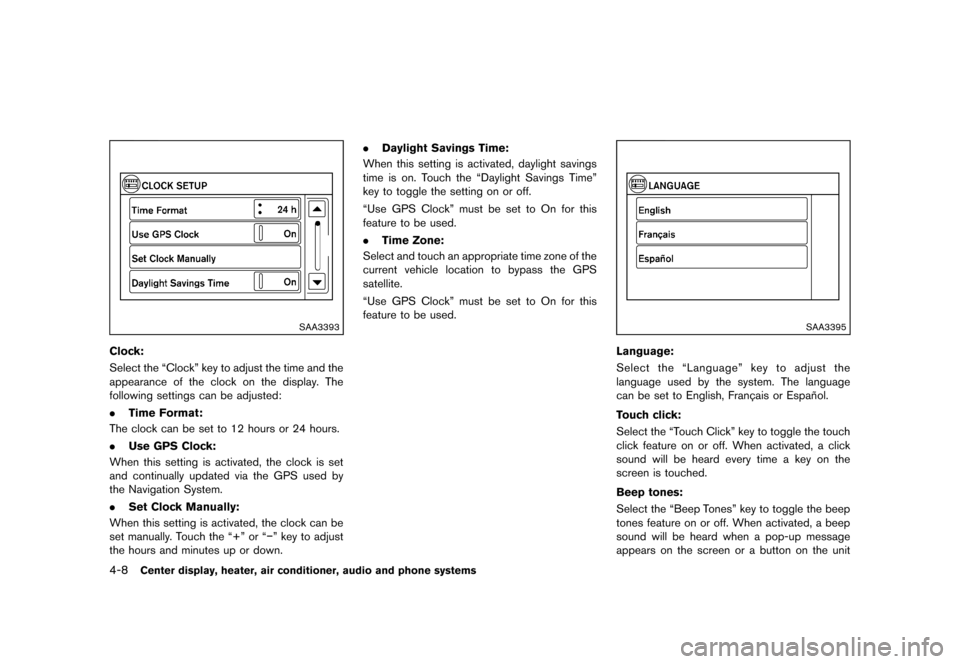

Clock:GUID-D73A39BF-43C8-459F-9C24-47B7F579C407Select the “Clock” key to adjust the time and the
appearance of the clock on the display. The
following settings can be adjusted:
.Time Format:
The clock can be set to 12 hours or 24 hours.
. Use GPS Clock:
When this setting is activated, the clock is set
and continually updated via the GPS used by
the Navigation System.
. Set Clock Manually:
When this setting is activated, the clock can be
set manually. Touch the “+” or “−” key to adjust
the hours and minutes up or down. .
Daylight Savings Time:
When this setting is activated, daylight savings
time is on. Touch the “Daylight Savings Time”
key to toggle the setting on or off.
“Use GPS Clock” must be set to On for this
feature to be used.
. Time Zone:
Select and touch an appropriate time zone of the
current vehicle location to bypass the GPS
satellite.
“Use GPS Clock” must be set to On for this
feature to be used.
SAA3395
Language:GUID-D73A39BF-43C8-459F-9C24-47B7F579C407Select the “Language” key to adjust the
language used by the system. The language
can be set to English, Franc¸ ais or Espan ˜
ol.
Touch click:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407Select the “Touch Click” key to toggle the touch
click feature on or off. When activated, a click
sound will be heard every time a key on the
screen is touched.
Beep tones:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407Select the “Beep Tones” key to toggle the beep
tones feature on or off. When activated, a beep
sound will be heard when a pop-up message
appears on the screen or a button on the unit
Condition:
