Auto-reverse functionGUID-320918BB-A941-4798-9806-6DF16E89289C
WARNING
There are some small distances imme-
diately before the closed position which
cannot be detected. Make sure that all
passengers have their hands, etc., in-
side the vehicle before closing the
window.
If the control unit detects something caught in
the window as it is closing, the window will be
immediately lowered.
The auto reverse function can be activated when
the window is closed by automatic operation
when the ignition switch is in the ON position or
for 45 seconds after the ignition switch is placed
in the OFF position.
Depending on the environment or driving
conditions, the auto reverse function may
be activated if an impact or load similar to
something being caught in the window
occurs.
If the windows do not close automaticallyGUID-7004FD71-0B52-4F72-97B5-BA1A7103A16BIf the power window automatic function (closing
only) does not operate properly, perform the
following procedure to initialize the power
window system.
1. Place the ignition switch in the ON position.
2. Close the door.
3. Open the window completely by operating the power window switch.
4. Pull the power window switch and hold it to close the window, and then hold the switch
more than 3 seconds after the window is
closed completely.
5. Release the power window switch. Operate the window by the automatic function to
confirm the initialization is complete.
If the power window automatic function does
not operate properly after performing the pro-
cedure above, have your vehicle checked by a
NISSAN dealer.
GUID-B92C6198-D0CA-457E-B767-457BA56098BA
CAUTION
Do not use for extended periods of time
with the engine stopped. This could
result in a discharged battery.
Instruments and controls2-37
INTERIOR LIGHTS
Condition:
Page 112 of 331
Black plate (110,1)
[ Edit: 2012/ 7/ 19 Model: Z12-D ]
2-38Instruments and controls
SIC4572

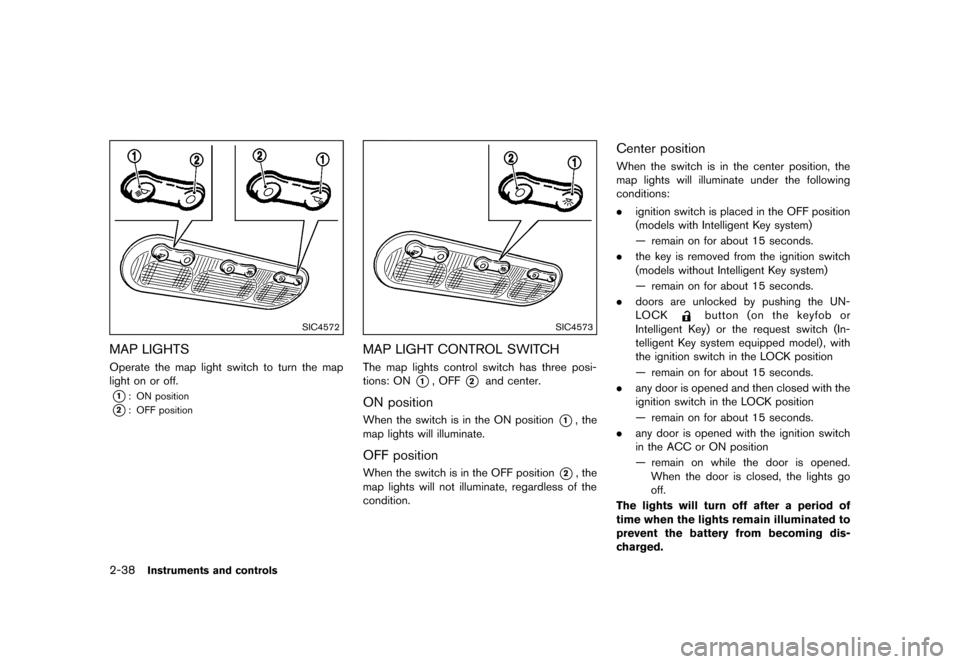

MAP LIGHTSGUID-AF4FED06-41C7-46DF-BD5C-F0D2DBAAFF21Operate the map light switch to turn the map
light on or off.
*1: ON position
*2: OFF position
SIC4573
MAP LIGHT CONTROL SWITCHGUID-6B794D6A-6D77-4A7A-AEEC-8E6E57DAEBD2The map lights control switch has three posi-
tions: ON
*1, OFF*2and center.
ON positionGUID-3793931D-059E-42EB-ADAB-63D54D5D31C1When the switch is in the ON position*1, the
map lights will illuminate.
OFF positionGUID-06352655-D3EC-4D9A-A01D-1E38D6CE9E3DWhen the switch is in the OFF position*2, the
map lights will not illuminate, regardless of the
condition.
Center positionGUID-4C0601C2-AA8C-4FD2-9ED0-13C7E7493485When the switch is in the center position, the
map lights will illuminate under the following
conditions:
. ignition switch is placed in the OFF position
(models with Intelligent Key system)
— remain on for about 15 seconds.
. the key is removed from the ignition switch
(models without Intelligent Key system)
— remain on for about 15 seconds.
. doors are unlocked by pushing the UN-
LOCK
button (on the keyfob or
Intelligent Key) or the request switch (In-
telligent Key system equipped model) , with
the ignition switch in the LOCK position
— remain on for about 15 seconds.
. any door is opened and then closed with the
ignition switch in the LOCK position
— remain on for about 15 seconds.
. any door is opened with the ignition switch
in the ACC or ON position
— remain on while the door is opened.
When the door is closed, the lights go
off.
The lights will turn off after a period of
time when the lights remain illuminated to
prevent the battery from becoming dis-
charged.
Condition:
Page 113 of 331
Black plate (111,1)
[ Edit: 2012/ 7/ 19 Model: Z12-D ]
SIC4148

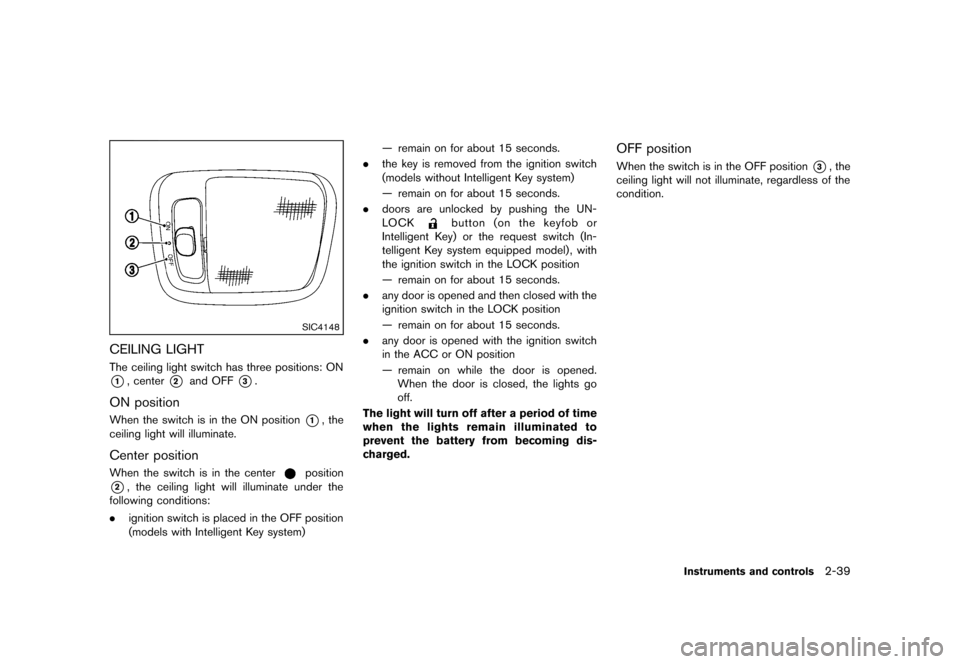

CEILING LIGHTGUID-0CF7F16A-78F5-4AFE-BC0A-92481EAC71ADThe ceiling light switch has three positions: ON
*1, center*2and OFF*3.
ON positionGUID-B02482BD-D865-4014-AF9D-91D58F7DD747When the switch is in the ON position*1, the
ceiling light will illuminate.
Center positionGUID-BA2D9500-5A01-4228-B668-72521E887611When the switch is in the centerposition
*2, the ceiling light will illuminate under the
following conditions:
. ignition switch is placed in the OFF position
(models with Intelligent Key system) — remain on for about 15 seconds.
. the key is removed from the ignition switch
(models without Intelligent Key system)
— remain on for about 15 seconds.
. doors are unlocked by pushing the UN-
LOCK
button (on the keyfob or
Intelligent Key) or the request switch (In-
telligent Key system equipped model) , with
the ignition switch in the LOCK position
— remain on for about 15 seconds.
. any door is opened and then closed with the
ignition switch in the LOCK position
— remain on for about 15 seconds.
. any door is opened with the ignition switch
in the ACC or ON position
— remain on while the door is opened.
When the door is closed, the lights go
off.
The light will turn off after a period of time
when the lights remain illuminated to
prevent the battery from becoming dis-
charged.
OFF positionGUID-DE8BD446-CB6A-411F-BC6F-8ADD52F9B087When the switch is in the OFF position*3, the
ceiling light will not illuminate, regardless of the
condition.
Instruments and controls2-39
Condition:
Page 114 of 331
Black plate (112,1)
[ Edit: 2012/ 7/ 19 Model: Z12-D ]
2-40Instruments and controls
GUID-F7027C0E-E92D-434E-93CD-537130D06DF8
JVI0358X

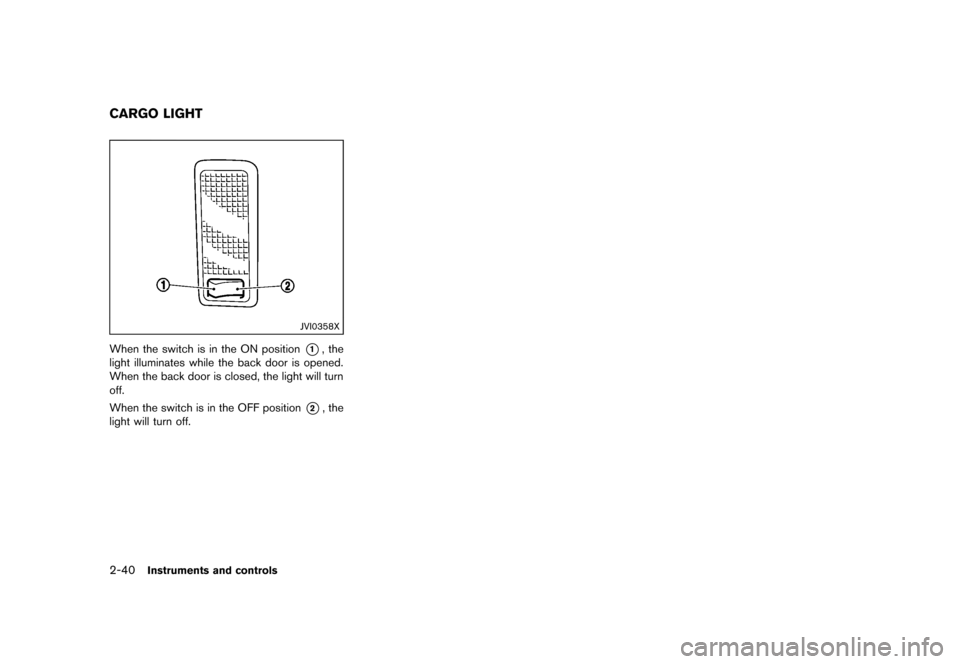

When the switch is in the ON position*1, the
light illuminates while the back door is opened.
When the back door is closed, the light will turn
off.
When the switch is in the OFF position
*2, the
light will turn off.
CARGO LIGHT
Condition:
Page 115 of 331
Black plate (113,1)
[ Edit: 2012/ 7/ 19 Model: Z12-D ]
3 Pre-driving checks and adjustments
Keys...
........................................................................\
...................... 3-2
NISSAN Vehicle Immobilizer System keys ...
................... 3-2
Intelligent Keys (if so equipped) ...
..................................... 3-3
Doors ...
........................................................................\
.................... 3-4
Locking with key ...
.................................................................. 3-5
Locking with inside lock knob ...
.......................................... 3-5
Locking with power door lock switch ...
............................ 3-5
Automatic door locks ...
......................................................... 3-6
Child safety rear door lock ...
............................................... 3-6
Remote keyless entry system (if so equipped) ...
................. 3-7
How to use remote keyless entry system ...
..................... 3-8
Intelligent Key system (if so equipped) ...
............................ 3-10
Intelligent Key operating range ...
..................................... 3-12
Door locks/unlocks precaution ...
.................................... 3-12
Intelligent Key operation ...
................................................. 3-13
Battery saver system ...
....................................................... 3-14 Warning lights and audible reminders
...
...................... 3-14
Troubleshooting guide ...
.................................................. 3-15
How to use remote keyless entry function ...
.............. 3-16
Hood ...
........................................................................\
................. 3-19
Back door ...
........................................................................\
........ 3-20
Fuel-filler door ...
........................................................................\
3-21
Opening the fuel-filler door ...
......................................... 3-21
Fuel-filler cap ...
.................................................................. 3-21
Tilt steering column ...
.............................................................. 3-23
Tilt operation ...
................................................................... 3-23
Sun visors ...
........................................................................\
........ 3-24
Mirrors ...
........................................................................\
............. 3-24
Inside mirror ...
..................................................................... 3-24
Outside mirrors ...
............................................................... 3-25
Vanity mirror ...
..................................................................... 3-26
Condition:
Page 116 of 331
Black plate (114,1)
[ Edit: 2012/ 7/ 19 Model: Z12-D ]

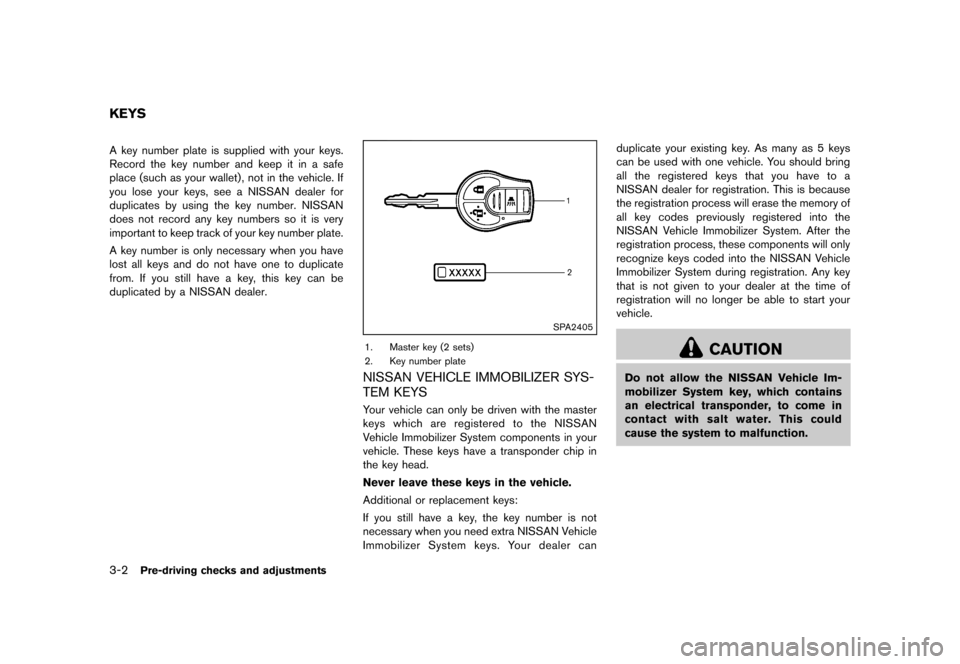

3-2Pre-driving checks and adjustments
GUID-A305A368-CAE7-49C7-90CA-E9BA1952C6D3A key number plate is supplied with your keys.
Record the key number and keep it in a safe
place (such as your wallet), not in the vehicle. If
you lose your keys, see a NISSAN dealer for
duplicates by using the key number. NISSAN
does not record any key numbers so it is very
important to keep track of your key number plate.
A key number is only necessary when you have
lost all keys and do not have one to duplicate
from. If you still have a key, this key can be
duplicated by a NISSAN dealer.
SPA2405
1. Master key (2 sets)
2. Key number plate
NISSAN VEHICLE IMMOBILIZER SYS-
TEM KEYS
GUID-E0559554-88C1-4B2A-9C3A-FB27C760161BYour vehicle can only be driven with the master
keys which are registered to the NISSAN
Vehicle Immobilizer System components in your
vehicle. These keys have a transponder chip in
the key head.
Never leave these keys in the vehicle.
Additional or replacement keys:
If you still have a key, the key number is not
necessary when you need extra NISSAN Vehicle
Immobilizer System keys. Your dealer canduplicate your existing key. As many as 5 keys
can be used with one vehicle. You should bring
all the registered keys that you have to a
NISSAN dealer for registration. This is because
the registration process will erase the memory of
all key codes previously registered into the
NISSAN Vehicle Immobilizer System. After the
registration process, these components will only
recognize keys coded into the NISSAN Vehicle
Immobilizer System during registration. Any key
that is not given to your dealer at the time of
registration will no longer be able to start your
vehicle.
CAUTION
Do not allow the NISSAN Vehicle Im-
mobilizer System key, which contains
an electrical transponder, to come in
contact with salt water. This could
cause the system to malfunction.
KEYS
Condition:
Page 117 of 331
Black plate (115,1)
[ Edit: 2012/ 7/ 19 Model: Z12-D ]

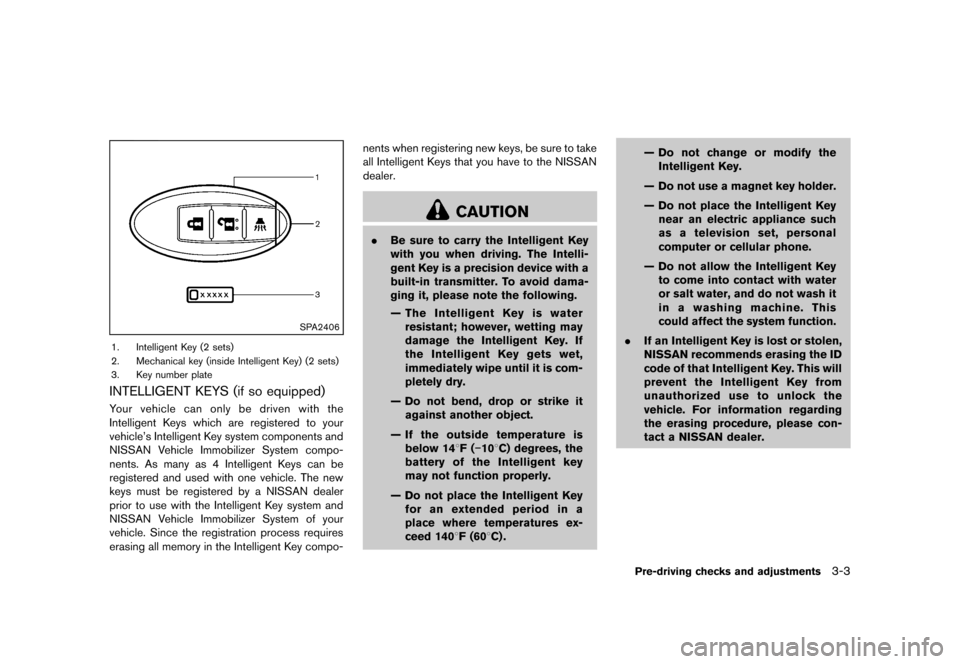

SPA2406
1. Intelligent Key (2 sets)
2. Mechanical key (inside Intelligent Key) (2 sets)
3. Key number plate
INTELLIGENT KEYS (if so equipped)GUID-1DF52FEE-3E1C-4234-BC97-A7875E1F026EYour vehicle can only be driven with the
Intelligent Keys which are registered to your
vehicle’s Intelligent Key system components and
NISSAN Vehicle Immobilizer System compo-
nents. As many as 4 Intelligent Keys can be
registered and used with one vehicle. The new
keys must be registered by a NISSAN dealer
prior to use with the Intelligent Key system and
NISSAN Vehicle Immobilizer System of your
vehicle. Since the registration process requires
erasing all memory in the Intelligent Key compo-nents when registering new keys, be sure to take
all Intelligent Keys that you have to the NISSAN
dealer.
CAUTION
.
Be sure to carry the Intelligent Key
with you when driving. The Intelli-
gent Key is a precision device with a
built-in transmitter. To avoid dama-
ging it, please note the following.
— The Intelligent Key is water
resistant; however, wetting may
damage the Intelligent Key. If
the Intelligent Key gets wet,
immediately wipe until it is com-
pletely dry.
— Do not bend, drop or strike it against another object.
— If the outside temperature is below 148F (−108C) degrees, the
battery of the Intelligent key
may not function properly.
— Do not place the Intelligent Key for an extended period in a
place where temperatures ex-
ceed 1408F (608C) . — Do not change or modify the
Intelligent Key.
— Do not use a magnet key holder.
— Do not place the Intelligent Key near an electric appliance such
as a television set, personal
computer or cellular phone.
— Do not allow the Intelligent Key to come into contact with water
or salt water, and do not wash it
in a washing machine. This
could affect the system function.
. If an Intelligent Key is lost or stolen,
NISSAN recommends erasing the ID
code of that Intelligent Key. This will
prevent the Intelligent Key from
unauthorized use to unlock the
vehicle. For information regarding
the erasing procedure, please con-
tact a NISSAN dealer.
Pre-driving checks and adjustments3-3
Condition:
Page 118 of 331
Black plate (116,1)
[ Edit: 2012/ 7/ 19 Model: Z12-D ]
3-4Pre-driving checks and adjustments
SPA2033
Mechanical keyGUID-5E82C9B3-97C5-44E1-926E-42DF85874A1ATo remove the mechanical key, release the lock
knob at the back of the Intelligent Key.
To install the mechanical key, firmly insert it into
the Intelligent Key until the lock knob returns to
the lock position.
Use the mechanical key to lock or unlock the
doors. (See “Doors” (P.3-4).)
CAUTION
Always carry the mechanical key in-
stalled in the Intelligent Key.
GUID-AAF9B926-D899-4483-88FF-E1A92F66D162
WARNING
.Always have the doors locked while
driving. Along with the use of seat
belts, this provides greater safety in
the event of an accident by helping
to prevent persons from being
thrown from the vehicle. This also
helps keep children and others from
unintentionally opening the doors,
and will help keep out intruders.
. Before opening any door, always
look for and avoid oncoming traffic.
. Do not leave children unattended
inside the vehicle. They could un-
knowingly activate switches or con-
trols. Unattended children could
become involved in serious acci-
dents.
DOORS
Condition:
Page 119 of 331
Black plate (117,1)
[ Edit: 2012/ 7/ 19 Model: Z12-D ]

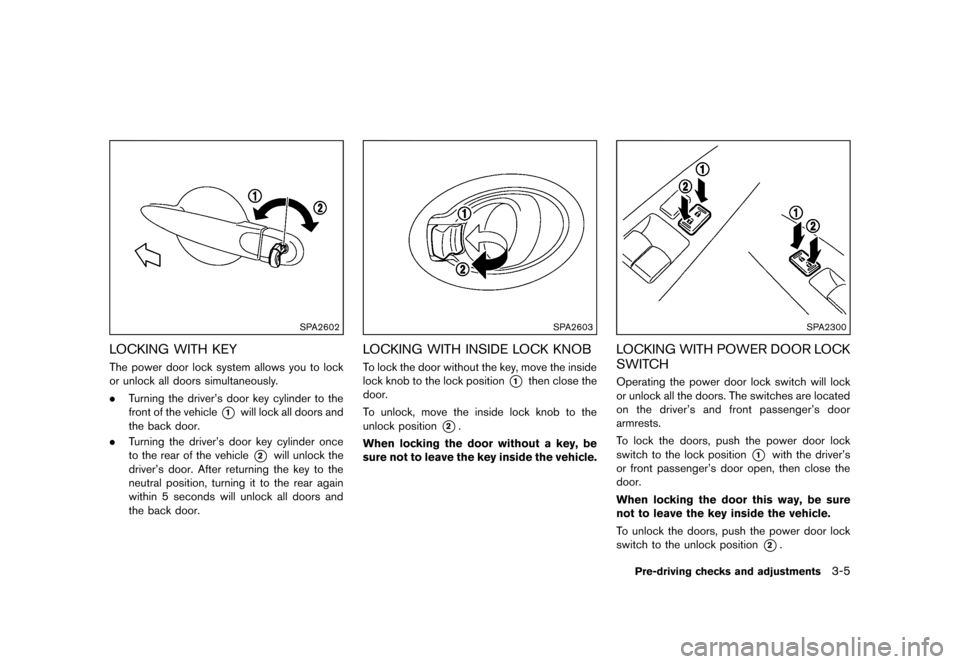

SPA2602
LOCKING WITH KEYGUID-B7D4517B-A239-4119-BE9D-ACFDF70E59CBThe power door lock system allows you to lock
or unlock all doors simultaneously.
.Turning the driver’s door key cylinder to the
front of the vehicle
*1will lock all doors and
the back door.
. Turning the driver’s door key cylinder once
to the rear of the vehicle
*2will unlock the
driver’s door. After returning the key to the
neutral position, turning it to the rear again
within 5 seconds will unlock all doors and
the back door.
SPA2603
LOCKING WITH INSIDE LOCK KNOBGUID-0252321E-05C2-446C-8A7E-EA246EA4A411To lock the door without the key, move the inside
lock knob to the lock position
*1then close the
door.
To unlock, move the inside lock knob to the
unlock position
*2.
When locking the door without a key, be
sure not to leave the key inside the vehicle.
SPA2300
LOCKING WITH POWER DOOR LOCK
SWITCH
GUID-64EC00ED-3DED-48B4-BE11-D7EC27BC8E7FOperating the power door lock switch will lock
or unlock all the doors. The switches are located
on the driver’s and front passenger’s door
armrests.
To lock the doors, push the power door lock
switch to the lock position
*1with the driver’s
or front passenger’s door open, then close the
door.
When locking the door this way, be sure
not to leave the key inside the vehicle.
To unlock the doors, push the power door lock
switch to the unlock position
*2.
Pre-driving checks and adjustments3-5
Condition:
Page 120 of 331
Black plate (118,1)
[ Edit: 2012/ 7/ 19 Model: Z12-D ]

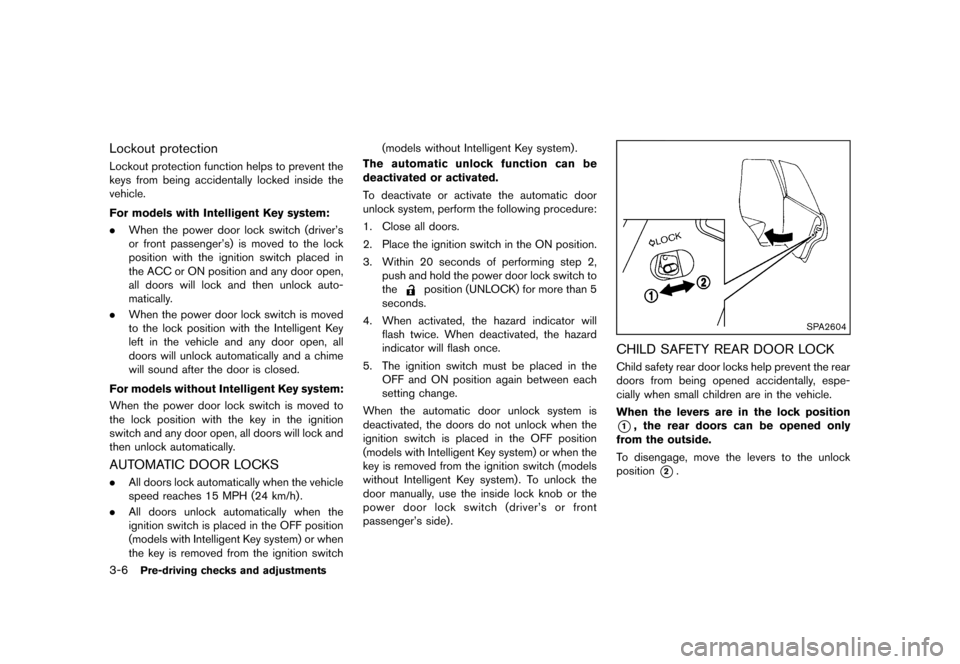

3-6Pre-driving checks and adjustments
Lockout protectionGUID-F0B044B6-1638-48C9-8622-5CDA1C026062Lockout protection function helps to prevent the
keys from being accidentally locked inside the
vehicle.
For models with Intelligent Key system:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407.When the power door lock switch (driver’s
or front passenger’s) is moved to the lock
position with the ignition switch placed in
the ACC or ON position and any door open,
all doors will lock and then unlock auto-
matically.
. When the power door lock switch is moved
to the lock position with the Intelligent Key
left in the vehicle and any door open, all
doors will unlock automatically and a chime
will sound after the door is closed.
For models without Intelligent Key system:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407When the power door lock switch is moved to
the lock position with the key in the ignition
switch and any door open, all doors will lock and
then unlock automatically.
AUTOMATIC DOOR LOCKSGUID-8919E21F-9121-49DA-B2A3-292C8809E197. All doors lock automatically when the vehicle
speed reaches 15 MPH (24 km/h) .
. All doors unlock automatically when the
ignition switch is placed in the OFF position
(models with Intelligent Key system) or when
the key is removed from the ignition switch (models without Intelligent Key system) .
The automatic unlock function can be
deactivated or activated.
To deactivate or activate the automatic door
unlock system, perform the following procedure:
1. Close all doors.
2. Place the ignition switch in the ON position.
3. Within 20 seconds of performing step 2, push and hold the power door lock switch to
the
position (UNLOCK) for more than 5
seconds.
4. When activated, the hazard indicator will flash twice. When deactivated, the hazard
indicator will flash once.
5. The ignition switch must be placed in the OFF and ON position again between each
setting change.
When the automatic door unlock system is
deactivated, the doors do not unlock when the
ignition switch is placed in the OFF position
(models with Intelligent Key system) or when the
key is removed from the ignition switch (models
without Intelligent Key system) . To unlock the
door manually, use the inside lock knob or the
power door lock switch (driver’s or front
passenger’s side).
SPA2604
CHILD SAFETY REAR DOOR LOCKGUID-B764BB33-E150-4B2D-A9C5-4E5DBC9F47AFChild safety rear door locks help prevent the rear
doors from being opened accidentally, espe-
cially when small children are in the vehicle.
When the levers are in the lock position
*1, the rear doors can be opened only
from the outside.
To disengage, move the levers to the unlock
position
*2.
Condition:
