Page 171 of 377

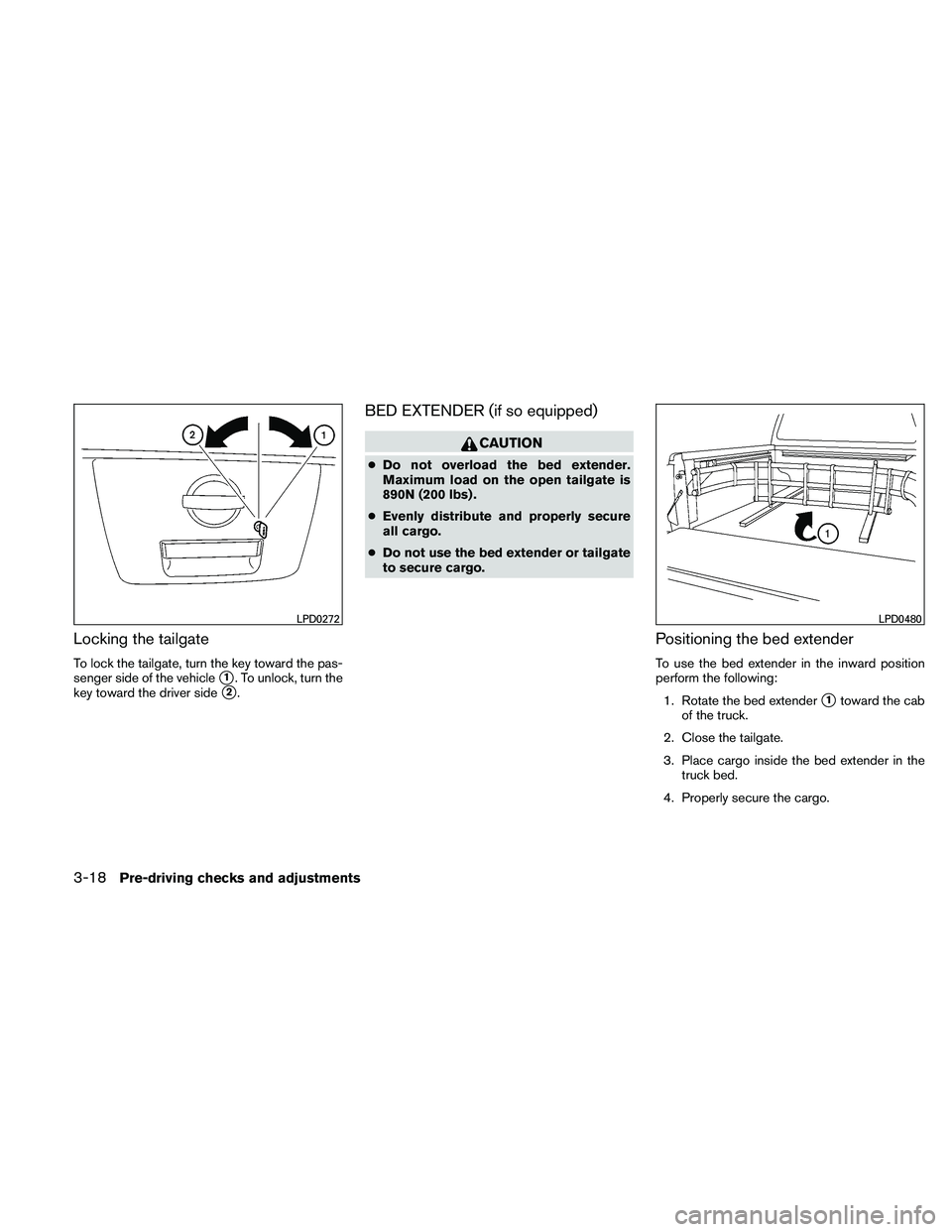

NISSAN FRONTIER 2011  Owner´s Manual Locking the tailgate
To lock the tailgate, turn the key toward the pas-
senger side of the vehicle
1. To unlock, turn the
key toward the driver side
2.
BED EXTENDER (if so equipped)
CAUTION
● Do n

Page 172 of 377

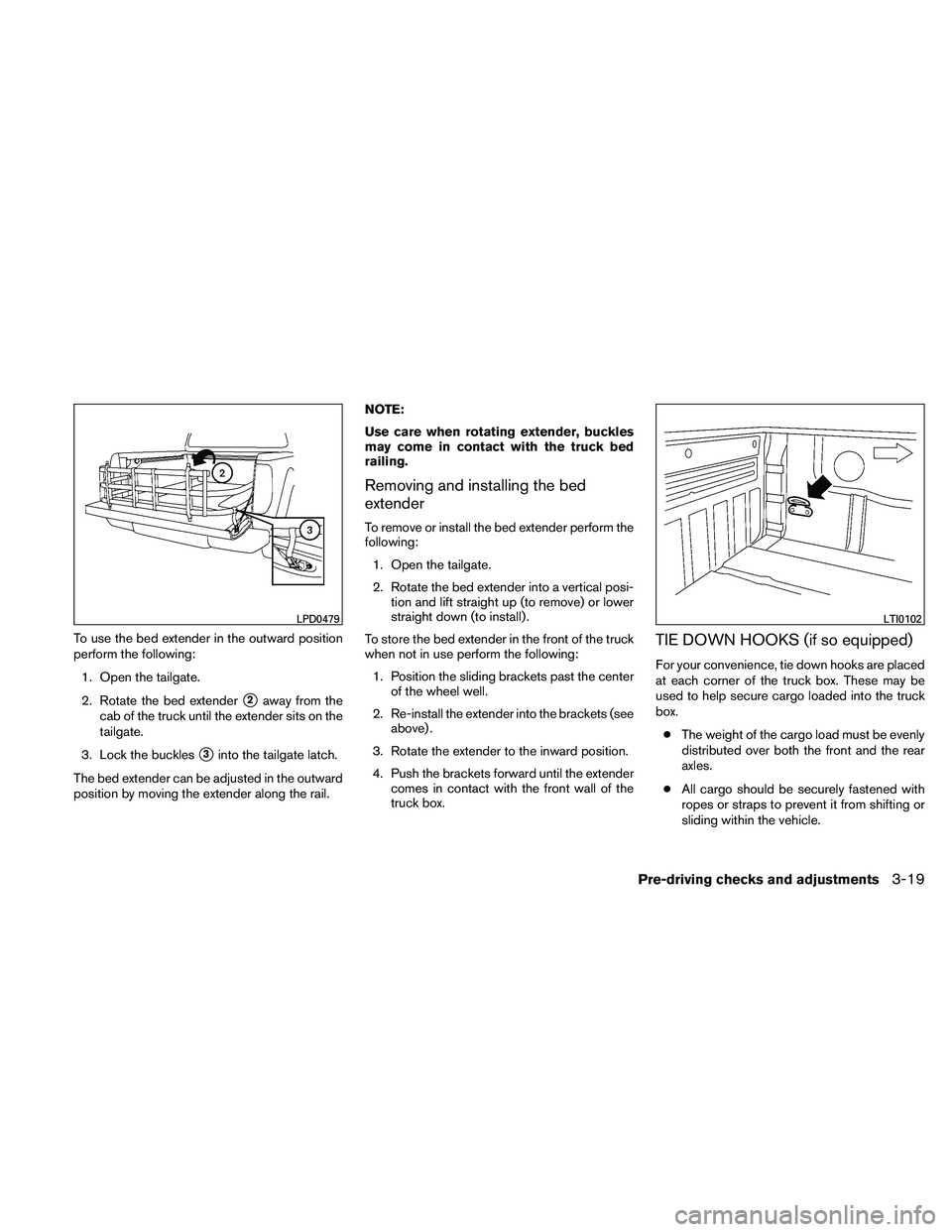

NISSAN FRONTIER 2011  Owner´s Manual To use the bed extender in the outward position
perform the following:1. Open the tailgate.
2. Rotate the bed extender
2away from the
cab of the truck until the extender sits on the
tailgate.
3. Lock

Page 173 of 377

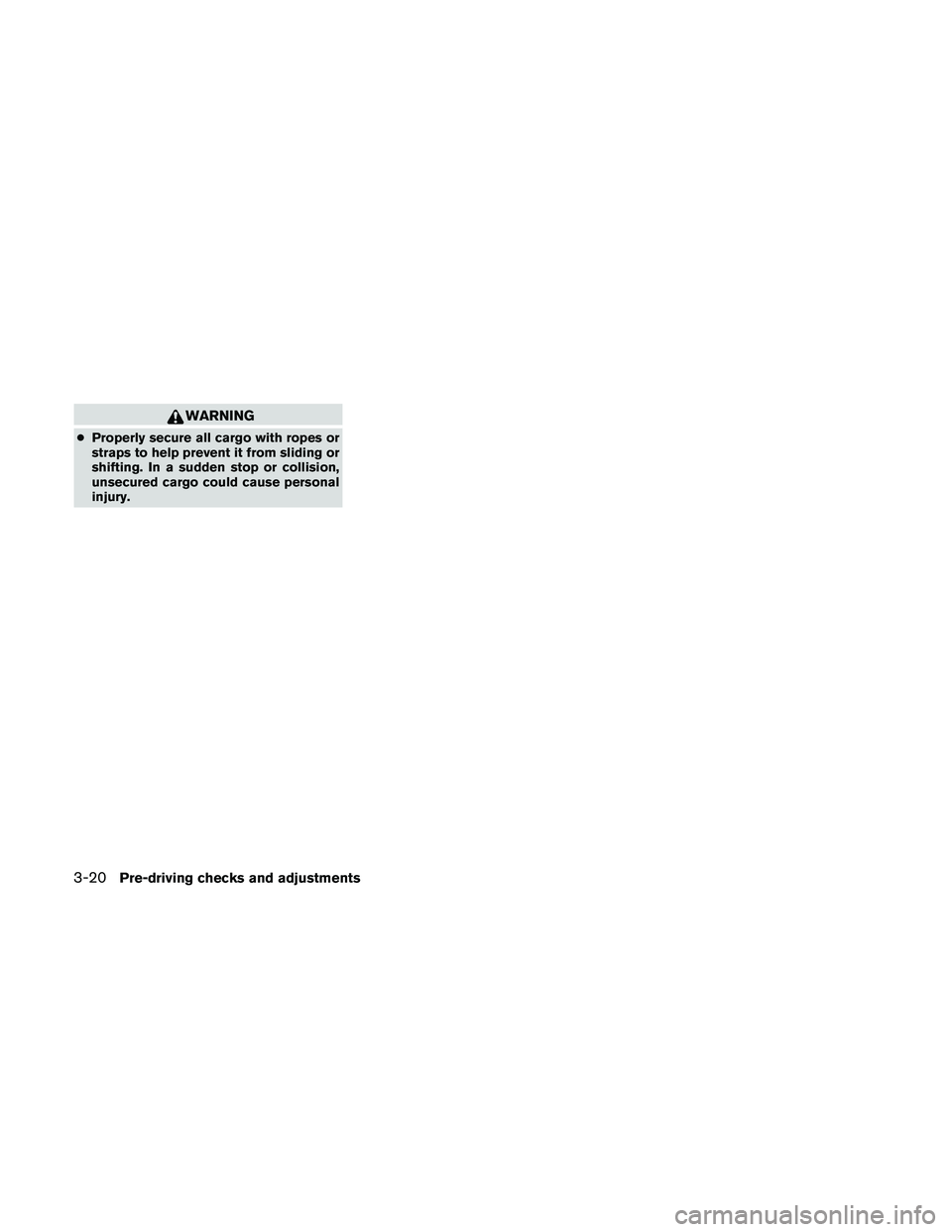

NISSAN FRONTIER 2011  Owner´s Manual WARNING
●Properly secure all cargo with ropes or
straps to help prevent it from sliding or
shifting. In a sudden stop or collision,
unsecured cargo could cause personal
injury.
3-20Pre-driving check

Page 174 of 377

NISSAN FRONTIER 2011  Owner´s Manual 4 Heater, air conditioner, audio and phone
systems
Vents............................................4-2
Heater and air conditioner (manual) (Type A) ..........4-2
Controls ............................

Page 175 of 377

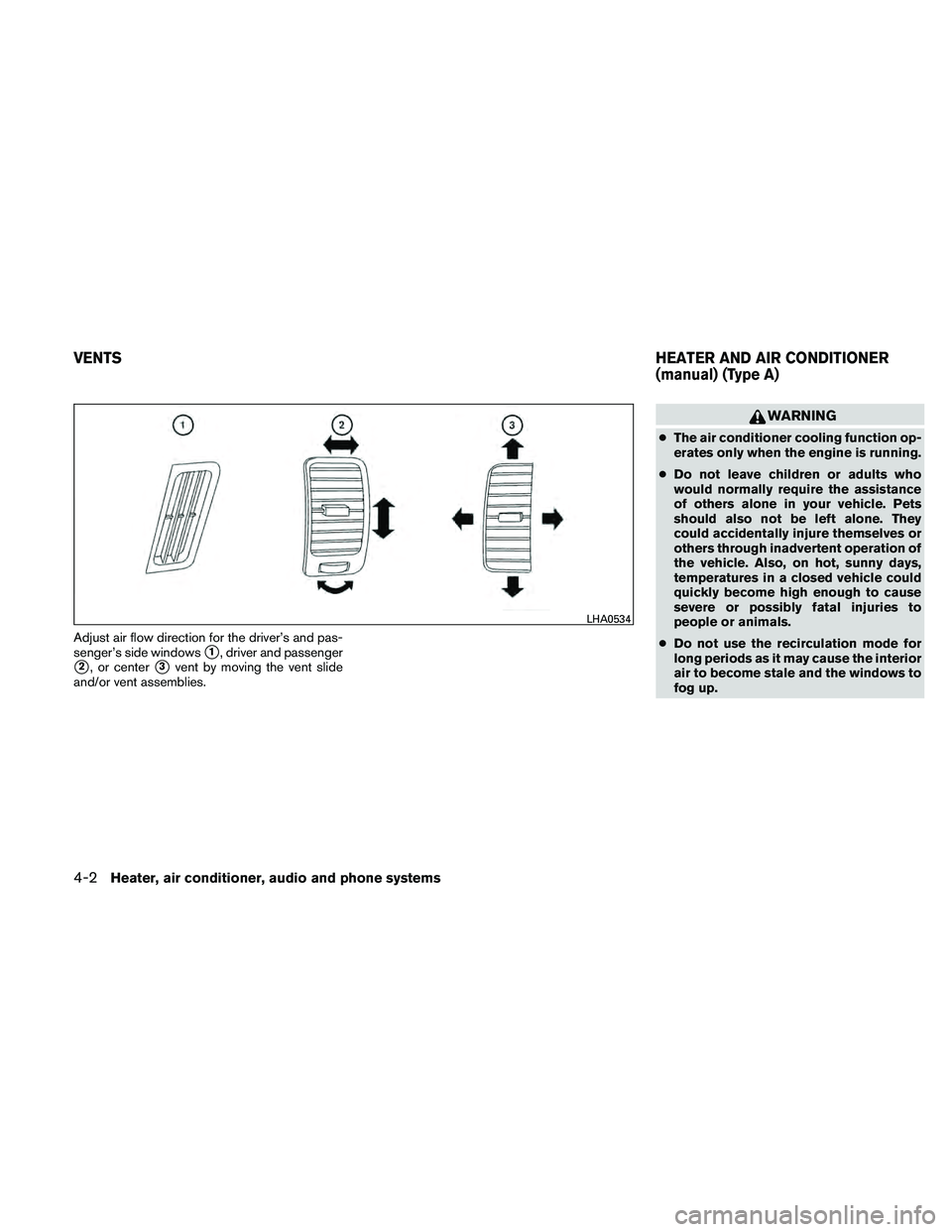

NISSAN FRONTIER 2011  Owner´s Manual Adjust air flow direction for the driver’s and pas-
senger’s side windows
1, driver and passenger
2, or center3vent by moving the vent slide
and/or vent assemblies.
WARNING
● The air conditio

Page 176 of 377

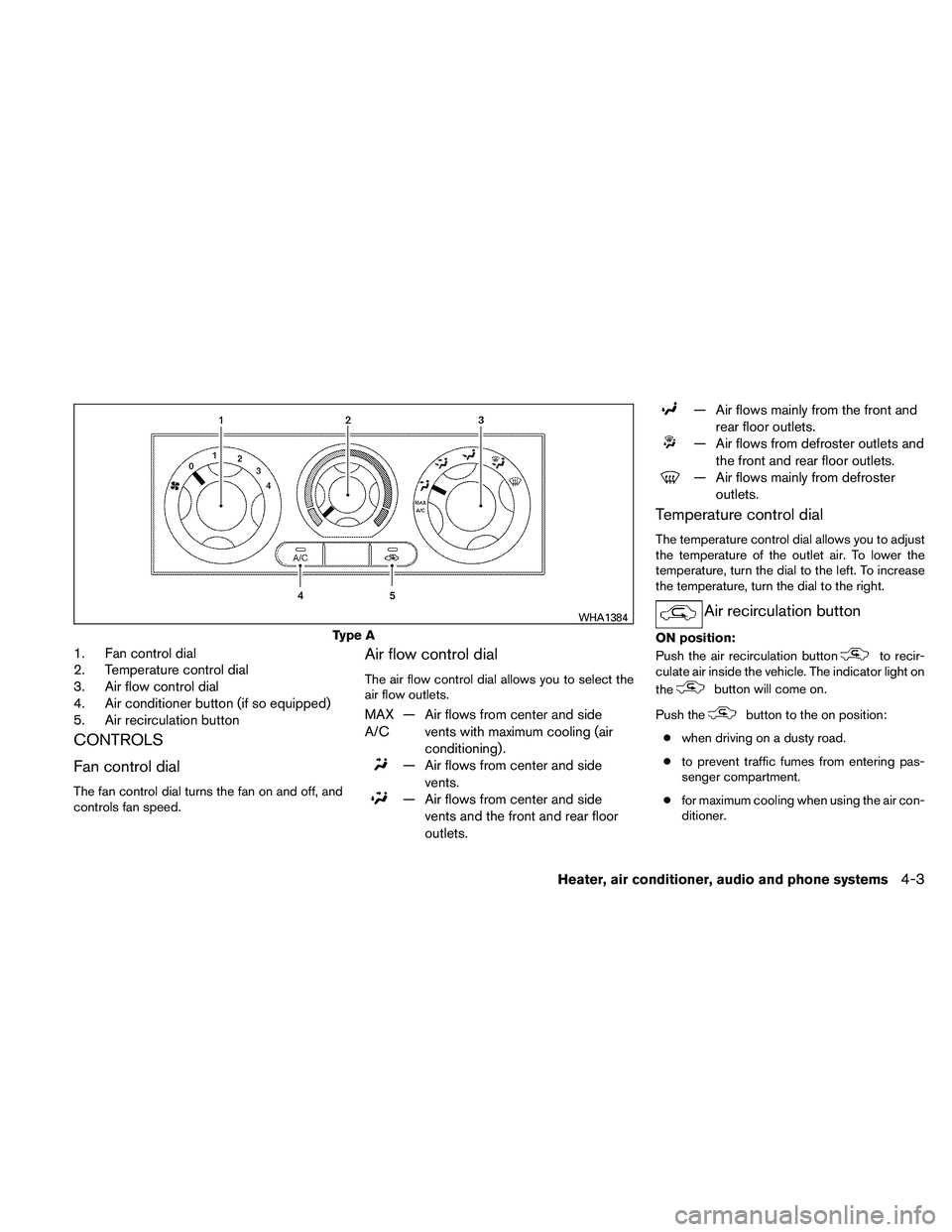

NISSAN FRONTIER 2011  Owner´s Manual 1. Fan control dial
2. Temperature control dial
3. Air flow control dial
4. Air conditioner button (if so equipped)
5. Air recirculation button
CONTROLS
Fan control dial
The fan control dial turns the

Page 177 of 377

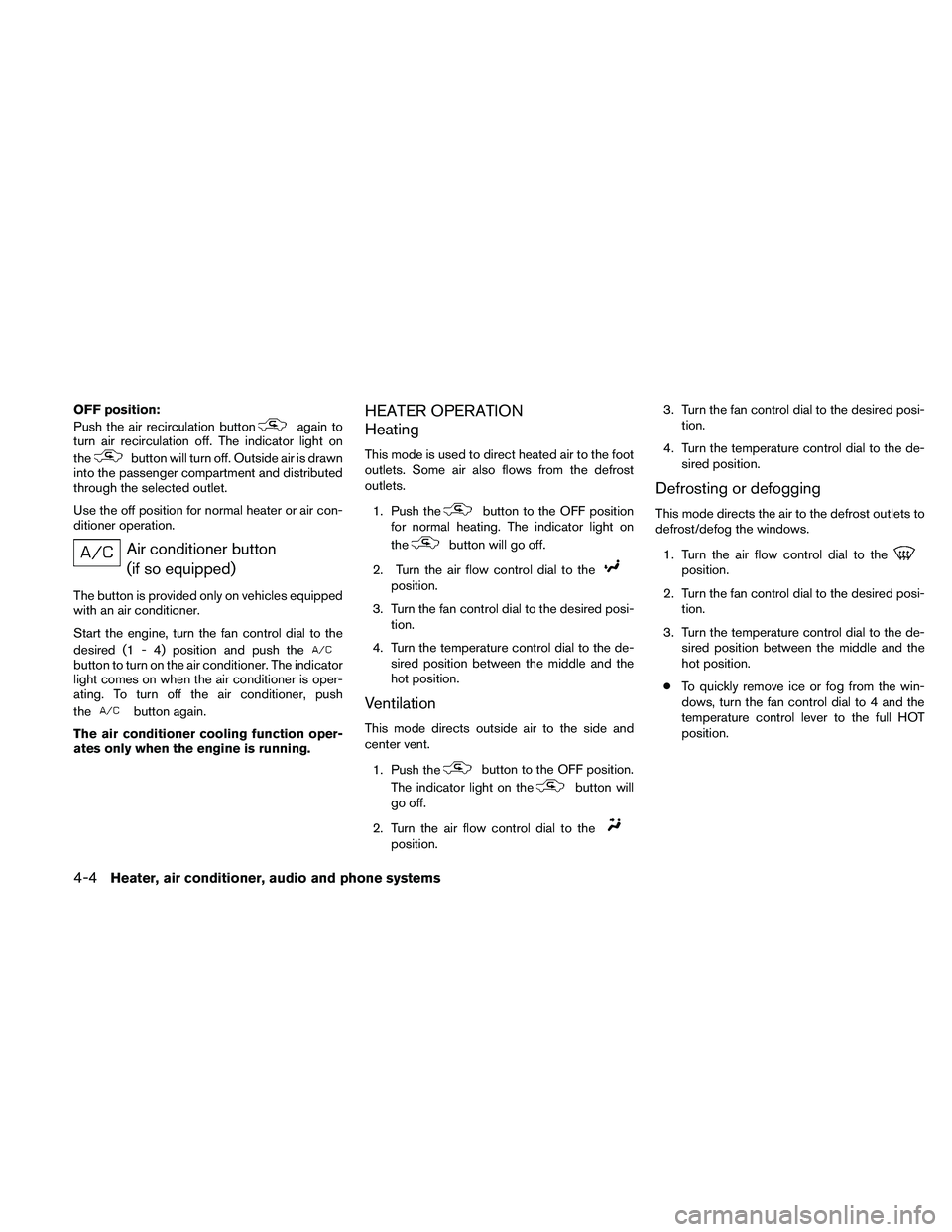

NISSAN FRONTIER 2011  Owner´s Manual OFF position:
Push the air recirculation button
again to
turn air recirculation off. The indicator light on
the
button will turn off. Outside air is drawn
into the passenger compartment and distribute

Page 178 of 377

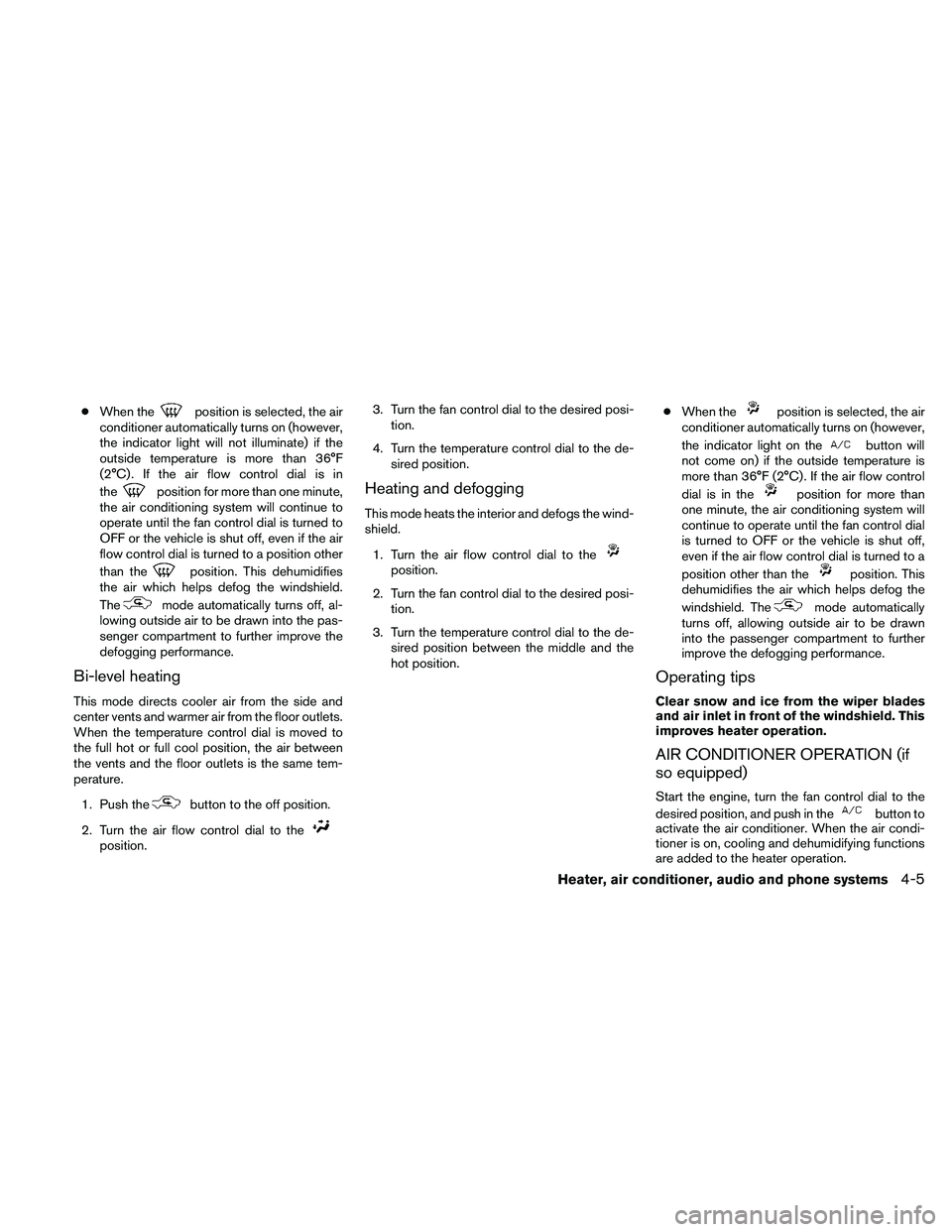

NISSAN FRONTIER 2011  Owner´s Manual ●When theposition is selected, the air
conditioner automatically turns on (however,
the indicator light will not illuminate) if the
outside temperature is more than 36°F
(2°C) . If the air flow co

Page 179 of 377

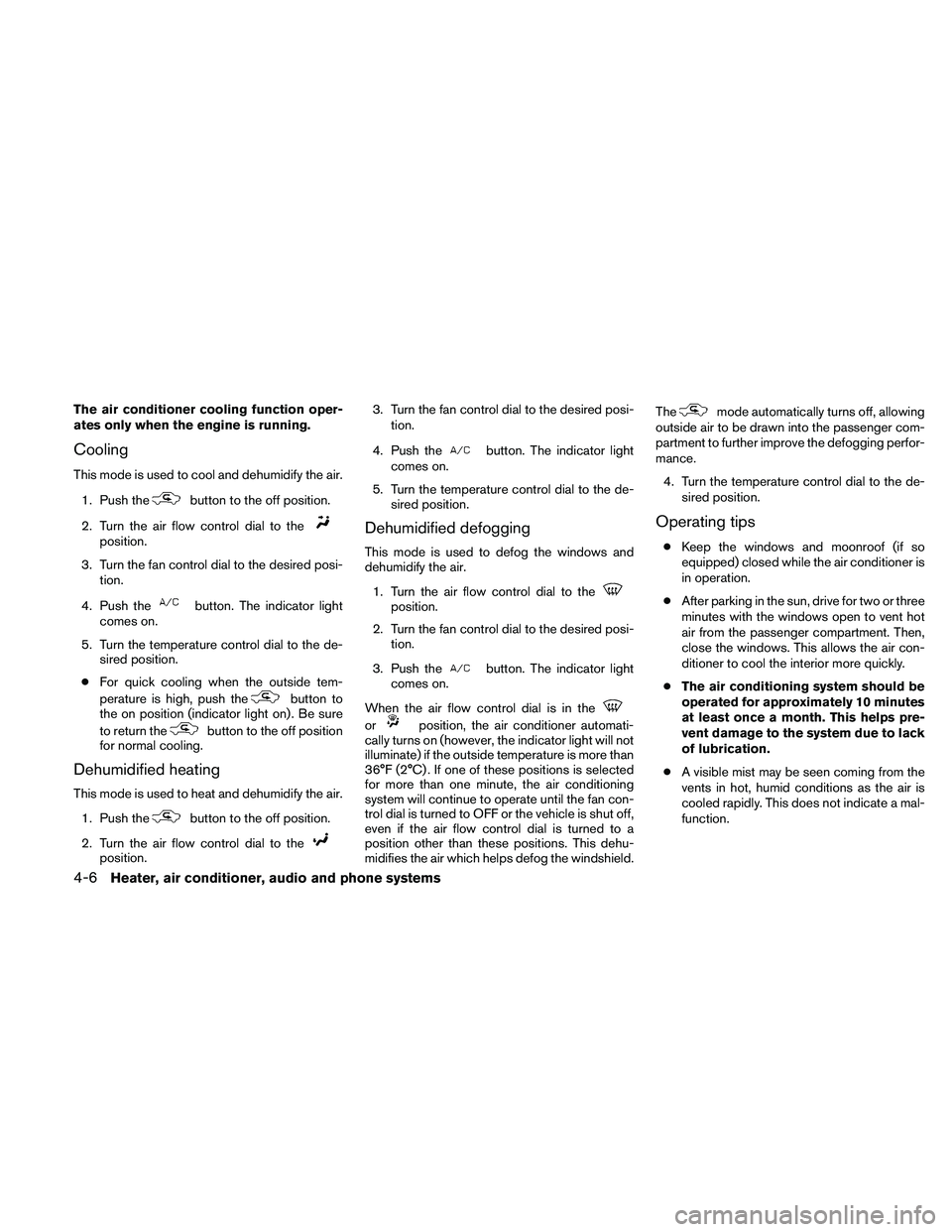

NISSAN FRONTIER 2011  Owner´s Manual The air conditioner cooling function oper-
ates only when the engine is running.
Cooling
This mode is used to cool and dehumidify the air.1. Push the
button to the off position.
2. Turn the air flow c

Page 180 of 377

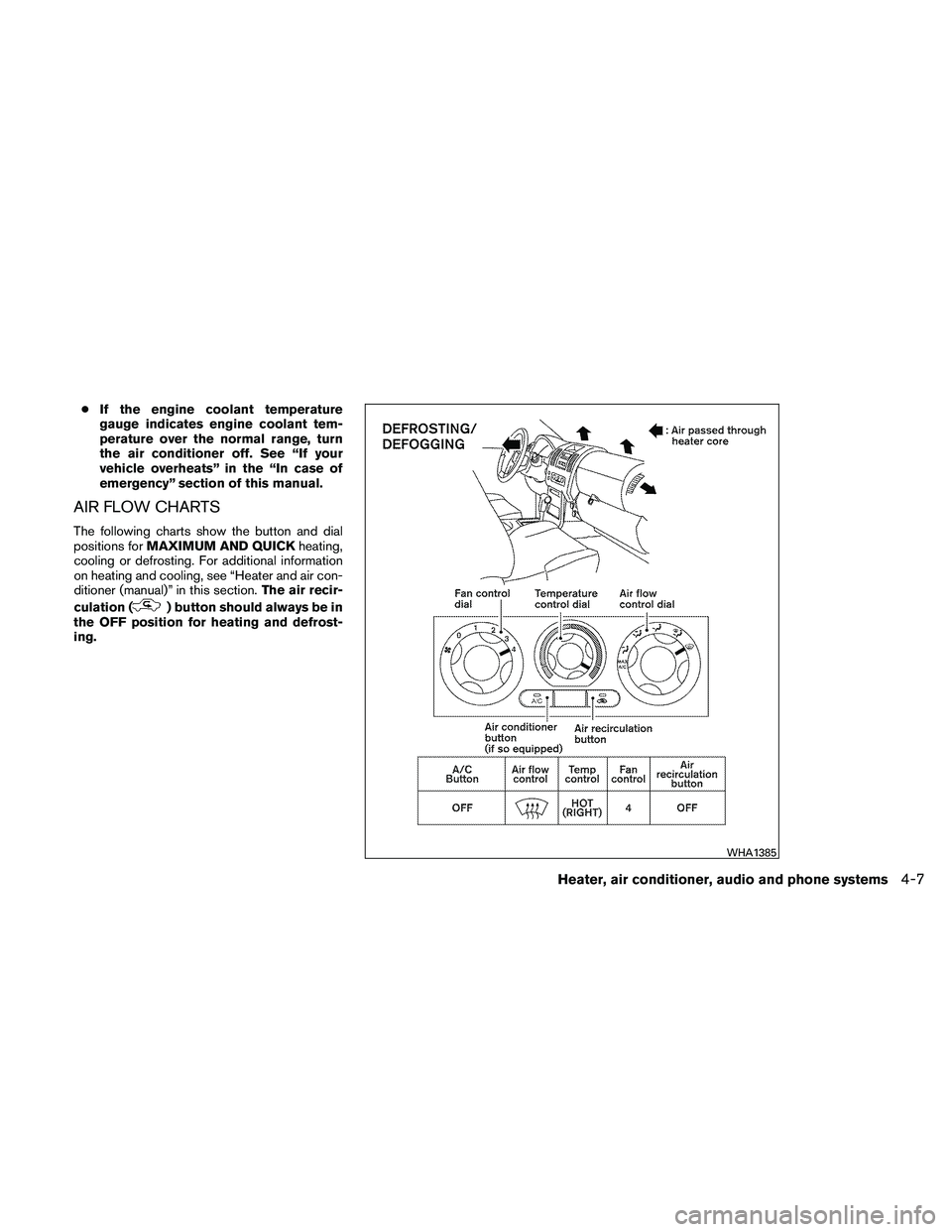

NISSAN FRONTIER 2011  Owner´s Manual ●If the engine coolant temperature
gauge indicates engine coolant tem-
perature over the normal range, turn
the air conditioner off. See “If your
vehicle overheats” in the “In case of
emergenc
