CD changer NISSAN FRONTIER 2011 Owner´s Manual

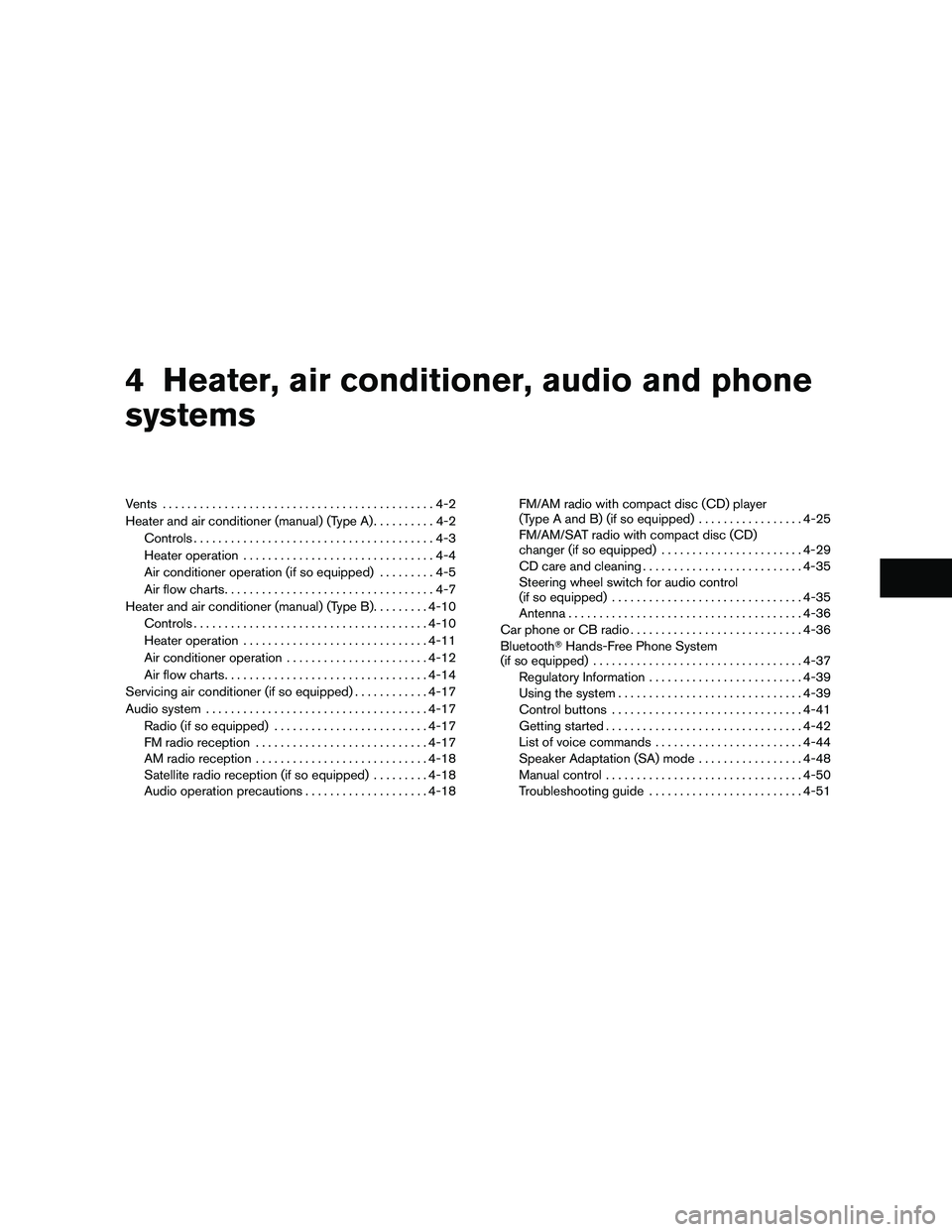

4 Heater, air conditioner, audio and phone
systems
Vents............................................4-2
Heater and air conditioner (manual) (Type A) ..........4-2
Controls .......................................4-3
Heater operation ...............................4-4
Air conditioner operation (if so equipped) .........4-5
Air flow charts ..................................4-7
Heater and air conditioner (manual) (Type B) .........4-10
Controls ...................................... 4-10
Heater operation .............................. 4-11
Air conditioner operation .......................4-12
Air flow charts ................................. 4-14
Servicing air conditioner (if so equipped) ............4-17
Audio system .................................... 4-17
Radio (if so equipped) ......................... 4-17
FM radio reception ............................ 4-17
AM radio reception ............................ 4-18
Satellite radio reception (if so equipped) .........4-18
Audio operation precautions ....................4-18FM/AM radio with compact disc (CD) player
(Type A and B) (if so equipped)
.................4-25
FM/AM/SAT radio with compact disc (CD)
changer (if so equipped) .......................4-29
CD care and cleaning .......................... 4-35
Steering wheel switch for audio control
(if so equipped) ............................... 4-35
Antenna ...................................... 4-36
Car phone or CB radio ............................ 4-36
Bluetooth Hands-Free Phone System
(if so equipped) .................................. 4-37
Regulatory Information ......................... 4-39
Using the system .............................. 4-39
Control buttons ............................... 4-41
Getting started ................................ 4-42
List of voice commands ........................ 4-44
Speaker Adaptation (SA) mode .................4-48
Manual control ................................ 4-50
Troubleshooting guide ......................... 4-51

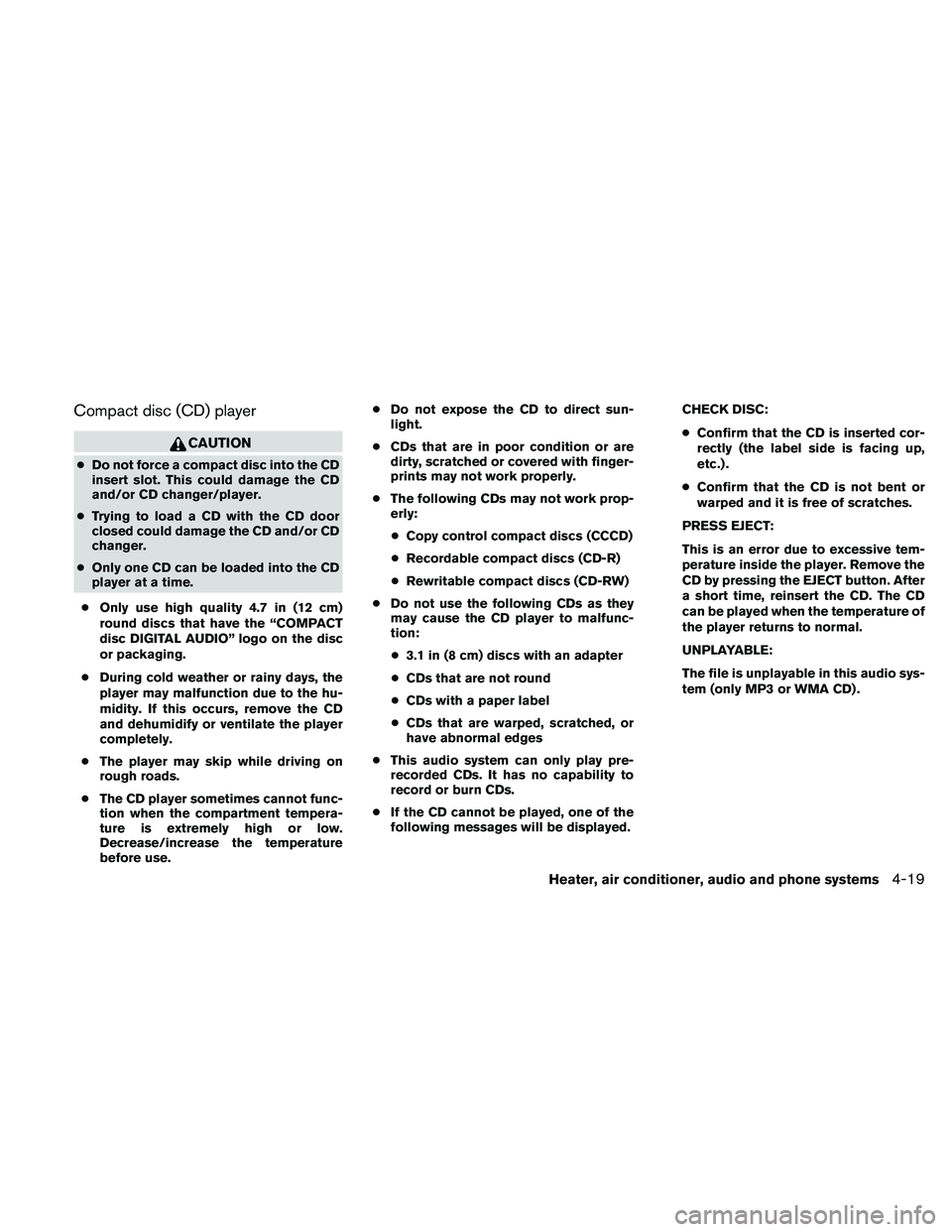

Compact disc (CD) player
CAUTION
●Do not force a compact disc into the CD
insert slot. This could damage the CD
and/or CD changer/player.
● Trying to load a CD with the CD door
closed could damage the CD and/or CD
changer.
● Only one CD can be loaded into the CD
player at a time.
● Only use high quality 4.7 in (12 cm)
round discs that have the “COMPACT
disc DIGITAL AUDIO” logo on the disc
or packaging.
● During cold weather or rainy days, the
player may malfunction due to the hu-
midity. If this occurs, remove the CD
and dehumidify or ventilate the player
completely.
● The player may skip while driving on
rough roads.
● The CD player sometimes cannot func-
tion when the compartment tempera-
ture is extremely high or low.
Decrease/increase the temperature
before use. ●
Do not expose the CD to direct sun-
light.
● CDs that are in poor condition or are
dirty, scratched or covered with finger-
prints may not work properly.
● The following CDs may not work prop-
erly:
● Copy control compact discs (CCCD)
● Recordable compact discs (CD-R)
● Rewritable compact discs (CD-RW)
● Do not use the following CDs as they
may cause the CD player to malfunc-
tion:
● 3.1 in (8 cm) discs with an adapter
● CDs that are not round
● CDs with a paper label
● CDs that are warped, scratched, or
have abnormal edges
● This audio system can only play pre-
recorded CDs. It has no capability to
record or burn CDs.
● If the CD cannot be played, one of the
following messages will be displayed. CHECK DISC:
●
Confirm that the CD is inserted cor-
rectly (the label side is facing up,
etc.) .
● Confirm that the CD is not bent or
warped and it is free of scratches.
PRESS EJECT:
This is an error due to excessive tem-
perature inside the player. Remove the
CD by pressing the EJECT button. After
a short time, reinsert the CD. The CD
can be played when the temperature of
the player returns to normal.
UNPLAYABLE:
The file is unplayable in this audio sys-
tem (only MP3 or WMA CD) .
Heater, air conditioner, audio and phone systems4-19

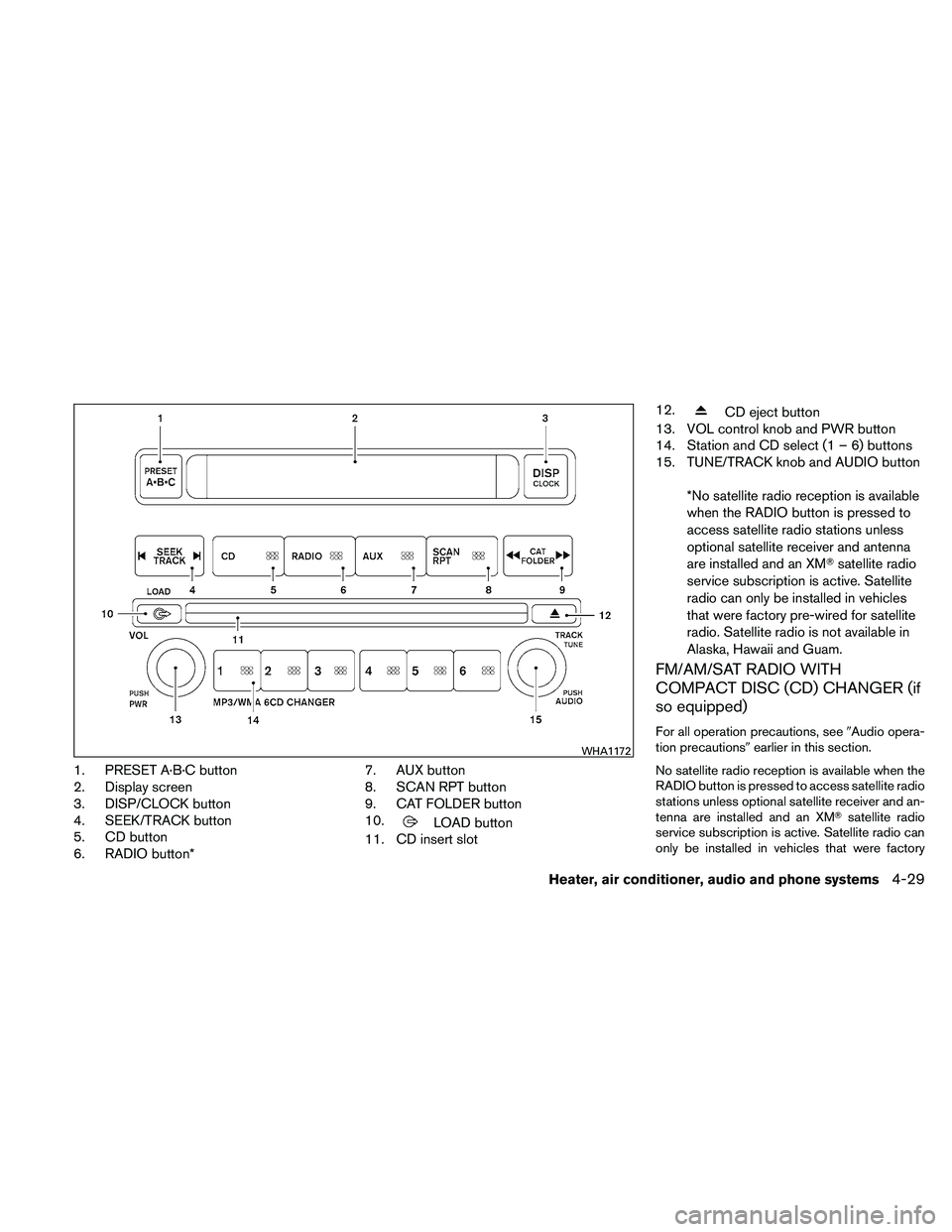

1. PRESET A·B·C button
2. Display screen
3. DISP/CLOCK button
4. SEEK/TRACK button
5. CD button
6. RADIO button*7. AUX button
8. SCAN RPT button
9. CAT FOLDER button
10.
LOAD button
11. CD insert slot 12.
CD eject button
13. VOL control knob and PWR button
14. Station and CD select (1 – 6) buttons
15. TUNE/TRACK knob and AUDIO button
*No satellite radio reception is available
when the RADIO button is pressed to
access satellite radio stations unless
optional satellite receiver and antenna
are installed and an XM satellite radio
service subscription is active. Satellite
radio can only be installed in vehicles
that were factory pre-wired for satellite
radio. Satellite radio is not available in
Alaska, Hawaii and Guam.
FM/AM/SAT RADIO WITH
COMPACT DISC (CD) CHANGER (if
so equipped)
For all operation precautions, see Audio opera-
tion precautions earlier in this section.
No satellite radio reception is available when the
RADIO button is pressed to access satellite radio
stations unless optional satellite receiver and an-
tenna are installed and an XM satellite radio
service subscription is active. Satellite radio can
only be installed in vehicles that were factory
WHA1172
Heater, air conditioner, audio and phone systems4-29

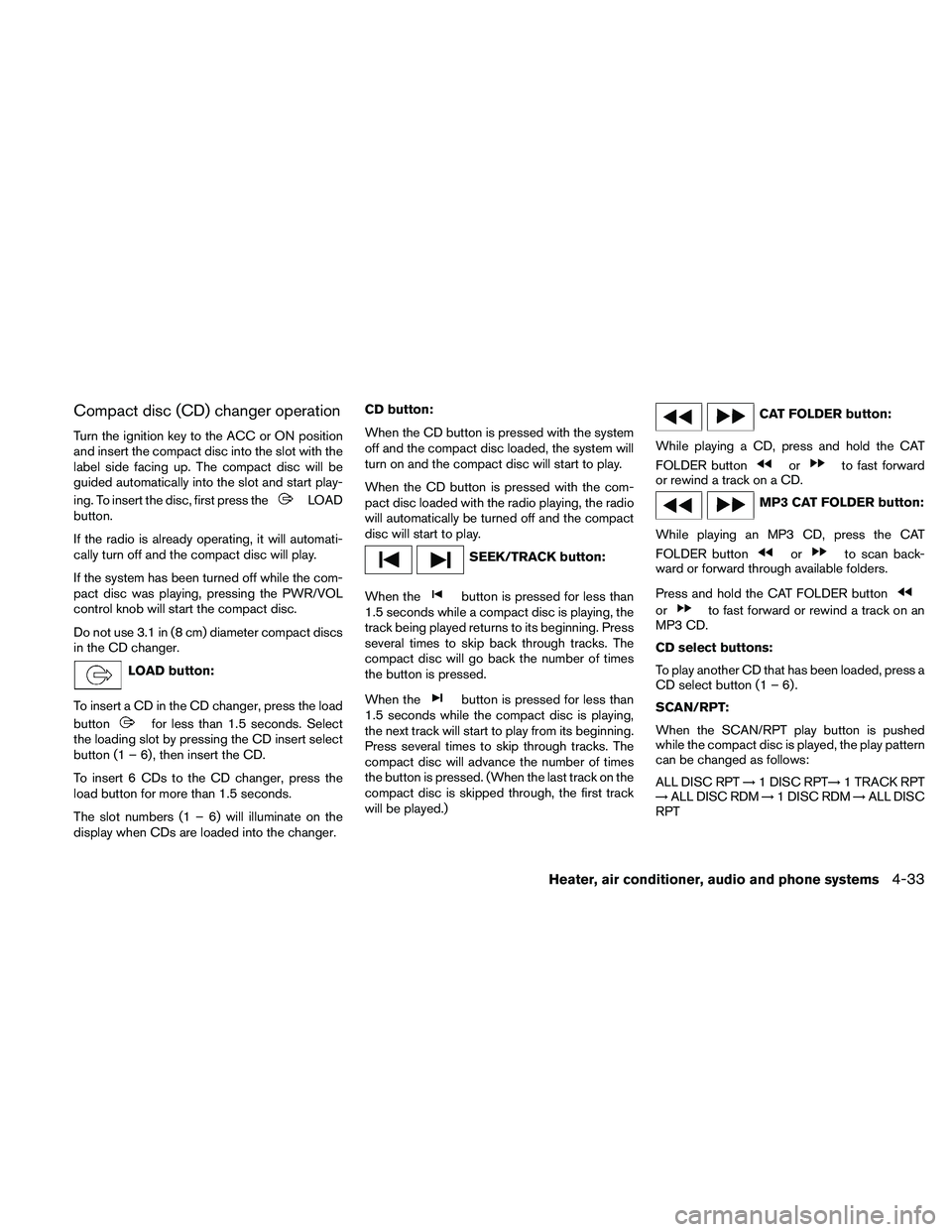

Compact disc (CD) changer operation
Turn the ignition key to the ACC or ON position
and insert the compact disc into the slot with the
label side facing up. The compact disc will be
guided automatically into the slot and start play-
ing. To insert the disc, first press the
LOAD
button.
If the radio is already operating, it will automati-
cally turn off and the compact disc will play.
If the system has been turned off while the com-
pact disc was playing, pressing the PWR/VOL
control knob will start the compact disc.
Do not use 3.1 in (8 cm) diameter compact discs
in the CD changer.
LOAD button:
To insert a CD in the CD changer, press the load
button
for less than 1.5 seconds. Select
the loading slot by pressing the CD insert select
button (1 – 6) , then insert the CD.
To insert 6 CDs to the CD changer, press the
load button for more than 1.5 seconds.
The slot numbers (1 – 6) will illuminate on the
display when CDs are loaded into the changer. CD button:
When the CD button is pressed with the system
off and the compact disc loaded, the system will
turn on and the compact disc will start to play.
When the CD button is pressed with the com-
pact disc loaded with the radio playing, the radio
will automatically be turned off and the compact
disc will start to play.
SEEK/TRACK button:
When the
button is pressed for less than
1.5 seconds while a compact disc is playing, the
track being played returns to its beginning. Press
several times to skip back through tracks. The
compact disc will go back the number of times
the button is pressed.
When the
button is pressed for less than
1.5 seconds while the compact disc is playing,
the next track will start to play from its beginning.
Press several times to skip through tracks. The
compact disc will advance the number of times
the button is pressed. (When the last track on the
compact disc is skipped through, the first track
will be played.)
CAT FOLDER button:
While playing a CD, press and hold the CAT
FOLDER button
orto fast forward
or rewind a track on a CD.
MP3 CAT FOLDER button:
While playing an MP3 CD, press the CAT
FOLDER button
orto scan back-
ward or forward through available folders.
Press and hold the CAT FOLDER button
orto fast forward or rewind a track on an
MP3 CD.
CD select buttons:
To play another CD that has been loaded, press a
CD select button (1 – 6) .
SCAN/RPT:
When the SCAN/RPT play button is pushed
while the compact disc is played, the play pattern
can be changed as follows:
ALL DISC RPT →1 DISC RPT→ 1 TRACK RPT
→ ALL DISC RDM →1 DISC RDM →ALL DISC
RPT
Heater, air conditioner, audio and phone systems4-33

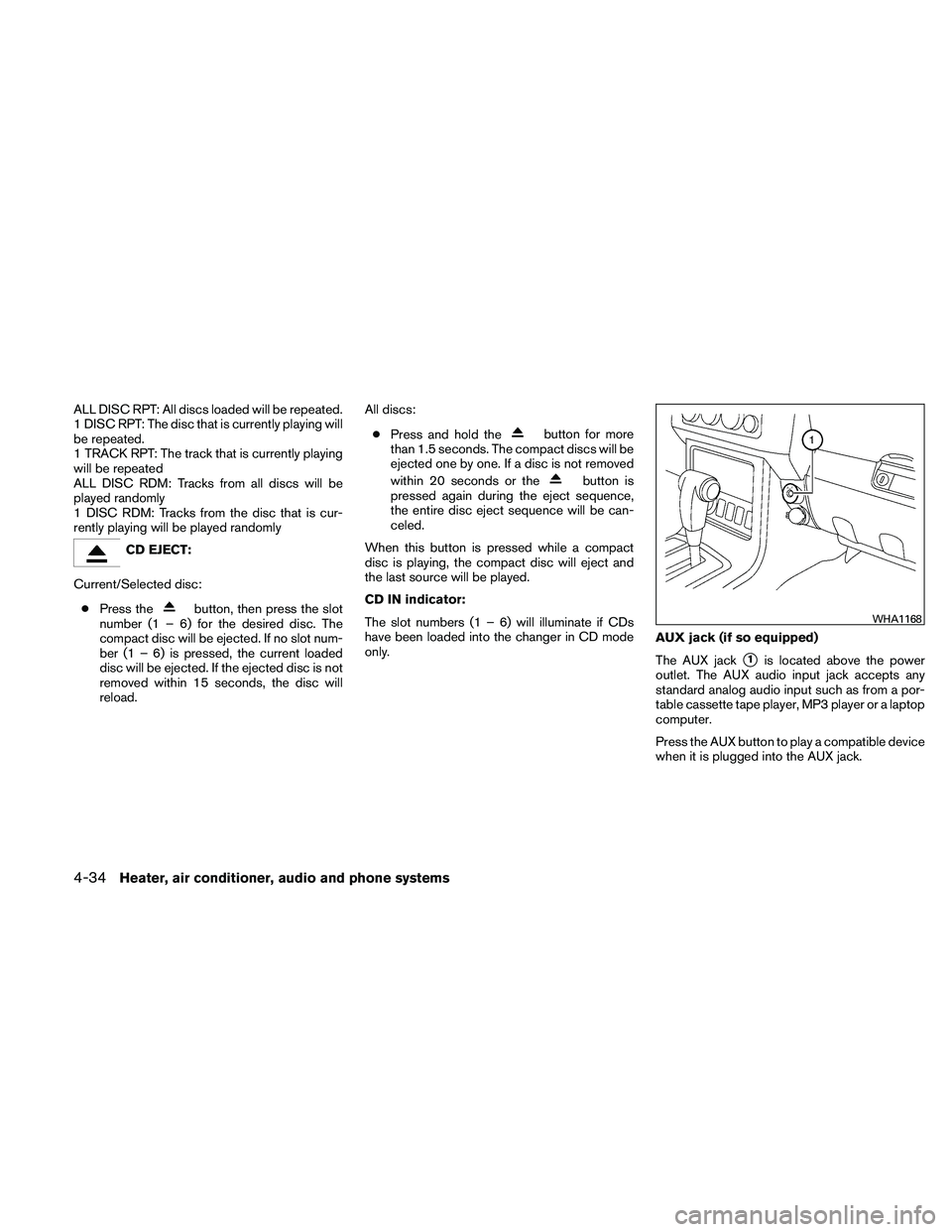

ALL DISC RPT: All discs loaded will be repeated.
1 DISC RPT: The disc that is currently playing will
be repeated.
1 TRACK RPT: The track that is currently playing
will be repeated
ALL DISC RDM: Tracks from all discs will be
played randomly
1 DISC RDM: Tracks from the disc that is cur-
rently playing will be played randomly
CD EJECT:
Current/Selected disc: ● Press the
button, then press the slot
number (1 – 6) for the desired disc. The
compact disc will be ejected. If no slot num-
ber (1 – 6) is pressed, the current loaded
disc will be ejected. If the ejected disc is not
removed within 15 seconds, the disc will
reload. All discs:
● Press and hold the
button for more
than 1.5 seconds. The compact discs will be
ejected one by one. If a disc is not removed
within 20 seconds or the
button is
pressed again during the eject sequence,
the entire disc eject sequence will be can-
celed.
When this button is pressed while a compact
disc is playing, the compact disc will eject and
the last source will be played.
CD IN indicator:
The slot numbers (1 – 6) will illuminate if CDs
have been loaded into the changer in CD mode
only. AUX jack (if so equipped)
The AUX jack
1is located above the power
outlet. The AUX audio input jack accepts any
standard analog audio input such as from a por-
table cassette tape player, MP3 player or a laptop
computer.
Press the AUX button to play a compatible device
when it is plugged into the AUX jack.
WHA1168
4-34Heater, air conditioner, audio and phone systems

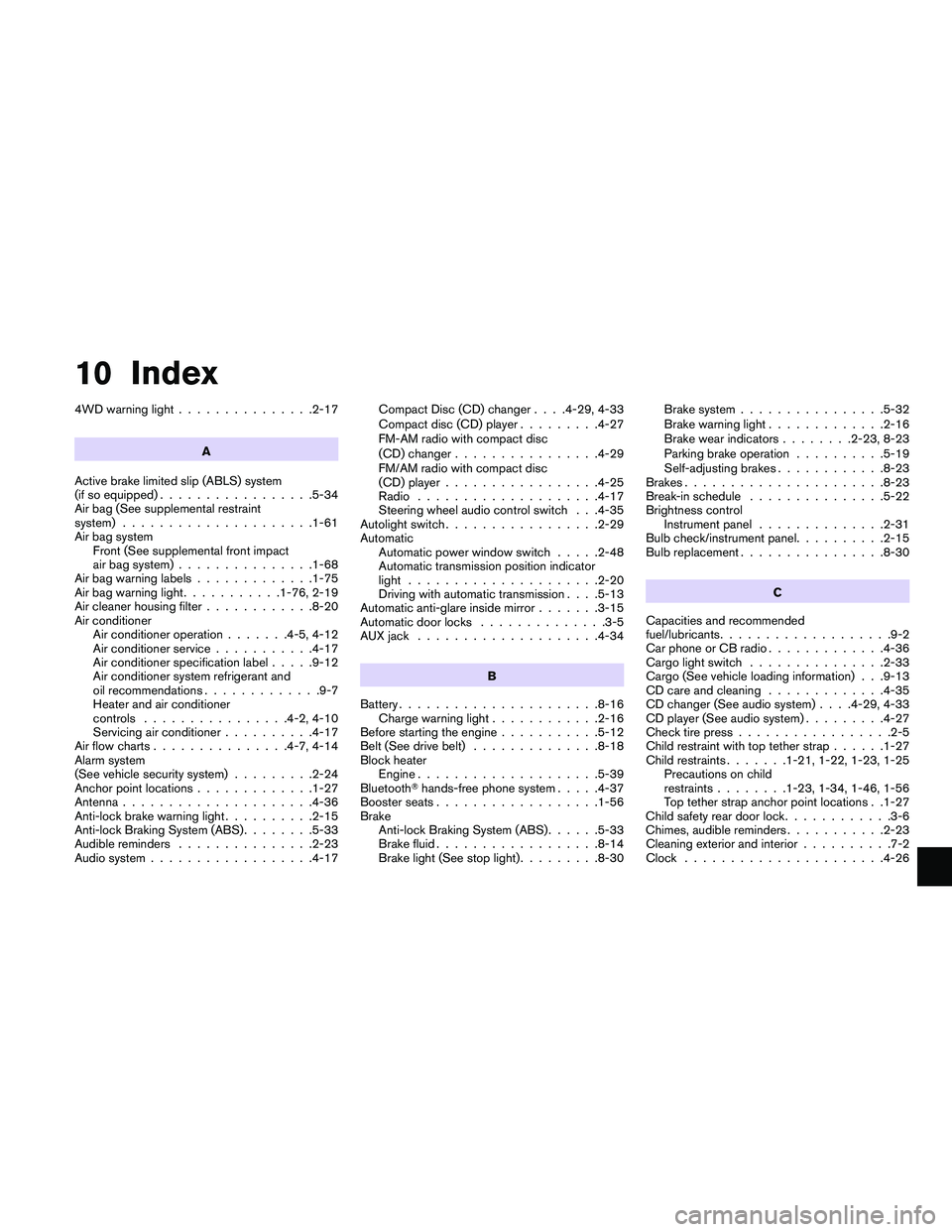

10 Index
4WD warning light...............2-17
A
Active brake limited slip (ABLS) system
(if so equipped) .................5-34
Air bag (See supplemental restraint
system) .....................1-61
Air bag system Front (See supplemental front impact
air bag system) ...............1-68
Air bag warning labels .............1-75
Air bag warning light ...........1-76, 2-19
Air cleaner housing filter ............8-20
Air conditioner Air conditioner operation .......4-5, 4-12
Air conditioner service ...........4-17
Air conditioner specification label .....9-12
Air conditioner system refrigerant and
oil recommendations .............9-7
Heater and air conditioner
controls ................4-2, 4-10
Servicing air conditioner ..........4-17
Air flow charts ...............4-7, 4-14
Alarm system
(See vehicle security system) .........2-24
Anchor point locations .............1-27
Antenna .....................4-36
Anti-lock brake warning light ..........2-15
Anti-lock Braking System (ABS) ........5-33
Audible reminders ...............2-23
Audio system ..................4-17 Compact Disc (CD) changer . . . .4-29, 4-33
Compact disc (CD) player
.........4-27
FM-AM radio with compact disc
(CD) changer ................4-29
FM/AM radio with compact disc
(CD) player .................4-25
Radio ....................4-17
Steering wheel audio control switch . . .4-35
Autolight switch .................2-29
Automatic Automatic power window switch .....2-48
Automatic transmission position indicator
light .....................2-20
Driving with automatic transmission . . . .5-13
Automatic anti-glare inside mirror .......3-15
Automatic door locks ..............3-5
AUX jack ....................4-34
B
Battery ......................8-16
Charge

warning light ............2-16
Before starting the engine ...........5-12
Belt (See drive belt) ..............8-18
Block heater Engine ....................5-39
Bluetooth hands-free phone system .....4-37
Booster seats ..................1-56
Brake Anti-lock Braking System (ABS) ......5-33
Brake fluid ..................8-14
Brake light (See stop light) .........8-30 Brake system
................5-32
Brake warning light .............2-16
Brake wear indicators ........2-23, 8-23
Parking brake operation ..........5-19
Self-adjusting brakes ............8-23
Brakes ......................8-23
Break-in schedule ...............5-22
Brightness control Instrument panel ..............2-31
Bulb check/instrument panel ..........2-15
Bulb replacement ................8-30
C
Capacities and recommended
fuel/lubricants ...................9-2
Car phone or CB radio .............4-36
Cargo light switch ...............2-33
Cargo (See vehicle loading information) . . .9-13
CD care and cleaning .............4-35
CD changer (See audio system) . . . .4-29, 4-33
CD player (See audio system) .........4-27
Check tire press .................2-5
Child restraint with top tether strap ......1-27
Child restraints .......1-21, 1-22, 1-23, 1-25
Precautions on child
restraints ........1-23, 1-34, 1-46, 1-56
Top tether strap anchor point locations . .1-27
Child safety rear door lock ............3-6
Chimes,
audible reminders ...........2-23
Cleaning exterior and interior ..........7-2
Clock ......................4-26

LockChild safety rear door lock ..........3-6
Door locks ...................3-3
Power door locks ...............3-4
Loose fuel cap warning ..........2-5, 3-11
Low fuel warning light ..............2-17
Low tire pressure warning light .........2-17
Low windshield-washer fluid warning light . . .2-19
Luggage rack (see roof rack) ..........2-45
Luggage (See vehicle loading information) . .9-13
M
Maintenance General maintenance .............8-2
Inside the vehicle ...............8-3
Maintenance precautions ...........8-5
Outside the vehicle ..............8-2
Seat belt maintenance ............1-21
Under the hood and vehicle .........8-4
Malfunction indicator light ............2-21
Manual front seat adjustment ...........1-2
Manual windows .................2-49
Map lights ....................2-53
Map pocket ....................2-42
Meters and gauges ................2-3
Instrument brightness control ........2-31
Mirror Automatic anti-glare inside mirror ......3-15
Inside mirror .................3-14
Outside mirrors ...............3-15
Vanity mirror .................3-14
Moonroof .....................2-49
Multi-remote control system
(See remote keyless entry system) ........3-6 N
NISSAN vehicle immobilizer
system ................2-25, 3-2, 5-11
O
Octane rating (See fuel octane rating) ......9-5
Odometer .....................2-4
Oil Capacities and recommended
fuel/lubricants .................9-2
Changing engine oil ............ .8-11
Changing

engine oil filter ..........8-12
Checking engine oil level ..........8-10
Engine oil ...................8-10
Engine oil and oil filter recommendation . . .9-6
Engine oil viscosity ..............9-6
Outside mirrors .................3-15
Overdrive switch .................5-16
Overheat If your vehicle overheats ...........6-11
Owner’s manual order form ...........9-39
Owner’s manual/service manual order
information ....................9-39
P
Parking Parking brake operation ...........5-19
Parking/parking on hills ...........5-31
Phone, Bluetooth hands-free system.....4-37
Power Front seat adjustment .............1-4 Power door locks
...............3-4
Power outlet .................2-37
Power steering fluid .............8-14
Power steering system ...........5-32
Power windows ...............2-47
Rear power windows ............2-48
Precautions Maintenance precautions ...........8-5
On-pavement and off-road driving
precautions ..................5-6
Precautions on child
restraints .........1-23, 1-34, 1-46, 1-56
Precautions on seat belt usage .......1-13
Precautions on supplemental restraint
system ....................1-61
Precautions when starting and driving . . . .5-2
Pre-tensioner seat belt system .........1-74
Push starting ...................6-11
R
Radio Car phone or CB radio ...........4-36
Compact Disc (CD) changer . . . .4-29, 4-33
FM-AM radio with compact disc (CD)
changer ....................4-29
FM/AM radio with compact disc (CD)
player .................... .4-25
Steering

wheel audio control switch . . . .4-35
Readiness for inspection maintenance
(I/M) test .....................9-38
Rear power windows ..............2-48
Rear sliding window ...............2-49
Rear window defroster switch .........2-27
Recorders
10-4
