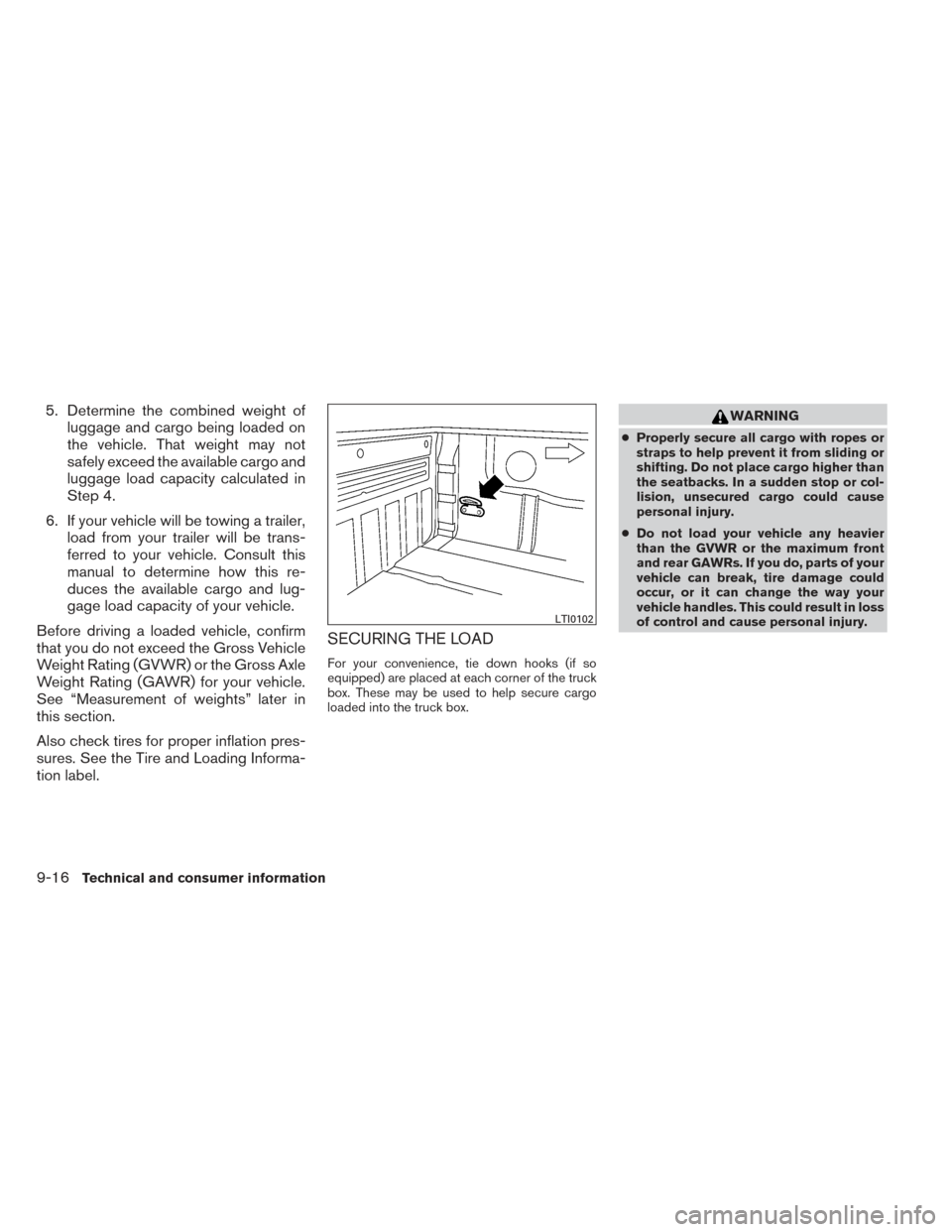

NISSAN FRONTIER 2014 D23 / 3.G Owners Manual 5. Determine the combined weight ofluggage and cargo being loaded on
the vehicle. That weight may not
safely exceed the available cargo and
luggage load capacity calculated in
Step 4.
6. If your vehic

Page 402 of 434

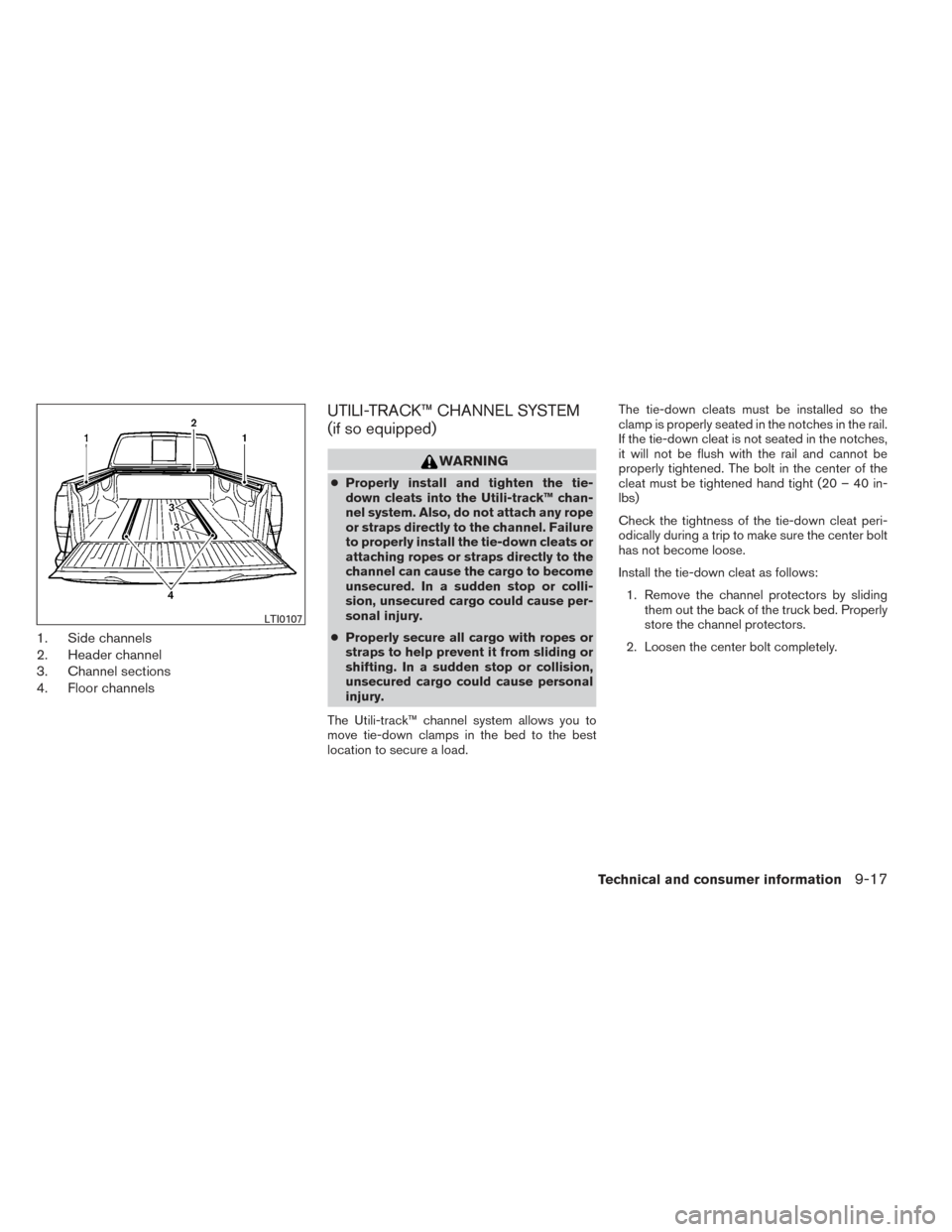

NISSAN FRONTIER 2014 D23 / 3.G Owners Manual 1. Side channels
2. Header channel
3. Channel sections
4. Floor channels
UTILI-TRACK™ CHANNEL SYSTEM
(if so equipped)
WARNING
●Properly install and tighten the tie-
down cleats into the Utili-trac

Page 403 of 434

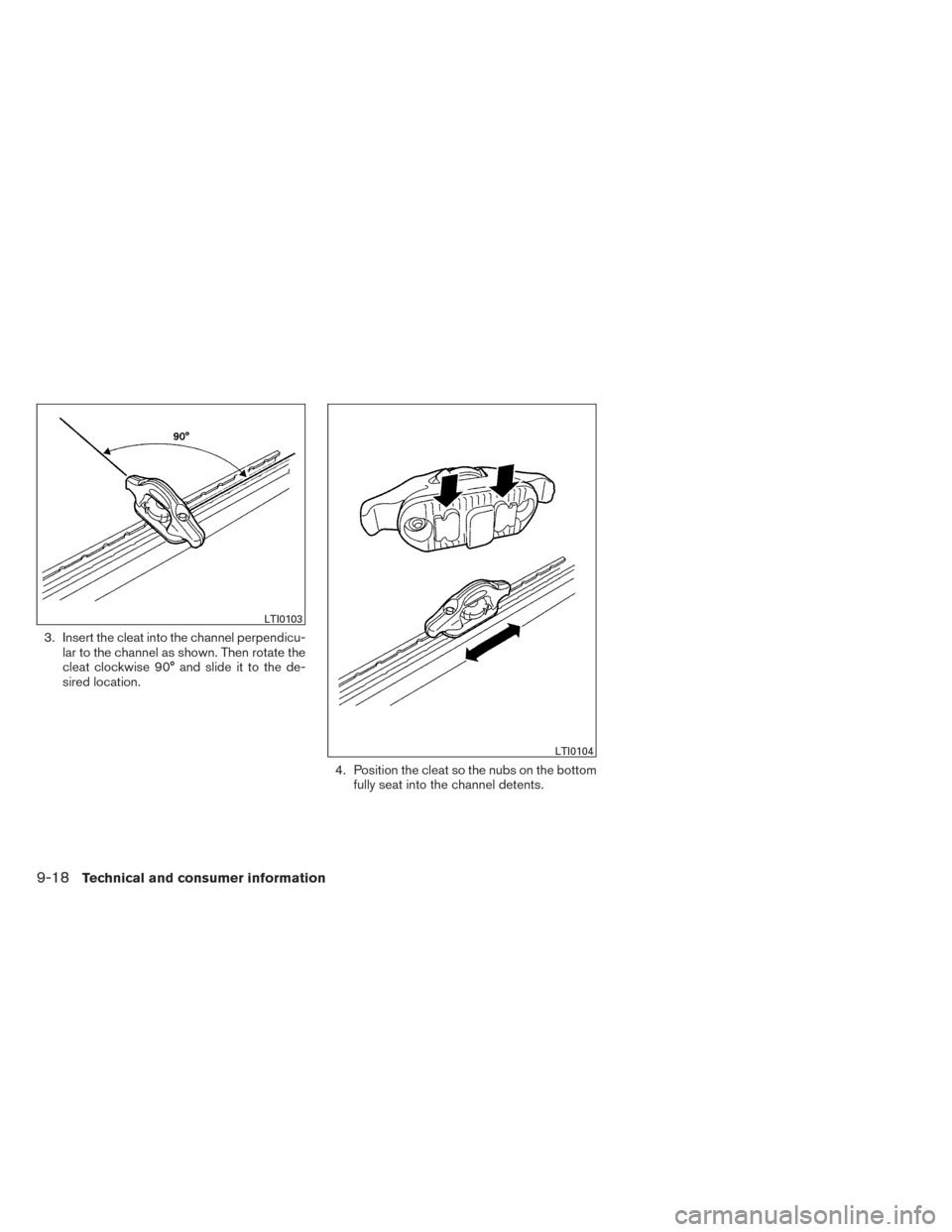

NISSAN FRONTIER 2014 D23 / 3.G Owners Manual 3. Insert the cleat into the channel perpendicu-lar to the channel as shown. Then rotate the
cleat clockwise 90° and slide it to the de-
sired location.
4. Position the cleat so the nubs on the botto

Page 404 of 434

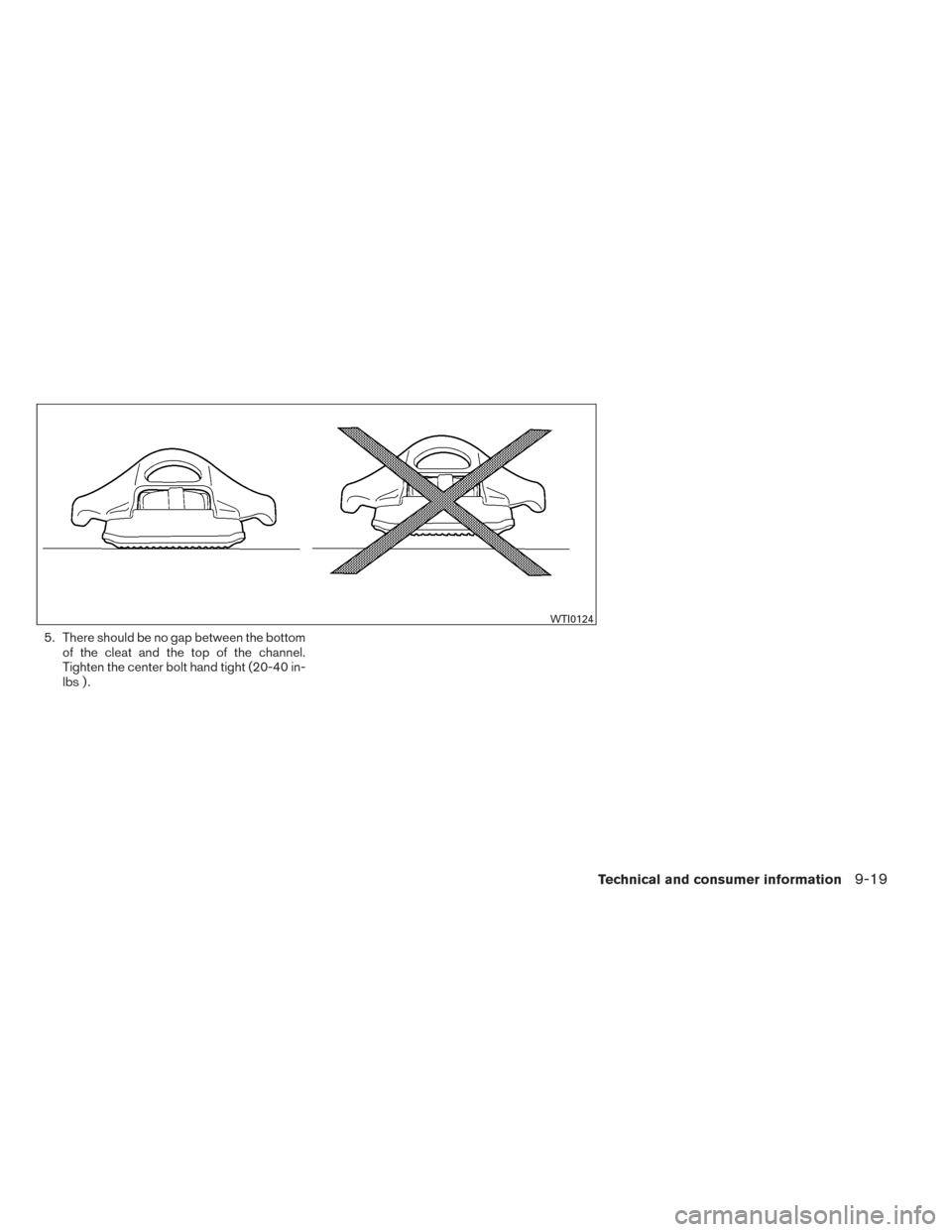

NISSAN FRONTIER 2014 D23 / 3.G Owners Manual 5. There should be no gap between the bottomof the cleat and the top of the channel.
Tighten the center bolt hand tight (20-40 in-
lbs ) .
WTI0124
Technical and consumer information9-19

Page 405 of 434

NISSAN FRONTIER 2014 D23 / 3.G Owners Manual CAUTION

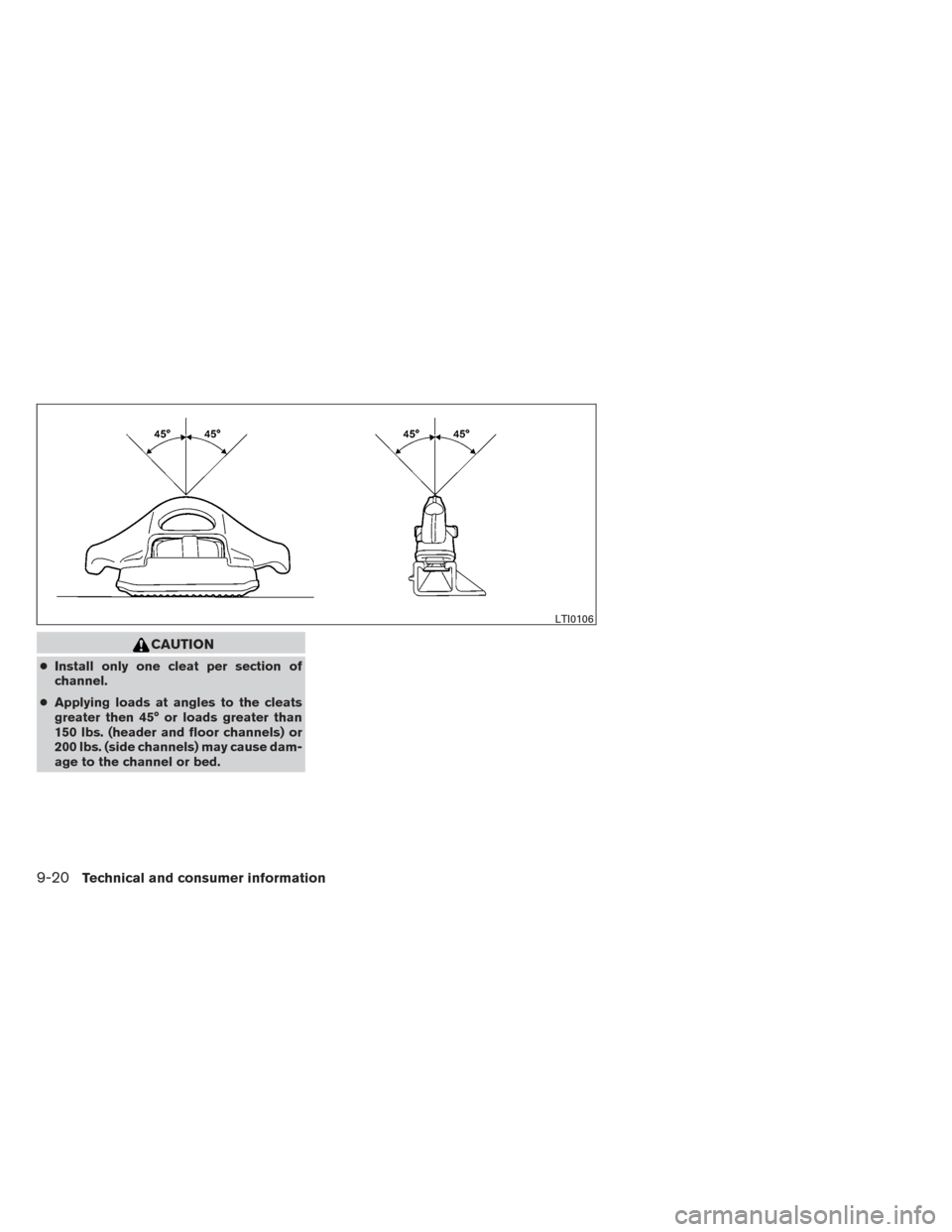

●Install only one cleat per section of
channel.
● Applying loads at angles to the cleats
greater then 45° or loads greater than
150 lbs. (header and floor channels) or
200 lbs. (side chan

Page 406 of 434

NISSAN FRONTIER 2014 D23 / 3.G Owners Manual WARNING
Do not install accessories over the gap
between the front and rear side channels.
Doing this could affect the rear structure
in certain rear impacts, which could result
in serious injury.
CAUT

Page 407 of 434

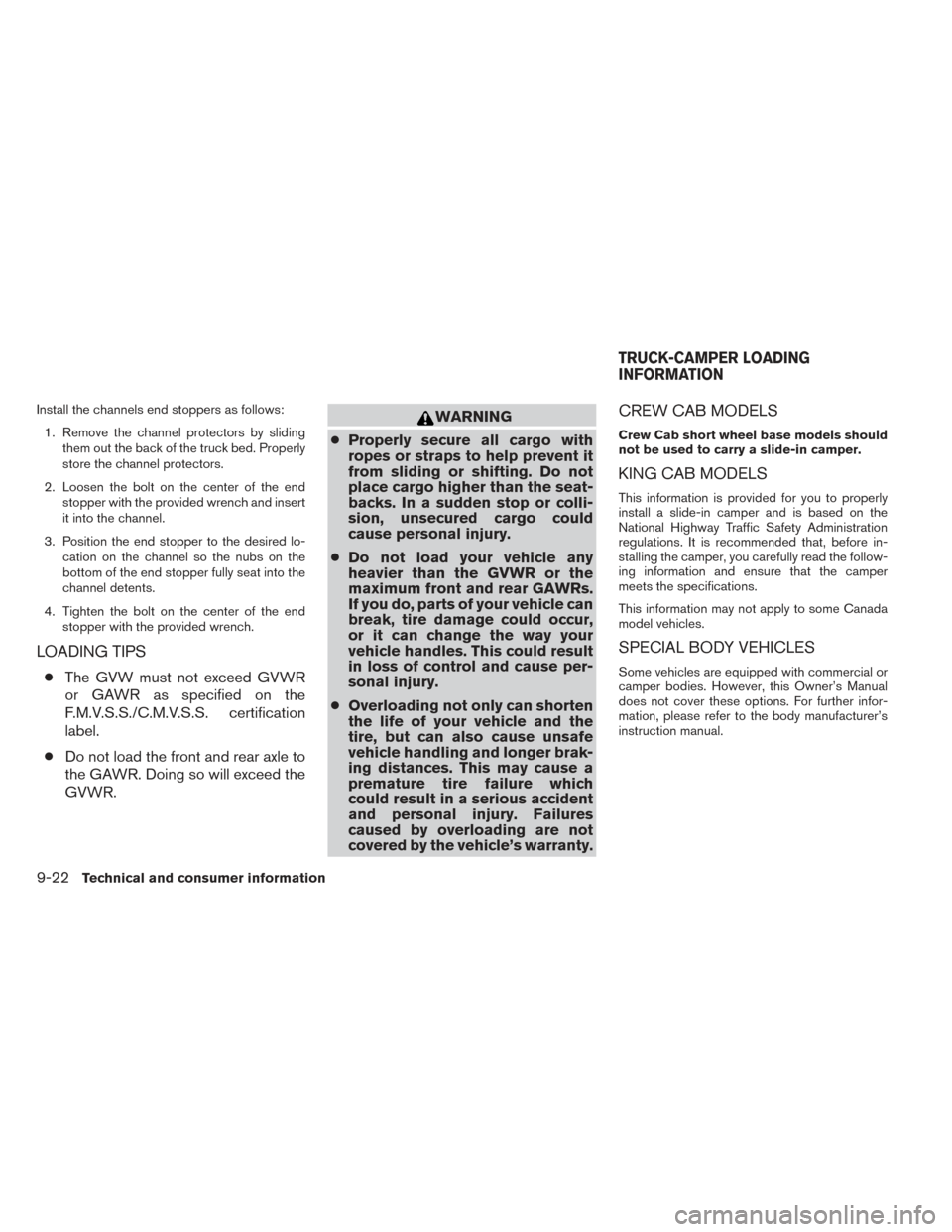

NISSAN FRONTIER 2014 D23 / 3.G Owners Manual Install the channels end stoppers as follows:1. Remove the channel protectors by sliding them out the back of the truck bed. Properly
store the channel protectors.
2. Loosen the bolt on the center of

Page 408 of 434

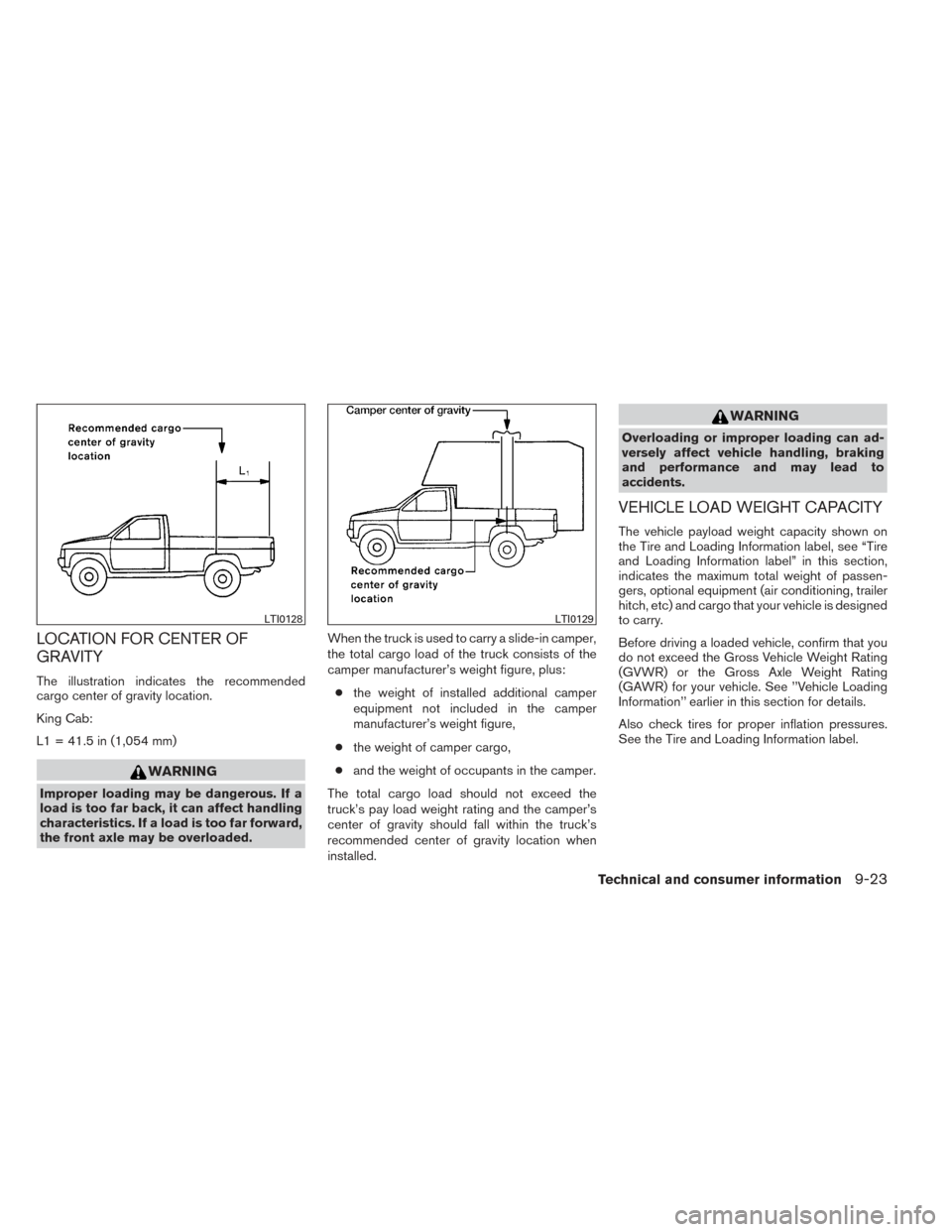

NISSAN FRONTIER 2014 D23 / 3.G Owners Manual LOCATION FOR CENTER OF
GRAVITY
The illustration indicates the recommended
cargo center of gravity location.
King Cab:
L1 = 41.5 in (1,054 mm)
WARNING
Improper loading may be dangerous. If a
load is to

Page 409 of 434

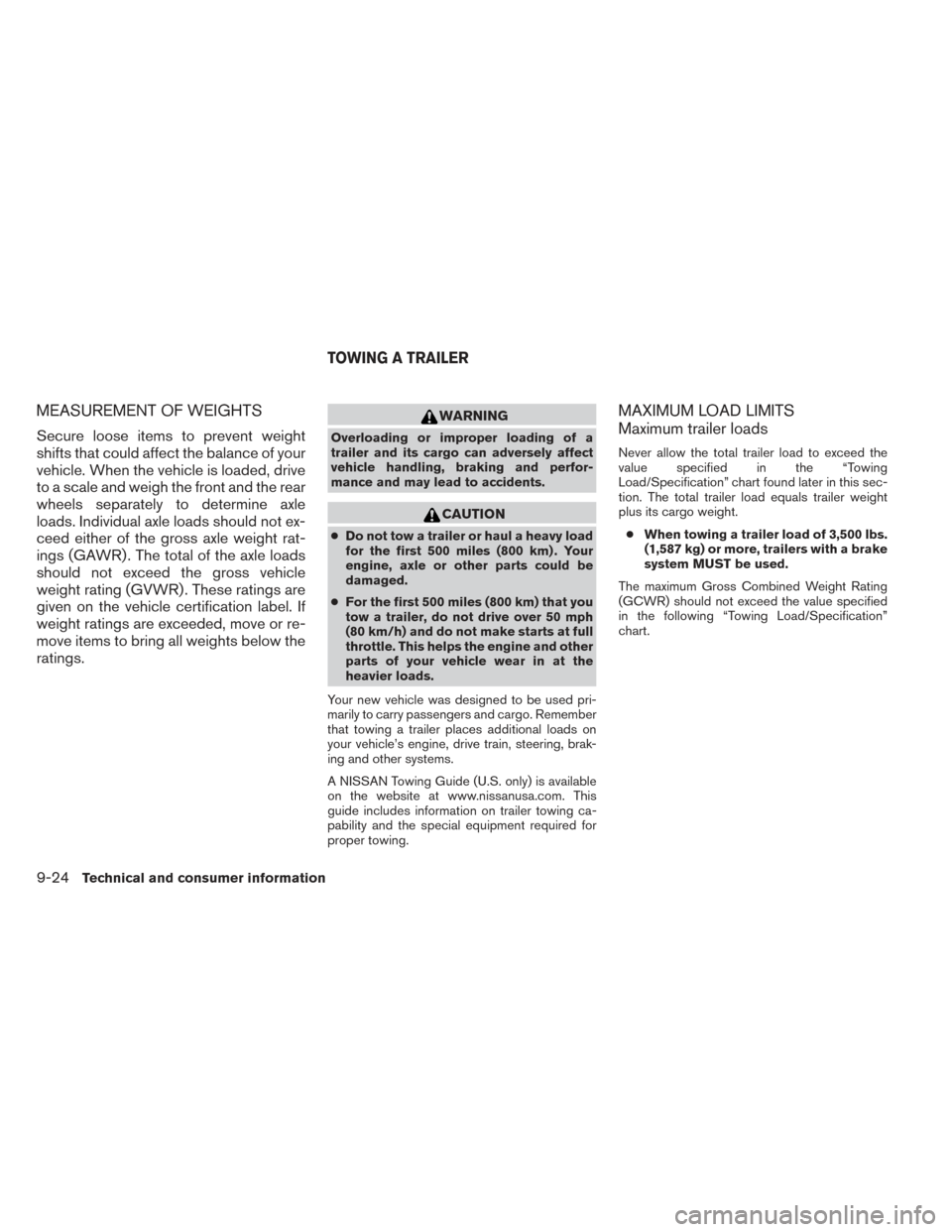

NISSAN FRONTIER 2014 D23 / 3.G Owners Manual MEASUREMENT OF WEIGHTS
Secure loose items to prevent weight
shifts that could affect the balance of your
vehicle. When the vehicle is loaded, drive
to a scale and weigh the front and the rear
wheels s

Page 410 of 434

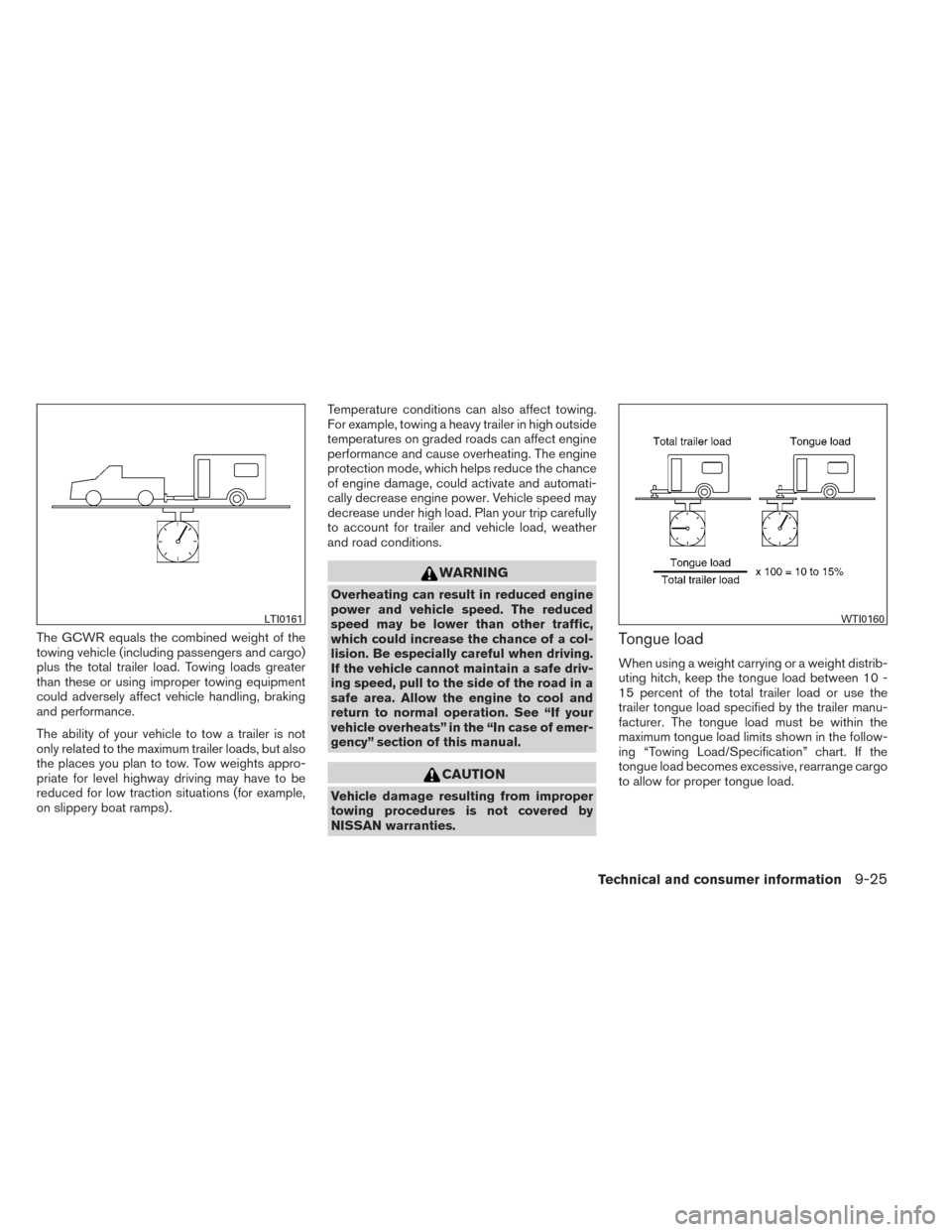

NISSAN FRONTIER 2014 D23 / 3.G Owners Manual The GCWR equals the combined weight of the
towing vehicle (including passengers and cargo)
plus the total trailer load. Towing loads greater
than these or using improper towing equipment
could adverse
