NISSAN FRONTIER 2014 D23 / 3.G Owners Manual

NISSAN FRONTIER 2014 D23 / 3.G Owners Manual https://www.carmanualsonline.info/img/5/365/w960_365-0.png NISSAN FRONTIER 2014 D23 / 3.G Owners Manual

Page 411 of 434

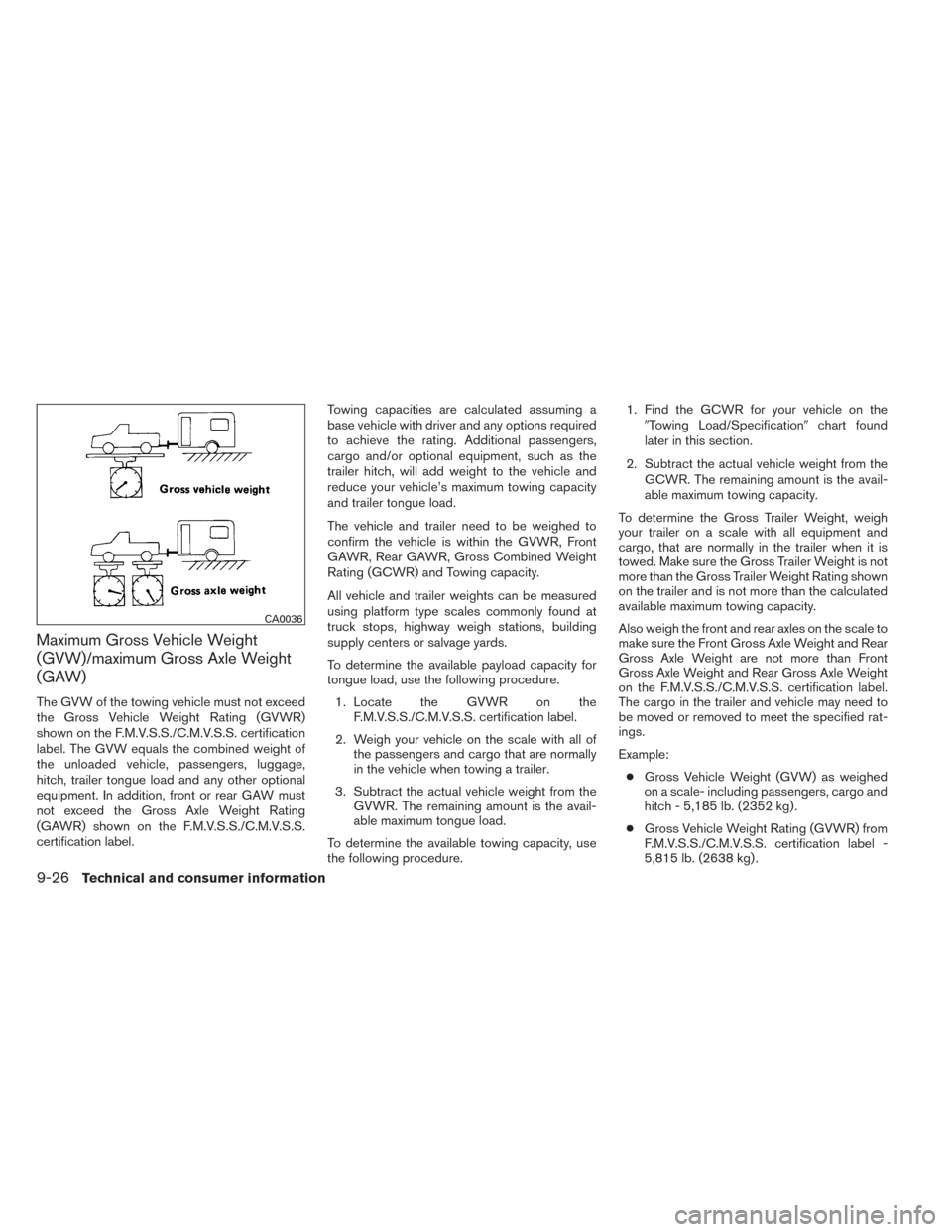

NISSAN FRONTIER 2014 D23 / 3.G Owners Manual Maximum Gross Vehicle Weight
(GVW)/maximum Gross Axle Weight
(GAW)
The GVW of the towing vehicle must not exceed
the Gross Vehicle Weight Rating (GVWR)
shown on the F.M.V.S.S./C.M.V.S.S. certification

Page 412 of 434

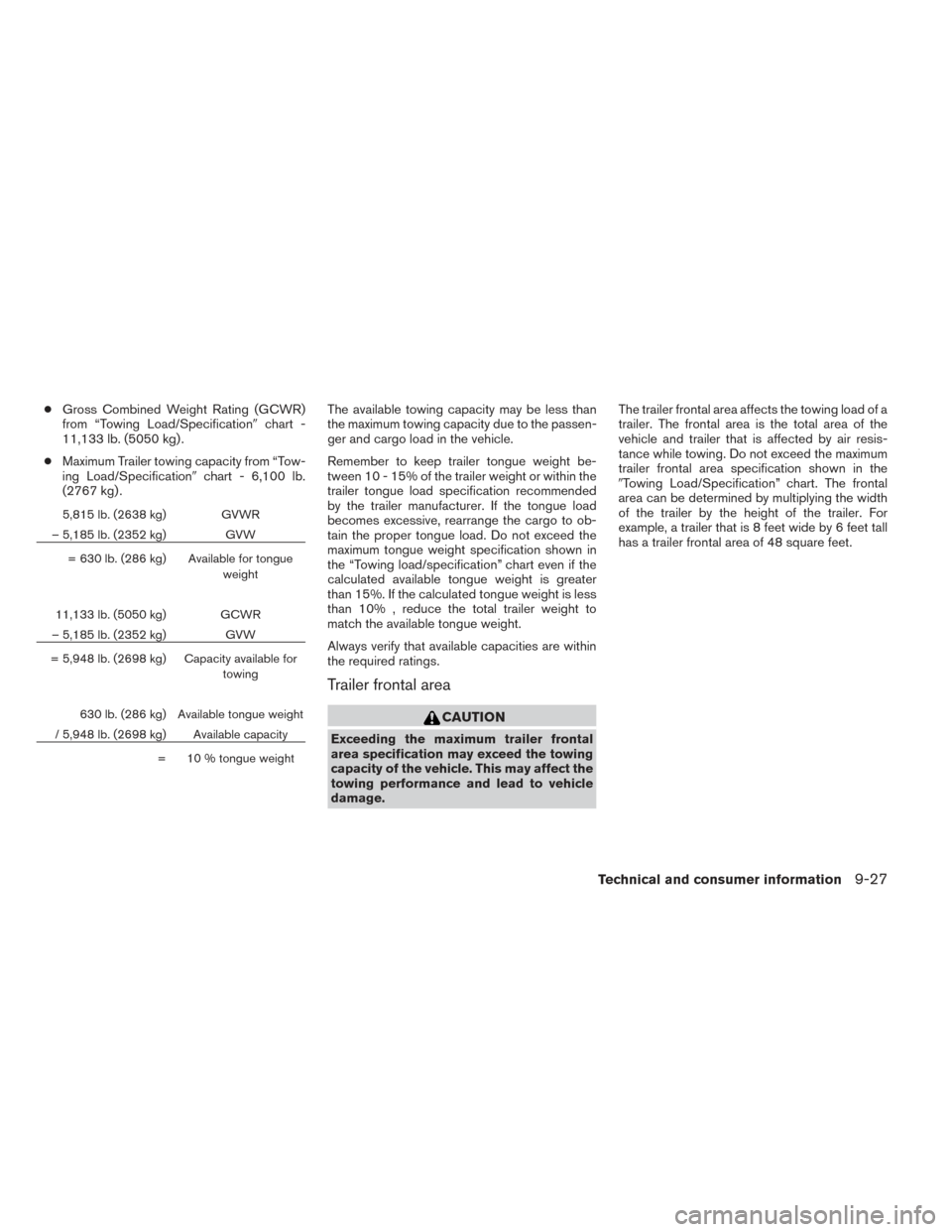

NISSAN FRONTIER 2014 D23 / 3.G Owners Manual ●Gross Combined Weight Rating (GCWR)
from “Towing Load/Specification chart -
11,133 lb. (5050 kg) .
● Maximum Trailer towing capacity from “Tow-
ing Load/Specification chart - 6,100 lb.
(276

Page 413 of 434

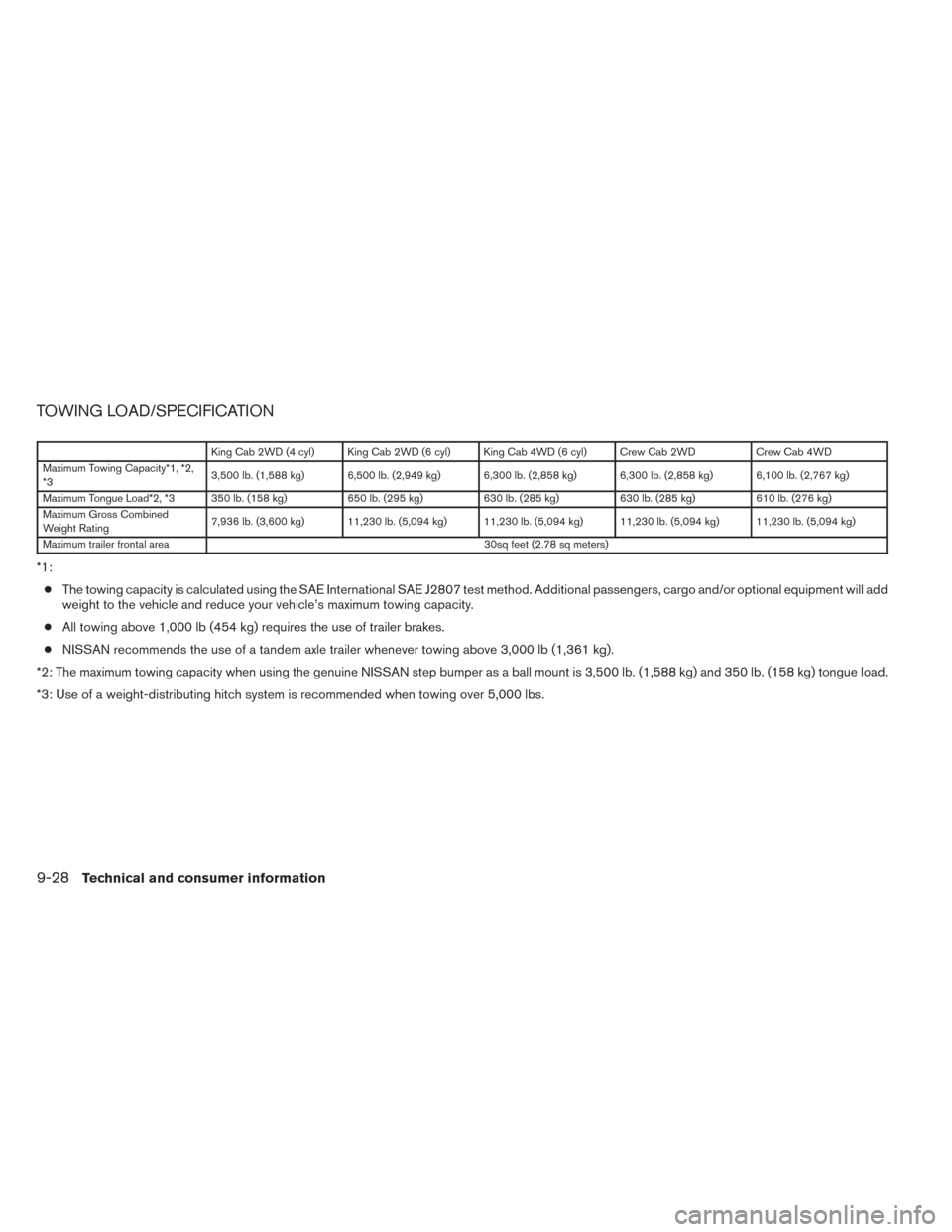

NISSAN FRONTIER 2014 D23 / 3.G Owners Manual TOWING LOAD/SPECIFICATION
King Cab 2WD (4 cyl) King Cab 2WD (6 cyl) King Cab 4WD (6 cyl) Crew Cab 2WDCrew Cab 4WD
Maximum Towing Capacity*1, *2,
*3 3,500 lb. (1,588 kg) 6,500 lb. (2,949 kg) 6,300 lb.

Page 414 of 434

NISSAN FRONTIER 2014 D23 / 3.G Owners Manual TOWING SAFETY
Trailer hitch
Your vehicle may be equipped with an optional
trailer tow package. The trailer tow package in-
cludes a receiver-type frame mounted hitch. This
hitch is rated for the maxim

Page 415 of 434

NISSAN FRONTIER 2014 D23 / 3.G Owners Manual Bumper towing
The genuine NISSAN step bumper has provi-
sions to install a trailer hitch ball and is designed
to tow trailers of a maximum weight of 3,500 lb
(1,588 kg).
To install a trailer hitch bal

Page 416 of 434

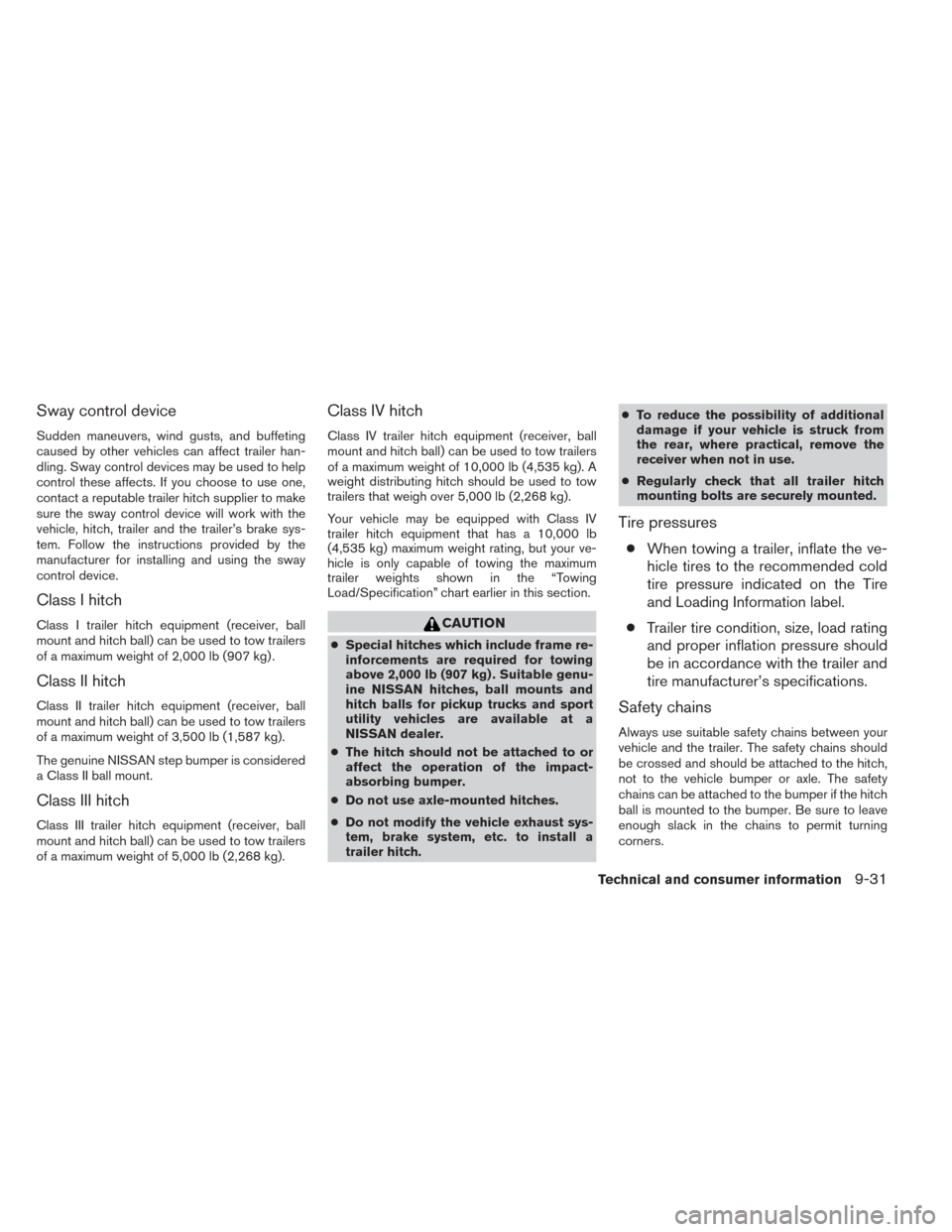

NISSAN FRONTIER 2014 D23 / 3.G Owners Manual Sway control device
Sudden maneuvers, wind gusts, and buffeting
caused by other vehicles can affect trailer han-
dling. Sway control devices may be used to help
control these affects. If you choose to

Page 417 of 434

NISSAN FRONTIER 2014 D23 / 3.G Owners Manual Trailer lights
CAUTION
When splicing into the vehicle electrical
system, a commercially available power-
type module/converter must be used to
provide power for all trailer lighting. This
unit uses th

Page 418 of 434

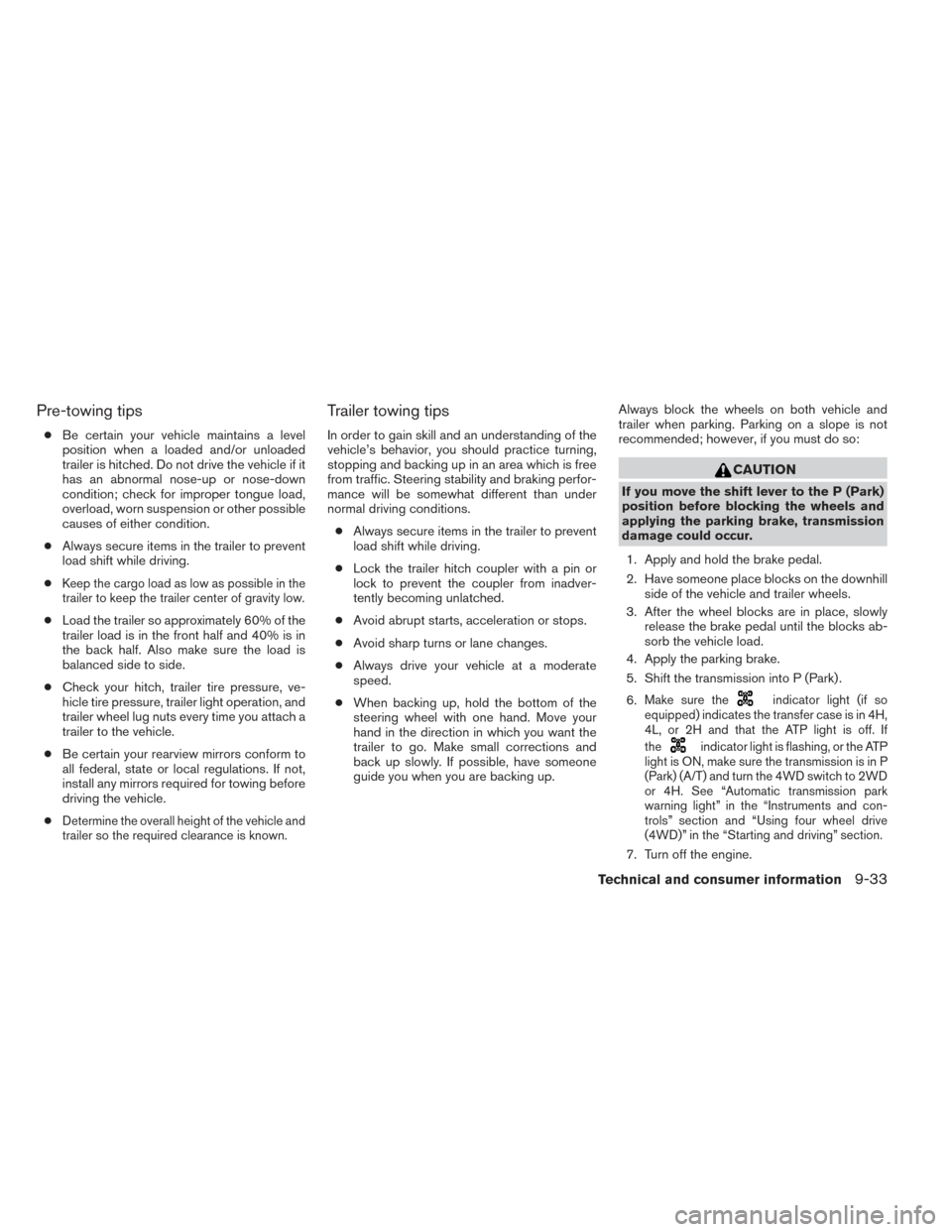

NISSAN FRONTIER 2014 D23 / 3.G Owners Manual Pre-towing tips
●Be certain your vehicle maintains a level
position when a loaded and/or unloaded
trailer is hitched. Do not drive the vehicle if it
has an abnormal nose-up or nose-down
condition; c

Page 419 of 434

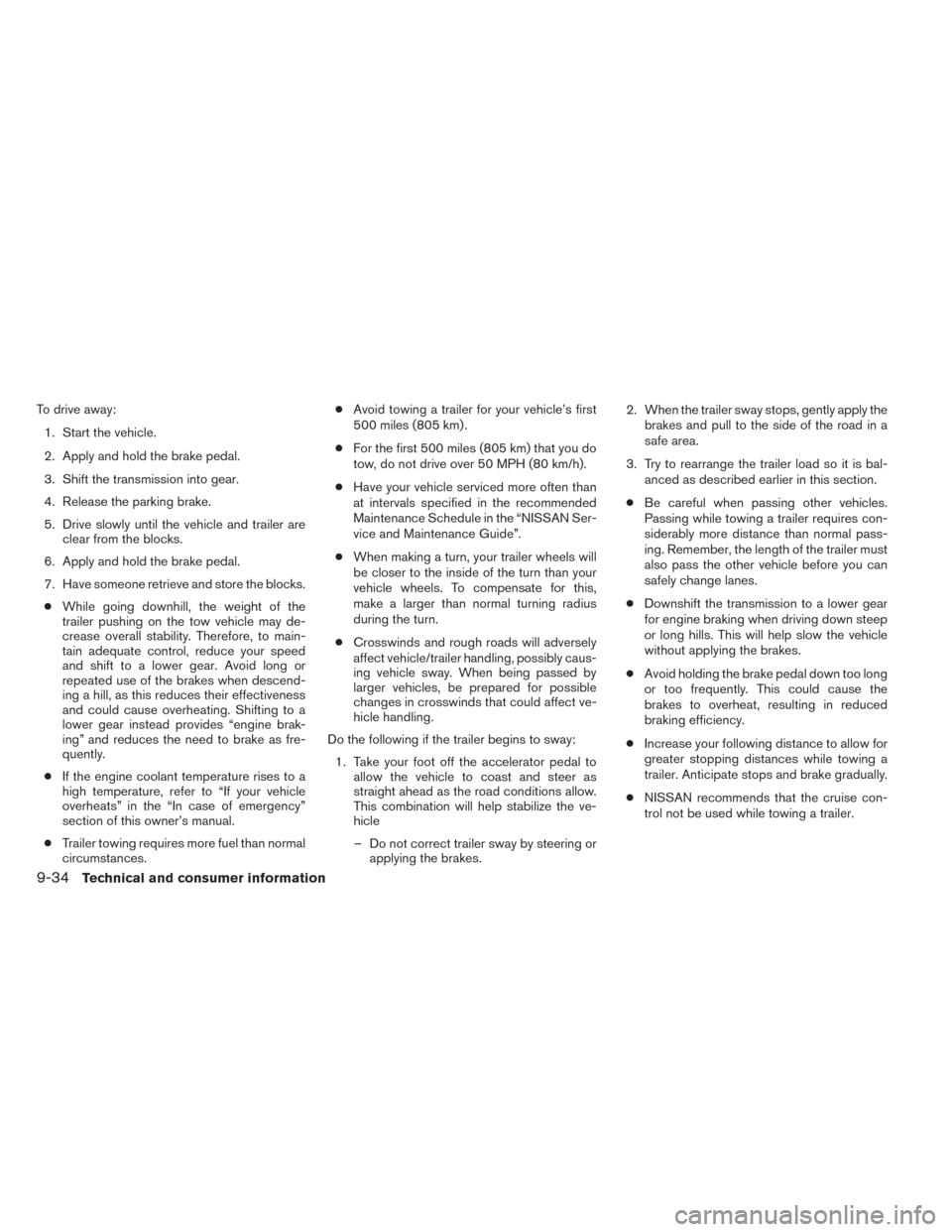

NISSAN FRONTIER 2014 D23 / 3.G Owners Manual To drive away:1. Start the vehicle.
2. Apply and hold the brake pedal.
3. Shift the transmission into gear.
4. Release the parking brake.
5. Drive slowly until the vehicle and trailer are clear from t

Page 420 of 434

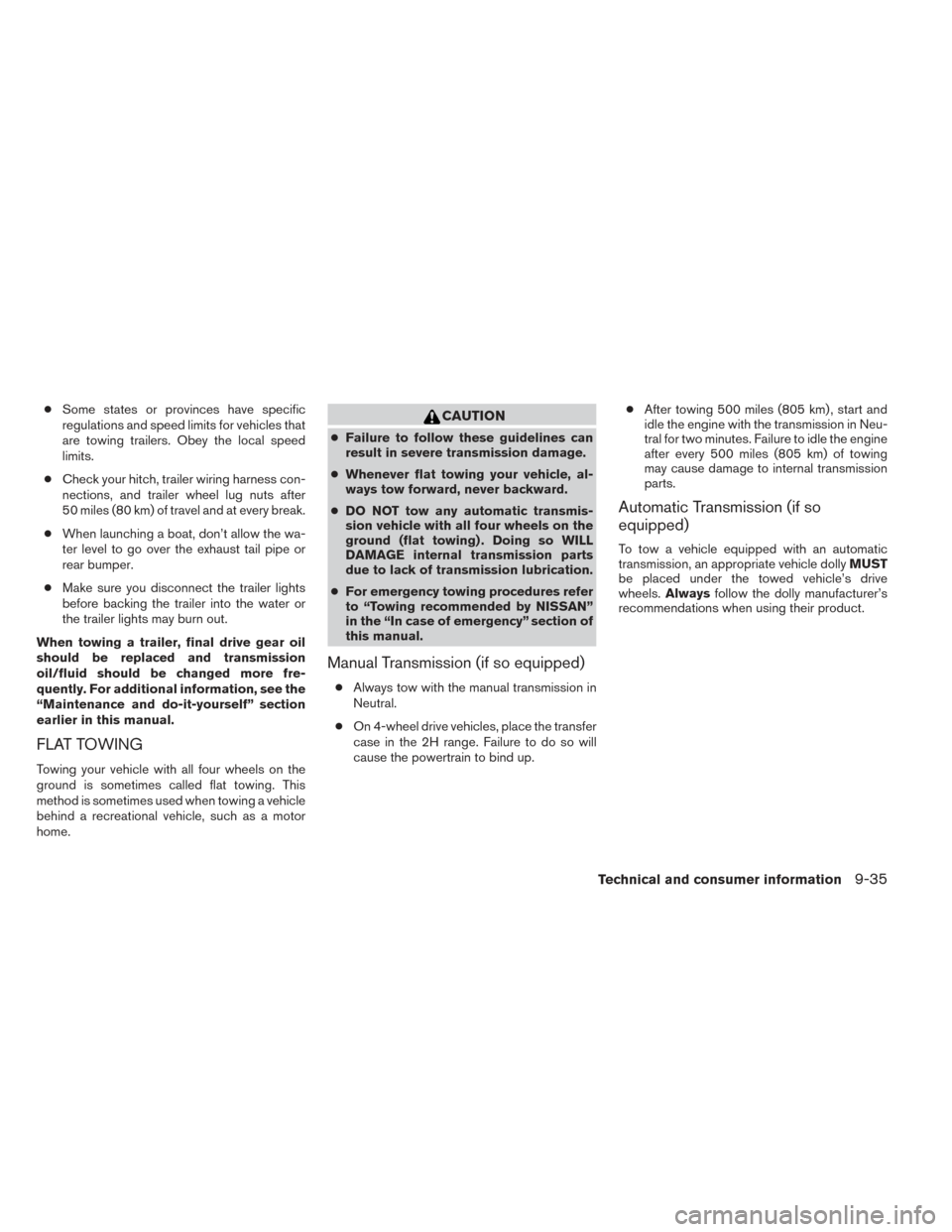

NISSAN FRONTIER 2014 D23 / 3.G Owners Manual ●Some states or provinces have specific
regulations and speed limits for vehicles that
are towing trailers. Obey the local speed
limits.
● Check your hitch, trailer wiring harness con-
nections, a
