Page 391 of 466

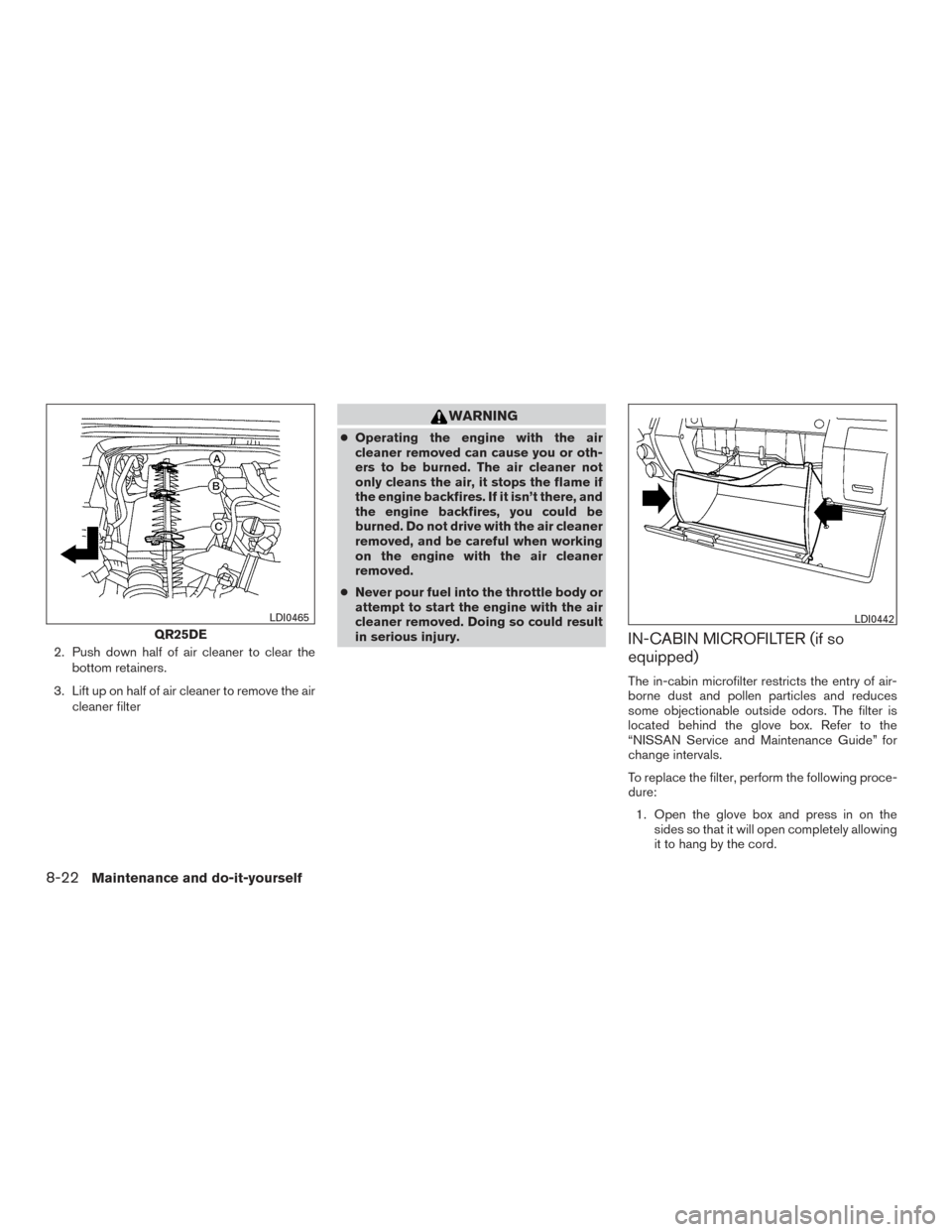

NISSAN FRONTIER 2015 D23 / 3.G Owners Manual 2. Push down half of air cleaner to clear thebottom retainers.
3. Lift up on half of air cleaner to remove the air cleaner filter
WARNING
●Operating the engine with the air
cleaner removed can cause

Page 392 of 466

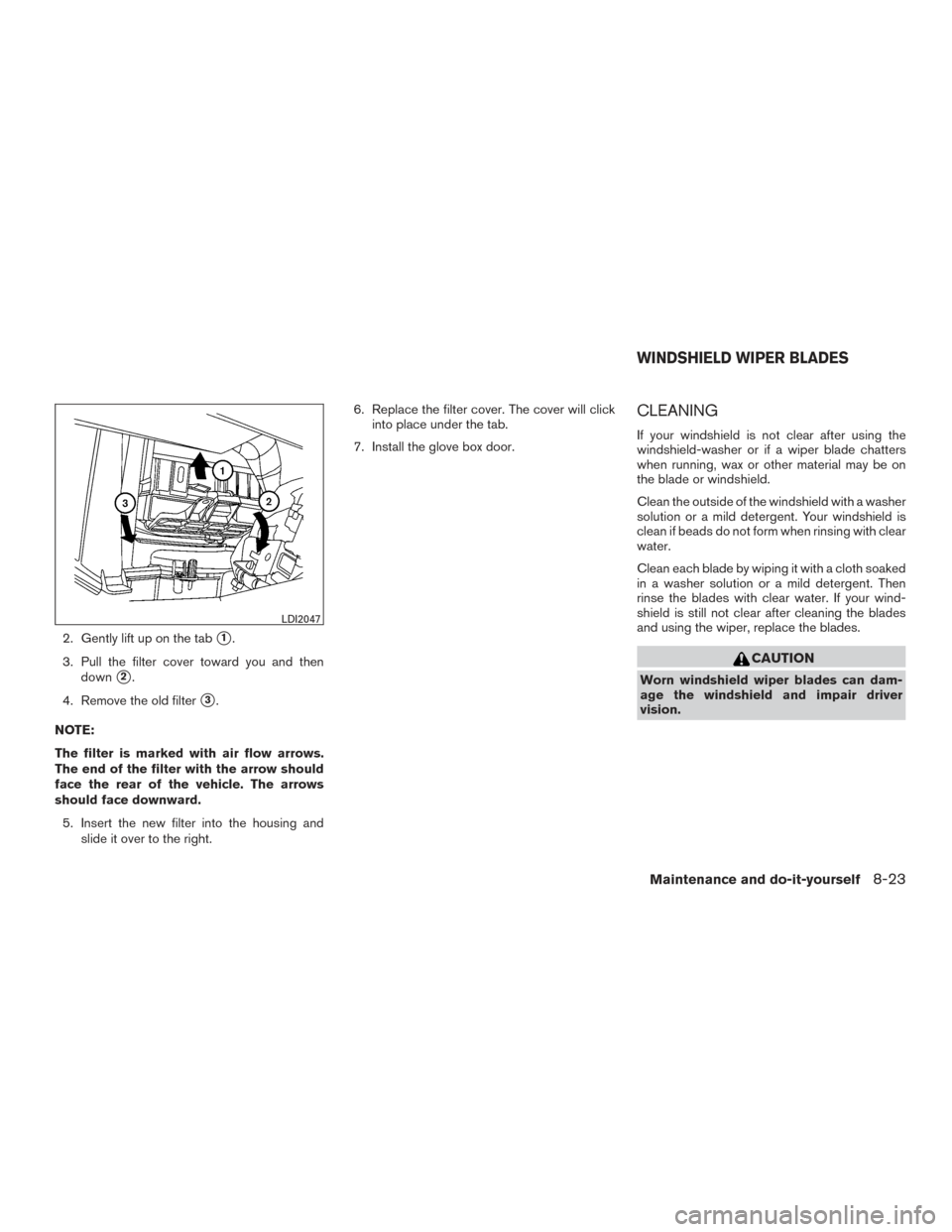

NISSAN FRONTIER 2015 D23 / 3.G Owners Manual 2. Gently lift up on the tab1.
3. Pull the filter cover toward you and then down
2.
4. Remove the old filter
3.
NOTE:
The filter is marked with air flow arrows.
The end of the filter with the arrow

Page 393 of 466

NISSAN FRONTIER 2015 D23 / 3.G Owners Manual REPLACING
Replace the wiper blades if they are worn.1. Lift the wiper arm away from the windshield.
2. Push the release tab
Bthen move the wiper
blade down the wiper arm to remove.
3. Remove the wipe

Page 394 of 466

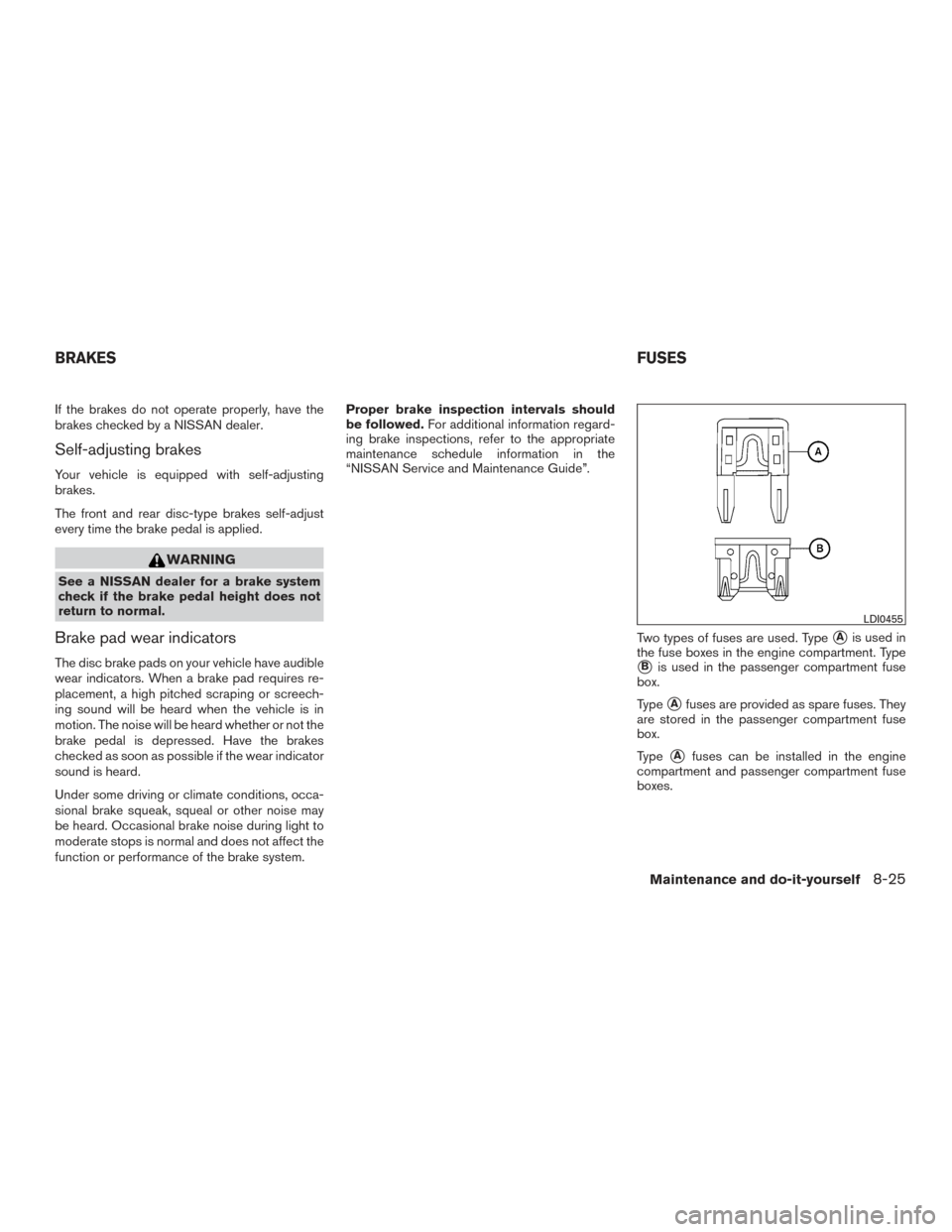

NISSAN FRONTIER 2015 D23 / 3.G Owners Manual If the brakes do not operate properly, have the
brakes checked by a NISSAN dealer.
Self-adjusting brakes
Your vehicle is equipped with self-adjusting
brakes.
The front and rear disc-type brakes self-a

Page 395 of 466

NISSAN FRONTIER 2015 D23 / 3.G Owners Manual If a typeAfuse is used to replace a typeBfuse,
the type
Afuse will not be level with the fuse
pocket as shown in the illustration. This will not
affect the performance of the fuse. Make sure the
fu

Page 396 of 466

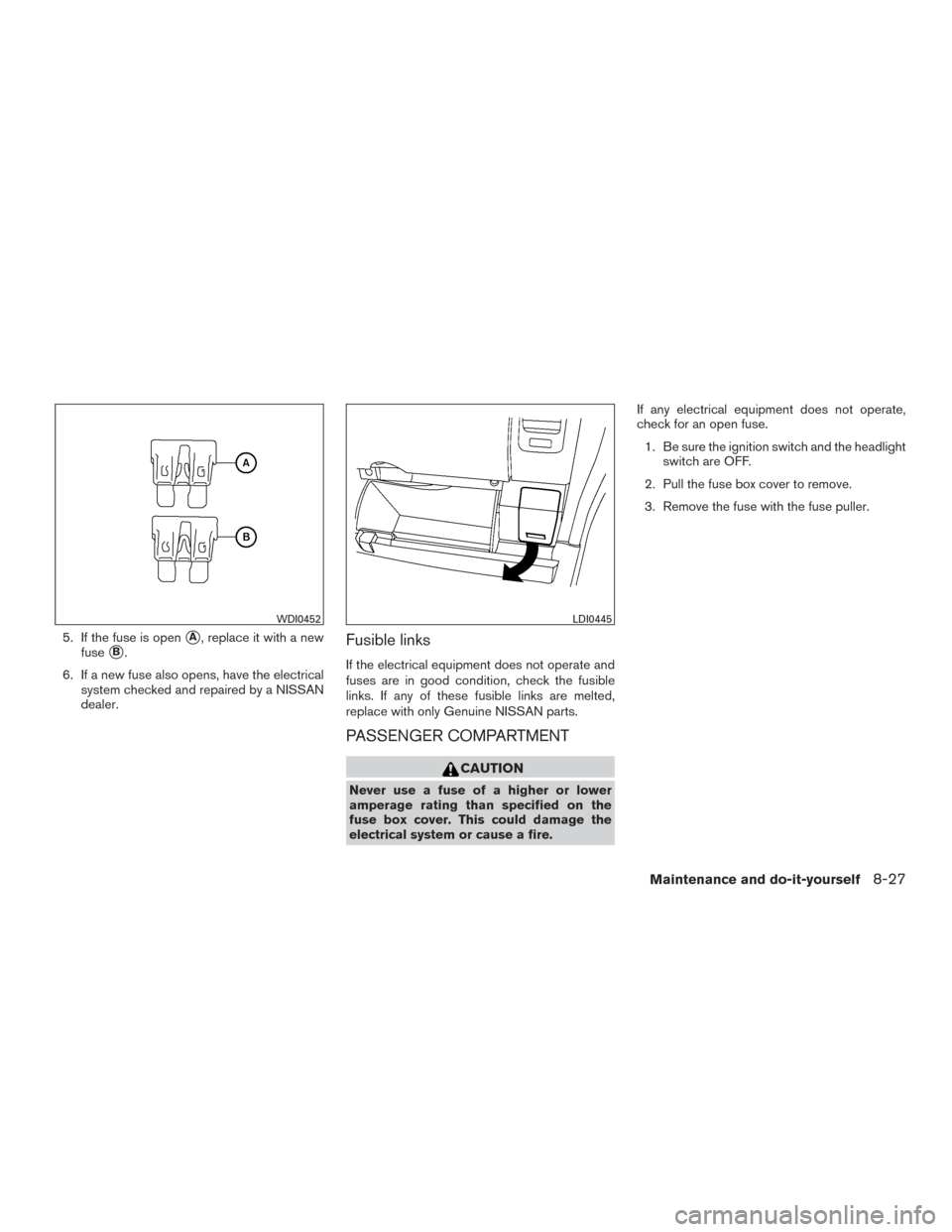

NISSAN FRONTIER 2015 D23 / 3.G Owners Manual 5. If the fuse is openA, replace it with a new
fuse
B.
6. If a new fuse also opens, have the electrical system checked and repaired by a NISSAN
dealer.Fusible links
If the electrical equipment does

Page 397 of 466

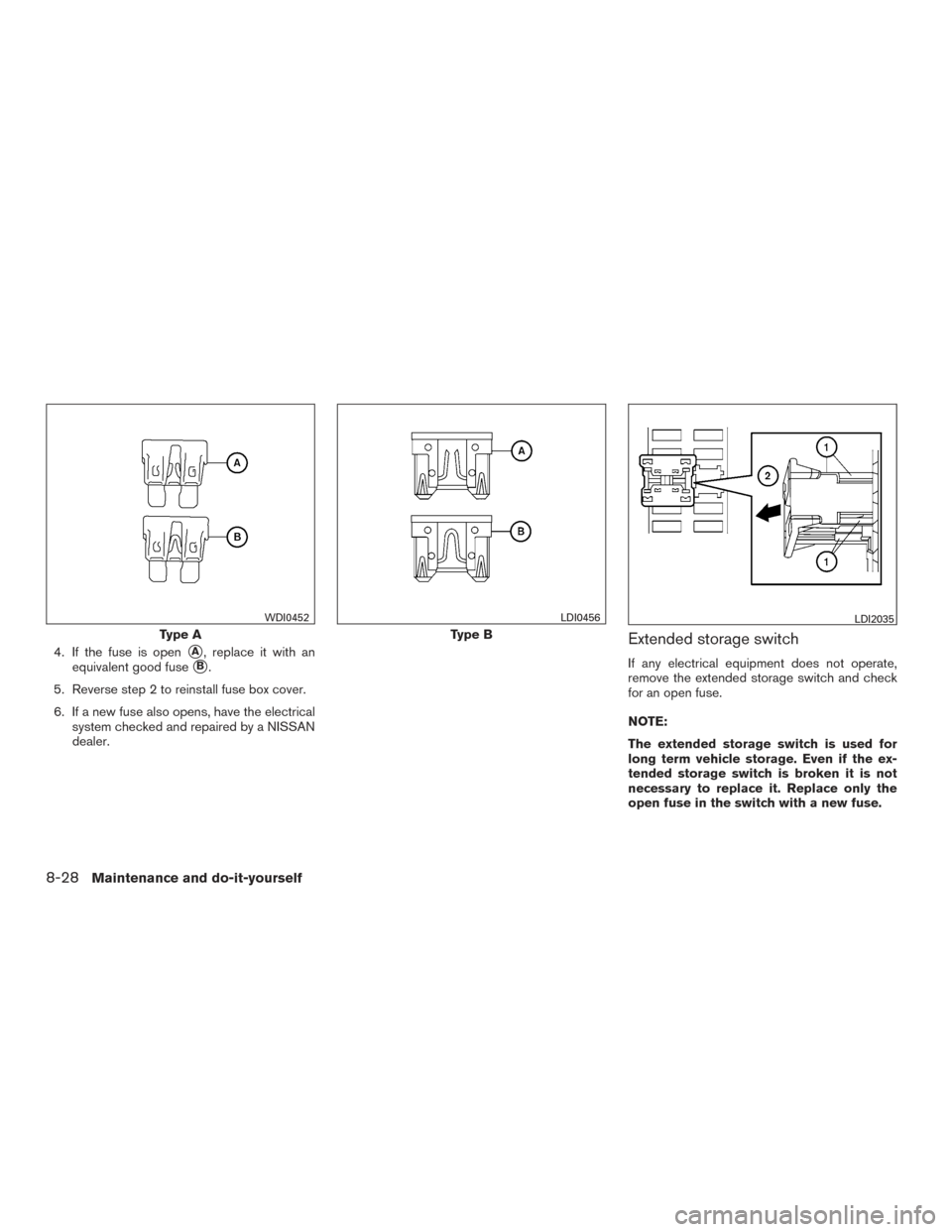

NISSAN FRONTIER 2015 D23 / 3.G Owners Manual 4. If the fuse is openA, replace it with an
equivalent good fuse
B.
5. Reverse step 2 to reinstall fuse box cover.
6. If a new fuse also opens, have the electrical system checked and repaired by a N

Page 398 of 466

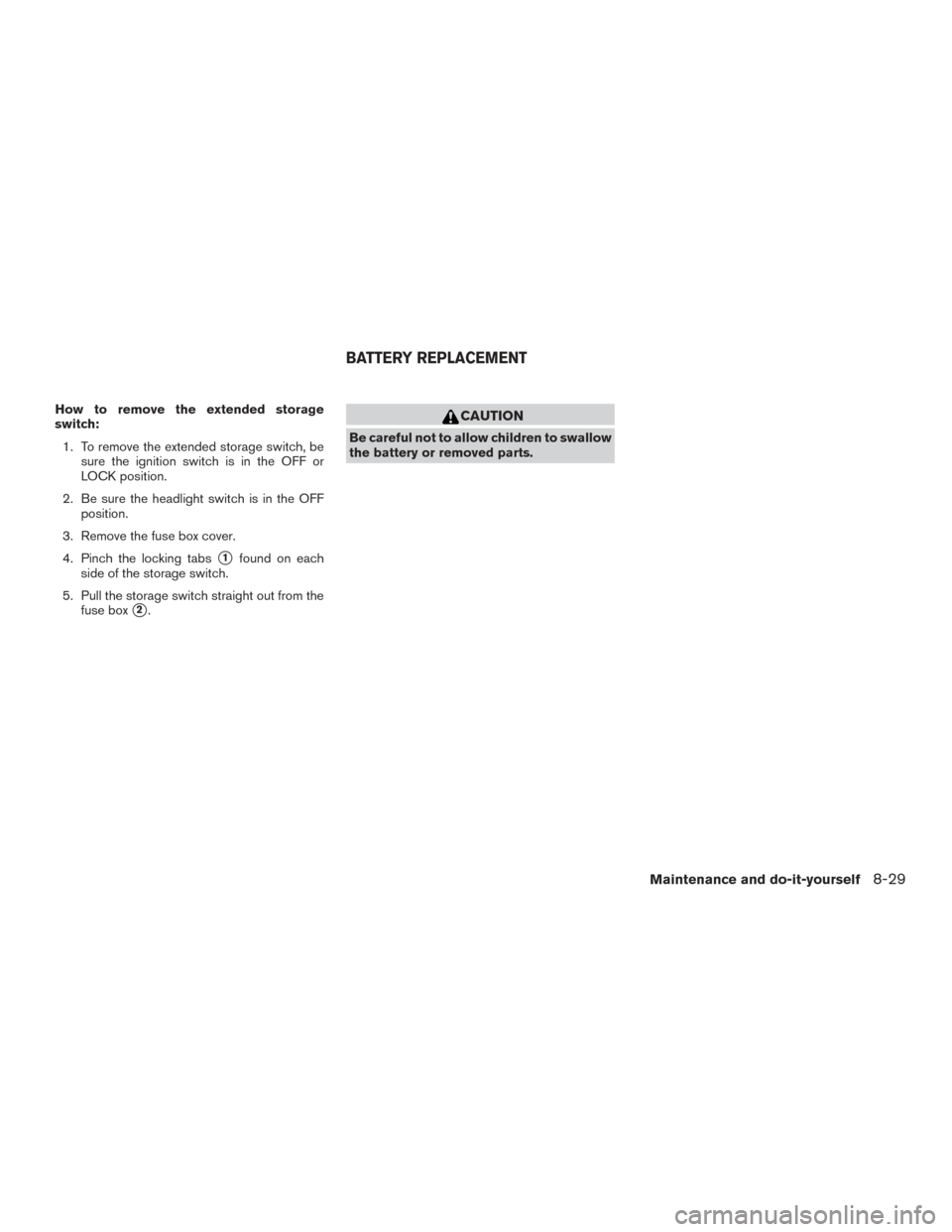

NISSAN FRONTIER 2015 D23 / 3.G Owners Manual How to remove the extended storage
switch:1. To remove the extended storage switch, be sure the ignition switch is in the OFF or
LOCK position.
2. Be sure the headlight switch is in the OFF position.

Page 399 of 466

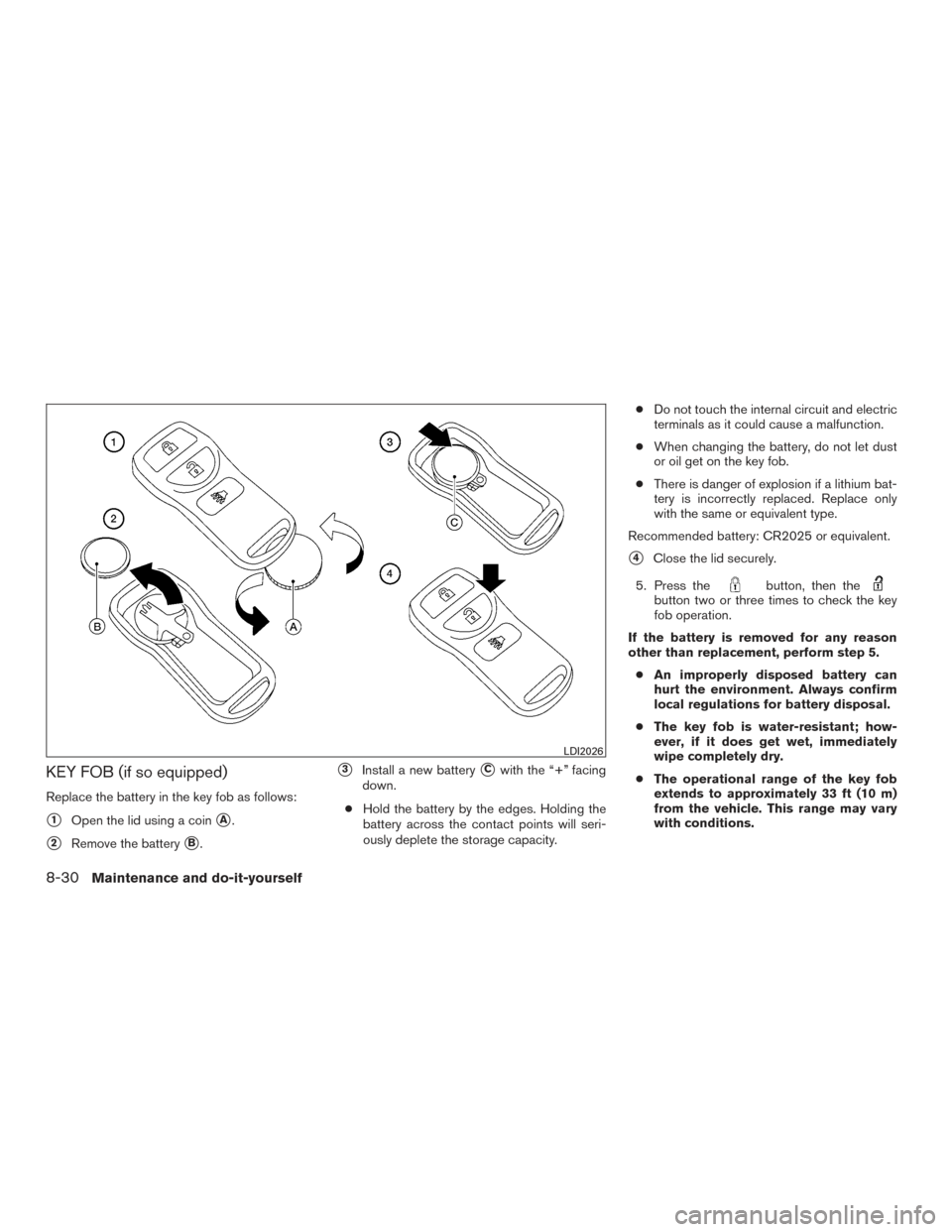

NISSAN FRONTIER 2015 D23 / 3.G Owners Manual KEY FOB (if so equipped)
Replace the battery in the key fob as follows:
1Open the lid using a coinA.
2Remove the batteryB.
3Install a new batteryCwith the “+” facing
down.
● Hold the batte

Page 400 of 466

NISSAN FRONTIER 2015 D23 / 3.G Owners Manual FCC Notice:
For USA:
This device complies with Part 15 of the
FCC Rules. Operation is subject to the fol-
lowing two conditions: (1) This device may
not cause harmful interference, and (2) this
device
