audio NISSAN FRONTIER 2019 Owner´s Manual

Table of
ContentsIllustrated table of contents
Safety—Seats, seat belts and supplemental restraint system
Instruments and controls
Pre-driving checks and adjustments
Monitor, climate, audio, phone and voice recognition systems
Starting and driving
In case of emergency
Appearance and care
Do-it-yourself
Maintenance and schedules
Technical and consumer information
Index
0
1
2
3
4
5
6
7
8
9
10
11

1. Vents (P. 4-23)
2. Headlight/fog light(if so equipped)/turn signal switch
(P. 2-29)
3. Steering wheel switch for audio
control (P. 4-74)
Bluetooth® Hands-Free Phone
System (P. 4-84, 4-102)
4. Driver supplemental air bag
(P. 1-73)
Horn (P. 2-33)
5. Meters and gauges (P. 2-3) Warning and indicator lights
(P. 2-14)
6. Cruise control switches (P. 5-22)
7. Wiper and washer switch (P. 2-27)
8. Storage (P. 2-40)
9. Audio system (P. 4-37)
10. Front passenger supplemental air
bag (P. 1-73)
11. Upper and lower glove box (P. 2-40)
12. Passenger air bag status light
(P. 1-73)
13. USB connection port (P. 4-58) AUX input (P. 4-58)
14. Power outlets (P. 2-39)
LII2484
INSTRUMENT PANEL
0-6Illustrated table of contents

1. Vents (P. 4-23)
2. Headlight/fog light(if so equipped)/turn signal switch
(P. 2-29)
3. Steering wheel switch for audio
control (P. 4-74)
Bluetooth® Hands-Free Phone
System (P. 4-84, 4-102)
4. Driver supplemental air bag
(P. 1-73)
Horn (P. 2-33)
5. Meters and gauges (P. 2-3) Warning and indicator lights
(P. 2-14)
6. Cruise control switches (P. 5-22)
7. Wiper and washer switch (P. 2-27)
8. Storage (P. 2-40)
9. Audio system (P. 4-37)
10. Front passenger supplemental air
bag (P. 1-73)
11. Upper and lower glove box (P. 2-40)
12. Passenger air bag status light
(P. 1-73)
13. USB connection port (P. 4-58) AUX input (P. 4-58)
14. Power outlets (P. 2-39)
LII2484
INSTRUMENT PANEL
2-2Instruments and controls

As many as five key fobs can be used with
one vehicle. For information concerning
the purchase and use of additional key
fobs, it is recommended that you visit a
NISSAN dealer.
The key fob will not function when:∙ The battery is discharged.
∙ The distance between the vehicle and the key fob is over 33 f t (10 m).
The panic alarm will not activate when
the key is in the ignition switch.
CAUTION
Listed below are conditions or occur-
rences which will damage the key fob:
∙ Do not allow the key fob, which con- tains electrical components, to come
into contact with water or salt water.
This could affect the system function.
∙ Do not drop the key fob.
∙ Do not strike the key fob sharply against another object.
∙ Do not change or modif y the key fob.
∙ Wetting may damage the key fob. If the key fob gets wet, immediately
wipe until it is completely dry. ∙ Do not place the key fob for an ex-
tended period in an area where tem-
peratures exceed 140°F (60°C)
∙ Do not attach the key fob with a key holder that contains a magnet.
∙ Do not place the key fob near equip- ment that produces a magnetic field,
such as a TV, audio equipment and
personal computers.
If a key fob is lost or stolen, NISSAN rec-
ommends erasing the ID code of that
key fob. This will prevent the key fob
from unauthorized use to unlock the
vehicle. For information regarding the
erasing procedure, it is recommended
that you visit a NISSAN dealer.HOW TO USE REMOTE KEYLESS
ENTRY SYSTEM
Locking doors
1. Close all windows.
2. Remove the key from the ignition switch.
3. Close the hood and all doors.
4. Press the
button on the key fob.
All the doors lock. The hazard warning
lights flash twice and the horn beeps
once to indicate all doors are locked.
LPD0209
Pre-driving checks and adjustments3-7

4 Monitor, climate, audio, phone and
voice recognition systems
Control panel buttons — models without
Navigation System (if so equipped)..............4-4
How to use the touch-screen .................4-5
How to use the
MENU button ...........4-7
(brightness control) button .............4-9
How to use the VOL (volume) knob /
PUSH
(power)button ...................4-9
Selecting menu from launch bar .............4-9
Control panel buttons — models with
Navigation System (if so equipped) .............4-10
How to use the touch-screen .................4-11
HowtousetheBACKbutton ................ 4-13
How to use the
button................ 4-13
button................................. 4-15
How to use the ON-OFF button/VOL
(volume) control knob ....................... 4-15
How to use the CAMERA button .............4-15
RearView Monitor .............................. 4-16
RearView Monitor system operation .........4-17
How to read the displayed lines ..............4-18
Difference between predicted and
actual distances ............................. 4-18
Adjusting the screen ........................ 4-20RearView Monitor system limitations
........4-21
System maintenance ........................ 4-22
Vents ........................................... 4-23
Heater and air conditioner (manual)
(if so equipped) ................................. 4-23
Controls ..................................... 4-24
Controls ..................................... 4-25
Heater operation ............................ 4-26
Air conditioner operation ....................4-27
Air flow charts ............................... 4-28
Heater and air conditioner (automatic)
(if so equipped) ................................. 4-32
Automatic operation ........................ 4-35
Manual operation ........................... 4-36
Operating tips ............................... 4-37
Servicing air conditioner ........................4-37
Audio system ................................... 4-37
Radio ........................................ 4-37
FM radio reception .......................... 4-38
AM radio reception .......................... 4-38
Satellite radio reception (if so equipped) .....4-38
Audio operation precautions ................4-39
FM/AM radio (if so equipped) ................4-46

FM/AM/SAT radio with Compact Disc
(CD) player (if so equipped)..................4-51
USB (Universal Serial Bus) connection
port (models without Navigation
System) (if so equipped) .....................4-58
USB (Universal Serial Bus) connection
port (models with Navigation System)
(if so equipped) .............................. 4-61
iPod®* player operation without
Navigation System (if so equipped) ..........4-63
iPod®* player operation with Navigation
System (if so equipped) ......................4-66
Bluetooth® streaming audio without
Navigation System (if so equipped) ..........4-70
Bluetooth® streaming audio with
Navigation System (if so equipped) ..........4-72
CD care and cleaning ........................4-74
Steering wheel switch for audio control ......4-74
Antenna ..................................... 4-75
NissanConnect® Mobile Apps (if so equipped). . . 4-76 Registering with NissanConnect®
Mobile Apps ................................. 4-76
Connect Phone .............................. 4-76
Application download .......................4-76Siri® Eyes Free (models without Navigation
System) (if so equipped)
........................4-77
Requirements ............................... 4-77
Operating Siri® Eyes Free ....................4-77
Troubleshooting guide ......................4-79
Siri® Eyes Free (models with Navigation
System) (if so equipped) ........................4-80
Requirements ............................... 4-80
Siri® Activation ............................... 4-80
Operating Siri® Eyes Free ....................4-81
Changing Siri® Eyes Free settings ............4-81
Troubleshooting guide ......................4-82
Car phone or CB radio .......................... 4-83
Bluetooth® Hands-Free Phone System
without Navigation System (if so equipped) .....4-84
Regulatory information ......................4-85
Using the system ............................ 4-86
Indicators ................................... 4-87
Control buttons ............................. 4-88
Connecting procedure ......................4-89
Voice commands ........................... 4-90
Phone display

screen ........................ 4-92
Making a call ................................ 4-93
Receiving a call .............................. 4-94

During a call................................. 4-94
Ending a call ................................. 4-95
Text messaging (if so equipped) .............4-95
Bluetooth® connections screen .............4-99
Phone and text message settings ..........4-100
Bluetooth® Hands-Free Phone System with
Navigation System (if so equipped) ............4-102
Regulatory information .....................4-104
Voice commands .......................... 4-105
Connecting procedure .....................4-105
Vehicle phonebook ......................... 4-106
Making a call ............................... 4-106
Receiving a call ............................. 4-106
During a call ................................ 4-106
Ending a call ................................ 4-107
Text messaging (if so equipped) ............4-107 Bluetooth® settings
........................ 4-109
Phone settings ............................. 4-110
Troubleshooting guide .....................4-110
NISSAN Voice Recognition System
(if so equipped) ................................ 4-112
Using the system ........................... 4-112
System features ............................ 4-113
Bluetooth® Hands-Free Phone System
voice commands ........................... 4-114
Navigation System voice commands .......4-115
Audio system voice commands ............4-115
Information voice commands ..............4-115
My Apps voice commands .................4-115
Help voice commands ......................4-116
Troubleshooting guide .....................4-116

WARNING
∙ Positioning of the heating or air con-ditioning controls and display con-
trols should not be done while driving
in order that full attention may be
given to the driving operation.
∙ Do not disassemble or modif y this system. If you do, it may result in acci-
dents, fire, or electrical shock.
∙ Do not use this system if you notice any abnormality, such as a frozen
screen or lack of sound. Continued
use of the system may result in acci-
dent, fire or electric shock.
∙ In case you notice any foreign object in the system hardware, spill liquid on
it, or notice smoke or smell coming
from it, stop using the system imme-
diately. Ignoring such conditions may
lead to accidents, fire or electrical
shock. It is recommended that you
visit a NISSAN dealer for servicing.
1.
MENU button
2.
button*
3. Display screen
4.
(brightness control) button 5. VOL (volume) knob / PUSH
(power) button
* For additional information regarding the
Bluetooth® Hands-Free Phone System
control button, refer to “Bluetooth® Hands-
LHA4680
CONTROL PANEL BUTTONS —
MODELS WITHOUT NAVIGATION
SYSTEM (if so equipped)
4-4Monitor, climate, audio, phone and voice recognition systems

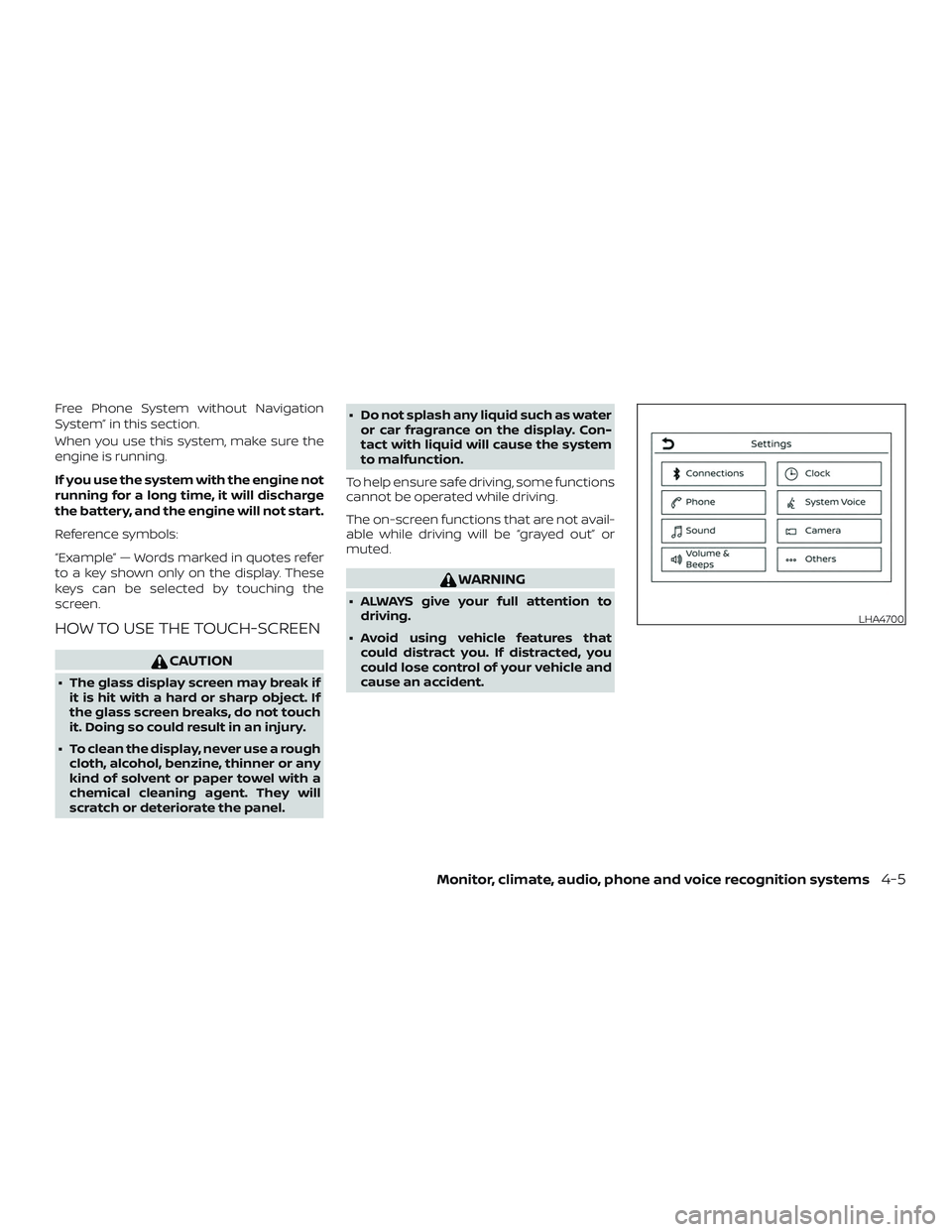

Free Phone System without Navigation
System” in this section.
When you use this system, make sure the
engine is running.
If you use the system with the engine not
running for a long time, it will discharge
the battery, and the engine will not start.
Reference symbols:
“Example” — Words marked in quotes refer
to a key shown only on the display. These
keys can be selected by touching the
screen.
HOW TO USE THE TOUCH-SCREEN
CAUTION
∙ The glass display screen may break ifit is hit with a hard or sharp object. If
the glass screen breaks, do not touch
it. Doing so could result in an injury.
∙ To clean the display, never use a rough cloth, alcohol, benzine, thinner or any
kind of solvent or paper towel with a
chemical cleaning agent. They will
scratch or deteriorate the panel. ∙ Do not splash any liquid such as water
or car fragrance on the display. Con-
tact with liquid will cause the system
to malfunction.
To help ensure safe driving, some functions
cannot be operated while driving.
The on-screen functions that are not avail-
able while driving will be “grayed out” or
muted.
WARNING
∙ ALWAYS give your full attention to driving.
∙ Avoid using vehicle features that could distract you. If distracted, you
could lose control of your vehicle and
cause an accident.
LHA4700
Monitor, climate, audio, phone and voice recognition systems4-5

Touch-screen operation
Menu ItemResult
Selecting the item Touch an item to select. To select the “Phone” key, touch the “Phone” key on the screen. Touch the “
”keyto
return to the previous screen.
Adjusting the item Touch the “+” key or the “” key to adjust the settings of an item. Touch the up arrow to scroll up the page one
item at a time. Touch the down arrow to scroll down the page one item at a time.
Inputting characters Touch the number key. There are some options available when inputting characters.
123 Touch to manually enter numbers.
OK Completes the character input.
Touch-screen maintenance
If you clean the display screen, use a dry,
sof t cloth. If additional cleaning is neces-
sary, use a small amount of neutral deter-
gent with a sof t cloth. Never spray the
screen with water or detergent. Dampen
the cloth first and then wipe the screen.
4-6Monitor, climate, audio, phone and voice recognition systems
