PARKING BRAKE RELEASE WARN-
INGThis will appear if the vehicle speed is above 4
MPH (7 km/h) with the parking brake applied.
(
“Brake warning light” page 2-24)
(“Parking brake reminder chime” page 2-
30)
LOW BRAKE FLUID WARNINGThis will appear if the brake fluid level becomes
low. (
“Brake warning light” page 2-24)
ANTI-LOCK BRAKING SYSTEM
(ABS) WARNINGThis will appear if the Anti-lock Braking System
(ABS) is not functioning properly. (
“Anti-
lock Braking System (ABS) warning light” page
2-24) (
“Brake warning light” page 2-24)
2-34
Instruments and controls
,QIRUPDWLRQ3URYLGHGE\

Black plate (107,1)
Model "R35-D" EDITED: 2008/ 5/ 20

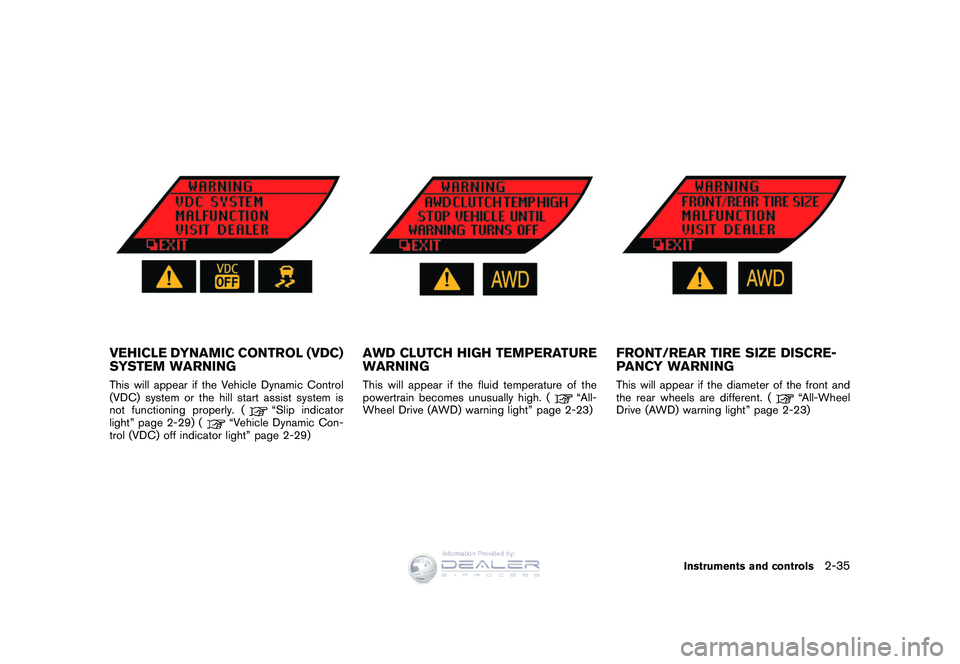

VEHICLE DYNAMIC CONTROL (VDC)
SYSTEM WARNINGThis will appear if the Vehicle Dynamic Control
(VDC) system or the hill start assist system is
not functioning properly. (
“Slip indicator
light” page 2-29) (
“Vehicle Dynamic Con-
trol (VDC) off indicator light” page 2-29)
AWD CLUTCH HIGH TEMPERATURE
WARNINGThis will appear if the fluid temperature of the
powertrain becomes unusually high. (
“All-
Wheel Drive (AWD) warning light” page 2-23)
FRONT/REAR TIRE SIZE DISCRE-
PANCY WARNINGThis will appear if the diameter of the front and
the rear wheels are different. (
“All-Wheel
Drive (AWD) warning light” page 2-23)
Instruments and controls
2-35
,QIRUPDWLRQ3URYLGHGE\

Black plate (108,1)
Model "R35-D" EDITED: 2008/ 5/ 20
AWD SYSTEM WARNINGThis will appear if the AWD system is not
functioning properly while the engine is running.
(
“All-Wheel Drive (AWD) warning light”
page 2-23)
LOW TIRE PRESSURE WARNINGThis will appear if the vehicle is being driven with
low tire pressure. (
“Low tire pressure
warning” page 2-25)
RUN-FLAT TIRE WARNINGThis will appear and a chime will sound if the
vehicle is being driven with one or more flat tires.
(
“Run-flat tire warning” page 2-26)
2-36
Instruments and controls
,QIRUPDWLRQ3URYLGHGE\

Black plate (109,1)
Model "R35-D" EDITED: 2008/ 5/ 20

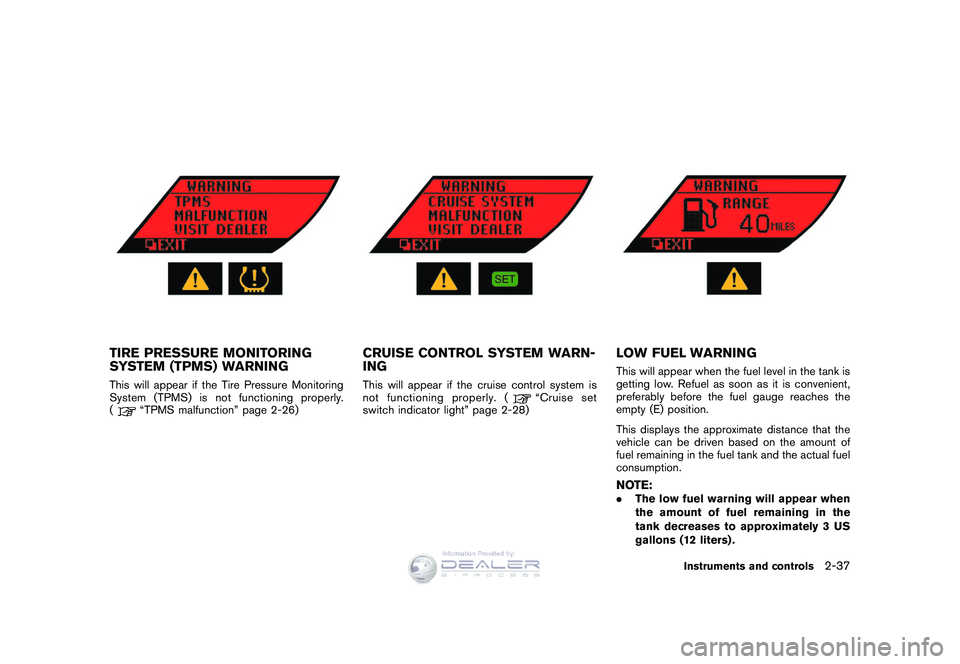

TIRE PRESSURE MONITORING
SYSTEM (TPMS) WARNINGThis will appear if the Tire Pressure Monitoring
System (TPMS) is not functioning properly.
(
“TPMS malfunction” page 2-26)
CRUISE CONTROL SYSTEM WARN-
INGThis will appear if the cruise control system is
not functioning properly. (
“Cruise set
switch indicator light” page 2-28)
LOW FUEL WARNINGThis will appear when the fuel level in the tank is
getting low. Refuel as soon as it is convenient,
preferably before the fuel gauge reaches the
empty (E) position.
This displays the approximate distance that the
vehicle can be driven based on the amount of
fuel remaining in the fuel tank and the actual fuel
consumption.NOTE:. The low fuel warning will appear when
the amount of fuel remaining in the
tank decreases to approximately 3 US
gallons (12 liters) .
Instruments and controls
2-37
,QIRUPDWLRQ3URYLGHGE\

Black plate (110,1)
Model "R35-D" EDITED: 2008/ 5/ 20

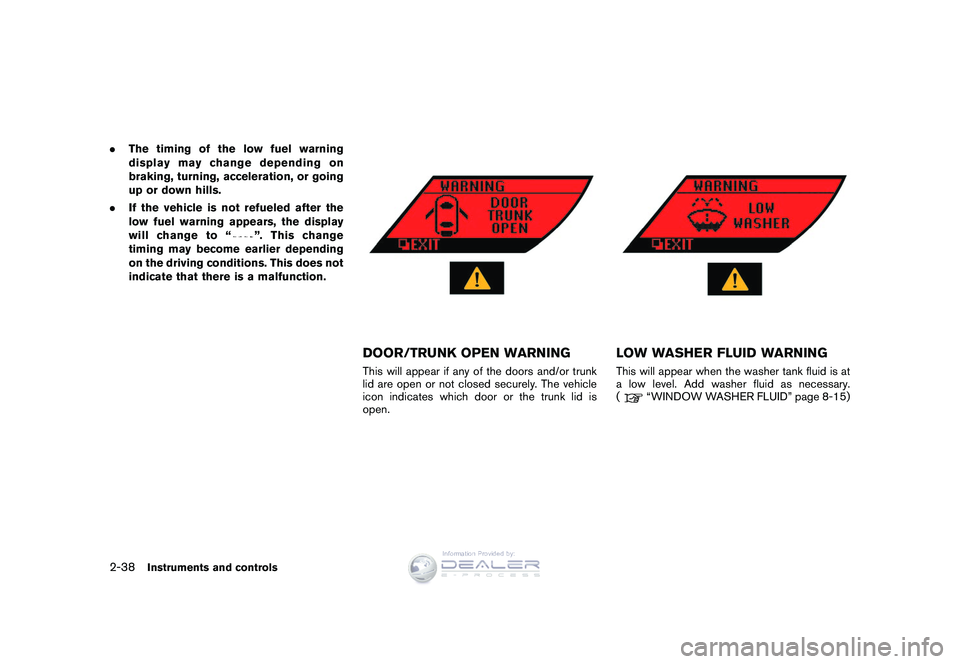

.The timing of the low fuel warning
display may change depending on
braking, turning, acceleration, or going
up or down hills.
. If the vehicle is not refueled after the
low fuel warning appears, the display
will change to “
”. This change
timing may become earlier depending
on the driving conditions. This does not
indicate that there is a malfunction.
DOOR/TRUNK OPEN WARNINGThis will appear if any of the doors and/or trunk
lid are open or not closed securely. The vehicle
icon indicates which door or the trunk lid is
open.
LOW WASHER FLUID WARNINGThis will appear when the washer tank fluid is at
a low level. Add washer fluid as necessary.
(
“WINDOW WASHER FLUID” page 8-15)
2-38
Instruments and controls
,QIRUPDWLRQ3URYLGHGE\

Black plate (111,1)
Model "R35-D" EDITED: 2008/ 5/ 20

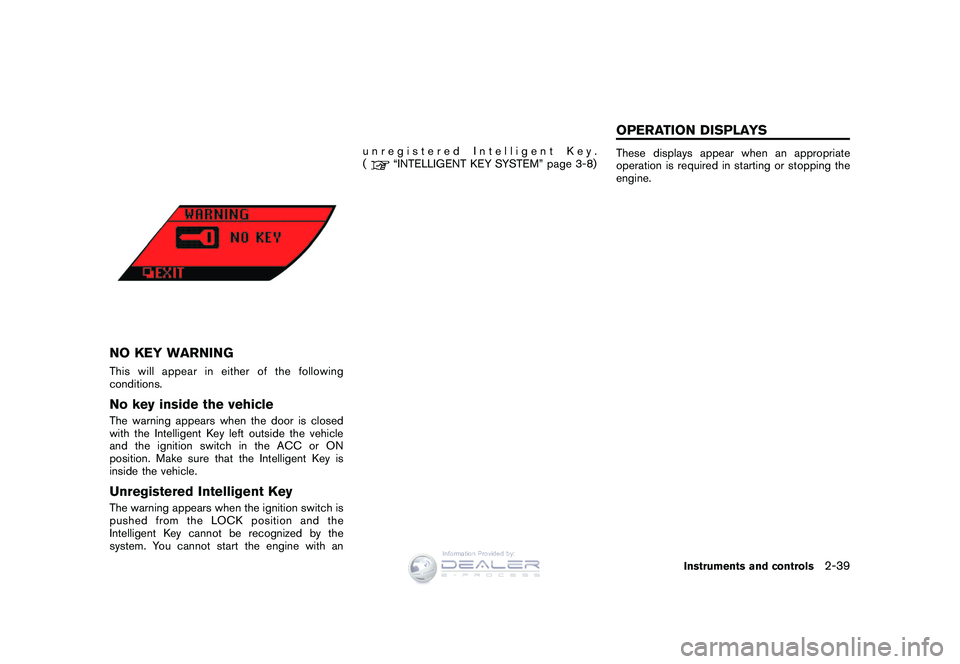

NO KEY WARNINGThis will appear in either of the following
conditions.No key inside the vehicleThe warning appears when the door is closed
with the Intelligent Key left outside the vehicle
and the ignition switch in the ACC or ON
position. Make sure that the Intelligent Key is
inside the vehicle.Unregistered Intelligent KeyThe warning appears when the ignition switch is
pushed from the LOCK position and the
Intelligent Key cannot be recognized by the
system. You cannot start the engine with anunregistered Intelligent Key.
(
“INTELLIGENT KEY SYSTEM” page 3-8)
These displays appear when an appropriate
operation is required in starting or stopping the
engine.
Instruments and controls
2-39
OPERATION DISPLAYS
,QIRUPDWLRQ3URYLGHGE\

Black plate (112,1)
Model "R35-D" EDITED: 2008/ 5/ 20
ENGINE START OPERATION INDI-
CATORThis indicator appears when the shift lever is in
the
&Pposition.
This indicator means that the engine will start by
pushing the ignition switch with the brake pedal
depressed.
SHIFT “P” WARNINGThis warning appears and an inside warning
chime sounds when the ignition switch is
pushed to stop the engine with the shift lever
in any position except the
&Pposition.
If this warning appears, move the shift lever to
the
&Pposition. This warning will also turn off
when pushing the ignition switch to the ON
position.
“PUSH” WARNINGThis warning appears when the shift lever is
moved to the
&Pposition with the ignition switch
in the ACC position after the SHIFT
&Pwarning
appears.
If this warning appears, push the ignition switch
to the OFF position.
2-40
Instruments and controls
,QIRUPDWLRQ3URYLGHGE\

Black plate (113,1)
Model "R35-D" EDITED: 2008/ 5/ 20
STEERING LOCK RELEASE MAL-
FUNCTION INDICATORThis indicator appears when the steering wheel
lock cannot be released from the LOCK posi-
tion. If this indicator appears, push the ignition
switch while lightly turning the steering wheel
right and left.
INTELLIGENT KEY INSERTION INDI-
CATORThis indicator appears when the Intelligent Key
needs to be inserted into the Intelligent Key port
(for example, the Intelligent Key battery is
discharged) .
If this indicator appears, insert the Intelligent Key
into the Intelligent Key port in the correct
direction. (
“INTELLIGENT KEY BATTERY
DISCHARGE” page 5-10)
INTELLIGENT KEY REMOVAL INDI-
CATORThis indicator appears when the driver’s door is
opened with the ignition switch in the OFF or
LOCK position and the Intelligent Key placed in
the Intelligent Key port. A key reminder chime
also sounds.
If this indicator appears, remove the Intelligent
Key from the Intelligent Key port and take it with
you when leaving the vehicle.
Instruments and controls
2-41
,QIRUPDWLRQ3URYLGHGE\

Black plate (114,1)
Model "R35-D" EDITED: 2008/ 5/ 20
INTELLIGENT KEY BATTERY DIS-
CHARGE INDICATORThis indicator appears when the Intelligent Key
battery is running out of power.
If this indicator appears, replace the battery with
a new one. (
“INTELLIGENT KEY BATTERY
REPLACEMENT” page 8-23)
Your vehicle has two types of security systems,
as follows:
. Vehicle security system
. NISSAN Vehicle Immobilizer System
The security condition will be shown by the
security indicator light.VEHICLE SECURITY SYSTEMThe vehicle security system provides visual and
audio alarm signals if someone opens the doors,
hood, or trunk lid when the system is armed. It is
not, however, a motion detection type system
that activates when a vehicle is moved or when a
vibration occurs. The system helps deter vehicle theft but cannot
prevent it, nor can it prevent the theft of interior
or exterior vehicle components in all situations.
Always secure your vehicle even if parking for a
brief period. Never leave your Intelligent Key(s)
in the vehicle, and always lock it when un-
attended. Be aware of your surroundings, and
park in secure, well-lit areas whenever possible.
Many devices offering additional protection,
such as component locks, identification markers,
and tracking systems, are available at auto
supply stores and specialty shops. Your GT-R
certified NISSAN dealer may also offer such
equipment. Check with your insurance company
to see if you may be eligible for discounts for
various theft protection features.
2-42
Instruments and controls
SECURITY SYSTEMS
,QIRUPDWLRQ3URYLGHGE\

Black plate (115,1)
Model "R35-D" EDITED: 2008/ 5/ 20
How to arm the vehicle security
system1. Close all windows.The system can be armed even if the
windows are open.
2. Push the ignition switch to the OFF or LOCK position.
3. Remove the Intelligent Key from the vehicle.
4. Close all doors, hood and trunk. Lock all doors. The doors can be locked with the
Intelligent Key, door handle request switch
or power door lock switch. The power door
lock switch should be operated while the
door is open, and then closed. 5. Confirm that the security indicator light
comes on. The security indicator light stays
on for about 30 seconds. The vehicle
security system is now pre-armed. After
about 30 seconds the vehicle security
system automatically shifts into the armed
phase. The security light begins to flash
once every approximately 3 seconds. If,
during this 30-second pre-arm time period,
the door is unlocked, or the ignition switch is
pushed to ACC or ON, the system will not
arm.
Even when the driver and/or passengers
are in the vehicle, the system will activate
with all doors, hood, and trunk lid locked
withtheignitionswitchintheLOCK
position. When pushing the ignition switch
to the ACC or ON position, the system will
be released.
Vehicle security system activationThe vehicle security system will give the follow-
ing alarm:
. The headlights blink and the horn sounds
intermittently.
. The alarm automatica lly turns off after
approximately 1 minute. However, the alarm
reactivates if the vehicle is tampered with
again. The alarm is activated by:
.
Unlocking the door or opening the trunk lid
without using the button on the Intelligent
Key, the door handle request switch or the
mechanical key. (Even if the door is opened
by releasing the door inside lock knob, the
alarm will activate.)
. Opening the hood.
How to stop an activated alarmThe alarm will stop by unlocking a door by
pushing the unlock button on the Intelligent Key
or the door handle request switch. The alarm will
not stop if the ignition switch is pushed to the
ACC or ON position.
If the system does not operate as de-
scribed above, have it checked by a GT-R
certified NISSAN dealer.NISSAN VEHICLE IMMOBILIZER
SYSTEMThe NISSAN Vehicle Immobilizer System will not
allow the engine to start without the use of the
registered Intelligent Key. Never leave these
keys in the vehicle.
Statement related to section 15 of FCC
rules for NISSAN Vehicle Immobilizer
System (CONT ASSY - CARD SLOT)
This device complies with part 15 of the
Instruments and controls
2-43
