Pull off the road in a safe area,
and idle the engine. The driving
mode will change to RWD to
prevent the AWD system from
malfunctioning. If the warning
light turns off, you can drive
again.
— blinks slowly (about once every 2 seconds):
Pull off the road in a safe area,
and idle the engine. Check that
all tire sizes are the same as
that specified on the Tire and
Loading Information label lo-
cated in the driver’s door open-
ing, tire pressure is correct and
tires are not worn. (
“TIRE
AND LOADING INFORMATION
LABEL” page 9-10)
If the tire pressure is insuffi-
cient, fill with nitrogen gas.
Contact a GT-R certified NISSAN
dealer about filling with nitro-
gen gas. If nitrogen gas is not
available, compressed air may
be safely used under normal
driving conditions. However,
NISSAN recommends refilling
with nitrogen gas for maximum tire performance.
. If the warning light is still on after
the above operations, have your
vehicle checked by a GT-R certified
NISSAN dealer as soon as possible.
or
Anti-lock Braking
System (ABS) warn-
ing light
When the ignition switch is in the ON position,
the Anti-lock Braking System (ABS) warning
light illuminates and then turns off. This indicates
the ABS is operational.
If the ABS warning light illuminates while the
engine is running, or while driving, it may
indicate the ABS is not functioning properly.
Have the system checked by a GT-R certified
NISSAN dealer.
If an ABS malfunction occurs, the anti-lock
function is turned off. The brake system then
operates normally, but without anti-lock assis-
tance. (
“BRAKE SYSTEM” page 5-38)
or
Brake warning light
This light functions for both the parking brake
and the foot brake systems.
Parking brake indicator:When the ignition switch is in the ON position,
the light comes on when the parking brake is
applied.Low brake fluid warning light:When the ignition switch is in the ON position,
the light warns of a low brake fluid level. If the
light comes on while the engine is running with
the parking brake not applied, stop the vehicle
and perform the following:
1. Check the brake fluid level. Add brake fluid
as necessary. (
“BRAKE FLUID” page
8-14)
2. If the brake fluid level is correct, have the warning system checked by a GT-R certified
NISSAN dealer.
Anti-lock Braking System (ABS) warning
indicator:When the parking brake is released and the
brake fluid level is sufficient, if both the brake
warning light and the Anti-lock Braking System
(ABS) warning light illuminate, it may indicate
the ABS is not functioning properly. Have the
brake system checked, and if necessary re-
paired, by a GT-R certified NISSAN dealer
promptly. Avoid high-speed driving and abrupt
braking. (
“Anti-lock Braking System (ABS)
warning light” page 2-24)
2-24
Instruments and controls
, Q I R U P D W L R Q 3 U R Y L G H G E \
Page 102 of 311
Black plate (97,1)
Model "R35-D" EDITED: 2008/ 5/ 20
WARNING
.Your brake system may not be
working properly if the warning light
is on. Driving could be dangerous. If
you judge it to be safe, drive care-
fully to the nearest service station
for repairs. Otherwise, have your
vehicle towed because driving it
could be dangerous.
. Pressing the brake pedal with the
engine stopped and/or low brake
fluid level may increase your stop-
ping distance and braking will re-
quire greater pedal effort as well as
pedal travel.
. If the brake fluid level is below the
minimum or MIN mark on the brake
fluid reservoir, do not drive until the
brake system has been checked at a
GT-R certified NISSAN dealer.
Charge warning light
If the light comes on while the engine is running,
it may indicate the charging system is not
functioning properly. Turn the engine off and
check the alternator belt. If the belt is loose,
broken, missing or if the light remains on, see a
GT-R certified NISSAN dealer immediately.
NOTICE
Do not continue driving if the alternator
belt is loose, broken or missing.
Engine oil pressure warning
light
This light warns of low engine oil pressure. If the
light flickers or comes on during normal driving,
pull off the road in a safe area, stop the engine
immediately and call a GT-R certified NISSAN
dealer.
The engine oil pressure warning light is
not designed to indicate a low oil level.
Check the vehicle information display or
use the dipstick to check the oil level.
(
“ENGINE OIL LEVEL DISPLAY” page 2-
11) (
“CHECKING ENGINE OIL LEVEL”
page 8-12)
NOTICE
Running the engine with the engine oil
pressure warning light on could cause
serious damage to the engine almost
immediately. Turn off the engine as
soon as it is safe to do so.
Intelligent Key warning light
After the ignition switch is pushed to the ON
position, this light comes on for about 2 seconds
and then turns off.
This light warns of a malfunction with the
electrical steering lock system or the Intelligent
Key system.
If the light comes on while the engine is
stopped, it may be impossible to free the
steering lock or to start the engine. If the light
comes on while the engine is running, you can
drive the vehicle. However in these cases,
contact a GT-R certified NISSAN dealer for
repair as soon as possible.
Low tire pressure warning
light
Your vehicle is equipped with a Tire Pressure
Monitoring System (TPMS) that monitors the tire
pressure of all tires.
The low tire pressure warning light warns of low
tire pressure and flat tire, or indicates that the
TPMS is not functioning properly.
After the ignition switch is pushed ON, this light
illuminates for about 1 second and turns off.Low tire pressure warning:If the vehicle is being driven with low tire
pressure, the warning light will illuminate.
Instruments and controls
2-25
, Q I R U P D W L R Q 3 U R Y L G H G E \
Page 103 of 311
Black plate (98,1)
Model "R35-D" EDITED: 2008/ 5/ 20

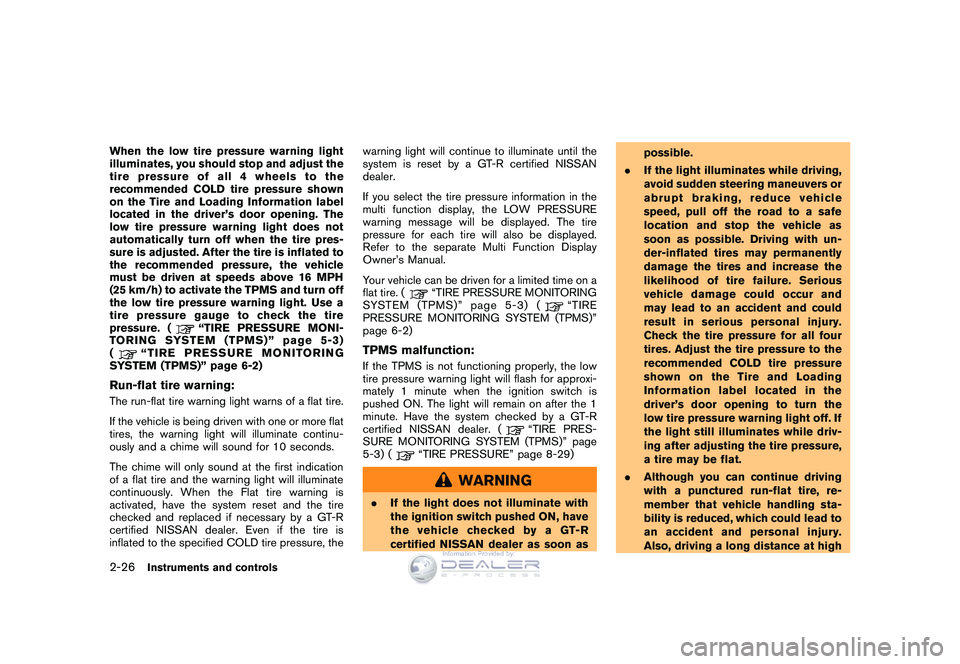

When the low tire pressure warning light
illuminates, you should stop and adjust the
tire pressure of all 4 wheels to the
recommended COLD tire pressure shown
on the Tire and Loading Information label
located in the driver’s door opening. The
low tire pressure warning light does not
automatically turn off when the tire pres-
sure is adjusted. After the tire is inflated to
the recommended pressure, the vehicle
must be driven at speeds above 16 MPH
(25 km/h) to activate the TPMS and turn off
the low tire pressure warning light. Use a
tire pressure gauge to check the tire
pressure. (
“TIRE PRESSURE MONI-
TORING SYSTEM (TPMS)” page 5-3)
(
“TIRE PRESSURE MONITORING
SYSTEM (TPMS)” page 6-2)
Run-flat tire warning:The run-flat tire warning light warns of a flat tire.
If the vehicle is being driven with one or more flat
tires, the warning light will illuminate continu-
ously and a chime will sound for 10 seconds.
The chime will only sound at the first indication
of a flat tire and the warning light will illuminate
continuously. When the Flat tire warning is
activated, have the system reset and the tire
checked and replaced if necessary by a GT-R
certified NISSAN dealer. Even if the tire is
inflated to the specified COLD tire pressure, the warning light will continue to illuminate until the
system is reset by a GT-R certified NISSAN
dealer.
If you select the tire pressure information in the
multi function display, the LOW PRESSURE
warning message will be displayed. The tire
pressure for each tire will also be displayed.
Refer to the separate Multi Function Display
Owner’s Manual.
Your vehicle can be driven for a limited time on a
flat tire. (
“TIRE PRESSURE MONITORING
SYSTEM (TPMS)” page 5-3) (
“TIRE
PRESSURE MONITORING SYSTEM (TPMS)”
page 6-2)
TPMS malfunction:If the TPMS is not functioning properly, the low
tire pressure warning light will flash for approxi-
mately 1 minute when the ignition switch is
pushed ON. The light will remain on after the 1
minute. Have the system checked by a GT-R
certified NISSAN dealer. (
“TIRE PRES-
SURE MONITORING SYSTEM (TPMS)” page
5-3) (
“TIRE PRESSURE” page 8-29)
WARNING
. If the light does not illuminate with
the ignition switch pushed ON, have
the vehicle checked by a GT-R
certified NISSAN dealer as soon as possible.
. If the light illuminates while driving,
avoid sudden steering maneuvers or
abrupt braking, reduce vehicle
speed, pull off the road to a safe
location and stop the vehicle as
soon as possible. Driving with un-
der-inflated tires may permanently
damage the tires and increase the
likelihood of tire failure. Serious
vehicle damage could occur and
may lead to an accident and could
result in serious personal injury.
Check the tire pressure for all four
tires. Adjust the tire pressure to the
recommended COLD tire pressure
shownontheTireandLoading
Information label located in the
driver’s door opening to turn the
low tire pressure warning light off. If
the light still illuminates while driv-
ing after adjusting the tire pressure,
a tire may be flat.
. Although you can continue driving
with a punctured run-flat tire, re-
member that vehicle handling sta-
bility is reduced, which could lead to
an accident and personal injury.
Also, driving a long distance at high
2-26
Instruments and controls
, Q I R U P D W L R Q 3 U R Y L G H G E \
Page 104 of 311
Black plate (99,1)
Model "R35-D" EDITED: 2008/ 5/ 20
speeds may damage the tires.
. Do not drive at speeds above 50
MPH (80 km/h) and do not drive
more than 50 miles (80 km) with a
punctured run-flat tire. The actual
distance the vehicle can be driven
on a flat tire depends on outside
temperature, vehicle load, road con-
ditions and other factors.
. When a wheel is replaced, the TPMS
will not function and the low tire
pressure warning light will flash for
approximately 1 minute. The light
will remain on after the 1 minute.
Contact a GT-R certified NISSAN
dealer as soon as possible for tire
replacement and/or system reset-
ting.
. Replacing tires with those not ori-
ginally specified by NISSAN could
affect the proper operation of the
TPMS.
CAUTION
.The TPMS is not a substitute for the
regular tire pressure check. Be sure
to check the tire pressure regularly. .
Be sure to install the specified size
of tires on the four wheels.
NOTE:.If the vehicle is being driven at speeds
of less than 16 MPH (25 km/h) , the
TPMS may not operate correctly.
. The tires of this vehicle are filled with
nitrogen gas. When the tire pressure is
low, fill the tires with nitrogen gas.
Contact a GT-R certified NISSAN dealer
for information on filling the tires with
nitrogen gas.
Master warning light
When the ignition switch is in the ON position,
the master warning light illuminates if any of the
warning displays appear on the vehicle informa-
tion display. (
“WARNING DISPLAY” page
2-31)
Seat belt warning light and
chime
The light and chime remind you to fasten seat
belts. The light illuminates whenever the ignition
switch is pushed to the ON position, and will
remain illuminated until the driver’s seat belt is
fastened. At the same time, the chime will sound
for about 6 seconds unless the driver’s seat belt
is securely fastened. The seat belt warning light for the front
passenger will illuminate if the seat belt is not
fastened when the front passenger’s seat is
occupied. For 6 seconds after the ignition
switch is in the ON position, the system does
not activate the warning light for the front
passenger. (
“SEAT BELTS” page 1-5)
Supplemental air bag warning
light
After pushing the ignition switch to the ON
position, the supplemental air bag warning light
will illuminate for about 7 seconds and then turn
off. This means the system is operational.
If any of the following conditions occur, the front
air bag, side air bag, curtain air bag and
pretensioner systems need servicing and your
vehicle must be taken to a GT-R certified
NISSAN dealer.
.
The supplemental air bag warning light
remains on after approximately 7 seconds.
. The supplemental air bag warning light
flashes intermittently.
. The supplemental air bag warning light does
not come on at all.
Unless checked and repaired, the supplemental
restraint system (air bag system) and/or the
pretensioners may not function properly.
(
“SUPPLEMENTAL RESTRAINT SYS-
Instruments and controls
2-27
, Q I R U P D W L R Q 3 U R Y L G H G E \
Page 105 of 311
Black plate (100,1)
Model "R35-D" EDITED: 2008/ 5/ 20
TEM” page 1-31)
WARNING
If the supplemental air bag warning
light is on, it could mean that the front
air bag, side air bag, curtain air bag
and/or pretensioner systems will not
operate in an accident. To help avoid
injury to yourself or others, have your
vehicle checked by a GT-R certified
NISSAN dealer as soon as possible.
Transmission warning light
This light warns of the following malfunctions.Transmission system malfunction:The light blinks if a malfunction in the transmis-
sion system occurs. If the light blinks, certain
gear positions may become unusable, so that
the vehicle may become undrivable. Have the
system inspected promptly by a GT-R certified
NISSAN dealer.Transmission oil temperature high:The light illuminates if the transmission oil
temperature becomes unusually high. If the light
illuminates, avoid driving at high speed or at high
engine speed until the light turns off. If the light
illuminates frequently, contact a GT-R certified
NISSAN dealer.
NOTICE
Continuing to drive with the light illu-
minated could cause serious damage to
the transmission.Transmission clutch temperature high:The light illuminates if clutch temperature
becomes unusually high. If the light illuminates,
pull off the road in a safe area and idle the
engine. When the light turns off, driving can be
resumed. If the light illuminates frequently,
contact a GT-R certified NISSAN dealer.
NOTICE
.Continuing to drive with the light on
could cause serious damage to the
transmission.
. If the light continues to stay on,
engine power will be suppressed
and the clutch will not be engaged
to prevent serious damage to the
clutch.
Cruise main switch indicator
light
The light comes on when the cruise control is
pushed. The light turns off when the main switch
is pushed again. While the cruise control system
main switch indicator light is on, the cruise control system is operational.
Cruise set switch indicator
light
The light comes on while the vehicle speed is
controlled by the cruise control system. If the
light blinks while the engine is running, it may
indicate the cruise control system is not
functioning properly. Have the system checked
by a GT-R certified NISSAN dealer.INDICATOR LIGHTS
Front passenger air bag status
light
The front passenger air bag status light (
)
will be lit and the passenger front air bag will be
OFF depending on how the front passenger
seat is being used. (
“NISSAN ADVANCED
AIR BAG SYSTEM (front seats)” page 1-36)
High beam indicator light
(blue)
This light comes on when the headlight high
beam is on and goes out when the low beam is
selected.
Malfunction Indicator Light
(MIL)
If the malfunction indicator light comes on
steady or blinks while the engine is running, it
may indicate a potential emission control mal-
function.
2-28
Instruments and controls
, Q I R U P D W L R Q 3 U R Y L G H G E \
Page 106 of 311
Black plate (101,1)
Model "R35-D" EDITED: 2008/ 5/ 20
The malfunction indicator light may also come on
steady if the fuel-filler cap is loose or missing, or
if the vehicle runs out of fuel. Check to make
sure the fuel-filler cap is installed and closed
tightly, and that the vehicle has at least 3 US
gallons (14 liters) of fuel in the fuel tank.
After a few driving trips, the
light should
turn off if no other potential emission control
system malfunction exists.
If this indicator light remains on for 20 seconds
and then blinks for 10 seconds when the engine
is not running, it indicates that the vehicle is not
ready for an emission control system inspection/
maintenance test. (
“READINESS FOR
INSPECTION/MAINTENANCE (I/M) TEST (US
only)” page 9-16)
Operation:The malfunction indicator light will come on in
one of two ways:
. Malfunction indicator light on steady — An
emission control system malfunction has
been detected. Check the fuel-filler cap. If
the fuel-filler cap is loose or missing, tighten
or install the cap and continue to drive the
vehicle. The
light should turn off after a
few driving trips. If the
light does not
turn off after a few driving trips, have the
vehicle inspected by a GT-R certified
NISSAN dealer. You do not need to have
your vehicle towed to the dealer. .
Malfunction indicator light blinking — An
engine misfire has been detected which may
damage the emission control system.
To reduce or avoid emission control system
damage:
a) Do not drive at speeds above 45 MPH (72 km/h) .
b) Avoid hard acceleration or deceleration.
c) Avoid steep uphill grades.
d) If possible, reduce the amount of cargo being hauled or towed.
The malfunction indicator light may stop
blinking and remain on.
Have the vehicle inspected by a GT-R
certified NISSAN dealer. You do not need
to have your vehicle towed to the dealer.
NOTICE
Continued vehicle operation without
having the emission control system
checked and repaired as necessary
could lead to poor driveability, reduced
fuel economy, and possible damage to
the emission control system.
Slip indicator light
This indicator will blink when the VDC system is
operating, thus alerting the driver to the fact that
the road surface is slippery and the vehicle is
nearing its traction limits.
Turn signal/hazard indicator
lights
The light flashes when the turn signal switch
lever or hazard switch is turned on.
Vehicle Dynamic Control
(VDC) off indicator light
The light comes on when the Vehicle Dynamic
Control (VDC) set up switch is pushed to OFF
for more than 1 second. (
“VDC, TRANS-
MISSION AND SUSPENSION SETUP
SWITCHES” page 5-21)
This indicates that the VDC system is not
operating. When the VDC off indicator light
and slip indicator light come on with the VDC
system turned on, this light alerts the driver to
the fact that the fail-safe mode is operating, for
example the VDC system or the hill start assist
system may not be functioning properly. Have
the system checked by a GT-R certified NISSAN
dealer. If a malfunction occurs in the system, the
VDC system function will be canceled but the
vehicle is still driveable. (“VEHICLE DY-
NAMIC CONTROL (VDC) SYSTEM” page 5-
40)
Instruments and controls
2-29
, Q I R U P D W L R Q 3 U R Y L G H G E \
Page 107 of 311
Black plate (102,1)
Model "R35-D" EDITED: 2008/ 5/ 20
AUDIBLE REMINDERS
Key reminder chimeA chime will sound if the driver side door is
opened while the ignition switch is pushed to
the ACC position or pushed to the OFF or
LOCK position with the Intelligent Key left in the
Intelligent Key port. Make sure the ignition
switch is pushed to the OFF position, and take
the Intelligent Key with you when leaving the
vehicle.Light reminder chimeA chime will sound when the driver side door is
opened with the light switch in the
or
position and the ignition switch in the ACC, OFF
or LOCK position.
Turn the light switch off when you leave the
vehicle.Parking brake reminder chimeA chime will sound if the vehicle speed is above
4 MPH (7 km/h) with the parking brake applied.
Stop the vehicle and release the parking brake.Brake pad wear warningThe disc brake pads have audible wear warn-
ings. When a brake pad requires replacement, it
will make a high pitched scraping sound when
the vehicle is in motion. This scraping sound will
first occur only when the brake pedal is
depressed. After the wear of the brake pad is
increased, the sound will be heard all the timeeven if the brake pedal is not depressed. Have
the brakes checked as soon as possible if the
warning sound is heard.2-30
Instruments and controls
, Q I R U P D W L R Q 3 U R Y L G H G E \
Page 108 of 311
Black plate (103,1)
Model "R35-D" EDITED: 2008/ 5/ 20
WARNING
When the warning light illuminates or
blinksandawarningisdisplayed,
promptly take the appropriate action.
Ignoring the warning may result inmalfunctions and sudden accidents.
When the items mentioned below are detected
the master warning light
*1
illuminates and the
warning is displayed on the vehicle information
display
*2. A chime also sounds. If there are multiple warnings, the warning lights
remain lit or continue to blink and the warnings
displayed in the vehicle information display are
switched at regular intervals. The warnings
displayed in the vehicle information display can
be switched voluntarily by pushing the ENTER
switch
.Instruments and controls
2-31
WARNING DISPLAY
, Q I R U P D W L R Q 3 U R Y L G H G E \
Page 109 of 311
Black plate (104,1)
Model "R35-D" EDITED: 2008/ 5/ 20
ENGINE OIL LOW PRESSURE
WARNINGThis will appear if the engine oil pressure is low.
(
“Engine oil pressure warning light” page
2-25)
ENGINE SYSTEM WARNINGThis will appear if a potential emission control
malfunction is detected, the fuel-filler cap is
loose or missing, or the vehicle runs out of fuel.
(
“Malfunction Indicator Light (MIL)” page
2-28)
SHIFT LEVER POSITION WARNINGThis will appear if the system cannot detect the
shift lever position.
Make sure the shift lever is placed in a position
properly. (
“DRIVING THE VEHICLE” page
5-13)
2-32
Instruments and controls
, Q I R U P D W L R Q 3 U R Y L G H G E \
Page 110 of 311
Black plate (105,1)
Model "R35-D" EDITED: 2008/ 5/ 20
TRANSMISSION SYSTEM WARN-
INGThis will appear if a transmission system
malfunction occurs. (
“Transmission system
malfunction” page 2-28)
TRANSMISSION OIL HIGH TEM-
PERATURE WARNINGThis will appear if the transmission oil tempera-
ture becomes unusually high.
(
“Transmission oil temperature high” page
2-28)
TRANSMISSION CLUTCH HIGH
TEMPERATURE WARNINGThis will appear if the transmission clutch
temperature becomes unusually high.
(
“Transmission clutch temperature high”
page 2-28)
Instruments and controls
2-33
, Q I R U P D W L R Q 3 U R Y L G H G E \
