Page 237 of 304
> ( G L W 0 R G H O 5 1 @
5. When the vehicle is parked in the spacecompletely, move the shift lever to the
ªPº(Park) position and apply the parking
brake
OPERATING TIPS
CAUTION
.Do not use alcohol, benzine or
thinner to clean the camera. This
will cause discoloration. To clean
the camera, wipe with a cloth dam-
pened with diluted mild cleaning
agent and then wipe with a dry
cloth.
. Do not damage the camera as the
monitor screen may be adversely
affected.
. Do not use wax on the camera
window. Wipe off any wax with a
clean cloth dampened with mild
detergent diluted with water.
. When the shift lever is shifted to the ªRº
(Reverse) position, the monitor screen auto-
matically changes to the RearView Monitor
mode. However, the radio can be heard. .
It may take some time until the RearView
Monitor is displayed after the shift lever has
been shifted to ªRº from another position or
to another position from ªRº. Objects may be
distorted momentarily until the RearView
Monitor screen is displayed completely.
. When the temperature is extremely high or
low, the screen may not clearly display
objects. This is not a malfunction.
. When strong light directly enters the cam-
era, objects may not be displayed clearly.
This is not a malfunction.
. The screen may flicker under fluorescent
light. This is not a malfunction.
. The colors of objects on the RearView
Monitor may differ somewhat from those of
the actual object.
. Objects on the monitor may not be clear in a
dark place or at night. This is not a
malfunction.
. If dirt, rain or snow attaches to the camera,
the RearView Monitor may not clearly dis-
play objects. Clean the camera.
Display of predictive course lines can be set to
ON or OFF.
If the rearview monitor is not in operation, set
according to the following procedure.
1. Push
2. Select [Others] and press
3. Select [Camera] and press
4. Select [Predictive Course Lines] and press
the item is set.
Monitor system9-7
CAMERA SETTINGS
& R Q G L W L R Q / D Q J X D J H 1 $ 0 B ( Q J O L V K
Page 240 of 304
> ( G L W 0 R G H O 5 1 @
10-2Multi function meter
The multi function meter allows you to see the
vehicle status and the results of driving opera-
tion.
SAFETY NOTES
For your driving safety please read the following
warnings.
WARNING
.Use the information from the multi
function meter strictly as a refer-
ence to make your driving more
comfortable. The readings are not
meant to prevent accidents caused
by reckless driving or poor driving
conditions (due to weather, road
condition, etc.) . Always obey all
traffic regulations and posted speed
limits.
. Operating the multi function meter
while driving can lead to a crash
resulting in serious injuries or
death. Always park the vehicle in a
safe place before operating the dis-
play screen.
. Look at the display screen only
briefly while driving. Keep your eyes
on the road. Inattentive driving may
lead to a crash resulting in serious injuries or death.
INFO:
. The information displayed on the multi
function meter is for reference purposes
only. Due to road conditions and tempera-
ture, the information displayed by the system
may vary from actual driving conditions.
. You can select the units that the multi
function meter displays.
ªLanguage and unit settingsº
(page 7-8)
MULTI FUNCTION METER LIST
The following information can be displayed on
the multi function meter.
Performance and vehicle informa-
tion
The driver can select up to six different meters to
be displayed.
WARNING
Use the information from the multi
function meter strictly as a reference
to make your driving more comfortable.
The readings are not meant to prevent
accidents caused by reckless driving or
poor driving conditions (due to weather,
road condition, etc.) . Always obey all
traffic regulations and posted speed
limits.
ABOUT MULTI FUNCTION METER
& R Q G L W L R Q / D Q J X D J H 1 $ 0 B ( Q J O L V K
Page 241 of 304
> ( G L W 0 R G H O 5 1 @
Trip calculator.
Stopwatch:
Displays the recorded driving time, vehicle
speed and elapsed time and saves the history
for each of these functions.
Push
tion meter screen.
Information displayed on the multi function meter
display will differ depending on your intended
use of the display. You can choose to select the
meters that best suit your needs.
HOW TO VIEW THE FUNCTION ME-
TER SCREEN
The vehicle's display is divided into different
panels that display vehicle information.
Multi function meter10-3
BASIC OPERATION
& R Q G L W L R Q / D Q J X D J H 1 $ 0 B ( Q J O L V K
Page 242 of 304
> ( G L W 0 R G H O 5 1 @
10-4Multi function meter
Screen information
&1Large panel:
Displays the vehicle information meter display,
digital display and gauge display. This feature is
only available in the 3-panel display mode. Touch
the panel to select another meter to display.
ªPerformance and vehicle information pa-
nelº (page 10-9)
&2Small panel:
This display is simpler than the large display.
Touch the panel to select another meter to
display.
ªPerformance and vehicle information pa-
nelº (page 10-9)
&3Screen number:
This number or letter identifies the screen that
you are currently viewing. Touch the screen
number to display the corresponding screen.
ªSelect using touch panelº (page 10-7)
&4Screen switching:
Scrolls through the screens. Touch
to return
to the previous screen. Touchto proceed to
the next screen.
ªSelect using touch panelº (page 10-7)
&5Screen title:
Displays the title of the screen currently dis-
played.
& R Q G L W L R Q / D Q J X D J H 1 $ 0 B ( Q J O L V K
Page 243 of 304
> ( G L W 0 R G H O 5 1 @

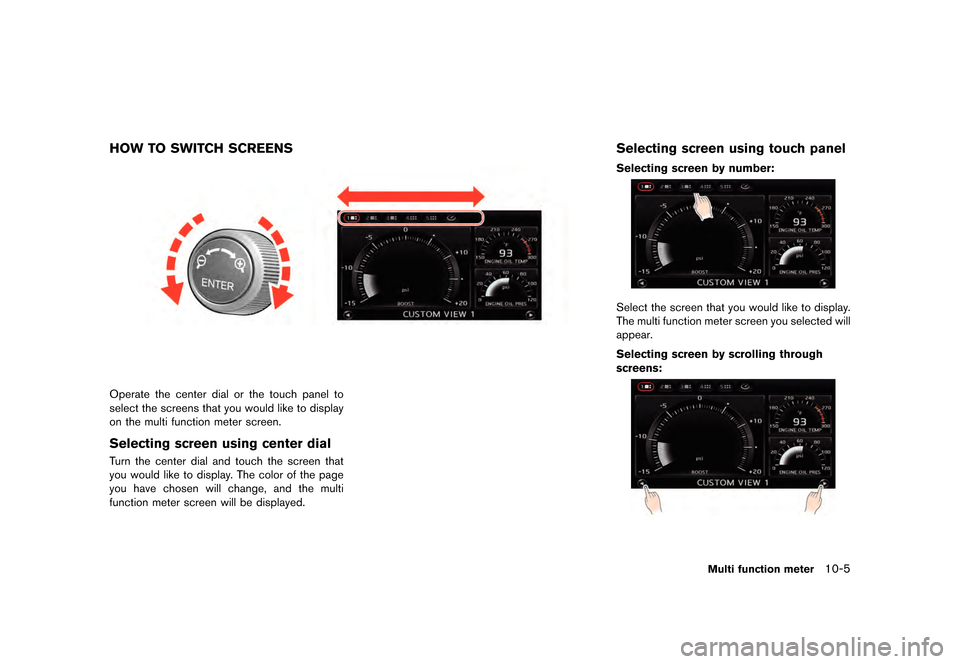

HOW TO SWITCH SCREENS
Operate the center dial or the touch panel to
select the screens that you would like to display
on the multi function meter screen.
Selecting screen using center dial
Turn the center dial and touch the screen that
you would like to display. The color of the page
you have chosen will change, and the multi
function meter screen will be displayed.
Selecting screen using touch panel
Selecting screen by number:
Select the screen that you would like to display.
The multi function meter screen you selected will
appear.
Selecting screen by scrolling through
screens:
Multi function meter10-5
& R Q G L W L R Q / D Q J X D J H 1 $ 0 B ( Q J O L V K
Page 244 of 304
> ( G L W 0 R G H O 5 1 @
10-6Multi function meter
Touchor. With each touch, the screens
will scroll through in order.
: The previous screen will be displayed.
: The next screen will be displayed.
This screen allows you to display the perfor-
mance and vehicle information, as needed, in
order for you to use your vehicle under optimum
conditions. You can display several vehicle
information panels at once. Each panel displays
digital gauges in the screen area.
SELECTING PANEL
Select the panel you would like to display and
then place it where you would like it to be
displayed. You can configure the screen to
display between 1 and 4 custom view panels.
Select using center dial
1. Display the panel you would to change and push
change.
2. Select the panel you would like to change and push
screen will be displayed.
3. Select the item you would like to display and push
change.
CUSTOM VIEW SCREEN
& R Q G L W L R Q / D Q J X D J H 1 $ 0 B ( Q J O L V K
Page 245 of 304
> ( G L W 0 R G H O 5 1 @
Select using touch panel
1. Touch the screen number you would like tochange.
2. Touch the panel you would like to change.The meter selection screen will be dis-
played.
3. Touch the item you would like to display. Thedisplayed panel will change.
Panel list
There is a difference between the items that you
can select as large or small panels.
Item Large panel Small panel
Engine Coolant Temperature XX
Engine Oil Temperature XX
Engine Oil Pressure XX
Transmission Oil Temperature XX
Transmission Oil Pressure XX
Boost XX
Speed X
Fuel/Range XX
Fuel Flow XX
Recent Fuel Economy XX
Torque split X
Accel pedal X
Multi function meter10-7
& R Q G L W L R Q / D Q J X D J H 1 $ 0 B ( Q J O L V K
Page 246 of 304
> ( G L W 0 R G H O 5 1 @
10-8Multi function meter
ItemLarge panel Small panel
Brake pedal X
Steering X
Accelerating G-Force X
Braking G-Force X
Cornering G-Force XX
Accel/Braking G-Force XX
Total G-Force XX
Clock X
Reset the CUSTOM VIEW #(1-4) to Default XX
INFO:
. Each panel selected will be saved.
. Panels will remain saved in the system even
after the engine is turned off.
. Two of the same panels cannot be displayed
at the same time.
. Two of the same panels of different sizes
cannot be displayed at the same time.
. Panels that have not been assigned a
display item remain empty.
Initializing display
The modified display will return to the screen
that was first configured.
1. Display the screen you would like to initialize
and push
2. Select the panel and push
3. Highlight [Reset the CUSTOM VIEW 1 to
Default] and push
INFO:
When operating the touch panel to initialize the
display, the same procedure used to select a
meter is performed.
ªSelect using touch panelº (page 10-7)
& R Q G L W L R Q / D Q J X D J H 1 $ 0 B ( Q J O L V K
Page 247 of 304
> ( G L W 0 R G H O 5 1 @
PERFORMANCE AND VEHICLE IN-
FORMATION PANEL
The appearance of each panel varies. The way
that large panels and small panels are displayed
also differs, even when the same mechanical
information is displayed.
Engine coolant temperature
Displays the temperature of the engine coolant.
INFO:
. When this meter displays in red, reduce the
operating speed of the engine (RPMs) and
drive at a reduced speed.
. Driving while the engine coolant tempera-
ture is high may cause engine damage.
. When screens other than the FUNCTION
screen are displayed, the screen will not
change, even if the meter values register red
zone readings.
Engine oil temperature
Displays the engine oil temperature reading.
INFO:
. When this meter displays in red, reduce the
operating speed of the engine (RPMs) and
drive at a reduced speed.
. Driving while the engine oil temperature is
high may cause engine damage.
. When screens other than the FUNCTION
screen are displayed, the screen will not
change, even if the meter values register red
zone readings.
Engine oil pressure
Displays the engine oil pressure. The reading on
this dial will change based on the engine speed
(RPM) and oil temperature.
Multi function meter10-9
& R Q G L W L R Q / D Q J X D J H 1 $ 0 B ( Q J O L V K
Page 248 of 304
> ( G L W 0 R G H O 5 1 @
10-10Multi function meter
Transmission oil temperature
Displays the transmission oil temperature.
INFO:
. When the transmission oil temperature
increases to over 2848F (1408C) the color
of the meter display turns to red. However,
the vehicle can be driven until the tempera-
ture reaches 2958F (1468C) . When the
color of the meter display turns red, because
the oil is deteriorated, replace the transmis-
sion and differential oil after driving.
. After first starting the engine, it may take a
short period of time for the oil temperature to
stabilize. This is not a malfunction.
. When screens other than the FUNCTION
screen are displayed, the screen will not
change, even if the meter values register red
zone readings.
Transmission oil pressure
Displays the transmission oil pressure.
INFO:
. The oil pressure gauge may momentarily
have a high reading, but this is a result of oil
pressure suppression and does not indicate
a malfunction.
& R Q G L W L R Q / D Q J X D J H 1 $ 0 B ( Q J O L V K
