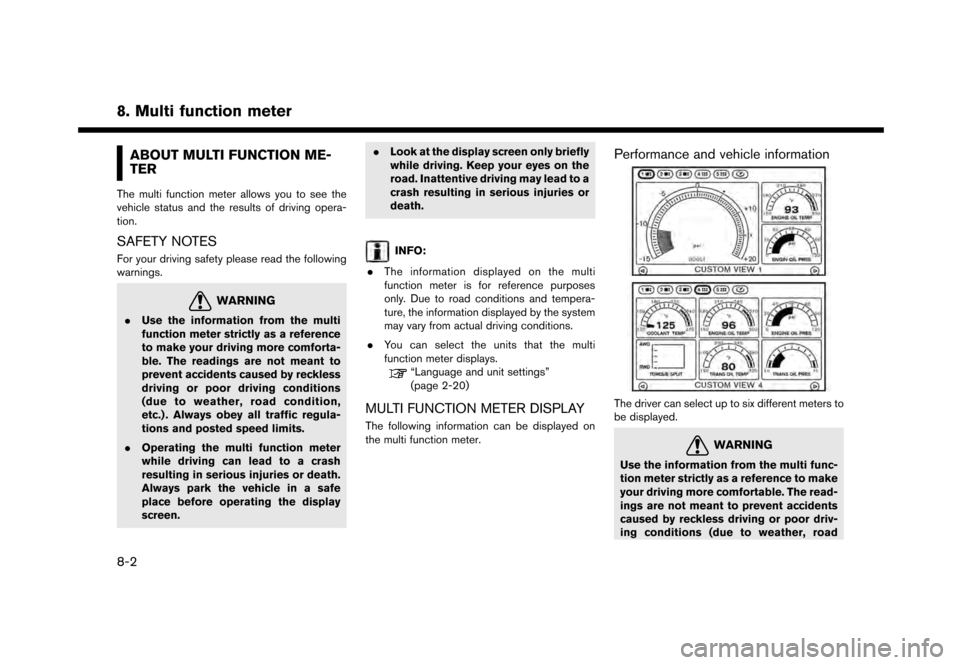

8. Multi function meter
ABOUT MULTI FUNCTION ME-
TER
The multi function meter allows you to see the
vehicle status and the results of driving opera-
tion.
SAFETY NOTES
For your driving safety please read the following
warnings.
WARNING
.Use the information from the multi
function meter strictly as a reference
to make your driving more comforta-
ble. The readings are not meant to
prevent accidents caused by reckless
driving or poor driving conditions
(due to weather, road condition,
etc.) . Always obey all traffic regula-
tions and posted speed limits.
. Operating the multi function meter
while driving can lead to a crash
resulting in serious injuries or death.
Always park the vehicle in a safe
place before operating the display
screen. .
Look at the display screen only briefly
while driving. Keep your eyes on the
road. Inattentive driving may lead to a
crash resulting in serious injuries or
death.
INFO:
. The information displayed on the multi
function meter is for reference purposes
only. Due to road conditions and tempera-
ture, the information displayed by the system
may vary from actual driving conditions.
. You can select the units that the multi
function meter displays.
“Language and unit settings”
(page 2-20)
MULTI FUNCTION METER DISPLAY
The following information can be displayed on
the multi function meter.
Performance and vehicle information
The driver can select up to six different meters to
be displayed.
WARNING
Use the information from the multi func-
tion meter strictly as a reference to make
your driving more comfortable. The read-
ings are not meant to prevent accidents
caused by reckless driving or poor driv-
ing conditions (due to weather, road
8-2

condition, etc.) . Always obey all traffic
regulations and posted speed limits.

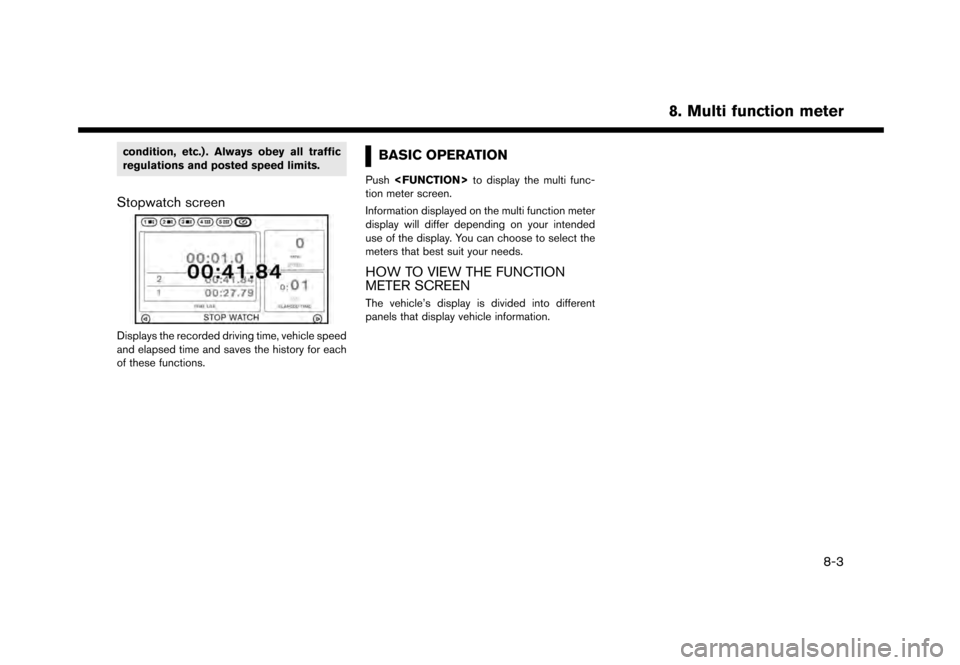

Stopwatch screen
Displays the recorded driving time, vehicle speed
and elapsed time and saves the history for each
of these functions.
BASIC OPERATION
Push to display the multi func-
tion meter screen.
Information displayed on the multi function meter
display will differ depending on your intended
use of the display. You can choose to select the
meters that best suit your needs.
HOW TO VIEW THE FUNCTION
METER SCREEN
The vehicle’s display is divided into different
panels that display vehicle information.
8. Multi function meter
8-3

8. Multi function meter
Screen information
*1Large panel:
Displays the vehicle information meter dis-
play, digital display and gauge display. This
feature is only available in the 3-panel
display mode. Touch the panel to select
another meter to display.
“Performance and vehicle information
panels” (page 8-7)
*2Small panel:
This display is simpler than the large display.
Touch the panel to select another meter todisplay.
“Performance and vehicle information
panels” (page 8-7)
*3Screen number/icon:
This number or letter identifies the screen
that you are currently viewing. Touch the
screen number/icon to display the corre-
sponding screen.
“Panel selection operation” (page 8-5)
*4Screen switching:
Scrolls through the screens. Touch [
]to
return to the previous screen. Touch []to
proceed to the next screen.
“Panel selection operation” (page 8-5)
*5Screen title:
Displays the title of the screen currently
displayed.
HOW TO SWITCH SCREENS
Five custom view screens and one stopwatch
screen are available.
Display a preferred view by selecting the
corresponding number/icon on the top of the
multi function meter screen.
By touching numbers/icons:
Touch the number/icon that corresponds to the
screen you wish to display. The selected screen
will appear.
8-4

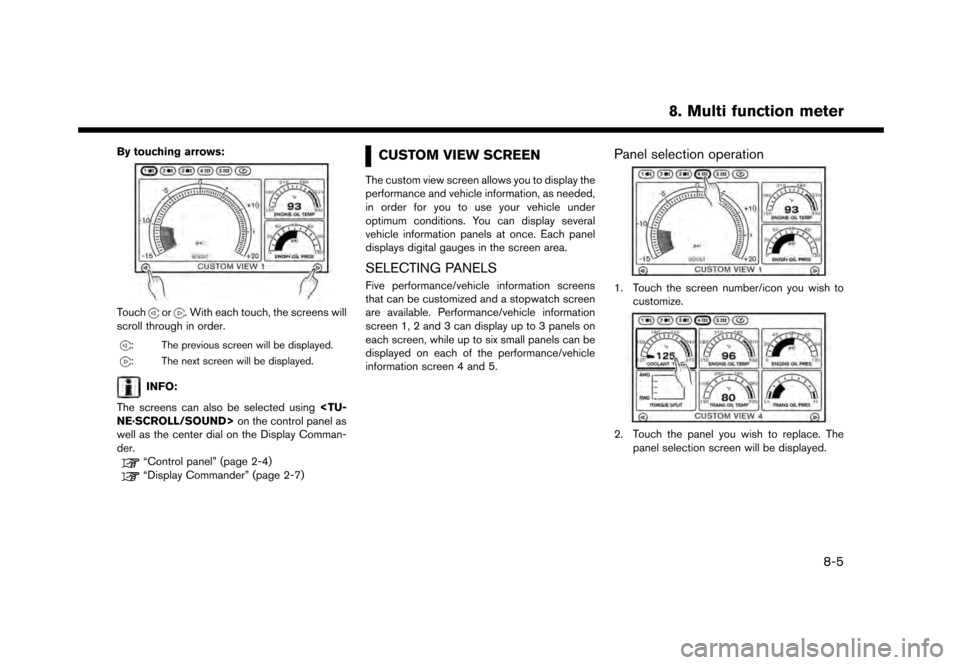

By touching arrows:
Touchor. With each touch, the screens will
scroll through in order.
: The previous screen will be displayed.
: The next screen will be displayed.
INFO:
The screens can also be selected using NE·SCROLL/SOUND> on the control panel as
well as the center dial on the Display Comman-
der.
“Control panel” (page 2-4)“Display Commander” (page 2-7)
CUSTOM VIEW SCREEN
The custom view screen allows you to display the
performance and vehicle information, as needed,
in order for you to use your vehicle under
optimum conditions. You can display several
vehicle information panels at once. Each panel
displays digital gauges in the screen area.
SELECTING PANELS
Five performance/vehicle information screens
that can be customized and a stopwatch screen
are available. Performance/vehicle information
screen 1, 2 and 3 can display up to 3 panels on
each screen, while up to six small panels can be
displayed on each of the performance/vehicle
information screen 4 and 5.
Panel selection operation
1. Touch the screen number/icon you wish to customize.
2. Touch the panel you wish to replace. The
panel selection screen will be displayed.
8. Multi function meter
8-5

8. Multi function meter
3. Touch the preferred item. The panel will bereplaced to show the selected item.
Panel list
Available items for large panels and small
panels:
Item Larg-
e pa- nel Small
panel
Engine Coolant Temperature X X
Engine Oil Temperature X X
Engine Oil Pressure X X
Transmission Oil Temperature X X
Transmission Oil Pressure X X
Boost X X
Speed X
Fuel/Range X X
Fuel Flow X X
Recent Fuel Economy X X
Torque Split X
Accel Pedal X
Brake Pedal X
Steering X
Accelerating G-Force X
Braking G-Force X
Cornering G-Force X X
Accel/Braking G-Force X XItem
Larg-
e pa- nel Small
panel
Total G-Force X X
Clock X
Reset the CUSTOM VIEW #(1-5)
to Default XX
INFO:
. Each panel selected will be saved.
. Panels will remain saved in the system even
after the engine is turned off.
. Two of the same panels cannot be displayed
at the same time.
. Two of the same panels of different sizes
cannot be displayed at the same time.
. Panels that have not been assigned a display
item remain empty.
Initializing display
The customized performance/vehicle information
screens can be initialized to return to the default
view.
8-6

1. Touch the screen number/icon you wish toinitialize.
2. Touch one of the panels on the screen.
3. Touch [Reset the CUSTOM VIEW 1 toDefault], for example, to initialize the custom
view screen 1 to the default setting.
PERFORMANCE AND VEHICLE IN-
FORMATION PANELS
The appearance of each panel varies. The way
that large panels and small panels are displayed
also differs, even when the same mechanical
information is displayed.
Engine coolant temperature
Displays the temperature of the engine coolant.
NOTICE
Driving while the engine coolant tem-
perature is high may cause engine da-
mage.
INFO:
. When this meter displays in red, reduce the
operating speed of the engine (RPMs) and
drive at a reduced speed.
. When screens other than the multi function
meter screen are displayed, warnings will not
be provided, even if the meter values register
red zone readings.
Engine oil temperature
Displays the engine oil temperature reading.
8. Multi function meter
8-7

8. Multi function meter
NOTICE
Driving while the engine oil temperature
is high may cause engine damage.
INFO:
. When this meter displays in red, reduce the
operating speed of the engine (RPMs) and
drive at a reduced speed.
. When screens other than the multi function
meter screen are displayed, warnings will not
be provided, even if the meter values register
red zone readings.
Engine oil pressure
Displays the engine oil pressure. The reading on
this dial will change based on the engine speed
(RPM) and oil temperature.
Transmission oil temperature
Displays the transmission oil temperature.
INFO:
. When the transmission oil temperature
increases to over 2848F (1408C) the color
of the meter display turns to red. However,
the vehicle can be driven until the tempera-
ture reaches 2958F (1468C). When the color
of the meter display turns red, the transmis-
sion oil and the differential oil should be
changed after driving, because the transmis-
sion oil temperature exceeding 2848 F
(1408C) indicates the oil deterioration.
8-8

.After first starting the engine, it may take a
while for the oil temperature to stabilize. This
is not a malfunction.
. When screens other than the multi function
meter screen are displayed, warnings will not
be provided, even if the meter values register
red zone readings.
Transmission oil pressure
Displays the transmission oil pressure.
INFO:
. The oil pressure gauge may momentarily
have a high reading, but this is a result of oil
pressure suppression and does not indicate
a malfunction.
. If the meter reads red frequently, it is
recommended you have your vehicle in-
spected at a GT-R certified NISSAN dealer.
. When screens other than the multi function
meter screen are displayed, warnings will not
be provided, even if the meter values register
red zone readings.
Boost
Displays engine charging pressure.
Speed
Displays the vehicle speed. This can only be
displayed in a small panel.
Fuel/Range
Display the amount of fuel remaining and the
estimated cruising range.
8. Multi function meter
8-9

8. Multi function meter
NOTICE
Do not rely on the range reading alone.
Even when traveling a distance for which
there is a sufficient amount of fuel, refuel
when the fuel gauge approaches empty
or when the low fuel warning light
illuminates.
Fuel flow
Displays the amount of fuel injected into the
engine by the fuel injector.
Recent fuel economy
In the large panel, this meter displays the timeline
of fuel consumption for each minute over the past
twenty minutes. In the small panel, this meter
displays fuel consumption readings over the past
twenty seconds.
INFO:
. The small panel will display “-.-”:
— when the vehicle is stopped
— for the first few moments of driving
. The large panel will not display a graph while
the vehicle is stopped.
8-10

Torque split
Displays the amount of forward distributed
torque. This can only be displayed in a small
panel.
INFO:
Driving over a seam in the road may add front
torque, but this is not an anomaly.
Accel pedal
Displays the accelerator pedal position. This can
only be displayed in a small panel.
Brake pedal
Displays the brake pedal position. This can only
be displayed in a small panel.
INFO:
The reading that the brake meter displays when
the pedal is being depressed may vary, depend-
ing on the vehicle speed and road conditions.
The brake meter may not display a reading of
“100%” even when the brake is being fully
depressed. This is not a malfunction.
Steering
Displays the steering angle. This can only be
displayed in a small panel.
Small panel screen
INFO:
The amount of g-force exerted on the vehicle,
and displayed on the meter, will vary depending
on the driving speed.
Accelerating G-Force
Displays the direction of acceleration exerted on
the vehicle. The vertical readout illustrates the
progress of acceleration and the horizontal
readout tracks the acceleration timeline of the
past 20 seconds. This can only be displayed in a
large panel.
8. Multi function meter
8-11
