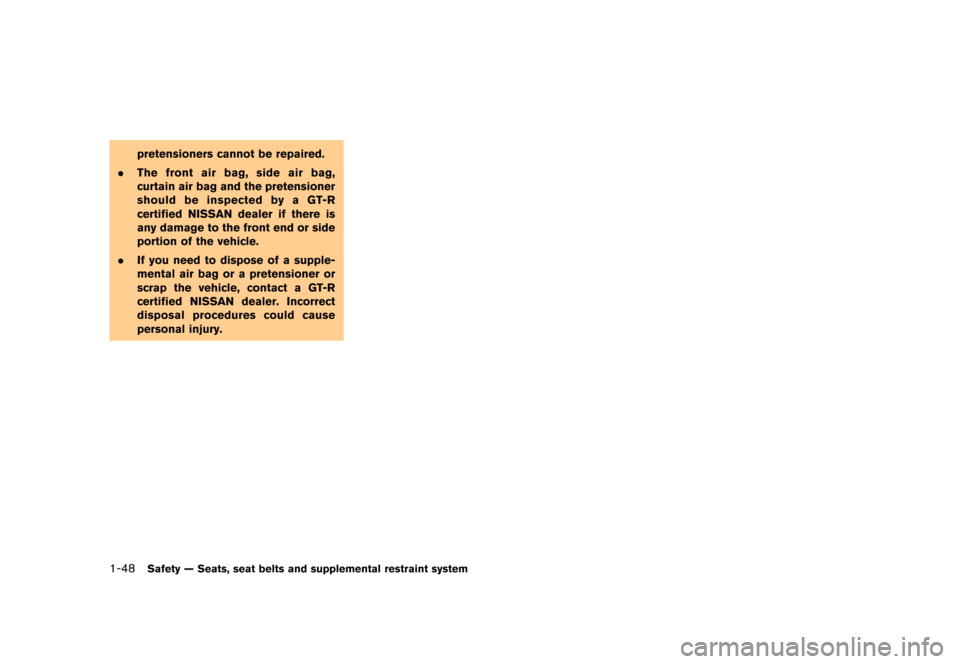

1-48Safety Ð Seats, seat belts and supplemental restraint system
pretensioners cannot be repaired.
. The front air bag, side air bag,
curtain air bag and the pretensioner
should be inspected by a GT-R
certified NISSAN dealer if there is
any damage to the front end or side
portion of the vehicle.
. If you need to dispose of a supple-
mental air bag or a pretensioner or
scrap the vehicle, contact a GT-R
certified NISSAN dealer. Incorrect
disposal procedures could cause
personal injury.
Page 102 of 386
> ( G L W 0 R G H O 0 < 1 , 6 6 $ 1 * 7 5 5 2 0 ( 5 8 @
MEMO
Safety Ð Seats, seat belts and supplemental restraint system1-49
Page 103 of 386
> ( G L W 0 R G H O 0 < 1 , 6 6 $ 1 * 7 5 5 2 0 ( 5 8 @
1-50Safety Ð Seats, seat belts and supplemental restraint system
MEMO
Page 104 of 386
> ( G L W 0 R G H O 0 < 1 , 6 6 $ 1 * 7 5 5 2 0 ( 5 8 @
2 Instruments and controls
Cockpit............................................................................\
............... 2-3
Instrument panel ....
....................................................................... 2-4
Meters and gauges ....
.................................................................. 2-5
Speedometer ....
....................................................................... 2-6
Odometer/twin trip odometer ............................................. 2-6
Tachometer ............................................................................\
.. 2-7
Engine coolant temperature gauge ................................... 2-7
Fuel gauge ............................................................................\
... 2-8
Transmission position indicator .......................................... 2-9
Upshift indicator ..................................................................... 2-9
Instrument brightness control .......................................... 2-11
Vehicle information display ..................................................... 2-12
Engine oil level display ....
................................................... 2-12
Transmission system check display ....
............................ 2-14
Drive computer .......................................................................... 2-15
Current fuel consumption ................................................. 2-15
Vehicle speed ....
................................................................... 2-16
Cruise control ....
................................................................... 2-16
Average fuel consumption and speed ........................... 2-16
Elapsed time and trip odometer ....
.................................. 2-17
Distance to empty ............................................................... 2-17
Outside air temperature .................................................... 2-18
Setting (drive computer) ................................................... 2-19
Warning (drive computer) ....
............................................. 2-23 Warning lights, indicator lights and
audible reminders
.... ................................................................. 2-25
Checking lights ....
.............................................................. 2-25
Warning lights ....
................................................................ 2-25
Indicator lights ................................................................... 2-31
Audible reminders ............................................................. 2-33
Warning display ........................................................................ 2-34
Engine oil low pressure warning ....
............................... 2-35
Engine system warning ................................................... 2-35
Shift lever position warning ............................................ 2-35
Reverse warning ....
............................................................ 2-36
Transmission system warning ........................................ 2-36
Transmission oil high temperature warning ................ 2-36
Transmission clutch high temperature warning ....
..... 2-37
Parking brake release warning ...................................... 2-37
Low brake fluid warning .................................................. 2-37
Anti-lock Braking System (ABS) warning .................. 2-38
Vehicle Dynamic Control (VDC)
system warning ....
.............................................................. 2-38
AWD clutch high temperature warning ....
................... 2-38
Front/rear tire size discrepancy warning ....
................. 2-39
AWD system warning ...................................................... 2-39
Low tire pressure warning .............................................. 2-40
Run-flat tire warning ....
..................................................... 2-40
Page 105 of 386
> ( G L W 0 R G H O 0 < 1 , 6 6 $ 1 * 7 5 5 2 0 ( 5 8 @
Tire Pressure Monitoring System
(TPMS) warning....
............................................................... 2-40
Cruise control system warning ........................................ 2-41
Low fuel warning ................................................................. 2-41
Door/trunk open warning .................................................. 2-42
Headlight system warning ....
............................................. 2-42
Low washer fluid warning ................................................. 2-42
No key warning ....
................................................................ 2-43
Operation displays ....
................................................................ 2-43
Engine start operation indicator ...................................... 2-44
Shift ªPº warning ................................................................. 2-44
ªPUSHº warning .... .............................................................. 2-44
Steering lock release malfunction indicator ................. 2-45
Intelligent Key insertion indicator .................................... 2-45
Intelligent Key removal indicator ....
.................................. 2-45
Intelligent Key battery discharge indicator ....
................ 2-46
Security systems ....................................................................... 2-46
Vehicle security system ..................................................... 2-46
NISSAN Vehicle Immobilizer System ............................. 2-47
Wiper and washer switch ....
................................................... 2-49
Using the wipers ................................................................. 2-49
Using the washer ................................................................ 2-50
Rear window defroster switch ....
........................................... 2-50
Headlight and turn signal switch .......................................... 2-51
Headlight switch ....
.............................................................. 2-51
Turn signal switch ............................................................... 2-54
Horn ....
........................................................................\
.................. 2-54 Heated seats
............................................................................\
. 2-55
Turning on the heaters ....
................................................. 2-55
Turning off the heaters ....
................................................. 2-55
Sonar system off switch ......................................................... 2-56
Exhaust sound control switch (if so equipped) ....
............ 2-56
Power outlets ............................................................................\
2-56
Storage ............................................................................\
........... 2-58
Cup holders ....
.................................................................... 2-58
Sunglasses holder ............................................................ 2-59
Door pocket ....
.................................................................... 2-59
Glove box ....
........................................................................\
2-60
Console box ....................................................................... 2-60
Coat hooks ......................................................................... 2-61
Windows ............................................................................\
........ 2-61
Power windows ................................................................. 2-61
Interior lights ............................................................................\
.. 2-64
Map lights ........................................................................... 2-64
Interior light control switch ............................................. 2-64
Vanity mirror lights ....
................................................................ 2-65
HomeLink
Page 106 of 386
> ( G L W 0 R G H O 0 < 1 , 6 6 $ 1 * 7 5 5 2 0 ( 5 8 @
GUID-29959B49-CCE4-4C25-B217-0AC7FFC4712B
JVC0924X

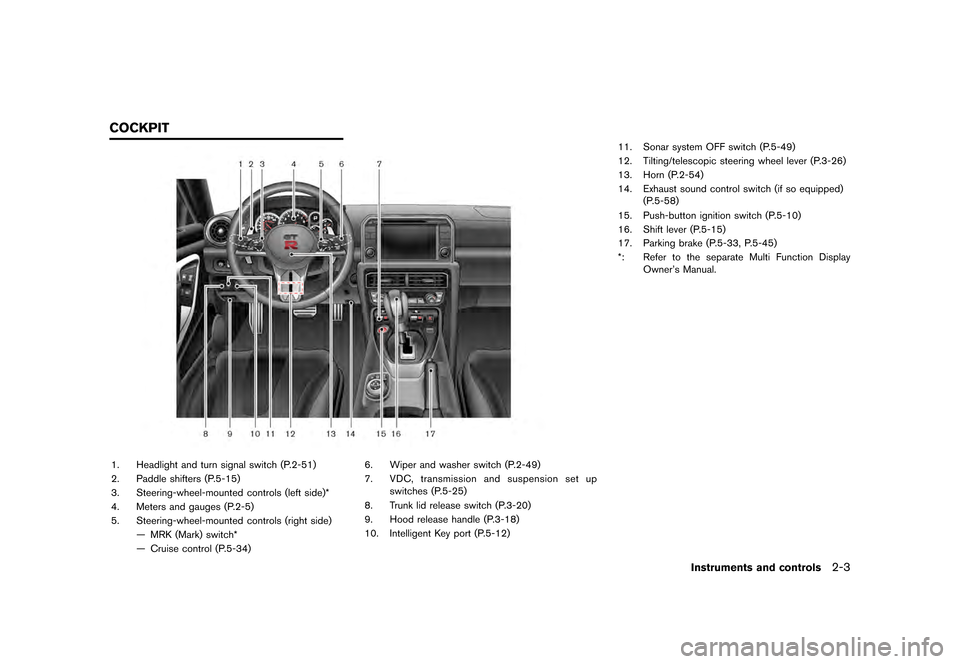

1. Headlight and turn signal switch (P.2-51)
2. Paddle shifters (P.5-15)
3. Steering-wheel-mounted controls (left side)*
4. Meters and gauges (P.2-5)
5. Steering-wheel-mounted controls (right side)Ð MRK (Mark) switch*
Ð Cruise control (P.5-34) 6. Wiper and washer switch (P.2-49)
7.
VDC, transmission and suspension set up
switches (P.5-25)
8. Trunk lid release switch (P.3-20)
9. Hood release handle (P.3-18)
10. Intelligent Key port (P.5-12) 11. Sonar system OFF switch (P.5-49)
12. Tilting/telescopic steering wheel lever (P.3-26)
13. Horn (P.2-54)
14. Exhaust sound control switch (if so equipped)
(P.5-58)
15. Push-button ignition switch (P.5-10)
16. Shift lever (P.5-15)
17. Parking brake (P.5-33, P.5-45)
*: Refer to the separate Multi Function Display Owner's Manual.
Instruments and controls2-3
COCKPIT
Page 107 of 386
> ( G L W 0 R G H O 0 < 1 , 6 6 $ 1 * 7 5 5 2 0 ( 5 8 @

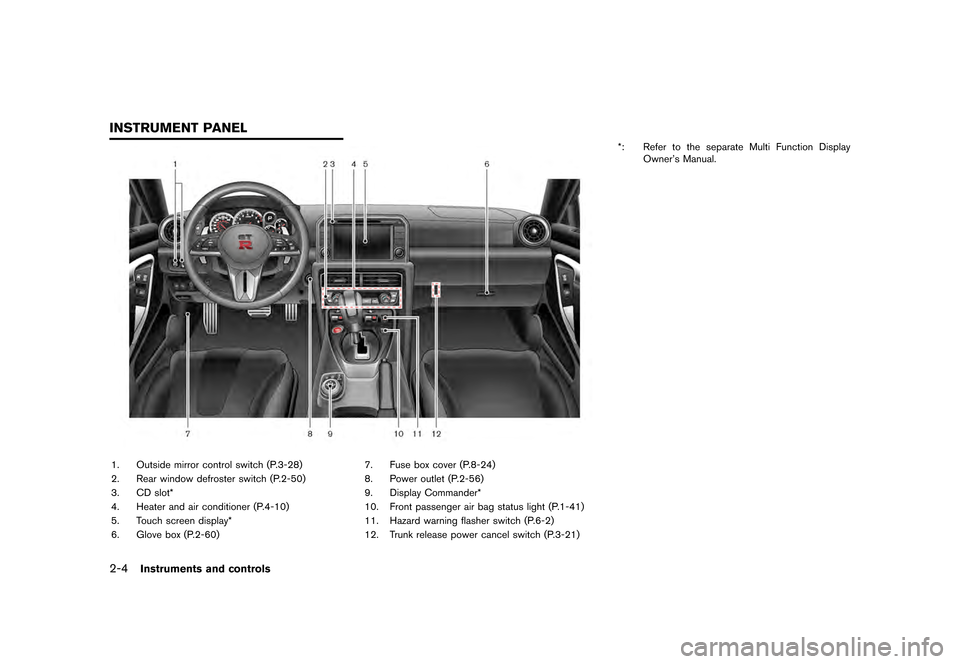

2-4Instruments and controls
GUID-58BCEE9C-BB3E-469E-B94B-C18DC03CDF5C
JVC0925X
1. Outside mirror control switch (P.3-28)
2. Rear window defroster switch (P.2-50)
3. CD slot*
4. Heater and air conditioner (P.4-10)
5. Touch screen display*
6. Glove box (P.2-60)7. Fuse box cover (P.8-24)
8. Power outlet (P.2-56)
9. Display Commander*
10. Front passenger air bag status light (P.1-41)
11. Hazard warning flasher switch (P.6-2)
12. Trunk release power cancel switch (P.3-21)*: Refer to the separate Multi Function Display
Owner's Manual.
INSTRUMENT PANEL
Page 108 of 386
> ( G L W 0 R G H O 0 < 1 , 6 6 $ 1 * 7 5 5 2 0 ( 5 8 @
GUID-4BB57835-EAEE-4DF7-9293-EA074338642D
JVC0090X

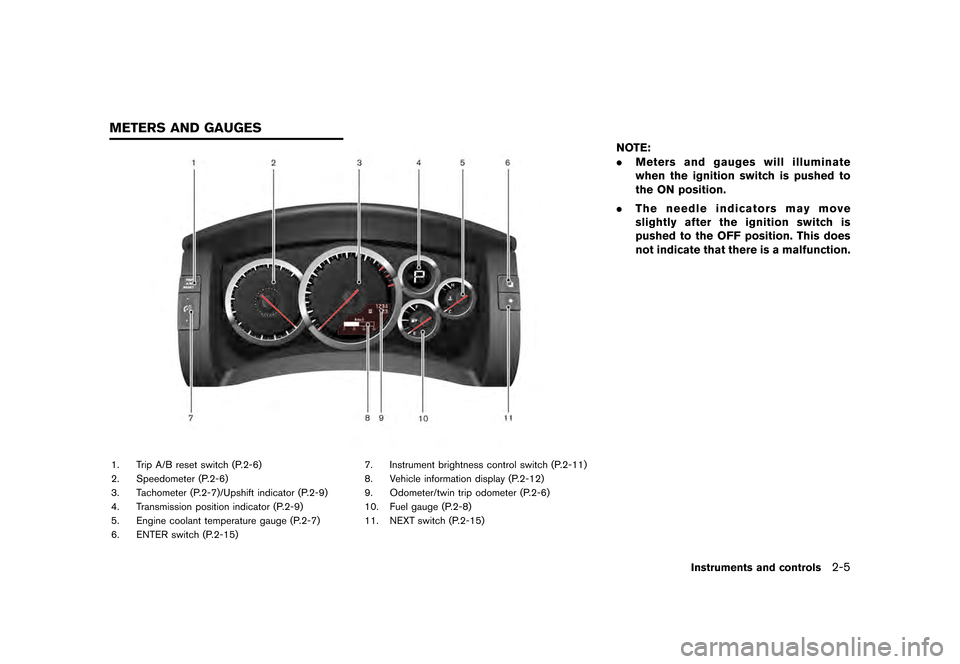

1. Trip A/B reset switch (P.2-6)
2. Speedometer (P.2-6)
3. Tachometer (P.2-7)/Upshift indicator (P.2-9)
4. Transmission position indicator (P.2-9)
5. Engine coolant temperature gauge (P.2-7)
6. ENTER switch (P.2-15)7. Instrument brightness control switch (P.2-11)
8. Vehicle information display (P.2-12)
9. Odometer/twin trip odometer (P.2-6)
10. Fuel gauge (P.2-8)
11. NEXT switch (P.2-15)
NOTE:
.
Meters and gauges will illuminate
when the ignition switch is pushed to
the ON position.
. The needle indicators may move
slightly after the ignition switch is
pushed to the OFF position. This does
not indicate that there is a malfunction.
Instruments and controls2-5
METERS AND GAUGES
Page 109 of 386
> ( G L W 0 R G H O 0 < 1 , 6 6 $ 1 * 7 5 5 2 0 ( 5 8 @
2-6Instruments and controls
GIN0001

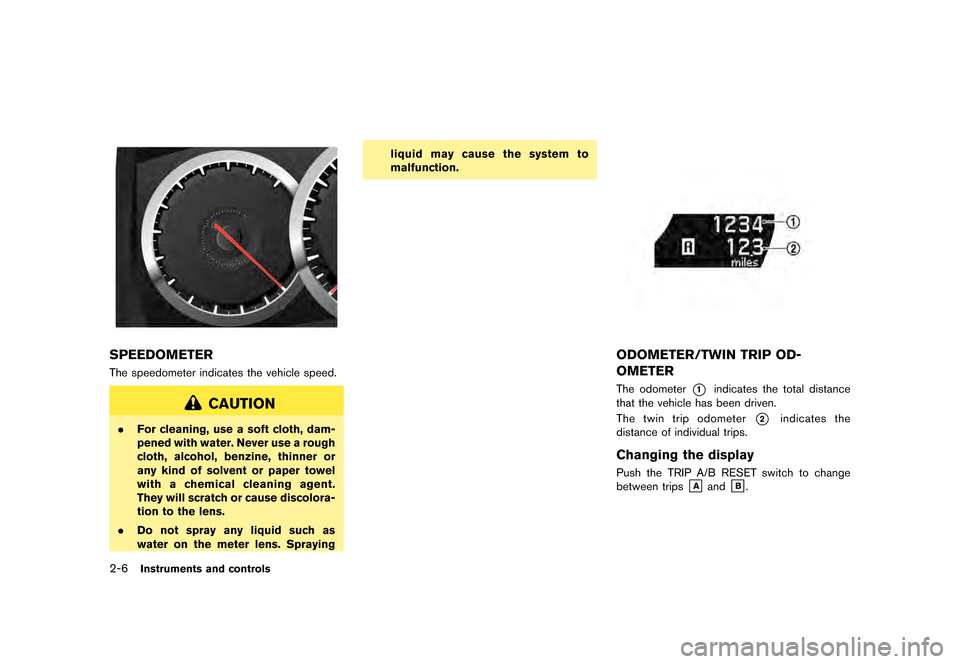

SPEEDOMETERGUID-0A248220-1018-4303-AAD4-06B9476E934CThe speedometer indicates the vehicle speed.
CAUTION
.For cleaning, use a soft cloth, dam-
pened with water. Never use a rough
cloth, alcohol, benzine, thinner or
any kind of solvent or paper towel
with a chemical cleaning agent.
They will scratch or cause discolora-
tion to the lens.
. Do not spray any liquid such as
water on the meter lens. Spraying liquid may cause the system to
malfunction.
JVI0882X
ODOMETER/TWIN TRIP OD-
OMETER
GUID-EBC21839-798F-4A31-83FC-113CEB2D6E38The odometer*1indicates the total distance
that the vehicle has been driven.
The twin trip odometer
*2indicates the
distance of individual trips.
Changing the displayGUID-A030649D-B0A2-4A16-9647-CB9332B60035Push the TRIP A/B RESET switch to change
between trips
&Aand&B.
Page 110 of 386
> ( G L W 0 R G H O 0 < 1 , 6 6 $ 1 * 7 5 5 2 0 ( 5 8 @
Resetting the trip odometerGUID-1DBABA69-ABD3-4F38-AC34-931E3721B142To reset a trip, display the trip that you want to
reset to zero, then push and hold the TRIP A/B
RESET switch for more than 1 second.
NOTE:
When the battery is disconnected, the
memory for trips
&Aand&Bis erased,
and both return to zero.
JVI0110X
TACHOMETERGUID-4CDCC4A7-BE6B-4621-9638-293FA69DA173The tachometer indicates the engine speed in
revolutions per minute (rpm) . Do not rev the
engine into the red zone
*1.
NOTICE
When engine speed approaches the red
zone, shift to a higher gear or reduce
engine speed. Operating the engine in
the red zone may cause serious engine
damage.
GIN0004
ENGINE COOLANT TEMPERATURE
GAUGE
GUID-809B2DD6-CC82-4620-9CE1-F9D1196259B3The gauge indicates the engine coolant tem-
perature.
The engine coolant temperature is within the
normal range when the gauge needle points
within the zone
*1shown in the illustration.
The engine coolant temperature varies with the
outside air temperature and driving conditions.
Instruments and controls2-7
