NISSAN GT-R 2017 R35 Owners Manual
Manufacturer: NISSAN, Model Year: 2017, Model line: GT-R, Model: NISSAN GT-R 2017 R35Pages: 386, PDF Size: 5.14 MB
Page 141 of 386
> ( G L W 0 R G H O 0 < 1 , 6 6 $ 1 * 7 5 5 2 0 ( 5 8 @
2-38Instruments and controls
JVI0059X
ANTI-LOCK BRAKING SYSTEM
(ABS) WARNING
GUID-8CCDA845-FDDC-4648-8DF6-79AFF98E1C97This will appear if the Anti-lock Braking System
(ABS) is not functioning properly. (
ªAnti-
lock Braking System (ABS) warning lightº page
2-26) (
ªBrake warning lightº page 2-26)
JVI0060X
VEHICLE DYNAMIC CONTROL (VDC)
SYSTEM WARNING
GUID-53CD1130-485D-41F1-A5E7-CA1A9528FA15This will appear if the Vehicle Dynamic Control
(VDC) system or the hill start assist system is
not functioning properly. (
ªVehicle Dynamic
Control (VDC) warning lightº page 2-31)
(
ªVehicle Dynamic Control (VDC) off in-
dicator lightº page 2-32)
JVI0148X
AWD CLUTCH HIGH TEMPERATURE
WARNING
GUID-B3D3A241-F717-4CD9-84D5-2622F89245C9This will appear if the temperature of the AWD
clutch becomes unusually high. (
ªAll-
Wheel Drive (AWD) warning lightº page 2-25)
Page 142 of 386
> ( G L W 0 R G H O 0 < 1 , 6 6 $ 1 * 7 5 5 2 0 ( 5 8 @

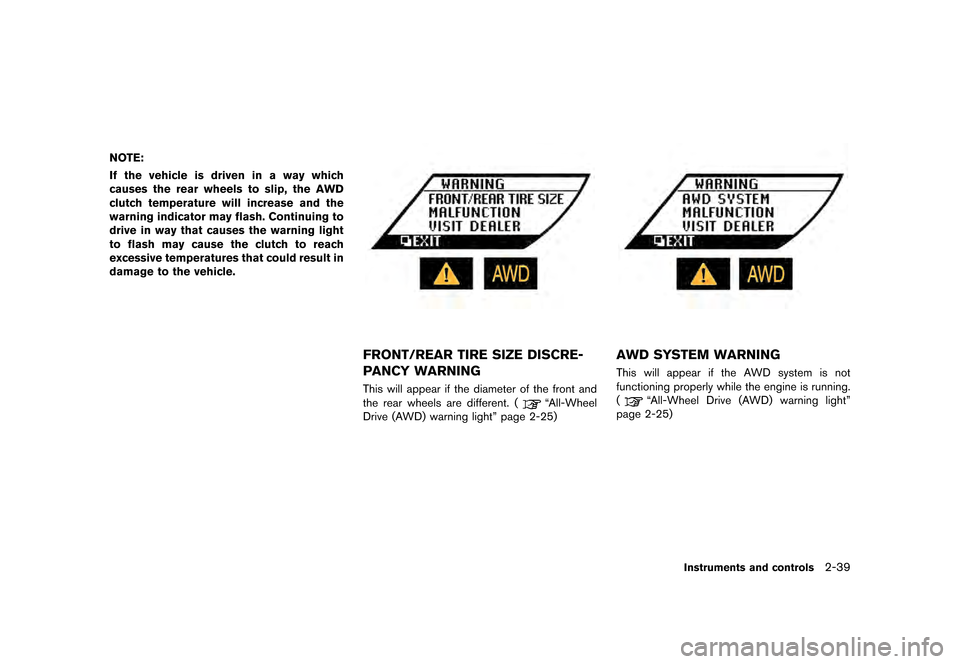

NOTE:
If the vehicle is driven in a way which
causes the rear wheels to slip, the AWD
clutch temperature will increase and the
warning indicator may flash. Continuing to
drive in way that causes the warning light
to flash may cause the clutch to reach
excessive temperatures that could result in
damage to the vehicle.
JVI0149X
FRONT/REAR TIRE SIZE DISCRE-
PANCY WARNING
GUID-E1EDB916-C97E-4B18-868E-F9F62D46BD0CThis will appear if the diameter of the front and
the rear wheels are different. (
ªAll-Wheel
Drive (AWD) warning lightº page 2-25)
JVI0150X
AWD SYSTEM WARNINGGUID-CFC0CEB2-ECA8-4DD2-8D62-F0382A4A36C6This will appear if the AWD system is not
functioning properly while the engine is running.
(
ªAll-Wheel Drive (AWD) warning lightº
page 2-25)
Instruments and controls2-39
Page 143 of 386
> ( G L W 0 R G H O 0 < 1 , 6 6 $ 1 * 7 5 5 2 0 ( 5 8 @
2-40Instruments and controls
JVI0151X

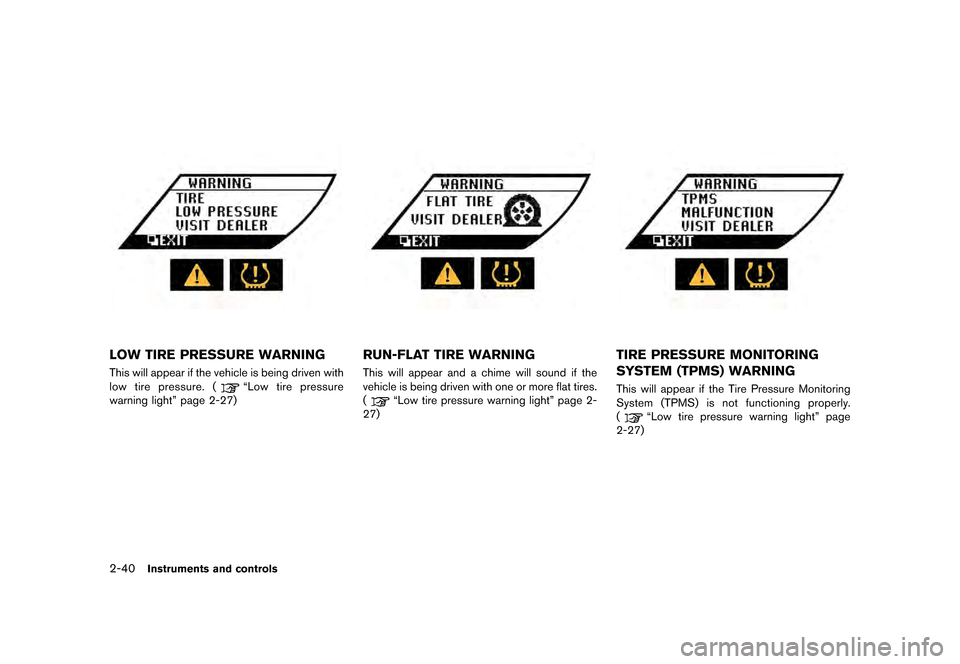

LOW TIRE PRESSURE WARNINGGUID-AF2197A9-90C7-4786-AAFF-39FAC9A6B9D8This will appear if the vehicle is being driven with
low tire pressure. (
ªLow tire pressure
warning lightº page 2-27)
JVI0152X
RUN-FLAT TIRE WARNINGGUID-F2142DB4-73FE-401B-9ACD-DF40114B69C0This will appear and a chime will sound if the
vehicle is being driven with one or more flat tires.
(
ªLow tire pressure warning lightº page 2-
27)
JVI0067X
TIRE PRESSURE MONITORING
SYSTEM (TPMS) WARNING
GUID-E2F8F675-E8C0-47CC-8D2C-773695CE6650This will appear if the Tire Pressure Monitoring
System (TPMS) is not functioning properly.
(
ªLow tire pressure warning lightº page
2-27)
Page 144 of 386
> ( G L W 0 R G H O 0 < 1 , 6 6 $ 1 * 7 5 5 2 0 ( 5 8 @
JVI0068X

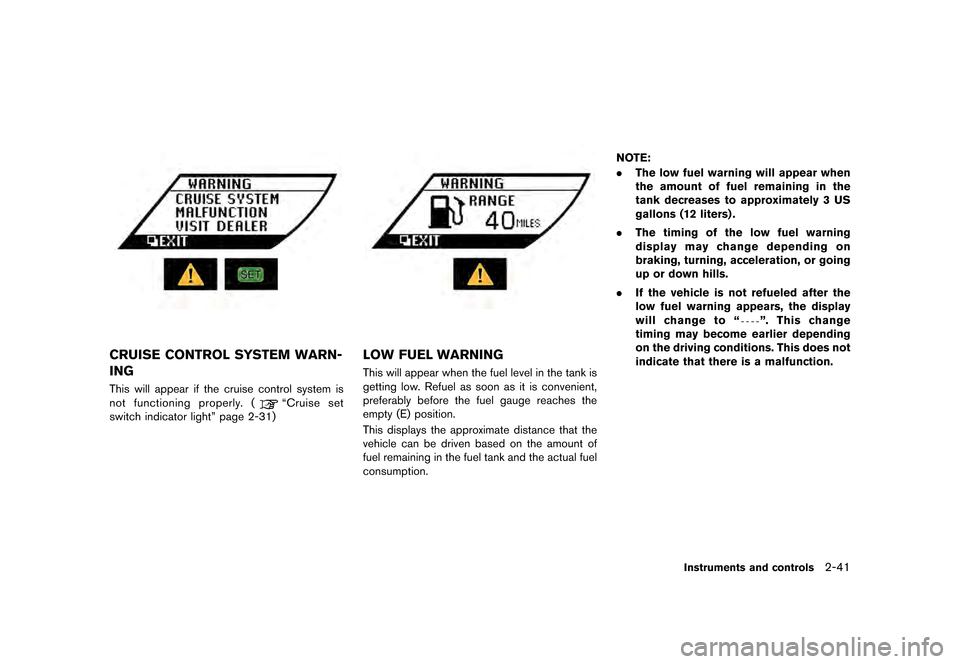

CRUISE CONTROL SYSTEM WARN-
ING
GUID-78AA912E-E0DB-4D77-921C-48A452E497F3This will appear if the cruise control system is
not functioning properly. (
ªCruise set
switch indicator lightº page 2-31)
JVI0153X
LOW FUEL WARNINGGUID-34CEC7A2-F981-48F6-8EE4-49AEA78A8643This will appear when the fuel level in the tank is
getting low. Refuel as soon as it is convenient,
preferably before the fuel gauge reaches the
empty (E) position.
This displays the approximate distance that the
vehicle can be driven based on the amount of
fuel remaining in the fuel tank and the actual fuel
consumption. NOTE:
.
The low fuel warning will appear when
the amount of fuel remaining in the
tank decreases to approximately 3 US
gallons (12 liters) .
. The timing of the low fuel warning
display may change depending on
braking, turning, acceleration, or going
up or down hills.
. If the vehicle is not refueled after the
low fuel warning appears, the display
will change to ª
º. This change
timing may become earlier depending
on the driving conditions. This does not
indicate that there is a malfunction.
Instruments and controls2-41
Page 145 of 386
> ( G L W 0 R G H O 0 < 1 , 6 6 $ 1 * 7 5 5 2 0 ( 5 8 @
2-42Instruments and controls
JVI0154X

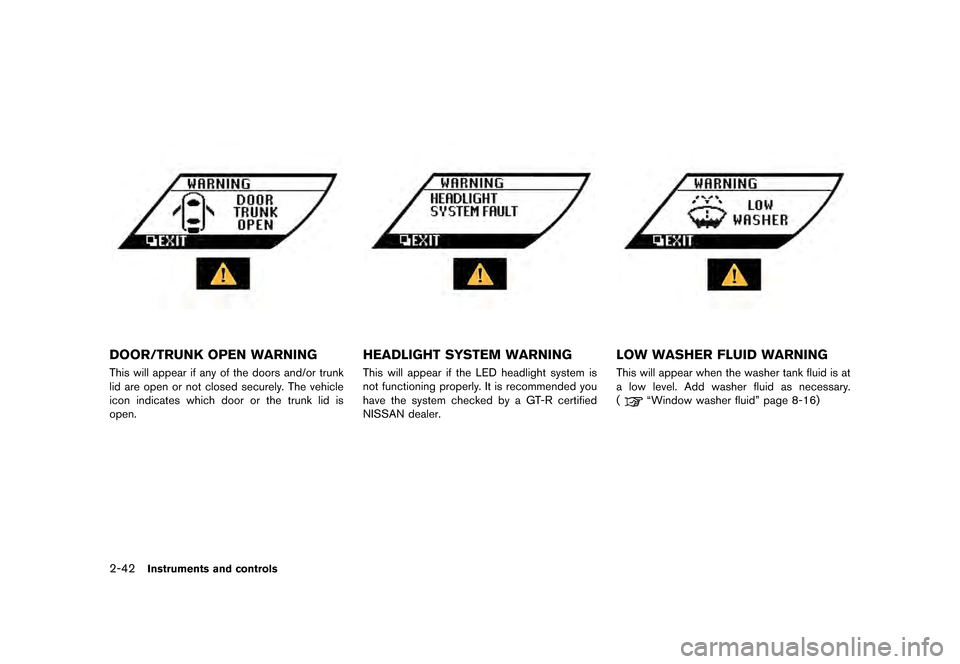

DOOR/TRUNK OPEN WARNINGGUID-E64C4824-A0D1-4CAD-ABE2-53C691F2C7C9This will appear if any of the doors and/or trunk
lid are open or not closed securely. The vehicle
icon indicates which door or the trunk lid is
open.
JVI0841X
HEADLIGHT SYSTEM WARNINGGUID-26EF2C32-275D-47D2-B793-A401A89DAA8BThis will appear if the LED headlight system is
not functioning properly. It is recommended you
have the system checked by a GT-R certified
NISSAN dealer.
JVI0071X
LOW WASHER FLUID WARNINGGUID-BC2D918A-7E2A-467F-981C-595808B07AC5This will appear when the washer tank fluid is at
a low level. Add washer fluid as necessary.
(
ªWindow washer fluidº page 8-16)
Page 146 of 386
> ( G L W 0 R G H O 0 < 1 , 6 6 $ 1 * 7 5 5 2 0 ( 5 8 @
JVI0072X
NO KEY WARNINGGUID-C743FC36-2E48-4434-9D40-A60E75999F3AThis will appear in either of the following
conditions.
No key inside the vehicleGUID-DB6FD108-20A8-45A3-8786-D06E653CE40AThe warning appears when the door is closed
with the Intelligent Key left outside the vehicle
and the ignition switch in the ACC or ON
position. Make sure that the Intelligent Key is
inside the vehicle.
Unregistered Intelligent KeyGUID-B83F80AA-04F8-4F8E-928C-DB8711C04A15The warning appears when the ignition switch is
pushed from the LOCK position and the
Intelligent Key cannot be recognized by thesystem. You cannot start the engine with an
unregistered Intelligent Key.
(
ªIntelligent Key systemº page 3-8)
GUID-25CBCCB0-E450-4CEB-9314-F90D4BA72FDBThese displays appear when an appropriate
operation is required in starting or stopping the
engine.
Instruments and controls2-43
OPERATION DISPLAYS
Page 147 of 386
> ( G L W 0 R G H O 0 < 1 , 6 6 $ 1 * 7 5 5 2 0 ( 5 8 @
2-44Instruments and controls
JVI0073X
ENGINE START OPERATION INDI-
CATOR
GUID-68E40FAE-E058-4710-9C7F-60EF16AAF526This indicator appears when the shift lever is in
the
&Pposition.
This indicator means that the engine will start by
pushing the ignition switch with the brake pedal
depressed.
JVI0074X
SHIFT ªPº WARNINGGUID-1602D9FC-05F9-4F65-BB75-5795D1C85A36This warning appears and an inside warning
chime sounds when the ignition switch is
pushed to stop the engine with the shift lever
in any position except the
&Pposition.
If this warning appears, move the shift lever to
the
&Pposition. This warning will also turn off
when pushing the ignition switch to the ON
position.
JVI0075X
ªPUSHº WARNINGGUID-203EDB28-19A1-411B-8EFE-2BEA7CCE2478This warning appears when the shift lever is
moved to the
&Pposition with the ignition switch
in the ACC position after the SHIFT
&Pwarning
appears.
If this warning appears, push the ignition switch
to the OFF position.
Page 148 of 386
> ( G L W 0 R G H O 0 < 1 , 6 6 $ 1 * 7 5 5 2 0 ( 5 8 @
JVI0076X
STEERING LOCK RELEASE MAL-
FUNCTION INDICATOR
GUID-7184C672-861C-4B9D-8EBB-EC72DC42A813This indicator appears when the steering wheel
lock cannot be released from the LOCK posi-
tion. If this indicator appears, push the ignition
switch while lightly turning the steering wheel
right and left.
JVI0077X
INTELLIGENT KEY INSERTION INDI-
CATOR
GUID-FFB35E85-587E-4309-89D2-CBE440909E86This indicator appears when the Intelligent Key
needs to be inserted into the Intelligent Key port
(for example, the Intelligent Key battery is
discharged) .
If this indicator appears, insert the Intelligent Key
into the Intelligent Key port in the correct
direction. (
ªIntelligent Key battery dis-
chargeº page 5-12)
JVI0078X
INTELLIGENT KEY REMOVAL INDI-
CATOR
GUID-A852689B-5381-4949-91B5-5E2F1D1C82ABThis indicator appears when the driver's door is
opened with the ignition switch in the OFF or
LOCK position and the Intelligent Key placed in
the Intelligent Key port. A key reminder chime
also sounds.
If this indicator appears, remove the Intelligent
Key from the Intelligent Key port and take it with
you when leaving the vehicle.
Instruments and controls2-45
Page 149 of 386
> ( G L W 0 R G H O 0 < 1 , 6 6 $ 1 * 7 5 5 2 0 ( 5 8 @
2-46Instruments and controls
JVI0079X
INTELLIGENT KEY BATTERY DIS-
CHARGE INDICATOR
GUID-F694E3B6-00F9-45AB-8774-172B3A485845This indicator appears when the Intelligent Key
battery is running out of power.
If this indicator appears, replace the battery with
a new one. (
ªIntelligent Key battery repla-
cementº page 8-27)
GUID-CD7F9451-9527-4A6A-AB5E-54B433B0ECE9
JVI0080X
Your vehicle has two types of security systems,
as follows:
. Vehicle security system
. NISSAN Vehicle Immobilizer System
The security condition will be shown by the
security indicator light.
VEHICLE SECURITY SYSTEMGUID-9FC120CF-7493-403D-8A4D-4D0E0CCBEC31The vehicle security system provides visual and
audio alarm signals if someone opens the doors,
hood, or trunk lid when the system is armed. It is
not, however, a motion detection type system
that activates when a vehicle is moved or when a
vibration occurs. The system helps deter vehicle theft but cannot
prevent it, nor can it prevent the theft of interior
or exterior vehicle components in all situations.
Always secure your vehicle even if parking for a
brief period. Never leave your Intelligent Key(s)
in the vehicle, and always lock it when un-
attended. Be aware of your surroundings, and
park in secure, well-lit areas whenever possible.
Many devices offering additional protection,
such as component locks, identification markers,
and tracking systems, are available at auto
supply stores and specialty shops. Your GT-R
certified NISSAN dealer may also offer such
equipment. Check with your insurance company
to see if you may be eligible for discounts for
various theft protection features.
SECURITY SYSTEMS
Page 150 of 386
> ( G L W 0 R G H O 0 < 1 , 6 6 $ 1 * 7 5 5 2 0 ( 5 8 @
JVI0094X

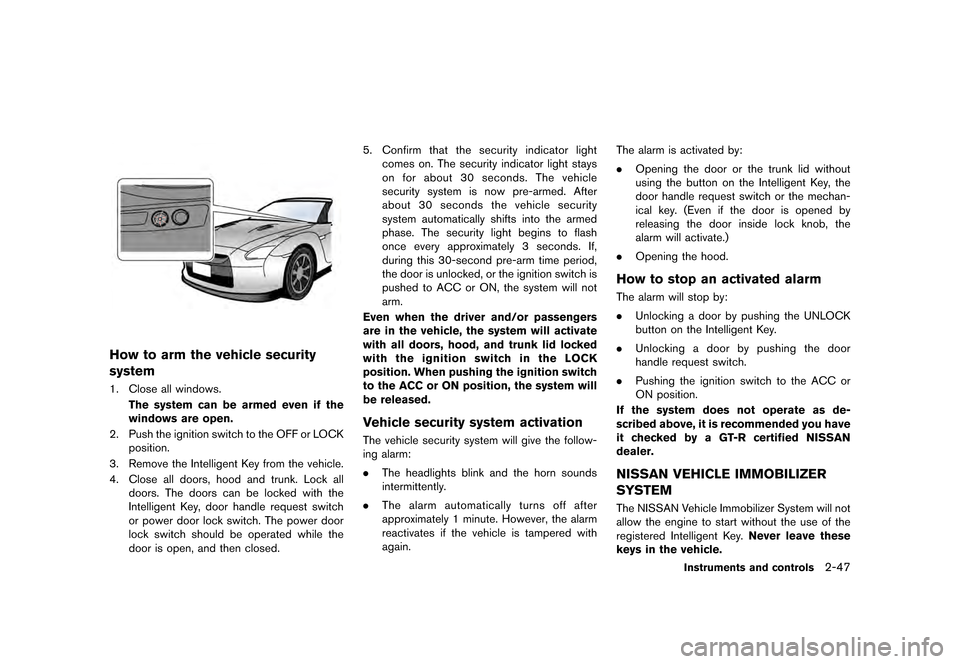

How to arm the vehicle security
system
GUID-7F596F37-3AA2-4D57-824B-F60E4815C9471. Close all windows.The system can be armed even if the
windows are open.
2. Push the ignition switch to the OFF or LOCK position.
3. Remove the Intelligent Key from the vehicle.
4. Close all doors, hood and trunk. Lock all doors. The doors can be locked with the
Intelligent Key, door handle request switch
or power door lock switch. The power door
lock switch should be operated while the
door is open, and then closed. 5.
Confirm that the security indicator light
comes on. The security indicator light stays
on for about 30 seconds. The vehicle
security system is now pre-armed. After
about 30 seconds the vehicle security
system automatically shifts into the armed
phase. The security light begins to flash
once every approximately 3 seconds. If,
during this 30-second pre-arm time period,
the door is unlocked, or the ignition switch is
pushed to ACC or ON, the system will not
arm.
Even when the driver and/or passengers
are in the vehicle, the system will activate
with all doors, hood, and trunk lid locked
with the ignition switch in the LOCK
position. When pushing the ignition switch
to the ACC or ON position, the system will
be released.
Vehicle security system activationGUID-A43E97AF-39F9-49C9-98AB-1877FD0EE01DThe vehicle security system will give the follow-
ing alarm:
. The headlights blink and the horn sounds
intermittently.
. The alarm automatically turns off after
approximately 1 minute. However, the alarm
reactivates if the vehicle is tampered with
again. The alarm is activated by:
.
Opening the door or the trunk lid without
using the button on the Intelligent Key, the
door handle request switch or the mechan-
ical key. (Even if the door is opened by
releasing the door inside lock knob, the
alarm will activate.)
. Opening the hood.
How to stop an activated alarmGUID-5074B89D-A82F-4CD3-9682-B35D540856A8The alarm will stop by:
.Unlocking a door by pushing the UNLOCK
button on the Intelligent Key.
. Unlocking a door by pushing the door
handle request switch.
. Pushing the ignition switch to the ACC or
ON position.
If the system does not operate as de-
scribed above, it is recommended you have
it checked by a GT-R certified NISSAN
dealer.
NISSAN VEHICLE IMMOBILIZER
SYSTEM
GUID-F3FE1AB9-4898-48E8-957A-B09774184B70The NISSAN Vehicle Immobilizer System will not
allow the engine to start without the use of the
registered Intelligent Key. Never leave these
keys in the vehicle.
Instruments and controls2-47
