NISSAN GT-R 2017 R35 Owners Manual
Manufacturer: NISSAN, Model Year: 2017, Model line: GT-R, Model: NISSAN GT-R 2017 R35Pages: 386, PDF Size: 5.14 MB
Page 281 of 386
> ( G L W 0 R G H O 0 < 1 , 6 6 $ 1 * 7 5 5 2 0 ( 5 8 @

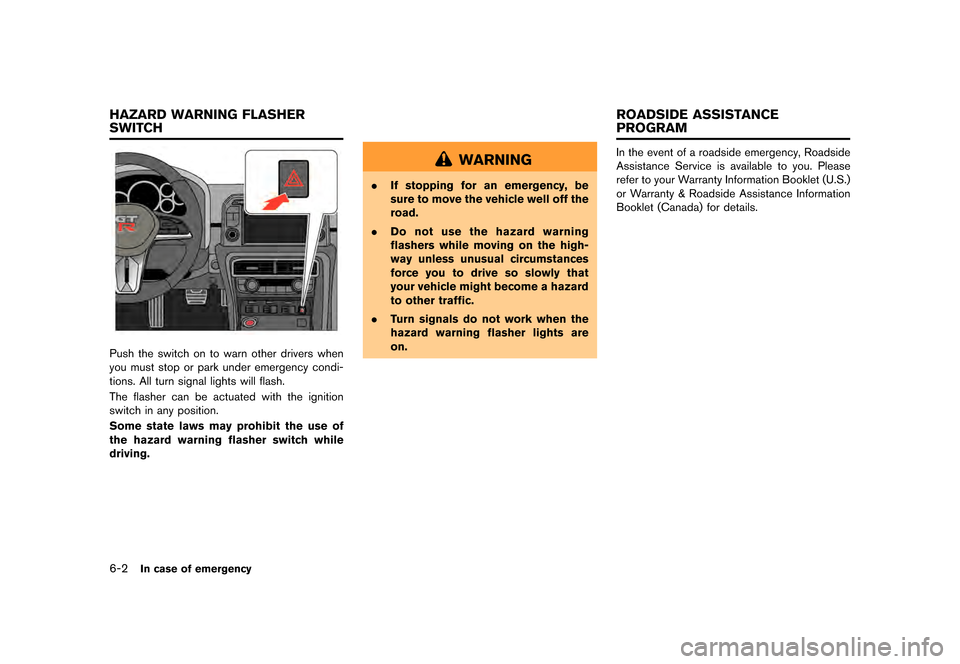

6-2In case of emergency
GUID-95708349-7EE6-431D-8D86-CB01CA71A4A7
JVE0331X
Push the switch on to warn other drivers when
you must stop or park under emergency condi-
tions. All turn signal lights will flash.
The flasher can be actuated with the ignition
switch in any position.
Some state laws may prohibit the use of
the hazard warning flasher switch while
driving.
WARNING
.If stopping for an emergency, be
sure to move the vehicle well off the
road.
. Do not use the hazard warning
flashers while moving on the high-
way unless unusual circumstances
force you to drive so slowly that
your vehicle might become a hazard
to other traffic.
. Turn signals do not work when the
hazard warning flasher lights are
on.
GUID-F4267C9B-1D02-4786-8D64-26CA4367C474In the event of a roadside emergency, Roadside
Assistance Service is available to you. Please
refer to your Warranty Information Booklet (U.S.)
or Warranty & Roadside Assistance Information
Booklet (Canada) for details.
HAZARD WARNING FLASHER
SWITCH ROADSIDE ASSISTANCE
PROGRAM
Page 282 of 386
> ( G L W 0 R G H O 0 < 1 , 6 6 $ 1 * 7 5 5 2 0 ( 5 8 @
GUID-085C69DD-2BC4-4777-91E0-016C301E5BC6To shut off the engine in an emergency situation
while driving, perform the following procedure:
.Rapidly push the push-button ignition switch
3 consecutive times in less than 1.5
seconds, or
. Push and hold the push-button ignition
switch for more than 2 seconds.GUID-55CD71FC-2B20-402E-8C3E-4E014863C437
TIRE PRESSURE MONITORING
SYSTEM (TPMS)
GUID-1B80F6F9-6628-49F3-9926-C56CCCA4DCF8This vehicle is equipped with the Tire Pressure
Monitoring System (TPMS) . It monitors tire
pressure of all tires. When the low tire pressure
warning light is lit, one or more of your tires is
significantly under-inflated. If the vehicle is being
driven with low tire pressure, the TPMS will
activate and warn you of it by the low tire
pressure warning light (in the meter) or the
warning message (on the display) . This system
will activate only when the vehicle is driven at
speeds above 16 MPH (25 km/h) . (
ªLow
tire pressure warning lightº page 2-27)
(
ªTire Pressure Monitoring System
(TPMS)º page 5-4)
WARNING
. If the low tire pressure warning light
illuminates while driving, avoid sud-
den steering maneuvers or abrupt
braking, reduce vehicle speed, pull
off the road to a safe location and
stop the vehicle as soon as possi-
ble. Driving with under-inflated tires
may permanently damage the tires
and increase the likelihood of tire
failure. Serious vehicle damage could occur and may lead to an
accident and could result in serious
personal injury. Check the tire pres-
sure for all four tires. Adjust the tire
pressure to the recommended COLD
tire pressure shown on the Tire and
Loading Information label to turn
the low tire pressure warning light
off. If the light still illuminates while
driving after adjusting the tire pres-
sure, a tire may be flat (
ªRun-
flat tiresº page 6-4) or the TPMS
may be malfunctioning. If no tire is
flat and all tires are properly in-
flated, it is recommended you have
the vehicle checked by a GT-R
certified NISSAN dealer.
. When a wheel is replaced, the TPMS
will not function and the low tire
pressure warning light will flash for
approximately 1 minute. The light
will remain on after 1 minute. It is
recommended you contact a GT-R
certified NISSAN dealer as soon as
possible for tire replacement and/or
system resetting.
. Replacing tires with those not ori-
ginally specified by NISSAN could
affect the proper operation of the
In case of emergency6-3
EMERGENCY ENGINE SHUT OFF FLAT TIRE
Page 283 of 386
> ( G L W 0 R G H O 0 < 1 , 6 6 $ 1 * 7 5 5 2 0 ( 5 8 @

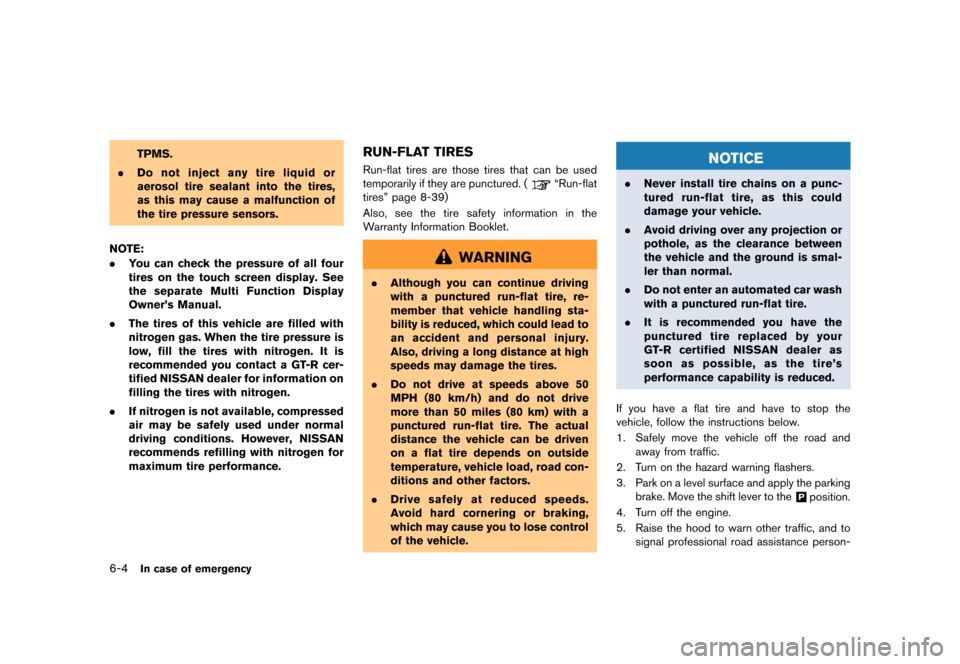

6-4In case of emergency
TPMS.
. Do not inject any tire liquid or
aerosol tire sealant into the tires,
as this may cause a malfunction of
the tire pressure sensors.
NOTE:
. You can check the pressure of all four
tires on the touch screen display. See
the separate Multi Function Display
Owner's Manual.
. The tires of this vehicle are filled with
nitrogen gas. When the tire pressure is
low, fill the tires with nitrogen. It is
recommended you contact a GT-R cer-
tified NISSAN dealer for information on
filling the tires with nitrogen.
. If nitrogen is not available, compressed
air may be safely used under normal
driving conditions. However, NISSAN
recommends refilling with nitrogen for
maximum tire performance.RUN-FLAT TIRESGUID-5496C5A2-F48A-4E72-92DF-C1714EE153C7Run-flat tires are those tires that can be used
temporarily if they are punctured. (
ªRun-flat
tiresº page 8-39)
Also, see the tire safety information in the
Warranty Information Booklet.
WARNING
. Although you can continue driving
with a punctured run-flat tire, re-
member that vehicle handling sta-
bility is reduced, which could lead to
an accident and personal injury.
Also, driving a long distance at high
speeds may damage the tires.
. Do not drive at speeds above 50
MPH (80 km/h) and do not drive
more than 50 miles (80 km) with a
punctured run-flat tire. The actual
distance the vehicle can be driven
on a flat tire depends on outside
temperature, vehicle load, road con-
ditions and other factors.
. Drive safely at reduced speeds.
Avoid hard cornering or braking,
which may cause you to lose control
of the vehicle.
NOTICE
.Never install tire chains on a punc-
tured run-flat tire, as this could
damage your vehicle.
. Avoid driving over any projection or
pothole, as the clearance between
the vehicle and the ground is smal-
ler than normal.
. Do not enter an automated car wash
with a punctured run-flat tire.
. It is recommended you have the
punctured tire replaced by your
GT-R certified NISSAN dealer as
soon as possible, as the tire's
performance capability is reduced.
If you have a flat tire and have to stop the
vehicle, follow the instructions below.
1. Safely move the vehicle off the road and away from traffic.
2. Turn on the hazard warning flashers.
3. Park on a level surface and apply the parking brake. Move the shift lever to the
&Pposition.
4. Turn off the engine.
5. Raise the hood to warn other traffic, and to signal professional road assistance person-
Page 284 of 386
> ( G L W 0 R G H O 0 < 1 , 6 6 $ 1 * 7 5 5 2 0 ( 5 8 @

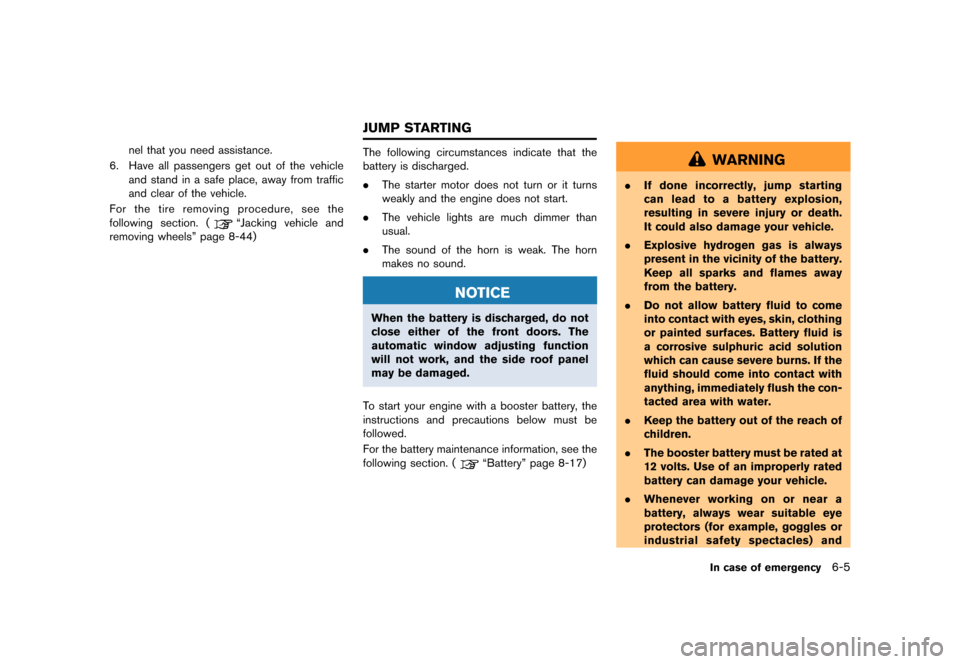

nel that you need assistance.
6. Have all passengers get out of the vehicle and stand in a safe place, away from traffic
and clear of the vehicle.
For the tire removing procedure, see the
following section. (
ªJacking vehicle and
removing wheelsº page 8-44)
GUID-39453668-FE24-4D2E-9D0E-A27FAD36B326The following circumstances indicate that the
battery is discharged.
. The starter motor does not turn or it turns
weakly and the engine does not start.
. The vehicle lights are much dimmer than
usual.
. The sound of the horn is weak. The horn
makes no sound.
NOTICE
When the battery is discharged, do not
close either of the front doors. The
automatic window adjusting function
will not work, and the side roof panel
may be damaged.
To start your engine with a booster battery, the
instructions and precautions below must be
followed.
For the battery maintenance information, see the
following section. (
ªBatteryº page 8-17)
WARNING
. If done incorrectly, jump starting
can lead to a battery explosion,
resulting in severe injury or death.
It could also damage your vehicle.
. Explosive hydrogen gas is always
present in the vicinity of the battery.
Keep all sparks and flames away
from the battery.
. Do not allow battery fluid to come
into contact with eyes, skin, clothing
or painted surfaces. Battery fluid is
a corrosive sulphuric acid solution
which can cause severe burns. If the
fluid should come into contact with
anything, immediately flush the con-
tacted area with water.
. Keep the battery out of the reach of
children.
. The booster battery must be rated at
12 volts. Use of an improperly rated
battery can damage your vehicle.
. Whenever working on or near a
battery, always wear suitable eye
protectors (for example, goggles or
industrial safety spectacles) and
In case of emergency6-5
JUMP STARTING
Page 285 of 386
> ( G L W 0 R G H O 0 < 1 , 6 6 $ 1 * 7 5 5 2 0 ( 5 8 @

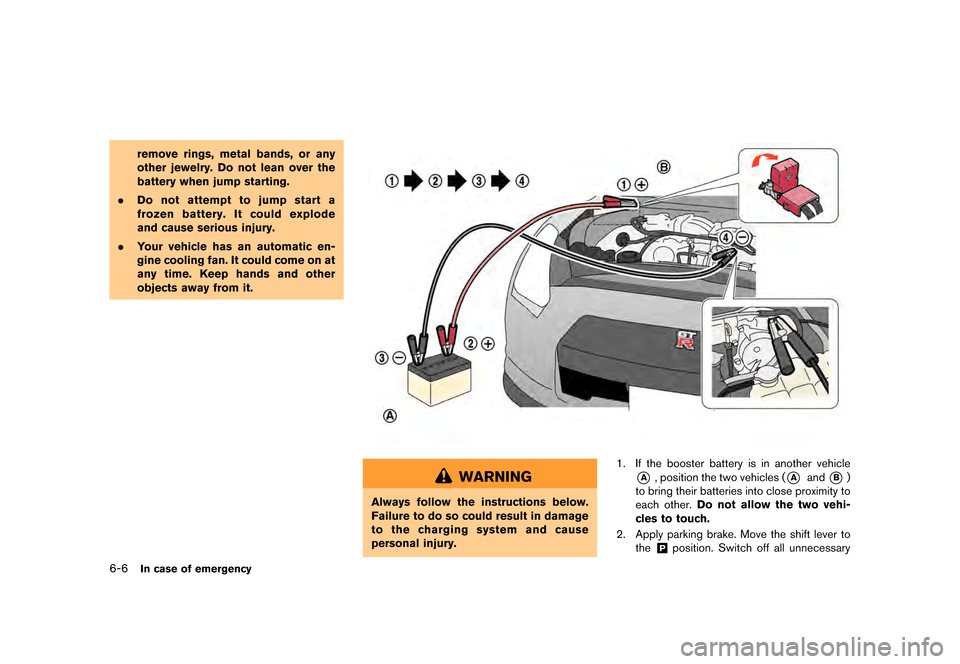

6-6In case of emergency
remove rings, metal bands, or any
other jewelry. Do not lean over the
battery when jump starting.
. Do not attempt to jump start a
frozen battery. It could explode
and cause serious injury.
. Your vehicle has an automatic en-
gine cooling fan. It could come on at
any time. Keep hands and other
objects away from it.
GIE0004
WARNING
Always follow the instructions below.
Failure to do so could result in damage
to the charging system and cause
personal injury. 1. If the booster battery is in another vehicle
*A, position the two vehicles (*Aand*B)
to bring their batteries into close proximity to
each other. Do not allow the two vehi-
cles to touch.
2. Apply parking brake. Move the shift lever to the
&Pposition. Switch off all unnecessary
Page 286 of 386
> ( G L W 0 R G H O 0 < 1 , 6 6 $ 1 * 7 5 5 2 0 ( 5 8 @

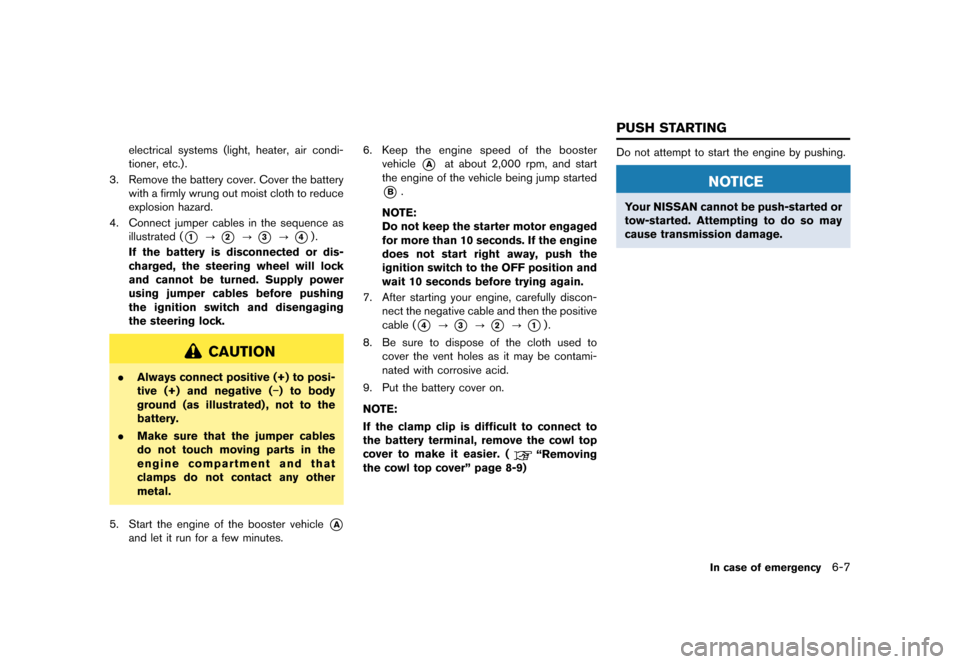

electrical systems (light, heater, air condi-
tioner, etc.) .
3. Remove the battery cover. Cover the battery with a firmly wrung out moist cloth to reduce
explosion hazard.
4. Connect jumper cables in the sequence as illustrated (
*1?*2?*3?*4) .
If the battery is disconnected or dis-
charged, the steering wheel will lock
and cannot be turned. Supply power
using jumper cables before pushing
the ignition switch and disengaging
the steering lock.
CAUTION
. Always connect positive (+) to posi-
tive (+) and negative (
Page 287 of 386
> ( G L W 0 R G H O 0 < 1 , 6 6 $ 1 * 7 5 5 2 0 ( 5 8 @

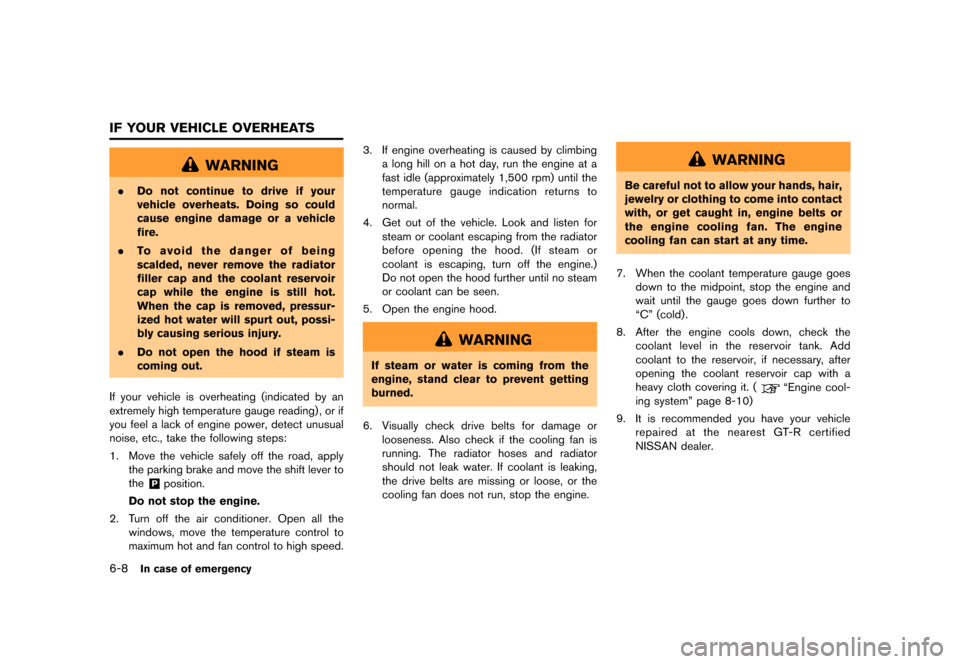

6-8In case of emergency
GUID-C1D79627-A922-445A-9D9A-9274C93F6847
WARNING
.Do not continue to drive if your
vehicle overheats. Doing so could
cause engine damage or a vehicle
fire.
. To avoid the danger of being
scalded, never remove the radiator
filler cap and the coolant reservoir
cap while the engine is still hot.
When the cap is removed, pressur-
ized hot water will spurt out, possi-
bly causing serious injury.
. Do not open the hood if steam is
coming out.
If your vehicle is overheating (indicated by an
extremely high temperature gauge reading) , or if
you feel a lack of engine power, detect unusual
noise, etc., take the following steps:
1. Move the vehicle safely off the road, apply the parking brake and move the shift lever to
the
&Pposition.
Do not stop the engine.
2. Turn off the air conditioner. Open all the windows, move the temperature control to
maximum hot and fan control to high speed. 3. If engine overheating is caused by climbing
a long hill on a hot day, run the engine at a
fast idle (approximately 1,500 rpm) until the
temperature gauge indication returns to
normal.
4. Get out of the vehicle. Look and listen for steam or coolant escaping from the radiator
before opening the hood. (If steam or
coolant is escaping, turn off the engine.)
Do not open the hood further until no steam
or coolant can be seen.
5. Open the engine hood.
WARNING
If steam or water is coming from the
engine, stand clear to prevent getting
burned.
6. Visually check drive belts for damage or looseness. Also check if the cooling fan is
running. The radiator hoses and radiator
should not leak water. If coolant is leaking,
the drive belts are missing or loose, or the
cooling fan does not run, stop the engine.
WARNING
Be careful not to allow your hands, hair,
jewelry or clothing to come into contact
with, or get caught in, engine belts or
the engine cooling fan. The engine
cooling fan can start at any time.
7. When the coolant temperature gauge goes down to the midpoint, stop the engine and
wait until the gauge goes down further to
ªCº (cold) .
8. After the engine cools down, check the coolant level in the reservoir tank. Add
coolant to the reservoir, if necessary, after
opening the coolant reservoir cap with a
heavy cloth covering it. (
ªEngine cool-
ing systemº page 8-10)
9. It is recommended you have your vehicle repaired at the nearest GT-R certified
NISSAN dealer.
IF YOUR VEHICLE OVERHEATS
Page 288 of 386
> ( G L W 0 R G H O 0 < 1 , 6 6 $ 1 * 7 5 5 2 0 ( 5 8 @

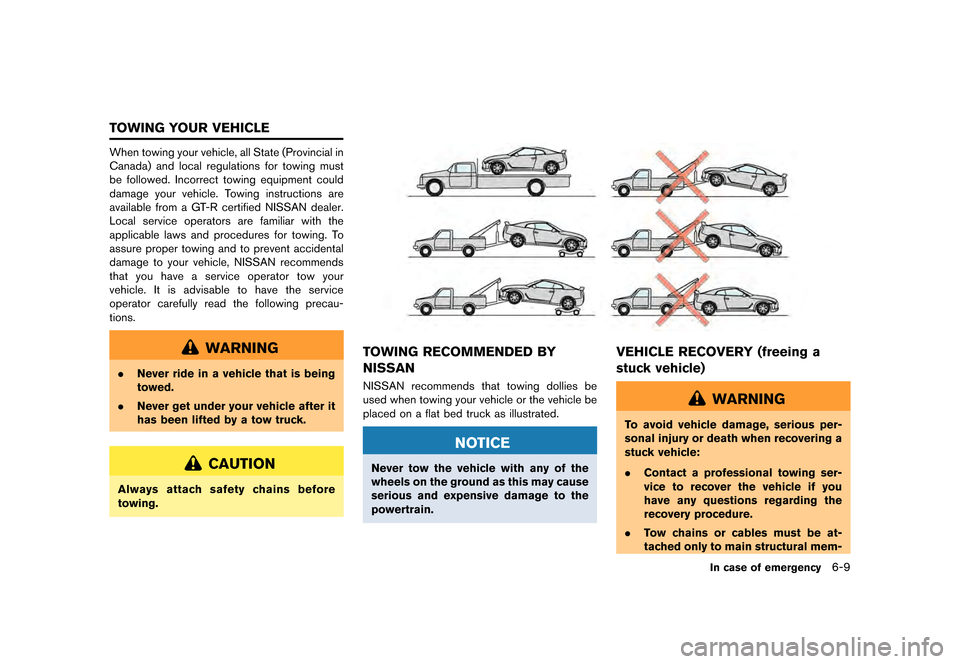

GUID-82E48224-C2F2-40B9-BD60-DA2543B06683When towing your vehicle, all State (Provincial in
Canada) and local regulations for towing must
be followed. Incorrect towing equipment could
damage your vehicle. Towing instructions are
available from a GT-R certified NISSAN dealer.
Local service operators are familiar with the
applicable laws and procedures for towing. To
assure proper towing and to prevent accidental
damage to your vehicle, NISSAN recommends
that you have a service operator tow your
vehicle. It is advisable to have the service
operator carefully read the following precau-
tions.
WARNING
.Never ride in a vehicle that is being
towed.
. Never get under your vehicle after it
has been lifted by a tow truck.
CAUTION
Always attach safety chains before
towing.
GIE0044
TOWING RECOMMENDED BY
NISSAN
GUID-C180BF3A-9D2E-4EBA-B85A-FDD307E2814ENISSAN recommends that towing dollies be
used when towing your vehicle or the vehicle be
placed on a flat bed truck as illustrated.
NOTICE
Never tow the vehicle with any of the
wheels on the ground as this may cause
serious and expensive damage to the
powertrain.
VEHICLE RECOVERY (freeing a
stuck vehicle)
GUID-3D27EAE0-5B49-4628-8F81-33510ACFE9A4
WARNING
To avoid vehicle damage, serious per-
sonal injury or death when recovering a
stuck vehicle:
.Contact a professional towing ser-
vice to recover the vehicle if you
have any questions regarding the
recovery procedure.
. Tow chains or cables must be at-
tached only to main structural mem-
In case of emergency6-9
TOWING YOUR VEHICLE
Page 289 of 386
> ( G L W 0 R G H O 0 < 1 , 6 6 $ 1 * 7 5 5 2 0 ( 5 8 @

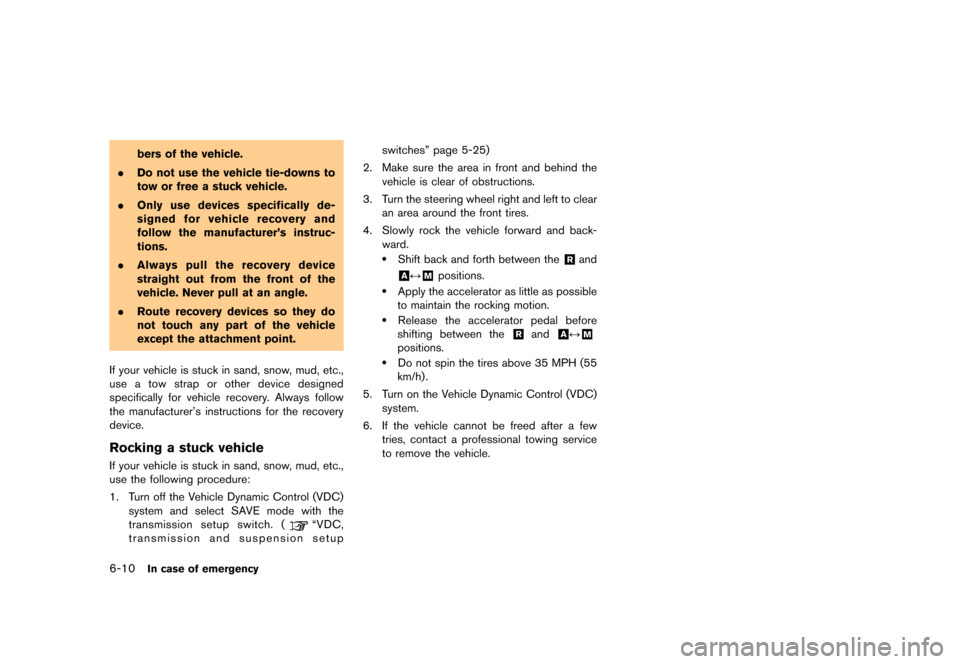

6-10In case of emergency
bers of the vehicle.
. Do not use the vehicle tie-downs to
tow or free a stuck vehicle.
. Only use devices specifically de-
signed for vehicle recovery and
follow the manufacturer's instruc-
tions.
. Always pull the recovery device
straight out from the front of the
vehicle. Never pull at an angle.
. Route recovery devices so they do
not touch any part of the vehicle
except the attachment point.
If your vehicle is stuck in sand, snow, mud, etc.,
use a tow strap or other device designed
specifically for vehicle recovery. Always follow
the manufacturer's instructions for the recovery
device.
Rocking a stuck vehicleGUID-2C981225-30F1-49E8-AE71-816D46202725If your vehicle is stuck in sand, snow, mud, etc.,
use the following procedure:
1. Turn off the Vehicle Dynamic Control (VDC) system and select SAVE mode with the
transmission setup switch. (
ªVDC,
transmission and suspension setup switchesº page 5-25)
2. Make sure the area in front and behind the vehicle is clear of obstructions.
3. Turn the steering wheel right and left to clear an area around the front tires.
4. Slowly rock the vehicle forward and back- ward.
.Shift back and forth between the&Rand
&AF&Mpositions.
.Apply the accelerator as little as possible
to maintain the rocking motion.
.Release the accelerator pedal before
shifting between the
&Rand&AF&M
positions..Do not spin the tires above 35 MPH (55
km/h) .
5. Turn on the Vehicle Dynamic Control (VDC) system.
6. If the vehicle cannot be freed after a few tries, contact a professional towing service
to remove the vehicle.
Page 290 of 386
> ( G L W 0 R G H O 0 < 1 , 6 6 $ 1 * 7 5 5 2 0 ( 5 8 @
7 Appearance and care
Cleaning exterior.......................................................................... 7-2
Matte paint care (if so equipped) ...................................... 7-2
Washing ....
........................................................................\
........ 7-3
Waxing ............................................................................\
.......... 7-4
Removing spots ....
.................................................................. 7-4
Underbody ....
........................................................................\
.... 7-5
Glass ............................................................................\
............. 7-5
Wheels ....
........................................................................\
.......... 7-5
Chrome parts .......................................................................... 7-5
Front grille ............................................................................\
.... 7-5
Outside door handles ........................................................... 7-6
Tire dressing ....
........................................................................\
7-6
Dry carbon fiber parts (if so equipped) ........................... 7-6 Cleaning interior
.......................................................................... 7-7
Air fresheners ....
.................................................................... 7-7
Floor mats ............................................................................\
.. 7-8
Seat belts ....
........................................................................\
... 7-9
Corrosion protection ....
............................................................ 7-10
Most common factors contributing to
vehicle corrosion ............................................................... 7-10
Environmental factors influence the rate
of corrosion ........................................................................ 7-10
To protect your vehicle from corrosion ....................... 7-10
