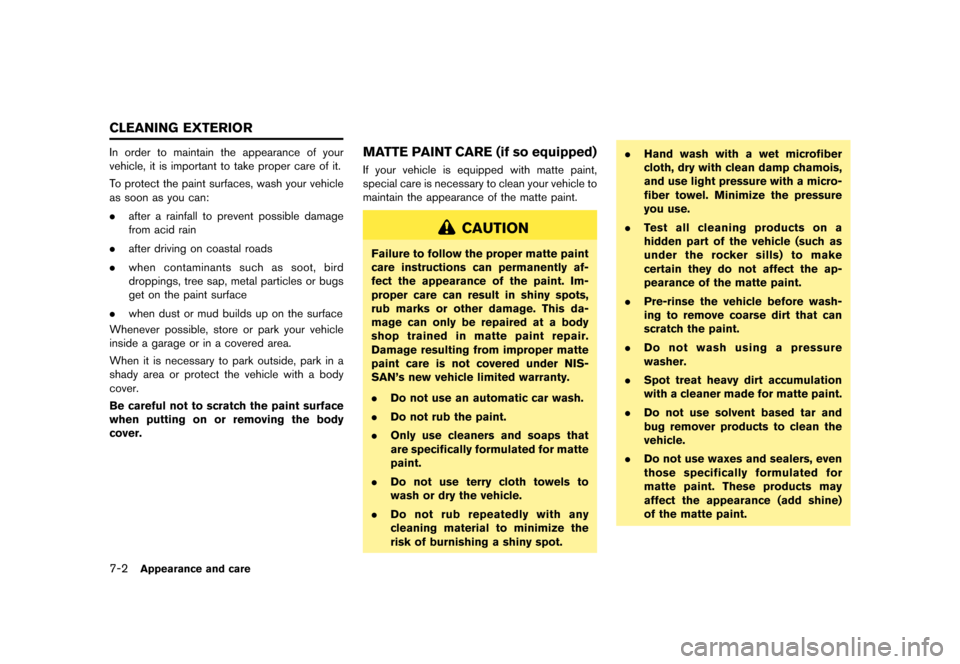

7-2Appearance and care
GUID-E46A8FB0-6EFB-4C80-B313-C889C57C74CEIn order to maintain the appearance of your
vehicle, it is important to take proper care of it.
To protect the paint surfaces, wash your vehicle
as soon as you can:
.after a rainfall to prevent possible damage
from acid rain
. after driving on coastal roads
. when contaminants such as soot, bird
droppings, tree sap, metal particles or bugs
get on the paint surface
. when dust or mud builds up on the surface
Whenever possible, store or park your vehicle
inside a garage or in a covered area.
When it is necessary to park outside, park in a
shady area or protect the vehicle with a body
cover.
Be careful not to scratch the paint surface
when putting on or removing the body
cover.MATTE PAINT CARE (if so equipped)GUID-1FCB2F94-F36A-46F1-A768-453898D8AB04If your vehicle is equipped with matte paint,
special care is necessary to clean your vehicle to
maintain the appearance of the matte paint.
CAUTION
Failure to follow the proper matte paint
care instructions can permanently af-
fect the appearance of the paint. Im-
proper care can result in shiny spots,
rub marks or other damage. This da-
mage can only be repaired at a body
shop trained in matte paint repair.
Damage resulting from improper matte
paint care is not covered under NIS-
SAN's new vehicle limited warranty.
. Do not use an automatic car wash.
. Do not rub the paint.
. Only use cleaners and soaps that
are specifically formulated for matte
paint.
. Do not use terry cloth towels to
wash or dry the vehicle.
. Do not rub repeatedly with any
cleaning material to minimize the
risk of burnishing a shiny spot. .
Hand wash with a wet microfiber
cloth, dry with clean damp chamois,
and use light pressure with a micro-
fiber towel. Minimize the pressure
you use.
. Test all cleaning products on a
hidden part of the vehicle (such as
under the rocker sills) to make
certain they do not affect the ap-
pearance of the matte paint.
. Pre-rinse the vehicle before wash-
ing to remove coarse dirt that can
scratch the paint.
. Do not wash using a pressure
washer.
. Spot treat heavy dirt accumulation
with a cleaner made for matte paint.
. Do not use solvent based tar and
bug remover products to clean the
vehicle.
. Do not use waxes and sealers, even
those specifically formulated for
matte paint. These products may
affect the appearance (add shine)
of the matte paint.
CLEANING EXTERIOR
Page 292 of 386
> ( G L W 0 R G H O 0 < 1 , 6 6 $ 1 * 7 5 5 2 0 ( 5 8 @

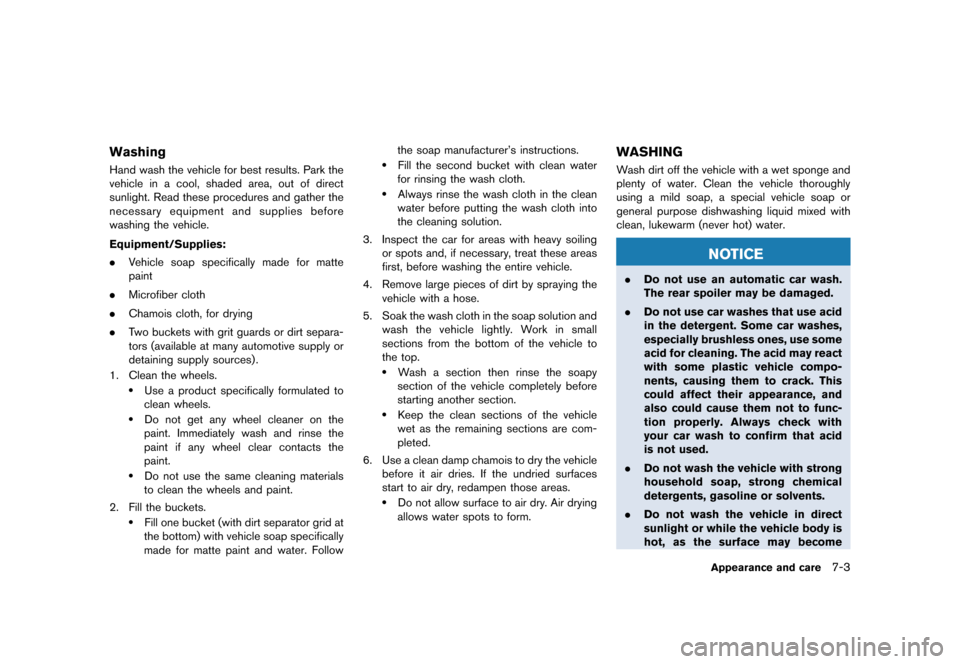

WashingGUID-72366C42-C673-44B7-9EA1-8C35554EA2DEHand wash the vehicle for best results. Park the
vehicle in a cool, shaded area, out of direct
sunlight. Read these procedures and gather the
necessary equipment and supplies before
washing the vehicle.
Equipment/Supplies:
GUID-E22DEED8-E349-45C2-B1F1-0C9BCF3B8FB9.Vehicle soap specifically made for matte
paint
. Microfiber cloth
. Chamois cloth, for drying
. Two buckets with grit guards or dirt separa-
tors (available at many automotive supply or
detaining supply sources) .
1. Clean the wheels.
.Use a product specifically formulated to
clean wheels.
.Do not get any wheel cleaner on the
paint. Immediately wash and rinse the
paint if any wheel clear contacts the
paint.
.Do not use the same cleaning materials
to clean the wheels and paint.
2. Fill the buckets.
.Fill one bucket (with dirt separator grid at
the bottom) with vehicle soap specifically
made for matte paint and water. Follow the soap manufacturer's instructions.
.Fill the second bucket with clean water
for rinsing the wash cloth.
.Always rinse the wash cloth in the clean
water before putting the wash cloth into
the cleaning solution.
3. Inspect the car for areas with heavy soiling or spots and, if necessary, treat these areas
first, before washing the entire vehicle.
4. Remove large pieces of dirt by spraying the vehicle with a hose.
5. Soak the wash cloth in the soap solution and wash the vehicle lightly. Work in small
sections from the bottom of the vehicle to
the top.
.Wash a section then rinse the soapy
section of the vehicle completely before
starting another section.
.Keep the clean sections of the vehicle
wet as the remaining sections are com-
pleted.
6. Use a clean damp chamois to dry the vehicle before it air dries. If the undried surfaces
start to air dry, redampen those areas.
.Do not allow surface to air dry. Air drying
allows water spots to form.
WASHINGGUID-A72E76D0-B867-424D-B251-7D2F8C7AC03BWash dirt off the vehicle with a wet sponge and
plenty of water. Clean the vehicle thoroughly
using a mild soap, a special vehicle soap or
general purpose dishwashing liquid mixed with
clean, lukewarm (never hot) water.
NOTICE
. Do not use an automatic car wash.
The rear spoiler may be damaged.
. Do not use car washes that use acid
in the detergent. Some car washes,
especially brushless ones, use some
acid for cleaning. The acid may react
with some plastic vehicle compo-
nents, causing them to crack. This
could affect their appearance, and
also could cause them not to func-
tion properly. Always check with
your car wash to confirm that acid
is not used.
. Do not wash the vehicle with strong
household soap, strong chemical
detergents, gasoline or solvents.
. Do not wash the vehicle in direct
sunlight or while the vehicle body is
hot, as the surface may become
Appearance and care7-3
Page 293 of 386
> ( G L W 0 R G H O 0 < 1 , 6 6 $ 1 * 7 5 5 2 0 ( 5 8 @
7-4Appearance and care

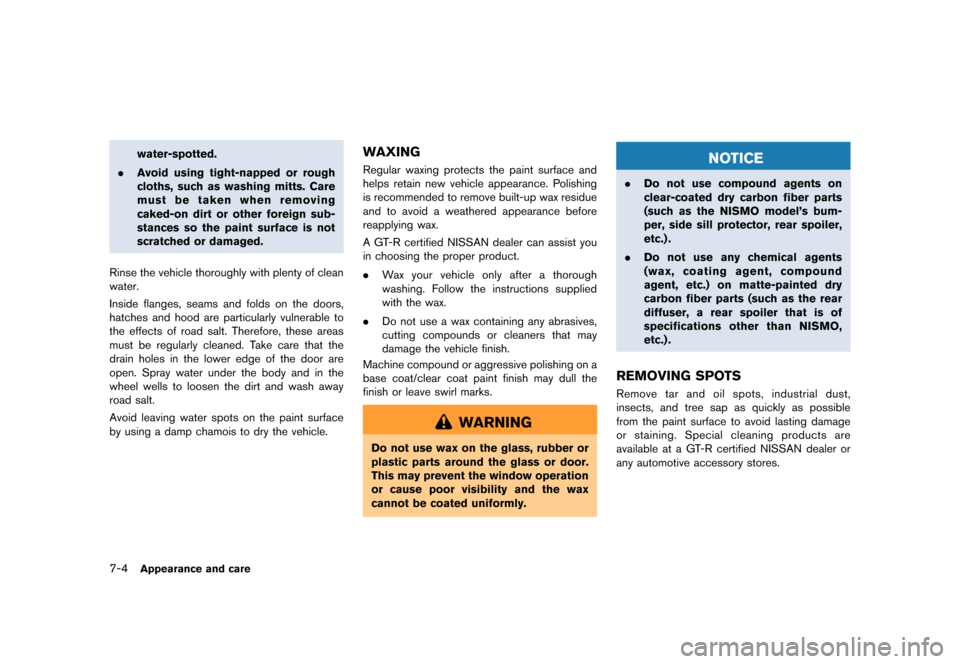

water-spotted.
. Avoid using tight-napped or rough
cloths, such as washing mitts. Care
must be taken when removing
caked-on dirt or other foreign sub-
stances so the paint surface is not
scratched or damaged.
Rinse the vehicle thoroughly with plenty of clean
water.
Inside flanges, seams and folds on the doors,
hatches and hood are particularly vulnerable to
the effects of road salt. Therefore, these areas
must be regularly cleaned. Take care that the
drain holes in the lower edge of the door are
open. Spray water under the body and in the
wheel wells to loosen the dirt and wash away
road salt.
Avoid leaving water spots on the paint surface
by using a damp chamois to dry the vehicle.WAXINGGUID-D1A4D4B3-64BC-4CFC-A2FD-EC7A6B5701A6Regular waxing protects the paint surface and
helps retain new vehicle appearance. Polishing
is recommended to remove built-up wax residue
and to avoid a weathered appearance before
reapplying wax.
A GT-R certified NISSAN dealer can assist you
in choosing the proper product.
. Wax your vehicle only after a thorough
washing. Follow the instructions supplied
with the wax.
. Do not use a wax containing any abrasives,
cutting compounds or cleaners that may
damage the vehicle finish.
Machine compound or aggressive polishing on a
base coat/clear coat paint finish may dull the
finish or leave swirl marks.
WARNING
Do not use wax on the glass, rubber or
plastic parts around the glass or door.
This may prevent the window operation
or cause poor visibility and the wax
cannot be coated uniformly.
NOTICE
. Do not use compound agents on
clear-coated dry carbon fiber parts
(such as the NISMO model's bum-
per, side sill protector, rear spoiler,
etc.) .
. Do not use any chemical agents
(wax, coating agent, compound
agent, etc.) on matte-painted dry
carbon fiber parts (such as the rear
diffuser, a rear spoiler that is of
specifications other than NISMO,
etc.) .
REMOVING SPOTSGUID-85707878-6687-495C-A575-6721F4D83DF3Remove tar and oil spots, industrial dust,
insects, and tree sap as quickly as possible
from the paint surface to avoid lasting damage
or staining. Special cleaning products are
available at a GT-R certified NISSAN dealer or
any automotive accessory stores.
Page 294 of 386
> ( G L W 0 R G H O 0 < 1 , 6 6 $ 1 * 7 5 5 2 0 ( 5 8 @

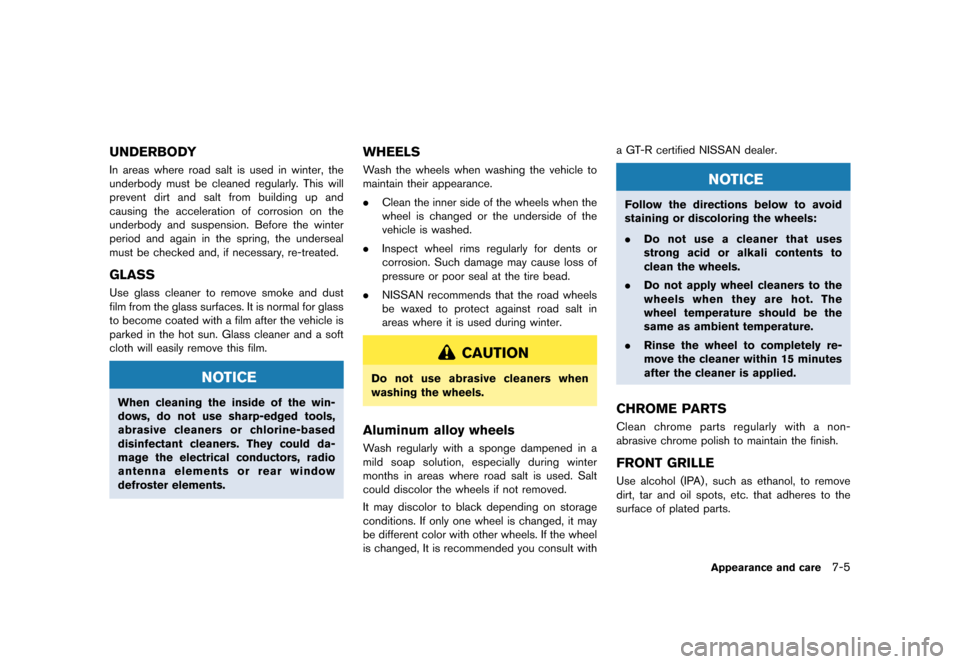

UNDERBODYGUID-BDA9763C-38AC-4528-87E4-128C0B6D452CIn areas where road salt is used in winter, the
underbody must be cleaned regularly. This will
prevent dirt and salt from building up and
causing the acceleration of corrosion on the
underbody and suspension. Before the winter
period and again in the spring, the underseal
must be checked and, if necessary, re-treated.
GLASSGUID-184112B2-6F39-43A6-9E3E-DD1003B9EDDDUse glass cleaner to remove smoke and dust
film from the glass surfaces. It is normal for glass
to become coated with a film after the vehicle is
parked in the hot sun. Glass cleaner and a soft
cloth will easily remove this film.
NOTICE
When cleaning the inside of the win-
dows, do not use sharp-edged tools,
abrasive cleaners or chlorine-based
disinfectant cleaners. They could da-
mage the electrical conductors, radio
antenna elements or rear window
defroster elements.
WHEELSGUID-28739CF5-4632-465E-BA7F-F71C3AD66616Wash the wheels when washing the vehicle to
maintain their appearance.
.Clean the inner side of the wheels when the
wheel is changed or the underside of the
vehicle is washed.
. Inspect wheel rims regularly for dents or
corrosion. Such damage may cause loss of
pressure or poor seal at the tire bead.
. NISSAN recommends that the road wheels
be waxed to protect against road salt in
areas where it is used during winter.
CAUTION
Do not use abrasive cleaners when
washing the wheels.
Aluminum alloy wheelsGUID-B4D09F8E-EBC4-4DFB-9705-8567963D0E60Wash regularly with a sponge dampened in a
mild soap solution, especially during winter
months in areas where road salt is used. Salt
could discolor the wheels if not removed.
It may discolor to black depending on storage
conditions. If only one wheel is changed, it may
be different color with other wheels. If the wheel
is changed, It is recommended you consult with a GT-R certified NISSAN dealer.
NOTICE
Follow the directions below to avoid
staining or discoloring the wheels:
.
Do not use a cleaner that uses
strong acid or alkali contents to
clean the wheels.
. Do not apply wheel cleaners to the
wheels when they are hot. The
wheel temperature should be the
same as ambient temperature.
. Rinse the wheel to completely re-
move the cleaner within 15 minutes
after the cleaner is applied.
CHROME PARTSGUID-9406EE2F-3E00-4D47-86BD-642FFE0097C7Clean chrome parts regularly with a non-
abrasive chrome polish to maintain the finish.
FRONT GRILLEGUID-225A8329-C8C2-4692-AC87-B76F4E73C578Use alcohol (IPA) , such as ethanol, to remove
dirt, tar and oil spots, etc. that adheres to the
surface of plated parts.
Appearance and care7-5
Page 295 of 386
> ( G L W 0 R G H O 0 < 1 , 6 6 $ 1 * 7 5 5 2 0 ( 5 8 @
7-6Appearance and care

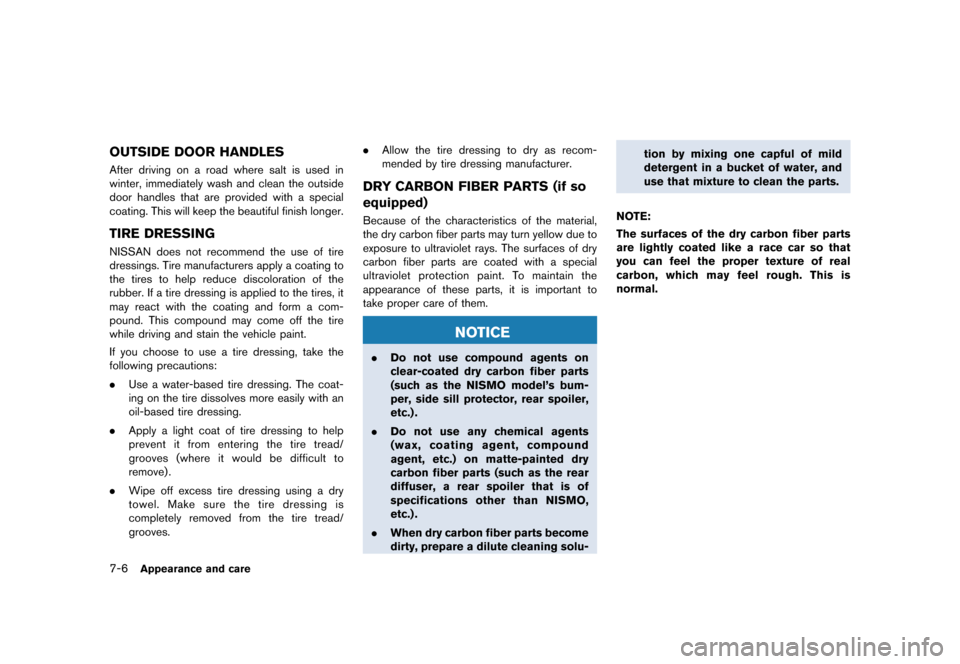

OUTSIDE DOOR HANDLESGUID-62830149-0255-422F-A11B-5F865AFE3C51After driving on a road where salt is used in
winter, immediately wash and clean the outside
door handles that are provided with a special
coating. This will keep the beautiful finish longer.
TIRE DRESSINGGUID-BA736799-CE6D-4B20-8D28-533F7C86B2DENISSAN does not recommend the use of tire
dressings. Tire manufacturers apply a coating to
the tires to help reduce discoloration of the
rubber. If a tire dressing is applied to the tires, it
may react with the coating and form a com-
pound. This compound may come off the tire
while driving and stain the vehicle paint.
If you choose to use a tire dressing, take the
following precautions:
.Use a water-based tire dressing. The coat-
ing on the tire dissolves more easily with an
oil-based tire dressing.
. Apply a light coat of tire dressing to help
prevent it from entering the tire tread/
grooves (where it would be difficult to
remove) .
. Wipe off excess tire dressing using a dry
towel. Make sure the tire dressing is
completely removed from the tire tread/
grooves. .
Allow the tire dressing to dry as recom-
mended by tire dressing manufacturer.
DRY CARBON FIBER PARTS (if so
equipped)
GUID-185523BE-05B7-425C-8075-2C3EB608D87CBecause of the characteristics of the material,
the dry carbon fiber parts may turn yellow due to
exposure to ultraviolet rays. The surfaces of dry
carbon fiber parts are coated with a special
ultraviolet protection paint. To maintain the
appearance of these parts, it is important to
take proper care of them.
NOTICE
.Do not use compound agents on
clear-coated dry carbon fiber parts
(such as the NISMO model's bum-
per, side sill protector, rear spoiler,
etc.) .
. Do not use any chemical agents
(wax, coating agent, compound
agent, etc.) on matte-painted dry
carbon fiber parts (such as the rear
diffuser, a rear spoiler that is of
specifications other than NISMO,
etc.) .
. When dry carbon fiber parts become
dirty, prepare a dilute cleaning solu- tion by mixing one capful of mild
detergent in a bucket of water, and
use that mixture to clean the parts.
NOTE:
The surfaces of the dry carbon fiber parts
are lightly coated like a race car so that
you can feel the proper texture of real
carbon, which may feel rough. This is
normal.
Page 296 of 386
> ( G L W 0 R G H O 0 < 1 , 6 6 $ 1 * 7 5 5 2 0 ( 5 8 @

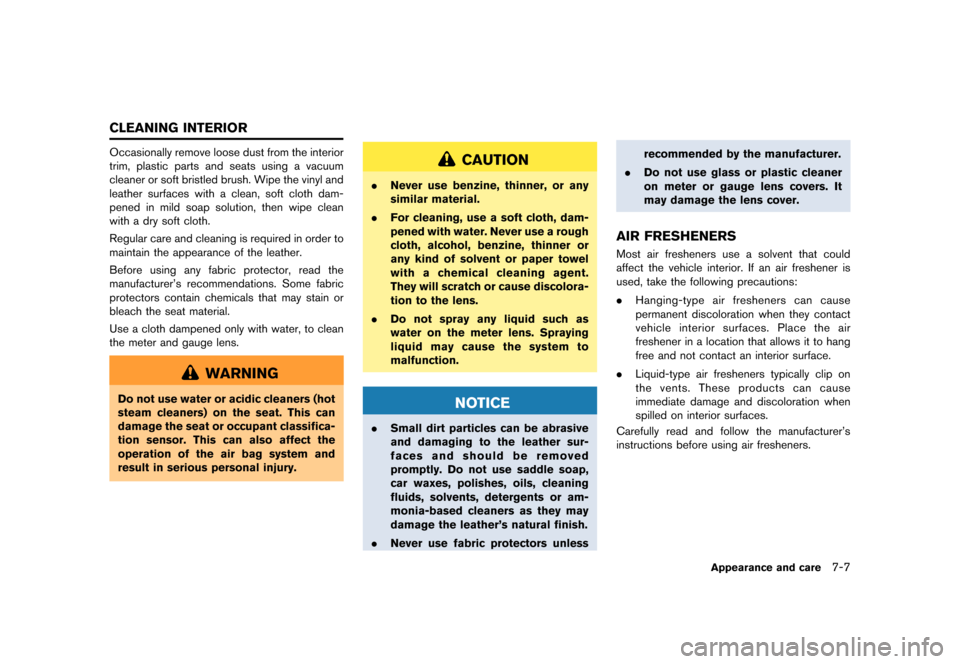

GUID-587A05EB-B746-44D9-9B00-E538B96ADC8COccasionally remove loose dust from the interior
trim, plastic parts and seats using a vacuum
cleaner or soft bristled brush. Wipe the vinyl and
leather surfaces with a clean, soft cloth dam-
pened in mild soap solution, then wipe clean
with a dry soft cloth.
Regular care and cleaning is required in order to
maintain the appearance of the leather.
Before using any fabric protector, read the
manufacturer's recommendations. Some fabric
protectors contain chemicals that may stain or
bleach the seat material.
Use a cloth dampened only with water, to clean
the meter and gauge lens.
WARNING
Do not use water or acidic cleaners (hot
steam cleaners) on the seat. This can
damage the seat or occupant classifica-
tion sensor. This can also affect the
operation of the air bag system and
result in serious personal injury.
CAUTION
.Never use benzine, thinner, or any
similar material.
. For cleaning, use a soft cloth, dam-
pened with water. Never use a rough
cloth, alcohol, benzine, thinner or
any kind of solvent or paper towel
with a chemical cleaning agent.
They will scratch or cause discolora-
tion to the lens.
. Do not spray any liquid such as
water on the meter lens. Spraying
liquid may cause the system to
malfunction.
NOTICE
.Small dirt particles can be abrasive
and damaging to the leather sur-
faces and should be removed
promptly. Do not use saddle soap,
car waxes, polishes, oils, cleaning
fluids, solvents, detergents or am-
monia-based cleaners as they may
damage the leather's natural finish.
. Never use fabric protectors unless recommended by the manufacturer.
. Do not use glass or plastic cleaner
on meter or gauge lens covers. It
may damage the lens cover.
AIR FRESHENERSGUID-08869D0A-DE23-4918-9E2F-A4B3C4A445B8Most air fresheners use a solvent that could
affect the vehicle interior. If an air freshener is
used, take the following precautions:
.Hanging-type air fresheners can cause
permanent discoloration when they contact
vehicle interior surfaces. Place the air
freshener in a location that allows it to hang
free and not contact an interior surface.
. Liquid-type air fresheners typically clip on
the vents. These products can cause
immediate damage and discoloration when
spilled on interior surfaces.
Carefully read and follow the manufacturer's
instructions before using air fresheners.
Appearance and care7-7
CLEANING INTERIOR
Page 297 of 386
> ( G L W 0 R G H O 0 < 1 , 6 6 $ 1 * 7 5 5 2 0 ( 5 8 @
7-8Appearance and care

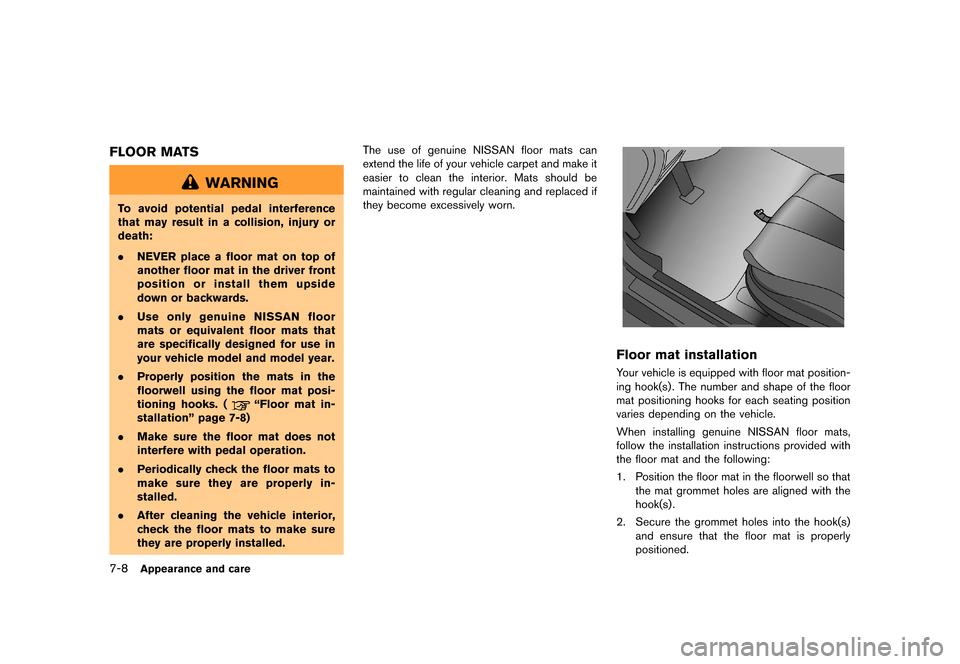

FLOOR MATSGUID-EC8FCCBC-D4B8-4D06-AE34-2F6A9E13C4FD
WARNING
To avoid potential pedal interference
that may result in a collision, injury or
death:
.NEVER place a floor mat on top of
another floor mat in the driver front
position or install them upside
down or backwards.
. Use only genuine NISSAN floor
mats or equivalent floor mats that
are specifically designed for use in
your vehicle model and model year.
. Properly position the mats in the
floorwell using the floor mat posi-
tioning hooks. (
ªFloor mat in-
stallationº page 7-8)
. Make sure the floor mat does not
interfere with pedal operation.
. Periodically check the floor mats to
make sure they are properly in-
stalled.
. After cleaning the vehicle interior,
check the floor mats to make sure
they are properly installed. The use of genuine NISSAN floor mats can
extend the life of your vehicle carpet and make it
easier to clean the interior. Mats should be
maintained with regular cleaning and replaced if
they become excessively worn.
GAC0006
Floor mat installationGUID-7A94A420-550F-4378-8CF8-2DFDDBA6765BYour vehicle is equipped with floor mat position-
ing hook(s) . The number and shape of the floor
mat positioning hooks for each seating position
varies depending on the vehicle.
When installing genuine NISSAN floor mats,
follow the installation instructions provided with
the floor mat and the following:
1. Position the floor mat in the floorwell so that
the mat grommet holes are aligned with the
hook(s) .
2. Secure the grommet holes into the hook(s) and ensure that the floor mat is properly
positioned.
Page 298 of 386
> ( G L W 0 R G H O 0 < 1 , 6 6 $ 1 * 7 5 5 2 0 ( 5 8 @

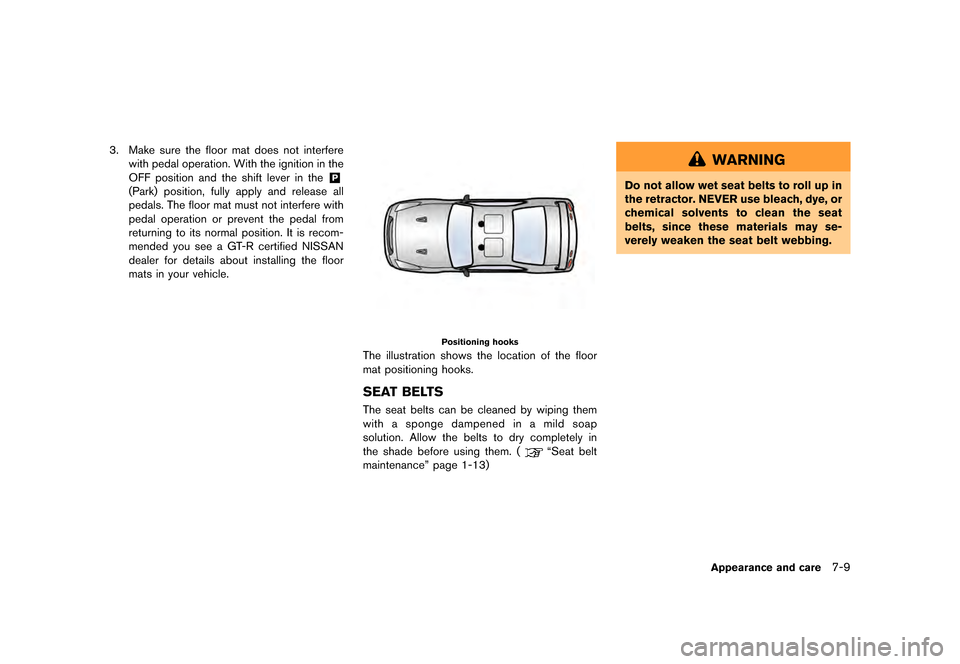

3. Make sure the floor mat does not interferewith pedal operation. With the ignition in the
OFF position and the shift lever in the
&P
(Park) position, fully apply and release all
pedals. The floor mat must not interfere with
pedal operation or prevent the pedal from
returning to its normal position. It is recom-
mended you see a GT-R certified NISSAN
dealer for details about installing the floor
mats in your vehicle.
JVA0006X
Positioning hooks
The illustration shows the location of the floor
mat positioning hooks.
SEAT BELTSGUID-C267C71E-8643-4CFA-9AC2-7E5A65E3B545The seat belts can be cleaned by wiping them
with a sponge dampened in a mild soap
solution. Allow the belts to dry completely in
the shade before using them. (
ªSeat belt
maintenanceº page 1-13)
WARNING
Do not allow wet seat belts to roll up in
the retractor. NEVER use bleach, dye, or
chemical solvents to clean the seat
belts, since these materials may se-
verely weaken the seat belt webbing.
Appearance and care7-9
Page 299 of 386
> ( G L W 0 R G H O 0 < 1 , 6 6 $ 1 * 7 5 5 2 0 ( 5 8 @
7-10Appearance and care
GAC0005

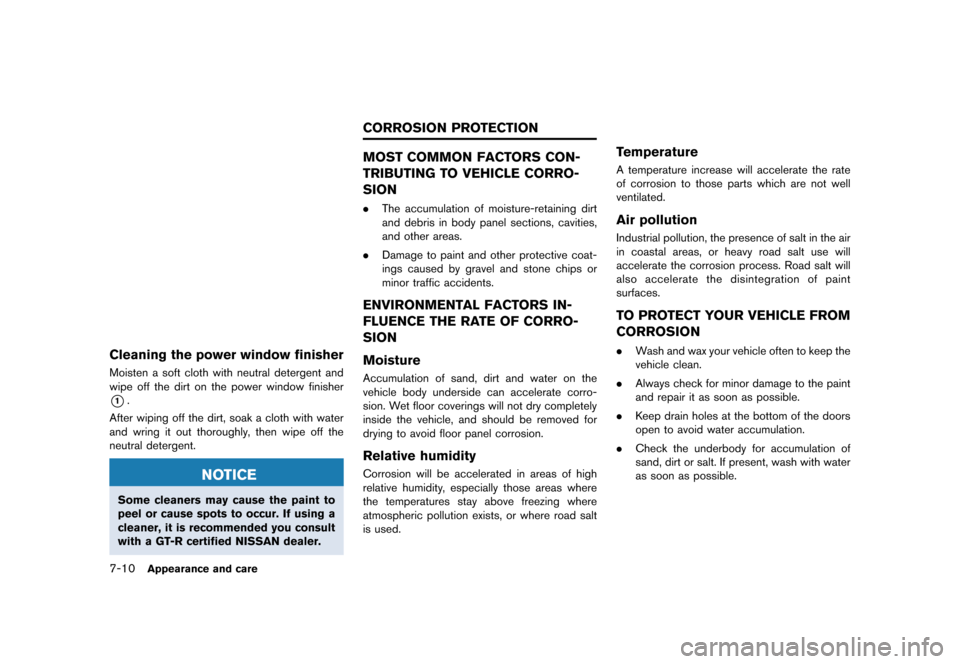

Cleaning the power window finisherGUID-4406CA4F-B330-470C-ABAE-D90A3334ABDDMoisten a soft cloth with neutral detergent and
wipe off the dirt on the power window finisher
*1.
After wiping off the dirt, soak a cloth with water
and wring it out thoroughly, then wipe off the
neutral detergent.
NOTICE
Some cleaners may cause the paint to
peel or cause spots to occur. If using a
cleaner, it is recommended you consult
with a GT-R certified NISSAN dealer.
GUID-B970C1C5-D3A1-4C15-B518-E922FCEE496C
MOST COMMON FACTORS CON-
TRIBUTING TO VEHICLE CORRO-
SION
GUID-7A151D9E-D588-4251-8D20-4D2F2E257DA9. The accumulation of moisture-retaining dirt
and debris in body panel sections, cavities,
and other areas.
. Damage to paint and other protective coat-
ings caused by gravel and stone chips or
minor traffic accidents.
ENVIRONMENTAL FACTORS IN-
FLUENCE THE RATE OF CORRO-
SION
GUID-277B6C42-E46B-4C04-95B8-D0C538E853B3
MoistureGUID-C93C1A17-821D-4EF7-9691-D9EF6CDDA506Accumulation of sand, dirt and water on the
vehicle body underside can accelerate corro-
sion. Wet floor coverings will not dry completely
inside the vehicle, and should be removed for
drying to avoid floor panel corrosion.
Relative humidityGUID-B625B9E1-0536-4B11-99A9-97A1EADE7CE6Corrosion will be accelerated in areas of high
relative humidity, especially those areas where
the temperatures stay above freezing where
atmospheric pollution exists, or where road salt
is used.
TemperatureGUID-5221CCD2-9768-41EB-AFE4-BE246D0DDF1AA temperature increase will accelerate the rate
of corrosion to those parts which are not well
ventilated.
Air pollutionGUID-243E0D12-D57A-49A3-B55A-3CEEA95DB4A3Industrial pollution, the presence of salt in the air
in coastal areas, or heavy road salt use will
accelerate the corrosion process. Road salt will
also accelerate the disintegration of paint
surfaces.
TO PROTECT YOUR VEHICLE FROM
CORROSION
GUID-9315A8F3-048A-4979-8020-1AD6BA90A7BA.Wash and wax your vehicle often to keep the
vehicle clean.
. Always check for minor damage to the paint
and repair it as soon as possible.
. Keep drain holes at the bottom of the doors
open to avoid water accumulation.
. Check the underbody for accumulation of
sand, dirt or salt. If present, wash with water
as soon as possible.
CORROSION PROTECTION
Page 300 of 386
> ( G L W 0 R G H O 0 < 1 , 6 6 $ 1 * 7 5 5 2 0 ( 5 8 @

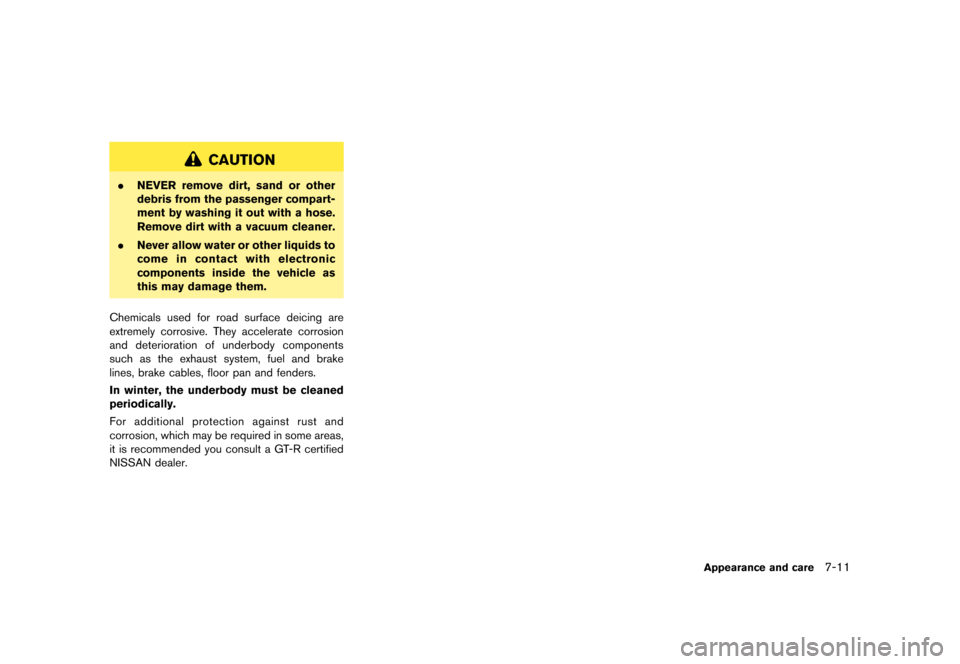

CAUTION
.NEVER remove dirt, sand or other
debris from the passenger compart-
ment by washing it out with a hose.
Remove dirt with a vacuum cleaner.
. Never allow water or other liquids to
come in contact with electronic
components inside the vehicle as
this may damage them.
Chemicals used for road surface deicing are
extremely corrosive. They accelerate corrosion
and deterioration of underbody components
such as the exhaust system, fuel and brake
lines, brake cables, floor pan and fenders.
In winter, the underbody must be cleaned
periodically.
For additional protection against rust and
corrosion, which may be required in some areas,
it is recommended you consult a GT-R certified
NISSAN dealer.
Appearance and care7-11
