.OK:
Completes the character input.
Touch screen maintenanceGUID-A06315D6-6E46-45A2-8099-31B0E0B76BC2If you clean the display screen, use a dry, soft
cloth. If additional cleaning is necessary, use a
small amount of neutral detergent with a soft
cloth. Never spray the screen with water or
detergent. Dampen the cloth first and then wipe
the screen.
HOW TO USE THE BACK BUTTONGUID-3740FEE7-3592-425C-A33E-F3B5A6086A14Push theBACK button to return to the
previous screen.
HOW TO USE BRIGHTNESS CON-
TROL AND DISPLAY ON/OFF BUTTON
GUID-5C8B1E99-76BC-4973-B280-12CEBBF52F12To change the display brightness, push the
button. Pushing the button again will change the
display to the day or the night display.
If no operation is performed within 5 seconds,
the display will return to the previous display.
Push and hold the
button for more than two
seconds to turn the display off. Push the button
again to turn the display on.
SAA3390
HOW TO USE THE SETUP BUTTONGUID-446AA637-171D-454C-8490-20F3BA575AD2When the SETUP button is pushed, the Setup
screen will appear on the display. You can select
and/or adjust several functions, features and
modes that are available for your vehicle.
SAA3423
Audio setupGUID-202AEEA4-723F-43FA-BBF0-B9676A7F0A5ASelect the “Audio” key to adjust the following
items to the preferred setting. These settings
can also be displayed by pushing the AUDIO
button (TUNE/SCROLL knob).
Bass, Treble, Balance and Fade:
GUID-3448E018-0BC4-4D17-AD0E-3BB850F23C53Controls the sound of the audio system. Balance
adjusts the sound between the left and right
speakers. Fade adjusts the sound between the
front and rear speakers.
Speed Volume:
GUID-3448E018-0BC4-4D17-AD0E-3BB850F23C53Controls the level to which the volume is
adjusted as the vehicle’s driving speed changes.
Choose a setting between 1 and 5 or choose 0
Heater, air conditioner, audio and phone systems4-5
Condition:
Page 152 of 347
Black plate (150,1)
[ Edit: 2012/ 6/ 29 Model: F15-D ]
4-6Heater, air conditioner, audio and phone systems

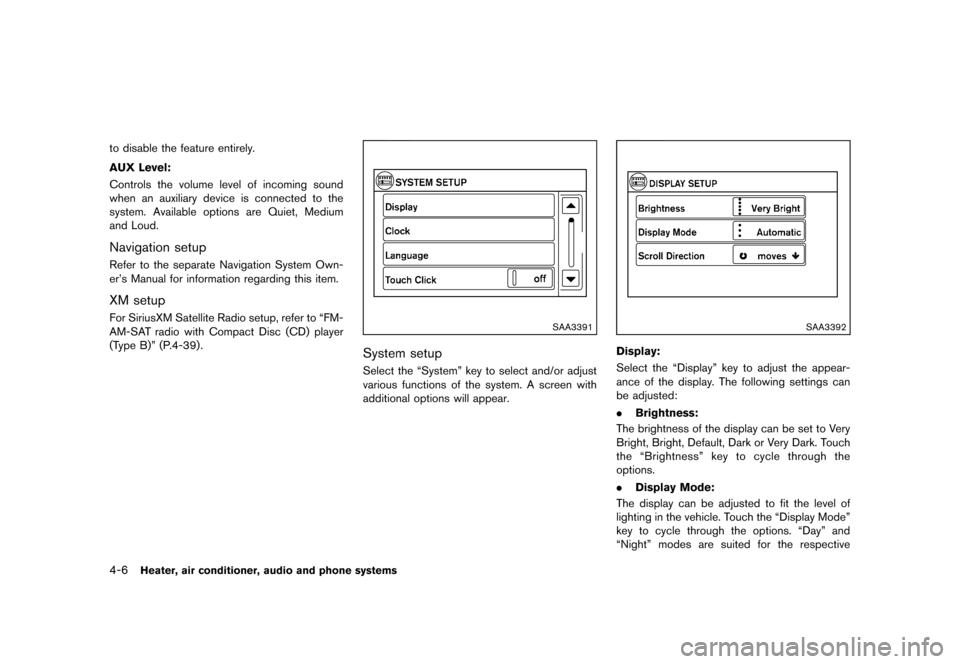

to disable the feature entirely.
AUX Level:
GUID-3448E018-0BC4-4D17-AD0E-3BB850F23C53Controls the volume level of incoming sound
when an auxiliary device is connected to the
system. Available options are Quiet, Medium
and Loud.
Navigation setupGUID-3EFB012C-F2C5-41F3-BBBB-4485DDADCA81Refer to the separate Navigation System Own-
er’s Manual for information regarding this item.
XM setupGUID-11A982AF-5034-427F-9B90-77832221F770For SiriusXM Satellite Radio setup, refer to “FM-
AM-SAT radio with Compact Disc (CD) player
(Type B)” (P.4-39).SAA3391
System setupGUID-AADB642F-B2B4-44E5-97CC-DC2DAA28F744Select the “System” key to select and/or adjust
various functions of the system. A screen with
additional options will appear.
SAA3392
Display:GUID-3448E018-0BC4-4D17-AD0E-3BB850F23C53Select the “Display” key to adjust the appear-
ance of the display. The following settings can
be adjusted:
.Brightness:
The brightness of the display can be set to Very
Bright, Bright, Default, Dark or Very Dark. Touch
the “Brightness” key to cycle through the
options.
. Display Mode:
The display can be adjusted to fit the level of
lighting in the vehicle. Touch the “Display Mode”
key to cycle through the options. “Day” and
“Night” modes are suited for the respective
Condition:
Page 153 of 347
Black plate (151,1)
[ Edit: 2012/ 6/ 29 Model: F15-D ]

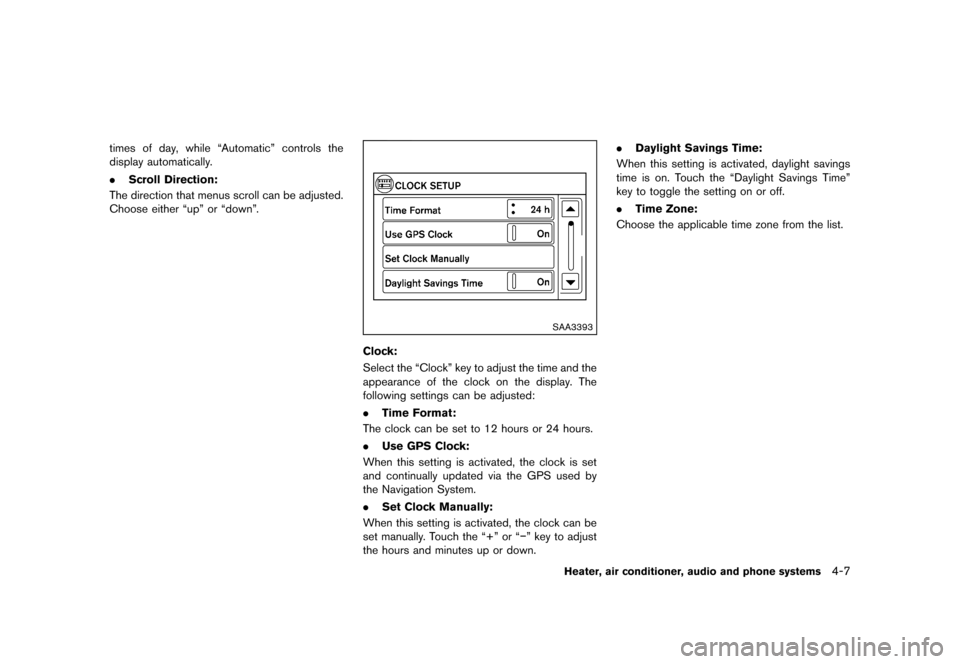

times of day, while “Automatic” controls the
display automatically.
.Scroll Direction:
The direction that menus scroll can be adjusted.
Choose either “up” or “down”.
SAA3393
Clock:GUID-3448E018-0BC4-4D17-AD0E-3BB850F23C53Select the “Clock” key to adjust the time and the
appearance of the clock on the display. The
following settings can be adjusted:
. Time Format:
The clock can be set to 12 hours or 24 hours.
. Use GPS Clock:
When this setting is activated, the clock is set
and continually updated via the GPS used by
the Navigation System.
. Set Clock Manually:
When this setting is activated, the clock can be
set manually. Touch the “+” or “−” key to adjust
the hours and minutes up or down. .
Daylight Savings Time:
When this setting is activated, daylight savings
time is on. Touch the “Daylight Savings Time”
key to toggle the setting on or off.
. Time Zone:
Choose the applicable time zone from the list.
Heater, air conditioner, audio and phone systems4-7
Condition:
Page 154 of 347
Black plate (152,1)
[ Edit: 2012/ 6/ 29 Model: F15-D ]

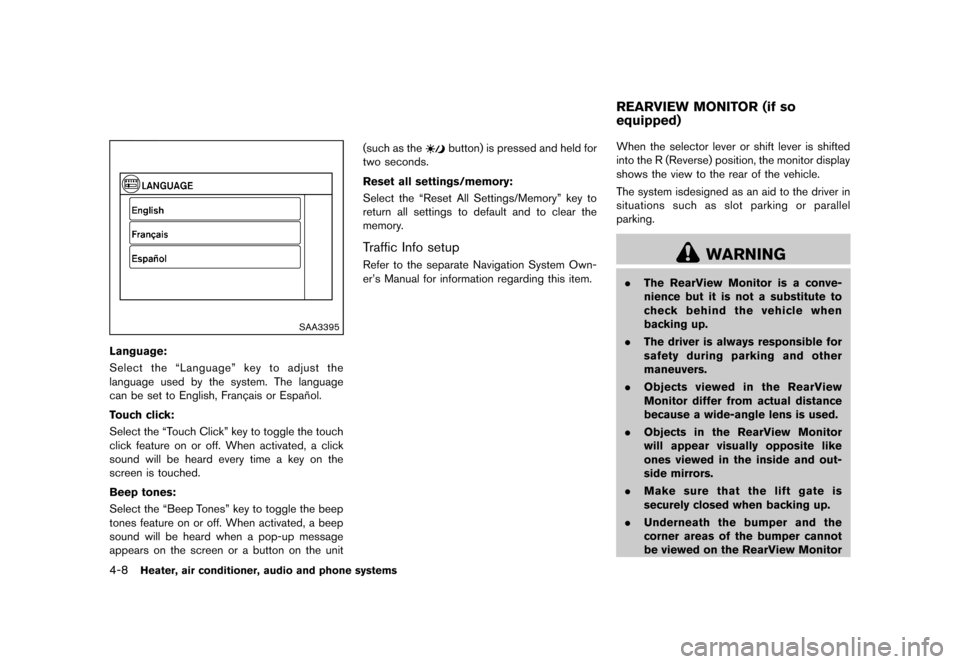

4-8Heater, air conditioner, audio and phone systems
SAA3395
Language:GUID-3448E018-0BC4-4D17-AD0E-3BB850F23C53Select the “Language” key to adjust the
language used by the system. The language
can be set to English, Franc¸ ais or Espan˜
ol.
Touch click:
GUID-3448E018-0BC4-4D17-AD0E-3BB850F23C53Select the “Touch Click” key to toggle the touch
click feature on or off. When activated, a click
sound will be heard every time a key on the
screen is touched.
Beep tones:
GUID-3448E018-0BC4-4D17-AD0E-3BB850F23C53Select the “Beep Tones” key to toggle the beep
tones feature on or off. When activated, a beep
sound will be heard when a pop-up message
appears on the screen or a button on the unit (such as the
button) is pressed and held for
two seconds.
Reset all settings/memory:
GUID-3448E018-0BC4-4D17-AD0E-3BB850F23C53Select the “Reset All Settings/Memory” key to
return all settings to default and to clear the
memory.
Traffic Info setupGUID-2B2C7F3D-0740-4693-AF6F-14E43A6C1D6BRefer to the separate Navigation System Own-
er’s Manual for information regarding this item.
GUID-E32CDD38-B834-4D2E-9F15-7E5C88FAB9C5When the selector lever or shift lever is shifted
into the R (Reverse) position, the monitor display
shows the view to the rear of the vehicle.
The system is designed as an aid to the driver in
situations such as slot parking or parallel
parking.
WARNING
. The RearView Monitor is a conve-
nience but it is not a substitute to
check behind the vehicle when
backing up.
. The driver is always responsible for
safety during parking and other
maneuvers.
. Objects viewed in the RearView
Monitor differ from actual distance
because a wide-angle lens is used.
. Objects in the RearView Monitor
will appear visually opposite like
ones viewed in the inside and out-
side mirrors.
. Make sure that the lift gate is
securely closed when backing up.
. Underneath the bumper and the
corner areas of the bumper cannot
be viewed on the RearView Monitor
REARVIEW MONITOR (if so
equipped)
Condition:
Page 155 of 347
Black plate (153,1)
[ Edit: 2012/ 6/ 29 Model: F15-D ]

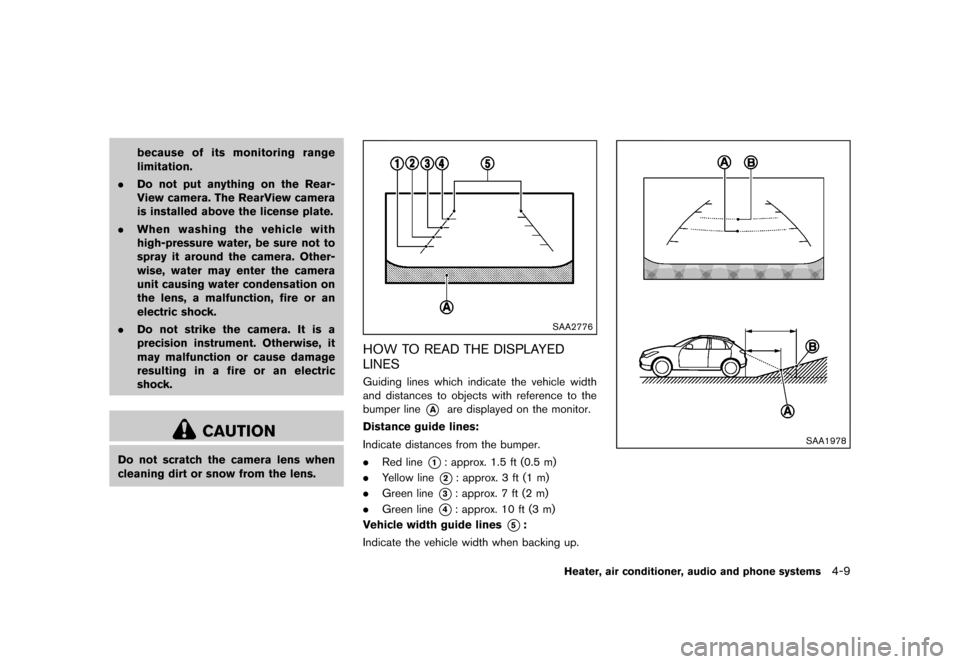

because of its monitoring range
limitation.
. Do not put anything on the Rear-
View camera. The RearView camera
is installed above the license plate.
. When washing the vehicle with
high-pressure water, be sure not to
spray it around the camera. Other-
wise, water may enter the camera
unit causing water condensation on
the lens, a malfunction, fire or an
electric shock.
. Do not strike the camera. It is a
precision instrument. Otherwise, it
may malfunction or cause damage
resulting in a fire or an electric
shock.
CAUTION
Do not scratch the camera lens when
cleaning dirt or snow from the lens.
SAA2776
HOW TO READ THE DISPLAYED
LINES
GUID-D20F3487-0821-4A93-857D-7074E42B5DCEGuiding lines which indicate the vehicle width
and distances to objects with reference to the
bumper line
*Aare displayed on the monitor.
Distance guide lines:
Indicate distances from the bumper.
. Red line
*1: approx. 1.5 ft (0.5 m)
. Yellow line
*2: approx. 3 ft (1 m)
. Green line
*3: approx. 7 ft (2 m)
. Green line
*4: approx. 10 ft (3 m)
Vehicle width guide lines
*5:
Indicate the vehicle width when backing up.
SAA1978
Heater, air conditioner, audio and phone systems4-9
Condition:
Page 156 of 347
Black plate (154,1)
[ Edit: 2012/ 6/ 29 Model: F15-D ]
4-10Heater, air conditioner, audio and phone systems

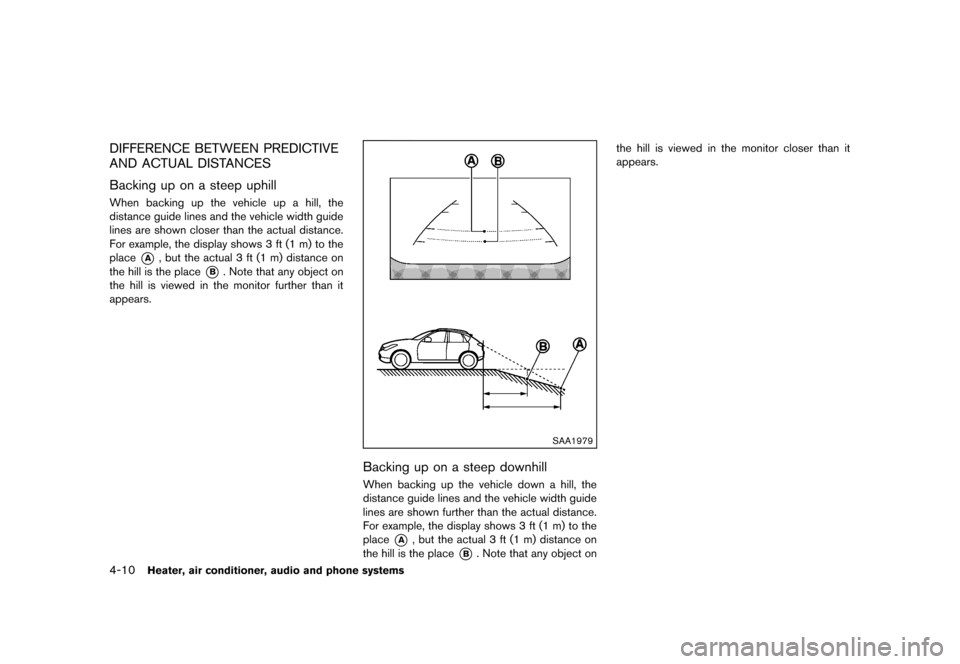

DIFFERENCE BETWEEN PREDICTIVE
AND ACTUAL DISTANCES
GUID-B0CBD45C-C473-4E14-9E08-0ADAA810B264
Backing up on a steep uphillGUID-ABB4F164-EF54-4B24-ACD2-1C3596241898When backing up the vehicle up a hill, the
distance guide lines and the vehicle width guide
lines are shown closer than the actual distance.
For example, the display shows 3 ft (1 m) to the
place
*A, but the actual 3 ft (1 m) distance on
the hill is the place
*B. Note that any object on
the hill is viewed in the monitor further than it
appears.
SAA1979
Backing up on a steep downhillGUID-95A46842-4AE4-436D-95B9-7D9305583349When backing up the vehicle down a hill, the
distance guide lines and the vehicle width guide
lines are shown further than the actual distance.
For example, the display shows 3 ft (1 m) to the
place
*A, but the actual 3 ft (1 m) distance on
the hill is the place
*B. Note that any object on the hill is viewed in the monitor closer than it
appears.
Condition:
Page 157 of 347
Black plate (155,1)
[ Edit: 2012/ 6/ 29 Model: F15-D ]
SAA3440

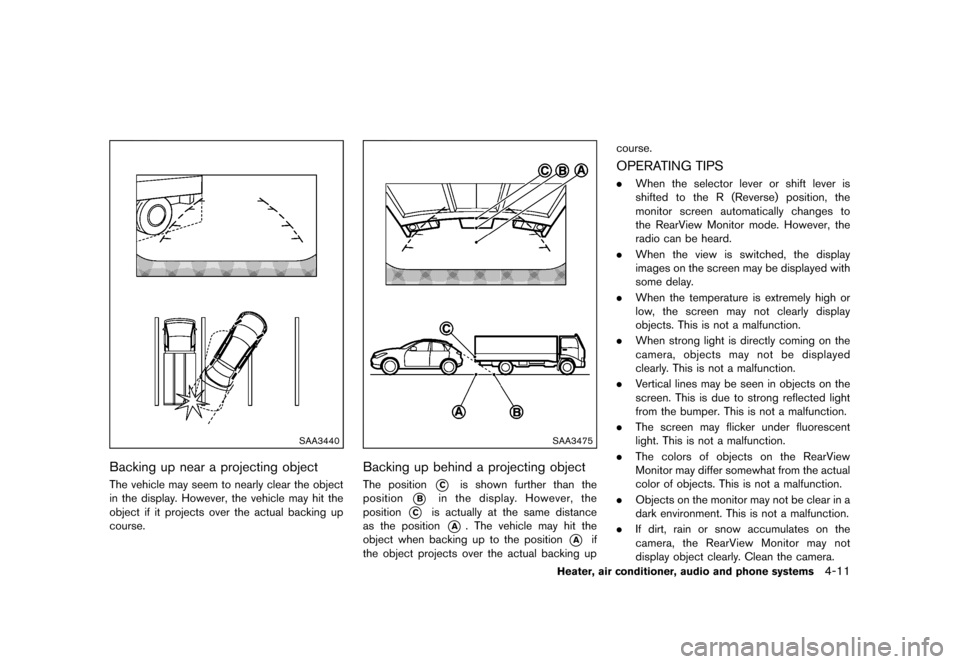

Backing up near a projecting objectGUID-F370889E-AE3E-48B1-B16D-CDD8392EB4C2The vehicle may seem to nearly clear the object
in the display. However, the vehicle may hit the
object if it projects over the actual backing up
course.
SAA3475
Backing up behind a projecting objectGUID-70E6106B-86E9-438A-A902-BC87B53ECD27The position*Cis shown further than the
position
*Bin the display. However, the
position
*Cis actually at the same distance
as the position
*A. The vehicle may hit the
object when backing up to the position
*Aif
the object projects over the actual backing up course.
OPERATING TIPSGUID-EFFF2C63-07DF-4C45-BC34-87E0A099AC03.
When the selector lever or shift lever is
shifted to the R (Reverse) position, the
monitor screen automatically changes to
the RearView Monitor mode. However, the
radio can be heard.
. When the view is switched, the display
images on the screen may be displayed with
some delay.
. When the temperature is extremely high or
low, the screen may not clearly display
objects. This is not a malfunction.
. When strong light is directly coming on the
camera, objects may not be displayed
clearly. This is not a malfunction.
. Vertical lines may be seen in objects on the
screen. This is due to strong reflected light
from the bumper. This is not a malfunction.
. The screen may flicker under fluorescent
light. This is not a malfunction.
. The colors of objects on the RearView
Monitor may differ somewhat from the actual
color of objects. This is not a malfunction.
. Objects on the monitor may not be clear in a
dark environment. This is not a malfunction.
. If dirt, rain or snow accumulates on the
camera, the RearView Monitor may not
display object clearly. Clean the camera.
Heater, air conditioner, audio and phone systems4-11
Condition:
Page 158 of 347
Black plate (156,1)
[ Edit: 2012/ 6/ 29 Model: F15-D ]
4-12Heater, air conditioner, audio and phone systems

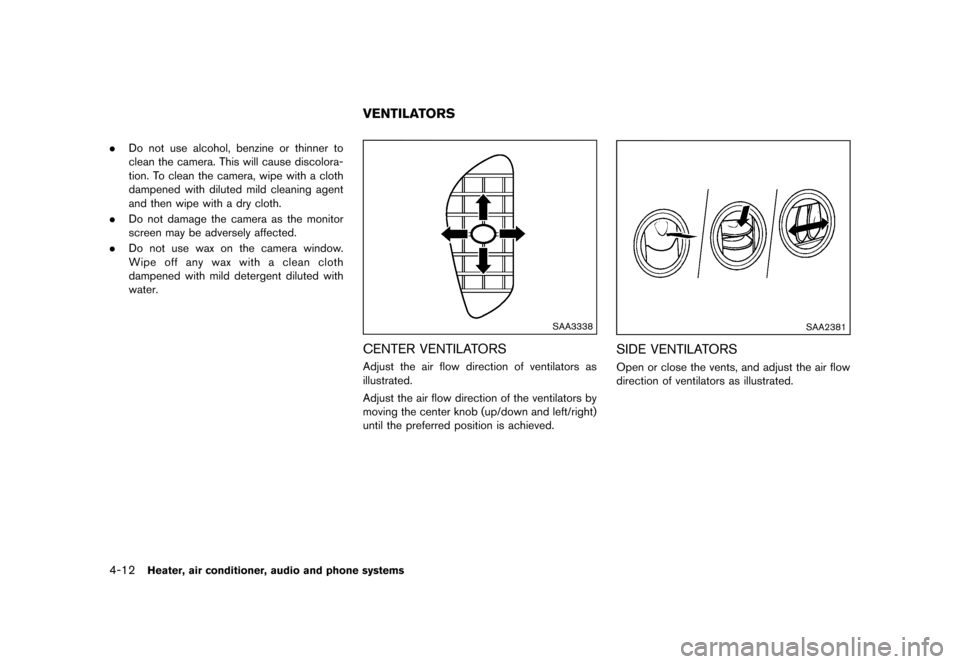

.Do not use alcohol, benzine or thinner to
clean the camera. This will cause discolora-
tion. To clean the camera, wipe with a cloth
dampened with diluted mild cleaning agent
and then wipe with a dry cloth.
. Do not damage the camera as the monitor
screen may be adversely affected.
. Do not use wax on the camera window.
Wipe off any wax with a clean cloth
dampened with mild detergent diluted with
water.
GUID-61D1CD55-228C-4E52-9461-782B71C38C8B
SAA3338
CENTER VENTILATORSGUID-64E14B11-BF5F-4D35-97C4-552604CBA3E1Adjust the air flow direction of ventilators as
illustrated.
Adjust the air flow direction of the ventilators by
moving the center knob (up/down and left/right)
until the preferred position is achieved.
SAA2381
SIDE VENTILATORSGUID-032F27BA-821C-405D-8DDF-C8E8265CDAB1Open or close the vents, and adjust the air flow
direction of ventilators as illustrated.
VENTILATORS
Condition:
Page 159 of 347
Black plate (157,1)
[ Edit: 2012/ 6/ 29 Model: F15-D ]
GUID-F6744F12-5D11-4E4D-82E1-CE3DF32B9B61

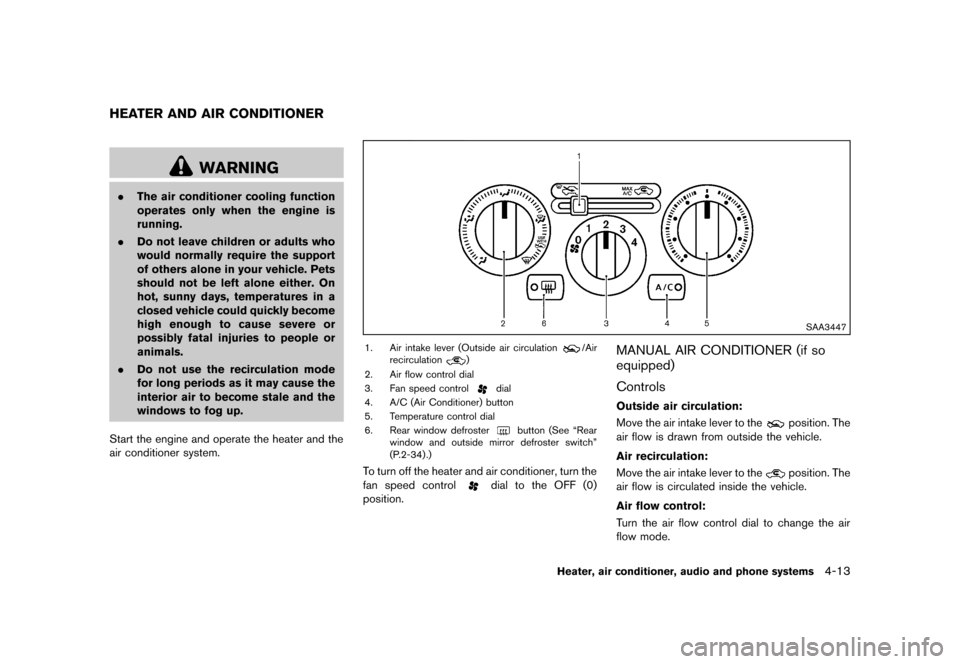

WARNING
.The air conditioner cooling function
operates only when the engine is
running.
. Do not leave children or adults who
would normally require the support
of others alone in your vehicle. Pets
should not be left alone either. On
hot, sunny days, temperatures in a
closed vehicle could quickly become
high enough to cause severe or
possibly fatal injuries to people or
animals.
. Do not use the recirculation mode
for long periods as it may cause the
interior air to become stale and the
windows to fog up.
Start the engine and operate the heater and the
air conditioner system.
SAA3447
1. Air intake lever (Outside air circulation/Air
recirculation)
2. Air flow control dial
3. Fan speed control
dial
4. A/C (Air Conditioner) button
5. Temperature control dial
6. Rear window defroster
button (See “Rear
window and outside mirror defroster switch”
(P.2-34) .)
To turn off the heater and air conditioner, turn the
fan speed control
dial to the OFF (0)
position.
MANUAL AIR CONDITIONER (if so
equipped)
GUID-0B7EAAF5-3B63-4A28-A9B4-0A19613BC0A2
ControlsGUID-3448E018-0BC4-4D17-AD0E-3BB850F23C53
Outside air circulation:GUID-3448E018-0BC4-4D17-AD0E-3BB850F23C53Move the air intake lever to theposition. The
air flow is drawn from outside the vehicle.
Air recirculation:
GUID-3448E018-0BC4-4D17-AD0E-3BB850F23C53Move the air intake lever to theposition. The
air flow is circulated inside the vehicle.
Air flow control:
GUID-3448E018-0BC4-4D17-AD0E-3BB850F23C53Turn the air flow control dial to change the air
flow mode.
Heater, air conditioner, audio and phone systems4-13
HEATER AND AIR CONDITIONER
Condition:
Page 160 of 347
Black plate (158,1)
[ Edit: 2012/ 6/ 29 Model: F15-D ]
4-14Heater, air conditioner, audio and phone systems

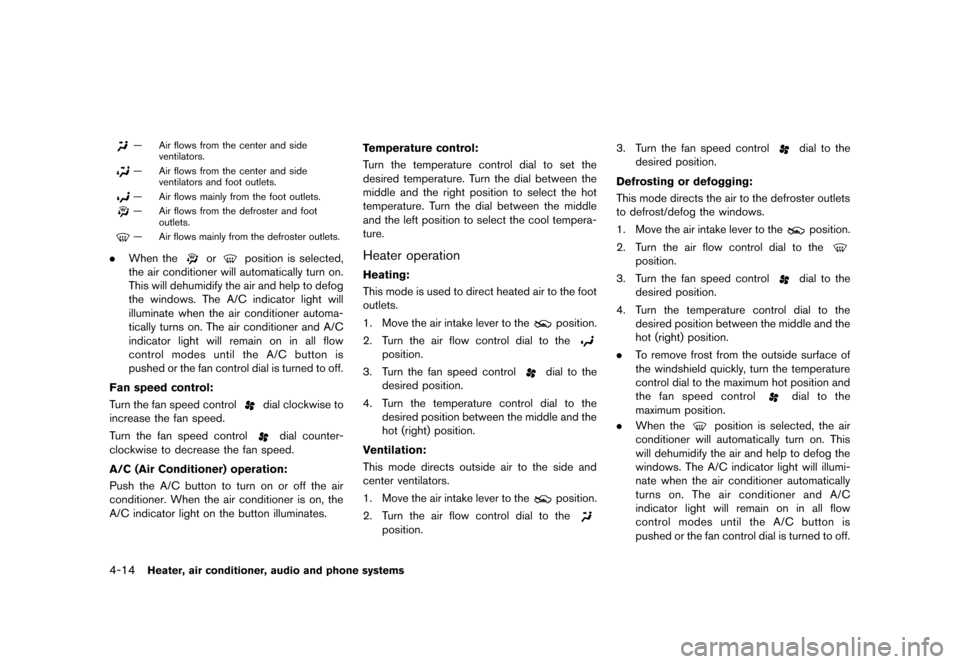

— Air flows from the center and sideventilators.
— Air flows from the center and sideventilators and foot outlets.
— Air flows mainly from the foot outlets.
— Air flows from the defroster and footoutlets.
— Air flows mainly from the defroster outlets.
.When theorposition is selected,
the air conditioner will automatically turn on.
This will dehumidify the air and help to defog
the windows. The A/C indicator light will
illuminate when the air conditioner automa-
tically turns on. The air conditioner and A/C
indicator light will remain on in all flow
control modes until the A/C button is
pushed or the fan control dial is turned to off.
Fan speed control:
GUID-3448E018-0BC4-4D17-AD0E-3BB850F23C53Turn the fan speed controldial clockwise to
increase the fan speed.
Turn the fan speed control
dial counter-
clockwise to decrease the fan speed.
A/C (Air Conditioner) operation:
GUID-3448E018-0BC4-4D17-AD0E-3BB850F23C53Push the A/C button to turn on or off the air
conditioner. When the air conditioner is on, the
A/C indicator light on the button illuminates. Temperature control:
GUID-3448E018-0BC4-4D17-AD0E-3BB850F23C53Turn the temperature control dial to set the
desired temperature. Turn the dial between the
middle and the right position to select the hot
temperature. Turn the dial between the middle
and the left position to select the cool tempera-
ture.
Heater operationGUID-C8150974-E365-4C3D-88F2-33DCA6CCD2F4
Heating:GUID-3448E018-0BC4-4D17-AD0E-3BB850F23C53This mode is used to direct heated air to the foot
outlets.
1. Move the air intake lever to the
position.
2. Turn the air flow control dial to the
position.
3. Turn the fan speed control
dial to the
desired position.
4. Turn the temperature control dial to the desired position between the middle and the
hot (right) position.
Ventilation:
GUID-3448E018-0BC4-4D17-AD0E-3BB850F23C53This mode directs outside air to the side and
center ventilators.
1. Move the air intake lever to the
position.
2. Turn the air flow control dial to the
position. 3. Turn the fan speed control
dial to the
desired position.
Defrosting or defogging:
GUID-3448E018-0BC4-4D17-AD0E-3BB850F23C53This mode directs the air to the defroster outlets
to defrost/defog the windows.
1. Move the air intake lever to the
position.
2. Turn the air flow control dial to the
position.
3. Turn the fan speed control
dial to the
desired position.
4. Turn the temperature control dial to the desired position between the middle and the
hot (right) position.
. To remove frost from the outside surface of
the windshield quickly, turn the temperature
control dial to the maximum hot position and
the fan speed control
dial to the
maximum position.
. When the
position is selected, the air
conditioner will automatically turn on. This
will dehumidify the air and help to defog the
windows. The A/C indicator light will illumi-
nate when the air conditioner automatically
turns on. The air conditioner and A/C
indicator light will remain on in all flow
control modes until the A/C button is
pushed or the fan control dial is turned to off.
Condition:
