cause themalfunction indicator
light (MIL) to illuminate. If the
light illuminates because the fuel-
filler cap is loose or missing, tighten
or install the cap and continue to
drive the vehicle. The
light
should turn off after a few driving
trips. If the
light does not turn
off after a few driving trips, have the
vehicle inspected by a NISSAN deal-
er.
For additional information, see
“Malfunction Indicator Light (MIL)”
(P.2-18) .
. The LOOSE FUEL CAP warning
message will be displayed if the
fuel-filler cap is not properly tigh-
tened. It may take a few driving trips
for the message to be displayed.
Failure to tighten the fuel-filler cap
properly after the LOOSE FUEL CAP
warning message is displayed may
cause the
Malfunction Indicator
Light (MIL) to illuminate.
SPA2809

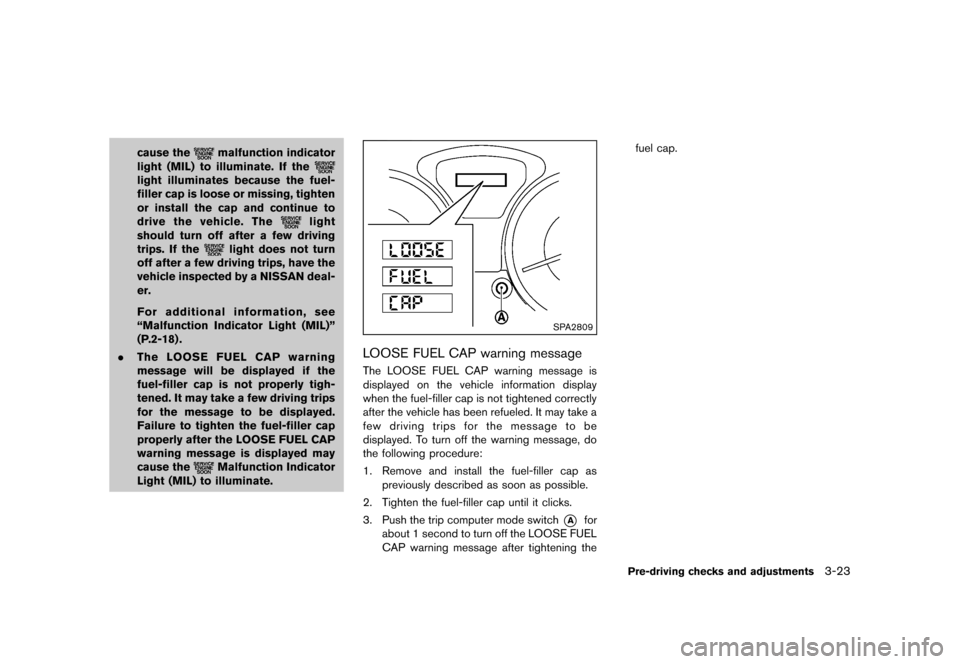

LOOSE FUEL CAP warning messageGUID-4BFF4E6C-EAE8-40A1-BB4E-DA2B6075AAF9The LOOSE FUEL CAP warning message is
displayed on the vehicle information display
when the fuel-filler cap is not tightened correctly
after the vehicle has been refueled. It may take a
few driving trips for the message to be
displayed. To turn off the warning message, do
the following procedure:
1. Remove and install the fuel-filler cap as previously described as soon as possible.
2. Tighten the fuel-filler cap until it clicks.
3. Push the trip computer mode switch
*Afor
about 1 second to turn off the LOOSE FUEL
CAP warning message after tightening the fuel cap.
Pre-driving checks and adjustments3-23
Condition:
Page 142 of 347
Black plate (140,1)
[ Edit: 2012/ 6/ 29 Model: F15-D ]
3-24Pre-driving checks and adjustments
GUID-7AAC6169-F454-4DB3-8227-6004975E411D
WARNING
Do not adjust the steering wheel while
driving. You could lose control of your
vehicle and cause an accident.
SPA2808

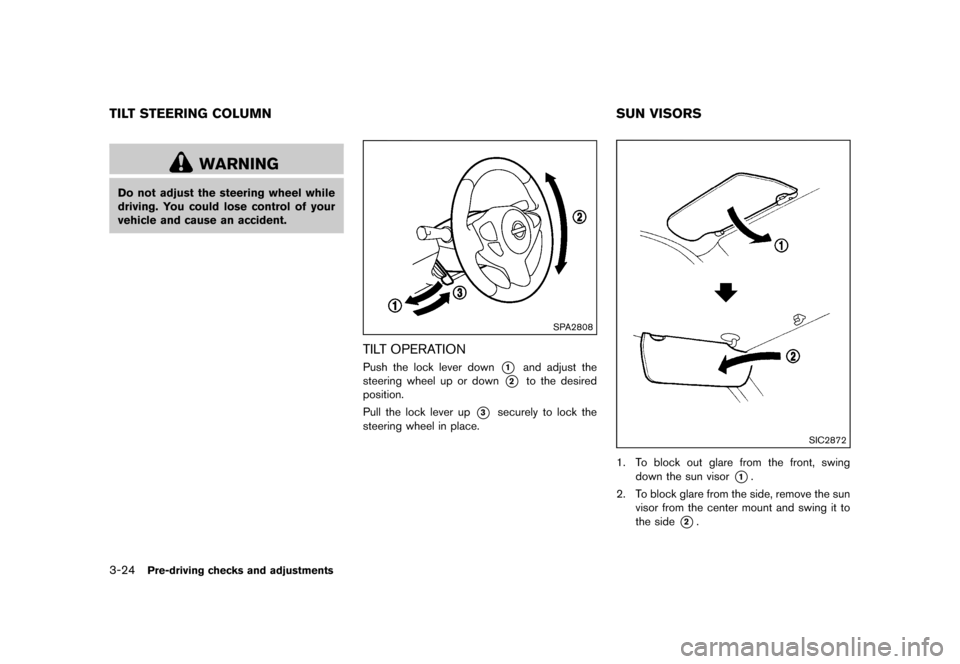

TILT OPERATIONGUID-98D4C859-8310-413D-B671-8D41BD53A06DPush the lock lever down*1and adjust the
steering wheel up or down
*2to the desired
position.
Pull the lock lever up
*3securely to lock the
steering wheel in place.
GUID-0C588194-A689-4766-88CA-BC25DAECEE47
SIC2872
1. To block out glare from the front, swing down the sun visor
*1.
2. To block glare from the side, remove the sun visor from the center mount and swing it to
the side
*2.
TILT STEERING COLUMN SUN VISORS
Condition:
Page 143 of 347
Black plate (141,1)
[ Edit: 2012/ 6/ 29 Model: F15-D ]
GUID-7EFE8433-9BF0-4D21-9989-FB2D38316637
SPA2447

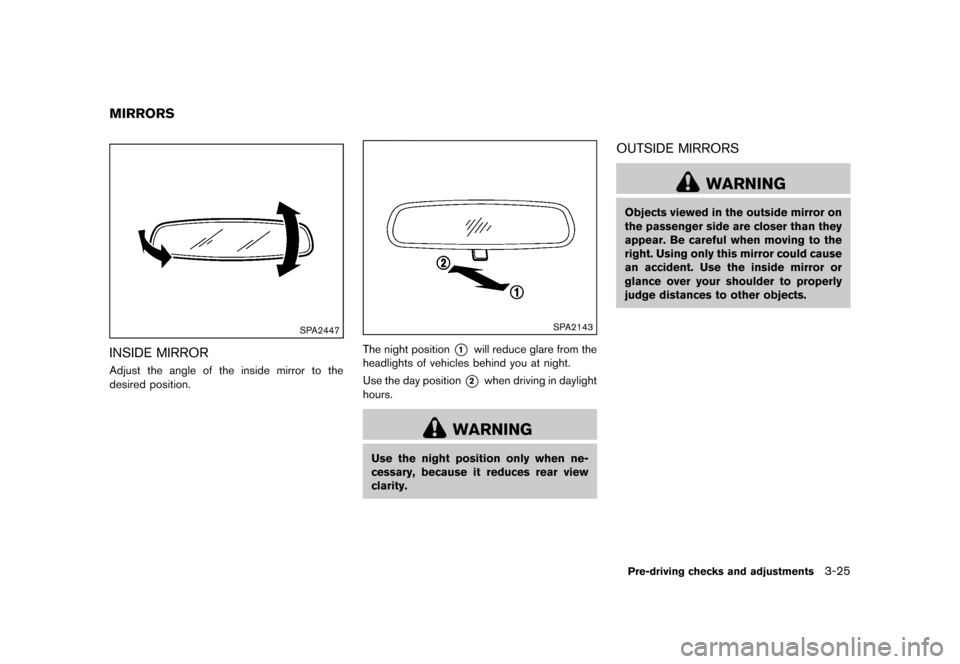

INSIDE MIRRORGUID-9C609EA8-A3B9-4975-983B-54EA13FA811EAdjust the angle of the inside mirror to the
desired position.
SPA2143
The night position*1will reduce glare from the
headlights of vehicles behind you at night.
Use the day position
*2when driving in daylight
hours.
WARNING
Use the night position only when ne-
cessary, because it reduces rear view
clarity.
OUTSIDE MIRRORSGUID-510D14F7-96A8-42DE-A36F-11C39E241D3B
WARNING
Objects viewed in the outside mirror on
the passenger side are closer than they
appear. Be careful when moving to the
right. Using only this mirror could cause
an accident. Use the inside mirror or
glance over your shoulder to properly
judge distances to other objects.
Pre-driving checks and adjustments3-25
MIRRORS
Condition:
Page 144 of 347
Black plate (142,1)
[ Edit: 2012/ 6/ 29 Model: F15-D ]
3-26Pre-driving checks and adjustments
SPA2214

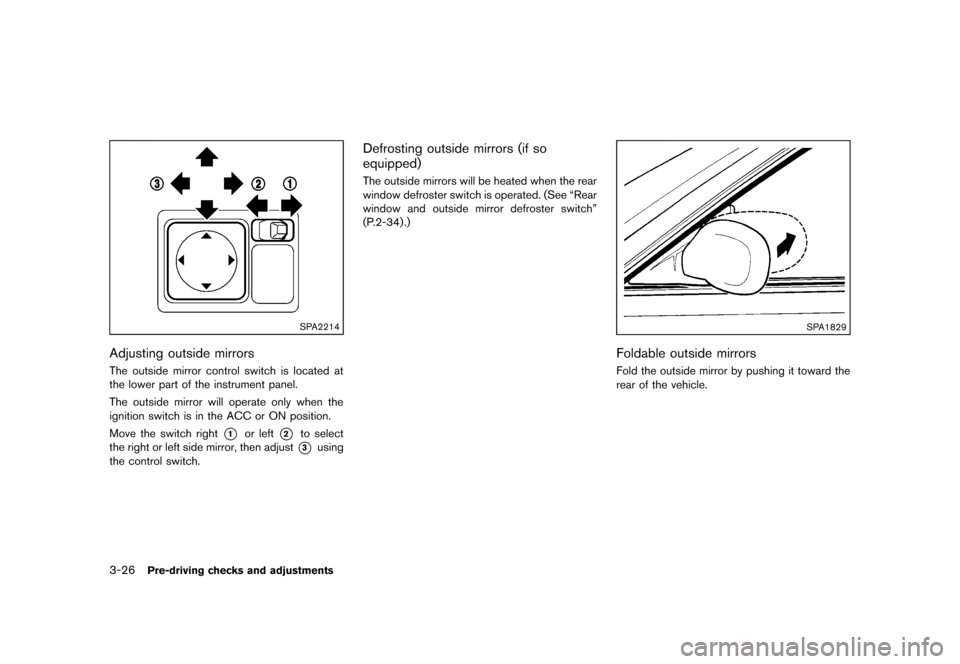

Adjusting outside mirrorsGUID-8B70B968-C9B3-4093-8096-7A9C567F354DThe outside mirror control switch is located at
the lower part of the instrument panel.
The outside mirror will operate only when the
ignition switch is in the ACC or ON position.
Move the switch right
*1or left*2to select
the right or left side mirror, then adjust
*3using
the control switch.
Defrosting outside mirrors (if so
equipped)
GUID-0E6517BD-BCCB-4DB1-84F6-0B2BB7759B83The outside mirrors will be heated when the rear
window defroster switch is operated. (See “Rear
window and outside mirror defroster switch”
(P.2-34) .)
SPA1829
Foldable outside mirrorsGUID-E3E5B6C2-2DF1-49B4-809C-998B5A0A1B3BFold the outside mirror by pushing it toward the
rear of the vehicle.
Condition:
Page 145 of 347
Black plate (143,1)
[ Edit: 2012/ 6/ 29 Model: F15-D ]
SIC3869

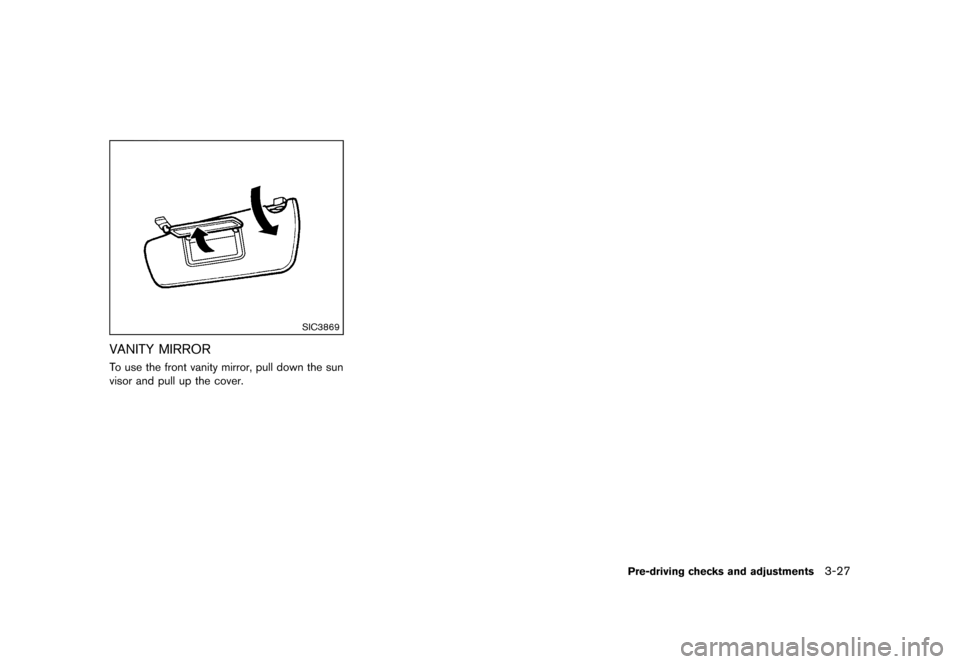

VANITY MIRRORGUID-21E8F75F-AC0C-4F4E-9E32-61A89D0A8B52To use the front vanity mirror, pull down the sun
visor and pull up the cover.
Pre-driving checks and adjustments3-27
Condition:
Page 146 of 347
Black plate (144,1)
[ Edit: 2012/ 6/ 29 Model: F15-D ]
3-28Pre-driving checks and adjustments

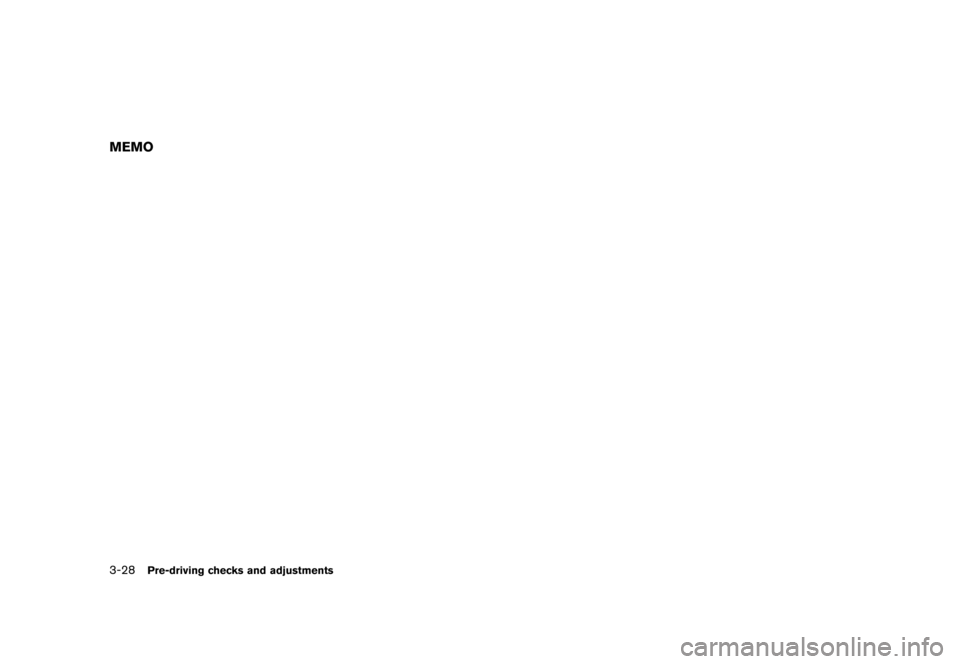

MEMO
Condition:
Page 147 of 347
Black plate (145,1)
[ Edit: 2012/ 6/ 29 Model: F15-D ]
4 Heater, air conditioner, audio and phone sys-tems
Safety note ...
........................................................................\
.......... 4-2
Control panel buttons — color screen with navigation
system (if so equipped) ...
.......................................................... 4-2
How to use touch screen ...
................................................. 4-3
How to use the BACK button ...
......................................... 4-5
How to use brightness control and display
ON/OFF button ...
................................................................... 4-5
How to use the setup button ...
........................................... 4-5
Rearview monitor (if so equipped) ...
....................................... 4-8
How to read the displayed lines ...
..................................... 4-9
Difference between predictive and
actual distances ...
................................................................ 4-10
Operating tips ...
................................................................... 4-11
Ventilators ...
........................................................................\
......... 4-12
Center ventilators ...
............................................................. 4-12
Side ventilators ...
................................................................. 4-12
Heater and air conditioner ...
................................................... 4-13
Manual air conditioner (if so equipped) ...
..................... 4-13
Automatic air conditioner (with Integrated
Control System) ...
............................................................... 4-17
Operating tips (for automatic air conditioner) ...
.......... 4-19 In-cabin microfilter
...
......................................................... 4-19
Servicing air conditioner ...
.............................................. 4-20
Audio system ...
........................................................................\
.. 4-20
Audio operation precautions ...
....................................... 4-20
FM-AM-SAT radio with Compact Disc (CD) player
(Type A) ...
........................................................................\
.... 4-31
FM-AM-SAT radio with Compact Disc (CD) player
(Type B) ...
........................................................................\
.... 4-39
CD/USB memory care and cleaning ...
........................ 4-47
Steering wheel switch for audio control ...
.................. 4-47
Antenna ...
........................................................................\
.... 4-48
Car phone or CB radio ...
........................................................ 4-49
Bluetooth
®Hands-Free Phone System ...
........................... 4-49
Regulatory information ...
.................................................. 4-51
Using the system ...
........................................................... 4-51
Control buttons ...
............................................................... 4-53
Getting started ...
............................................................... 4-54
List of voice commands ...
............................................... 4-55
Speaker Adaptation (SA) mode ...
................................. 4-59
Troubleshooting guide ...
.................................................. 4-61
Condition:
Page 148 of 347
Black plate (146,1)
[ Edit: 2012/ 6/ 29 Model: F15-D ]
4-2Heater, air conditioner, audio and phone systems
GUID-A94094A4-AFB5-4790-B5D0-B9A753AE417A
WARNING
.Do not disassemble or modify this
system. If you do, it may result in
accidents, fire, or electric shock.
. Do not use this system if you notice
any abnormality, such as a frozen
screen or lack of sound. Continued
use of the system may result in
accident, fire or electric shock.
. In case you notice any foreign
object in the system hardware, spill
liquid on it, or notice smoke or smell
coming from it, stop using the
system immediately and contact
your nearest NISSAN dealer. Ignor-
ing such conditions may lead to
accidents, fire, or electric shock.
Do not attempt to operate the system in
extreme temperature conditions [below
−48F (−208C) and above 1588F (708C)].
Operating this system under these condi-
tions may result in system malfunctions.
GUID-E5647B06-BF23-4C28-86BD-1F2657EDCFE0

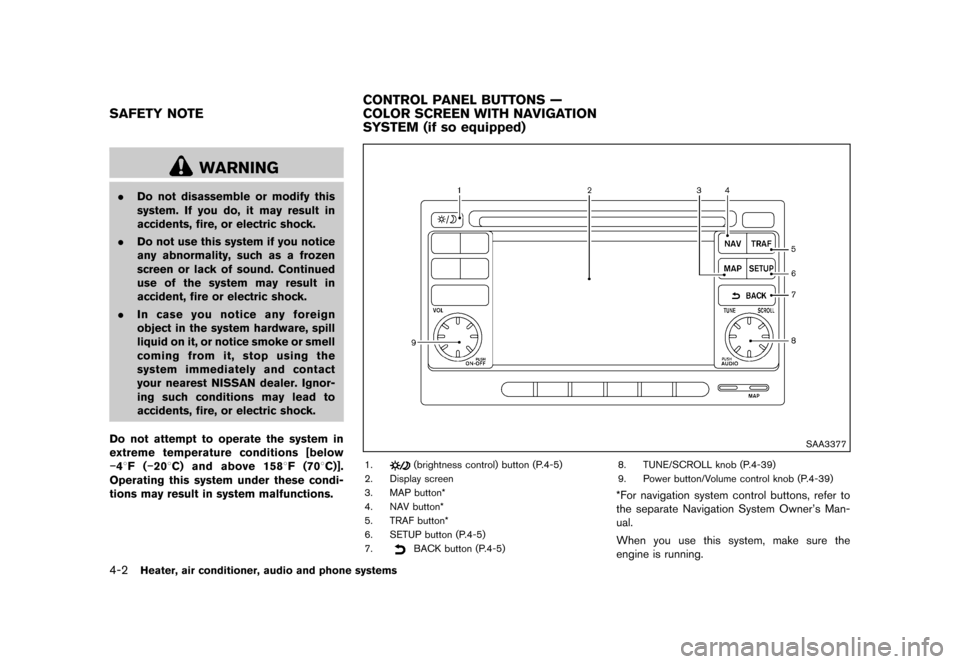

SAA3377
1.(brightness control) button (P.4-5)
2. Display screen
3. MAP button*
4. NAV button*
5. TRAF button*
6. SETUP button (P.4-5)
7.
BACK button (P.4-5) 8. TUNE/SCROLL knob (P.4-39)
9. Power button/Volume control knob (P.4-39)
*For navigation system control buttons, refer to
the separate Navigation System Owner’s Man-
ual.
When you use this system, make sure the
engine is running.
SAFETY NOTE
CONTROL PANEL BUTTONS —
COLOR SCREEN WITH NAVIGATION
SYSTEM (if so equipped)
Condition:
Page 149 of 347
Black plate (147,1)
[ Edit: 2012/ 6/ 29 Model: F15-D ]
If you use the system with the engine not
running (ignition ON or ACC) for a long
time, it will discharge the battery, and the
engine will not start.
Reference symbols:
“Example” — Words marked in quotes refer to a
key shown only on the display. These keys can
be selected by touching the screen.

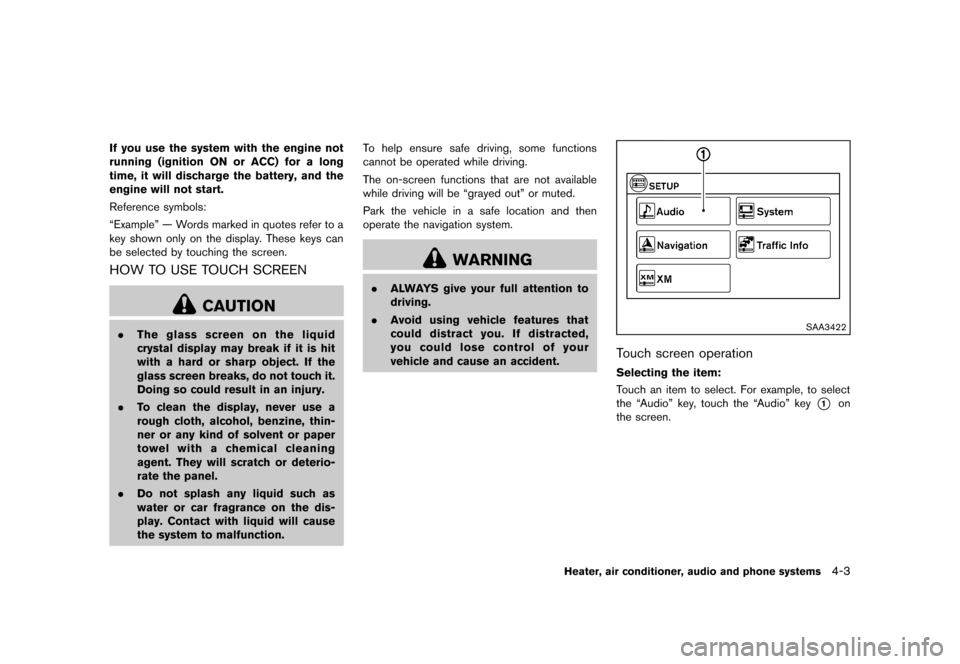

HOW TO USE TOUCH SCREENGUID-7CCFD255-7CCA-4FE0-A64E-C9A30213AA2F
CAUTION
.The glass screen on the liquid
crystal display may break if it is hit
with a hard or sharp object. If the
glass screen breaks, do not touch it.
Doing so could result in an injury.
. To clean the display, never use a
rough cloth, alcohol, benzine, thin-
ner or any kind of solvent or paper
towel with a chemical cleaning
agent. They will scratch or deterio-
rate the panel.
. Do not splash any liquid such as
water or car fragrance on the dis-
play. Contact with liquid will cause
the system to malfunction. To help ensure safe driving, some functions
cannot be operated while driving.
The on-screen functions that are not available
while driving will be “grayed out” or muted.
Park the vehicle in a safe location and then
operate the navigation system.
WARNING
.
ALWAYS give your full attention to
driving.
. Avoid using vehicle features that
could distract you. If distracted,
you could lose control of your
vehicle and cause an accident.
SAA3422
Touch screen operationGUID-CD4EA79D-C541-401C-AA35-FFD7D9FF5056
Selecting the item:GUID-3448E018-0BC4-4D17-AD0E-3BB850F23C53Touch an item to select. For example, to select
the “Audio” key, touch the “Audio” key
*1on
the screen.
Heater, air conditioner, audio and phone systems4-3
Condition:
Page 150 of 347
Black plate (148,1)
[ Edit: 2012/ 6/ 29 Model: F15-D ]
4-4Heater, air conditioner, audio and phone systems
SAA3387

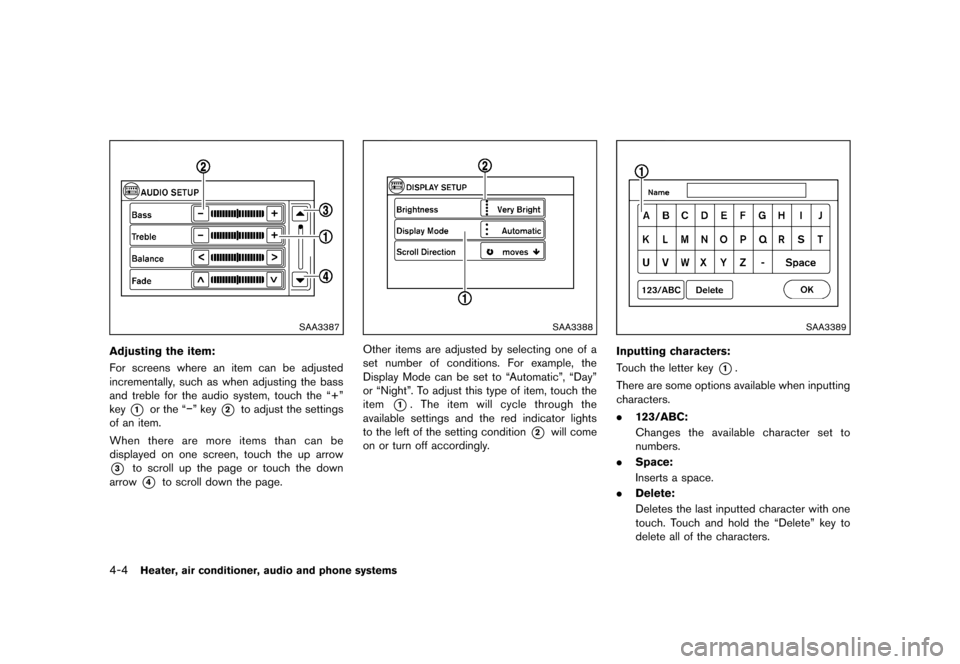

Adjusting the item:GUID-3448E018-0BC4-4D17-AD0E-3BB850F23C53For screens where an item can be adjusted
incrementally, such as when adjusting the bass
and treble for the audio system, touch the “+”
key
*1or the “−” key*2to adjust the settings
of an item.
When there are more items than can be
displayed on one screen, touch the up arrow
*3to scroll up the page or touch the down
arrow
*4to scroll down the page.
SAA3388
Other items are adjusted by selecting one of a
set number of conditions. For example, the
Display Mode can be set to “Automatic”, “Day”
or “Night”. To adjust this type of item, touch the
item
*1. The item will cycle through the
available settings and the red indicator lights
to the left of the setting condition
*2will come
on or turn off accordingly.
SAA3389
Inputting characters:GUID-3448E018-0BC4-4D17-AD0E-3BB850F23C53Touch the letter key*1.
There are some options available when inputting
characters.
. 123/ABC:
Changes the available character set to
numbers.
. Space:
Inserts a space.
. Delete:
Deletes the last inputted character with one
touch. Touch and hold the “Delete” key to
delete all of the characters.
Condition:
