1 Safety Ð Seats, seat belts and supplementalrestraint system
Seats ...
........................................................................\
.................... 1-2
Front seats ...
........................................................................\
.... 1-3
Rear seats ...
........................................................................\
..... 1-4
Head restraints/headrests ...
....................................................... 1-5
Adjustable head restraint/headrest components ...
........ 1-6
Non-adjustable head
restraint/headrest components ...
........................................ 1-7
Remove ...
........................................................................\
.......... 1-7
Install ...
........................................................................\
.............. 1-7
Adjust ...
........................................................................\
............. 1-8
Front-seat Active Head Restraints (if
so equipped) ...
........................................................................\
1-9
Seat belts ...
........................................................................\
......... 1-10
Precautions on seat belt usage ...
.................................... 1-10
Pregnant women ...
.............................................................. 1-12
Injured persons ...
................................................................. 1-12
Three-point type seat belt ...
.............................................. 1-12
Seat belt extenders ...
.......................................................... 1-15
Seat belt maintenance ...
.................................................... 1-16
Child safety ...
........................................................................\
...... 1-16
Infants ...
........................................................................\
.......... 1-17
Small children ...
.................................................................... 1-17
Larger children ...
.................................................................. 1-17 Child restraints
...
....................................................................... 1-18
Precautions on child restraints ...
................................... 1-19
Lower Anchors and Tethers for CHildren
System (LATCH) ...
............................................................ 1-20
Rear-facing child restraint installation
using LATCH ...
................................................................... 1-23
Rear-facing child restraint installation using the
seat belts ...
........................................................................\
.. 1-25
Forward-facing child restraint installation
using LATCH ...
................................................................... 1-28
Forward-facing child restraint installation using the
seat belts ...
........................................................................\
.. 1-31
Booster seats ...
.................................................................. 1-35
Supplemental restraint system ...
........................................... 1-38
Precautions on supplemental restraint system ...
....... 1-38
NISSAN Advanced Air Bag System
(front seats) ...
..................................................................... 1-44
Front seat-mounted side-impact supplemental
air bag and roof-mounted curtain side-impact
supplemental air bag systems ...
.................................... 1-51
Seat belts with pretensioners (front seats) ...
............. 1-52
Supplemental air bag warning labels ...
....................... 1-53
Supplemental air bag warning light ...
.......................... 1-54
Repair and replacement procedure ...
.......................... 1-54
& R Q G L W L R Q
Page 22 of 399
> ( G L W 0 R G H O ) ' @
1-2Safety Ð Seats, seat belts and supplemental restraint system
GUID-9968A6D7-C7DB-4923-8D40-B68E132879F1

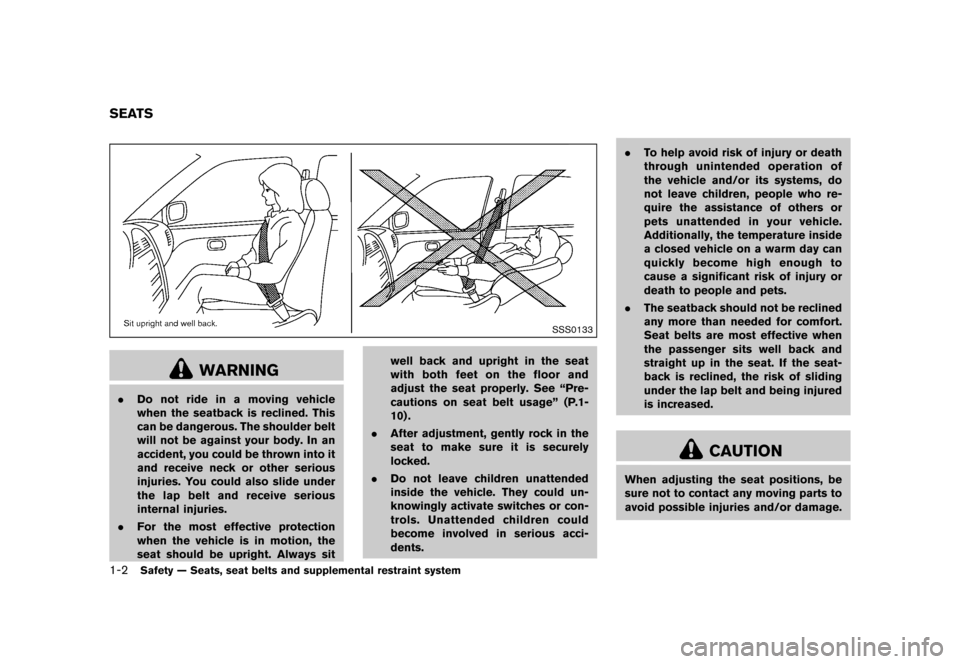

SSS0133
WARNING
.Do not ride in a moving vehicle
when the seatback is reclined. This
can be dangerous. The shoulder belt
will not be against your body. In an
accident, you could be thrown into it
and receive neck or other serious
injuries. You could also slide under
the lap belt and receive serious
internal injuries.
. For the most effective protection
when the vehicle is in motion, the
seat should be upright. Always sit well back and upright in the seat
with both feet on the floor and
adjust the seat properly. See ªPre-
cautions on seat belt usageº (P.1-
10) .
. After adjustment, gently rock in the
seat to make sure it is securely
locked.
. Do not leave children unattended
inside the vehicle. They could un-
knowingly activate switches or con-
trols. Unattended children could
become involved in serious acci-
dents. .
To help avoid risk of injury or death
through unintended operation of
the vehicle and/or its systems, do
not leave children, people who re-
quire the assistance of others or
pets unattended in your vehicle.
Additionally, the temperature inside
a closed vehicle on a warm day can
quickly become high enough to
cause a significant risk of injury or
death to people and pets.
. The seatback should not be reclined
any more than needed for comfort.
Seat belts are most effective when
the passenger sits well back and
straight up in the seat. If the seat-
back is reclined, the risk of sliding
under the lap belt and being injured
is increased.
CAUTION
When adjusting the seat positions, be
sure not to contact any moving parts to
avoid possible injuries and/or damage.
SEATS
& R Q G L W L R Q
Page 23 of 399
> ( G L W 0 R G H O ) ' @

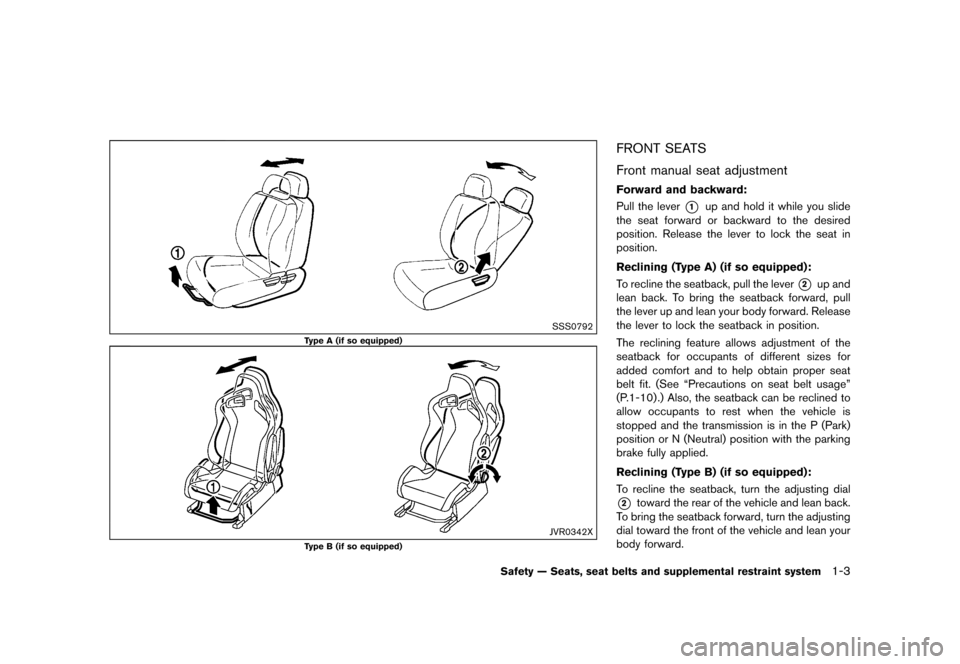

SSS0792
Type A (if so equipped)
JVR0342X
Type B (if so equipped)
FRONT SEATSGUID-55B40E63-3184-4977-9580-6F5DF10262BF
Front manual seat adjustmentGUID-5F8B59F4-CE83-4388-A330-B31F2E8A1C04
Forward and backward:GUID-F83C168B-173D-4313-B631-F712588C0463Pull the lever*1up and hold it while you slide
the seat forward or backward to the desired
position. Release the lever to lock the seat in
position.
Reclining (Type A) (if so equipped):
GUID-F83C168B-173D-4313-B631-F712588C0463To recline the seatback, pull the lever*2up and
lean back. To bring the seatback forward, pull
the lever up and lean your body forward. Release
the lever to lock the seatback in position.
The reclining feature allows adjustment of the
seatback for occupants of different sizes for
added comfort and to help obtain proper seat
belt fit. (See ªPrecautions on seat belt usageº
(P.1-10) .) Also, the seatback can be reclined to
allow occupants to rest when the vehicle is
stopped and the transmission is in the P (Park)
position or N (Neutral) position with the parking
brake fully applied.
Reclining (Type B) (if so equipped):
GUID-F83C168B-173D-4313-B631-F712588C0463To recline the seatback, turn the adjusting dial
*2toward the rear of the vehicle and lean back.
To bring the seatback forward, turn the adjusting
dial toward the front of the vehicle and lean your
body forward.
Safety Ð Seats, seat belts and supplemental restraint system1-3
& R Q G L W L R Q
Page 24 of 399
> ( G L W 0 R G H O ) ' @
1-4Safety Ð Seats, seat belts and supplemental restraint system
The reclining feature allows adjustment of the
seatback for occupants of different sizes for
added comfort and to help obtain proper seat
belt fit. (See ªPrecautions on seat belt usageº
(P.1-10) .) Also, the seatback can be reclined to
allow occupants to rest when the vehicle is
stopped and the transmission is in the P (Park)
position or N (Neutral) position with the parking
brake fully applied.
NOTE:
.Depending on the passenger's seat
sliding position when the passenger
seat is unoccupied while driving, a
noise may be heard as the side part
of the passenger's seat contacts the
seat belt tongue. In this case, move the
seat to the rearmost position to avoid
interference.
. If you are having difficulty turning the
adjusting dial, park the vehicle and
then open the door or get out of the
vehicle to operate the dial.

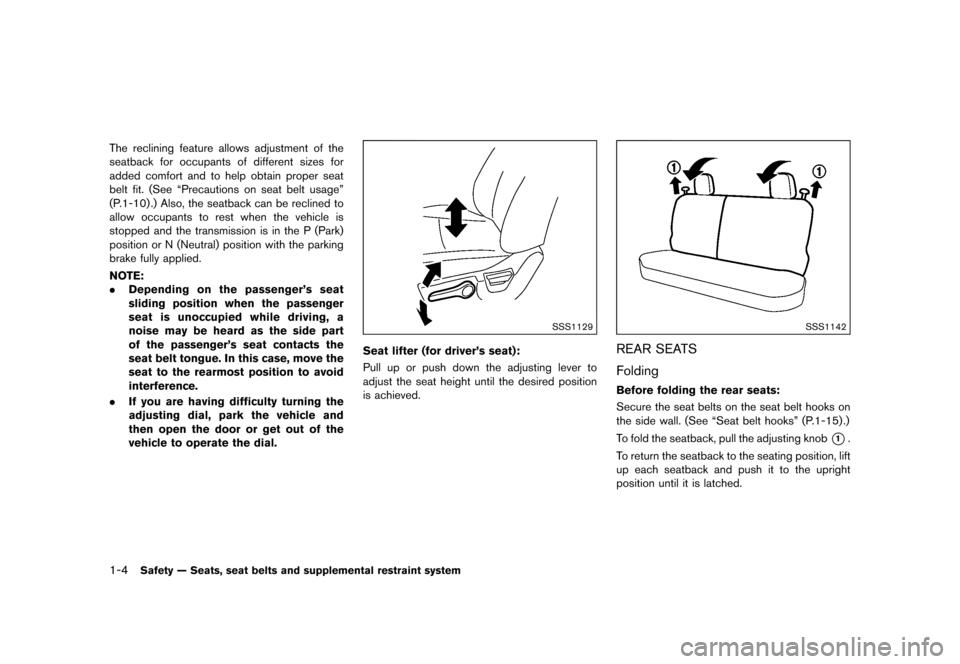

SSS1129
Seat lifter (for driver's seat):GUID-F83C168B-173D-4313-B631-F712588C0463Pull up or push down the adjusting lever to
adjust the seat height until the desired position
is achieved.
SSS1142
REAR SEATSGUID-2FD3862E-47A4-488D-87D0-EC77846BDDE4
FoldingGUID-93DCD3BA-E481-4D39-82ED-FEB595DFCE01
Before folding the rear seats:GUID-F83C168B-173D-4313-B631-F712588C0463Secure the seat belts on the seat belt hooks on
the side wall. (See ªSeat belt hooksº (P.1-15) .)
To fold the seatback, pull the adjusting knob
*1.
To return the seatback to the seating position, lift
up each seatback and push it to the upright
position until it is latched.
& R Q G L W L R Q
Page 25 of 399
> ( G L W 0 R G H O ) ' @

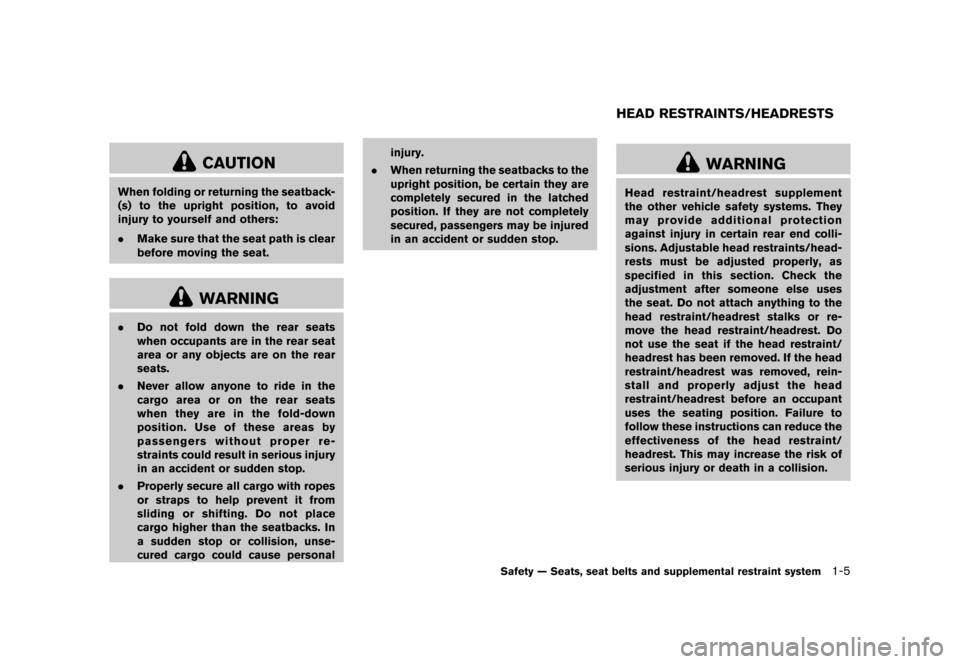

CAUTION
When folding or returning the seatback-
(s) to the upright position, to avoid
injury to yourself and others:
.Make sure that the seat path is clear
before moving the seat.
WARNING
.Do not fold down the rear seats
when occupants are in the rear seat
area or any objects are on the rear
seats.
. Never allow anyone to ride in the
cargo area or on the rear seats
when they are in the fold-down
position. Use of these areas by
passengers without proper re-
straints could result in serious injury
in an accident or sudden stop.
. Properly secure all cargo with ropes
or straps to help prevent it from
sliding or shifting. Do not place
cargo higher than the seatbacks. In
a sudden stop or collision, unse-
cured cargo could cause personal injury.
. When returning the seatbacks to the
upright position, be certain they are
completely secured in the latched
position. If they are not completely
secured, passengers may be injured
in an accident or sudden stop.
GUID-8F6B0940-703A-44EA-9F15-263BA73C554F
WARNING
Head restraint/headrest supplement
the other vehicle safety systems. They
may provide additional protection
against injury in certain rear end colli-
sions. Adjustable head restraints/head-
rests must be adjusted properly, as
specified in this section. Check the
adjustment after someone else uses
the seat. Do not attach anything to the
head restraint/headrest stalks or re-
move the head restraint/headrest. Do
not use the seat if the head restraint/
headrest has been removed. If the head
restraint/headrest was removed, rein-
stall and properly adjust the head
restraint/headrest before an occupant
uses the seating position. Failure to
follow these instructions can reduce the
effectiveness of the head restraint/
headrest. This may increase the risk of
serious injury or death in a collision.
Safety Ð Seats, seat belts and supplemental restraint system1-5
HEAD RESTRAINTS/HEADRESTS
& R Q G L W L R Q
Page 26 of 399
> ( G L W 0 R G H O ) ' @
1-6Safety Ð Seats, seat belts and supplemental restraint system

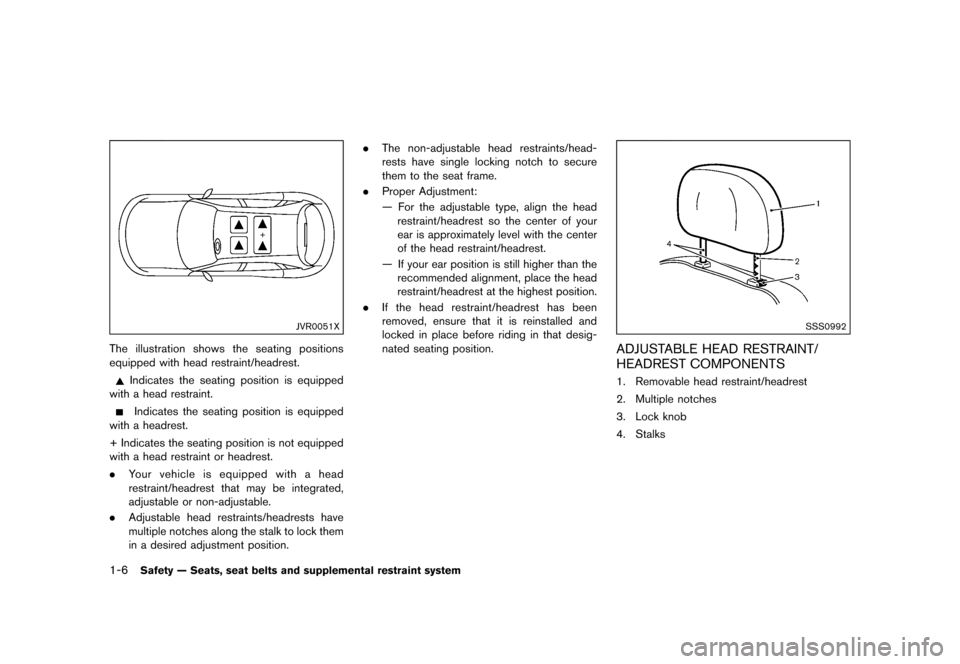

JVR0051X
The illustration shows the seating positions
equipped with head restraint/headrest.
Indicates the seating position is equipped
with a head restraint.
Indicates the seating position is equipped
with a headrest.
+ Indicates the seating position is not equipped
with a head restraint or headrest.
. Your vehicle is equipped with a head
restraint/headrest that may be integrated,
adjustable or non-adjustable.
. Adjustable head restraints/headrests have
multiple notches along the stalk to lock them
in a desired adjustment position. .
The non-adjustable head restraints/head-
rests have single locking notch to secure
them to the seat frame.
. Proper Adjustment:
Ð For the adjustable type, align the head
restraint/headrest so the center of your
ear is approximately level with the center
of the head restraint/headrest.
Ð If your ear position is still higher than the recommended alignment, place the head
restraint/headrest at the highest position.
. If the head restraint/headrest has been
removed, ensure that it is reinstalled and
locked in place before riding in that desig-
nated seating position.
SSS0992
ADJUSTABLE HEAD RESTRAINT/
HEADREST COMPONENTS
GUID-DA49A6E4-F1AC-4350-AD51-CAB31A2EB7021. Removable head restraint/headrest
2. Multiple notches
3. Lock knob
4. Stalks
& R Q G L W L R Q
Page 27 of 399
> ( G L W 0 R G H O ) ' @
JVR0203X

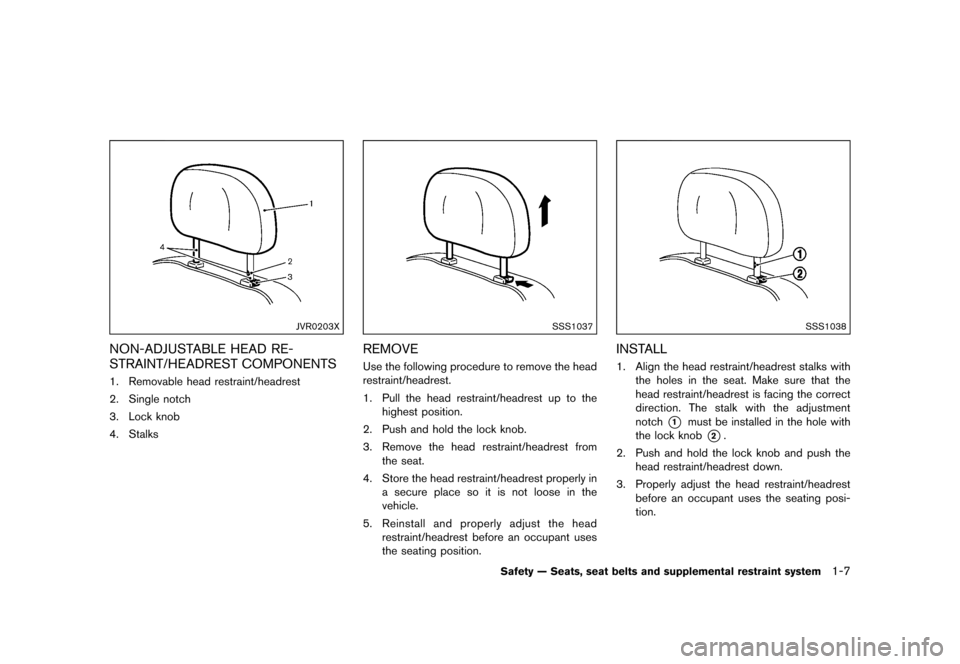

NON-ADJUSTABLE HEAD RE-
STRAINT/HEADREST COMPONENTS
GUID-3498D951-FA0F-4DBF-99C4-6C29C22045431. Removable head restraint/headrest
2. Single notch
3. Lock knob
4. Stalks
SSS1037
REMOVEGUID-DF75CB90-1E53-47F8-83F0-888DDA65151FUse the following procedure to remove the head
restraint/headrest.
1. Pull the head restraint/headrest up to thehighest position.
2. Push and hold the lock knob.
3. Remove the head restraint/headrest from the seat.
4. Store the head restraint/headrest properly in a secure place so it is not loose in the
vehicle.
5. Reinstall and properly adjust the head
restraint/headrest before an occupant uses
the seating position.
SSS1038
INSTALLGUID-C3856631-8898-412D-B440-8420406175F01. Align the head restraint/headrest stalks with
the holes in the seat. Make sure that the
head restraint/headrest is facing the correct
direction. The stalk with the adjustment
notch
*1must be installed in the hole with
the lock knob
*2.
2. Push and hold the lock knob and push the head restraint/headrest down.
3. Properly adjust the head restraint/headrest before an occupant uses the seating posi-
tion.
Safety Ð Seats, seat belts and supplemental restraint system1-7
& R Q G L W L R Q
Page 28 of 399
> ( G L W 0 R G H O ) ' @
1-8Safety Ð Seats, seat belts and supplemental restraint system
SSS0997

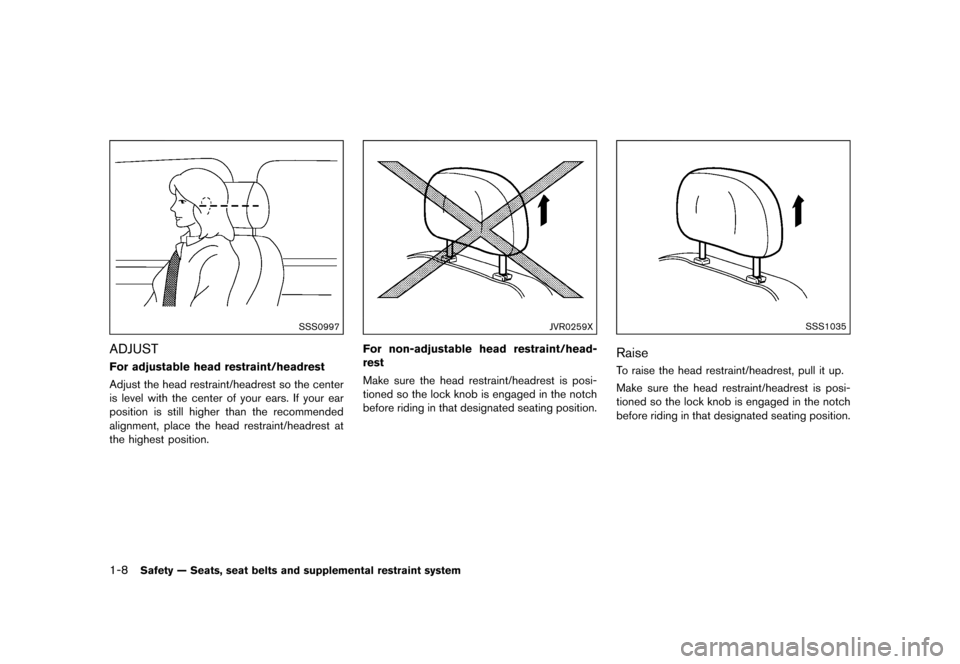

ADJUSTGUID-FA511230-0FF2-42CA-9711-9454556523D1For adjustable head restraint/headrest
Adjust the head restraint/headrest so the center
is level with the center of your ears. If your ear
position is still higher than the recommended
alignment, place the head restraint/headrest at
the highest position.
JVR0259X
For non-adjustable head restraint/head-
rest
Make sure the head restraint/headrest is posi-
tioned so the lock knob is engaged in the notch
before riding in that designated seating position.
SSS1035
RaiseGUID-47102571-33DA-43B9-9571-2562F7C76650To raise the head restraint/headrest, pull it up.
Make sure the head restraint/headrest is posi-
tioned so the lock knob is engaged in the notch
before riding in that designated seating position.
& R Q G L W L R Q
Page 29 of 399
> ( G L W 0 R G H O ) ' @
SSS1036

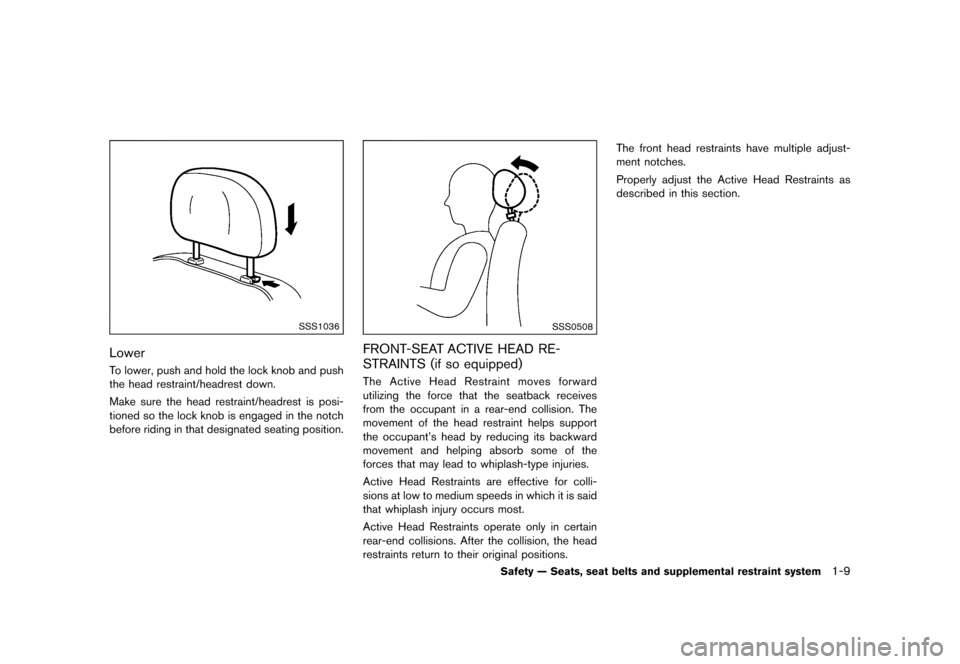

LowerGUID-B2C647BC-82EA-48BE-9238-F52301959A80To lower, push and hold the lock knob and push
the head restraint/headrest down.
Make sure the head restraint/headrest is posi-
tioned so the lock knob is engaged in the notch
before riding in that designated seating position.
SSS0508
FRONT-SEAT ACTIVE HEAD RE-
STRAINTS (if so equipped)
GUID-387F51B4-7CEA-4F79-A0BF-23E93E24350DThe Active Head Restraint moves forward
utilizing the force that the seatback receives
from the occupant in a rear-end collision. The
movement of the head restraint helps support
the occupant's head by reducing its backward
movement and helping absorb some of the
forces that may lead to whiplash-type injuries.
Active Head Restraints are effective for colli-
sions at low to medium speeds in which it is said
that whiplash injury occurs most.
Active Head Restraints operate only in certain
rear-end collisions. After the collision, the head
restraints return to their original positions.The front head restraints have multiple adjust-
ment notches.
Properly adjust the Active Head Restraints as
described in this section.
Safety Ð Seats, seat belts and supplemental restraint system1-9
& R Q G L W L R Q
Page 30 of 399
> ( G L W 0 R G H O ) ' @
1-10Safety Ð Seats, seat belts and supplemental restraint system

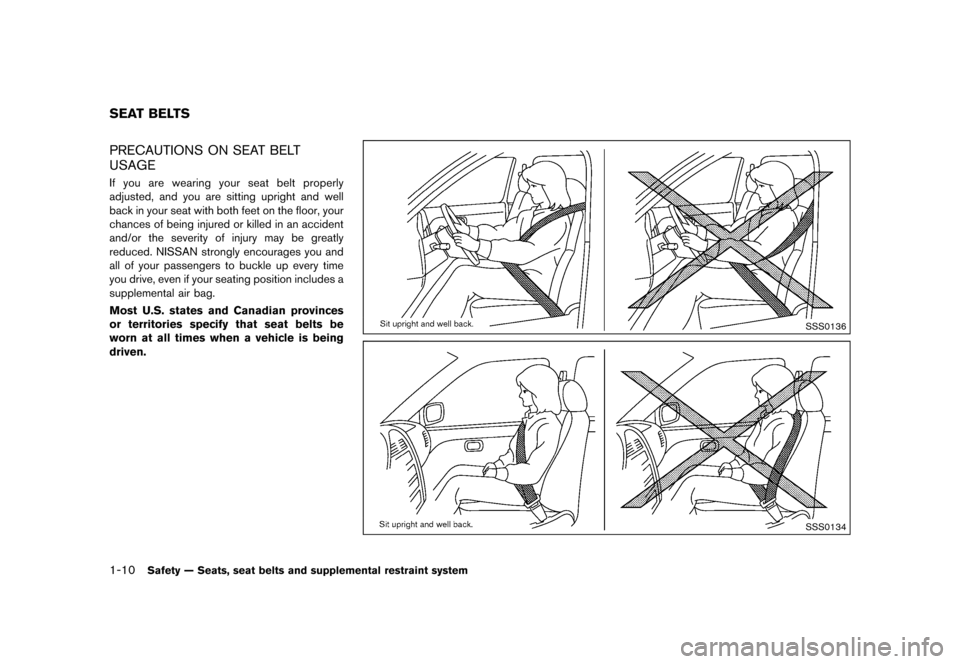

GUID-92182A0D-FB70-4BA9-81E5-FB1DCE59F1D2PRECAUTIONS ON SEAT BELT
USAGE
GUID-E275423E-F1F3-4DC0-BFA1-B05D62DB881DIf you are wearing your seat belt properly
adjusted, and you are sitting upright and well
back in your seat with both feet on the floor, your
chances of being injured or killed in an accident
and/or the severity of injury may be greatly
reduced. NISSAN strongly encourages you and
all of your passengers to buckle up every time
you drive, even if your seating position includes a
supplemental air bag.
Most U.S. states and Canadian provinces
or territories specify that seat belts be
worn at all times when a vehicle is being
driven.
SSS0136
SSS0134
SEAT BELTS
& R Q G L W L R Q
