> ( G L W 0 R G H O ) ' @
SDI2693

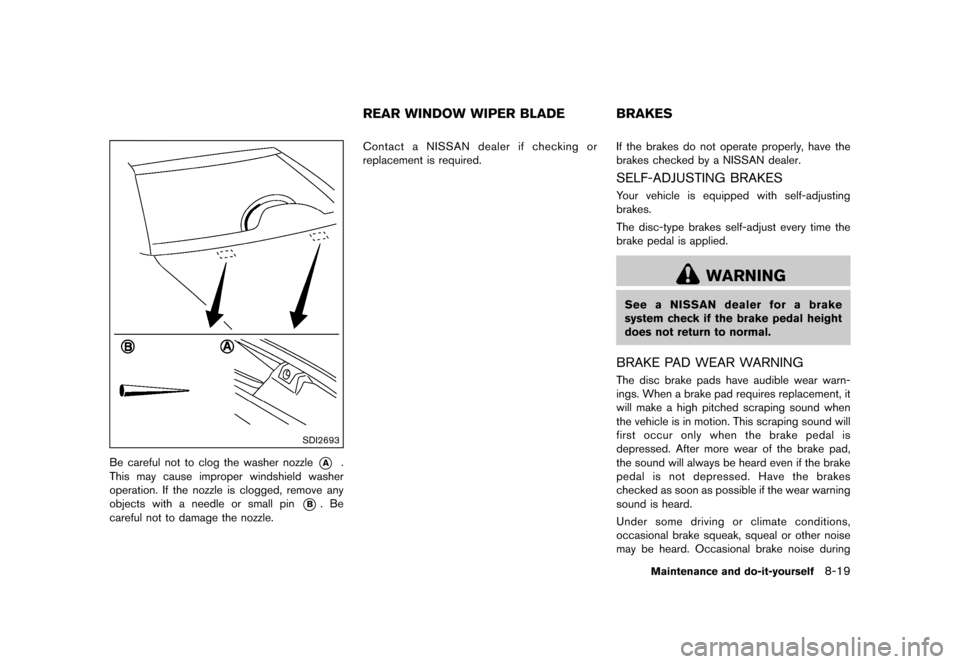

Be careful not to clog the washer nozzle*A.
This may cause improper windshield washer
operation. If the nozzle is clogged, remove any
objects with a needle or small pin
*B. Be
careful not to damage the nozzle.
GUID-4FE910FB-E99A-42DF-B107-5DBED177B1BDContact a NISSAN dealer if checking or
replacement is required.GUID-2B31454F-BCAF-420F-B285-264881F399AAIf the brakes do not operate properly, have the
brakes checked by a NISSAN dealer.
SELF-ADJUSTING BRAKESGUID-28B8AA7E-6AD4-49DC-A969-9DE078A1FF1EYour vehicle is equipped with self-adjusting
brakes.
The disc-type brakes self-adjust every time the
brake pedal is applied.
WARNING
See a NISSAN dealer for a brake
system check if the brake pedal height
does not return to normal.
BRAKE PAD WEAR WARNINGGUID-55019B81-BB33-4B67-AE42-95680A304881The disc brake pads have audible wear warn-
ings. When a brake pad requires replacement, it
will make a high pitched scraping sound when
the vehicle is in motion. This scraping sound will
first occur only when the brake pedal is
depressed. After more wear of the brake pad,
the sound will always be heard even if the brake
pedal is not depressed. Have the brakes
checked as soon as possible if the wear warning
sound is heard.
Under some driving or climate conditions,
occasional brake squeak, squeal or other noise
may be heard. Occasional brake noise during
Maintenance and do-it-yourself8-19
REAR WINDOW WIPER BLADE BRAKES
& R Q G L W L R Q
Page 342 of 399
> ( G L W 0 R G H O ) ' @
8-20Maintenance and do-it-yourself
light to moderate stops is normal and does not
affect the function or performance of the brake
system.
Proper brake inspection intervals should
be followed.For additional information, see the
maintenance log section of your ªNISSAN
Service and Maintenance Guideº.
GUID-6A89546B-C41A-40D8-9756-83B8312ACE54
JVM0620X

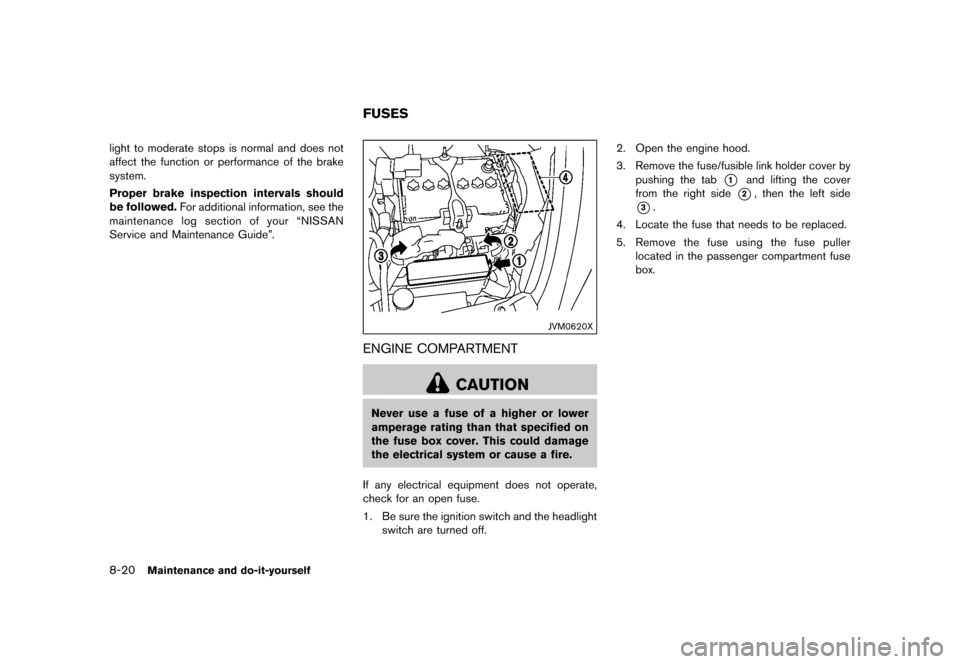

ENGINE COMPARTMENTGUID-7E1E202F-F646-45EA-96AE-D77C542478CE
CAUTION
Never use a fuse of a higher or lower
amperage rating than that specified on
the fuse box cover. This could damage
the electrical system or cause a fire.
If any electrical equipment does not operate,
check for an open fuse.
1. Be sure the ignition switch and the headlight switch are turned off. 2. Open the engine hood.
3. Remove the fuse/fusible link holder cover by
pushing the tab
*1and lifting the cover
from the right side
*2, then the left side
*3.
4. Locate the fuse that needs to be replaced.
5. Remove the fuse using the fuse puller
located in the passenger compartment fuse
box.
FUSES
& R Q G L W L R Q
Page 343 of 399
> ( G L W 0 R G H O ) ' @
SDI1754

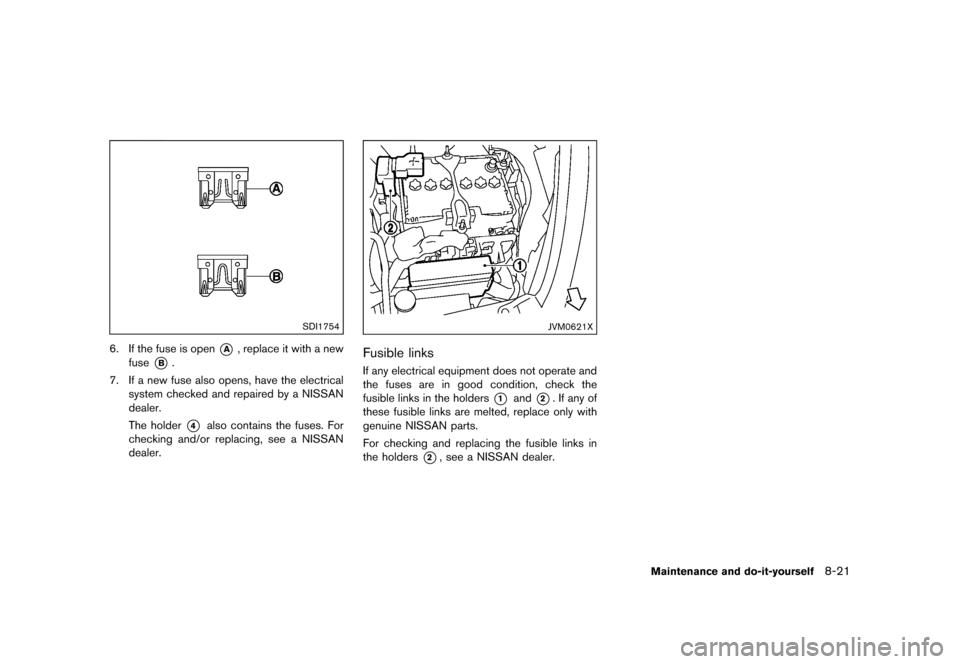

6. If the fuse is open*A, replace it with a new
fuse
*B.
7. If a new fuse also opens, have the electrical system checked and repaired by a NISSAN
dealer.
The holder
*4also contains the fuses. For
checking and/or replacing, see a NISSAN
dealer.
JVM0621X
Fusible linksGUID-0B3A4B09-B2AB-4E3F-A956-B422F7712949If any electrical equipment does not operate and
the fuses are in good condition, check the
fusible links in the holders
*1and*2. If any of
these fusible links are melted, replace only with
genuine NISSAN parts.
For checking and replacing the fusible links in
the holders
*2, see a NISSAN dealer.
Maintenance and do-it-yourself8-21
& R Q G L W L R Q
Page 344 of 399
> ( G L W 0 R G H O ) ' @
8-22Maintenance and do-it-yourself
JVM0622X

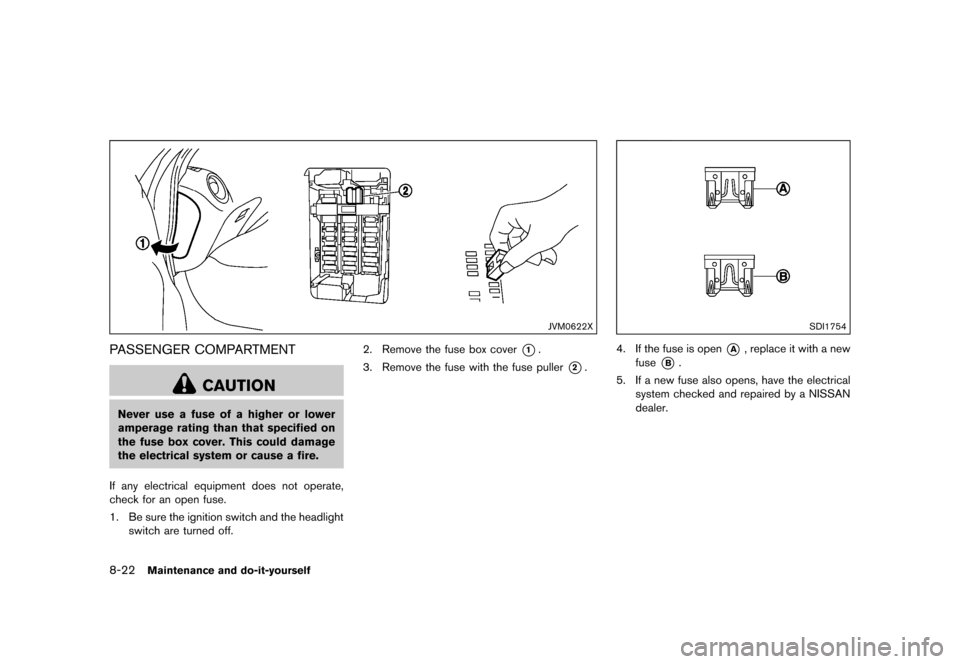

PASSENGER COMPARTMENTGUID-30474EE2-71D7-442B-BF9A-11059678694D
CAUTION
Never use a fuse of a higher or lower
amperage rating than that specified on
the fuse box cover. This could damage
the electrical system or cause a fire.
If any electrical equipment does not operate,
check for an open fuse.
1. Be sure the ignition switch and the headlight switch are turned off. 2. Remove the fuse box cover
*1.
3. Remove the fuse with the fuse puller
*2.
SDI1754
4. If the fuse is open*A, replace it with a new
fuse
*B.
5. If a new fuse also opens, have the electrical system checked and repaired by a NISSAN
dealer.
& R Q G L W L R Q
Page 345 of 399
> ( G L W 0 R G H O ) ' @
SDI2705

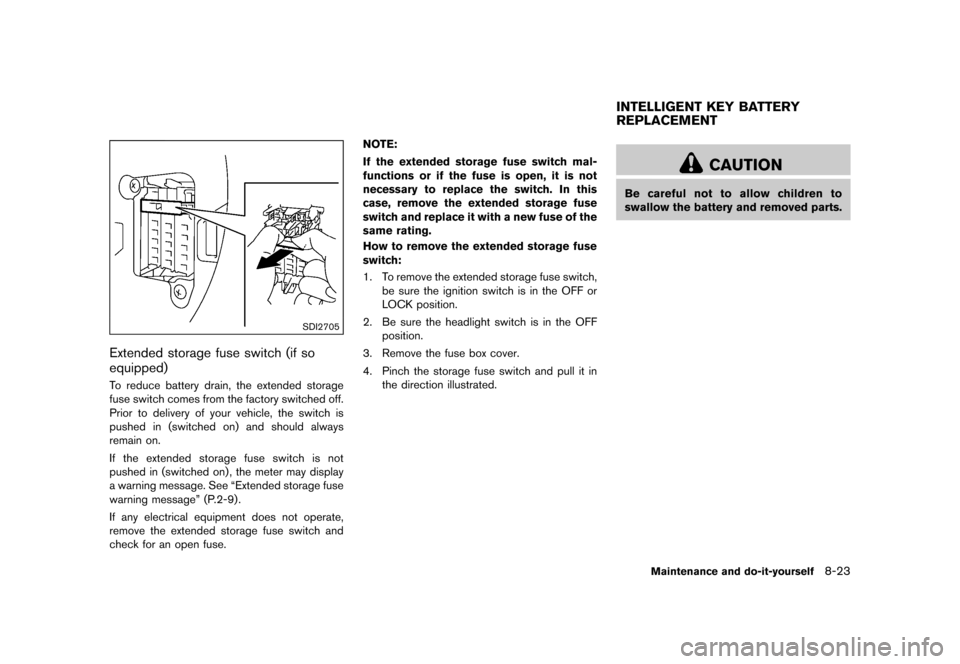

Extended storage fuse switch (if so
equipped)
GUID-7EE1D234-C9B0-4378-9F56-2EAE0BD5CAB4To reduce battery drain, the extended storage
fuse switch comes from the factory switched off.
Prior to delivery of your vehicle, the switch is
pushed in (switched on) and should always
remain on.
If the extended storage fuse switch is not
pushed in (switched on) , the meter may display
a warning message. See ªExtended storage fuse
warning messageº (P.2-9).
If any electrical equipment does not operate,
remove the extended storage fuse switch and
check for an open fuse.NOTE:
If the extended storage fuse switch mal-
functions or if the fuse is open, it is not
necessary to replace the switch. In this
case, remove the extended storage fuse
switch and replace it with a new fuse of the
same rating.
How to remove the extended storage fuse
switch:
GUID-F83C168B-173D-4313-B631-F712588C04631. To remove the extended storage fuse switch,
be sure the ignition switch is in the OFF or
LOCK position.
2. Be sure the headlight switch is in the OFF position.
3. Remove the fuse box cover.
4. Pinch the storage fuse switch and pull it in the direction illustrated.
GUID-E03C12AE-5204-44DA-8C92-75FB6768F780
CAUTION
Be careful not to allow children to
swallow the battery and removed parts.
Maintenance and do-it-yourself8-23
INTELLIGENT KEY BATTERY
REPLACEMENT
& R Q G L W L R Q
Page 346 of 399
> ( G L W 0 R G H O ) ' @
8-24Maintenance and do-it-yourself
SDI2451

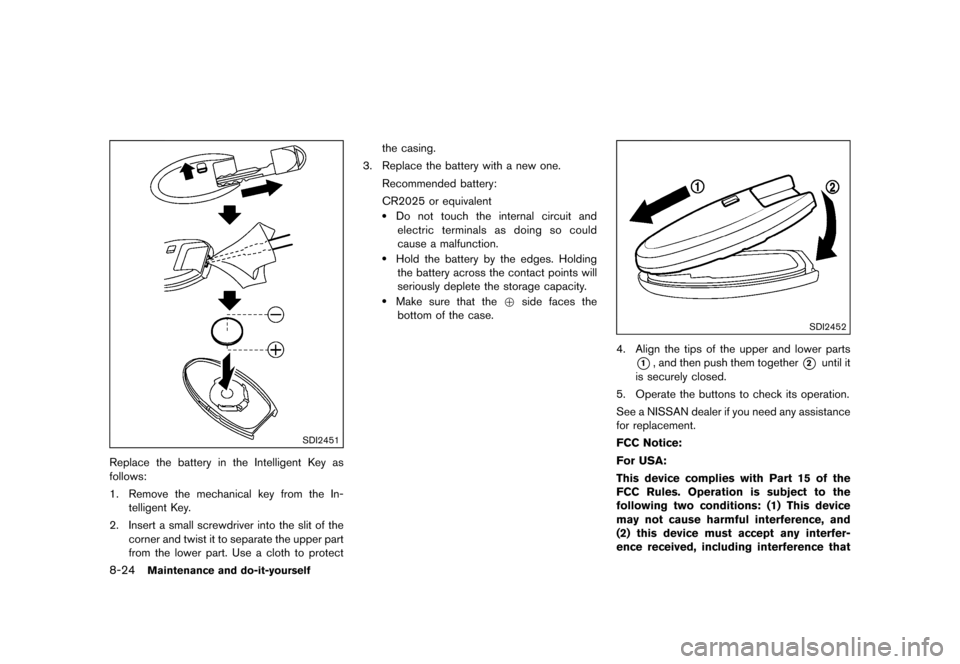

Replace the battery in the Intelligent Key as
follows:
1. Remove the mechanical key from the In-telligent Key.
2. Insert a small screwdriver into the slit of the corner and twist it to separate the upper part
from the lower part. Use a cloth to protect the casing.
3. Replace the battery with a new one.
Recommended battery:
CR2025 or equivalent
.Do not touch the internal circuit andelectric terminals as doing so could
cause a malfunction.
.Hold the battery by the edges. Holdingthe battery across the contact points will
seriously deplete the storage capacity.
.Make sure that the +side faces the
bottom of the case.
SDI2452
4. Align the tips of the upper and lower parts
*1, and then push them together*2until it
is securely closed.
5. Operate the buttons to check its operation.
See a NISSAN dealer if you need any assistance
for replacement.
FCC Notice:
For USA:
This device complies with Part 15 of the
FCC Rules. Operation is subject to the
following two conditions: (1) This device
may not cause harmful interference, and
(2) this device must accept any interfer-
ence received, including interference that
& R Q G L W L R Q
Page 347 of 399
> ( G L W 0 R G H O ) ' @
may cause undesired operation.
Note: Changes or modifications not ex-
pressly approved by the party responsible
for compliance could void the user's
authority to operate the equipment.
For Canada:
This device complies with Industry Canada
licence-exempt RSS standard(s) . Opera-
tion is subject to the following two condi-
tions: (1) this device may not cause
interference, and (2) this device must
accept any interference, including interfer-
ence that may cause undesired operation
of the device.
Maintenance and do-it-yourself8-25
& R Q G L W L R Q
Page 348 of 399
> ( G L W 0 R G H O ) ' @
8-26Maintenance and do-it-yourself
GUID-23FC80BC-9A5D-4CDF-AF41-4375212E36BD
JVM0505X

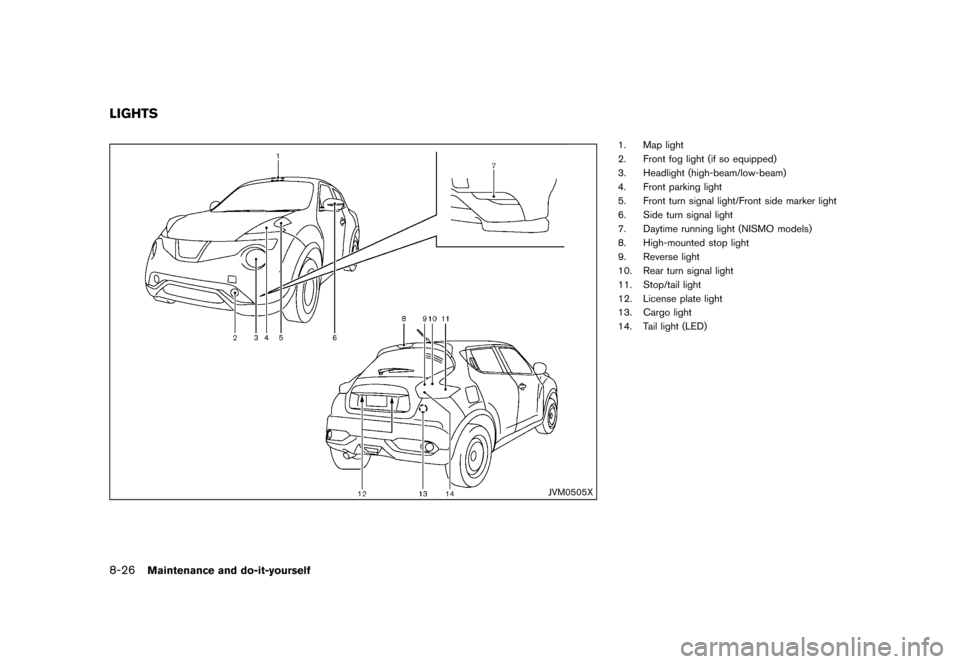

1. Map light
2. Front fog light (if so equipped)
3. Headlight (high-beam/low-beam)
4. Front parking light
5. Front turn signal light/Front side marker light
6. Side turn signal light
7. Daytime running light (NISMO models)
8. High-mounted stop light
9. Reverse light
10. Rear turn signal light
11. Stop/tail light
12. License plate light
13. Cargo light
14. Tail light (LED)
LIGHTS
& R Q G L W L R Q
Page 349 of 399
> ( G L W 0 R G H O ) ' @
HEADLIGHTSGUID-2315F15B-21C2-48E3-B4D6-114A3540E8D5Fog may temporarily form inside the lens of the
exterior lights in the rain or in a car wash. A
temperature difference between the inside and
the outside of the lens causes the fog. This is
not a malfunction. If large drops of water collect
inside the lens, contact a NISSAN dealer.
ReplacingGUID-E802D82D-AE31-4C67-BD7D-36FB0F025F80
Xenon headlight model:GUID-F83C168B-173D-4313-B631-F712588C0463If replacement is required, see a NISSAN dealer.
WARNING
HIGH VOLTAGE
When xenon headlights are on, they
produce a high voltage. To prevent an
electric shock, never attempt to modify
or disassemble. It is recommended to
have your xenon headlights replaced at
a NISSAN dealer. For additional infor-
mation, see ªHeadlight and turn signal
switchº (P.2-38) .
Halogen headlight model:
GUID-F83C168B-173D-4313-B631-F712588C0463The headlight is a semi-sealed beam type which
uses a replaceable headlight (halogen) bulb.
CAUTION
. Do not leave the bulb out of the
headlight reflector for a long period
of time. Dust, moisture, smoke, etc.
entering the headlight body may
affect bulb performance.
. High pressure halogen gas is sealed
inside the halogen bulb. The bulb
may break if the glass envelope is
scratched or the bulb is dropped.
. Only touch the base when handling
the bulb. Never touch the glass
envelope. Touching the glass envel-
ope could significantly affect bulb
life and/or headlight performance.
. Aiming is not necessary after repla-
cing the bulb. When aiming adjust-
ment is necessary, contact a
NISSAN dealer.
Use the same number and wattage as originally
installed as shown in the chart.
JVM0488X
Maintenance and do-it-yourself8-27
& R Q G L W L R Q
Page 350 of 399
> ( G L W 0 R G H O ) ' @
8-28Maintenance and do-it-yourself
Left side of the vehicle

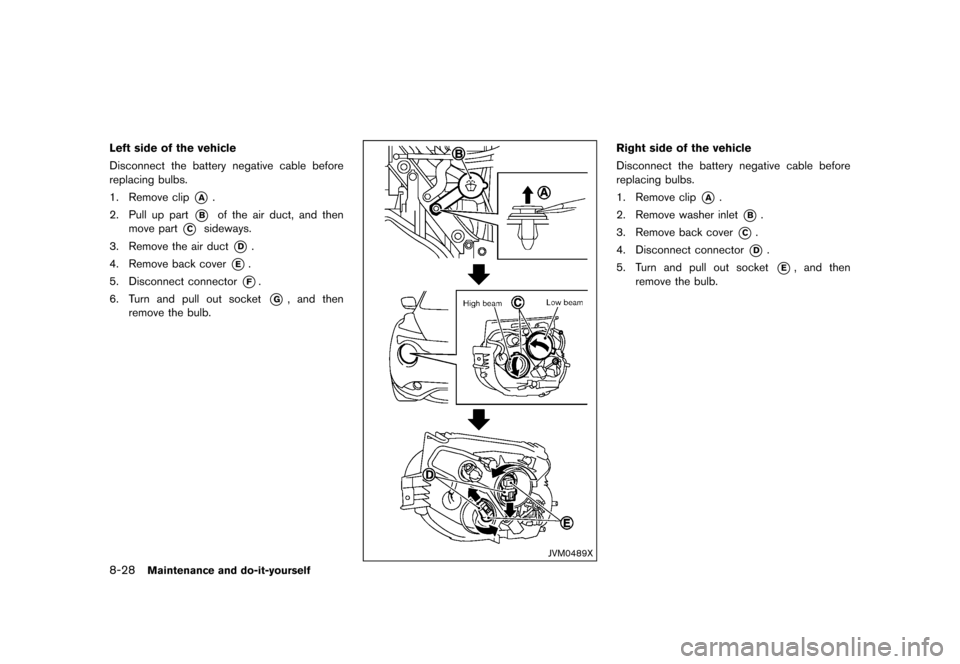

Disconnect the battery negative cable before
replacing bulbs.
1. Remove clip
*A.
2. Pull up part
*Bof the air duct, and then
move part
*Csideways.
3. Remove the air duct
*D.
4. Remove back cover
*E.
5. Disconnect connector
*F.
6. Turn and pull out socket
*G, and then
remove the bulb.
JVM0489X
Right side of the vehicle
Disconnect the battery negative cable before
replacing bulbs.
1. Remove clip
*A.
2. Remove washer inlet
*B.
3. Remove back cover
*C.
4. Disconnect connector
*D.
5. Turn and pull out socket
*E, and then
remove the bulb.
