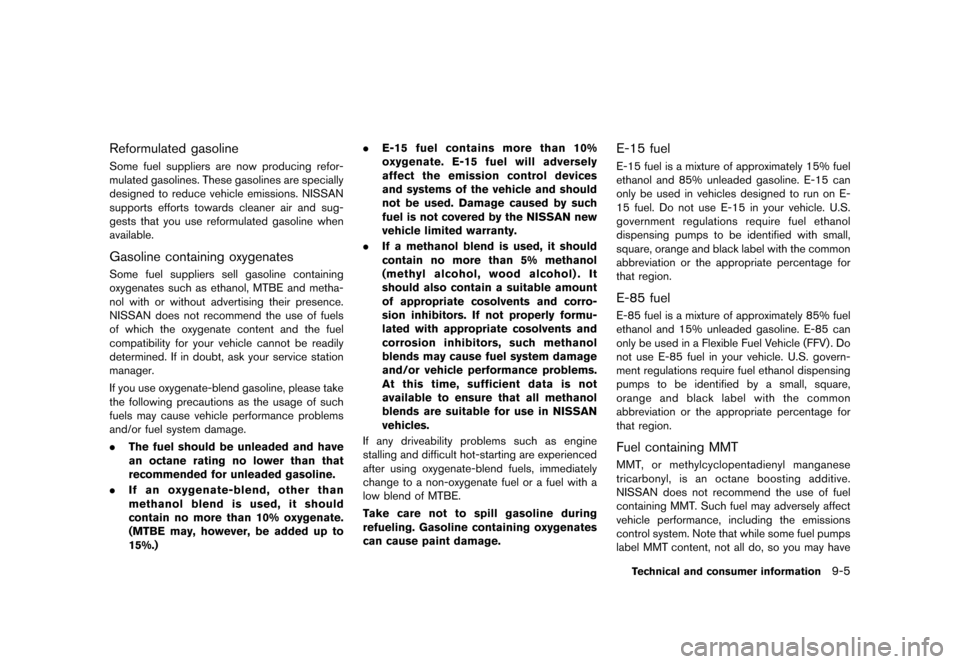

Reformulated gasolineGUID-CB6CE400-DB81-4EC1-9AE4-3ABDBA74A96FSome fuel suppliers are now producing refor-
mulated gasolines. These gasolines are specially
designed to reduce vehicle emissions. NISSAN
supports efforts towards cleaner air and sug-
gests that you use reformulated gasoline when
available.
Gasoline containing oxygenatesGUID-98C74914-B98B-480E-BB89-A746D1B7D76FSome fuel suppliers sell gasoline containing
oxygenates such as ethanol, MTBE and metha-
nol with or without advertising their presence.
NISSAN does not recommend the use of fuels
of which the oxygenate content and the fuel
compatibility for your vehicle cannot be readily
determined. If in doubt, ask your service station
manager.
If you use oxygenate-blend gasoline, please take
the following precautions as the usage of such
fuels may cause vehicle performance problems
and/or fuel system damage.
.The fuel should be unleaded and have
an octane rating no lower than that
recommended for unleaded gasoline.
. If an oxygenate-blend, other than
methanol blend is used, it should
contain no more than 10% oxygenate.
(MTBE may, however, be added up to
15%.) .
E-15 fuel contains more than 10%
oxygenate. E-15 fuel will adversely
affect the emission control devices
and systems of the vehicle and should
not be used. Damage caused by such
fuel is not covered by the NISSAN new
vehicle limited warranty.
. If a methanol blend is used, it should
contain no more than 5% methanol
(methyl alcohol, wood alcohol) . It
should also contain a suitable amount
of appropriate cosolvents and corro-
sion inhibitors. If not properly formu-
lated with appropriate cosolvents and
corrosion inhibitors, such methanol
blends may cause fuel system damage
and/or vehicle performance problems.
At this time, sufficient data is not
available to ensure that all methanol
blends are suitable for use in NISSAN
vehicles.
If any driveability problems such as engine
stalling and difficult hot-starting are experienced
after using oxygenate-blend fuels, immediately
change to a non-oxygenate fuel or a fuel with a
low blend of MTBE.
Take care not to spill gasoline during
refueling. Gasoline containing oxygenates
can cause paint damage.
E-15 fuelGUID-51AA3737-C1D0-4E23-9447-1A7E3B00FC97E-15 fuel is a mixture of approximately 15% fuel
ethanol and 85% unleaded gasoline. E-15 can
only be used in vehicles designed to run on E-
15 fuel. Do not use E-15 in your vehicle. U.S.
government regulations require fuel ethanol
dispensing pumps to be identified with small,
square, orange and black label with the common
abbreviation or the appropriate percentage for
that region.
E-85 fuelGUID-C7D6C695-B684-4E0B-AECB-4F4C4DD36211E-85 fuel is a mixture of approximately 85% fuel
ethanol and 15% unleaded gasoline. E-85 can
only be used in a Flexible Fuel Vehicle (FFV) . Do
not use E-85 fuel in your vehicle. U.S. govern-
ment regulations require fuel ethanol dispensing
pumps to be identified by a small, square,
orange and black label with the common
abbreviation or the appropriate percentage for
that region.
Fuel containing MMTGUID-16974FCE-30C4-46E2-8548-4B6029EE11E3MMT, or methylcyclopentadienyl manganese
tricarbonyl, is an octane boosting additive.
NISSAN does not recommend the use of fuel
containing MMT. Such fuel may adversely affect
vehicle performance, including the emissions
control system. Note that while some fuel pumps
label MMT content, not all do, so you may have
Technical and consumer information9-5
&RQGLWLRQ


> (GLW    0RGHO )' @
9-6Technical and consumer information

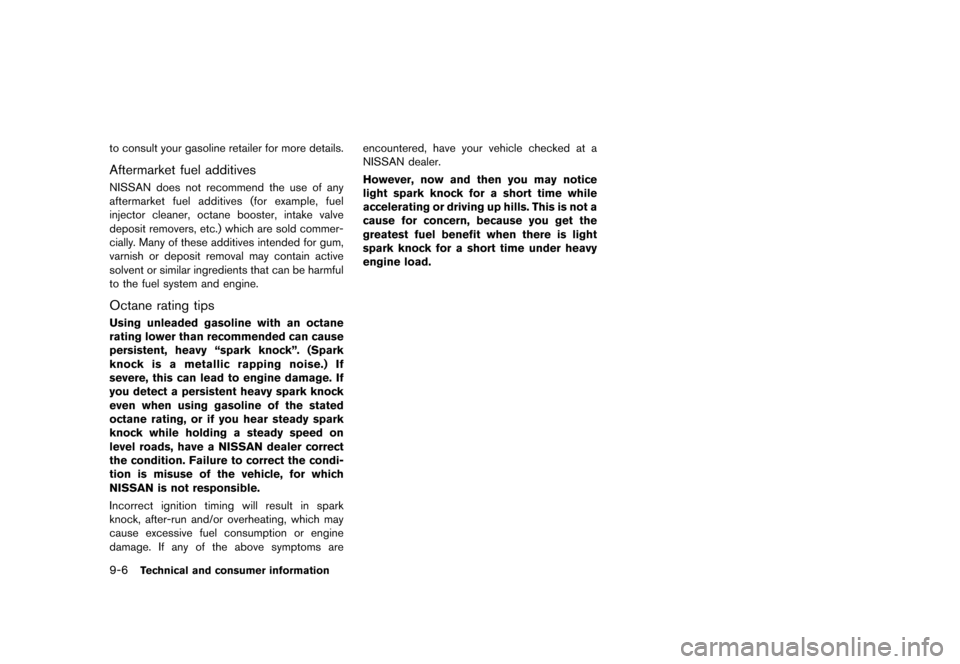

to consult your gasoline retailer for more details.
Aftermarket fuel additivesGUID-04BFD2FB-84A2-41F8-AF3C-C293779408D6NISSAN does not recommend the use of any
aftermarket fuel additives (for example, fuel
injector cleaner, octane booster, intake valve
deposit removers, etc.) which are sold commer-
cially. Many of these additives intended for gum,
varnish or deposit removal may contain active
solvent or similar ingredients that can be harmful
to the fuel system and engine.
Octane rating tipsGUID-F6EBBEDD-0810-4EB3-B998-76639DC8605AUsing unleaded gasoline with an octane
rating lower than recommended can cause
persistent, heavy ªspark knockº. (Spark
knock is a metallic rapping noise.) If
severe, this can lead to engine damage. If
you detect a persistent heavy spark knock
even when using gasoline of the stated
octane rating, or if you hear steady spark
knock while holding a steady speed on
level roads, have a NISSAN dealer correct
the condition. Failure to correct the condi-
tion is misuse of the vehicle, for which
NISSAN is not responsible.
Incorrect ignition timing will result in spark
knock, after-run and/or overheating, which may
cause excessive fuel consumption or engine
damage. If any of the above symptoms areencountered, have your vehicle checked at a
NISSAN dealer.
However, now and then you may notice
light spark knock for a short time while
accelerating or driving up hills. This is not a
cause for concern, because you get the
greatest fuel benefit when there is light
spark knock for a short time under heavy
engine load.
&RQGLWLRQ


> (GLW    0RGHO )' @

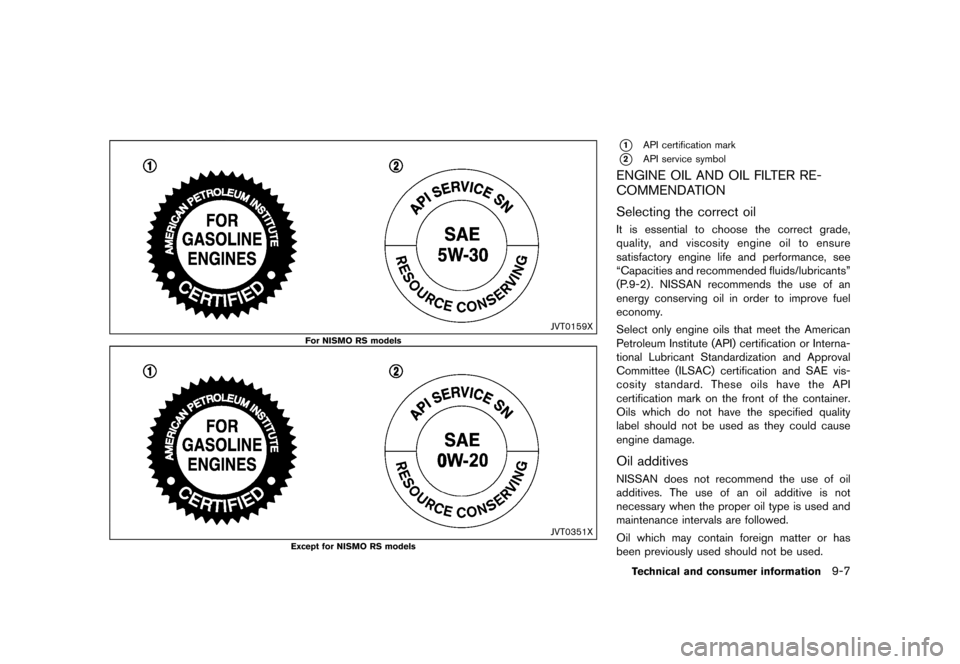

JVT0159X
For NISMO RS models
JVT0351X
Except for NISMO RS models
*1API certification mark
*2API service symbol
ENGINE OIL AND OIL FILTER RE-
COMMENDATION
GUID-A342ED71-C8E2-473C-A5D7-EAB0C035485E
Selecting the correct oilGUID-9E90D203-83D7-49ED-A3A8-D5BEBEC09FACIt is essential to choose the correct grade,
quality, and viscosity engine oil to ensure
satisfactory engine life and performance, see
ªCapacities and recommended fluids/lubricantsº
(P.9-2) . NISSAN recommends the use of an
energy conserving oil in order to improve fuel
economy.
Select only engine oils that meet the American
Petroleum Institute (API) certification or Interna-
tional Lubricant Standardization and Approval
Committee (ILSAC) certification and SAE vis-
cosity standard. These oils have the API
certification mark on the front of the container.
Oils which do not have the specified quality
label should not be used as they could cause
engine damage.
Oil additivesGUID-BF1C00B1-1B2B-428D-B663-357F2194BB2FNISSAN does not recommend the use of oil
additives. The use of an oil additive is not
necessary when the proper oil type is used and
maintenance intervals are followed.
Oil which may contain foreign matter or has
been previously used should not be used.
Technical and consumer information9-7
&RQGLWLRQ


> (GLW    0RGHO )' @
9-8Technical and consumer information
Oil viscosityGUID-BCEE526D-D9C0-45DD-A66C-608BC52BB421The engine oil viscosity or thickness changes
with temperature. Because of this, it is important
to select the engine oil viscosity based on the
temperatures at which the vehicle will be
operated before the next oil change. Choosing
an oil viscosity other than that recommended
could cause serious engine damage.
Selecting the correct oil filterGUID-E092F020-AE07-4CC4-8E8D-232A83E5C488Your new NISSAN vehicle is equipped with a
high-quality genuine NISSAN oil filter. When
replacing, use a genuine NISSAN oil filter or its
equivalent for the reason described in ªChange
intervalsº.
Change intervalsGUID-C89B7EC6-8CEC-4212-BF64-40DDE64DEE9DThe oil and oil filter change intervals for your
engine are based on the use of the specified
quality oils and filters. Using an engine oil and
filter other than the specified quality, or exceed-
ing recommended oil and filter change intervals
could reduce engine life. Damage to the engine
caused by improper maintenance or use of
incorrect oil and filter quality and/or viscosity is
not covered by the NISSAN new vehicle limited
warranty.
Your engine was filled with a high quality engine
oil when it was built. You do not have to change
the oil before the first recommended changeinterval. Oil and filter change intervals depend
upon how you use your vehicle.
Operation under the following conditions may
require more frequent oil and filter changes.
.
repeated short distance driving at cold
outside temperatures
. driving in dusty conditions
. extensive idling
. stop and go commuting
Refer to the ªNISSAN Service and Maintenance
Guideº for the maintenance schedule.
AIR CONDITIONING SYSTEM RE-
FRIGERANT AND LUBRICANT RE-
COMMENDATIONS
GUID-C046CADC-EEC7-4559-80A5-8C3E565BC764The air conditioning system in your
NISSAN vehicle must be charged with the
refrigerant HFC-134a (R-134a) and the oil,
NISSAN A/C system oil Type R or the exact
equivalents.
CAUTION
The use of any other refrigerant or oil
will cause severe damage to the air
conditioning system and will require
the replacement of all air conditioner
system components. The refrigerant HFC-134a (R-134a) in your
NISSAN vehicle will not harm the earth's ozone
layer. Although this refrigerant does not affect
the earth's atmosphere, certain governmental
regulations require the recovery and recycling of
any refrigerant during automotive air condition-
ing system service. A NISSAN dealer has the
trained technicians and equipment needed to
recover and recycle your air conditioning system
refrigerant.
Contact a NISSAN dealer when servicing your
air conditioning system.
&RQGLWLRQ


> (GLW    0RGHO )' @
GUID-97AFAA0D-AD60-4E30-8FA5-71FDAC240A23ENGINEGUID-AE21A076-32B5-4B2D-A90C-9E8E2CAEAF23
ModelMR16DDT
Type Gasoline, 4-cycle, DOHC
Cylinder arrangement 4-cylinder, in-line
Bore 6Stroke in (mm) 3.138
63.193 (79.7 681.1)
Displacement cu in (cm
3)98.78 (1,618)
Firing order 1-3-4-2
Idle speed rpm
No adjustment is necessary.
Ignition timing (B.T.D.C.) degree/rpm
Spark plug StandardDILKAR7C9H (for NISMO RS models)
DILKAR7E9HS (except for NISMO RS models)
Spark plug gap (Normal) in (mm)0.035 (0.9)
Camshaft operation Timing chain
This spark ignition system complies with the Canadian standard ICES-002.
WHEELS AND TIRESGUID-C40ED7DF-56C5-45AC-9C3D-F18536F863C6
Road wheelGUID-AC6F8AA2-8645-4DD5-8993-69495FB20C39
TypeSize Offset in
(mm)
Conven-
tional 17
67J 1.85 (47)
NISMO
models 18
67J 1.85 (47)
Spare 16
64T 1.18 (30)
NISMO RS
models 17
64T 1.18 (30)
Technical and consumer information9-9
SPECIFICATIONS
&RQGLWLRQ


> (GLW    0RGHO )' @
9-10Technical and consumer information
TireGUID-59C084C1-8B9D-4172-8B2F-4D8AD61565D7
TypeSizePressure
PSI (kPa)
[Cold]
Conven-
tional P215/55-
R17 93V33 (230)*1
36 (250)*2
35 (240)*3
NISMO
models 225/45R18
95Y 33 (230)*1
35 (240)*3
Spare T135/80-
D16
101M*1*2
60 (420)
T135/90-
D16
102M*3
NISMO RS
models T135/70-
D17 92M
*1: 2WD MT model
*2: 2WD CVT model
*3: AWD model
DIMENSIONS AND WEIGHTSGUID-35AE1539-5416-49D5-8A28-470835B3B39D
Overall length in (mm) 162.8 (4,135)*1 162.4 (4,125)*2
164.0 (4,165)*3
163.8 (4,160)*4
Overall width in (mm) 69.5 (1,765) 69.7(1,770)*5
Overall height in (mm) 61.8 (1,570)
Front tread in (mm) 60.0 (1,525)
Rear tread in (mm) 60.0 (1,525)*6 59.3 (1,505)*7
Wheelbase in (mm) 99.6 (2,530)
Gross Vehicle
Weight Rating
(GVWR) lb (kg)
See the F.M.V.S.S. or
C.M.V.S.S. certification
label on the driver's
side center pillar.
Gross Axle
Weight Rating
(GAWR)
Front lb (kg)
Rear lb (kg)
*1: With front license plate bracket
*2: Without front license plate bracket
*3: With front license plate bracket (NISMO mod- els)
*4: Without front license plate bracket (NISMO
models)
*5: NISMO models
*6: for 2WD model
*7: for AWD model
GUID-8DAD3350-4CA5-48B9-9AB2-98E60188D37EWhen planning to travel in another coun-
try, you should first find out if the fuel available is
suitable for your vehicle's engine.
Using fuel with an octane rating that is too low
may cause engine damage. All gasoline vehicles
must be operated with unleaded gasoline.
Therefore, avoid taking your vehicle to areas
where appropriate fuel is not available.
When transferring the registration of your
vehicle to another country, state, province
or district, it may be necessary to modify the
vehicle to meet local laws and regulations.
The laws and regulations for motor vehicle
emission control and safety standards vary
according to the country, state, province or
district; therefore, vehicle specifications may
differ.
When any vehicle is to be taken into
another country, state, province or district
and registered, its modifications, transpor-
tation, and registration are the responsi-
bility of the user. NISSAN is not
responsible for any inconvenience that
may result.
WHEN TRAVELING OR
REGISTERING IN ANOTHER
COUNTRY
&RQGLWLRQ


> (GLW    0RGHO )' @
GUID-6AAA613A-3A26-4D80-957F-77DA08BE83AE
STI0787

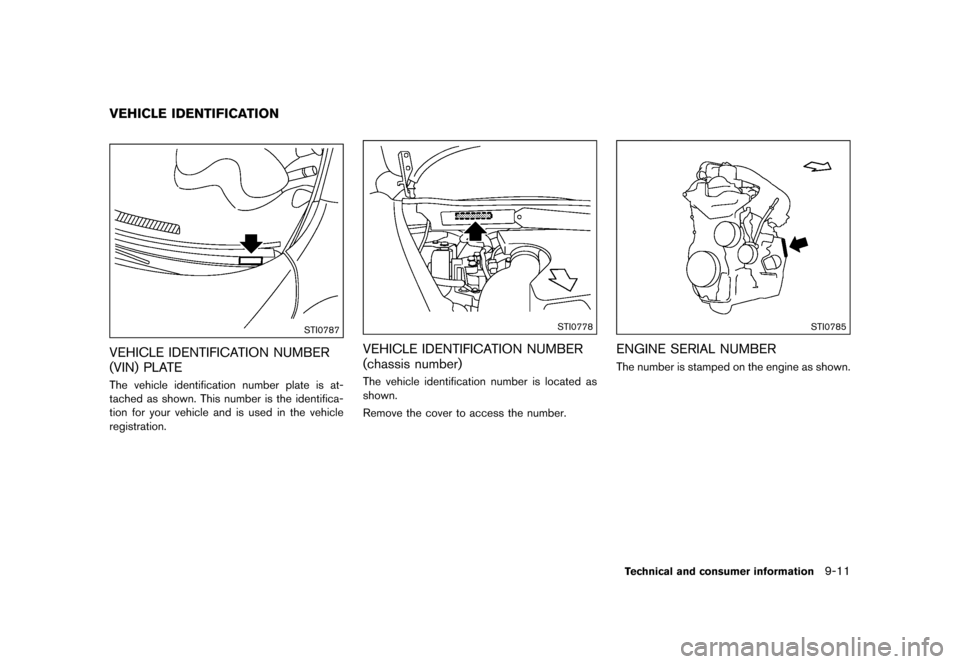

VEHICLE IDENTIFICATION NUMBER
(VIN) PLATE
GUID-51E7278B-C689-451D-B20F-778B750F9EBCThe vehicle identification number plate is at-
tached as shown. This number is the identifica-
tion for your vehicle and is used in the vehicle
registration.
STI0778
VEHICLE IDENTIFICATION NUMBER
(chassis number)
GUID-E896692B-DC42-4E21-8AE0-BA295E7DE87EThe vehicle identification number is located as
shown.
Remove the cover to access the number.
STI0785
ENGINE SERIAL NUMBERGUID-3FD05154-07DB-44B5-AFC5-52E87A282E5CThe number is stamped on the engine as shown.
Technical and consumer information9-11
VEHICLE IDENTIFICATION
&RQGLWLRQ


> (GLW    0RGHO )' @
9-12Technical and consumer information
STI0814

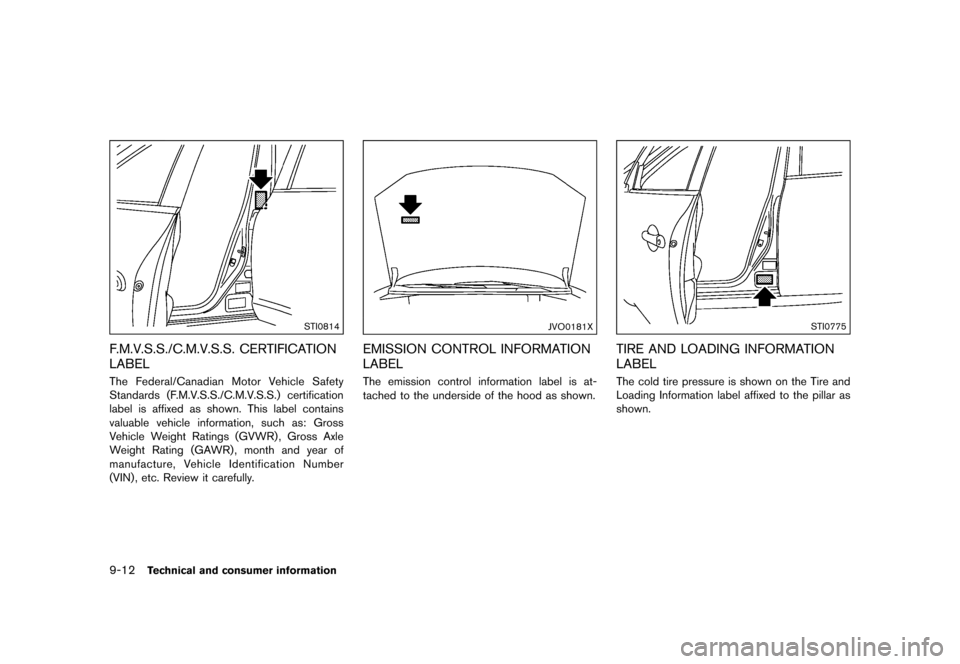

F.M.V.S.S./C.M.V.S.S. CERTIFICATION
LABEL
GUID-5C38DE0E-6A92-4DC0-8D62-4E94E8B7C121The Federal/Canadian Motor Vehicle Safety
Standards (F.M.V.S.S./C.M.V.S.S.) certification
label is affixed as shown. This label contains
valuable vehicle information, such as: Gross
Vehicle Weight Ratings (GVWR) , Gross Axle
Weight Rating (GAWR) , month and year of
manufacture, Vehicle Identification Number
(VIN) , etc. Review it carefully.
JVO0181X
EMISSION CONTROL INFORMATION
LABEL
GUID-8B286175-211A-4C8A-9CE7-8FA6334717D8The emission control information label is at-
tached to the underside of the hood as shown.
STI0775
TIRE AND LOADING INFORMATION
LABEL
GUID-2C654792-1156-4465-816B-E01C0EDBC8F9The cold tire pressure is shown on the Tire and
Loading Information label affixed to the pillar as
shown.
&RQGLWLRQ


> (GLW    0RGHO )' @
STI0776

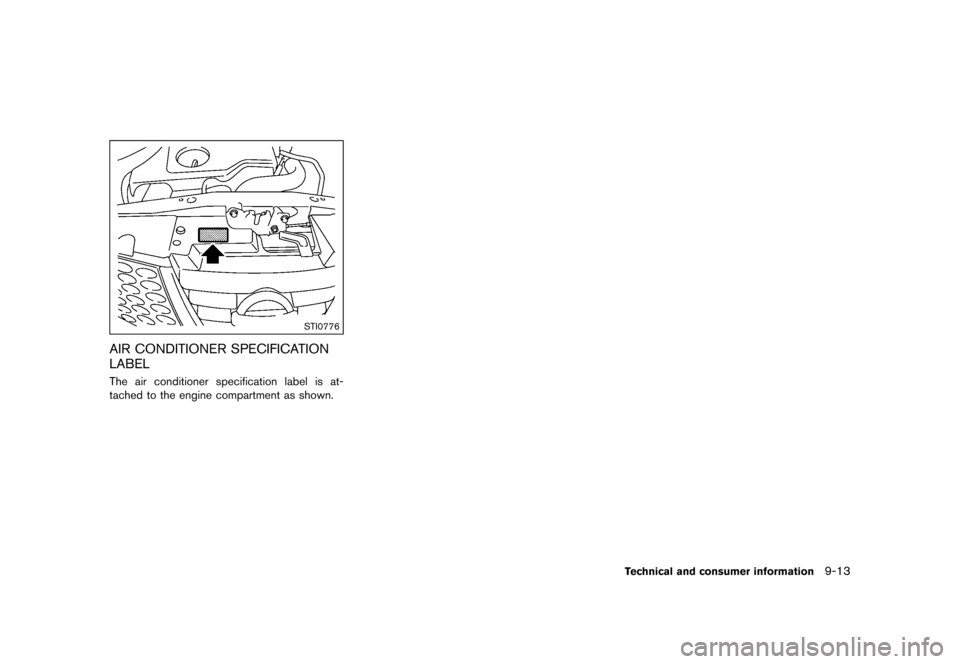

AIR CONDITIONER SPECIFICATION
LABEL
GUID-A1C6F964-FFE8-4D80-AF6C-198A60B0B66AThe air conditioner specification label is at-
tached to the engine compartment as shown.
Technical and consumer information9-13
&RQGLWLRQ


> (GLW    0RGHO )' @
9-14Technical and consumer information
GUID-84858CF9-B205-43B4-A3EA-91D90648CCE6
JVT0347X

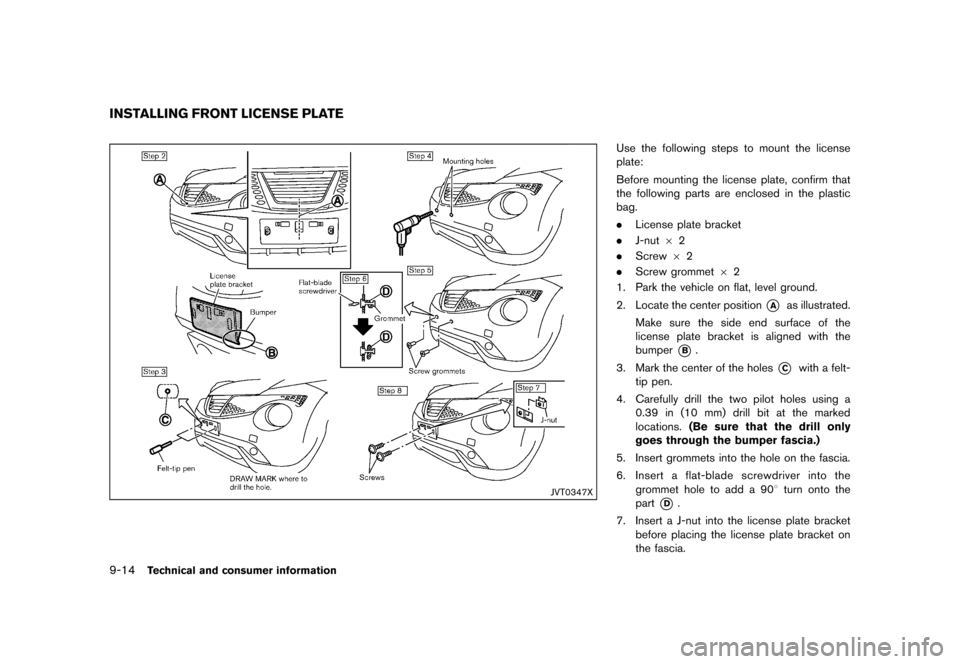

Use the following steps to mount the license
plate:
Before mounting the license plate, confirm that
the following parts are enclosed in the plastic
bag.
.License plate bracket
. J-nut 62
. Screw 62
. Screw grommet 62
1. Park the vehicle on flat, level ground.
2. Locate the center position
*Aas illustrated.
Make sure the side end surface of the
license plate bracket is aligned with the
bumper
*B.
3. Mark the center of the holes
*Cwith a felt-
tip pen.
4. Carefully drill the two pilot holes using a 0.39 in (10 mm) drill bit at the marked
locations. (Be sure that the drill only
goes through the bumper fascia.)
5. Insert grommets into the hole on the fascia.
6. Insert a flat-blade screwdriver into the
grommet hole to add a 908 turn onto the
part
*D.
7. Insert a J-nut into the license plate bracket before placing the license plate bracket on
the fascia.
INSTALLING FRONT LICENSE PLATE
&RQGLWLRQ
