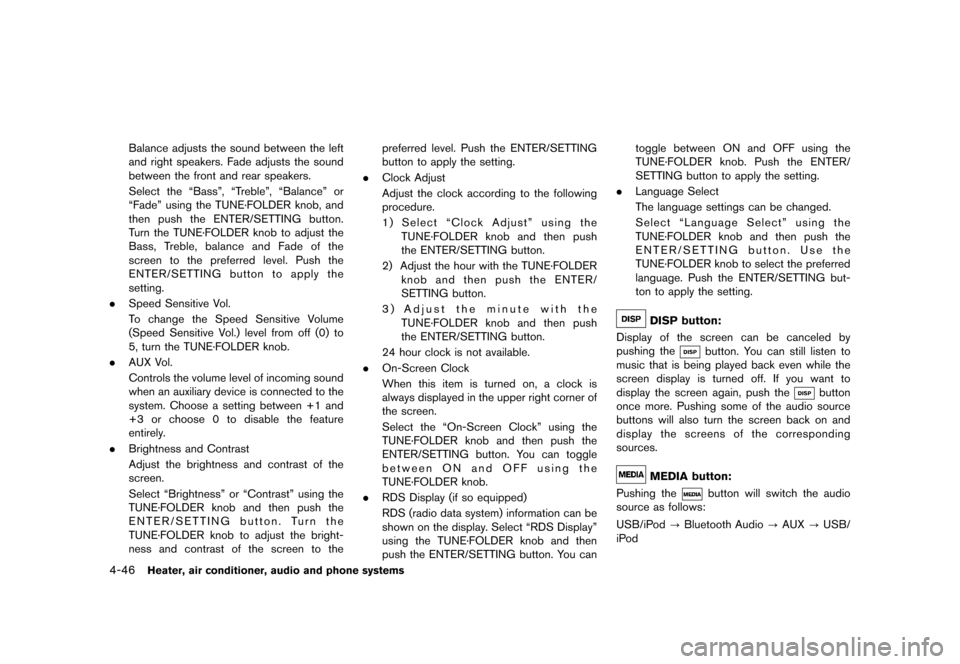

4-46Heater, air conditioner, audio and phone systems
Balance adjusts the sound between the left
and right speakers. Fade adjusts the sound
between the front and rear speakers.
Select the ªBassº, ªTrebleº, ªBalanceº or
ªFadeº using the TUNE´FOLDER knob, and
then push the ENTER/SETTING button.
Turn the TUNE´FOLDER knob to adjust the
Bass, Treble, balance and Fade of the
screen to the preferred level. Push the
ENTER/SETTING button to apply the
setting.
. Speed Sensitive Vol.
To change the Speed Sensitive Volume
(Speed Sensitive Vol.) level from off (0) to
5, turn the TUNE´FOLDER knob.
. AUX Vol.
Controls the volume level of incoming sound
when an auxiliary device is connected to the
system. Choose a setting between +1 and
+3 or choose 0 to disable the feature
entirely.
. Brightness and Contrast
Adjust the brightness and contrast of the
screen.
Select ªBrightnessº or ªContrastº using the
TUNE´FOLDER knob and then push the
ENTER/SETTING button. Turn the
TUNE´FOLDER knob to adjust the bright-
ness and contrast of the screen to the preferred level. Push the ENTER/SETTING
button to apply the setting.
. Clock Adjust
Adjust the clock according to the following
procedure.
1) Select ªClock Adjustº using the
TUNE´FOLDER knob and then push
the ENTER/SETTING button.
2) Adjust the hour with the TUNE´FOLDER knob and then push the ENTER/
SETTING button.
3) Adjust the minute with the TUNE´FOLDER knob and then push
the ENTER/SETTING button.
24 hour clock is not available.
. On-Screen Clock
When this item is turned on, a clock is
always displayed in the upper right corner of
the screen.
Select the ªOn-Screen Clockº using the
TUNE´FOLDER knob and then push the
ENTER/SETTING button. You can toggle
between ON and OFF using the
TUNE´FOLDER knob.
. RDS Display (if so equipped)
RDS (radio data system) information can be
shown on the display. Select ªRDS Displayº
using the TUNE´FOLDER knob and then
push the ENTER/SETTING button. You can toggle between ON and OFF using the
TUNE´FOLDER knob. Push the ENTER/
SETTING button to apply the setting.
. Language Select
The language settings can be changed.
Select ªLanguage Selectº using the
TUNE´FOLDER knob and then push the
ENTER/SETTING button. Use the
TUNE´FOLDER knob to select the preferred
language. Push the ENTER/SETTING but-
ton to apply the setting.
DISP button:GUID-F83C168B-173D-4313-B631-F712588C0463Display of the screen can be canceled by
pushing the
button. You can still listen to
music that is being played back even while the
screen display is turned off. If you want to
display the screen again, push the
button
once more. Pushing some of the audio source
buttons will also turn the screen back on and
display the screens of the corresponding
sources.
MEDIA button:GUID-F83C168B-173D-4313-B631-F712588C0463Pushing thebutton will switch the audio
source as follows:
USB/iPod ?Bluetooth Audio ?AUX ?USB/
iPod
&RQGLWLRQ


> (GLW    0RGHO )' @

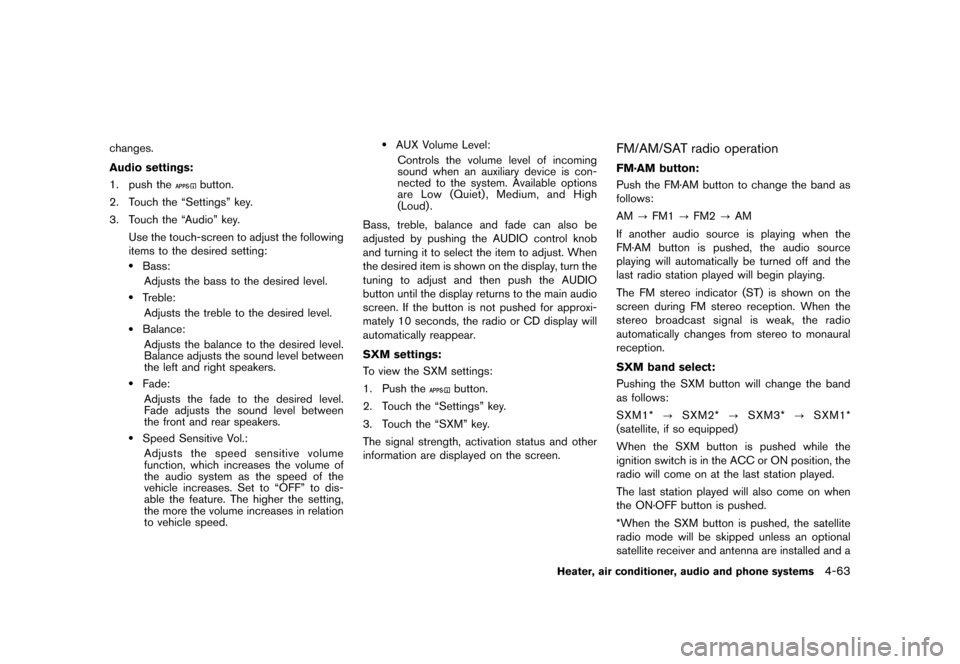

changes.
Audio settings:
GUID-F83C168B-173D-4313-B631-F712588C04631. push thebutton.
2. Touch the ªSettingsº key.
3. Touch the ªAudioº key. Use the touch-screen to adjust the following
items to the desired setting:
.Bass:Adjusts the bass to the desired level.
.Treble:Adjusts the treble to the desired level.
.Balance:Adjusts the balance to the desired level.
Balance adjusts the sound level between
the left and right speakers.
.Fade:
Adjusts the fade to the desired level.
Fade adjusts the sound level between
the front and rear speakers.
.Speed Sensitive Vol.:Adjusts the speed sensitive volume
function, which increases the volume of
the audio system as the speed of the
vehicle increases. Set to ªOFFº to dis-
able the feature. The higher the setting,
the more the volume increases in relation
to vehicle speed.
.AUX Volume Level:Controls the volume level of incoming
sound when an auxiliary device is con-
nected to the system. Available options
are Low (Quiet) , Medium, and High
(Loud) .
Bass, treble, balance and fade can also be
adjusted by pushing the AUDIO control knob
and turning it to select the item to adjust. When
the desired item is shown on the display, turn the
tuning to adjust and then push the AUDIO
button until the display returns to the main audio
screen. If the button is not pushed for approxi-
mately 10 seconds, the radio or CD display will
automatically reappear.
SXM settings:
GUID-F83C168B-173D-4313-B631-F712588C0463To view the SXM settings:
1. Push the
button.
2. Touch the ªSettingsº key.
3. Touch the ªSXMº key.
The signal strength, activation status and other
information are displayed on the screen.
FM/AM/SAT radio operationGUID-F471B34D-BB40-4254-905D-BAD3C1C3D3BD
FM´AM button:GUID-F83C168B-173D-4313-B631-F712588C0463Push the FM´AM button to change the band as
follows:
AM ?FM1 ?FM2 ?AM
If another audio source is playing when the
FM´AM button is pushed, the audio source
playing will automatically be turned off and the
last radio station played will begin playing.
The FM stereo indicator (ST) is shown on the
screen during FM stereo reception. When the
stereo broadcast signal is weak, the radio
automatically changes from stereo to monaural
reception.
SXM band select:
GUID-F83C168B-173D-4313-B631-F712588C0463Pushing the SXM button will change the band
as follows:
SXM1* ?SXM2* ?SXM3* ?SXM1*
(satellite, if so equipped)
When the SXM button is pushed while the
ignition switch is in the ACC or ON position, the
radio will come on at the last station played.
The last station played will also come on when
the ON´OFF button is pushed.
*When the SXM button is pushed, the satellite
radio mode will be skipped unless an optional
satellite receiver and antenna are installed and a
Heater, air conditioner, audio and phone systems4-63
&RQGLWLRQ


> (GLW    0RGHO )' @

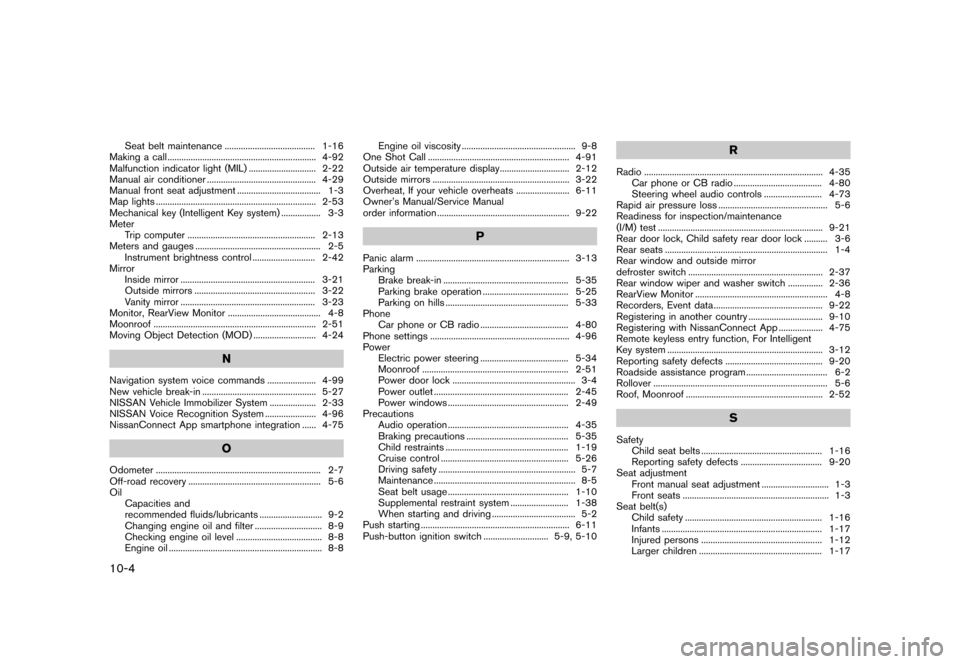

10-4
