Page 2521 of 2896

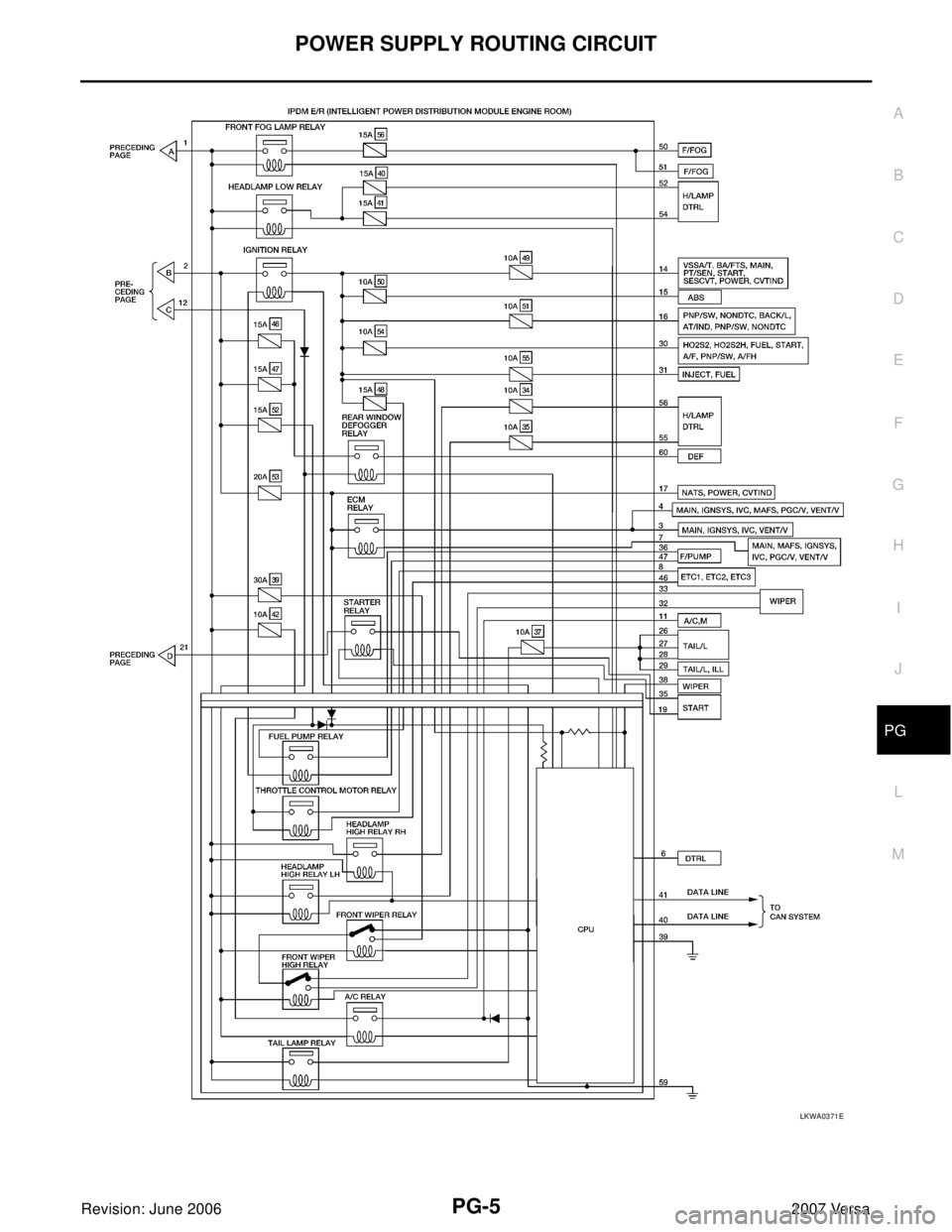

NISSAN LATIO 2007 Service Repair Manual POWER SUPPLY ROUTING CIRCUIT PG-5 C D E F G H I J L MA B PG Revision: June 20062007 Versa LKWA0371E

Page 2522 of 2896

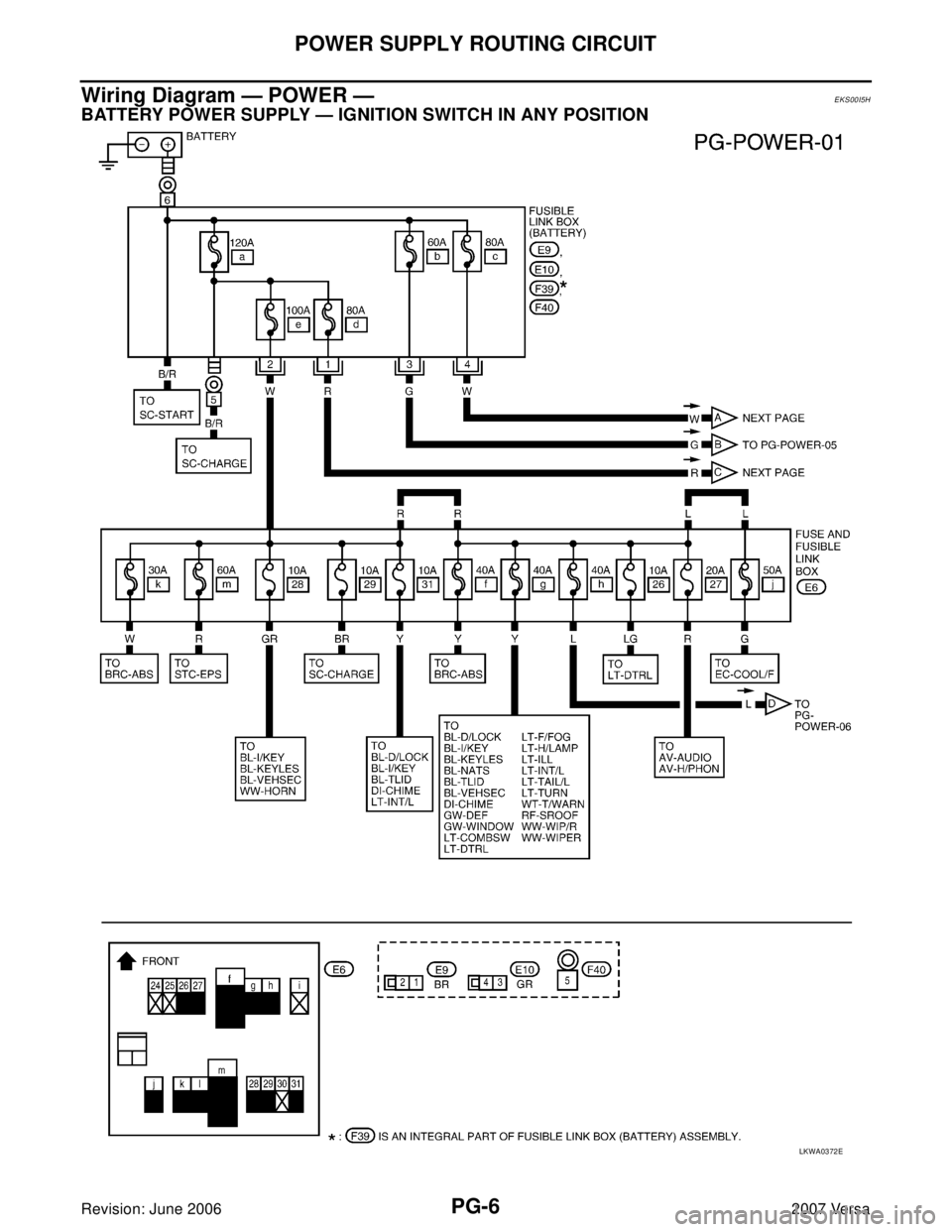

NISSAN LATIO 2007 Service Repair Manual PG-6 POWER SUPPLY ROUTING CIRCUIT Revision: June 20062007 Versa Wiring Diagram — POWER —EKS00I5H BATTERY POWER SUPPLY — IGNITION SWITCH IN ANY POSITION LKWA0372E

Page 2523 of 2896

NISSAN LATIO 2007 Service Repair Manual POWER SUPPLY ROUTING CIRCUIT PG-7 C D E F G H I J L MA B PG Revision: June 20062007 Versa LKWA0373E

Page 2524 of 2896

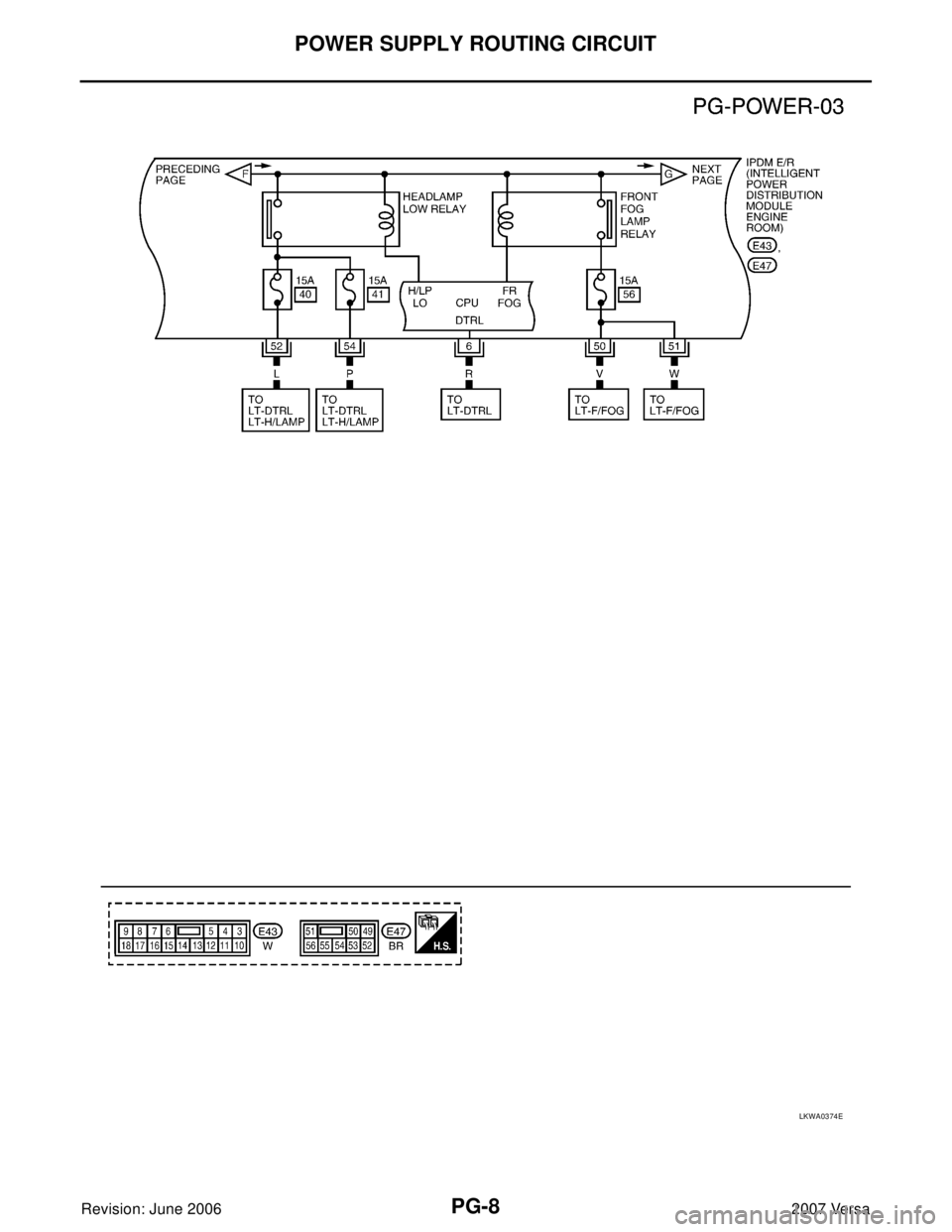

NISSAN LATIO 2007 Service Repair Manual PG-8 POWER SUPPLY ROUTING CIRCUIT Revision: June 20062007 Versa LKWA0374E

Page 2525 of 2896

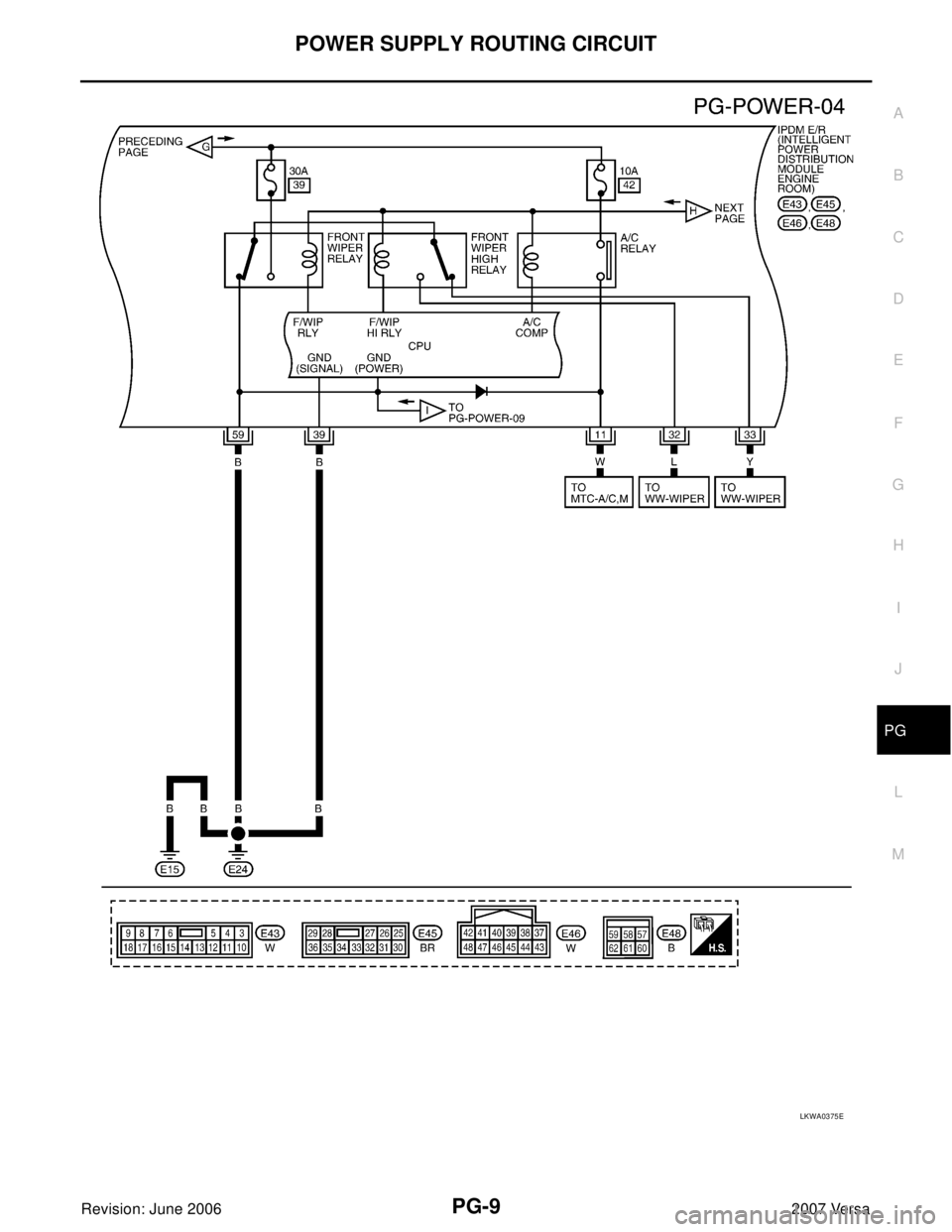

NISSAN LATIO 2007 Service Repair Manual POWER SUPPLY ROUTING CIRCUIT PG-9 C D E F G H I J L MA B PG Revision: June 20062007 Versa LKWA0375E

Page 2526 of 2896

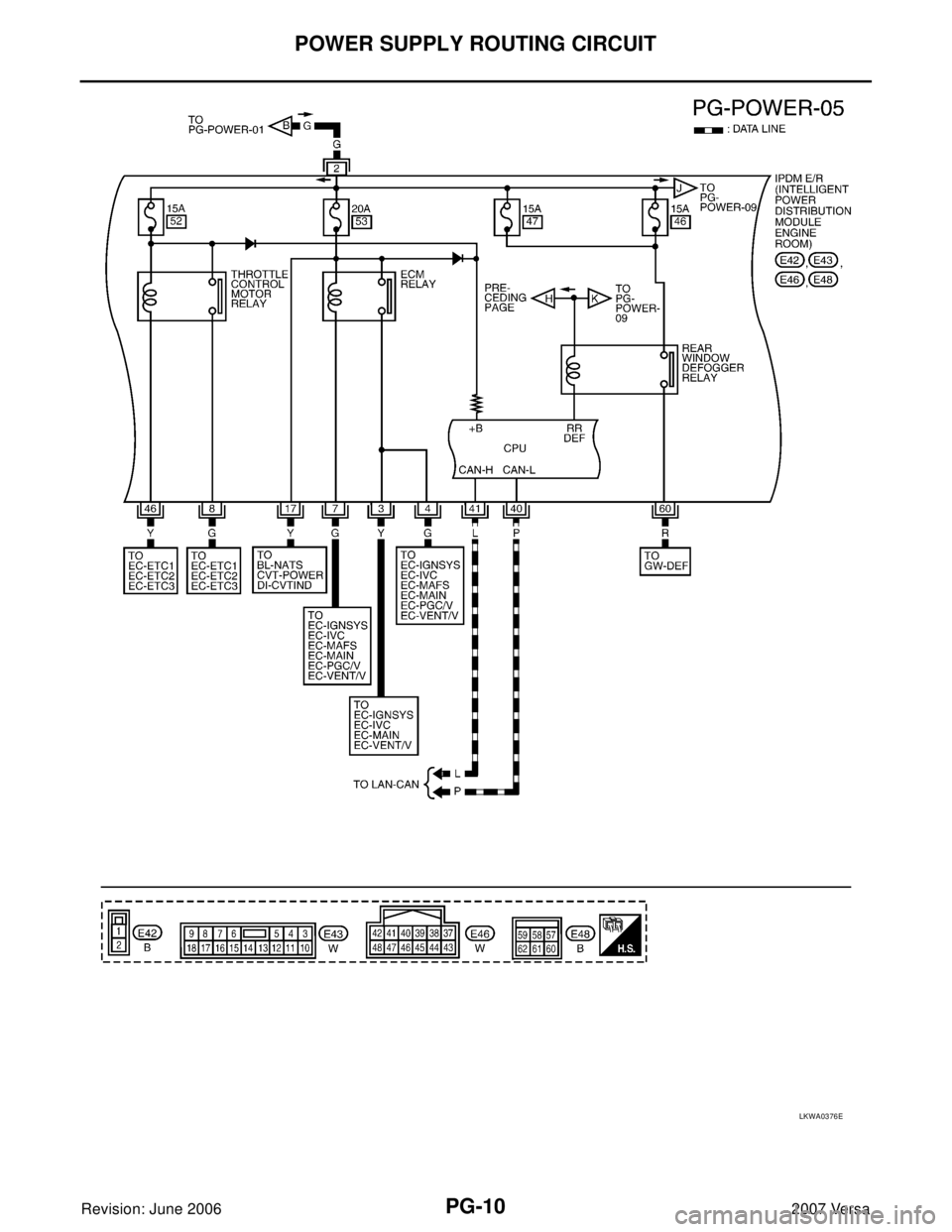

NISSAN LATIO 2007 Service Repair Manual PG-10 POWER SUPPLY ROUTING CIRCUIT Revision: June 20062007 Versa LKWA0376E

Page 2527 of 2896

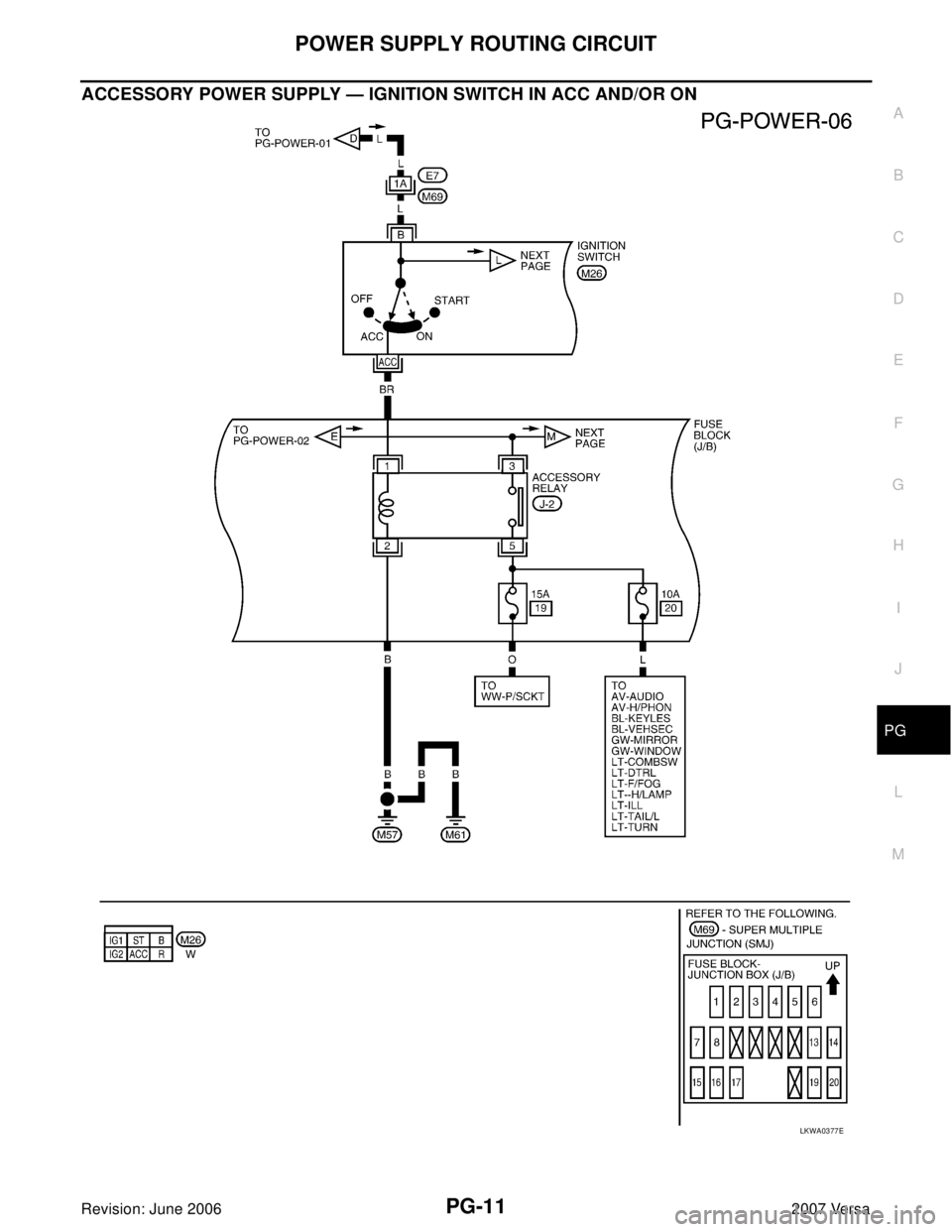

NISSAN LATIO 2007 Service Repair Manual POWER SUPPLY ROUTING CIRCUIT PG-11 C D E F G H I J L MA B PG Revision: June 20062007 Versa ACCESSORY POWER SUPPLY — IGNITION SWITCH IN ACC AND/OR ON LKWA0377E

Page 2528 of 2896

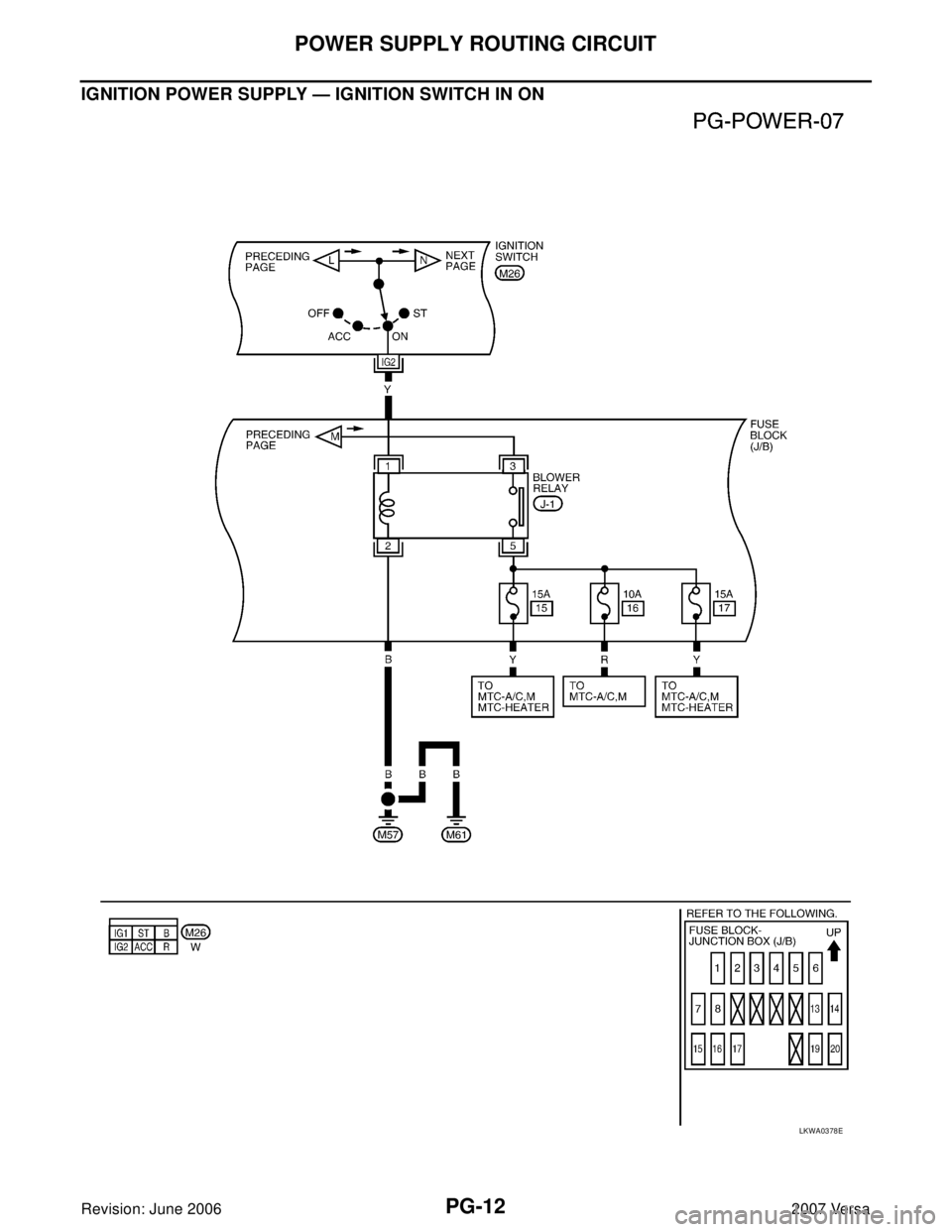

NISSAN LATIO 2007 Service Repair Manual PG-12 POWER SUPPLY ROUTING CIRCUIT Revision: June 20062007 Versa IGNITION POWER SUPPLY — IGNITION SWITCH IN ON LKWA0378E

Page 2529 of 2896

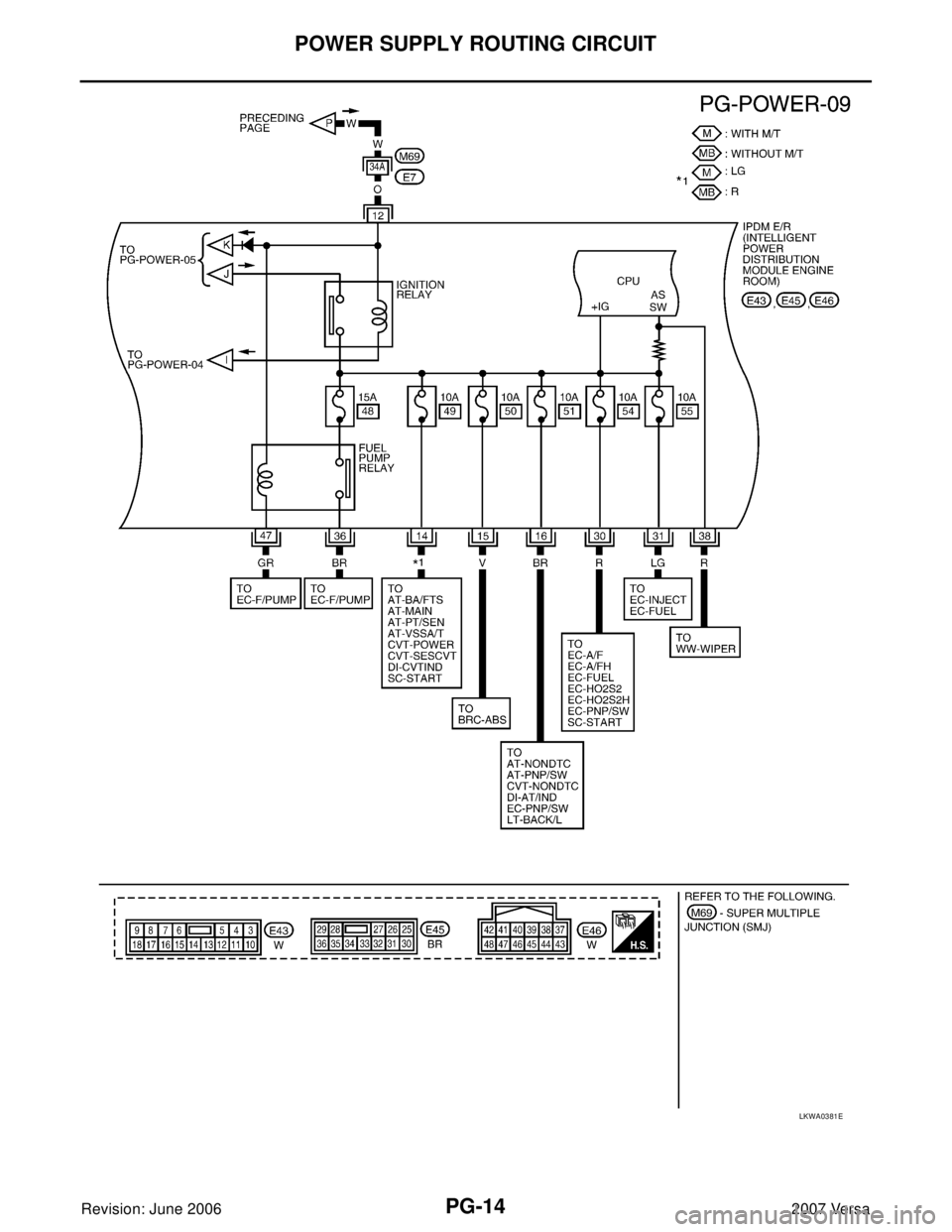

NISSAN LATIO 2007 Service Repair Manual POWER SUPPLY ROUTING CIRCUIT PG-13 C D E F G H I J L MA B PG Revision: June 20062007 Versa IGNITION POWER SUPPLY — IGNITION SWITCH IN ON AND/OR START. LKWA0379E

Page 2530 of 2896

NISSAN LATIO 2007 Service Repair Manual PG-14 POWER SUPPLY ROUTING CIRCUIT Revision: June 20062007 Versa LKWA0381E
