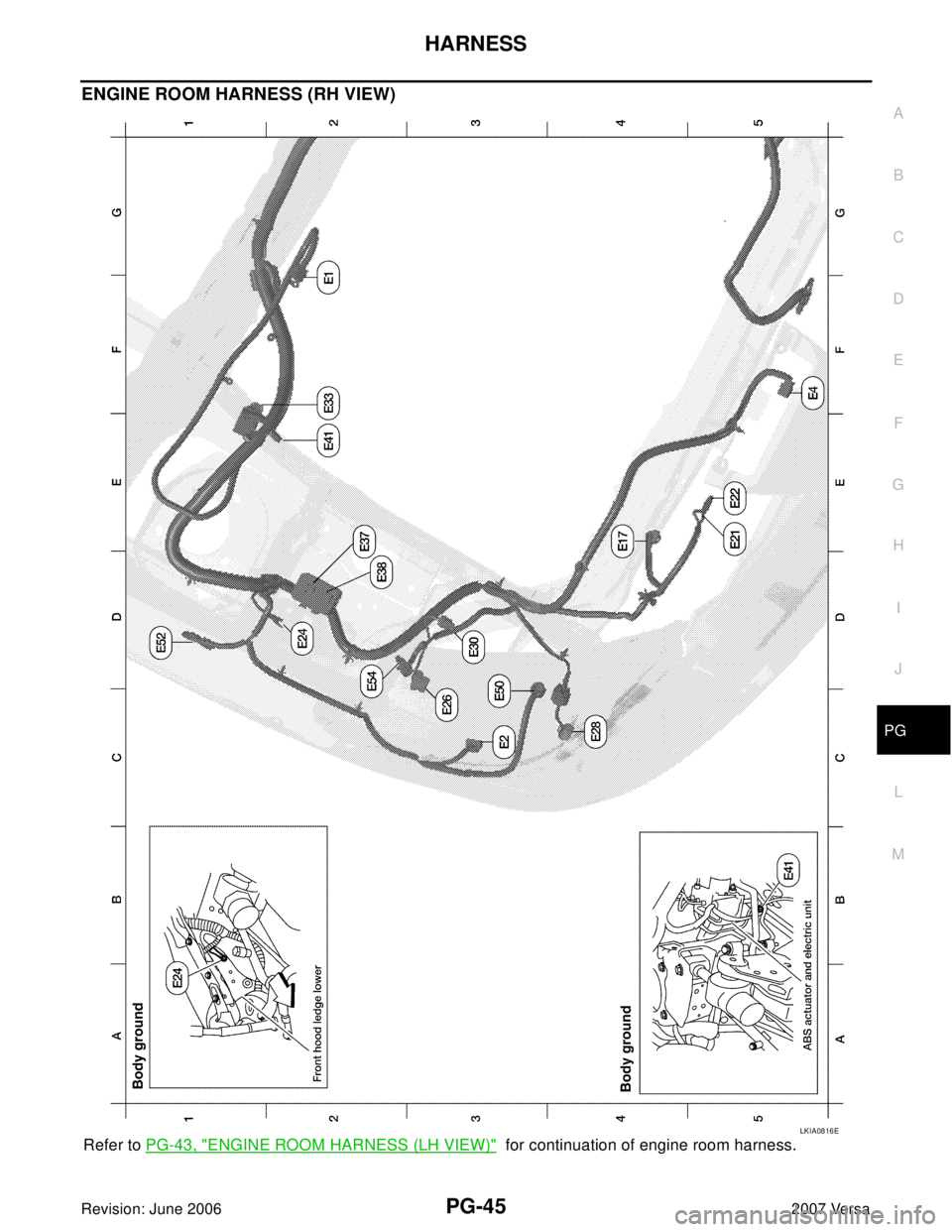

ENGINE ROOM HARNESS (RH VIEW)
Refer to PG-43, "ENGINE ROOM HARNESS (LH VIEW)" for continuation of engine room harness.
LKIA0816E

PG-46
HARNESS
Revision: June 20062007 Versa
G2 E1 GR/5 : Front wiper motor D3 E30 B/2: Front combination lamp RH
(turn signal)
C3 E2 B/2 : Front and rear washer motor F2 E33 B/26: ABS actuator and electric unit (control
unit)
F5 E4 Y/2 : Crash zone sensor E2 E37 B/5 : Daytime light relay 1
E4 E17 B/3 : Refrigerant pressure sensor D2 E38 L/5 : Daytime light relay 2
E5 E21 B/1 : Horn (high) E2 E41 — : Ground (ABS)
E5 E22 B/1 : Horn (high) C3 E50 W/2 : Washer fluid level switch
D2 E24 — : Engine ground D1 E52 B/2 : Front wheel sensor RH
C3 E26 B/3: Front combination lamp RH
(headlamp)D2 E54 B/2: Front combination lamp RH
(parking)
C4 E28 B/2 : Front fog lamp RH

HARNESS
PG-47
C
D
E
F
G
H
I
J
L
MA
B
PG
Revision: June 20062007 Versa

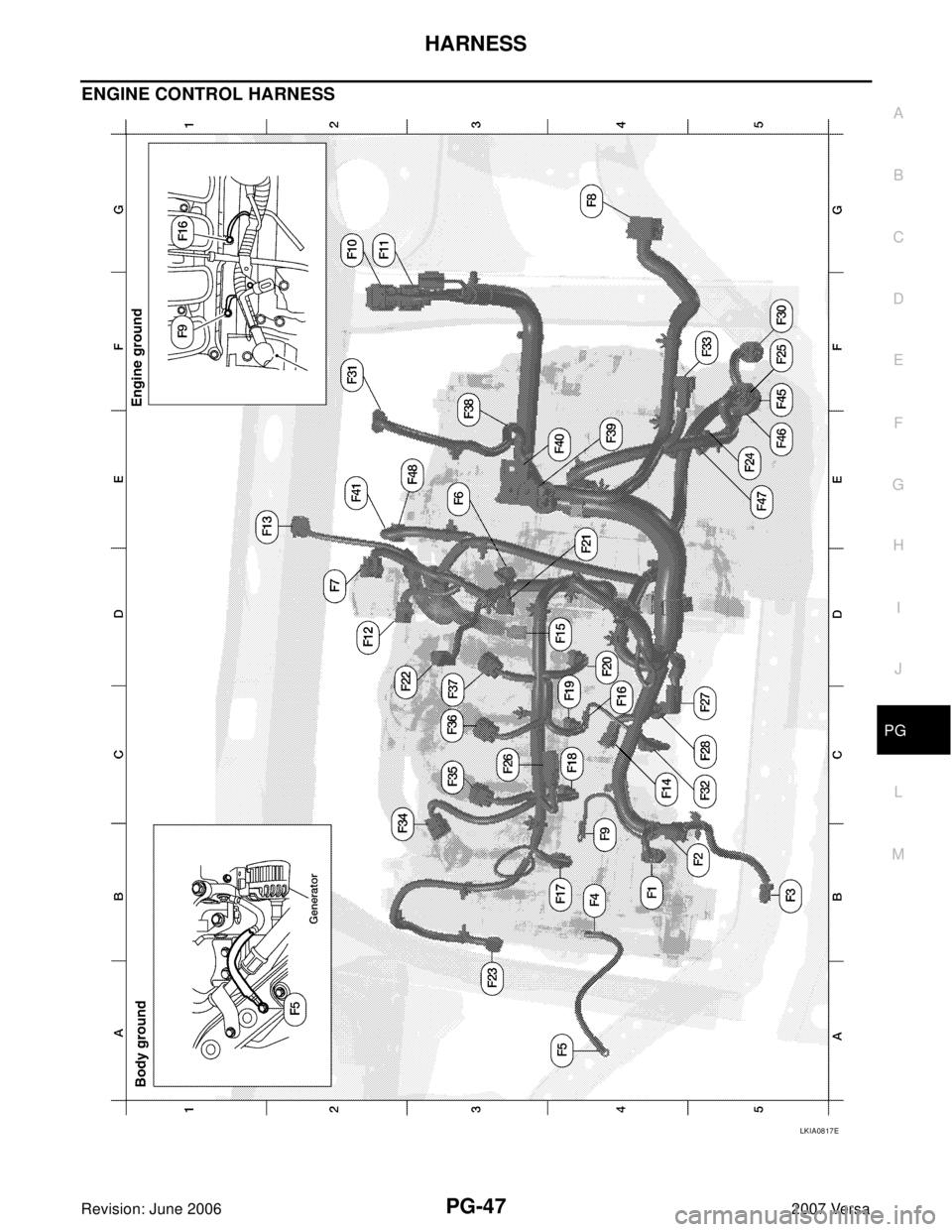

ENGINE CONTROL HARNESS
LKIA0817E

PG-48
HARNESS
Revision: June 20062007 Versa
B4 F1 B/3 : Generator E4 F39 — : Fusible link box (battery)
B5 F2 — : Generator E4 F40 — : Fusible link box (battery)
B5 F3 B/1 : A/C compressor E2 F41 GR/2 : Vehicle speed sensor
B4 F4 — : Generator F5 F45 GR/3 : Turbine revolution sensor
A4 F5 — : Generator ground E5 F46 GR/22 : CVT unit
E3 F6 GR/2 : Engine coolant temperature sensor E5 F47 B/3 : Powertrain revolution sensor (with A/T)
D2 F7 B/6 : Electric throttle control actuator E3 F48 B/3 : Secondary speed sensor (with M/T)
G4 F8 SMJ : To E8
B4 F9 — : Engine ground
G2 F10 GR/32 : ECM
G2 F11 BR/48 : ECM
D3 F12 GR/4 : Air fuel ratio (A/F) sensor 1
E2 F13 B/4 : Heated oxygen sensor 2
C4 F14 B/2 : Knock sensor
D3 F15 B/3 : Crankshaft position sensor (POS)
C4 F16 — : Engine ground
B4 F17 GR/2 : Fuel injector No. 1
C4 F18 GR/2 : Fuel injector No. 2
C4 F19 GR/2 : Fuel injector No. 3
D4 F20 GR/2 : Fuel injector No. 4
D4 F21 B/3 : Camshaft position sensor (PHASE)
C3 F22 GR/2: EVAP canister purge volume control
solenoid valve
B3 F23 GR/2: Intake valve timing control solenoid
valve
E5 F24 G/3: Park/neutral position (PNP) switch
(with M/T)
F5 F25 B/10: Park/neutral position (PNP) switch
(with A/T)
C3 F26 W/2 : Condenser-2
C5 F27 — : Starter motor
C5 F28 — : Starter motor
F5 F30 B/8 : Terminal cord assembly
F2 F31 B/6 : Mass air flow sensor
C5 F32 GR/1 : Oil pressure switch
F5 F33 GR/6 : To E19
C3 F34 GR/3: Ignition coil No. 1 (with power tran-
sistor)
C3 F35 GR/3: Ignition coil No. 2 (with power tran-
sistor)
C3 F36 GR/3: Ignition coil No. 3 (with power tran-
sistor)
C3 F37 GR/3: Ignition coil No. 4 (with power tran-
sistor)
E5 F38 BR/3 : Revolution sensor

HARNESS
PG-49
C
D
E
F
G
H
I
J
L
MA
B
PG
Revision: June 20062007 Versa

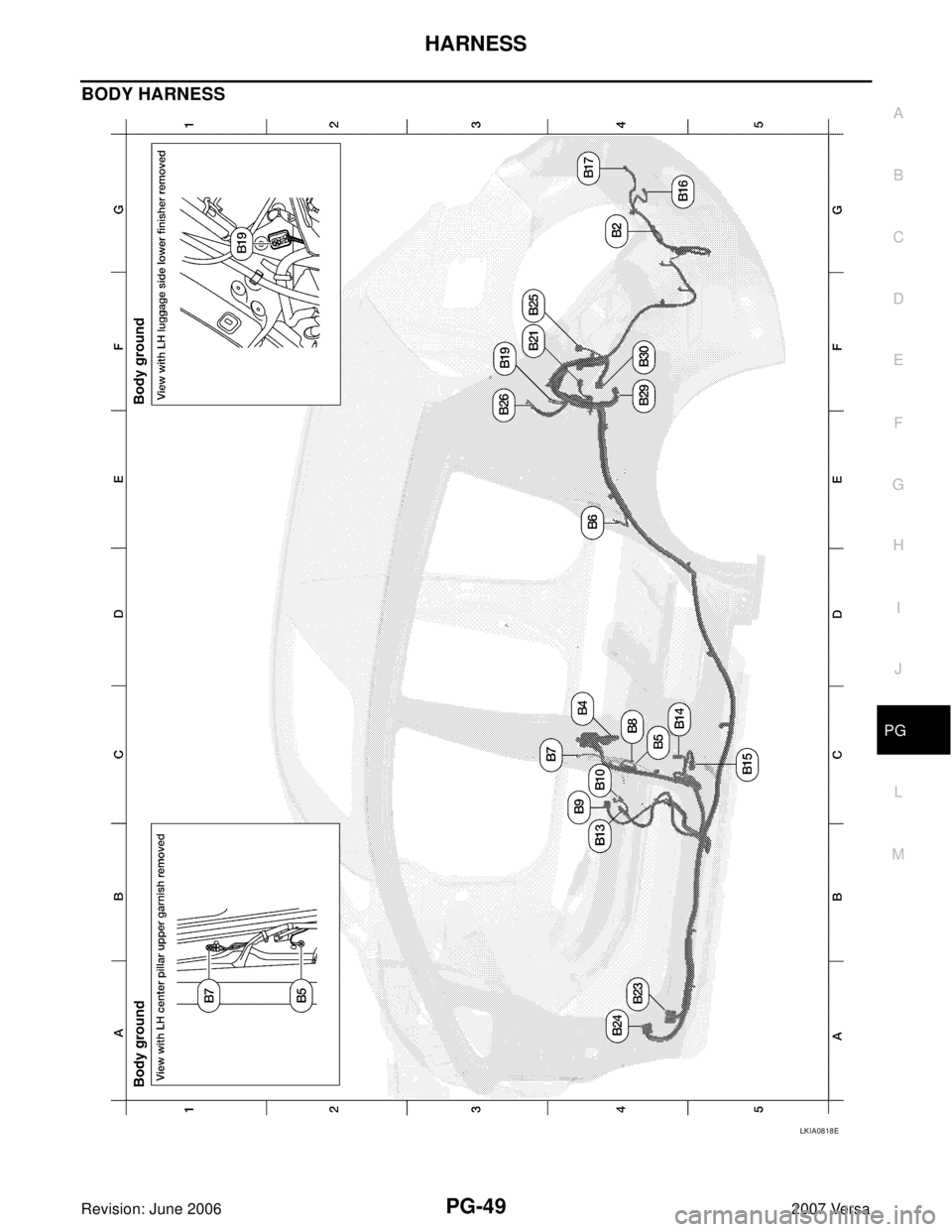

BODY HARNESS
LKIA0818E

PG-50
HARNESS
Revision: June 20062007 Versa
G4 B2 GR/2 : Rear bumper antenna
C4 B4 W/8 : To D201
C4 B5 — : Body ground
E4 B6 W/1 : Rear door switch LH
C4 B7 — : Body ground
C4 B8 W/3 : Front door switch LH
C4 B9 Y/12 : Air bag diagnosis sensor unit
C4 B10 Y/2 : Front LH side air bag module
F3 B13 W/3 : Seat belt buckle switch LH
C4 B14 Y/2 : Front LH seat belt pre-tensioner
C5 B15 Y/2 : LH side air bag (satellite) sensor
G4 B16 BR/2 : License plate lamp LH
G4 B17 BR/2 : License plate lamp RH
F3 B19 — : Body ground
F3 B21 W/2 : Luggage room lamp
A4 B23 W/16 : To M15
A4 B24 W/24 : To M16
F3 B25 BR/6 : Rear combination lamp LH
F3 B26 Y/2 : LH side curtain air bag module
F4 B29 W/6 : Subwoofer
F4 B30 W/16 : Satellite radio tuner

HARNESS
PG-51
C
D
E
F
G
H
I
J
L
MA
B
PG
Revision: June 20062007 Versa

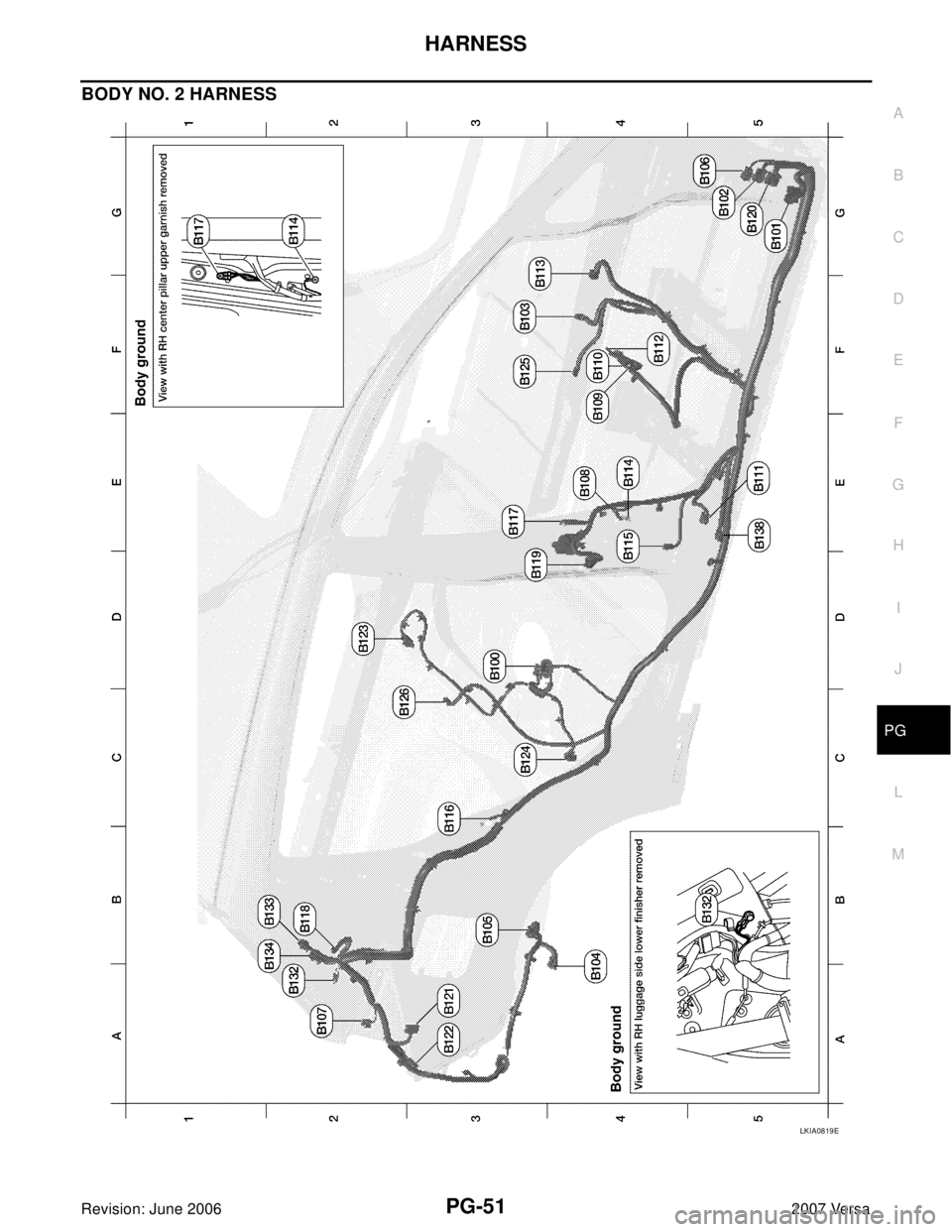

BODY NO. 2 HARNESS
LKIA0819E

PG-52
HARNESS
Revision: June 20062007 Versa
D3 B100 GR/5 : Fuel level sensor unit and fuel pump
G5 B101 W/16 : To M12
G5 B102 W/24 : To M13
F3 B103 B/2 : Console power socket
A4 B104 GR/3: EVAP control system pressure sen-
sor
A3 B105 B/2 : EVAP canister vent control valve
G5 B106 W/4 : To M11
A2 B107 BR/6 : Rear combination lamp RH
E4 B108 W/3 : Front door switch RH
F4 B109 Y/2 : Front RH side air bag module
F4 B110 W/10 : To B300
E5 B111 Y/2 : RH side air bag (satellite) sensor
F4 B112 W/3 : Seat belt buckle switch RH
F3 B113 Y/12 : Air bag diagnosis sensor unit
E4 B114 — : Body ground
E4 B115 Y/2 : Front RH seat belt pre-tensioner
C3 B116 W/1 : Rear door switch RH
E3 B117 — : Body ground
B2 B118 Y/2 : RH side curtain air bag module
D3 B119 W/8 : To D301
G5 B120 W/24 : To M14
A3 B121 W/32 : Bluetooth control unit
A3 B122 GR/1 : Bluetooth control unit
D2 B123 B/2 : Rear wheel sensor LH
C3 B124 B/2 : Rear wheel sensor RH
F3 B125 GR/2 : Front console antenna
C3 B126 GR/2 : Rear floor antenna
A2 B132 — : Body ground
B2 B133 W/2 : To D400
A2 B134 W/12 : To D401
E5 B138 B/3 : Belt tension sensor

HARNESS
PG-53
C
D
E
F
G
H
I
J
L
MA
B
PG
Revision: June 20062007 Versa
ROOM LAMP HARNESS
LKIA0820E

PG-54
HARNESS
Revision: June 20062007 Versa
D5 R1 W/16 : To M1
F2 R2 GR/6 : Map lamp
F2 R3 W/3 : Map lamp
F2 R4 GR/10 : Sunroof motor assembly
F2 R6 W/3 : Sunroof switch
D1 R7 W/3 : Interior room lamp
E2 R8 W/3 : To R50 (without map lamps)
G2 R9 W/2 : Vanity mirror lamp LH
D3 R10 W/2 : Vanity mirror lamp RH
D1 R15 W/8 : Microphone
