NISSAN LATIO 2007 Service Repair Manual

BL-12
SQUEAK AND RATTLE TROUBLE DIAGNOSES
Revision: June 20062007 Versa

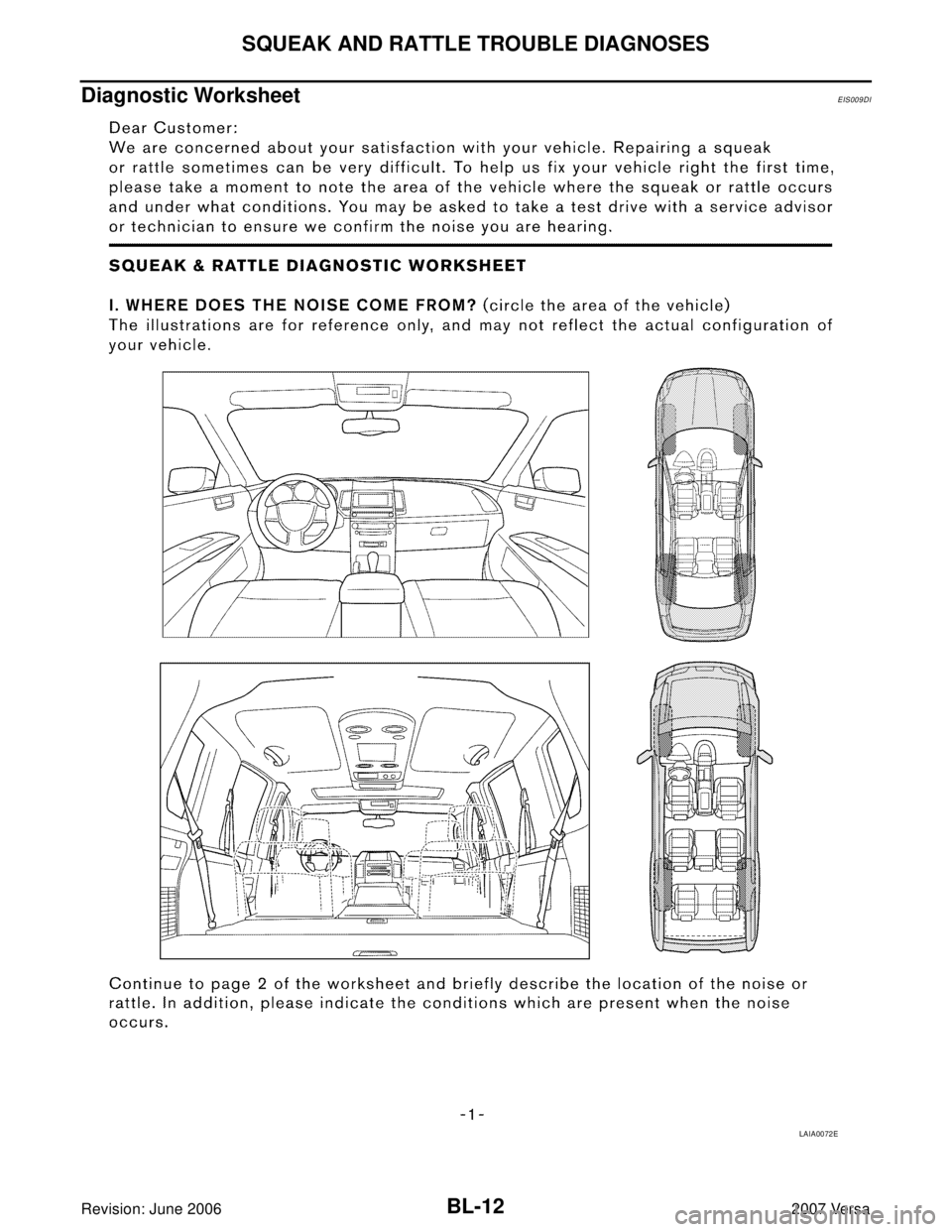

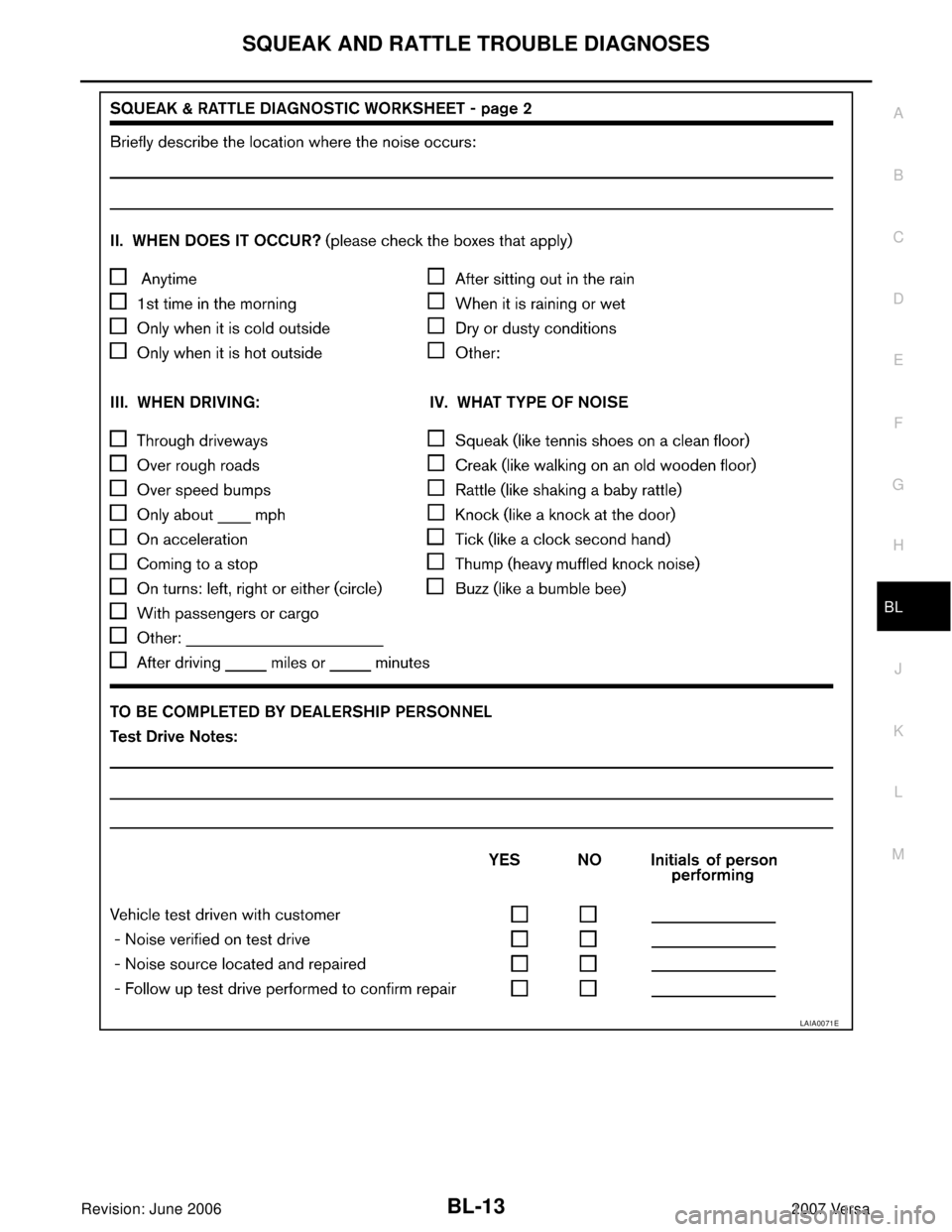

Diagnostic WorksheetEIS009DI
LAIA0072E

SQUEAK AND RATTLE TROUBLE DIAGNOSES
BL-13
C
D
E
F
G
H
J
K
L
MA
B
BL
Revision: June 20062007 Versa
LAIA0071E

BL-14
HOOD
Revision: June 20062007 Versa
HOODPFP:F5100
Fitting AdjustmentEIS0090O
FRONT END HEIGHT ADJUSTMENT AND LATERAL/LONGITUDINAL CLEARANCE ADJUST-
MENT
1. Remove the front grille. Refer to EI-19, "FRONT GRILLE" .
2. Remove hood lock. Rotate bumper rubber to adjust height until
hood becomes 1.0 to 1.5 mm lower than the fender.
3. Position hood lock and engage striker. Check hood lock and
striker for looseness. Tighten lock bolts to the specified torque.
4. Install the front grille. Refer to EI-19, "
FRONT GRILLE" .
CAUTION:
Adjust the clearance between hood and other parts so that the
dimensional difference left and right is as follows.
SURFACE MISMATCH ADJUSTMENT
1. Remove the front grille. Refer to EI-19, "FRONT GRILLE" .
2. Release hood lock, and adjust surface level difference of hood, fender, and headlamp according to the fit-
ting standard dimension, using RH and LH bumper rubbers.
3. Install and align the hood lock until the center of the striker and the hood lock are vertically aligned.
4. Press the hood lightly with [approx. 29 N (3 kg] of force and adjust A and B as shown.
PIIB6508E
Hood and headlamp (B - B) : Less than 2.0 mm (0.08 in)
Hood and fender (C - C) : Less than 1.5 mm (0.06 in)
Hood and fender (D - D) : Less than 1.5 mm (0.06 in)
PIIB2526J
Hood and front bumper (A - A) : -1.3 - 2.7 mm (-0.05 - 0.11 in)
Hood and fender (D - D) : -0.4 - 1.7 mm (-0.16 - 0.07 in)

HOOD
BL-15
C
D
E
F
G
H
J
K
L
MA
B
BL
Revision: June 20062007 Versa
5. After adjustment tighten lock bolts to the specified torque.
6. Install the front grille. Refer to EI-19, "
FRONT GRILLE" .
Removal and InstallationEIS0090P
HOOD ASSEMBLY
Removal
1. Remove hinge nuts on hood and remove hood assembly.
CAUTION:
Two technicians should be used to avoid damaging the
hood during removal.
1. Hood striker 2. Primary latch 3. Secondary striker
4. Secondary latch
A : 20 mm (0.79 in)
B : 6.8 mm (0.268 in) min.
PIIB5794E
1. Hood hinge 2. Hood stay 3. Radiator core seal rubber
4. Hood assembly 5. Hood insulator 6. Hood stay holder
PIIB2528J
12.7 N·m (1.3 kg-m, 9.4 ft-lb)
PIIB2529J

BL-16
HOOD
Revision: June 20062007 Versa
Installation
Installation is in the reverse order of removal.
CAUTION:

Before installing hood hinge, apply anticorrosive agent onto the surfaces that make contact with
the vehicle body.

After installing, perform hood fitting adjustment. Refer to BL-14, "Fitting Adjustment" .
HOOD HINGE
Removal
1. Remove hood assembly. Refer to BL-15, "Removal and Installation" .
2. Remove front fender. Refer to BL-22, "
Removal and Installation" .
3. Remove bolts and the hood hinge.
Installation
Installation is in the reverse order of removal. 12.7 N·m (1.3 kg-m, 9.4 ft-lb)
PIIB2530J

HOOD
BL-17
C
D
E
F
G
H
J
K
L
MA
B
BL
Revision: June 20062007 Versa
Removal and Installation of Hood Lock ControlEIS0090Q
REMOVAL
Hood Lock
1. Remove front grille (LH). Refer to EI-19, "Removal and Installation" .
2. Remove hood lock bolts.
3. Remove hood lock from hood lock cable.
Hood Lock Reinforcement
1. Remove front bumper. Refer to EI-14, "Removal and Installation" .
2. Remove crash zone sensor. Refer to SRS-49, "
Removal and Installation" .
3. Remove bolts, and the hood lock reinforcement.
1. Hood lock 2. Hood lock cable 3. Hood ledge upper front
4. Clip
PIIB6509E
23.6 N·m (2.4 kg-m, 17 ft-lb)
23.6 N·m (2.4 kg-m, 17 ft-lb)
PIIB6511E

BL-18
HOOD
Revision: June 20062007 Versa
Hood Lock Cable
1. Remove front grille (LH/RH). Refer to EI-19, "Removal and Installation" .
2. Remove fender protector (LH). Refer to EI-22, "
Components" .
3. Remove hood lock, and remove hood lock cable from hood lock.
4. Remove radiator core upper support, hood ledge, and then remove hood lock cable.
5. Remove hood opener on bottom left of instrument panel, and
then remove hood lock cable.
6. Remove grommet on lower dashboard, and pull out hood lock
cable from passenger room side.
CAUTION:
While pulling the cable, be careful not to damage (peel)
hood opener cable outer surface on edges of body through
hole.
INSTALLATION
Installation is in the reverse order of removal.

Perform hood fitting adjustment. Refer to BL-14, "Fitting Adjustment" .
Hood Lock Reinforcement
When installing hood lock reinforcement, loosen hood bolts, and
then tighten bolts in the order as shown.
Hood Lock Cable
1. Pull the hood lock cable through the panel hole to the engine compartment.
CAUTION:
Be careful not to bend the cable too much, keeping the
radius 100 mm (3.94 in) or more.
2. Check that the cable is not offset from the positioning grommet,
and push the grommet into the panel hole securely.
3. Apply the sealant around the grommet (at * mark).
LIIA2667E
23.6 N·m (2.4 kg-m, 17 ft-lb)
PIIB6513E
PIIB5801E

HOOD
BL-19
C
D
E
F
G
H
J
K
L
MA
B
BL
Revision: June 20062007 Versa
4. Install cable securely to lock.
5. After installing, check hood lock adjustment and hood opener
operation.
Hood Lock Control InspectionEIS0090R
CAUTION:
If the hood lock cable is bent or deformed, replace it.
1. Check that the secondary latch is properly engaged with the secondary striker (B: 6.8 mm (0.268 in) with
hood's own weight.
2. While operating the hood release handle, carefully check that the front end of the hood is raised by
approx. 20 mm (0.79 in). Also check that the hood release handle returns to the original position.
3. Check that the secondary hood release operates at 29.4 N (3.0 kg) or below.
4. Confirm static closing force of the hood is 343 – 441 N·m (35 – 44 kg-m).
5. Check the hood lock lubrication condition. If necessary, apply
“body grease” to the points as shown.
PIIB6537E
1. Hood striker 2. Primary latch 3. Secondary striker
4. Secondary latch
PIIB5794E
PIIB6514E

BL-20
RADIATOR CORE SUPPORT
Revision: June 20062007 Versa
RADIATOR CORE SUPPORTPFP:62500
Removal and InstallationEIS0090S
REMOVAL
Radiator Core Support Upper
1. Remove the air duct. Refer to EM-16, "Removal and Installation" .
2. Remove the headlamp (LH/RH). Refer to LT-25, "
Removal and Installation" .
3. Remove the hood lock assembly, and remove hood lock cable. Refer to BL-17
.
4. Remove the air guide and hood lock cable clip.
5. Remove the washer tank inlet. Refer to WW-28, "
Removal and Installation of Washer Tank" .
6. Remove the radiator core support upper.
Radiator Core Support Lower
1. Remove the air duct. Refer to EM-16, "Removal and Installation" .
2. Remove the front bumper. Refer to EI-14, "
Removal and Installation" .
3. Remove the headlamp (LH/RH). Refer to LT-25, "
Removal and Installation" .
4. Remove the hood lock assembly, and remove hood lock cable. Refer to BL-17
.
5. Remove the air guide and hood lock cable mounting clip.
6. Remove the front bumper reinforcement. Refer to EI-14, "
Removal and Installation" .
7. Remove the radiator core lower stay.
8. Remove the undercover.
PIIB6515E
1. Radiator core support upper 2. Radiator core support lower 3. Radiator core support lower stay
4. Radiator core support side stay 5. Air guide
24.5 N·m (2.5 kg-m, 18 ft-lb)

RADIATOR CORE SUPPORT
BL-21
C
D
E
F
G
H
J
K
L
MA
B
BL
Revision: June 20062007 Versa
9. Remove radiator core support lower side stay.
10. Tie a cord to all radiator core upper supports of the radiator and
condenser.
NOTE:
To prevent the compressor and radiator from being dropped
when the radiator core lower support is removed.
11. Remove the bolts, and lower radiator core lower supports.
12. Remove the radiator core lower supports.
INSTALLATION
Installation is in the reverse order of removal. 55.0 N·m (5.6 kg-m, 41 ft-lb)
PIIB2800J
PIIB2799J
