NISSAN LATIO 2007 Service Repair Manual

BCS-8
BCM (BODY CONTROL MODULE)
Revision: June 20062007 Versa
MAJOR COMPONENTS AND CONTROL SYSTEM
CAN Communication System DescriptionEKS00I82
Refer to LAN-4, "SYSTEM DESCRIPTION" .
System Input Output
Remote keyless entry systemRemote keyless entry receiver
(keyfob)

All door locking actuators

Turn signal lamp (LH, RH)

Combination meter (turn signal lamp)
Intelligent Key system Intelligent Key unit

All door locking actuators

Turn signal lamp (LH, RH)

Combination meter (turn signal lamp)
Power door lock systemFront power door lock/unlock
switch (LH, RH)All door locking actuators
Power supply (IGN) to power window Ignition power supply Power supply to power window system
Power supply (BAT) to power window Battery power supply Power supply to power window system
Panic alarm

Key switch

KeyfobIPDM E/R
Battery saver control

Ignition switch

Combination switchIPDM E/R
Headlamp Combination switch IPDM E/R
Tail lamp Combination switch IPDM E/R
Front fog lamp Combination switch IPDM E/R
Turn signal lamp Combination switch

Turn signal lamp

Combination meter
Hazard lamp Hazard switch

Turn signal lamp

Combination meter
Room lamp timer

Key switch

Keyfob

Main power window and door
lock/unlock switch

Front door switch LH

All door switchInterior room lamp
Key warning chime

Key switch

Front door switch LHCombination meter (warning buzzer)
Light warning chime

Combination switch

Key switch

Front door switch LHCombination meter (warning buzzer)
Seat belt warning chime

Seat belt buckle switch LH

Ignition switchCombination meter (warning buzzer)
Front wiper and washer system

Combination switch

Ignition switchIPDM E/R
Rear window defogger Rear window defogger switch IPDM E/R
Rear wiper and washer system

Combination switch

Ignition switchRear wiper motor
A/C switch signal Front air control ECM
Blower fan switch signal Front air control ECM
A/C indicator signal Front air control A/C indicator
Low tire pressure warning system Remote keyless entry receiver Combination meter

BCM (BODY CONTROL MODULE)
BCS-9
C
D
E
F
G
H
I
J
L
MA
B
BCS
Revision: June 20062007 Versa

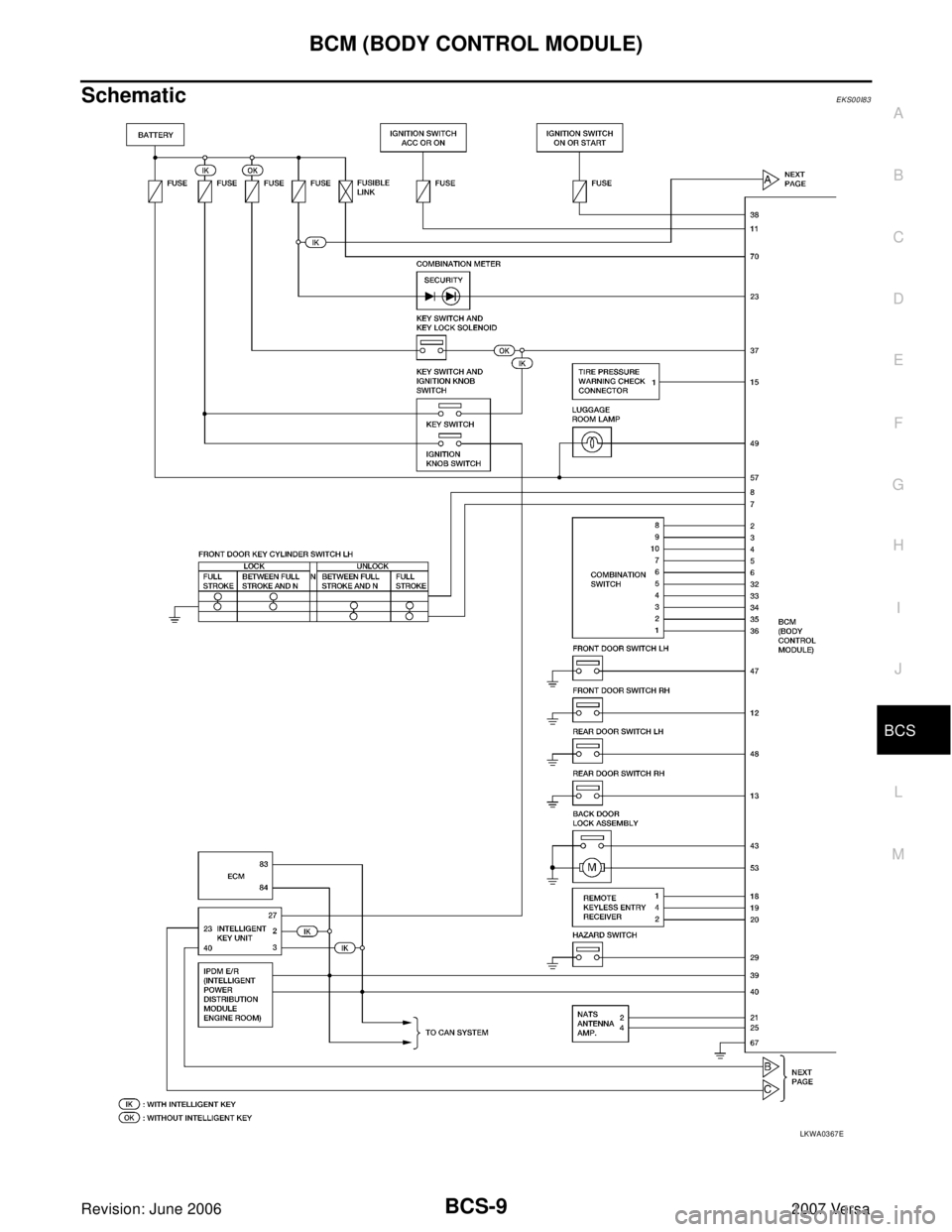

SchematicEKS00I83
LKWA0367E

BCS-10
BCM (BODY CONTROL MODULE)
Revision: June 20062007 Versa

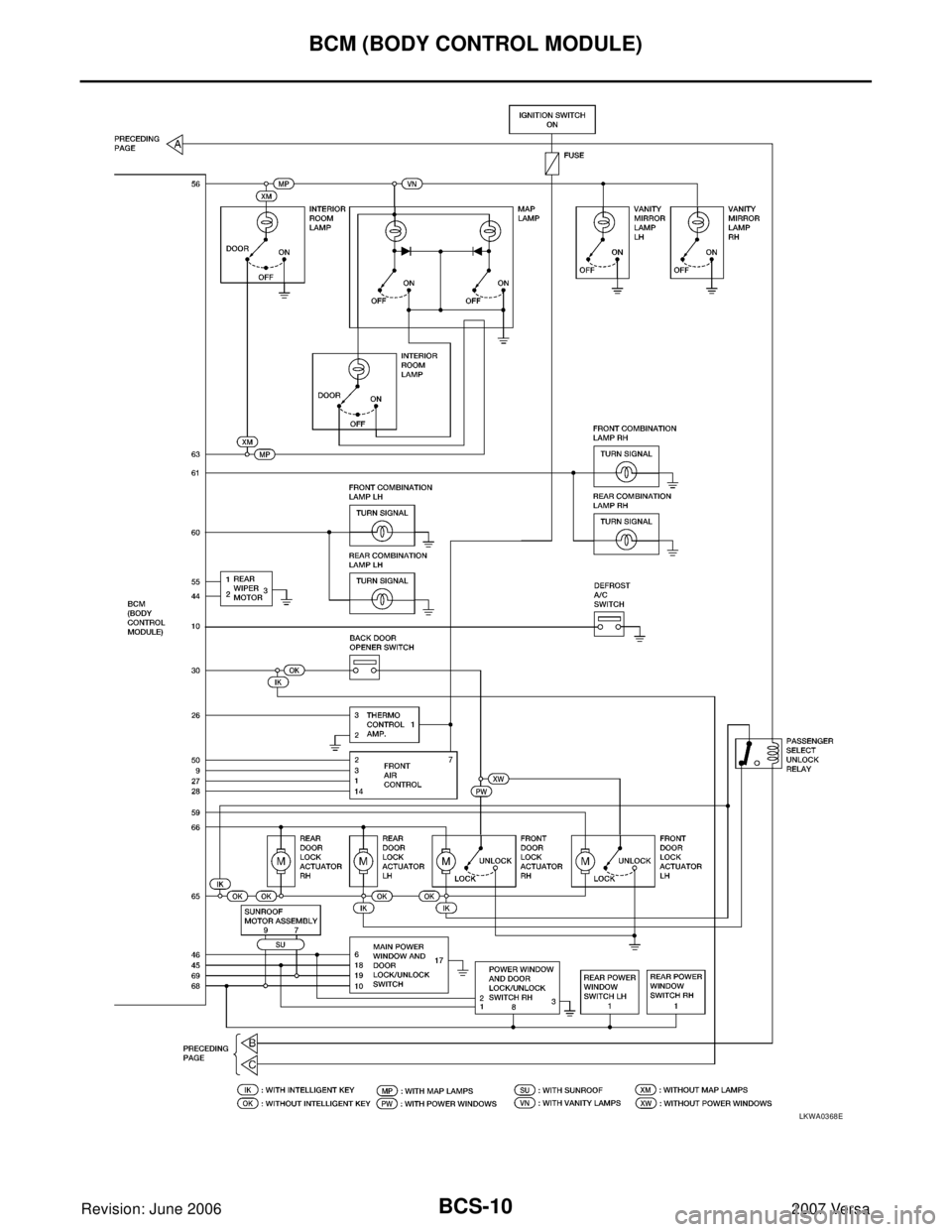

LKWA0368E

BCM (BODY CONTROL MODULE)
BCS-11
C
D
E
F
G
H
I
J
L
MA
B
BCS
Revision: June 20062007 Versa

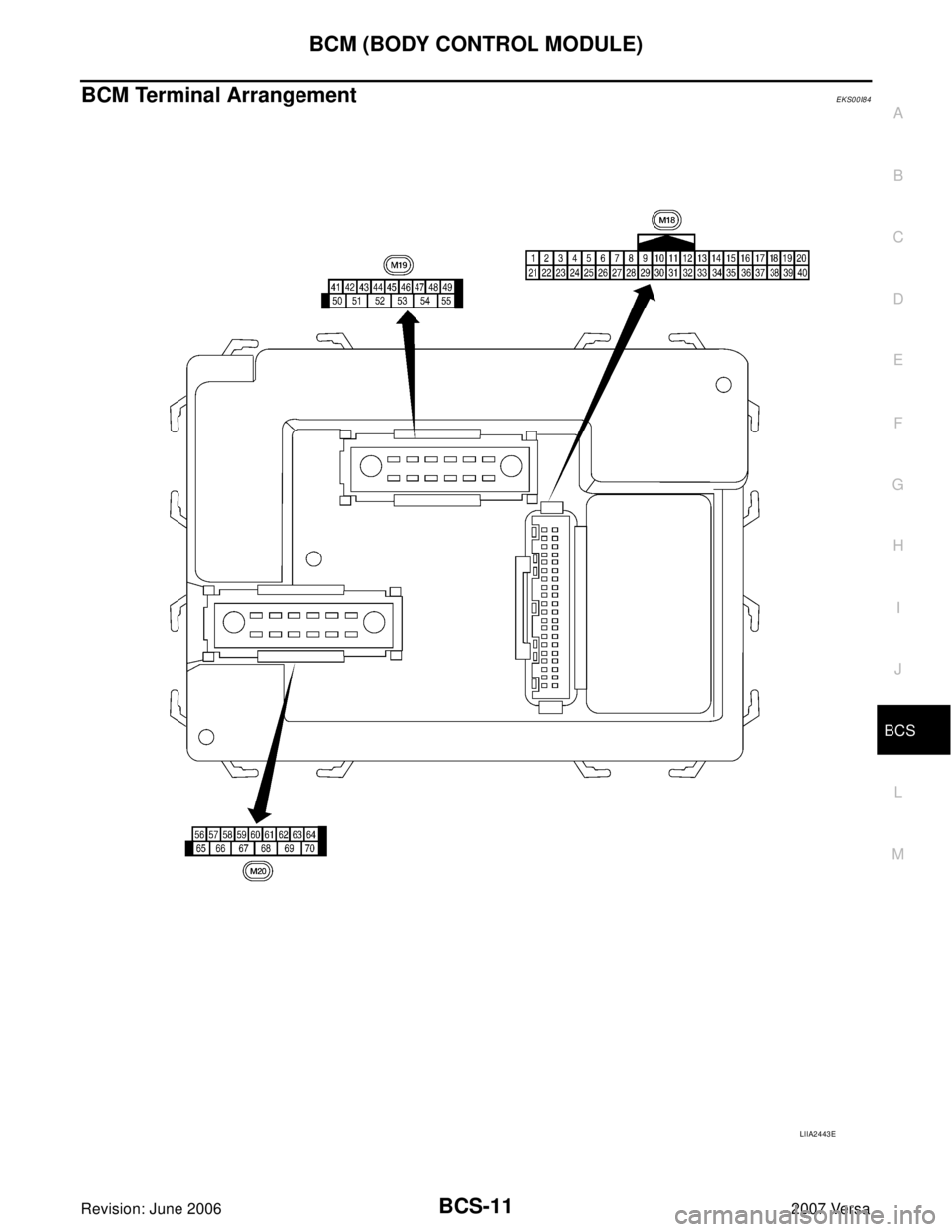

BCM Terminal ArrangementEKS00I84
LIIA2443E

BCS-12
BCM (BODY CONTROL MODULE)
Revision: June 20062007 Versa

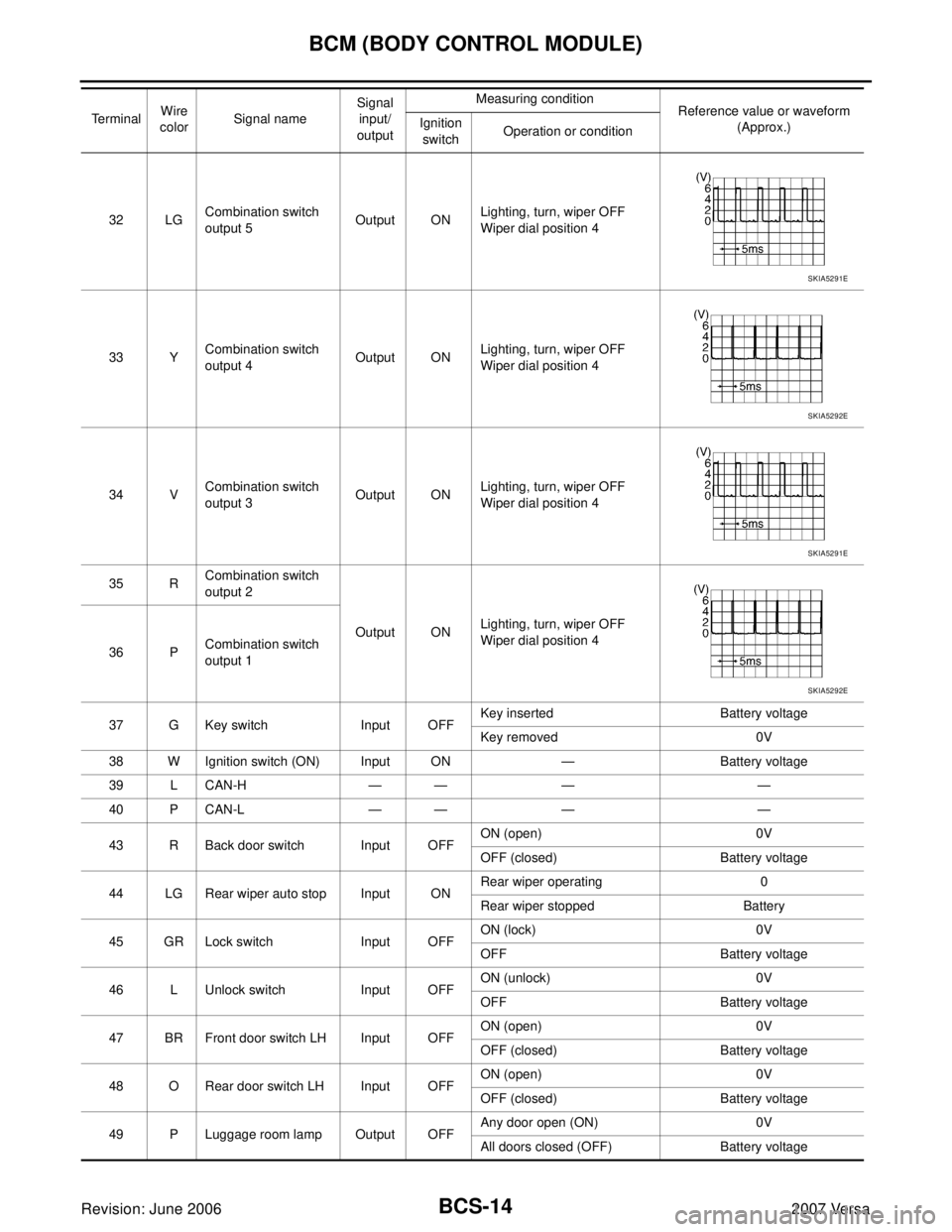

Terminals and Reference Values for BCMEKS00I85
Te r m i n a lWire
colorSignal nameSignal
input/
outputMeasuring condition
Reference value or waveform
(Approx.) Ignition
switchOperation or condition
2BRCombination switch
input 5Input ONLighting, turn, wiper OFF
Wiper dial position 4
3GRCombination switch
input 4Input ONLighting, turn, wiper OFF
Wiper dial position 4
4LCombination switch
input 3Input ONLighting, turn, wiper OFF
Wiper dial position 4
5GCombination switch
input 2
Input ONLighting, turn, wiper OFF
Wiper dial position 4
6VCombination switch
input 1
7BRFront door key cylin-
der switch LH (unlock)Input
OFFON (open, 2nd turn) Momentary 1.5V
OFF (closed) 0V
8YFront door key cylin-
der switch LH (lock)InputOn (open) Momentary 1.5V
OFF (closed) 0V
9WRear window defog-
ger switchInput ONRear window defogger switch
ON0V
Rear window defogger switch
OFF5V
11 LIgnition switch (ACC
or ON)InputACC or
ONIgnition switch ACC or ON Battery voltage
12 SB Front door switch RH Input OFFON (open) 0V
OFF (closed) Battery voltage
13 GR Rear door switch RH Input OFFON (open) 0V
OFF (closed) Battery voltage
15 WTire pressure warning
check connectorInput OFF — 5V
18 VRemote keyless entry
receiver (ground)Output OFF — 0V
SKIA5291E
SKIA5292E
SKIA5291E
SKIA5292E

BCM (BODY CONTROL MODULE)
BCS-13
C
D
E
F
G
H
I
J
L
MA
B
BCS
Revision: June 20062007 Versa

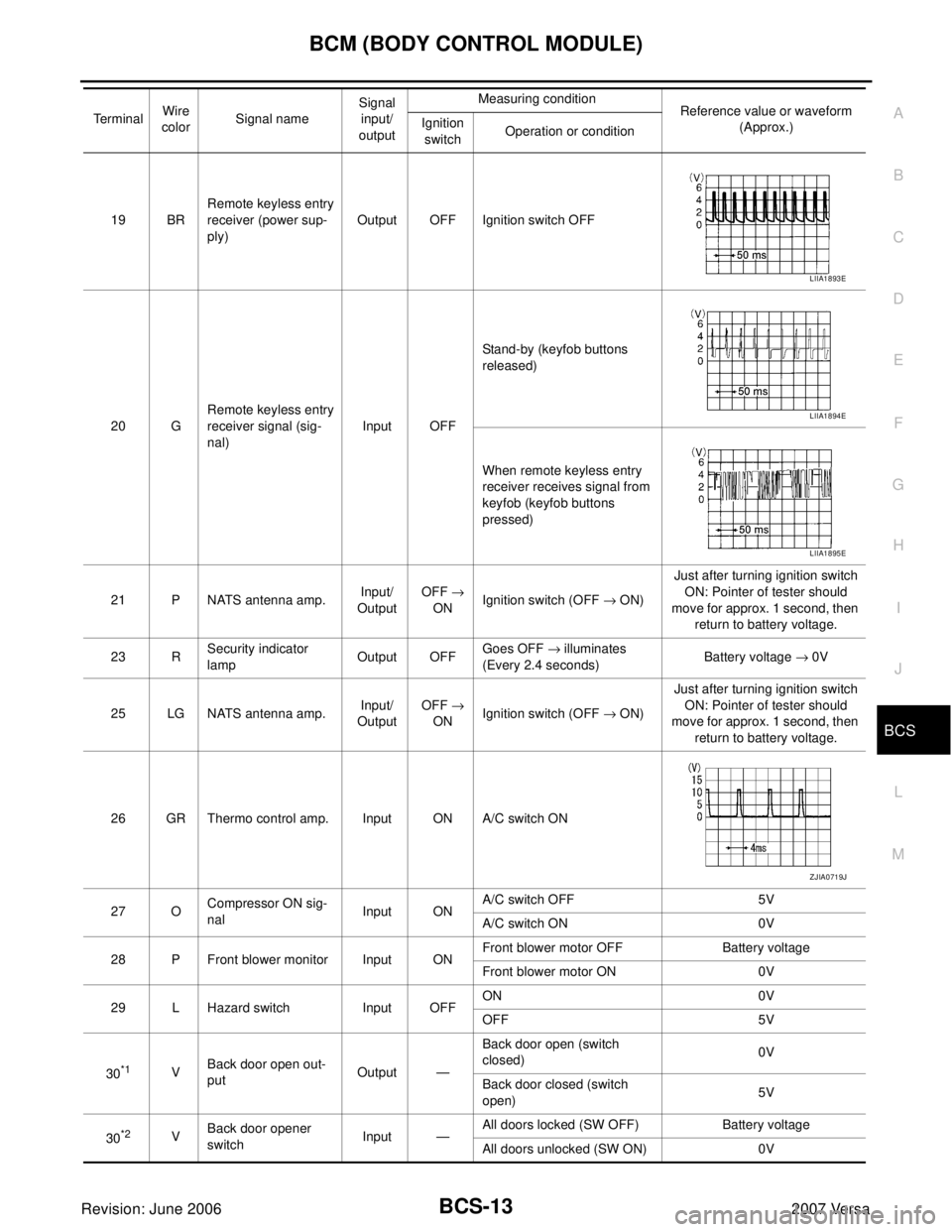

19 BRRemote keyless entry
receiver (power sup-
ply)Output OFF Ignition switch OFF
20 GRemote keyless entry
receiver signal (sig-
nal)Input OFFStand-by (keyfob buttons
released)
When remote keyless entry
receiver receives signal from
keyfob (keyfob buttons
pressed)
21 P NATS antenna amp.Input/
OutputOFF →
ONIgnition switch (OFF → ON)Just after turning ignition switch
ON: Pointer of tester should
move for approx. 1 second, then
return to battery voltage.
23 RSecurity indicator
lampOutput OFFGoes OFF → illuminates
(Every 2.4 seconds)Battery voltage → 0V
25 LG NATS antenna amp.Input/
OutputOFF →
ONIgnition switch (OFF → ON)Just after turning ignition switch
ON: Pointer of tester should
move for approx. 1 second, then
return to battery voltage.
26 GR Thermo control amp. Input ON A/C switch ON
27 OCompressor ON sig-
nalInput ONA/C switch OFF 5V
A/C switch ON 0V
28 P Front blower monitor Input ONFront blower motor OFF Battery voltage
Front blower motor ON 0V
29 L Hazard switch Input OFFON 0V
OFF 5V
30
*1VBack door open out-
putOutput —Back door open (switch
closed)0V
Back door closed (switch
open)5V
30
*2VBack door opener
switchInput —All doors locked (SW OFF) Battery voltage
All doors unlocked (SW ON) 0V TerminalWire
colorSignal nameSignal
input/
outputMeasuring condition
Reference value or waveform
(Approx.) Ignition
switchOperation or condition
LIIA1893E
LIIA1894E
LIIA1895E
ZJIA0719J

BCS-14
BCM (BODY CONTROL MODULE)
Revision: June 20062007 Versa
32 LGCombination switch
output 5Output ONLighting, turn, wiper OFF
Wiper dial position 4
33 YCombination switch
output 4Output ONLighting, turn, wiper OFF
Wiper dial position 4
34 VCombination switch
output 3Output ONLighting, turn, wiper OFF
Wiper dial position 4
35 RCombination switch
output 2
Output ONLighting, turn, wiper OFF
Wiper dial position 4
36 PCombination switch
output 1
37 G Key switch Input OFFKey inserted Battery voltage
Key removed 0V
38 W Ignition switch (ON) Input ON — Battery voltage
39 L CAN-H — — — —
40 P CAN-L — — — —
43 R Back door switch Input OFFON (open) 0V
OFF (closed) Battery voltage
44 LG Rear wiper auto stop Input ONRear wiper operating 0
Rear wiper stopped Battery
45 GR Lock switch Input OFFON (lock) 0V
OFF Battery voltage
46 L Unlock switch Input OFFON (unlock) 0V
OFF Battery voltage
47 BR Front door switch LH Input OFFON (open) 0V
OFF (closed) Battery voltage
48 O Rear door switch LH Input OFFON (open) 0V
OFF (closed) Battery voltage
49 P Luggage room lamp Output OFFAny door open (ON) 0V
All doors closed (OFF) Battery voltage Te r m i n a lWire
colorSignal nameSignal
input/
outputMeasuring condition
Reference value or waveform
(Approx.) Ignition
switchOperation or condition
SKIA5291E
SKIA5292E
SKIA5291E
SKIA5292E

BCM (BODY CONTROL MODULE)
BCS-15
C
D
E
F
G
H
I
J
L
MA
B
BCS
Revision: June 20062007 Versa
*1: With Intelligent Key.
*2: Without Intelligent Key.50 SB A/C indicator Output ONA/C OFF 0
A/C ON Battery voltage
53 RBack door lock
assembly (actuator)Output OFF Back door (open) Battery voltage
55 VRear wiper motor out-
putOutput ONOFF 0
ON Battery voltage
56 R Battery saver output OutputOFF30 minutes after ignition
switch is turned OFF0V
ON — Battery voltage
57 LG Battery power supply Input OFF — Battery voltage
59 GFront door lock actua-
tor LH (unlock)Output OFFOFF (neutral) 0V
ON (unlock) Battery voltage
60 V Turn signal (left) Output ON Turn left ON
61 W Turn signal (right) Output ON Turn right ON
63 BR Interior room lamp Output OFFAny door
switchON (open) 0V
OFF (closed) Battery voltage
65 SBAll door lock actuators
(lock)Output OFFOFF (neutral) 0V
ON (lock) Battery voltage
66 GFront door lock actua-
tor RH, rear door lock
actuators LH/RH
(unlock)Output OFFOFF (neutral) 0V
ON (unlock) Battery voltage
67 B Ground Input ON — 0V
68 LPower window power
supply (RAP)Output —Ignition switch ON Battery voltage
Within 45 seconds after igni-
tion switch OFFBattery voltage
More than 45 seconds after
ignition switch OFF0V
When front door LH or RH is
open or power window timer
operates0V
69 P Battery power supply Output OFF — Battery voltage
70 Y Battery power supply Input OFF — Battery voltage TerminalWire
colorSignal nameSignal
input/
outputMeasuring condition
Reference value or waveform
(Approx.) Ignition
switchOperation or condition
SKIA3009J
SKIA3009J

BCS-16
BCM (BODY CONTROL MODULE)
Revision: June 20062007 Versa

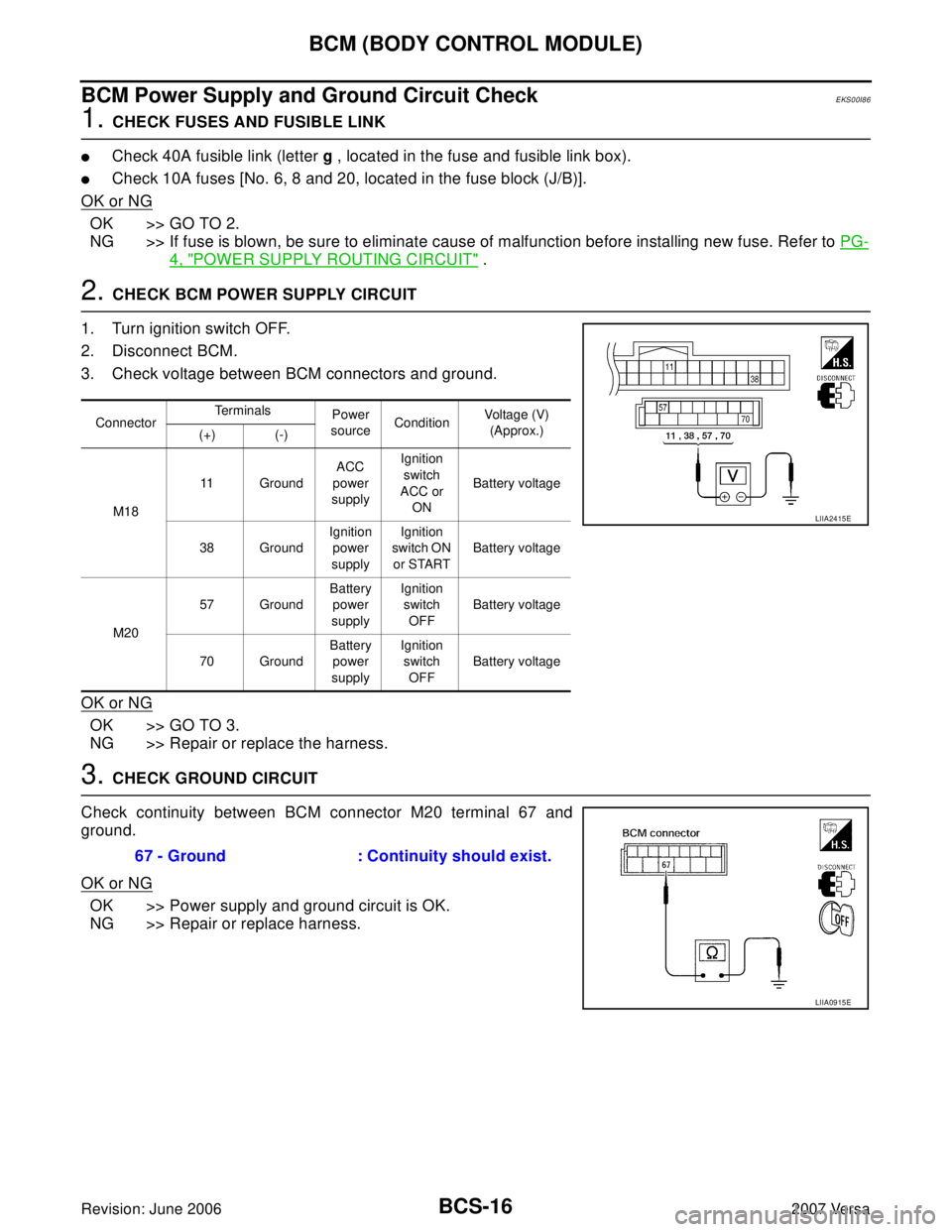

BCM Power Supply and Ground Circuit CheckEKS00I86
1. CHECK FUSES AND FUSIBLE LINK

Check 40A fusible link (letter g , located in the fuse and fusible link box).

Check 10A fuses [No. 6, 8 and 20, located in the fuse block (J/B)].
OK or NG
OK >> GO TO 2.
NG >> If fuse is blown, be sure to eliminate cause of malfunction before installing new fuse. Refer to PG-
4, "POWER SUPPLY ROUTING CIRCUIT" .
2. CHECK BCM POWER SUPPLY CIRCUIT
1. Turn ignition switch OFF.
2. Disconnect BCM.
3. Check voltage between BCM connectors and ground.
OK or NG
OK >> GO TO 3.
NG >> Repair or replace the harness.
3. CHECK GROUND CIRCUIT
Check continuity between BCM connector M20 terminal 67 and
ground.
OK or NG
OK >> Power supply and ground circuit is OK.
NG >> Repair or replace harness.
ConnectorTerminals
Power
sourceConditionVoltage (V)
(Approx.)
(+) (-)
M1811 GroundACC
power
supplyIgnition
switch
ACC or
ONBattery voltage
38 GroundIgnition
power
supplyIgnition
switch ON
or STARTBattery voltage
M2057 GroundBattery
power
supplyIgnition
switch
OFFBattery voltage
70 GroundBattery
power
supplyIgnition
switch
OFFBattery voltage
LIIA2415E
67 - Ground : Continuity should exist.
LIIA0915E

BCM (BODY CONTROL MODULE)
BCS-17
C
D
E
F
G
H
I
J
L
MA
B
BCS
Revision: June 20062007 Versa
CONSULT-II Function (BCM)EKS00I87
CONSULT-II can display each diagnostic item using the diagnostic test modes shown following.
CONSULT-II START PROCEDURE
Refer to GI-38, "CONSULT-II Start Procedure" .
ITEMS OF EACH PART
NOTE:
CONSULT-II will only display systems the vehicle possesses.
BCM diagnostic
test itemDiagnostic mode Content
Inspection by partWORK SUPPORTSupports inspections and adjustments. Commands are transmitted to the BCM
for setting the status suitable for required operation, input/output signals are
received from the BCM and received data is displayed.
DATA MONITOR Displays BCM input/output data in real time.
ACTIVE TEST Operation of electrical loads can be checked by sending drive signal to them.
SELF-DIAG RESULTS Displays BCM self-diagnosis results.
CAN DIAG SUPPORT
MNTRThe results of transmit/receive diagnosis of CAN communication can be read.
ECU PART NUMBER BCM part number can be read.
CONFIGURATION Performs BCM configuration read/write functions.
System and itemCONSULT-II dis-
playDiagnostic test mode (Inspection by part)
WORK
SUPPORTSELF−
DIAG
RESULTSCAN DIAG
SUPPORT
MNTRDATA
MONITORECU
PA R T
NUMBERACTIVE
TESTCON-
FIGU-
RATION
BCM BCM×× × × ×
Power door lock sys-
temDOOR LOCK×××
Rear defoggerREAR DEFOG-
GER××
Warning chime BUZZER××
Room lamp timer INT LAMP×××
Remote keyless entry
systemMULTI REMOTE
ENT×××
Headlamp HEAD LAMP×××
Wiper WIPER×××
Turn signal lamp
Hazard lampFLASHER××
Blower fan switch sig-
nal
Air conditioner switch
signalAIR CONDI-
TIONER×
Intelligent KeyINTELLIGENT
KEY×
Combination switch COMB SW×
NVIS (NATS) IMMU××
Interior lamp battery
saverBATTERY
SAVER×××
Back door TRUNK××
Theft alarm THEFT ALARM×××
Retained accessory
power controlRETAINED PWR×××
