DTC P0734 A/T 4TH GEAR FUNCTION
Revision: June 20062007 Versa
DTC P0734 A/T 4TH GEAR FUNCTIONPFP:31940
DescriptionUCS005ON

This malfunction will not be detected while the OD OFF indicator lamp is indicating another self-diagnosis
malfunction.

This malfunction is detected when the A/T does not shift into fourth gear position or the torque converter
clutch does not lock up as instructed by the TCM. This is not caused by electrical malfunction (circuits
open or shorted) but by mechanical malfunction such as control valve sticking, improper solenoid valve
operation, malfunctioning oil pump or torque converter clutch, etc.
CONSULT-II Reference ValueUCS005OO
Remarks: Specification data are reference values.
On Board Diagnosis LogicUCS005OP

This is an OBD-II self-diagnostic item.

Diagnostic trouble code “P0734 A/T 4TH GR FNCTN” with CONSULT-II is detected when A/T cannot be
shifted to the 4th gear position even if electrical circuit is good.

This diagnosis monitors actual gear position by checking the torque converter slip ratio calculated by TCM
as follows:
Torque converter slip ratio = A x C/B
A: Output shaft revolution signal from revolution sensor
B: Engine speed signal from ECM
C: Gear ratio determined as gear position which TCM supposes
If the actual gear position is much lower than the position (4th) supposed by TCM, the slip ratio will be
much less than normal. In case the ratio does not reach the specified value, TCM judges this diagnosis
malfunction.
This malfunction will be caused when shift solenoid valve A is stuck open or shift solenoid valve B is stuck
closed.

Gear positions supposed by TCM are as follows.
In case of gear position with no malfunctions: 1, 2, 3 and 4 positions
In case of gear position with shift solenoid valve A stuck open: 2, 2, 3 and 3* positions
In case of gear position with shift solenoid valve B stuck closed: 1, 2, 2 and 1* positions to each gear
position above
*: “P0734 A/T 4TH GR FNCTN” is detected.
Possible CauseUCS005OQ

Shift solenoid valve A

Shift solenoid valve B

Line pressure solenoid valve

Each clutch

Hydraulic control circuit
Gear position 1 2 3 4
Shift solenoid valve A ON (Closed) OFF (Open) OFF (Open) ON (Closed)
Shift solenoid valve B ON (Closed) ON (Closed) OFF (Open) OFF (Open)
Item name Condition Display value (Approx.)
LINE PRES DTYSmall throttle opening (Low line pressure) ⇔ Large
throttle opening (High line pressure)0% ⇔ 94%

DTC P0734 A/T 4TH GEAR FUNCTION
AT-129
D
E
F
G
H
I
J
K
L
MA
B
AT
Revision: June 20062007 Versa
DTC Confirmation ProcedureUCS005O R
CAUTION:

Always drive vehicle at a safe speed.

If performing this “DTC Confirmation Procedure” again, always turn ignition switch OFF and wait
at least 10 seconds before continuing.
After the repair, perform the following procedure to confirm the malfunction is eliminated.
WITH CONSULT-II
1. Start engine and select “DATA MONITOR” mode for “A/T” with
CONSULT-II.
2. Touch “START”.
3. Make sure that output voltage of A/T fluid temperature sensor is
within the range below.
FLUID TEMP SE: 0.4 - 1.5 V
If out of range, drive the vehicle to decrease the voltage (warm
up the fluid) or stop engine to increase the voltage (cool down
the fluid).
4. Select “4TH GR FNCTN P0734” of “DTC WORK SUPPORT”
mode for “A/T” with CONSULT-II and touch “START”.
5. Accelerate vehicle to 55 to 65 km/h (34 to 40 MPH) under the following conditions and release the accel-
erator pedal completely.
THROTTLE POSI: Less than 5.5/8 (at all times during step 4)
SLCT LVR POSI: “D” position
–Make sure that “GEAR” shows “3” after releasing pedal.
6. Depress accelerator pedal steadily with 1.0/8 - 2.0/8 of “THROTTLE POSI” from a speed of 55 to 65 km/h
(34 to 40 MPH) until “TESTING” has turned to “STOP VEHICLE” or “COMPLETED”. (It will take approxi-
mately 3 seconds.)
If the check result NG appears on CONSULT-II screen, go to AT-130, "
Diagnostic Procedure" .
If “STOP VEHICLE” appears on CONSULT-II screen, go to following step.
–Make sure that “GEAR” shows “4” when depressing accelerator pedal with 1.0/8 - 2.0/8 of
“THROTTLE POSI”.
–If “TESTING” does not appear on CONSULT-II for a long time, select “SELF-DIAG RESULTS” for
“A/T”. In case a DTC other than “P0734 A/T 4TH GR FNCTN” is shown, refer to AT- 8 2 , "
Display
Items List" .
7. Stop vehicle.
8. Follow the instruction displayed. (Check for normal shifting referring to the table below.)
9. Make sure that “OK” is displayed. (If “NG” is displayed, refer to “Diagnostic Procedure”.)
Refer to AT- 1 3 0 , "
Diagnostic Procedure" .
Refer to AT- 6 7 , "
Vehicle Speed at Which Gear Shifting Occurs" .
WITH GST
Follow the procedure “WITH CONSULT-II”.
Vehicle condition Gear on actual transmission shift pattern when screen is changed to 1 → 2 → 3 → 4
No malfunction exists 1 → 2 → 3 → 4
Malfunction for “A/T 4TH GR FNCTN” exists.2 → 2 → 3 → 3
1 → 2 → 2 → 1
BCIA0031E

AT-134
DTC P0740 TORQUE CONVERTER CLUTCH SOLENOID VALVE
Revision: June 20062007 Versa
DTC P0740 TORQUE CONVERTER CLUTCH SOLENOID VALVEPFP:31940
DescriptionUCS005O T

The torque converter clutch solenoid valve is activated, with the gear in D4 and D3 , by the TCM in
response to signals sent from the vehicle speed sensor and the ECM (throttle opening). Lock-up piston
operation will then be controlled.

Lock-up operation, however, is prohibited when A/T fluid temperature is too low.

When the accelerator pedal is depressed (less than 2/8) on lock-up condition, the engine speed should
not change abruptly. If there is an abrupt change in engine speed, there is no lock-up.
CONSULT-II Reference ValueUCS005OU
Remarks: Specification data are reference values.
On Board Diagnosis LogicUCS005OV

This is an OBD-II self-diagnostic item.

Diagnostic trouble code “P0740 T/C CLUTCH SOL/V” with CONSULT-II or 7th judgement flicker without
CONSULT-II is detected when TCM detects an improper voltage drop while it tries to operate solenoid
valve.
Possible CauseUCS005OW

Torque converter clutch solenoid valve

Harness or connector
(The solenoid circuit is open or shorted.)
DTC Confirmation ProcedureUCS005OX
CAUTION:

Always drive vehicle at a safe speed.

If performing this “DTC Confirmation Procedure” again, always turn ignition switch OFF and wait
at least 10 seconds before continuing.
After the repair, perform the following procedure to confirm the malfunction is eliminated.
WITH CONSULT-II
1. Turn ignition switch ON. (Do not start engine.)
2. Select “DATA MONITOR” mode for “A/T” with CONSULT-II and
wait at least 1 second.
3. Touch “START”.
4. Start engine and maintain the following conditions for at least 5
consecutive seconds.
VEHICLE SPEED: 80 km/h (50 MPH) or more
THROTTLE POSI: 0.5/8 - 1.0/8
SLCT LVR POSI: “D” position
Driving location: Driving the vehicle uphill (increased
engine load) will help maintain the driving conditions
required for this test.
5. If the check result is NG, go to AT-136, "
Diagnostic Procedure" .
WITH GST
Follow the procedure “WITH CONSULT-II”.
WITHOUT CONSULT-II
1. Start engine.
2. Drive vehicle in D
1 → D2 → D3 → D4 → D4 lock-up position.
3. Perform self-diagnosis. Refer to AT-90, "
Diagnostic Procedure Without CONSULT-II" .
4. If the check result is NG, go to AT-136, "
Diagnostic Procedure" .
Item name Condition Display value (Approx)
TCC S/V DUTY Lock-up OFF ⇔ Lock-up ON 4% ⇔ 94%
BCIA0031E

DTC P0744 A/T TCC S/V FUNCTION (LOCK-UP)
AT-139
D
E
F
G
H
I
J
K
L
MA
B
AT
Revision: June 20062007 Versa
DTC P0744 A/T TCC S/V FUNCTION (LOCK-UP)PFP:31940
DescriptionUCS005P1

This malfunction will not be detected while the OD OFF indicator lamp is indicating another self-diagnosis
malfunction.

This malfunction is detected when the A/T does not shift into fourth gear position or the torque converter
clutch does not lock-up as instructed by the TCM. This is not caused by electrical malfunction (circuits
open or shorted) but by mechanical malfunction such as control valve sticking, improper solenoid valve
operation, malfunctioning oil pump or torque converter clutch, etc.
CONSULT-II Reference ValueUCS005P2
Remarks: Specification data are reference values.
On Board Diagnosis LogicUCS005P3

This is an OBD-II self-diagnostic item.

Diagnostic trouble code “P0744 A/T TCC S/V FNCTN” with CONSULT-II is detected when A/T cannot per-
form lock-up even if electrical circuit is good.

This diagnosis monitors actual gear position by checking the torque converter slip ratio calculated by TCM
as follows:
Torque converter slip ratio = A x C/B
A: Output shaft revolution signal from revolution sensor
B: Engine speed signal from ECM
C: Gear ratio determined as gear position which TCM supposes
If the actual gear position is much lower than the position (4th) supposed by TCM, the slip ratio will be
much less than normal. In case the ratio does not reach the specified value, TCM judges this diagnosis
malfunction.
This malfunction will be caused when shift solenoid valve B is stuck closed.

Gear positions supposed by TCM are as follows.
In case of gear position with no malfunctions: 1, 2, 3 and 4 positions
In case of gear position with shift solenoid valve B stuck closed: 1, 2, 2 and 1* positions to each gear posi-
tion above
*: “P0744 A/T TCC S/V FNCTN” is detected.
Possible CauseUCS005P4

Line pressure solenoid valve

Torque converter clutch solenoid valve

Each clutch

Hydraulic control circuit
Item name Condition Display value (Approx)
TCC S/V DUTY Lock-up OFF ⇔ Lock-up ON 4% ⇔ 94%

AT-140
DTC P0744 A/T TCC S/V FUNCTION (LOCK-UP)
Revision: June 20062007 Versa
DTC Confirmation ProcedureUCS005P5
CAUTION:

Always drive vehicle at a safe speed.

If performing this “DTC Confirmation Procedure” again, always turn ignition switch OFF and wait
at least 10 seconds before continuing.
After the repair, perform the following procedure to confirm the malfunction is eliminated.
WITH CONSULT-II
1. Start engine and select “DATA MONITOR” mode for “A/T” with
CONSULT-II.
2. Touch “START”.
3. Make sure that output voltage of A/T fluid temperature sensor is
within the range below.
FLUID TEMP SE: 0.4 - 1.5 V
If out of range, drive vehicle to decrease voltage (warm up the
fluid) or stop engine to increase voltage (cool down the fluid).
4. Select “TCC S/V FNCTN P0744” of “DTC WORK SUPPORT”
mode for “A/T” with CONSULT-II and touch “START”.
5. Accelerate vehicle to more than 80 km/h (50 MPH) and maintain
the following conditions continuously until “TESTING” has turned to “COMPLETE”. (It will take approxi-
mately 30 seconds after “TESTING” shows.)
THROTTLE POSI: 1.0/8 - 2.0/8 (at all times during step 4)
SLCT LVR POSI: “D” position
TCC S/V DUTY: More than 94%
VEHICLE SPEED: Constant speed of more than 80 km/h (50 MPH)
–Make sure that “GEAR” shows “4”.
–For shift schedule, refer to AT- 6 7 , "Vehicle Speed at Which Gear Shifting Occurs" .
–If “TESTING” does not appear on CONSULT-II for a long time, select “SELF-DIAG RESULTS”. In
case a DTC other than “P0744 A/T TCC S/V FNCTN” is shown, refer to AT-82, "
Display Items List" .
6. Make sure that “OK” is displayed. (If “NG” is displayed, refer to “DIAGNOSTIC PROCEDURE”.)
Refer to AT-141, "
Diagnostic Procedure" .
Refer to AT-67, "
Vehicle Speed at Which Lock-up Occurs/Releases" .
WITH GST
Follow the procedure “WITH CONSULT-II”.
BCIA0031E

AT-166
DTC VEHICLE SPEED SENSOR MTR
Revision: June 20062007 Versa
DTC VEHICLE SPEED SENSOR MTRPFP:24814
DescriptionUCS005Q9
The vehicle speed sensor·MTR is built into the speedometer assembly. The sensor functions as an auxiliary
device to the revolution sensor when it is malfunctioning. The TCM will then use a signal sent from the vehicle
speed sensor·MTR.
CONSULT-II Reference ValueUCS005QA
Remarks: Specification data are reference values.
On Board Diagnosis LogicUCS005QB

This is not an OBD-II self-diagnostic item.

Diagnostic trouble code “VHCL SPEED SEN-MTR” with CONSULT-II or 2nd judgement flicker without
CONSULT-II is detected when TCM does not receive the proper voltage signal from the sensor.
Possible CauseUCS005QC

Harness or connector
(The sensor circuit is open or shorted.)

Vehicle speed sensor
DTC Confirmation ProcedureUCS005QD
CAUTION:

Always drive vehicle at a safe speed.

If performing this “DTC Confirmation Procedure” again, always turn ignition switch OFF and wait
at least 10 seconds before continuing.
After the repair, perform the following procedure to confirm the malfunction is eliminated.
WITH CONSULT-II
1. Turn ignition switch ON and select “DATA MONITOR” mode for
“A/T” with CONSULT-II.
2. Touch “START”.
3. Start engine and accelerate vehicle from 0 to 25 km/h (0 to 16
MPH).
4. If the check result is NG, go to AT-168, "
Diagnostic Procedure" .
WITHOUT CONSULT-II
1. Start engine.
2. Drive vehicle under the following conditions:
Selector lever position: “D” position
Vehicle speed: Higher than 25 km/h (16 MPH)
3. Perform self-diagnosis. Refer to AT-90, "
Diagnostic Procedure Without CONSULT-II" .
4. If the check result is NG, go to AT-168, "
Diagnostic Procedure" .
Item name Condition Display value
VHCL/S SE-MTR During driving Approximately matches the speedometer reading.
BCIA0031E

DTC VEHICLE SPEED SENSOR MTR
AT-167
D
E
F
G
H
I
J
K
L
MA
B
AT
Revision: June 20062007 Versa

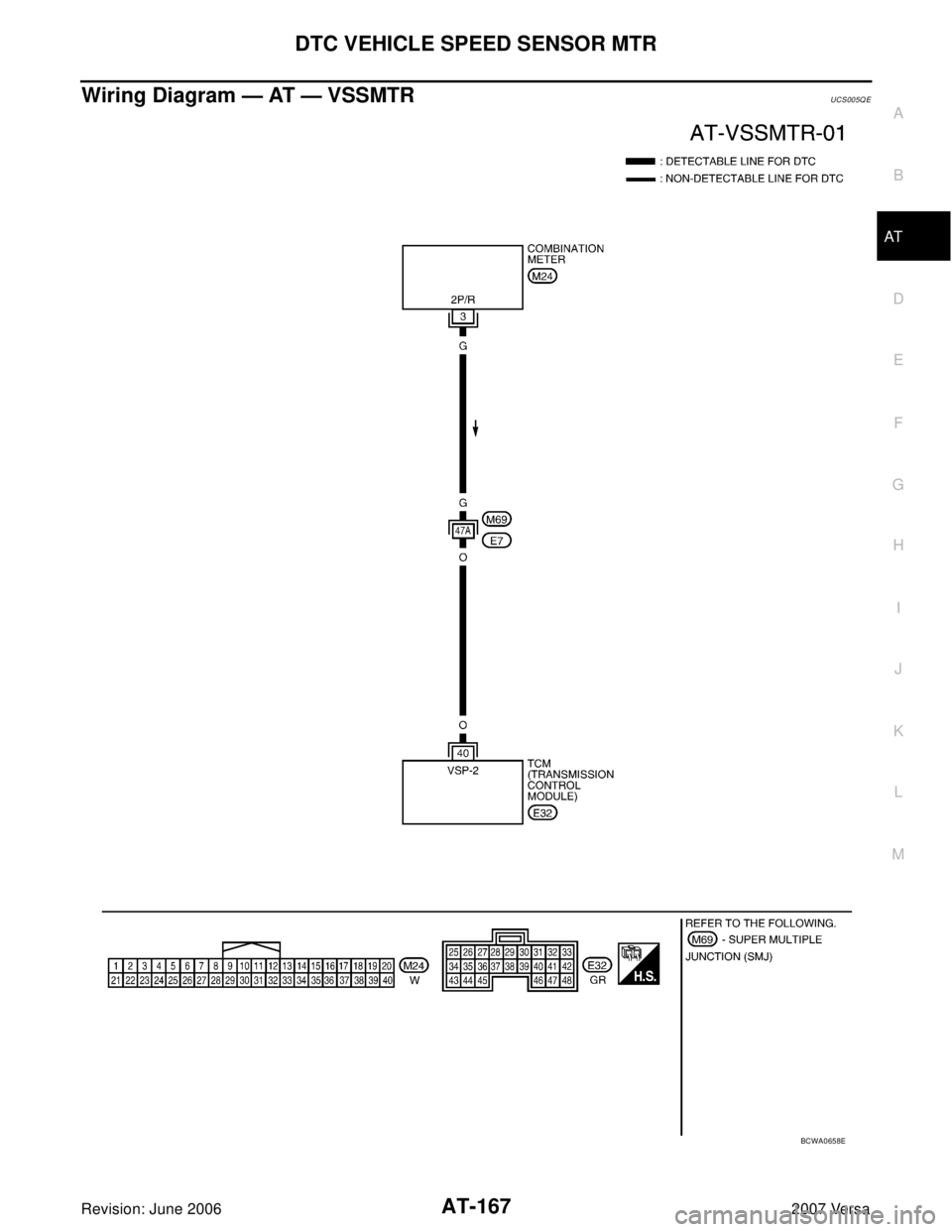

Wiring Diagram — AT — VSSMTRUCS005Q E
BCWA0658E

AT-168
DTC VEHICLE SPEED SENSOR MTR
Revision: June 20062007 Versa
TCM terminal data are reference values, measured between each terminal and ground.
Diagnostic ProcedureUCS005Q F
1. CHECK INPUT SIGNAL
With CONSULT-II
1. Start engine.
2. Select “TCM INPUT SIGNALS” in “DATA MONITOR” mode for
“A/T” with CONSULT-II.
3. Read out the value of “VHCL/S SE-MTR” while driving. Check
the value changes according to driving speed.
Without CONSULT-II
1. Start engine.
2. Check voltage between TCM connector terminal and ground.
OK or NG
OK >> GO TO 3.
NG >> GO TO 2.
2. DETECT MALFUNCTIONING ITEM
Check the following items:

Combination meter. Refer to DI-5, "COMBINATION METERS" .

Harness for short or open between TCM and combination meter.
OK or NG
OK >> GO TO 3.
NG >> Repair or replace damaged parts.
3. CHECK DTC
Perform AT-166, "
DTC Confirmation Procedure" .
OK or NG
OK >>INSPECTION END
NG >> GO TO 4.
Terminal Wire color Item ConditionJudgement standard
(Approx.)
40 O Vehicle speed sensorWhen driving vehicle at 2 to 3 km/h (1
to 2 MPH) for 1 m (3 ft) or more.Voltage varies between
less than 0 V and more
than 4.5 V
Item name Condition Display value
VHCL/S SE-MTR During drivingApproximately matches
the speedometer reading.
Item Connec-
torTerminal ConditionJudgement
standard
(Approx.)
Vehicle
speed sen-
sor E32 40 -
GroundWhen driving vehicle at
2 to 3 km/h (1 to 2 MPH)
for 1 m (3 ft) or more.Voltage var-
ies between
less than 0 V
and more than
4.5 V
LCIA0090E
SCIA3246E

DTC VEHICLE SPEED SENSOR MTR
AT-169
D
E
F
G
H
I
J
K
L
MA
B
AT
Revision: June 20062007 Versa
4. CHECK TCM
1. Check TCM input/output signal. Refer to AT-78, "
TCM Terminals and Reference Value" .
2. If NG, recheck TCM pin terminals for damage or loose connection with harness connector.
OK or NG
OK >>INSPECTION END
NG >> Repair or replace damaged parts.

AT-170
DTC BATT/FLUID TEMP SEN (A/T FLUID TEMP SENSOR CIRCUIT AND TCM
POWER SOURCE)
Revision: June 20062007 Versa
DTC BATT/FLUID TEMP SEN (A/T FLUID TEMP SENSOR CIRCUIT AND TCM
POWER SOURCE)
PFP:31940
DescriptionUCS005QG
The A/T fluid temperature sensor detects the A/T fluid temperature and sends a signal to the TCM.
CONSULT-II Reference ValueUCS005QH
Remarks: Specification data are reference values.
On Board Diagnosis LogicUCS005Q I

This is not an OBD-II self-diagnostic item.

Diagnostic trouble code “BATT/FLUID TEMP SEN” with CONSULT-II or 8th judgement flicker without
CONSULT-II is detected when TCM receives an excessively low or high voltage from the sensor.
Possible CauseUCS005QJ

Harness or connector
(The sensor circuit is open or shorted.)

A/T fluid temperature sensor
DTC Confirmation ProcedureUCS005QK
CAUTION:

Always drive vehicle at a safe speed.

If performing this “DTC Confirmation Procedure” again, always turn ignition switch OFF and wait
at least 10 seconds before continuing.
After the repair, perform the following procedure to confirm the malfunction is eliminated.
WITH CONSULT-II
1. Start engine.
2. Select “DATA MONITOR” mode for “A/T” with CONSULT-II.
3. Touch “START”.
4. Drive vehicle under the following conditions.
SLCT LVR POSI: “D” position
VEHICLE SPEED: Higher than 20 km/h (12 MPH)
5. If the check result is NG, go to AT-172, "
Diagnostic Procedure" .
WITHOUT CONSULT-II
1. Start engine.
2. Drive vehicle under the following conditions.
Selector lever position: D position
Vehicle speed: higher than 20 km/h (12 MPH)
3. Perform self-diagnosis. Refer to AT-90, "
Diagnostic Procedure Without CONSULT-II" .
4. If the check result is NG, go to AT-172, "
Diagnostic Procedure" .
Item name Condition Display value
FLUID TEMP SEWhen A/T fluid temperature is 20°C (68°F). 1.5 V
When A/T fluid temperature is 80°C (176°F). 0.5 V
BCIA0031E
