NISSAN LATIO 2009 Service Repair Manual

DTC P0745 LINE PRESSURE SOLENOID VALVE
CVT-277
< SERVICE INFORMATION >
[RE0F08B] D
E
F
G H
I
J
K L
M A
B CVT
N
O P
3. Check resistance between CVT unit harness connector terminal
and ground.
4. If NG, replace the transaxle assembly. Refer to CVT-354," Removal and Installation " .
Solenoid valve Connector Terminal
Resistance (Ap-
prox.)
Pressure control solenoid valve A
(Line pressure solenoid valve) F46 2 - Ground 3 - 9
Ω SCIA4686E

Diagnosis Procedure " .
WITH GST
Follow the procedure “WITH CONSULT-III”.
Diagnosis Procedure INFOID:0000000004305695Inspections before Trouble Diagnosis " .
OK or NG OK >> GO TO 2.
NG >> Repair or replace damaged parts. Refer to CVT-219, " Inspections before Trouble Diagnosis " .
Item name Condition Display value (Approx.)
PRI PRESS “N” position idle 0.4 MPa

CVT
N
O P Component
Inspection " .
OK or NG OK >> GO TO 3.
NG >> Repair or replace damaged parts.
3. CHECK OUTPUT SPEED SENSOR (SECONDARY SPEED SENSOR) SYSTEM AND INPUT SPEED ,
CVT-254 .
OK or NG OK >> GO TO 4.
NG >> Repair or replace damaged parts. Wiring Diagram - CVT - POWER " .
• The TCM pin terminals for damage or loose connection with harness connector.
OK or NG OK >> GO TO 5.
NG >> Repair or replace damaged parts. DTC Confirmation Procedure " .
OK or NG OK >>
INSPECTION END
NG >> Replace the transaxle assembly or TCM. Refer to CVT-354, " Removal and Installation " .

Diagnosis Procedure " .
WITH GST
Follow the procedure “WITH CONSULT-III”.
Diagnosis Procedure INFOID:0000000004305701

CVT
N
O P
OK or NG OK >> GO TO 5.
NG >> GO TO 2. Inspections before Trouble Diagnosis " .
OK or NG OK >> GO TO 3.
NG >> Repair or replace damaged parts. Refer to CVT-219, " Inspections before Trouble Diagnosis " .
Component
Inspection " .
• Pressure control solenoid valve A (Line pressure solenoid valve). Refer to CVT-276, " Component Inspec-
tion " .
OK or NG OK >> GO TO 4.
NG >> Repair or replace damaged parts.
4. CHECK TRANSMISSION FLUID PRESSURE SENSOR A (SECONDARY PRESSURE SENSOR) SYS- .
OK or NG OK >> GO TO 5.
NG >> Repair or replace damaged parts. Wiring Diagram - CVT - POWER " .
• The TCM pin terminals for damage or loose connection with harness connector.
OK or NG OK >> GO TO 6.
NG >> Repair or replace damaged parts. DTC Confirmation Procedure " .
OK or NG OK >>
INSPECTION END
NG >> Replace the transaxle assembly. Refer to CVT-354, " Removal and Installation " .
Item name Condition Display value (Approx.)
SEC PRESS “N” position idle 0.8 MPa

Diagnosis Procedure " .
WITH GST
Follow the procedure “WITH CONSULT-III”. Item name Condition Display value (Approx.)
ISOLT3 Secondary pressure low - Secondary pressure high 0.8 - 0.0 A
SOLMON3 “N” position idle 0.6 - 0.7 A
When stalled 0.4 - 0.6 A

DTC P0778 PRESSURE CONTROL SOLE
NOID B ELECTRICAL (SEC PRES-
SURE SOLENOID VALVE)
CVT-283
< SERVICE INFORMATION >
[RE0F08B] D
E
F
G H
I
J
K L
M A
B CVT
N
O P

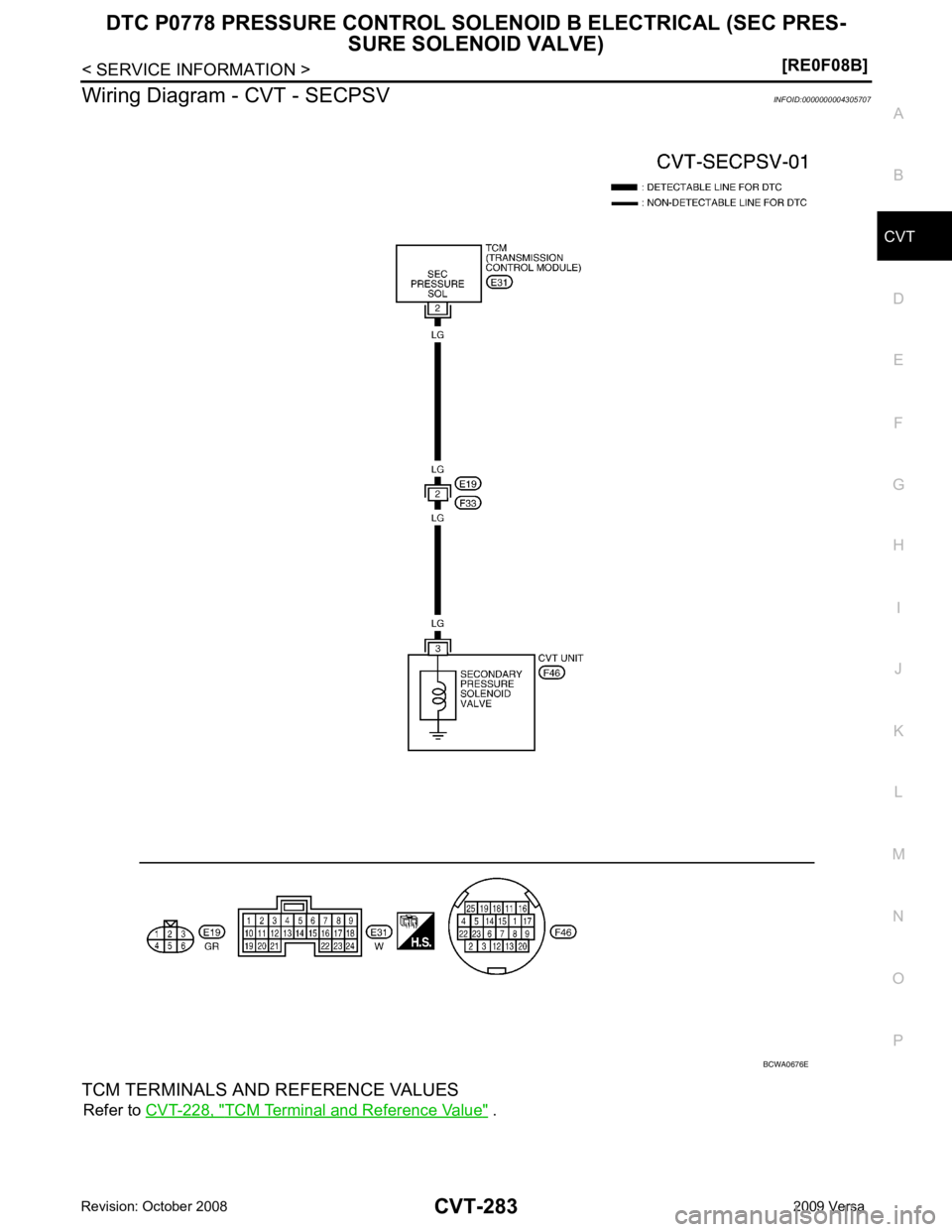

Wiring Diagram - CVT - SECPSV
INFOID:0000000004305707
TCM TERMINALS AND REFERENCE VALUES Refer to CVT-228, " TCM Terminal and Reference Value " . BCWA0676E

CVT-284< SERVICE INFORMATION >
[RE0F08B]
DTC P0778 PRESSURE CONTROL SOLENO
ID B ELECTRICAL (SEC PRES-
SURE SOLENOID VALVE)
Diagnosis Procedure INFOID:00000000043057081.
CHECK INPUT SIGNAL
With CONSULT-III
1. Start engine.
2. Select “MAIN SIGNALS” in “DATA MONITO R” mode for “TRANSMISSION” with CONSULT-III.
3. Read out the value of “ISOLT3”.
Without CONSULT-III
1. Start engine.
2. Check voltage between TCM connector terminal and ground.
3. Turn ignition switch OFF.
4. Disconnect TCM connector.
5. Check if there is continuity between connector terminal and ground.
OK or NG OK >> GO TO 5.
NG >> GO TO 2.
2. CHECK PRESSURE CONTROL SOLE NOID VALVE B (SECONDARY PRESSURE SOLENOID VALVE)CIRCUIT
1. Turn ignition switch OFF.
2. Disconnect TCM connector.
3. Check resistance between TCM connector terminal and ground.
OK or NG OK >> GO TO 5.
NG >> GO TO 3. 3.
CHECK VALVE RESISTANCE
1. Turn ignition switch OFF.
2. Disconnect CVT unit harness connector. Item name Condition Display value (Approx.)
ISOLT3 Secondary pressure low -
Secondary pressure high 0.8 - 0.0 AName Connector Terminal Condition
Voltage
(Approx.)
Pressure
control so-
lenoid
valve B
(Second-
ary pres-
sure
solenoid
valve) E31 2 - ground Release your foot from
the accelerator pedal. 5.0 - 7.0 V
Press the accelerator
pedal all the way down. 3.0 - 4.0 V SCIA4506E
Solenoid valve Connector Terminal
Resistance (Ap-
prox.)
Pressure control solenoid
valve B (Secondary pres-
sure solenoid valve) E31 2 - Ground 3 - 9
Ω SCIA4507E

DTC P0778 PRESSURE CONTROL SOLE
NOID B ELECTRICAL (SEC PRES-
SURE SOLENOID VALVE)
CVT-285
< SERVICE INFORMATION >
[RE0F08B] D
E
F
G H
I
J
K L
M A
B CVT
N
O P
3. Check resistance between CVT unit harness connector terminal
and ground.
OK or NG OK >> GO TO 4.
NG >> Repair or replace damaged parts.
4. CHECK HARNESS BETWEEN TCM AND PRESSURE CONTROL SOLENOID VALVE B (SECONDARYPRESSURE SOLENOID VALVE)
1. Turn ignition switch OFF.
2. Disconnect TCM connector and CVT unit harness connector.
3. Check continuity between TCM connector terminal and CVT unit
harness connector terminal.
4. If OK, check harness for short to ground and short to power.
5. Reinstall any part removed.
OK or NG OK >> GO TO 5.
NG >> Repair or replace damaged parts. 5.
CHECK DTC
Perform CVT-282, " DTC Confirmation Procedure " .
OK or NG OK >>
INSPECTION END
NG >> GO TO 6. 6.
CHECK TCM
1. Check TCM input/output signals. Refer to CVT-228, " TCM Terminal and Reference Value " .
2. If NG, re-check TCM pin terminals for dam age or loose connection with harness connector.
OK or NG OK >>
INSPECTION END
NG >> 1. Repair or replace damaged parts. 2. Replace the transaxle assembly. Refer to CVT-354, " Removal and Installation " .
Component Inspection INFOID:0000000004305709
PRESSURE CONTROL SOLENOID VALVE B (S ECONDARY PRESSURE SOLENOID VALVE)
1. Turn ignition switch OFF.
2. Disconnect CVT unit harness connector. Solenoid valve Connector Terminal
Resistance (Ap-
prox.)
Pressure control solenoid
valve B (Secondary pres-
sure solenoid valve) F46 3 - Ground 3 - 9
Ω SCIA4688E
Item Connector Terminal Continuity
TCM connector E31 2 Yes
CVT unit harness connec-
tor F46 3 SCIA4689E

CVT-286< SERVICE INFORMATION >
[RE0F08B]
DTC P0778 PRESSURE CONTROL SOLENO
ID B ELECTRICAL (SEC PRES-
SURE SOLENOID VALVE)
3. Check resistance between CVT unit harness connector terminal and ground.
4. If NG, replace the transaxle assembly. Refer to CVT-354," Removal and Installation " .
Solenoid Valve Connector Terminal
Resistance (Ap-
prox.)
Pressure control sole-
noid valve B (Secondary
pressure solenoid valve) F46 3 - Ground 3 - 9
Ω SCIA4688E
