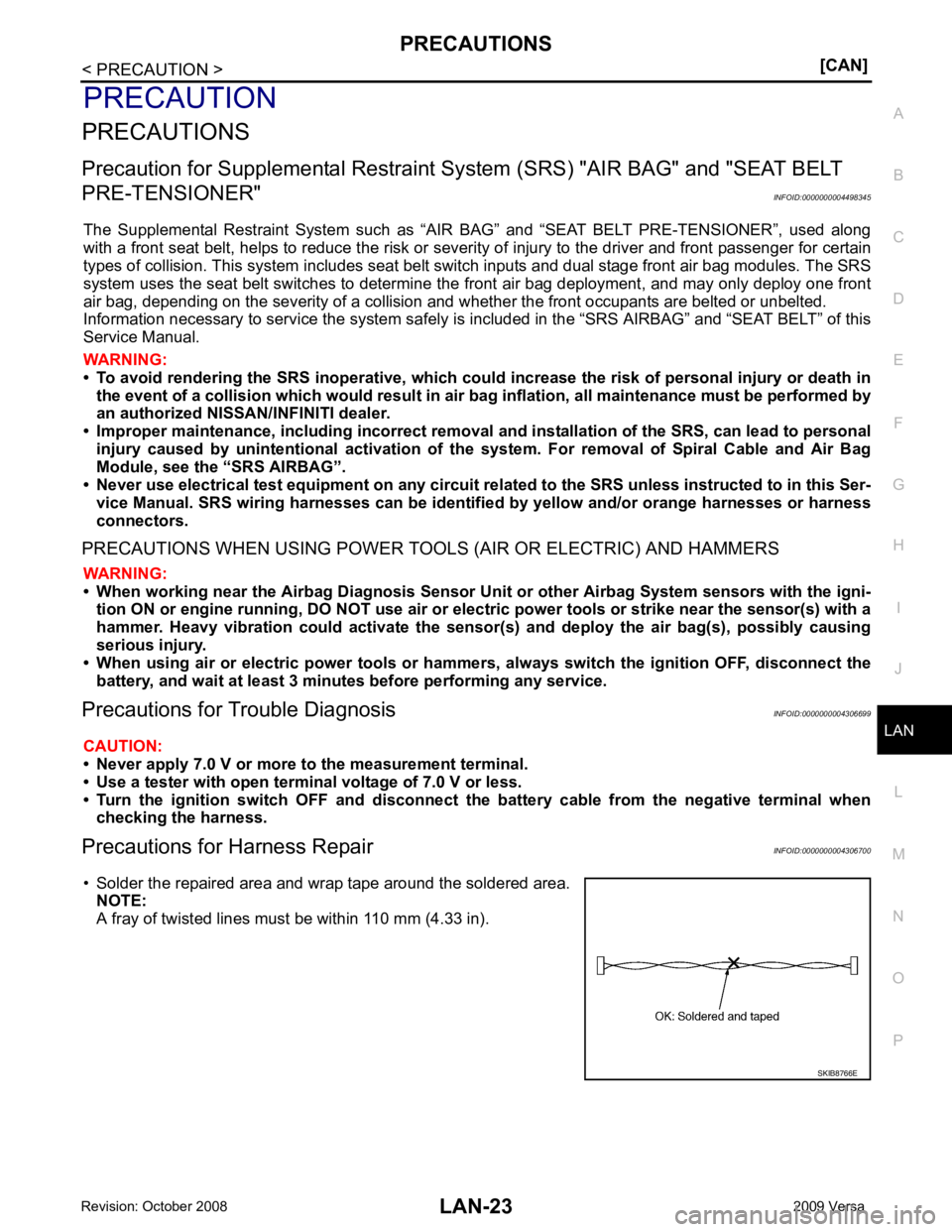

BASIC INSPECTION
DIAGNOSIS AND REPAIR WORKFLOW

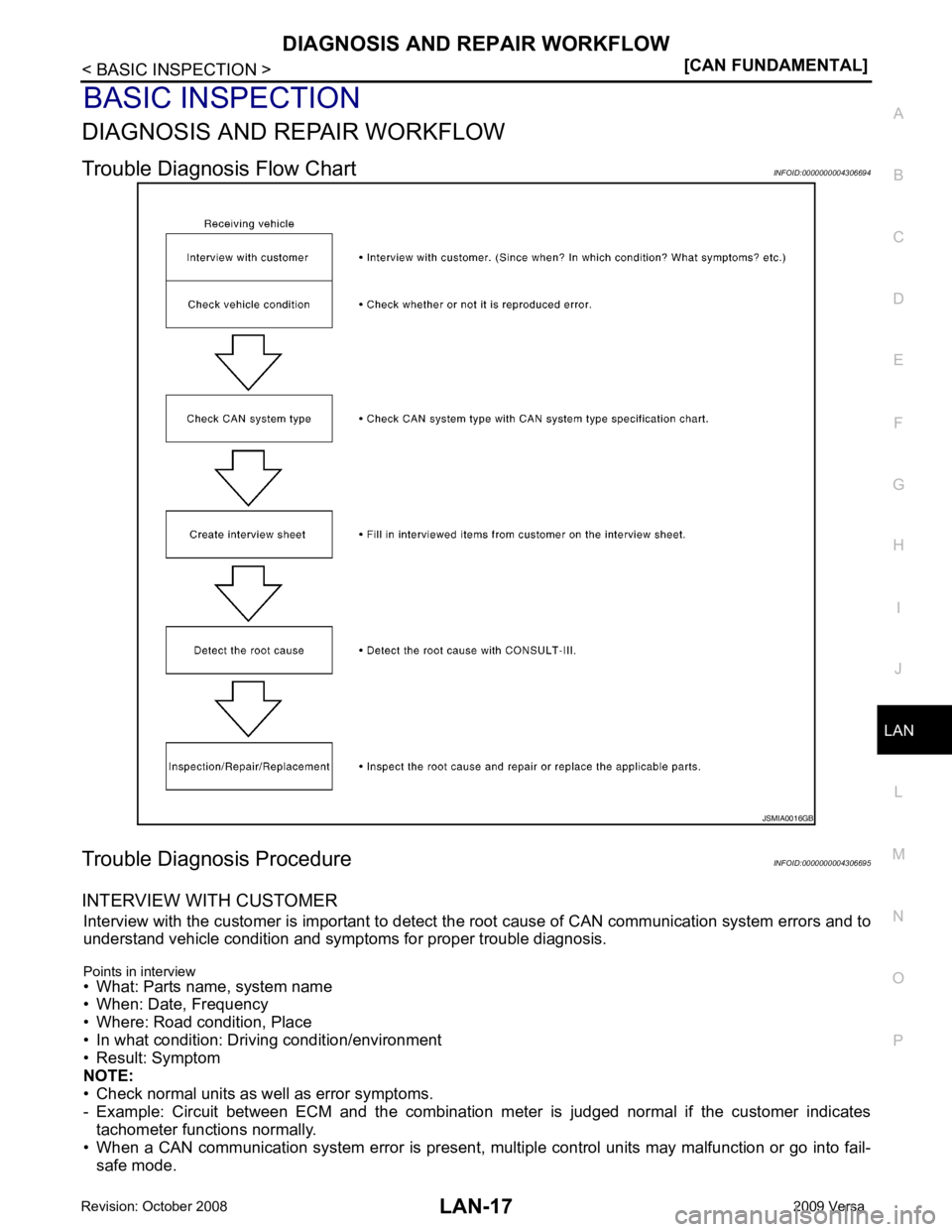

Trouble Diagnosis Flow Chart INFOID:0000000004306694
Trouble Diagnosis Procedure INFOID:0000000004306695
INTERVIEW WITH CUSTOMER Interview with the customer is important to detect t he root cause of CAN communication system errors and to
understand vehicle condition and symptoms for proper trouble diagnosis.
Points in interview
• What: Parts name, system name
• When: Date, Frequency
• Where: Road condition, Place
• In what condition: Driving condition/environment
• Result: Symptom
NOTE:
• Check normal units as well as error symptoms.

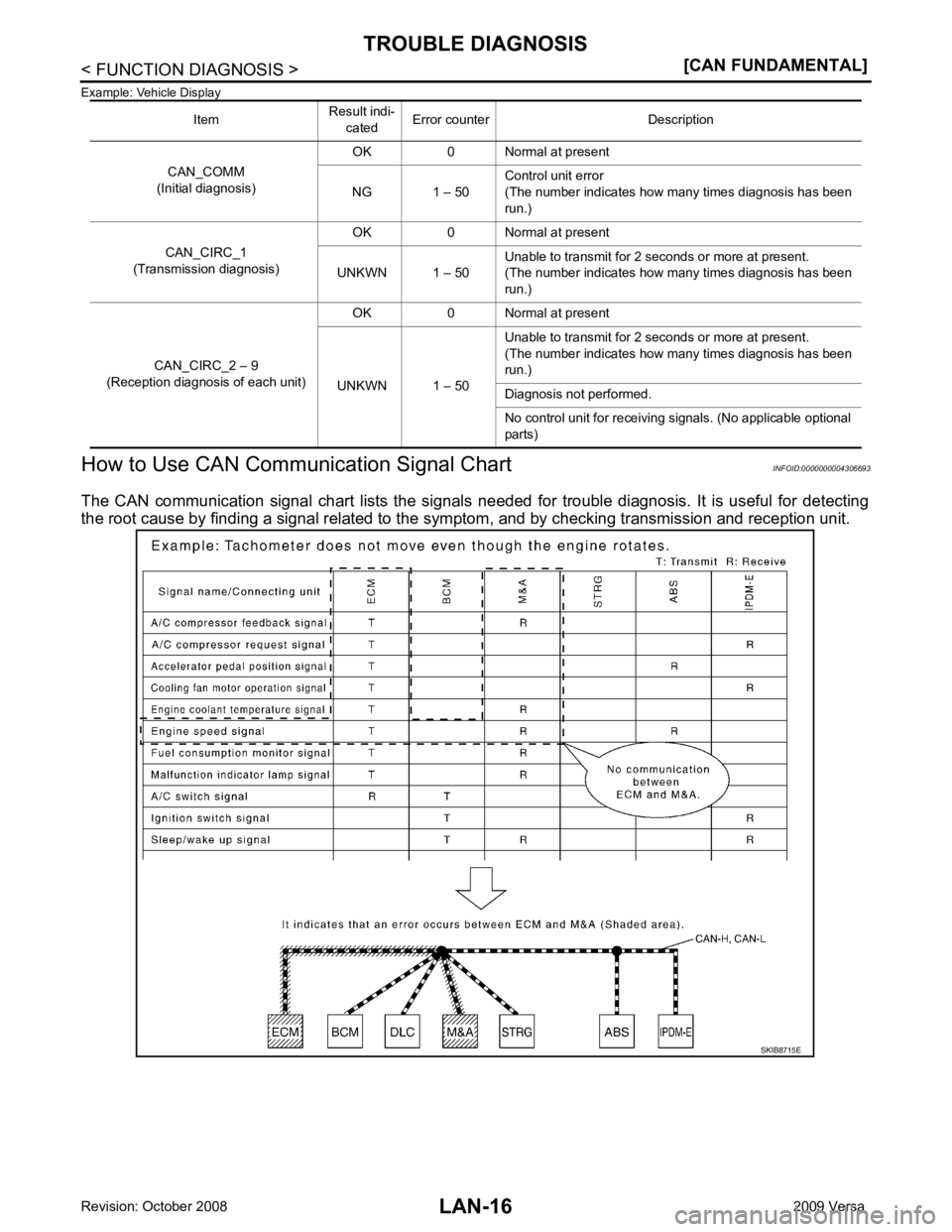

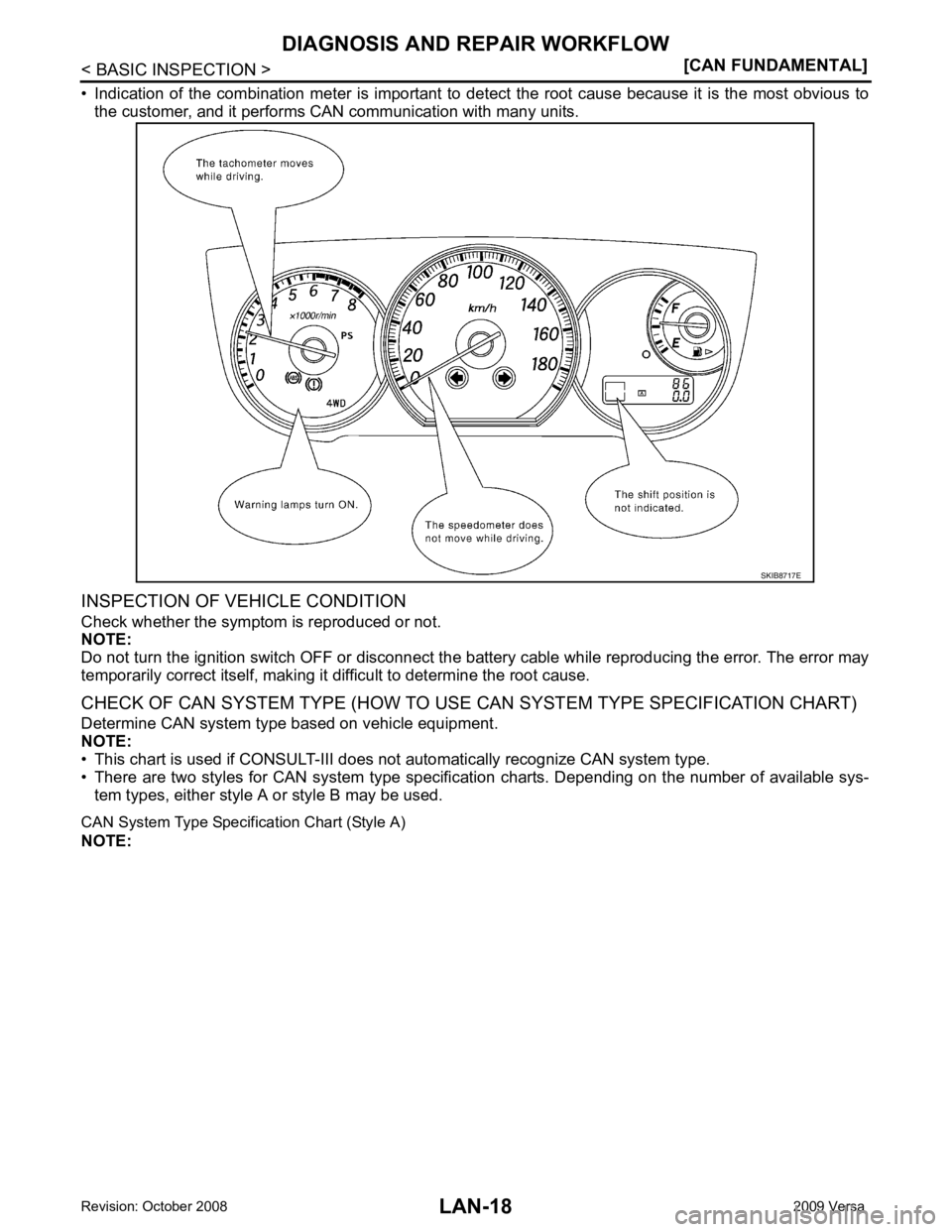

- Example: Circuit between ECM and the combination meter is judged normal if the customer indicates tachometer functions normally.
• When a CAN communication system error is present, mult iple control units may malfunction or go into fail-
safe mode.

LAN
N
O P

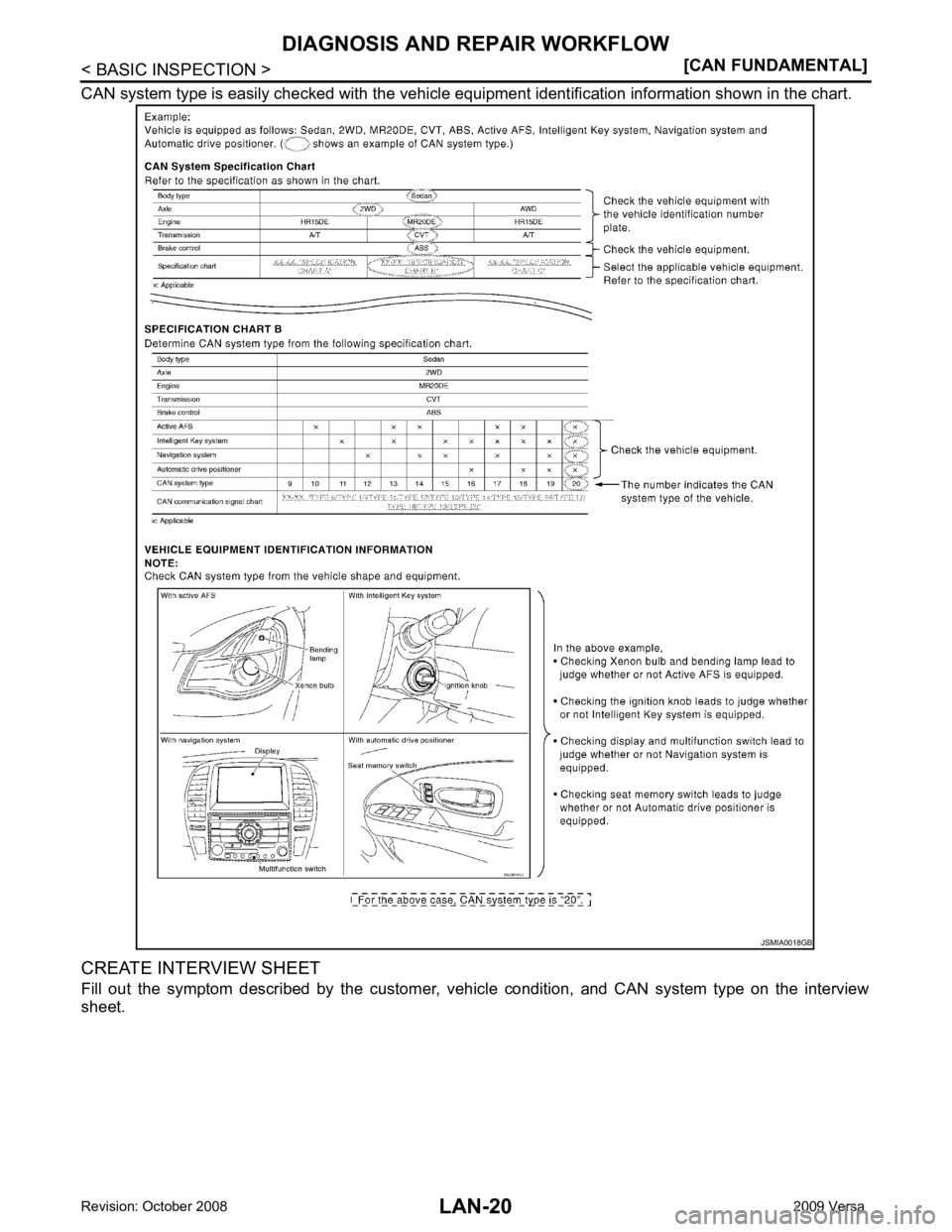

CAN system type is easily checked wi
th the vehicle equipment identification information shown in the chart.

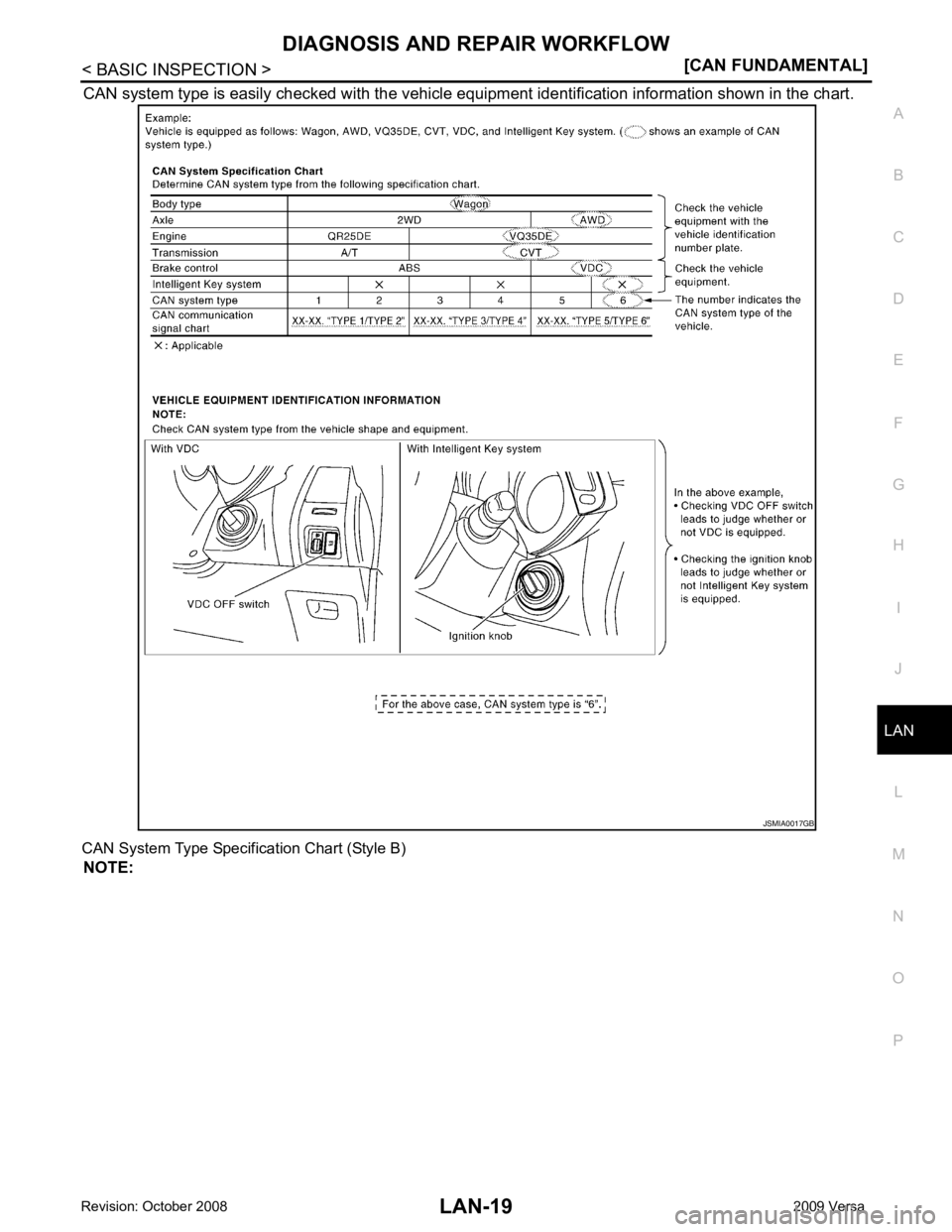

CAN System Type Specification Chart (Style B) NOTE:

LAN
N
O P

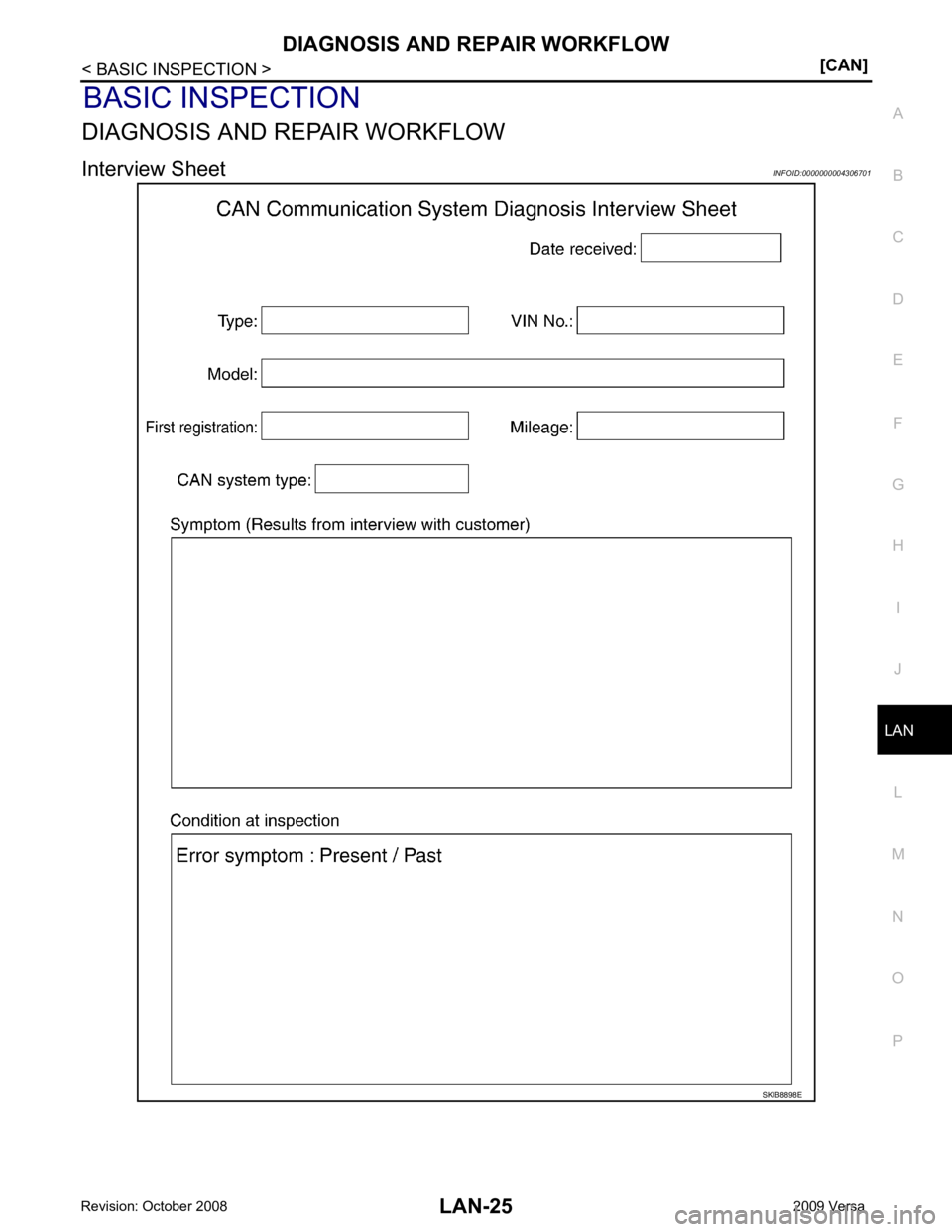

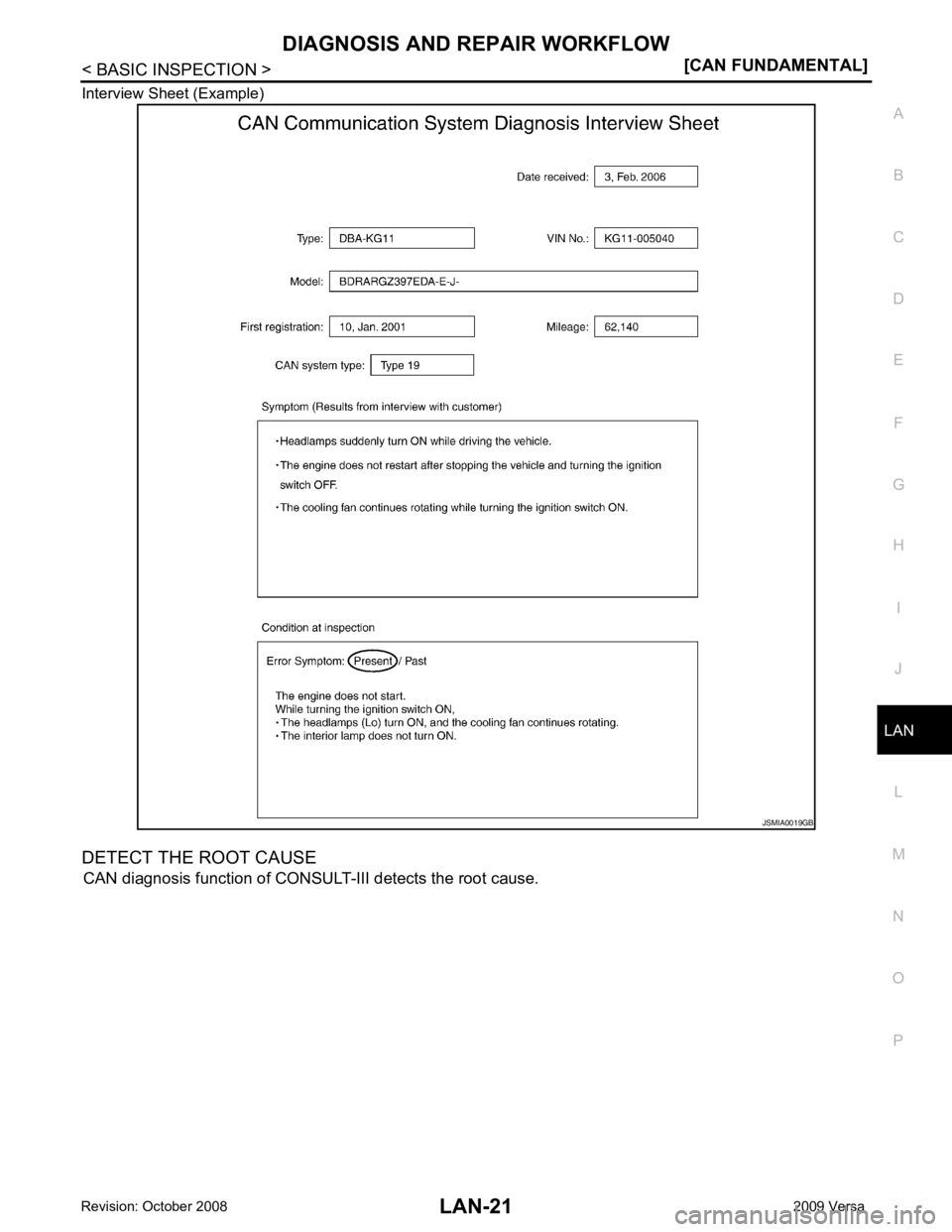

Interview Sheet (Example)
DETECT THE ROOT CAUSE CAN diagnosis function of CONSUL T-III detects the root cause.

Trouble Diagnosis Procedure " .
Abbreviation List INFOID:0000000004306697
Unit name abbreviations in CONSULT-III CAN diagnosis and in this section are as per the following list.
Abbreviation Unit name A-BAG Air bag diagnosis sensor unitABS ABS actuator and electric unit (control unit)
BCM BCM DLC Data link connector
ECM ECM EPS EPS control unit
I-KEY Intelligent Key unit
IPDM-E IPDM E/R M&A Combination meter
TCM TCM
