NISSAN LATIO 2010 Service Repair Manual

EC-396
< COMPONENT DIAGNOSIS >[HR16DE]
P2127, P2128 APP SENSOR
P2127, P2128 APP SENSOR
DescriptionINFOID:0000000005398574
The accelerator pedal position sensor is installed on the upper end
of the accelerator pedal assembly. The sensor detects the accelera-
tor position and sends a signal to the ECM.
Accelerator pedal position sensor has two sensors. These sensors
are a kind of potentiometer which transform the accelerator pedal
position into output voltage, and emit the voltage signal to the ECM.
The ECM judges the current opening angle of the accelerator pedal
from these signals and controls the throttle control motor based on
these signals.
Idle position of the accelerator pedal is determined by the ECM
receiving the signal from the accelerator pedal position sensor. The
ECM uses this signal for the engine operation such as fuel cut.
DTC LogicINFOID:0000000005398575
DTC DETECTION LOGIC
DTC CONFIRMATION PROCEDURE
1.PRECONDITIONING
If DTC Confirmation Procedure has been previously conducted, always turn ignition switch OFF and wait at
least 10 seconds before conducting the next test.
TESTING CONDITION:
Before performing the following procedure, confirm that battery voltage is more than 8 V at idle.
>> GO TO 2.
2.PERFORM DTC CONFIRMATION PROCEDURE
1. Start engine and let it idle for 1 second.
2. Check DTC.
Is DTC detected?
YES >> Go to EC-397, "Diagnosis Procedure".
NO >> INSPECTION END
PBIB1741E
DTC No. Trouble diagnosis name DTC detecting conditionPossible cause
P2127 Accelerator pedal position
sensor 2 circuit low input An excessively low voltage from the APP
sensor 2 is sent to ECM. • Harness or connectors
(APP sensor 2 circuit is open or shorted.)
[Crankshaft position sensor (POS) circuit
is shorted.]
(Refrigerant pressure sensor circuit is
shorted.)
(EVAP control system pressure sensor
circuit is shorted.)
• Accelerator pedal position sensor (APP sensor 2)
• Crankshaft position sensor (POS)
• Refrigerant pressure sensor
• EVAP control system pressure sensor
P2128
Accelerator pedal position
sensor 2 circuit high input An excessively high
voltage from the APP
sensor 2 is sent to ECM.
Revision: January 20102010 Versa

P2127, P2128 APP SENSOREC-397
< COMPONENT DIAGNOSIS > [HR16DE]
C
D
E
F
G H
I
J
K L
M A
EC
NP
O

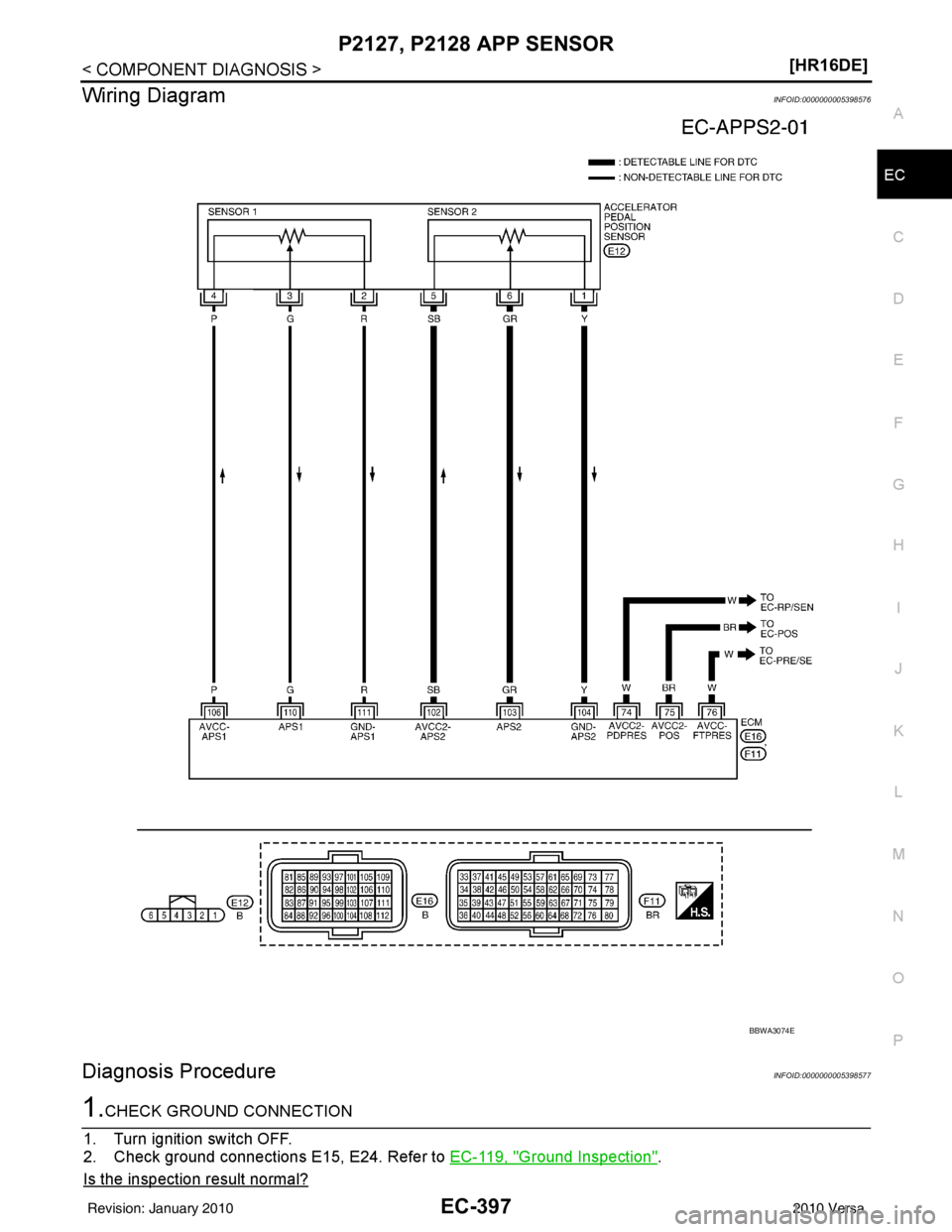

Wiring DiagramINFOID:0000000005398576
Diagnosis ProcedureINFOID:0000000005398577
1.CHECK GROUND CONNECTION
1. Turn ignition switch OFF.
2. Check ground connections E15, E24. Refer to EC-119, "
Ground Inspection".
Is the inspection result normal?
BBWA3074E
Revision: January 20102010 Versa

EC-398
< COMPONENT DIAGNOSIS >[HR16DE]
P2127, P2128 APP SENSOR
YES >> GO TO 2.
NO >> Repair or replace ground connection.
2.CHECK APP SENSOR 2 POWER SUPPLY CIRCUIT-I
1. Disconnect accelerator pedal position (APP) sensor harness connector.
2. Turn ignition switch ON.
3. Check the voltage between APP sensor harness connector and ground.
Is the inspection result normal?
YES >> GO TO 6.
NO >> GO TO 3.
3.CHECK APP SENSOR 2 POWER SUPPLY CIRCUIT-II
1. Turn ignition switch OFF.
2. Disconnect ECM harness connector.
3. Check the continuity between APP sens or harness connector and ECM harness connector.
Is the inspection result normal?
YES >> GO TO 4.
NO >> Repair open circuit or short to ground or short to power in harness or connectors.
4.CHECK SENSOR POWER SUPPLY CIRCUIT
Check harness for short to power and short to ground, between the following terminals.
Is the inspection result normal?
YES >> GO TO 5.
NO >> Repair short to ground or short to power in harness or connectors.
5.CHECK COMPONENTS
Check the following.
• Crankshaft position sensor (POS) (Refer to EC-261, "
Component Inspection".)
• EVAP control system pressure sensor (Refer to EC-308, "
Component Inspection".)
• Refrigerant pressure sensor (Refer to EC-451, "
Diagnosis Procedure".)
Is the inspection result normal?
YES >> GO TO 10.
NO >> Replace malfunctioning component.
6.CHECK APP SENSOR 2 GROUND CIRCUIT FOR OPEN AND SHORT
1. Turn ignition switch OFF.
2. Disconnect ECM harness connector.
3. Check the continuity between APP sens or harness connector and ECM harness connector.
APP sensor
Ground Voltage
Connector Terminal
E12 5 Ground Approx. 5 V
PBIA9607J
APP sensor ECM
Continuity
Connector Terminal Connector Terminal
E12 5 E16 102 Existed
ECM Sensor
Connector Terminal NameConnector Terminal
F11 74 Refrigerant pressure sensor
E17 3
75 CKP sensor (POS) F15 1
76 EVAP control system pressure sensor B104 3
E16 102 APP sensor E12 5
Revision: January 20102010 Versa

P2127, P2128 APP SENSOREC-399
< COMPONENT DIAGNOSIS > [HR16DE]
C
D
E
F
G H
I
J
K L
M A
EC
NP
O
4. Also check harness for short to ground and short to power.
Is the inspection result normal?
YES >> GO TO 7.
NO >> Repair open circuit or short to ground or short to power in harness or connectors.
7.CHECK APP SENSOR 2 INPUT SIGNAL CIRCUIT FOR OPEN AND SHORT
1. Check the continuity between APP sens or harness connector and ECM harness connector.
2. Also check harness for short to ground and short to power.
Is the inspection result normal?
YES >> GO TO 8.
NO >> Repair open circuit or short to ground or short to power in harness or connectors.
8.CHECK APP SENSOR
Refer to EC-399, "
Component Inspection".
Is the inspection result normal?
YES >> GO TO 10.
NO >> GO TO 9.
9.REPLACE ACCELERATOR PEDAL ASSEMBLY
1. Replace accelerator pedal assembly.
2. Perform EC-400, "
Special Repair Requirement".
>> INSPECTION END
10.CHECK INTERMITTENT INCIDENT
Refer to EC-114, "
Diagnosis Procedure".
>> INSPECTION END
Component InspectionINFOID:0000000005398578
1.CHECK ACCELERATOR PEDAL POSITION SENSOR
1. Reconnect all harness connectors disconnected.
2. Turn ignition switch ON.
3. Check the voltage between ECM harness connector and ground.
Is the inspection result normal?
APP sensor ECM
Continuity
Connector Terminal Connector Terminal
E12 1 E16 104 Existed
APP sensor ECM
Continuity
Connector Terminal Connector Terminal
E12 6 E16 103 Existed
ECM Ground Condition Voltage
Connector Terminal
E16 11 0
(APP sensor
1 signal) GroundAccelerator
pedal Fully released 0.6 - 0.9 V
Fully depressed 3.9 - 4.7 V
103
(APP sensor 2 signal) Fully released 0.3 - 0.6 V
Fully depressed 1.95 - 2.4 V
PBIA9572J
Revision: January 20102010 Versa

EC-400
< COMPONENT DIAGNOSIS >[HR16DE]
P2127, P2128 APP SENSOR
YES >> INSPECTION END
NO >> GO TO 2.
2.REPLACE ACCELERATOR PEDAL ASSEMBLY
1. Replace accelerator pedal assembly.
2. Perform EC-400, "
Special Repair Requirement".
>> INSPECTION END
Special Repair RequirementINFOID:0000000005398579
1.PERFORM ACCELERATOR PEDAL RE LEASED POSITION LEARNING
Refer to EC-25, "
ACCELERATOR PEDAL RELEASED POSITION LEARNING : Special Repair Requirement".
>> GO TO 2.
2.PERFORM THROTTLE VALVE CL OSED POSITION LEARNING
Refer to EC-25, "
THROTTLE VALVE CLOSED POSITION LE ARNING : Special Repair Requirement".
>> GO TO 3.
3.PERFORM IDLE AIR VOLUME LEARNING
Refer to EC-26, "
IDLE AIR VOLUME LEARNING : Special Repair Requirement".
>> END
Revision: January 20102010 Versa

P2135 TP SENSOREC-401
< COMPONENT DIAGNOSIS > [HR16DE]
C
D
E
F
G H
I
J
K L
M A
EC
NP
O
P2135 TP SENSOR
DescriptionINFOID:0000000005398580
Electric throttle control actuator
consists of throttle control motor,
throttle position sensor, etc. The throttle position sensor responds to
the throttle valve movement.
The throttle position sensor has two sensors. These sensors are a
kind of potentiometer which transform the throttle valve position into
output voltage, and emit the voltage signals to the ECM. The ECM
judges the current opening angle of the throttle valve from these sig-
nals and controls the throttle valve opening angle in response to
driving conditions via the throttle control motor.
DTC LogicINFOID:0000000005398581
DTC DETECTION LOGIC
NOTE:
If DTC P2135 is displayed with DTC P0643, first pe rform the trouble diagnosis for DTC P0643. Refer to
EC-352, "
DTC Logic".
DTC CONFIRMATION PROCEDURE
1.PRECONDITIONING
If DTC Confirmation Procedure has been previously conducted, always turn ignition switch OFF and wait at
least 10 seconds before conducting the next test.
TESTING CONDITION:
Before performing the following procedure, confirm that battery voltage is more than 8 V at idle.
>> GO TO 2.
2.PERFORM DTC CONFIRMATION PROCEDURE
1. Start engine and let it idle for 1 second.
2. Check DTC.
Is DTC detected?
YES >> Go to EC-402, "Diagnosis Procedure".
NO >> INSPECTION END
PBIB0145E
DTC No. Trouble diagnosis name DTC detecting condition Possible cause
P2135 Throttle position sensor
circuit range/perfor-
mance Rationally incorrect voltage is sent to ECM
compared with the signals from TP sensor 1
and TP sensor 2. • Harness or connector
(TP sensor 1 or 2 circuit is open or shorted.)
• Electric throttle control actuator (TP sensor 1 or 2)
Revision: January 20102010 Versa

EC-402
< COMPONENT DIAGNOSIS >[HR16DE]
P2135 TP SENSOR

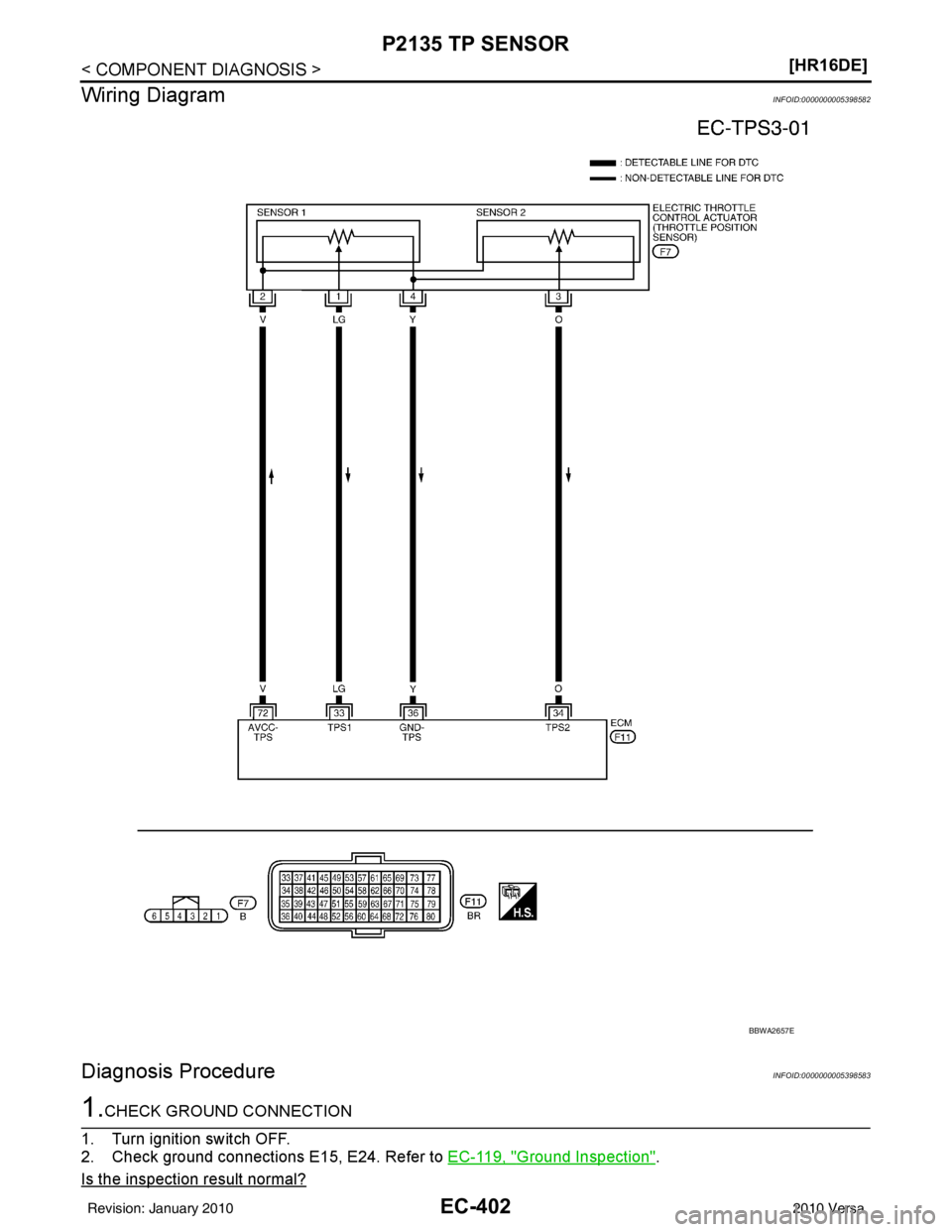

Wiring Diagram
INFOID:0000000005398582
Diagnosis ProcedureINFOID:0000000005398583
1.CHECK GROUND CONNECTION
1. Turn ignition switch OFF.
2. Check ground connections E15, E24. Refer to EC-119, "
Ground Inspection".
Is the inspection result normal?
BBWA2657E
Revision: January 20102010 Versa

P2135 TP SENSOREC-403
< COMPONENT DIAGNOSIS > [HR16DE]
C
D
E
F
G H
I
J
K L
M A
EC
NP
O
YES >> GO TO 2.
NO >> Repair or replace ground connection.
2.CHECK THROTTLE POSITION SENSOR POWER SUPPLY CIRCUIT
1. Disconnect electric throttle c ontrol actuator harness connector.
2. Turn ignition switch ON.
3. Check the voltage between electric throttle control actuator har- ness connector and ground.
Is the inspection result normal?
YES >> GO TO 3.
NO >> Repair open circuit or short to ground or short to power in harness or connectors.
3.CHECK THROTTLE POSITION SENSOR GROUND CIRCUIT FOR OPEN AND SHORT
1. Turn ignition switch OFF.
2. Disconnect ECM harness connector.
3. Check the continuity between electric thro ttle control actuator harness connector and ground.
4. Also check harness for short to ground and short to power.
Is the inspection result normal?
YES >> GO TO 4.
NO >> Repair open circuit or short to ground or short to power in harness or connectors.
4.CHECK THROTTLE POSITION SENSOR INPUT SIGNAL CIRCUIT FOR OPEN AND SHORT
1. Check the continuity between electric thro ttle control actuator harness connector and ground.
2. Also check harness for short to ground and short to power.
Is the inspection result normal?
YES >> GO TO 5.
NO >> Repair open circuit or short to ground or short to power in harness or connectors.
5.CHECK THROTTLE POSITION SENSOR
Refer to EC-404, "
Component Inspection".
Is the inspection result normal?
YES >> GO TO 7.
NO >> GO TO 6.
6.REPLACE ELECTRIC THROTTLE CONTROL ACTUATOR
1. Replace electric throttle control actuator.
2. Perform EC-404, "
Special Repair Requirement".
>> INSPECTION END
Electric throttle control actuator Ground Voltage
Connector Terminal
F7 2 Ground Approx. 5 V
PBIB3311E
Electric throttle control actuator ECM
Continuity
Connector Terminal Connector Terminal
F7 4F11 36 Existed
Electric throttle control actuator ECM
Continuity
Connector Terminal Connector Terminal
F7 1
F1133
Existed
33 4
Revision: January 20102010 Versa

EC-404
< COMPONENT DIAGNOSIS >[HR16DE]
P2135 TP SENSOR
7.CHECK INTERMITTENT INCIDENT
Refer to EC-114, "
Diagnosis Procedure".
>> INSPECTION END
Component InspectionINFOID:0000000005398584
1.CHECK THROTTLE POSITION SENSOR
1. Turn ignition switch OFF.
2. Reconnect all harness connectors disconnected.
3. Perform EC-404, "
Special Repair Requirement".
4. Turn ignition switch ON.
5. Set selector lever to D (A/T) or 1st (M/T) position.
6. Check the voltage between ECM harness connector and ground.
Is the inspection result normal?
YES >> INSPECTION END
NO >> GO TO 2.
2.REPLACE ELECTRIC THROTTLE CONTROL ACTUATOR
1. Replace electric throttle control actuator.
2. Perform EC-404, "
Special Repair Requirement".
>> INSPECTION END
Special Repair RequirementINFOID:0000000005398585
1.PERFORM THROTTLE VALVE CL OSED POSITION LEARNING
Refer to EC-25, "
THROTTLE VALVE CLOSED POSITION LE ARNING : Special Repair Requirement"
>> GO TO 2.
2.PERFORM IDLE AIR VOLUME LEARNING
Refer to EC-26, "
IDLE AIR VOLUME LEARNING : Special Repair Requirement"
>> END
ECM
Ground Condition Voltage
Connector Terminal
F11 33
(TP sensor
1 signal)
GroundAccelerator
pedal Fully released
More than
0.36V
Fully de-
pressed Less than
4.75V
34
(TP sensor 2 signal) Fully released
Less than
4.75V
Fully de-
pressed More than
0.36V
PBIB3038E
Revision: January 20102010 Versa

P2138 APP SENSOREC-405
< COMPONENT DIAGNOSIS > [HR16DE]
C
D
E
F
G H
I
J
K L
M A
EC
NP
O
P2138 APP SENSOR
DescriptionINFOID:0000000005398586
The accelerator pedal position sensor is installed on the upper end
of the accelerator pedal assembly. The sensor detects the accelera-
tor position and sends a signal to the ECM.
Accelerator pedal position sensor has two sensors. These sensors
are a kind of potentiometer which transform the accelerator pedal
position into output voltage, and emit the voltage signal to the ECM.
The ECM judges the current opening angle of the accelerator pedal
from these signals and controls the throttle control motor based on
these signals.
Idle position of the accelerato
r pedal is determined by the ECM
receiving the signal from the accelerator pedal position sensor. The
ECM uses this signal for the engine operation such as fuel cut.
DTC LogicINFOID:0000000005398587
DTC DETECTION LOGIC
NOTE:
If DTC P2138 is displayed with DTC P0643, first pe rform the trouble diagnosis for DTC P0643. Refer to
EC-352, "
DTC Logic".
DTC CONFIRMATION PROCEDURE
1.PRECONDITIONING
If DTC Confirmation Procedure has been previously conducted, always turn ignition switch OFF and wait at
least 10 seconds before conducting the next test.
TESTING CONDITION:
Before performing the following procedure, confirm that battery voltage is more than 8 V at idle.
>> GO TO 2.
2.PERFORM DTC CONFIRMATION PROCEDURE
1. Start engine and let it idle for 1 second.
2. Check DTC.
Is DTC detected?
YES >> Go to EC-406, "Diagnosis Procedure".
NO >> INSPECTION END
PBIB1741E
DTC No. Trouble diagnosis name DTC detecting conditionPossible cause
P2138 Accelerator pedal position
sensor circuit range/per-
formance Rationally incorrect voltage is sent to ECM
compared with the signals from APP sensor
1 and APP sensor 2. • Harness or connector
(APP sensor 1 or 2 circuit is open or
shorted.)
[Crankshaft position sensor (POS) circuit
is shorted.)
(Refrigerant pressure sensor circuit is
shorted.)
(EVAP control system sensor circuit is
shorted.)
• Accelerator pedal position sensor
(APP sensor 1 or 2)
• Crankshaft position sensor (POS)
• Refrigerant pressure sensor
• EVAP control system pressure sensor
Revision: January 20102010 Versa
