POWER SUPPLY AND GROUND CIRCUITEC-127
< COMPONENT DIAGNOSIS > [HR16DE]
C
D
E
F
G H
I
J
K L
M A
EC
NP
O
Refer to
EC-122, "Diagnosis Procedure".
Is the inspection result normal?
YES >> Replace IPDM E/R. Refer to PG-28, "Removal and Installation of IPDM E/R".
NO >> Repair open circuit or short to ground or short to power in harness or connectors.
Ground InspectionINFOID:0000000005929802
Ground connections are very important to the proper oper ation of electrical and electronic circuits. Ground
connections are often exposed to moisture, dirt and other corrosive elements. The corrosion (rust) can
become an unwanted resistance. This unwanted resistance can change the way a circuit works.
Electronically controlled circuits are very sensitive to proper grounding. A loose or corroded ground can drasti-
cally affect an electronically controlled circuit. A poor or corroded ground can easily affect the circuit. Even
when the ground connection looks clean, there can be a thin film of rust on the surface.
When inspecting a ground connection follow these rules:

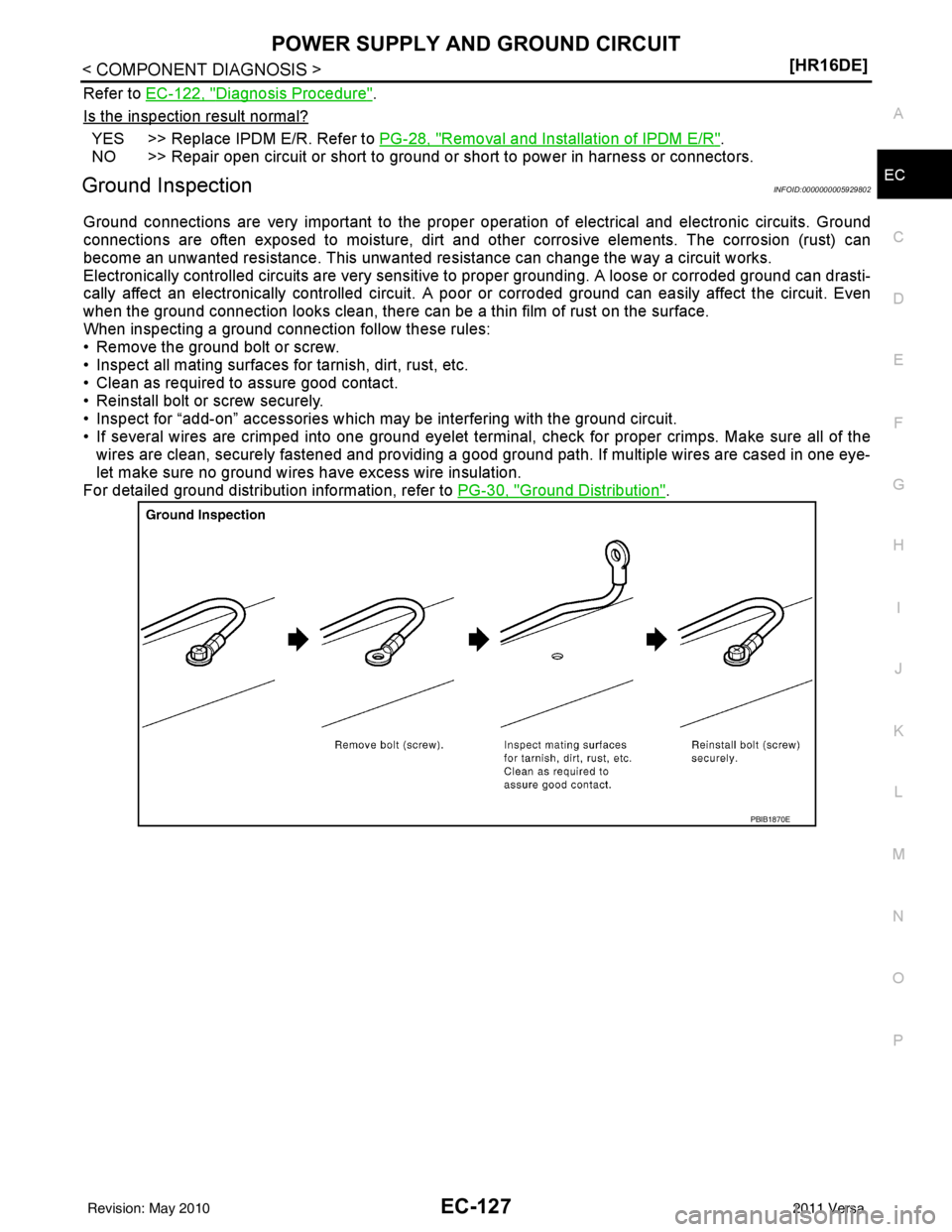

• Remove the ground bolt or screw.
• Inspect all mating surfaces for tarnish, dirt, rust, etc.
• Clean as required to assure good contact.
• Reinstall bolt or screw securely.
• Inspect for “add-on” accessories which may be interfering with the ground circuit.
• If several wires are crimped into one ground eyelet terminal, check for proper crimps. Make sure all of the wires are clean, securely fastened and providing a good ground path. If multiple wires are cased in one eye-
let make sure no ground wires have excess wire insulation.
For detailed ground distribution information, refer to PG-30, "
Ground Distribution".
PBIB1870E
Revision: May 2010 2011 Versa

EC-128
< COMPONENT DIAGNOSIS >[HR16DE]
U0101 CAN COMM CIRCUIT
U0101 CAN COMM CIRCUIT
DescriptionINFOID:0000000005929803
CAN (Controller Area Network) is a serial communication line for real time application. It is an on-vehicle mul-
tiplex communication line with high data communication s
peed and excellent error detection ability. Many elec-
tronic control units are equipped onto a vehicle, and each control unit shares information and links with other
control units during operation (not independent). In CA N communication, control units are connected with 2
communication lines (CAN H line, CAN L line) allowing a high rate of information transmission with less wiring.
Each control unit transmits/receives data but selectively reads required data only.
DTC LogicINFOID:0000000005929804
DTC DETECTION LOGIC
DTC CONFIRMATION PROCEDURE
1.PERFORM DTC CONFIRMATION PROCEDURE
1. Turn ignition switch ON and wait at least 3 seconds.
2. Check DTC.
Is DTC detected?
YES >> EC-129, "Diagnosis Procedure".
NO >> INSPECTION END
DTC No. Trouble diagnosis name DTC detecting conditionPossible cause
U0101 Lost communication with
TCM When ECM is not transmitting or receiving CAN
communication signal of OBD (emission-related
diagnosis) with TCM for 2 seconds or more. • CAN communication line between
TCM and ECM
(CAN communication line is open or
shorted)
Revision: May 2010 2011 Versa

U0101 CAN COMM CIRCUITEC-129
< COMPONENT DIAGNOSIS > [HR16DE]
C
D
E
F
G H
I
J
K L
M A
EC
NP
O

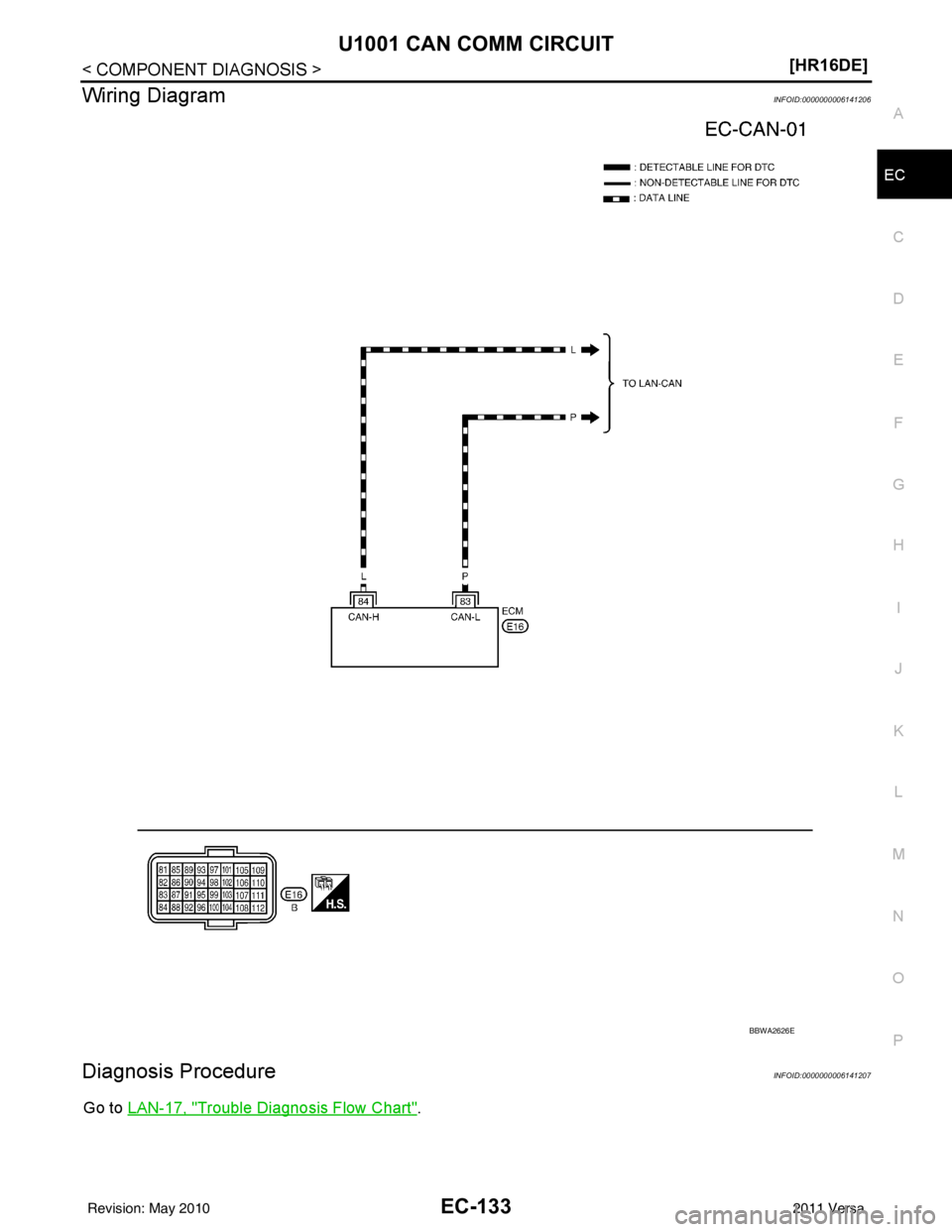

Wiring DiagramINFOID:0000000005929805
Diagnosis ProcedureINFOID:0000000005929806
Go to
LAN-17, "Trouble Diagnosis Flow Chart".
BBWA2626E
Revision: May 2010 2011 Versa

EC-130
< COMPONENT DIAGNOSIS >[HR16DE]
U0140 CAN COMM CIRCUIT
U0140 CAN COMM CIRCUIT
DescriptionINFOID:0000000006141009
CAN (Controller Area Network) is a serial communication line for real time application. It is an on-vehicle mul-
tiplex communication line with high data communication s
peed and excellent error detection ability. Many elec-
tronic control units are equipped onto a vehicle, and each control unit shares information and links with other
control units during operation (not independent). In CA N communication, control units are connected with 2
communication lines (CAN H line, CAN L line) allowing a high rate of information transmission with less wiring.
Each control unit transmits/receives data but selectively reads required data only.
DTC LogicINFOID:0000000005929808
DTC DETECTION LOGIC
DTC CONFIRMATION PROCEDURE
1.PERFORM DTC CONFIRMATION PROCEDURE
1. Turn ignition switch ON and wait at least 3 seconds.
2. Check DTC.
Is DTC detected?
YES >> EC-131, "Diagnosis Procedure".
NO >> INSPECTION END
DTC No. Trouble diagnosis name DTC detecting conditionPossible cause
U0140 Lost communication with
BCM When ECM is not transmitting or receiving CAN
communication signal of OBD (emission related
diagnosis) with BCM for 2 seconds or more. • CAN communication line between
BCM and ECM
(CAN communication line is open or
shorted)
Revision: May 2010 2011 Versa

U0140 CAN COMM CIRCUITEC-131
< COMPONENT DIAGNOSIS > [HR16DE]
C
D
E
F
G H
I
J
K L
M A
EC
NP
O
Wiring DiagramINFOID:0000000006141208
Diagnosis ProcedureINFOID:0000000006141209
Go to
LAN-17, "Trouble Diagnosis Flow Chart".
BBWA2626E
Revision: May 2010 2011 Versa

EC-132
< COMPONENT DIAGNOSIS >[HR16DE]
U1001 CAN COMM CIRCUIT
U1001 CAN COMM CIRCUIT
DescriptionINFOID:0000000006141010
CAN (Controller Area Network) is a serial communication line for real time application. It is an on-vehicle mul-
tiplex communication line with high data communication s
peed and excellent error detection ability. Many elec-
tronic control units are equipped onto a vehicle, and each control unit shares information and links with other
control units during operation (not independent). In CA N communication, control units are connected with 2
communication lines (CAN H line, CAN L line) allowing a high rate of information transmission with less wiring.
Each control unit transmits/receives data but selectively reads required data only.
DTC LogicINFOID:0000000005929812
DTC DETECTION LOGIC
DTC CONFIRMATION PROCEDURE
1.PERFORM DTC CONFIRMATION PROCEDURE
1. Turn ignition switch ON and wait at least 3 seconds.
2. Check 1st trip DTC.
Is 1st trip DTC detected?
YES >> EC-133, "Diagnosis Procedure".
NO >> INSPECTION END
DTC No. Trouble diagnosis name DTC detecting condition Possible cause
U1001 CAN communication line When ECM is not transmitting or receiving CAN
communication signal other than OBD (emission
related diagnosis) for 2 seconds or more. • Harness or connectors
(CAN communication line is open or
shorted)
Revision: May 2010 2011 Versa

U1001 CAN COMM CIRCUITEC-133
< COMPONENT DIAGNOSIS > [HR16DE]
C
D
E
F
G H
I
J
K L
M A
EC
NP
O
Wiring DiagramINFOID:0000000006141206
Diagnosis ProcedureINFOID:0000000006141207
Go to
LAN-17, "Trouble Diagnosis Flow Chart".
BBWA2626E
Revision: May 2010 2011 Versa

EC-134
< COMPONENT DIAGNOSIS >[HR16DE]
P0011 IVT CONTROL
P0011 IVT CONTROL
DTC LogicINFOID:0000000005929815
DTC DETECTION LOGIC
NOTE:
If DTC P0011 is displayed with DTC P0075, first perform the tr
ouble diagnosis for EC-362, "
DTC Logic".
DTC CONFIRMATION PROCEDURE
1.PRECONDITIONING
If DTC Confirmation Procedure has been previously conducted, always turn ignition switch OFF and wait at
least 10 seconds before conducting the next test.
TESTING CONDITION:
Before performing the following procedure, confi rm that battery voltage is between 10 V and 16 V at
idle.
>> GO TO 2.
2.PERFORM DTC CONFIRMATION PROCEDURE-I
With CONSULT-III
1. Turn ignition switch ON and select “DATA MONITOR” mode with CONSULT-III.
2. Start engine and warm it up to normal operating temperature.
3. Maintain the following conditions for at least 6 consecutive seconds. Hold the accelerator pedal as steady as possible.
4. Stop vehicle with engine running and let engine idle for 10 seconds.
5. Check 1st trip DTC. With GST
Follow the procedure “With CONSULT-III” above.
Is 1st trip DTC detected?
YES >> Go to EC-135, "Diagnosis Procedure"
NO >> GO TO 3.
3.PERFORM DTC CONFIRMATION PROCEDURE-II
With CONSULT-III
1. Maintain the following conditions for at least 20 consecutive seconds.
DTC No. Trouble diagnosis name DTC detecting condition Possible cause
P0011 Intake valve timing control
performance There is a gap between angle of target
and phase-control angle degree. • Crankshaft position sensor (POS)
• Camshaft position sensor (PHASE)
• Intake valve control solenoid valve
• Accumulation of debris to the signal pick-up
portion of the camshaft
• Timing chain installation
• Foreign matter caught in the oil groove for in- take valve timing control
ENG SPEED 1,200 - 2,000 rpm
COOLAN TEMP/S More than 60 °C (140 °F)
B/FUEL SCHDL More than 4.2 msec
Selector lever P or N position (A/T)
Neutral position (M/T)
ENG SPEED 1,500 - 3,175 rpm (A cons
tant rotation is maintained.)
COOLAN TEMP/S More than 70 °C (221 °F)
Revision: May 2010 2011 Versa

P0011 IVT CONTROLEC-135
< COMPONENT DIAGNOSIS > [HR16DE]
C
D
E
F
G H
I
J
K L
M A
EC
NP
OCAUTION:
Always drive at a safe speed.
2. Check 1st trip DTC.
With GST
Follow the procedure “With CONSULT-III” above.
Is 1st trip DTC detected?
YES >> Go to EC-135, "Diagnosis Procedure"
NO >> INSPECTION END
Diagnosis ProcedureINFOID:0000000005929816
1.CHECK OIL PRESSURE WARNING LAMP
1. Start engine.

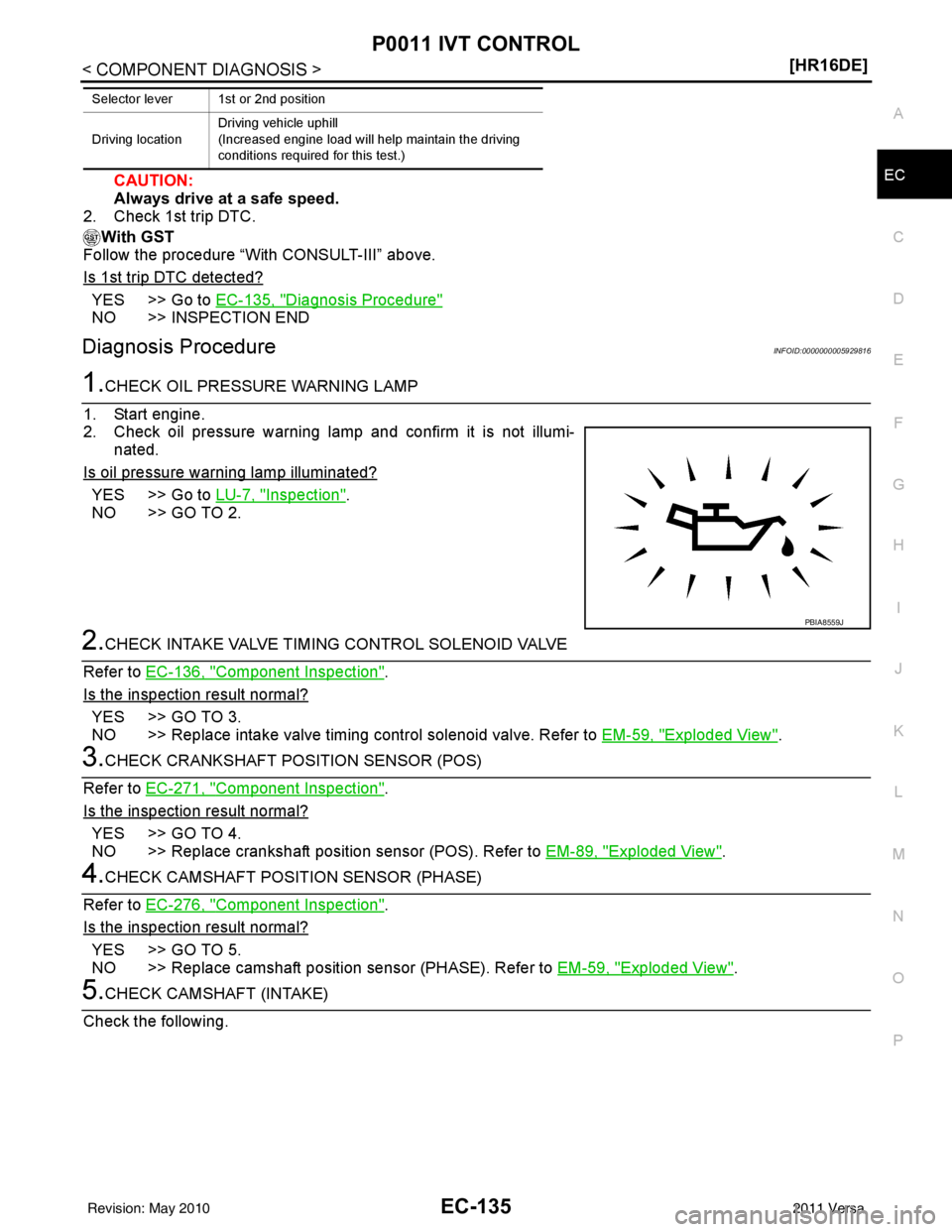

2. Check oil pressure warning lamp and confirm it is not illumi- nated.
Is oil pressure warning lamp illuminated?
YES >> Go to LU-7, "Inspection".
NO >> GO TO 2.
2.CHECK INTAKE VALVE TIMING CONTROL SOLENOID VALVE
Refer to EC-136, "
Component Inspection".
Is the inspection result normal?
YES >> GO TO 3.
NO >> Replace intake valve timing control solenoid valve. Refer to EM-59, "
Exploded View".
3.CHECK CRANKSHAFT POSITION SENSOR (POS)
Refer to EC-271, "
Component Inspection".
Is the inspection result normal?
YES >> GO TO 4.
NO >> Replace crankshaft position sensor (POS). Refer to EM-89, "
Exploded View".
4.CHECK CAMSHAFT POSITION SENSOR (PHASE)
Refer to EC-276, "
Component Inspection".
Is the inspection result normal?
YES >> GO TO 5.
NO >> Replace camshaft position sensor (PHASE). Refer to EM-59, "
Exploded View".
5.CHECK CAMSHAFT (INTAKE)
Check the following.
Selector lever 1st or 2nd position
Driving location Driving vehicle uphill
(Increased engine load will help maintain the driving
conditions required for this test.)
PBIA8559J
Revision: May 2010
2011 Versa

EC-136
< COMPONENT DIAGNOSIS >[HR16DE]
P0011 IVT CONTROL
• Accumulation of debris to the si
gnal plate of camshaft (1) rear end
• Chipping signal plate of camshaft rear end
Is the inspection result normal?
YES >> GO TO 6.
NO >> Remove debris and clean the signal plate of camshaft rear end or replace camshaft. Refer to EM-59,
"Exploded View".
6.CHECK TIMING CHAIN INSTALLATION
Check service records for any recent repairs that may cause timing chain misaligned.
Are there any service records that may cause timing chain misaligned?
YES >> Check timing chain installation. Refer to EM-49, "Removal and Installation".
NO >> GO TO 7.
7.CHECK LUBRICATION CIRCUIT
Refer to EM-65, "
Inspection", “INSPECTION AFTER INSTALATION”.
Is the inspection result normal?
YES >> GO TO 8.
NO >> Clean lubrication line.
8.CHECK INTERMITTENT INCIDENT
Refer to EC-122, "
Diagnosis Procedure".
>> INSPECTION END
Component InspectionINFOID:0000000005929817
1.CHECK INTAKE VALVE TIMING CONTROL SOLENOID VALVE-I
1. Turn ignition switch OFF.
2. Disconnect intake valve timing control solenoid valve harness connector.
3. Check resistance between intake valve timing control solenoid valve terminals as per the following.
Is the inspection result normal?
YES >> GO TO 2.
NO >> Replace intake valve timing control solenoid valve. Refer to EM-59, "
Exploded View".
2.CHECK INTAKE VALVE TIMING CONTROL SOLENOID VALVE-II
1. Remove intake valve timing control solenoid valve.
PBIA9557J
Terminals Resistance
1 and 2 6.7 - 7.7 Ω [at 20°C (68 °F)]
1 or 2 and ground ∞
Ω
(Continuity should not exist)
PBIB0574E
Revision: May 2010 2011 Versa
