NISSAN LATIO 2011 Service Repair Manual
Manufacturer: NISSAN, Model Year: 2011, Model line: LATIO, Model: NISSAN LATIO 2011Pages: 3787, PDF Size: 78.35 MB
Page 3781 of 3787
REAR WIPER AND WASHER SYSTEMWW-35
< SERVICE INFORMATION >
C
DE
F
G H
I
J
L
M A
B
WW
N
O P
1. Raise wiper arm cover (1), and remove the rear wiper arm nut (A).
2. Remove the wiper arm.
3. Remove wiper blade.
Installation
1. Operate rear wiper motor one full c ycle, then turn "OFF" (Auto Stop).
2. Clean pivot area as shown. This will reduce the possibility of wiper arm looseness.
3. Install wiper blade.
4. Install wiper arm so that the arm rests in the stopper and tighten rear wiper arm nut.
5. Install wiper arm cover.
REAR WIPER MOTOR
LKIA0787E
SEL024J
1. Rear wiper motor 2. Rear wiper arm and blade3. Wiper arm cover
4. Pivot cap A. Wiper motor bolts B. Rear wiper motor nut
LKIA0788E
Revision: May 2010 2011 Versa
Page 3782 of 3787
WW-36
< SERVICE INFORMATION >
REAR WIPER AND WASHER SYSTEM
Removal
1. Remove wiper arm. Refer to "REAR WIPER ARM" .
2. Raise arm cap.
3. Remove the rear wiper motor nut, remove the rear wiper arm and blade.
4. Remove the back door lower finisher. Refer to EI-40, "
Removal and Installation" .
5. Disconnect the rear wiper motor connector (B).
6. Remove the bolts (A) and remove the rear wiper motor (1).
Installation
Installation is in the reverse order of removal.
CAUTION:
Do not drop the wiper motor or cause it to contact other parts.
REAR WASHER TUBE LAYOUT
NOTE:
Connect the check valve (2) to the washer fluid tube (1) so that the
directional arrow on the check valve (2) points towards the washer
nozzle tube (3).
REAR WASHER NOZZLE
LKIA0789E
1 Washer fluid reservoir 2 Washer fluid tube to rear door 3 Check valve
4 Rear washer nozzle
LKIA0790E
WKIA4242E
Revision: May 2010 2011 Versa
Page 3783 of 3787
REAR WIPER AND WASHER SYSTEMWW-37
< SERVICE INFORMATION >
C
DE
F
G H
I
J
L
M A
B
WW
N
O P
Removal
1. Remove the back door side garnish. Refer to
EI-40, "Removal and Installation" .
2. Disconnect rear washer tube from rear washer nozzle.
3. Release retaining clips and remove washer nozzle.
Installation
Installation is in the reverse order of removal.
NOTE:
• Do not pinch the rear washer tube when installing the back door side garnish.
• Inspect rear washer nozzle for proper spray pattern, adjust as necessary. Refer to WW-37, "
Washer Nozzle
Adjustment".
WASHER FLUID RESERVOIR
Refer to WW-25, "Removal and Installation of Washer Tank" .
WIPER AND WASHER SWITCH
Refer to WW-25, "Removal and Installation of Front Wiper and Washer Switch" .
WASHER MOTOR
Refer to WW-26, "Removal and Installation of Front Washer Motor" .
Washer Nozzle AdjustmentINFOID:0000000005929249
Adjust the washer nozzle to specification using suitable tool as
shown.
• Rear washer nozzle (1)
• Back glass (2)
• Center line (A)
• 148 mm (5.83 in) (B)
• 27 mm (1.06 in) (C)
• 35 mm (1.38 in) (D)
• Black printed area (E)
• Spray target area (F)
LKIA0545E
Adjustable range : ±15° (In any direction)
LKIA0349E
WKIA6042E
Revision: May 2010 2011 Versa
Page 3784 of 3787
WW-38
< SERVICE INFORMATION >
POWER SOCKET
POWER SOCKET
Wiring Diagram - P/SCKT -INFOID:0000000005929250
Removal and InstallationINFOID:0000000006413347
REMOVAL
1. Remove the fuse for the power socket.
ABLWA1010GB
Revision: May 20102011 Versa
Page 3785 of 3787
POWER SOCKETWW-39
< SERVICE INFORMATION >
C
DE
F
G H
I
J
L
M A
B
WW
N
O P
2. Remove the console mask. Refer to IP-11, "Component Parts".
3. Insert one end of the Tool (A) into one of the square holes inside the power socket.
4. Lift up the handle of the Tool until the other end of the Tool is inside the socket and snaps into the other square hole in the
power socket.
5. Pull the power socket straight out with the Tool.
6. Disconnect power socket connector.
Installation
Installation is in the reverse order of removal.
NOTE:
Make sure to align the tab with the square notched area during
installation. Tool number:
— (J-42059)
AWMIA1182GB
AWMIA1183GB
Revision: May 2010 2011 Versa
Page 3786 of 3787
WW-40
< SERVICE INFORMATION >
HORN
HORN

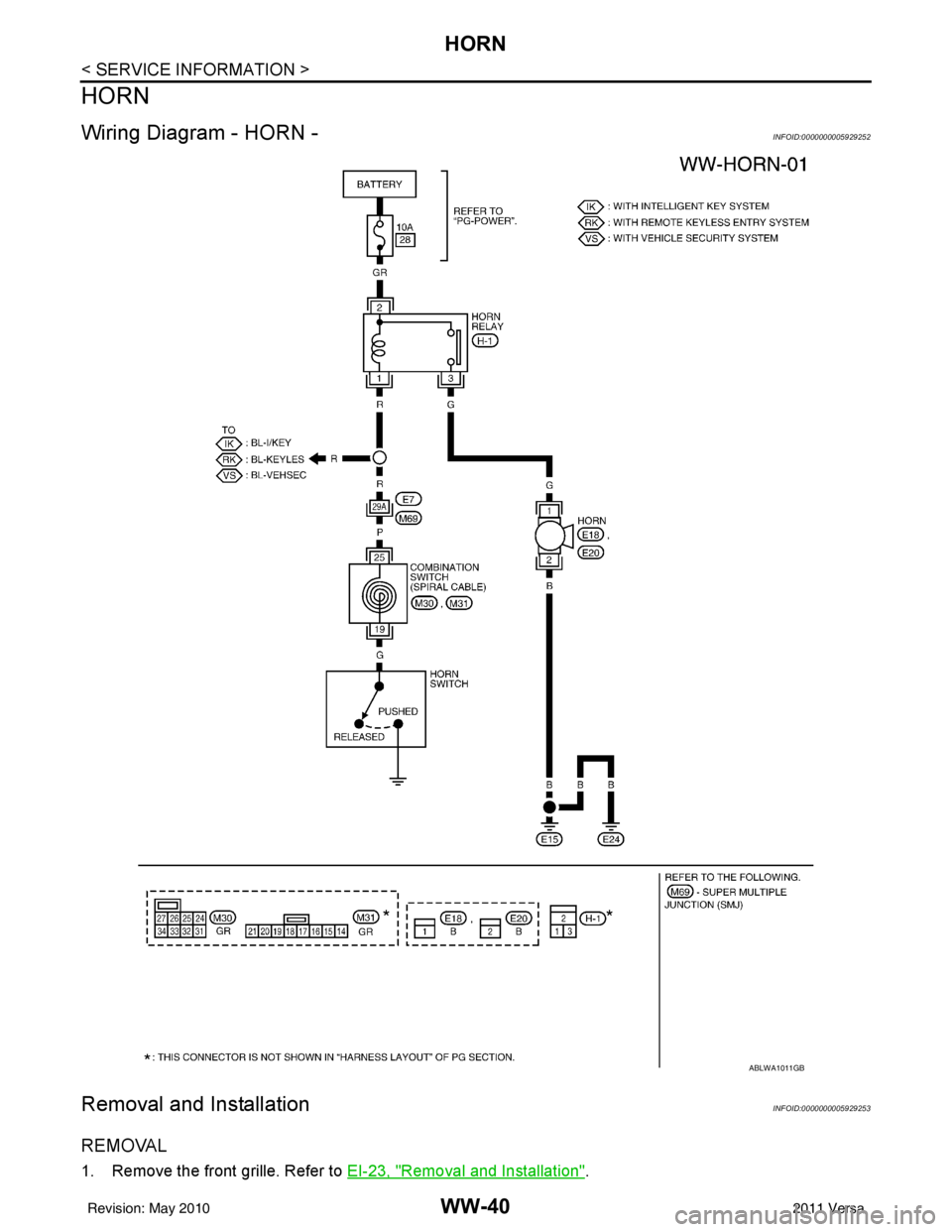

Wiring Diagram - HORN -INFOID:0000000005929252
Removal and InstallationINFOID:0000000005929253
REMOVAL
1. Remove the front grille. Refer to EI-23, "Removal and Installation".
ABLWA1011GB
Revision: May 2010 2011 Versa
Page 3787 of 3787
HORN
WW-41
< SERVICE INFORMATION >
C
D E
F
G H
I
J
L
M A
B
WW
N
O P
2. Disconnect the horn connector.
3. Remove the horn nut (A) and remove the horn (1).
INSTALLATION
Installation is in the reverse order of removal.
ALKIA1767ZZ
Revision: May 2010 2011 Versa
