IGNITION SIGNALEC-447
< COMPONENT DIAGNOSIS > [HR16DE]
C
D
E
F
G H
I
J
K L
M A
EC
NP
O
3. Also check harness for short to ground and short to power.
Is the inspection result normal?
YES >> GO TO 10.
NO >> Repair open circuit or short to ground or short to power in harness or connectors.
10.CHECK IGNITION COIL WITH POWER TRANSISTOR
Refer to EC-447, "
Component Inspection (Ignition Coil with Power Transistor)".
Is the inspection result normal?
YES >> GO TO 11.
NO >> Replace malfunctioning ignition coil with power transistor. Refer to EM-46, "
Exploded View".
11 .CHECK INTERMITTENT INCIDENT
Refer to EC-122, "
Diagnosis Procedure".
>> INSPECTION END
Component Inspection (Ignition Coil with Power Transistor)INFOID:0000000005930133
1.CHECK IGNITION COIL WITH POWER TRANSISTOR-I
1. Turn ignition switch OFF.
2. Disconnect ignition coil harness connector.
3. Check resistance between ignition coil terminals as per the fol- lowing.
Is the inspection result normal?
YES >> GO TO 2.
NO >> Replace malfunctioning ignition coil with power transis- tor. Refer to EM-46, "
Exploded View".
2.CHECK IGNITION COIL WITH POWER TRANSISTOR-II
CAUTION:
Do the following procedure in the place where ventilation is good without the combustible.
1. Turn ignition switch OFF.
2. Reconnect all harness connectors disconnected.
3. Remove fuel pump fuse in IPDM E/R to release fuel pressure. NOTE:
Do not use CONSULT-III to release fuel pressure, or fuel pressure applies again during the following pro-
cedure.
4. Start engine.
5. After engine stalls, crank it two or three times to release all fuel pressure.
6. Turn ignition switch OFF.
7. Remove all ignition coil harness connectors to avoid the electrical discharge from the ignition coils.
8. Remove ignition coil and spark plug of the cylinder to be checked.
9. Crank engine for 5 seconds or more to remove combustion gas in the cylinder.
Ignition coil ECM
Continuity
Cylinder Connector Terminal Connector Terminal
1F34 1
F1417
Existed
2F35 1
18
3F36 1 22
4F37 1 21
Terminals Resistance [Ω at 25° C (77°F)]
1 and 2 Except 0 or ∞
1 and 3 Except 0
2 and 3
PBIB0847E
Revision: May 2010 2011 Versa

EC-448
< COMPONENT DIAGNOSIS >[HR16DE]
IGNITION SIGNAL
10. Connect spark plug and harness connector to ignition coil.
11. Fix ignition coil using a rope etc. with gap of 13 - 17 mm (0.52 -
0.66 in) between the edge of the spark plug and grounded metal
portion as shown in the figure.
12. Crank engine for about three seconds, and check whether spark is generated between the spark plug and the grounded metal
portion.
CAUTION:
• During the operation, alw ays stay 0.5 cm (19.7 in) away
from the spark plug and the ignition coil. Be careful not to
get an electrical shock wh ile checking, because the elec-
trical discharge voltage becomes 20 kV or more.
• It might cause to damage the igni tion coil if the gap of more than 17 mm (0.66 in) is taken.
NOTE:
When the gap is less than 13 mm (0.52 in), the sp ark might be generated even if the coil is mal-
functioning.
Is the inspection result normal?
YES >> INSPECTION END
NO >> Replace malfunctioning ignition coil with power transistor. Refer to EM-46, "
Exploded View".
Component Inspection (Condenser-2)INFOID:0000000005930134
1.CHECK CONDENSER-2
1. Turn ignition switch OFF.
2. Disconnect condenser-2 harness connector.
3. Check resistance between condenser-2 terminals as per the fol- lowing.
Is the inspection result normal?
YES >> INSPECTION END
NO >> Replace condenser-2. Spark should be generated.
JMBIA0066GB
Terminals
Resistance
1 and 2 Above 1 M Ω [at 25 °C (77 °F)]
PBIB0794E
Revision: May 2010 2011 Versa

MALFUNCTION INDICATOR LAMPEC-449
< COMPONENT DIAGNOSIS > [HR16DE]
C
D
E
F
G H
I
J
K L
M A
EC
NP
O
MALFUNCTION INDICATOR LAMP
DescriptionINFOID:0000000005930135
The Malfunction Indicator Lamp (MIL) is located on the combination
meter.
The MIL will light up when the ignition switch is turned ON without
the engine running. This is a bulb check.
When the engine is started, the MIL should go off. If the MIL remains
on, the on board diagnostic syste
m has detected an engine system
malfunction.
For details, refer to EC-451, "
Diagnosis Procedure".
Component Function CheckINFOID:0000000005930136
1.CHECK MIL FUNCTION
1. Turn ignition switch ON.
2. Make sure that MIL lights up.
Is the inspection result normal?
YES >> INSPECTION END
NO >> Go to EC-451, "
Diagnosis Procedure".
SEF217U
Revision: May 2010 2011 Versa

EC-450
< COMPONENT DIAGNOSIS >[HR16DE]
MALFUNCTION INDICATOR LAMP

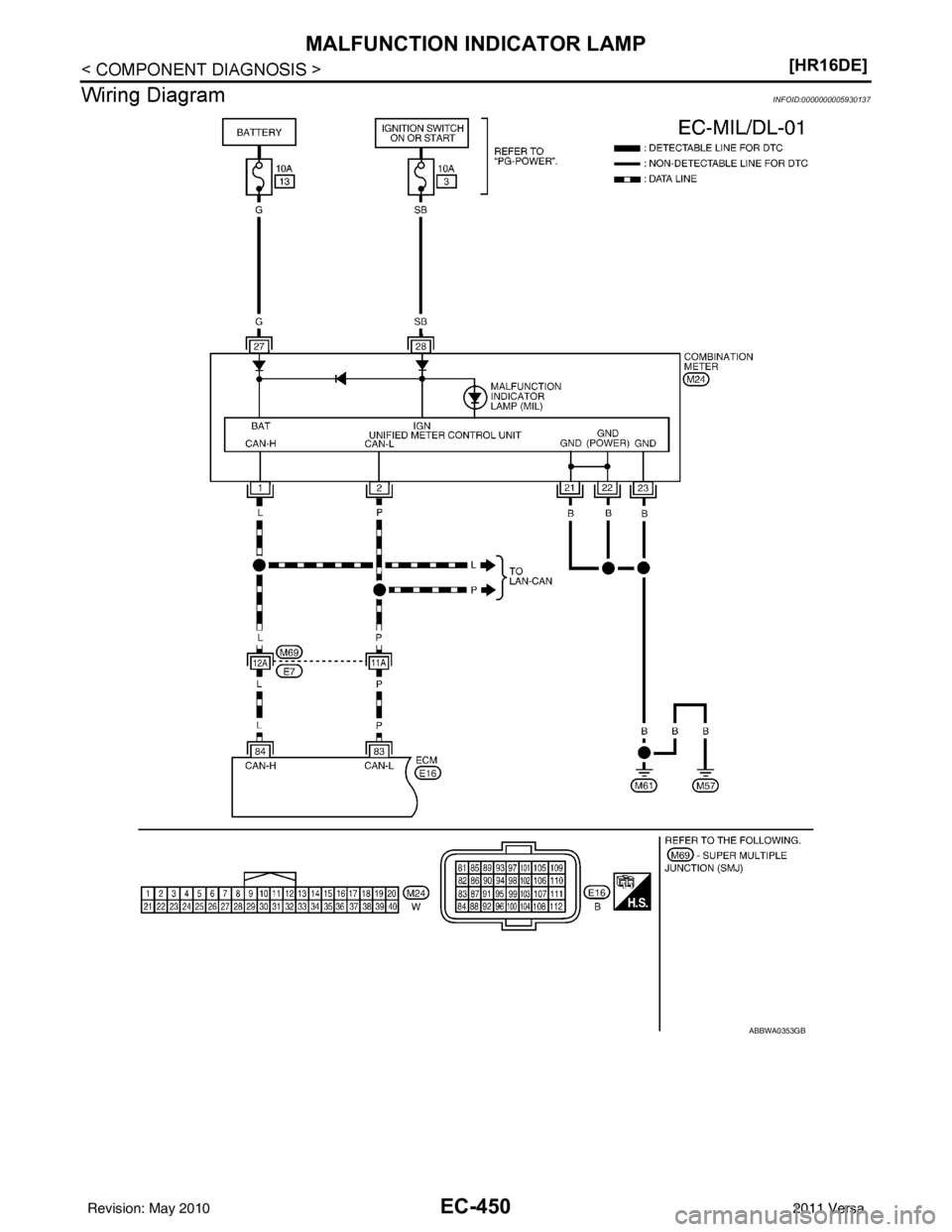

Wiring Diagram
INFOID:0000000005930137
ABBWA0353GB
Revision: May 2010 2011 Versa

MALFUNCTION INDICATOR LAMPEC-451
< COMPONENT DIAGNOSIS > [HR16DE]
C
D
E
F
G H
I
J
K L
M A
EC
NP
O

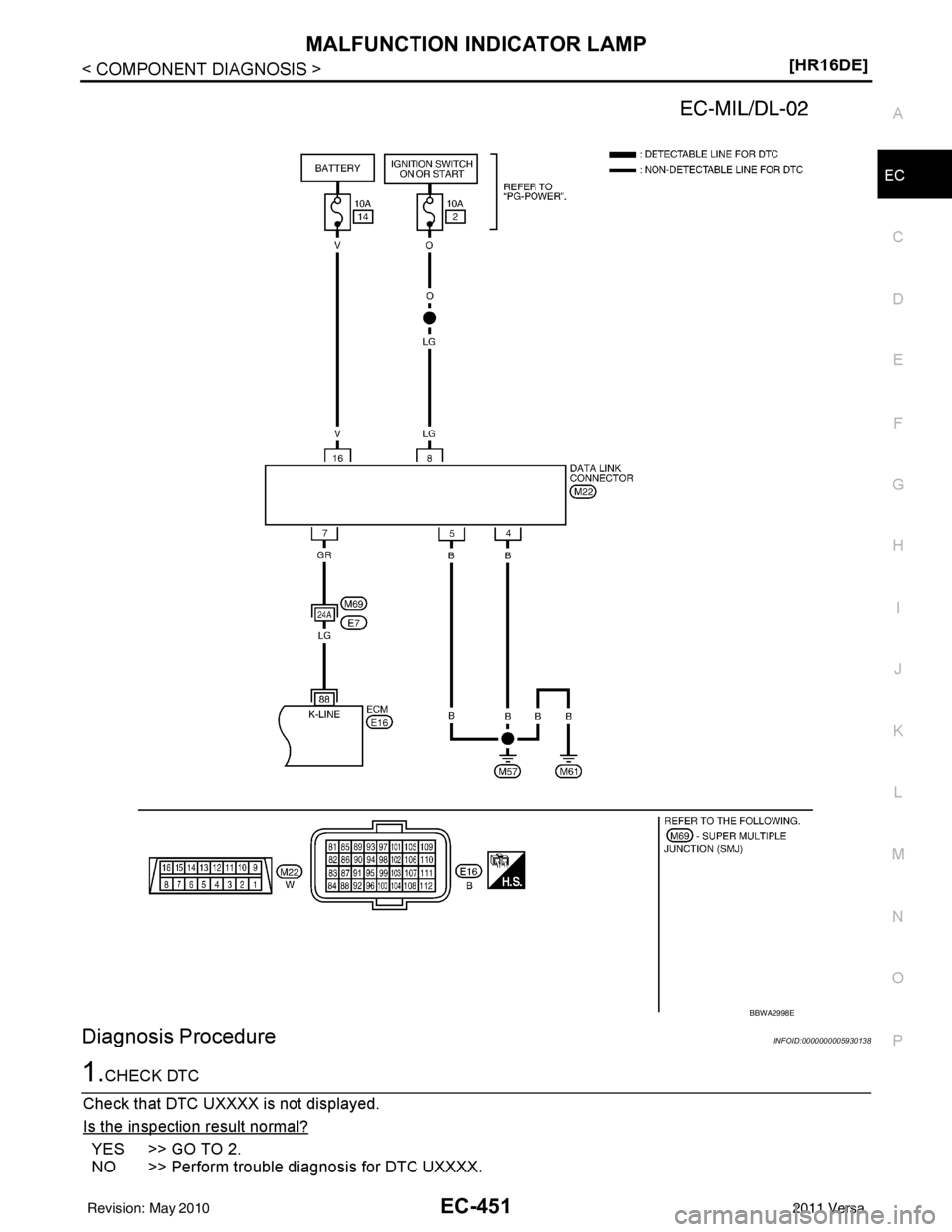

Diagnosis ProcedureINFOID:0000000005930138
1.CHECK DTC
Check that DTC UXXXX is not displayed.
Is the inspection result normal?
YES >> GO TO 2.
NO >> Perform trouble diagnosis for DTC UXXXX.
BBWA2998E
Revision: May 2010 2011 Versa

EC-452
< COMPONENT DIAGNOSIS >[HR16DE]
MALFUNCTION INDICATOR LAMP
2.CHECK DTC WITH METER
Refer to DI-13, "
CONSULT-III Function (METER/M&A)".
Is the inspection result normal?
YES >> GO TO 3.
NO >> Repair or replace.
3.CHECK INTERMITTENT INCIDENT
Refer to EC-122, "
Diagnosis Procedure".
Is the inspection result normal?
YES >> Replace combination meter. Refer to DI-20, "Removal and Installation".
NO >> Repair or replace.
Revision: May 2010 2011 Versa

ON BOARD REFUELING VAPOR RECOVERY (ORVR)EC-453
< COMPONENT DIAGNOSIS > [HR16DE]
C
D
E
F
G H
I
J
K L
M A
EC
NP
O
ON BOARD REFUELING VAPOR RECOVERY (ORVR)
DescriptionINFOID:0000000005930139
From the beginning of refueling, the air and vapor insi
de the fuel tank go through refueling EVAP vapor cut
valve and EVAP/ORVR line to the EVAP canister. The v apor is absorbed by the EVAP canister and the air is
released to the atmosphere.
When the refueling has reached the full level of the fuel tank, the refueling EVAP vapor cut valve is closed and
refueling is stopped because of auto shut-off. The vapor which was absorbed by the EVAP canister is purged
during driving.
WARNING:
When conducting inspectio ns below, be sure to observe the following:
• Put a “CAUTION: FLAMMABL E” sign in workshop.
• Do not smoke while servicing fuel system. Keep open flames and sparks away from work area.
• Be sure to furnish the workshop with a CO
2 fire extinguisher.
CAUTION:
• Before removing fuel line parts, carry out the following procedures:
- Put drained fuel in an explosion-proof containe r and put lid on securely.
- Release fuel pressure from fuel line. Refer to FL-5, "
Checking Fuel Line".
- Disconnect battery ground cable.
• Always replace O-ring when the fu el gauge retainer is removed.
• Do not kink or twist hose and tube when they are installed.
• Do not tighten hose and clamps excessively to avoid damaging hoses.
• After installation, run engine and check for fuel leaks at connection.
• Do not attempt to top off the fuel tank after the fuel pump nozzle shuts off automatically.
Continued refueling may cause fuel overflow, resulting in fuel spray and possibly a fire.
Component Function CheckINFOID:0000000005930140
1.CHECK ORVR FUNCTION
Check whether the following symptoms are present.
• Fuel odor from EVAP canister is strong.
• Cannot refuel/Fuel odor from the fuel filler opening is strong while refueling.
Is any symptom present?
YES >> Go to EC-453, "Diagnosis Procedure".
NO >> INSPECTION END
Diagnosis ProcedureINFOID:0000000005930141
1.INSPECTION START
Check whether the following symptoms are present.
A: Fuel odor from EVAP canister is strong.
JMBIA1930GB
Revision: May 2010 2011 Versa

EC-454
< COMPONENT DIAGNOSIS >[HR16DE]
ON BOARD REFUELING VAPOR RECOVERY (ORVR)
B: Cannot refuel/Fuel odor from the fuel
filler opening is strong while refueling.
Which symptom is present?
A>>GO TO 2.
B>>GO TO 8.
2.CHECK EVAP CANISTER
1. Remove EVAP canister with EVAP canister vent control valve and EVAP control system pressure sensor attached.
2. Weigh the EVAP canister with EVAP canister vent control valve and EVAP control system pressure sensor attached.
The weight should be l ess than 1.9 kg (4.2 lb).
Is the inspection result normal?
YES >> GO TO 3.
NO >> GO TO 4.
3.CHECK IF EVAP CANISTER IS SATURATED WITH WATER
Check if water will drain from EVAP canister.
Does water drain from the EVAP canister?
YES >> GO TO 4.
NO >> GO TO 7.
4.REPLACE EVAP CANISTER
Replace EVAP canister with a new one. Refer to FL-15, "
Removal and Installation (HR16DE)".
>> GO TO 5.
5.CHECK DRAIN FILTER
Refer to EC-458, "
Component Inspection (Drain filter)".
Is the inspection result normal?
OK >> GO TO 6.
NO >> Replace drain filter.
6.DETECT MALFUNCTIONING PART
Check the EVAP hose between EVAP canister and vehicle frame for clogging or poor connection.
>> Repair or replace EVAP hose. Refer to FL-10, "
Component".
7.CHECK REFUELING EVAP VAPOR CUT VALVE
Refer to EC-456, "
Component Inspection (Refueli ng EVAP vapor cut valve)".
Is the inspection result normal?
YES >> INSPECTION END
NO >> Replace refueling EVAP vapor cut valve with fuel tank. Refer to FL-10, "
Removal and Installation".
8.CHECK EVAP CANISTER
1. Remove EVAP canister with EVAP canister vent control valve and EVAP control system pressure sensor attached.
2. Weigh the EVAP canister with EVAP canister vent control valve and EVAP control system pressure sensor
attached.
The weight should be l ess than 1.9 kg (4.2 lb).
Is the inspection result normal?
PBIB1213E
Revision: May 2010 2011 Versa

ON BOARD REFUELING VAPOR RECOVERY (ORVR)EC-455
< COMPONENT DIAGNOSIS > [HR16DE]
C
D
E
F
G H
I
J
K L
M A
EC
NP
O
YES >> GO TO 9.
NO >> GO TO 10.
9.CHECK IF EVAP CANISTER
IS SATURATED WITH WATER
Check if water will drain from EVAP canister.
Does water drain from the EVAP canister?
YES >> GO TO 10.
NO >> GO TO 13.
10.REPLACE EVAP CANISTER
Replace EVAP canister with a new one. Refer to FL-15, "
Removal and Installation (HR16DE)".
>> GO TO 11.
11 .CHECK DRAIN FILTER
Refer to EC-458, "
Component Inspection (Drain filter)".
Is the inspection result normal?
OK >> GO TO 12.
NO >> Replace drain filter.
12.DETECT MALFUNCTIONING PART
Check the EVAP hose between EVAP canister and vehicle frame for clogging or poor connection.
>> Repair or replace EVAP hose. Refer to FL-10, "
Component".
13.CHECK VENT HOSES AND VENT TUBES
Check hoses and tubes between EVAP canister and refueling control valve for clogging, kink, looseness and
improper connection.
Is the inspection result normal?
YES >> GO TO 14.
NO >> Repair or replace hoses and tubes.
14.CHECK RECIRCULATION LINE
Check recirculation line for clogging, dents and cracks.
Is the inspection result normal?
YES >> GO TO 15.
NO >> Replace fuel filler tube. Refer to FL-10, "
Component".
15.CHECK REFUELING EVAP VAPOR CUT VALVE
Refer to EC-456, "
Component Inspection (Refueling EVAP vapor cut valve)".
Is the inspection result normal?
YES >> GO TO 16.
NO >> Replace refueling EVAP vapor cut valve with fuel tank. Refer to FL-10, "
Removal and Installation".
16.CHECK FUEL FILLER TUBE
Check fuel filler tube and hose connected to the fuel tank for clogging, dents and cracks.
Is the inspection result normal?
YES >> GO TO 17.
NO >> Replace fuel filler tube. Refer to FL-10, "
Component".
PBIB1213E
Revision: May 2010 2011 Versa

EC-456
< COMPONENT DIAGNOSIS >[HR16DE]
ON BOARD REFUELING VAPOR RECOVERY (ORVR)
17.CHECK ONE-WAY FUEL VALVE-I
Check one-way valve for clogging.
Is the inspection result normal?
YES >> GO TO 18.
NO >> Repair or replace one-way fuel valve with fuel tank. Refer to FL-10, "
Removal and Installation".
18.CHECK ONE-WAY FUEL VALVE-II
1. Make sure that fuel is drained from the tank.
2. Remove fuel filler tube and hose.
3. Check one-way fuel valve for operation as per the following. When a stick is inserted, the valve should open, when removing
stick it should close.
Do not drop any material into the tank.
Is the inspection result normal?
YES >> INSPECTION END
NO >> Replace fuel filler tube or replace one-way fuel valve with fuel tank. Refer to FL-10, "
Removal and Installa-
tion".
Component Inspection (Refueling EVAP vapor cut valve)INFOID:0000000005930142
1.INSPECTION START
Do you have CONSULT-III?
Do you have CONSULT-III?
YES >> GO TO 2.
NO >> GO TO 3.
2.CHECK REFUELING EVAP VAPOR CUT VALVE
With CONSULT-III
1. Remove fuel tank. Refer to FL-10, "
Removal and Installation".
2. Drain fuel from the tank as per the following:
- Remove fuel feed hose located on the fuel gauge retainer.
- Connect a spare fuel hose, one side to fuel gauge re tainer where the hose was removed and the other
side to a fuel container.
- Drain fuel using “FUEL PUMP RELAY” in “ACTIVE TEST” mode with CONSULT-III.
3. Check refueling EVAP vapor cut valve for being stuck to close as per the following.
Blow air into the refueling EVAP vapor cut valv e (from the end of EVAP/ORVR line hose), and check that
the air flows freely into the tank.
4. Check refueling EVAP vapor cut valve for being stuck to open as per the following.
- Connect vacuum pump to hose end.
- Remove fuel gauge retainer with fuel gauge unit. Always replace O-ri ng with new one.
- Put fuel tank upside down.
- Apply vacuum pressure to hose end [ −13.3 kPa ( −0.136 kg/cm
3, −1.93 psi)] with fuel gauge retainer
remaining open and check that the pressure is applicable.
SEF665U
Revision: May 2010 2011 Versa
