NISSAN LATIO 2011 Service Repair Manual

ECM
EC-467
< ECU DIAGNOSIS > [HR16DE]
C
D
E
F
G H
I
J
K L
M A
EC
NP
O
TERMI-
NAL NO. WIRE
COLOR ITEM
CONDITION DATA (DC Voltage)
1L Throttle control motor
(Open) [Ignition switch: ON]
• Engine stopped
• Selector lever position
: D (A/T), 1st (M/T)
• Accelerator pedal: Fully depressed Approximately 3.2 V
2SB Throttle contro
l motor power
supply [Ignition switch: ON]
BATTERY VOLTAGE
(11 - 14 V)
3 G A/F sensor 1 heater [Engine is running]
•
Warm-up condition
• Idle speed (More than 140 seconds after starting en-
gine) Approximately 2.9 - 8.8 V
4 P Throttle contro l motor (Close)[Ignition switch: ON]
• Engine stopped
• Selector lever position
: D (A/T), 1st (M/T)
• Accelerator pedal: Fully released 0 - 14 V
5G Heated oxygen sensor 2
heater [Engine is running]
• Engine speed: Below 3,600 rpm after the
following conditions are met.
- Engine: After warming up
- Keeping the engine speed between 3,500
and 4,000 rpm for 1 minute and at idle for 1
minute under no load. Approximately 10 V
[Ignition switch: ON]
• Engine stopped
[Engine is running]
• Engine speed: Above 3,600 rpm. BATTERY VOLTAGE
(11 - 14 V)
PBIA8150J
PBIA8148J
PBIA8149J
PBIA8148J
Revision: May 2010
2011 Versa

EC-468
< ECU DIAGNOSIS >[HR16DE]
ECM
9PEVAP canister purge volume
control solenoid valve [Engine is running]
• Idle speed
• Accelerator pedal: Not depressed even
slightly, after engine starting. BATTERY VOLTAGE
(11 - 14 V)
[Engine is running]
• Engine speed: About 2,000 rpm (More than 100 seconds after starting engine) BATTERY VOLTAGE
(11 - 14 V)
10 11 B
B
ECM ground
[Engine is running]
• Idle speed Body ground
15 Y Throttle control motor relay [Ignition switch: OFF]
BATTERY VOLTAGE
(11 - 14 V)
[Ignition switch: ON] 0 - 1.0 V
17
18
21
22 R
LG
G
SB Ignition signal No. 1
Ignition signal No. 2
Ignition signal No. 4
Ignition signal No. 3 [Engine is running]
•
Warm-up condition
• Idle speed NOTE:
The pulse cycle changes depending on rpm
at idle. 0 - 0.3 V
[Engine is running]
• Warm-up condition
• Engine speed: 2,500 rpm. 0.2 - 0.5 V
23 GR Fuel pump relay [Ignition switch: ON]
• For 1 second after turning ignition switch
ON
[Engine is running] 0 - 1.0 V
[Ignition switch: ON]
• More than 1 second after turning ignition switch ON BATTERY VOLTAGE
(11 - 14 V)
TERMI-
NAL
NO. WIRE
COLOR ITEM
CONDITION DATA (DC Voltage)PBIB0050E
PBIB0520E
PBIA9265J
PBIA9266J
Revision: May 2010 2011 Versa

ECM
EC-469
< ECU DIAGNOSIS > [HR16DE]
C
D
E
F
G H
I
J
K L
M A
EC
NP
O
25
29
30
31
V
Y
O
L Fuel injector No. 4
Fuel injector No. 3
Fuel injector No. 2
Fuel injector No. 1 [Engine is running]
•
Warm-up condition
• Idle speed NOTE:
The pulse cycle changes depending on rpm
at idle. BATTERY VOLTAGE
(11 - 14 V)
[Engine is running]
• Warm-up condition
• Engine speed: 2,000 rpm BATTERY VOLTAGE
(11 - 14 V)
28 W EVAP canister vent control
valve [Ignition switch: ON]
BATTERY VOLTAGE
(11 - 14 V)
32 P ECM relay
(Self shut-off) [Engine is running]
[Ignition switch: OFF]
• For a few seconds after turning ignition
switch OFF 0 - 1.0 V
[Ignition switch: OFF]
• More than a few seconds after turning igni- tion switch OFF BATTERY VOLTAGE
(11 - 14 V)
33 LG Throttle position sensor 1 [Ignition switch: ON]
• Engine stopped
• Selector lever position
: D (A/T), 1st (M/T)
• Accelerator pedal: Fully released More than 0.36 V
[Ignition switch: ON]
• Engine stopped
• Selector lever position : D (A/T), 1st (M/T)
• Accelerator pedal: Fully depressed Less than 4.75 V
34 O Throttle position sensor 2 [Ignition switch: ON]
• Engine stopped
• Selector lever position
: D (A/T), 1st (M/T)
• Accelerator pedal: Fully released Less than 4.75 V
[Ignition switch: ON]
• Engine stopped
• Selector lever position : D (A/T), 1st (M/T)
• Accelerator pedal: Fully depressed More than 0.36 V
36 Y Sensor ground
(Throttle position sensor) [Engine is running]
•
Warm-up condition
• Idle speed Approximately 0 V
37 W Knock sensor [Engine is running]
• Idle speed
Approximately 2.5 V
38 P Engine coolant temperature
sensor
[Engine is running] Approximately 0 - 4.8 V
Output voltage varies with en-
gine coolant temperature.
40 — Sensor ground
(Knock sensor) [Engine is running]
•
Warm-up condition
• Idle speed Approximately 0 V
TERMI-
NAL
NO. WIRE
COLOR ITEM
CONDITION DATA (DC Voltage)PBIB0529E
PBIA4943J
Revision: May 2010 2011 Versa

EC-470
< ECU DIAGNOSIS >[HR16DE]
ECM
41 GR Refrigerant pressure sensor[Engine is running]
•
Warm-up condition
• Both A/C switch and blower fan switch: ON
(Compressor operates.) 1.0 - 4.0 V
42 V EVAP control system pres-
sure sensor [Ignition switch: ON]
Approximately 1.8 - 4.8 V
43 P Fuel tank temperature sen-
sor [Engine is running] Approximately 0 - 4.8 V
Output voltage varies with fuel
tank temperature
44 B Sensor ground
(Engine coolant temperature
sensor) [Engine is running]
•
Warm-up condition
• Idle speed Approximately 0 V
45 G Mass air flow sensor [Engine is running]
•
Warm-up condition
• Idle speed 0.9 - 1.3 V
[Engine is running]
• Warm-up condition
• Engine speed: 2,500 rpm 1.4 - 1.9 V
46 V Intake air temperature
sensor
[Engine is running] Approximately 0 - 4.8 V
Output voltage varies with intake
air temperature.
48 BR Sensor ground
(Refrigerant pressure sen-
sor) [Engine is running]
•
Warm-up condition
• Idle speed Approximately 0 V
49 W A/F sensor 1 [Engine is running]
•
Warm-up condition
• Engine speed: 2,000 rpm Approximately 1.8 V
Output voltage varies with air fuel
ratio.
50 W Heated oxygen sensor 2 [Engine is running]
• Revving engine from idle to 3,000 rpm
quickly after the following conditions are
met.
- Engine: After warming up
- Keeping the engine speed between 3,500 and 4,000 rpm for 1 minute and at idle for 1
minute under no load. 0 - 1.0 V
51 O Sensor ground
(EVAP control system pres-
sure sensor) [Engine is running]
•
Warm-up condition
• Idle speed Approximately 0 V
52 LG Sensor ground
(Mass air flow sensor) [Engine is running]
•
Warm-up condition
• Idle speed Approximately 0 V
53 B A/F sensor 1 [Ignition switch: ON]Approximately 2.2 V
55 O Sensor ground
(Intake air temperature sen-
sor) [Engine is running]
•
Warm-up condition
• Idle speed Approximately 0 V
59 O Sensor ground
(He
a
te

d oxygen sensor 2) [Engine is running]
•
Warm-up condition
• Idle speed Approximately 0 V
TERMI-
NAL
NO. WIRE
COLOR ITEM
CONDITION DATA (DC Voltage)
Revision: May 2010 2011 Versa

ECM
EC-471
< ECU DIAGNOSIS > [HR16DE]
C
D
E
F
G H
I
J
K L
M A
EC
NP
O
61 W
Crankshaft position sensor
(POS) [Engine is running]
•
Warm-up condition
• Idle speed
NOTE:
The pulse cycle changes depending on rpm
at idle. Approximately 4.0 V
[Engine is running]
• Engine speed: 2,000 rpm Approximately 4.0 V
62 R Sensor ground
[Crankshaft position sensor
(POS)] [Engine is running]
•
Warm-up condition
• Idle speed Approximately 0 V
63 BR Sensor ground
[Camshaft position sensor
(PHASE)] [Engine is running]
•
Warm-up condition
• Idle speed Approximately 0 V
65 G Camshaft position sensor
(PHASE) [Engine is running]
•
Warm-up condition
• Idle speed NOTE:
The pulse cycle changes depending on rpm
at idle. Approximately 3.6
[Engine is running]
• Engine speed: 2,000 rpm. Approximately 3.6 V
69 L PNP signal [Ignition switch: ON]
• Selector lever position:
P or N (A/T), Neutral
(M/T) BATTERY VOLTAGE
(11 - 14 V)
[Ignition switch: ON]
• Except above Approximately 0 V
72 V Sensor power supply
(Throttle position sensor) [Ignition switch: ON]
Approximately 5 V
TERMI-
NAL
NO. WIRE
COLOR ITEM
CONDITION DATA (DC Voltage)JMBIA2185GB
JMBIA2186GB
JMBIA2183GB
JMBIA2184GB
Revision: May 2010 2011 Versa

EC-472
< ECU DIAGNOSIS >[HR16DE]
ECM
73 PIntake valve timing control
solenoid valve [Engine is running]
•
Warm-up condition
• Idle speed BATTERY VOLTAGE
(11 - 14 V)
[Engine is running]
• Warm-up condition
• When revving engine up to 2,000 rpm quick- ly 7 - 10 V
74 W Sensor power supply
(Refrigerant pressure
sensor)
[Ignition switch: ON]
Approximately 5 V
75 BR Sensor power supply
[Crankshaft position sensor
(POS)] [Ignition switch: ON]
Approximately 5 V
76 W EVAP control system pres-
sure sensor power supply [Ignition switch: ON]
Approximately 5 V
78 O Sensor power supply
[Camshaft position sensor
(PHASE)] [Ignition switch: ON]
Approximately 5 V
83 P CAN communication line — —
84 L CAN communication line — —
88 LG DATA link connector — —
93 O Ignition switch [Ignition switch: OFF]
0V
[Ignition switch: ON] BATTERY VOLTAGE
(11 - 14 V)
99 R Stop lamp switch [Ignition switch: OFF]
• Brake pedal: Fully released
Approximately 0 V
[Ignition switch: OFF]
• Brake pedal: Slightly depressed BATTERY VOLTAGE
(11 - 14 V)
102 SB Sensor power supply
(Accelerator pedal position
sensor 2)
[Ignition switch: ON]
Approximately 5 V
103 GR Accelerator pedal position
sensor 2 [Ignition switch: ON]
• Engine stopped
• Accelerator pedal: Fully released
0.3 - 0.6 V
[Ignition switch: ON]
• Engine stopped
• Accelerator pedal: Fully depressed 1.95 - 2.4 V
104 Y Sensor ground
(Accelerator pedal position
sensor 2) [Engine is running]
•
Warm-up condition
• Idle speed Approximately 0 V
105 G Power supply for ECM [Ignition switch: ON]BATTERY VOLTAGE
(11 - 14 V)
106 P Sensor power supply
(Accelerator pedal position
sensor 1)
[Ignition switch: ON]
Approximately 5 V
108 B ECM ground [Engine is running]
• Idle speed
Body ground
TERMI-
NAL
NO. WIRE
COLOR ITEM
CONDITION DATA (DC Voltage)
PBIA4937J
Revision: May 2010 2011 Versa

ECM
EC-473
< ECU DIAGNOSIS > [HR16DE]
C
D
E
F
G H
I
J
K L
M A
EC
NP
O
: Average voltage for pulse signal (Actual pulse signal can be confirmed by oscilloscope.) 11 0 G
Accelerator pedal position
sensor 1 [Ignition switch: ON]
• Engine stopped
• Accelerator pedal: Fully released
0.6 - 0.9 V
[Ignition switch: ON]
• Engine stopped
• Accelerator pedal: Fully depressed 3.9 - 4.7 V
111 R Sensor ground
(Accelerator pedal position
sensor 1) [Engine is running]
•
Warm-up condition
• Idle speed Approximately 0 V
TERMI-
NAL
NO. WIRE
COLOR ITEM CONDITION DATA (DC Voltage)
Revision: May 2010
2011 Versa

EC-474
< ECU DIAGNOSIS >[HR16DE]
ECM

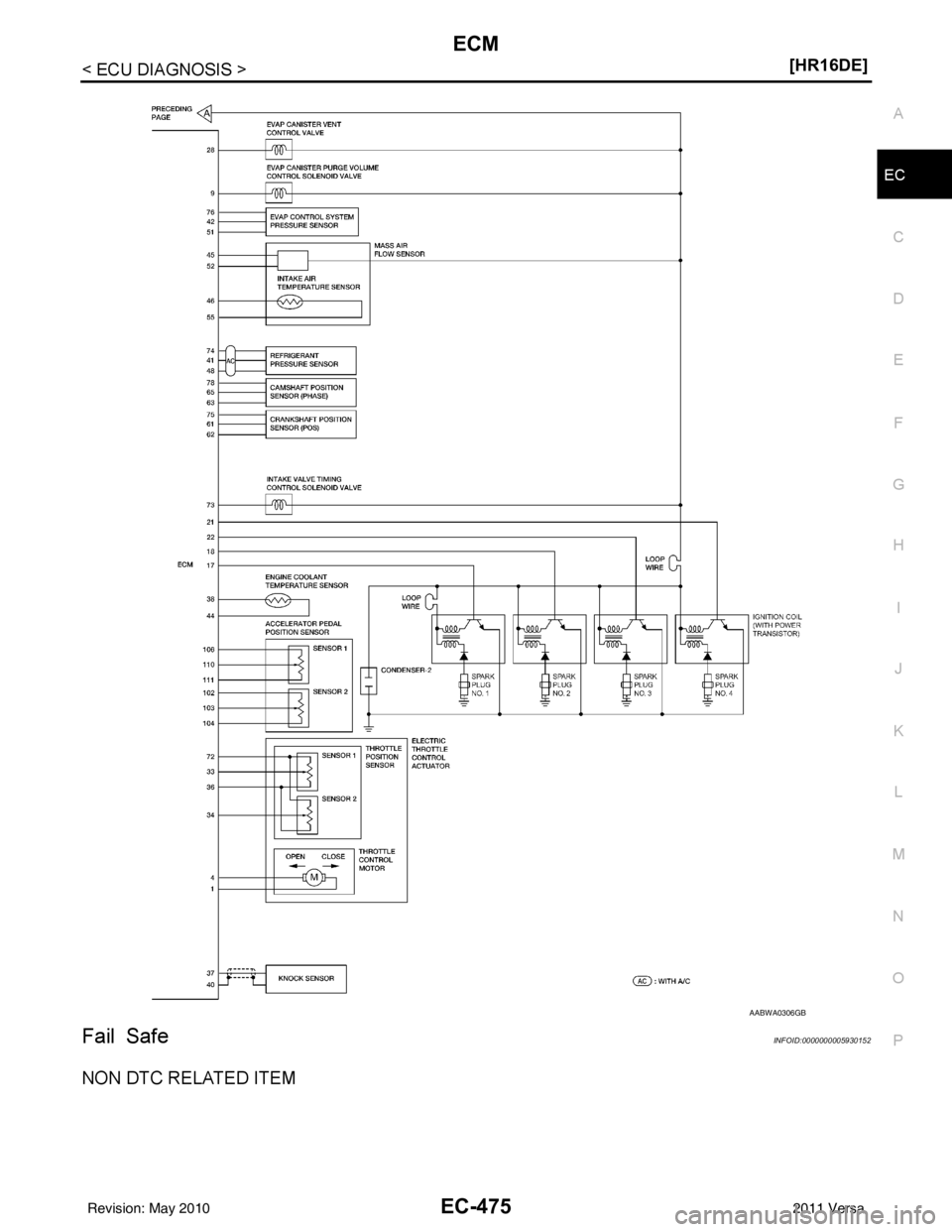

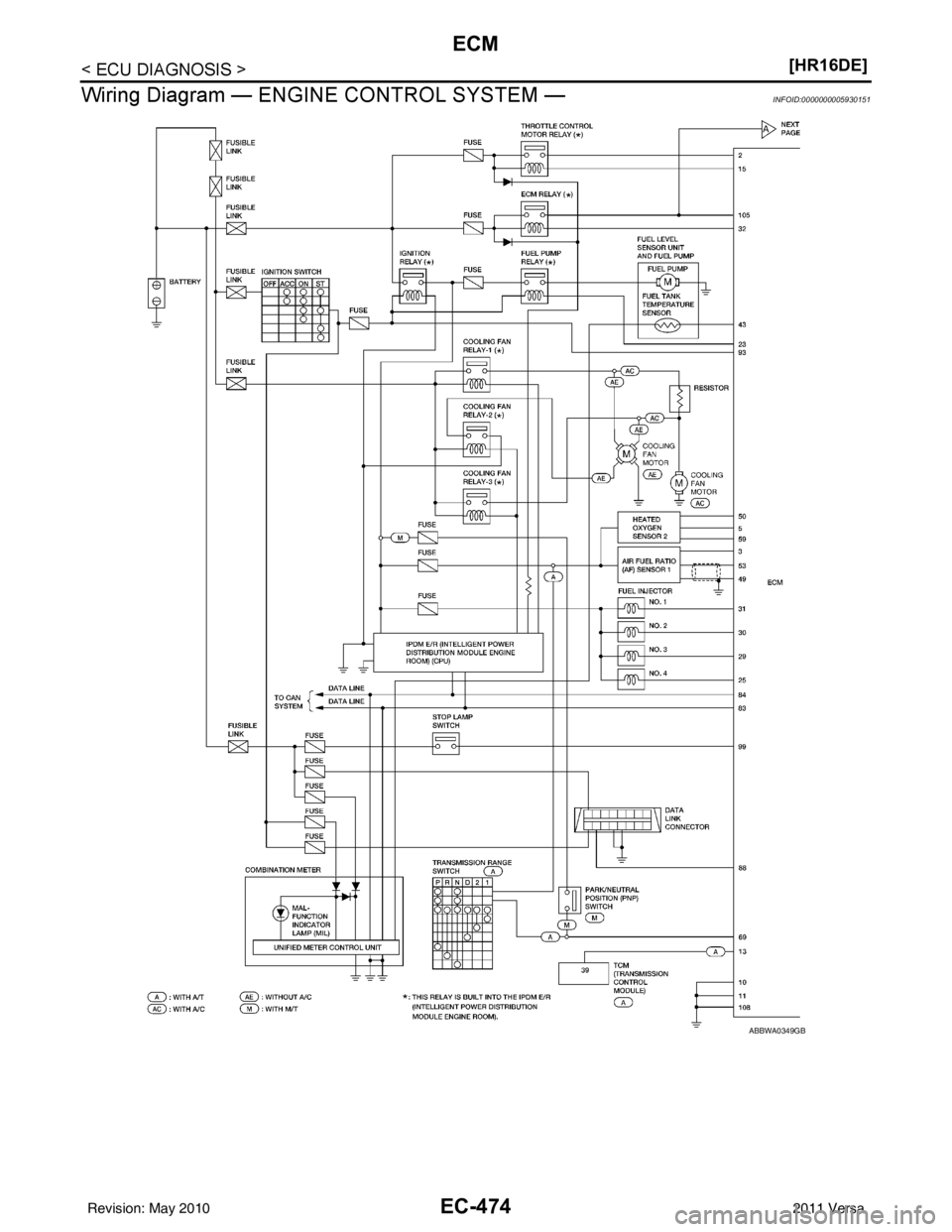

Wiring Diagram — ENGINE CONTROL SYSTEM —
INFOID:0000000005930151
ABBWA0349GB
Revision: May 2010 2011 Versa

ECM
EC-475
< ECU DIAGNOSIS > [HR16DE]
C
D
E
F
G H
I
J
K L
M A
EC
NP
O
Fail SafeINFOID:0000000005930152
NON DTC RELATED ITEM
AABWA0306GB
Revision: May 2010
2011 Versa

EC-476
< ECU DIAGNOSIS >[HR16DE]
ECM
DTC RELATED ITEM
Detected itemsEngine operating condition in
fail-safe mode Remarks
Malfunction indicator
lamp circuit Engine speed will not rise
more than 2,500 rpm due to
the fuel cut When there is an open circuit on MIL circuit, the ECM cannot warn the driver by
lighting up MIL when there is malfunction on engine control system.
Therefore, when electrical controlled throttle and part of ECM related diagnoses
are continuously detected as NG for 5 trips, ECM warns the driver that engine
control system malfunctions and MIL circuit is open by means of operating fail-
safe function.
The fail-safe function also operates when above diagnoses except MIL circuit
are detected and demands the driver to repair the malfunction.
DTC No. Detected items
Engine operating condition in fail-safe mode
P0011 Intake valve timing control The signal is not energized to the intake valve timing control solenoid valve and the valve control does not function.
P0102
P0103 Mass air flow sensor circuit Engine speed will not rise more than 2,400 rpm due to the fuel cut.
P0117
P0118 Engine coolant tempera-
ture sensor circuit Engine coolant temperature will be determined by ECM based on the following condition.
CONSULT-III displays the engine coolant temperature decided by ECM.
Condition Engine coolant temperature decided
(CONSULT-III display)
Just as ignition switch is turned ON
or START 40
°C (104 °F)
More than approx. 4 minutes after
engine starting 80
°C (176 °F)
Except as shown above 40 - 80
°C (104 - 176 °F)
(Depends on the time)
When the fail-safe system for engine coolant temperature sensor is activated, the cooling
fan operates while engine is running.
P0122
P0123
P0222
P0223
P2135 Throttle position sensor The ECM controls the electric throttle control actuator in regulating the throttle opening in
order for the idle position to be within +10 degrees.
The ECM regulates the opening speed of the throttle valve to be slower than the normal
condition.
So, the acceleration will be poor.
P0643 Sensor power supply ECM stops the electric throttle control actuator control, throttle valve is maintained at a fixed opening (approx. 5 degrees) by the return spring.
P0605 ECM (When ECM calculation function is malfunctioning:)
ECM stops the electric throttle control actuator control, throttle valve is maintained at a
fixed opening (approx. 5 degrees) by the return spring.
P1805 Brake switch ECM controls the electric throttle control actuator by regulating the throttle opening to a
small range.
Therefore, acceleration will be poor.
Vehicle condition Driving condition
When engine is idling Normal
When accelerating Poor acceleration
P2100
P2103 Throttle control motor relay ECM stops the electric throttle control actuator control, throttle valve is maintained at a
fixed opening (approx. 5 degrees) by the return spring.
P2101 Electric throttle control function ECM stops the electric throttle control actuator control, throttle valve is maintained at a
fixed opening (approx. 5 degrees) by the return spring.
P2118 Throttle control motor ECM stops the electric throttle control actuator control, throttle valve is maintained at a fixed opening (approx. 5 degrees) by the return spring.
Revision: May 2010 2011 Versa
