NISSAN LATIO 2011 Service Repair Manual

AV-54
< SERVICE INFORMATION >[AUDIO WITH NAVIGATION]
AUDIO
System Description
INFOID:0000000006216702
AUDIO SYSTEM
Refer to Owner's Manual for audio system operating instructions.
Navigation is built into AV control unit.
This navigation has the following functions.
• Full support for playback of music from iPod
® and USB device.
• High resolution full color touch panel 5 “WQVGA” display.
• FM/AM twin digital tuner.
• USB mass storage.
•XM traffic.
• POI Support is included. User POI download.
Power is supplied at all times
• through 20A fuse (No. 27, located in the fuse and fusible link box)
• to AV control unit terminal 19.
With the ignition switch in the ACC or ON position, power is supplied
• through 10A fuse [No. 20, located in the fuse block (J/B)]
• to AV control unit terminal 7.
Ground is supplied to
• to AV control unit terminals 20 and 32
• through grounds M57 and M61.
Then audio signals are supplied
• through AV control unit terminals 2, 3, 4, 5, 11, 12, 13 and 14
• to terminals + and - of front door speaker LH and RH
• to terminals + and - of front tweeter LH and RH and
• to terminals + and - of rear door speaker LH and RH.

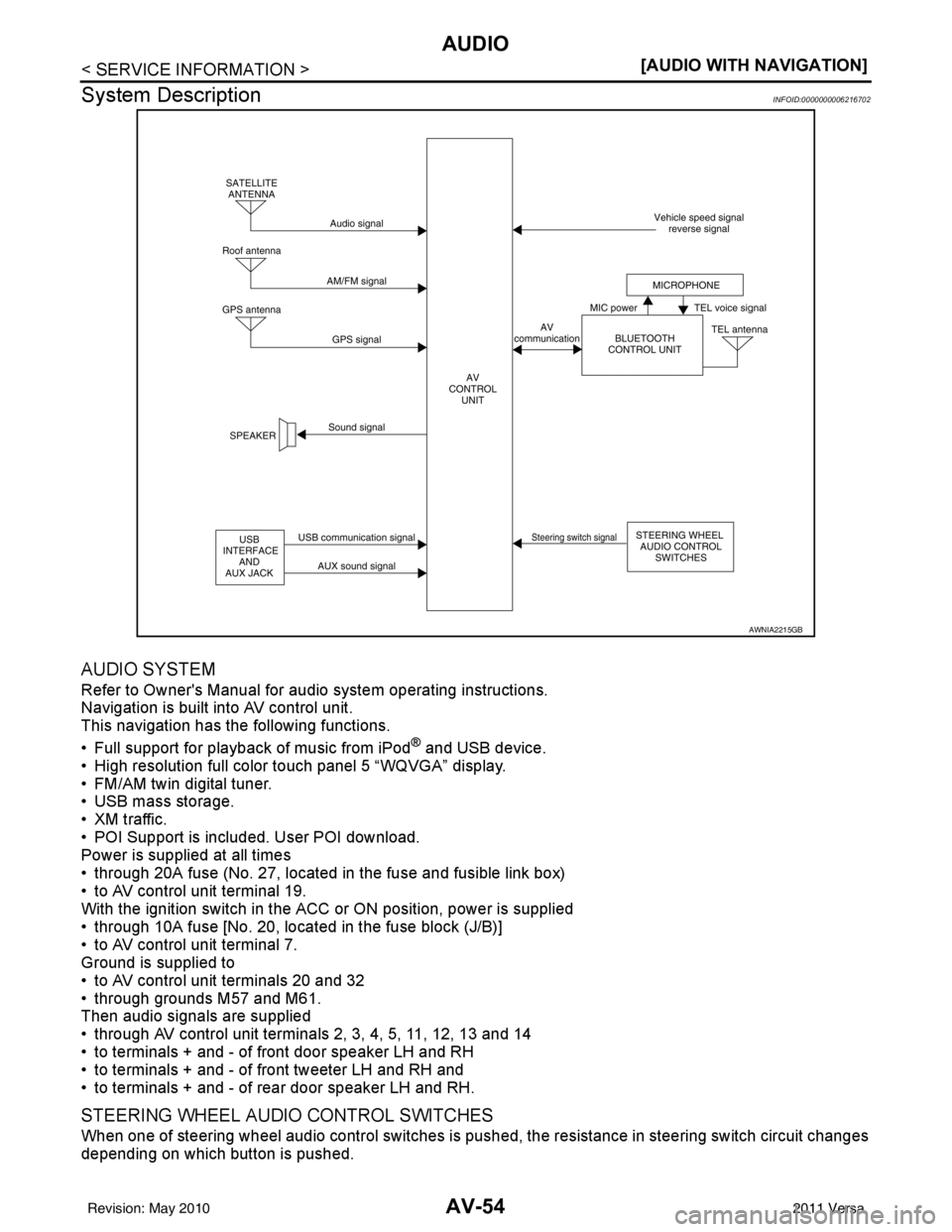

STEERING WHEEL AUDIO CONTROL SWITCHES
When one of steering wheel audio control switches is pus hed, the resistance in steering switch circuit changes
depending on which button is pushed.
AWNIA2215GB
Revision: May 2010 2011 Versa

AUDIOAV-55
< SERVICE INFORMATION > [AUDIO WITH NAVIGATION]
C
D
E
F
G H
I
J
L
M A
B
AV
N
O P
SPEED SENSITIVE VOLUME SYSTEM
Volume level of this system goes up and down automatica lly in proportion to the vehicle speed. The control
level can be selected by the customer. Refer to Owner's Manual for operating instructions.
SchematicINFOID:0000000006216703
ABNWA0853GB
Revision: May 2010 2011 Versa

AV-56
< SERVICE INFORMATION >[AUDIO WITH NAVIGATION]
AUDIO

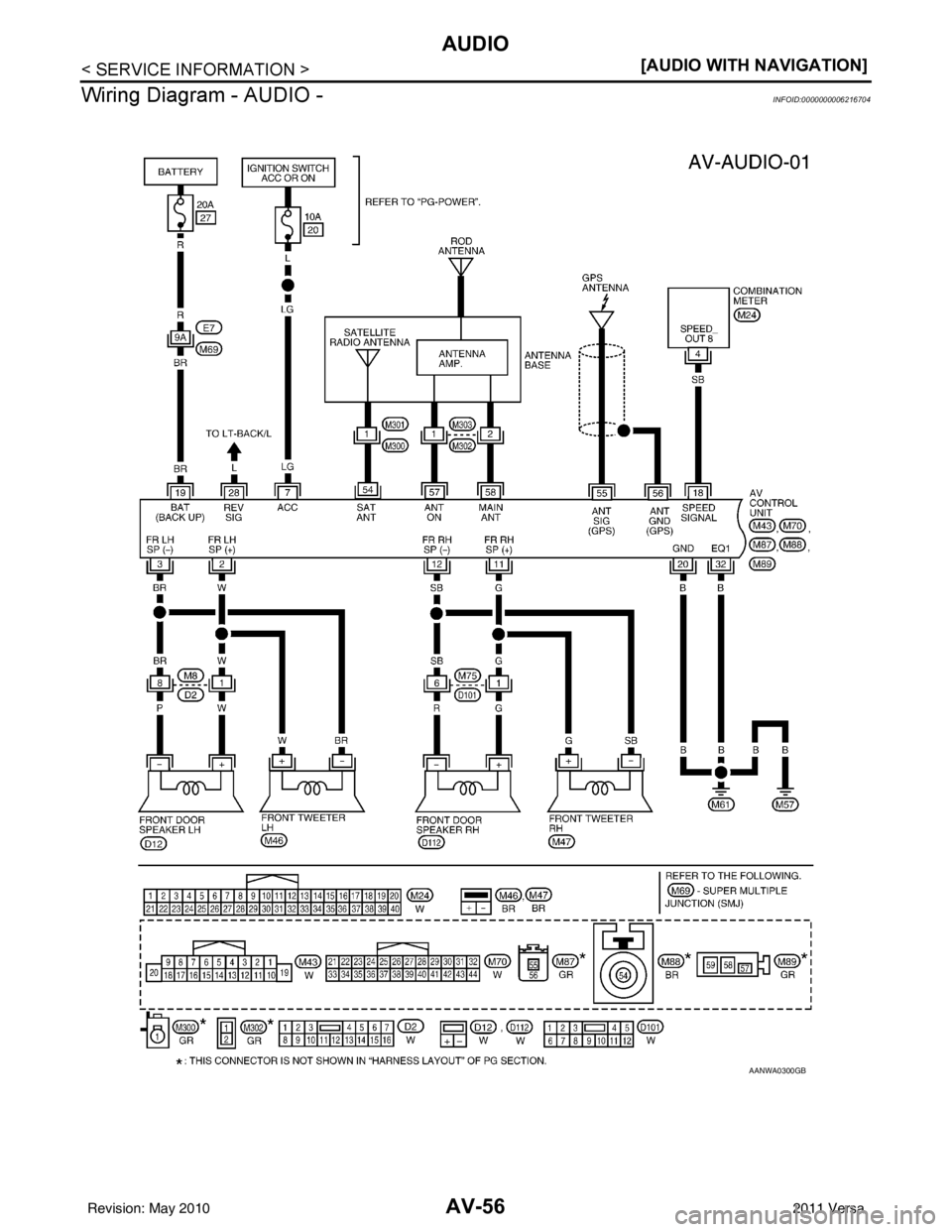

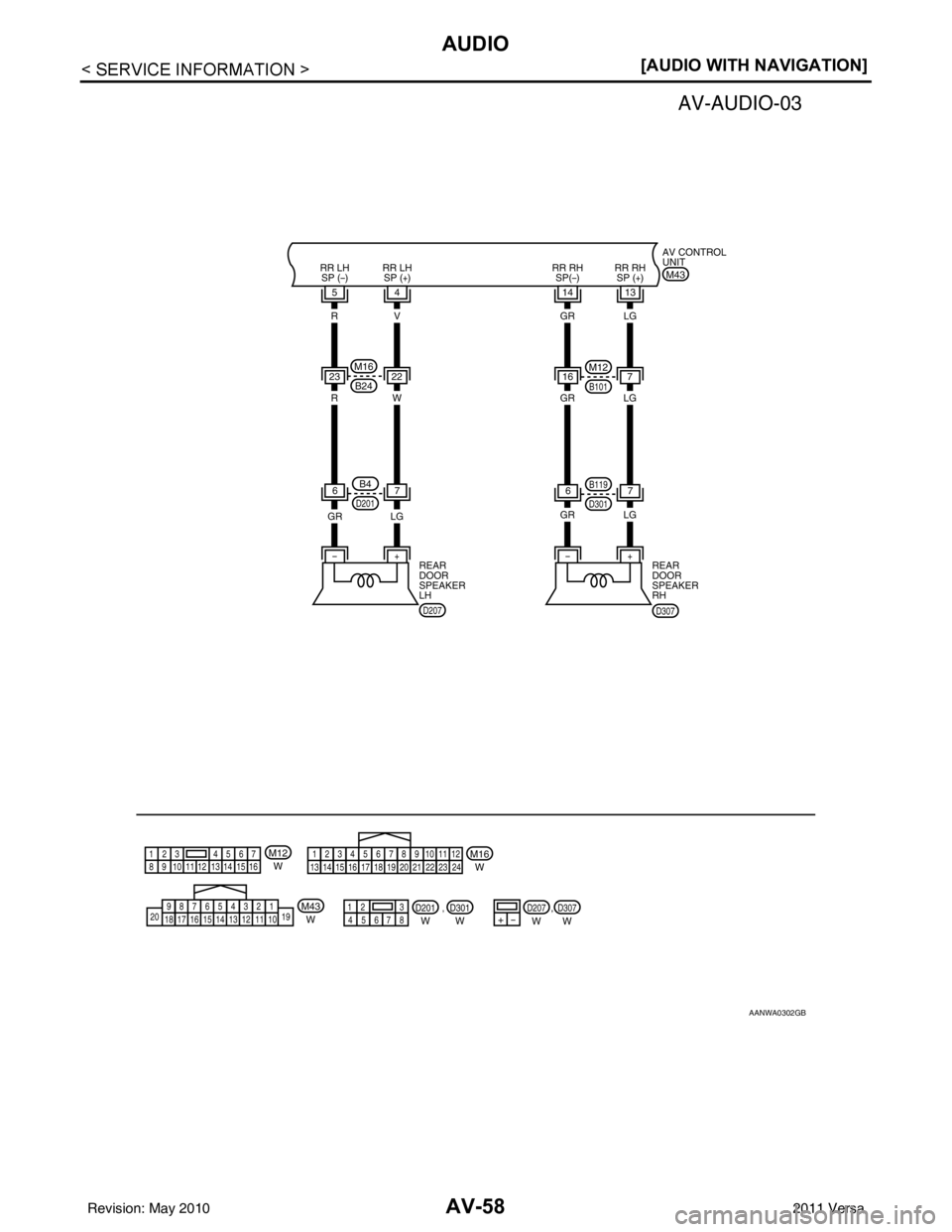

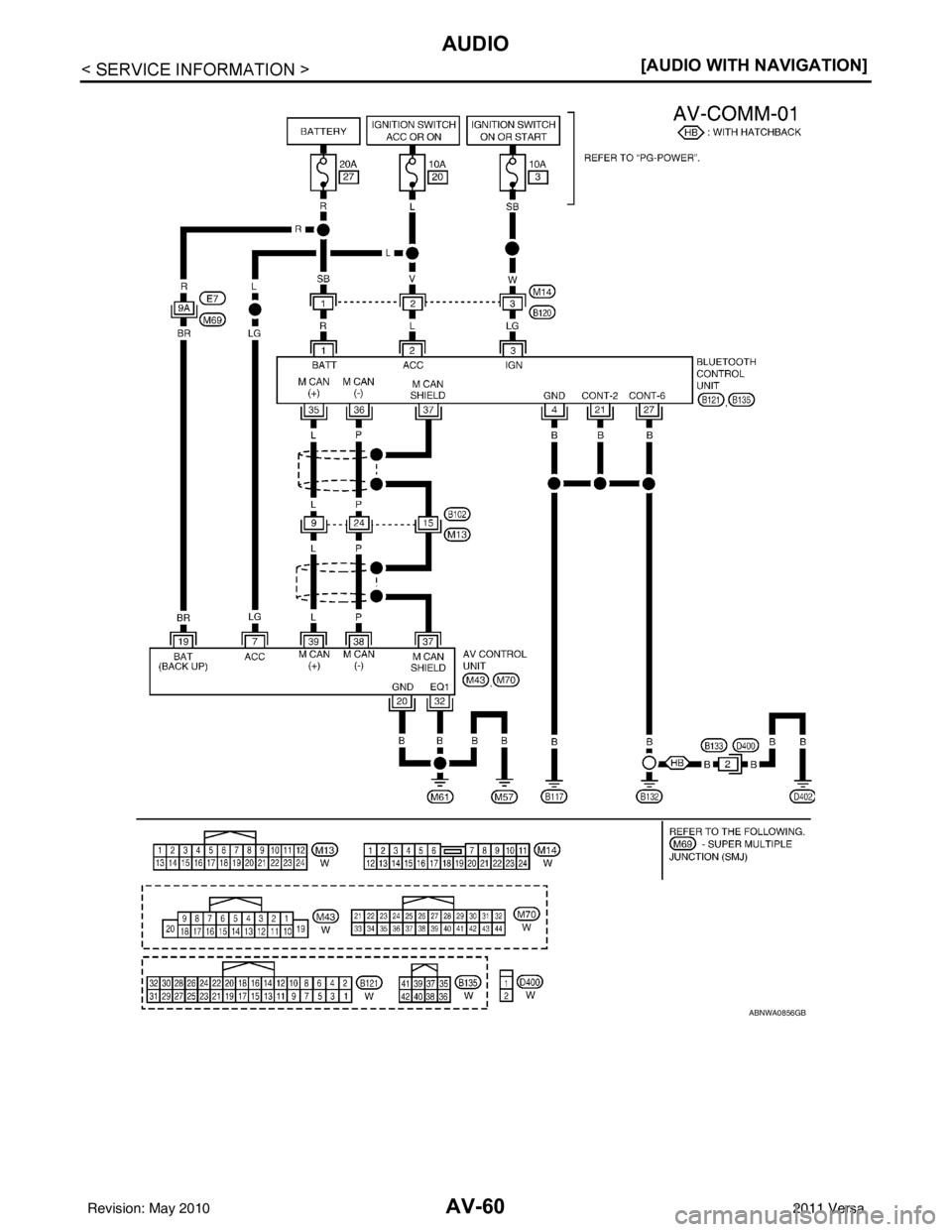

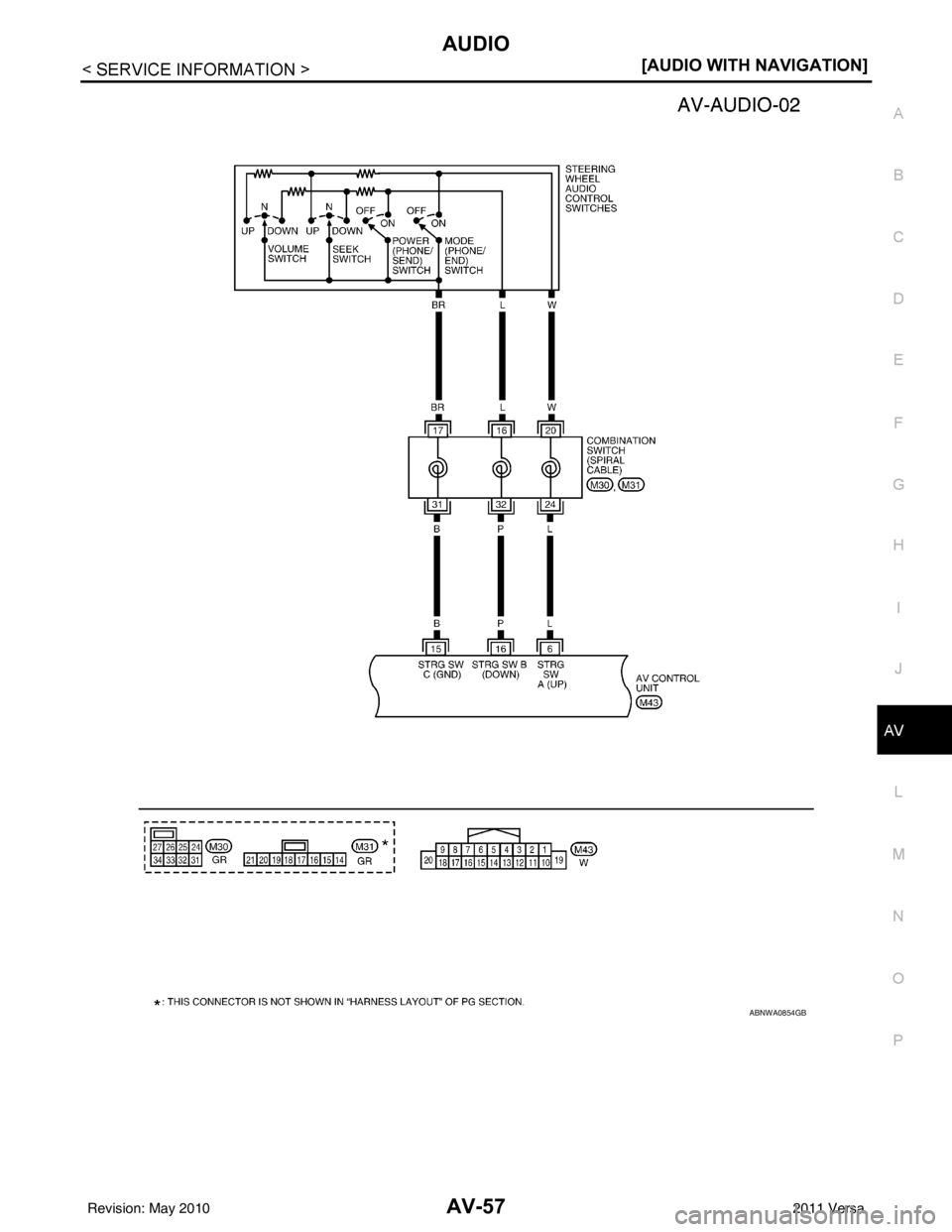

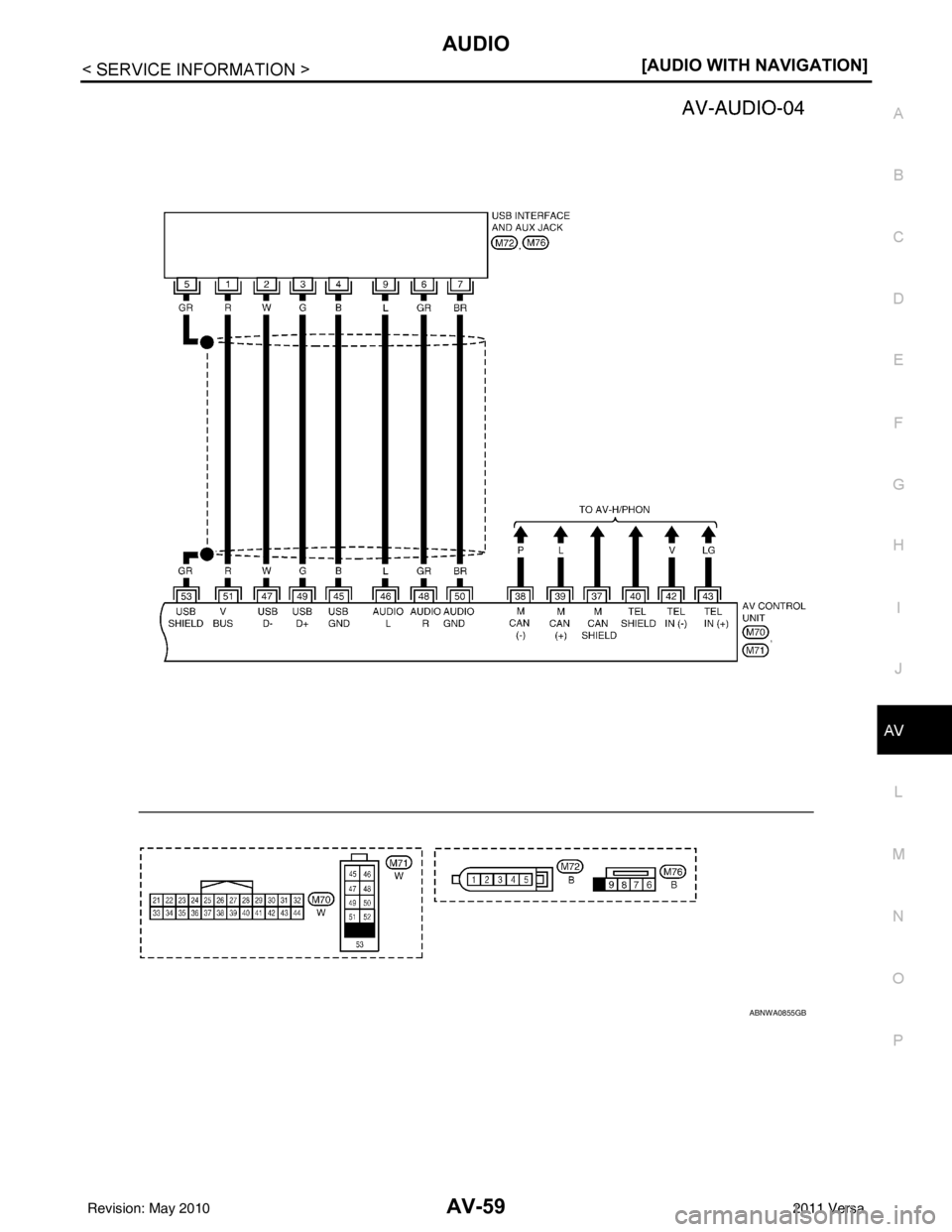

Wiring Diagram - AUDIO -
INFOID:0000000006216704
AANWA0300GB
Revision: May 2010 2011 Versa

AUDIOAV-57
< SERVICE INFORMATION > [AUDIO WITH NAVIGATION]
C
D
E
F
G H
I
J
L
M A
B
AV
N
O P
ABNWA0854GB
Revision: May 2010 2011 Versa

AV-58
< SERVICE INFORMATION >[AUDIO WITH NAVIGATION]
AUDIO
AANWA0302GB
Revision: May 2010
2011 Versa

AUDIOAV-59
< SERVICE INFORMATION > [AUDIO WITH NAVIGATION]
C
D
E
F
G H
I
J
L
M A
B
AV
N
O P
ABNWA0855GB
Revision: May 2010 2011 Versa

AV-60
< SERVICE INFORMATION >[AUDIO WITH NAVIGATION]
AUDIO
ABNWA0856GB
Revision: May 2010
2011 Versa

AUDIOAV-61
< SERVICE INFORMATION > [AUDIO WITH NAVIGATION]
C
D
E
F
G H
I
J
L
M A
B
AV
N
O P
AV Control Unit Harness Connector Terminal LayoutINFOID:0000000006216705

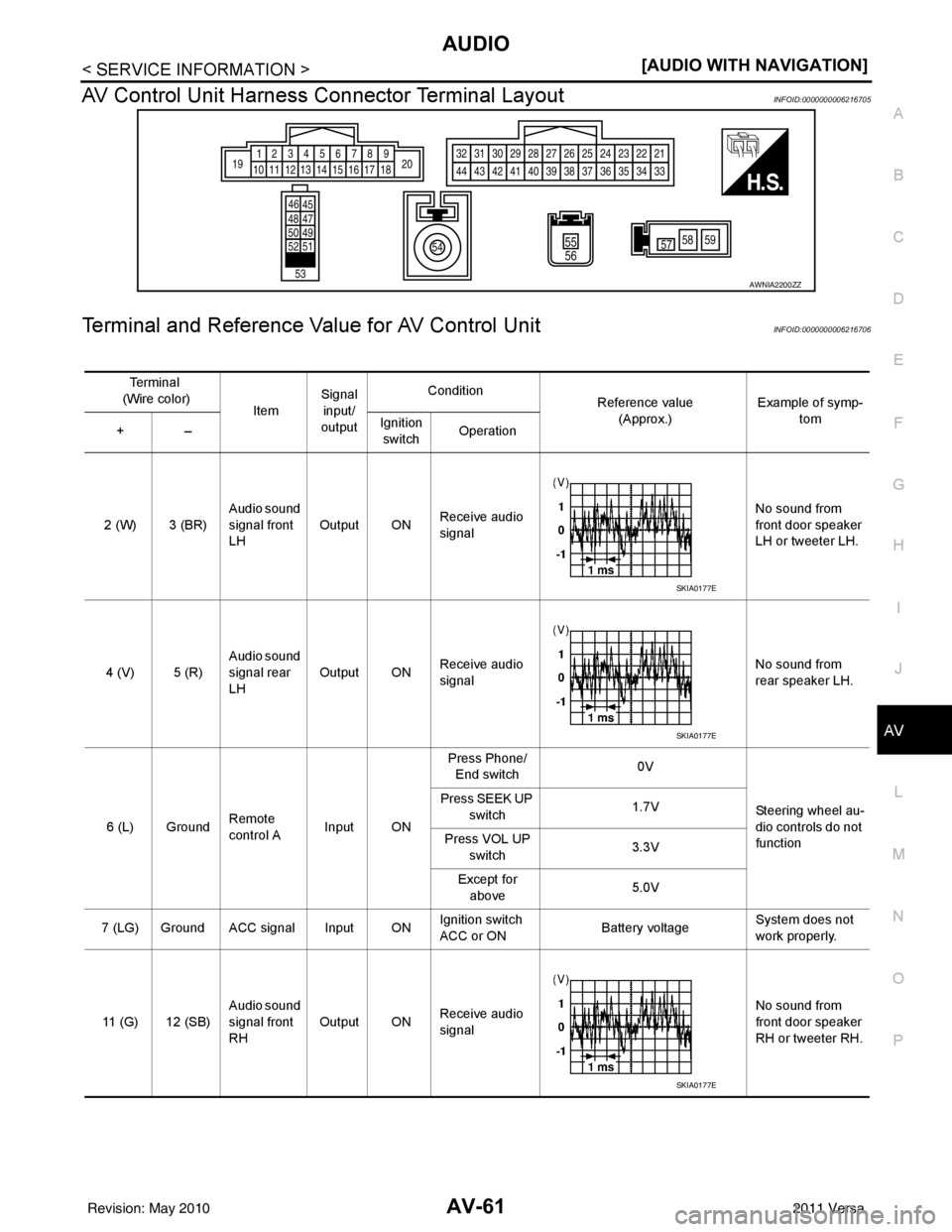

Terminal and Reference Va lue for AV Control UnitINFOID:0000000006216706
AWNIA2200ZZ
Te r m i n a l
(Wire color) ItemSignal
input/
output Condition
Reference value
(Approx.) Example of symp-
tom
+– Ignition
switch Operation
2 (W) 3 (BR) Audio sound
signal front
LH
Output ON
Receive audio
signal No sound from
front door speaker
LH or tweeter LH.
4 (V) 5 (R) Audio sound
signal rear
LHOutput ON
Receive audio
signal No sound from
rear speaker LH.
6 (L) Ground Remote
control A
Input ON Press Phone/
End switch 0V
Steering wheel au-
dio controls do not
function
Press SEEK UP
switch 1.7V
Press VOL UP switch 3.3V
Except for above 5.0V
7 (LG) Ground ACC signal Input ON Ignition switch
ACC or ON
Battery voltageSystem does not
work properly.
11 (G) 12 (SB) Audio sound
signal front
RHOutput ON
Receive audio
signal No sound from
front door speaker
RH or tweeter RH.
SKIA0177E
SKIA0177E
SKIA0177E
Revision: May 2010
2011 Versa

AV-62
< SERVICE INFORMATION >[AUDIO WITH NAVIGATION]
AUDIO
13 (LG) 14 (GR)Audio sound
signal rear
RHOutput ON
Receive audio
signal No sound from
rear speaker RH.
15 (B) — Remote
control
groundInput —
— —Steering wheel au-
dio controls do not
function
16 (P) Ground Remote
control BInput ON Press Phone/
Send switch 0V
Steering wheel au-
dio controls do not
function
Press SEEK
DOWN switch 1.7V
Press VOL
DOWN switch 3.3V
Except for above 5.0V
18 (SB) Ground Vehicle
speed signal
(8-pulse)
Input ON When vehicle
speed is approx.
40 km/h (25
MPH) Ground
19 (BR) Ground Battery pow-
erInput —
—Battery voltage System does not
work properly.
20 (B) Ground Ground — ON —— —
28 (L) Ground Reverse sig-
nal
Input ON R position Battery voltage
Ground
Other than R position 0V
32 (B) Ground Ground — ON —— —
37 — Shield — — —— —
38 (P) — AV c o m m u -
nication sig-
nal 1 (-)Input/
Output ——
——
39 (L) — AV c o m m u -
nication sig-
nal 1 (+)Input/
Output ——
——
40 — Shield — — —— —
43 (LG) 42 (V) TEL voice
audio signalInput ON Start confirma-
tion/adjustment
mode, and then
Voice Micro-
phone Test by
selecting “Voice
Microphone
Test” on Hands-
free Microphone
screen. TEL voice audio
signal
45 (B) — USB ground — — —— —
Te r m i n a l
(Wire color) ItemSignal
input/
output Condition
Reference value
(Approx.) Example of symp-
tom
+– Ignition
switch Operation
SKIA0177E
SKIA6649J
SKIB3609E
Revision: May 2010
2011 Versa

AUDIOAV-63
< SERVICE INFORMATION > [AUDIO WITH NAVIGATION]
C
D
E
F
G H
I
J
L
M A
B
AV
N
O P
On-Board DiagnosisINFOID:0000000006216707
METHOD OF STARTING
1. Start the engine.
2. Turn OFF audio.
3. While pressing the “SET UP” switch, turn the MENU dial coun- terclockwise 3 clicks or more first, then clockwise and counter-
clockwise 3 clicks or more, respectively. (After the diagnosis
mode starts, the initial screen of the diagnosis mode appears.)
• On-board diagnosis can be performed in the service test mode.
• On-board diagnosis checks that t he system can be operated normally.
Service test mode
46 (L) —AUX sound
signal LH—— —
——
47 (W) — USB D- — — —— —
48 (GR) — AUX sound
signal RH—— —
——
49 (G) — USB D+ — — —— —
50 (BR) — AUX sound
signal
ground—— —
——
51 (R) — USB V BUS
signal—— —
——
53 (GR) — SHIELD — — —— —
54 — Satellite an-
tenna signal
—— —
——
55 — GPS anten-
na signal—— —
——
56 — SHIELD — — —— —
57 — Antenna on
signal—— —
——
58 — Main anten-
na signal
—— —
——
Te r m i n a l
(Wire color) ItemSignal
input/
output Condition
Reference value
(Approx.) Example of symp-
tom
+– Ignition
switch Operation
JSNIA2456ZZ
Mode
ItemContent
Service version —The version data of the parts is shown
displayed.
Revision: May 2010
2011 Versa
