AT-44
< SERVICE INFORMATION >
TROUBLE DIAGNOSIS
A visual check only, may not find the cause of the malfunctions. A
road test with CONSULT-III or a circuit tester connected should be
performed. Follow the "WORK FLOW" .
Before undertaking actual checks, take a few minutes to talk with a
customer who approaches with a driveability complaint. The cus-
tomer can supply good information about such malfunctions, espe-
cially intermittent ones. Find out what symptoms are present and
under what conditions they occu r. A “DIAGNOSTIC WORKSHEET”
like the example ("DIAGNOSTIC WORKSHEET" ) should be used.
Start your diagnosis by looking for “conventional” malfunctions first.
This will help troubleshoot driveability malfunctions on an electroni-
cally controlled engine vehicle.
Also check related Service bulletins for information.
WORK FLOW
A good understanding of the malfunction conditions can make troubleshooting faster and more accurate. In
general, each customer feels differently about a malfuncti on. It is important to fully understand the symptoms
or conditions for a customer complaint.
Make good use of the two sheets provided, "Information from customer" and "Diagnostic Worksheet Chart" ,
to perform the best troubleshooting possible.

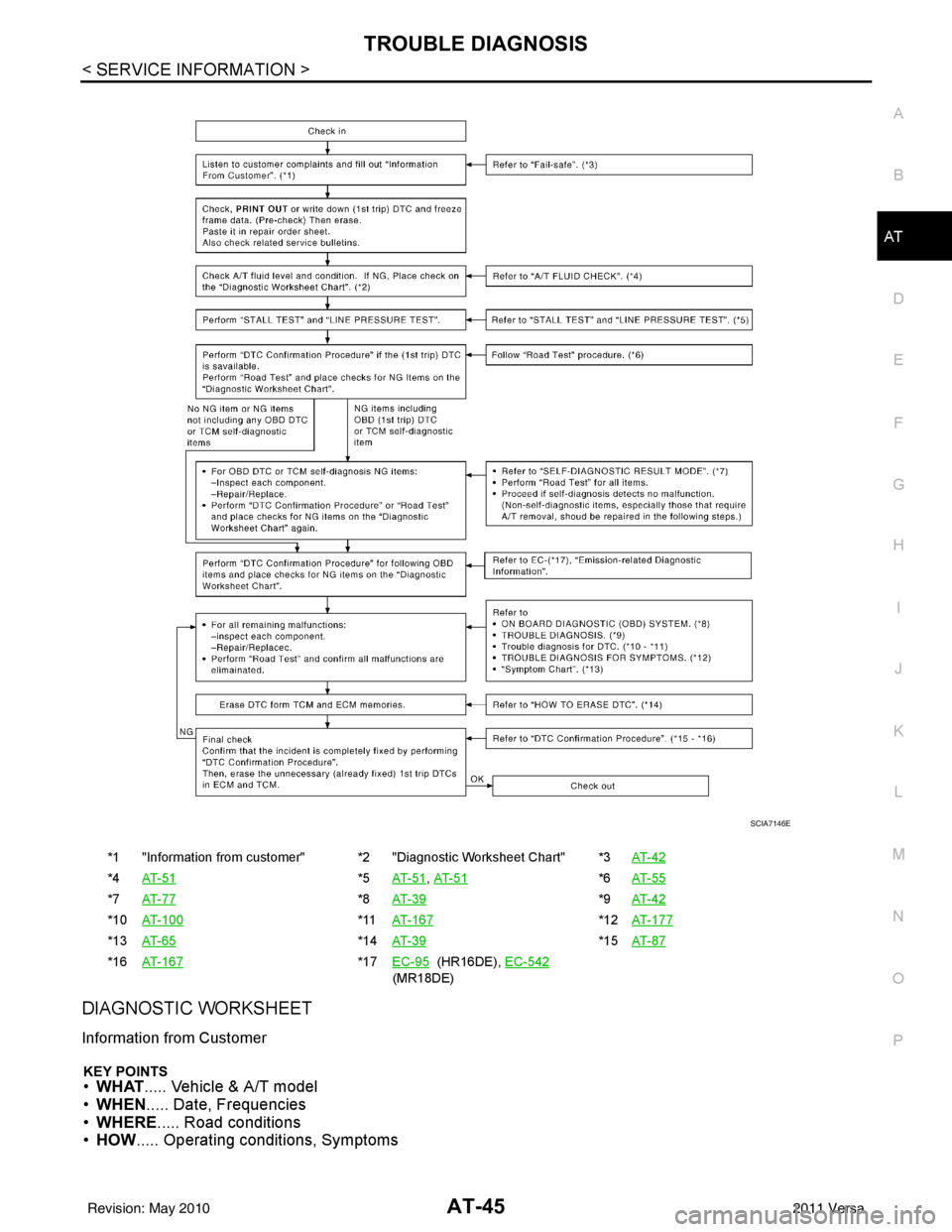

Work Flow Chart
SAT632I
SEF234G
Revision: May 2010 2011 Versa

TROUBLE DIAGNOSISAT-45
< SERVICE INFORMATION >
DE
F
G H
I
J
K L
M A
B
AT
N
O P
DIAGNOSTIC WORKSHEET
Information from Customer
KEY POINTS• WHAT ..... Vehicle & A/T model
• WHEN ..... Date, Frequencies
• WHERE ..... Road conditions
• HOW ..... Operating conditions, Symptoms
*1 "Information from customer" *2 "Diagnostic Worksheet Chart" *3 AT- 4 2
*4AT- 5 1*5AT- 5 1, AT- 5 1*6AT- 5 5
*7 AT- 7 7*8AT- 3 9*9AT- 4 2
*10 AT- 1 0 0*11AT- 1 6 7*12AT- 1 7 7
*13 AT- 6 5*14AT- 3 9*15AT- 8 7
*16 AT- 1 6 7*17EC-95 (HR16DE), EC-542
(MR18DE)
SCIA7146E
Revision: May 2010 2011 Versa

AT-46
< SERVICE INFORMATION >
TROUBLE DIAGNOSIS
Diagnostic Worksheet Chart
Customer name MR./MS Model & YearVIN
Trans. model EngineMileage
Incident Date Manuf. DateIn Service Date
Frequency † Continuous † Intermittent ( times a day)
Symptoms † Vehicle does not move. ( † Any position † Particular position)
† No up-shift ( † 1st → 2nd † 2nd → 3rd † 3rd → 4th)
† No down-shift ( † 4th → 3rd † 3rd → 2nd† 2nd → 1st)
† Lock-up malfunction
† Shift point too high or too low.
† Shift shock or slip ( † N → D † Lock-up † Any drive position)
† Noise or vibration
† No kick down
† No pattern select
† Others
()
Malfunction indicator lamp (MIL) † Continuously lit † Not lit
1. † Read the Fail-safe and listen to customer complaints. AT- 4 2,
"Information
from
customer"
2. † Check A/T fluid AT- 1 7
† Leakage (Follow specified procedure)
† Fluid condition
† Fluid level
3. † Perform “STALL TEST” and “LINE PRESSURE TEST”. AT- 5 1
†“STALL TEST”— Mark possible damaged components/others.
† Torque converter one-way clutch
† Reverse clutch
† Forward clutch
† Overrun clutch
† Forward one-way clutch †
Low & reverse brake
† Low one-way clutch
† Engine
† Line pressure is low
† Clutches and brakes except high clutch and
brake band are OK
† “LINE PRESSURE TEST”— Suspected parts:
Revision: May 2010 2011 Versa

TROUBLE DIAGNOSISAT-47
< SERVICE INFORMATION >
DE
F
G H
I
J
K L
M A
B
AT
N
O P
4. † Perform “Road Test”. AT- 5 5
4-1. “Check Before Engine is Started” AT- 5 6
†AT- 1 8 0 , "OD OFF Indicator Lamp Does Not Come On"
† Perform self-diagnosis. Enter checks for detected items. AT- 7 7 , AT- 8 2 .
† CAN COMM CIRCUIT AT- 8 7
.
† TRANSMISSION RANGE SWITCH A AT- 9 0
.
† TRANSMISSION FLUID TEMPERATURE SENSOR A AT- 9 5
.
† OUTPUT SPEED SENSOR AT- 1 0 0
.
† ENGINE SPEED AT- 1 0 5
.
† 1GR INCORRECT RATIO AT- 1 0 9
† 2GR INCORRECT RATIO AT- 11 2 .
† 3GR INCORRECT RATIO AT- 11 5
.
† 4GR INCORRECT RATIO AT- 11 8
.
† TORQUE CONVERTER AT- 1 2 3
.
† TORQUE CONVERTER AT- 1 2 8
.
† PRESSURE CONTROL SOLENOID A AT- 1 3 3
.
† SHIFT SOLENOID A AT- 1 3 8
.
† SHIFT SOLENOID B AT- 1 4 3
.
† OVERRUN CLUTCH SOLENOID AT- 1 4 8
.
† VEHICLE SPEED SIGNAL AT- 1 5 3
.
† BATT/FLUID TEMP SEN AT- 1 5 6
.
† INPUT SPEED SENSOR A AT- 1 6 2
.
† CONTROL UNIT (RAM), CONTROL UNIT (ROM) AT- 1 6 7
.
† MAIN POWER SUPPLY AND GROUND CIRCUIT AT- 1 6 8
.
4-2. “Check at Idle” AT- 5 6
†AT- 1 8 2 , "Engine Cannot Be Started in "P" and "N" Position" .
† AT- 1 8 3 , "
In "P" Position, Vehicle Moves Forward or Backward When Pushed" .
† AT- 1 8 3 , "
In "N" Position, Vehicle Moves" .
† AT- 1 8 4 , "
Large Shock "N" → "R" Position" .
† AT- 1 8 5 , "
Vehicle Does Not Creep Backward in "R" Position" .
† AT- 1 8 6 , "
Vehicle Does Not Creep Forward in "D", "2" or "1" Position" .
Revision: May 2010 2011 Versa

AT-48
< SERVICE INFORMATION >
TROUBLE DIAGNOSIS
4. 4-3. “Cruise Test”AT- 5 8
Part 1
†AT- 1 8 7 , "
Vehicle Cannot Be Started from D1" .
† AT- 1 8 9 , "
A/T Does Not Shift: D1→ D2or Does Not Kickdown: D4→ D2" .
† AT- 1 9 0 , "
A/T Does Not Shift: D2→ D3" .
† AT- 1 9 2 , "
A/T Does Not Shift: D3→ D4" .
† AT- 1 9 3 , "
A/T Does Not Perform Lock-up" .
† AT- 1 9 4 , "
A/T Does Not Hold Lock-up Condition" .
† AT- 1 9 5 , "
Lock-up Is Not Released" .
† AT- 1 9 6 , "
Engine Speed Does Not Return to Idle (Light Braking D4→ D3)" .
Part 2 AT- 6 1
†AT- 1 8 7 , "Vehicle Cannot Be Started from D1" .
† AT- 1 8 9 , "
A/T Does Not Shift: D1→ D2or Does Not Kickdown: D4→ D2" .
† AT- 1 9 0 , "
A/T Does Not Shift: D2→ D3" .
† AT- 1 9 2 , "
A/T Does Not Shift: D3→ D4" .
Part 3 AT- 6 2
†AT- 1 9 7 , "A/T Does Not Shift: D4→ D3, When OD OFF" .
† AT- 1 9 8 , "
A/T Does Not Shift: D3→ 22, When Selector Lever "D" → "2" Position" .
† AT- 1 9 9 , "
A/T Does Not Shift: 22→ 11, When Selector Lever "2" → "1" Position" .
† AT- 2 0 1 , "
Vehicle Does Not Decelerate by Engine Brake" .
† Perform self-diagnosis. Enter checks for detected items. AT- 7 7
, AT- 8 2 .
† CAN COMM CIRCUIT AT- 8 7
.
† TRANSMISSION RANGE SWITCH A AT- 9 0
.
† TRANSMISSION FLUID TEMPERATURE SENSOR A AT- 9 5
.
† OUTPUT SPEED SENSOR AT- 1 0 0
.
† ENGINE SPEED AT- 1 0 5
.
† 1GR INCORRECT RATIO AT- 1 0 9
† 2GR INCORRECT RATIO AT- 11 2 .
† 3GR INCORRECT RATIO AT- 11 5
.
† 4GR INCORRECT RATIO AT- 11 8
.
† TORQUE CONVERTER AT-123
.
† TORQUE CONVERTER AT-128
.
† PRESSURE CONTROL SOLENOID A AT- 1 3 3
.
† SHIFT SOLENOID A AT- 1 3 8
.
† SHIFT SOLENOID B AT- 1 4 3
.
† OVERRUN CLUTCH SOLENOID AT- 1 4 8
.
† VEHICLE SPEED SIGNAL AT- 1 5 3
.
† BATT/FLUID TEMP SEN AT-156
.
† INPUT SPEED SENSOR A AT- 1 6 2
.
† CONTROL UNIT (RAM), CONTROL UNIT (ROM) AT-167
.
† MAIN POWER SUPPLY AND GROUND CIRCUIT AT- 1 6 8
.
5. † For self-diagnosis NG items, inspect each component. Repair or replace the damaged parts. AT- 7 7
,
AT- 8 2
6. † Perform “Road Test”. AT- 5 5
7.† Perform the Diagnostic Procedures for all remaining items marked NG. Repair or replace the damaged parts.
Refer to the Symptom Chart when you perform the procedures. (The chart also shows some other possible symp-
toms and the component inspection orders.) AT- 6 5
8.
† Erase DTC from TCM and ECM memories. AT- 3 9,
AT- 8 2
Revision: May 2010 2011 Versa

TROUBLE DIAGNOSISAT-49
< SERVICE INFORMATION >
DE
F
G H
I
J
K L
M A
B
AT
N
O P

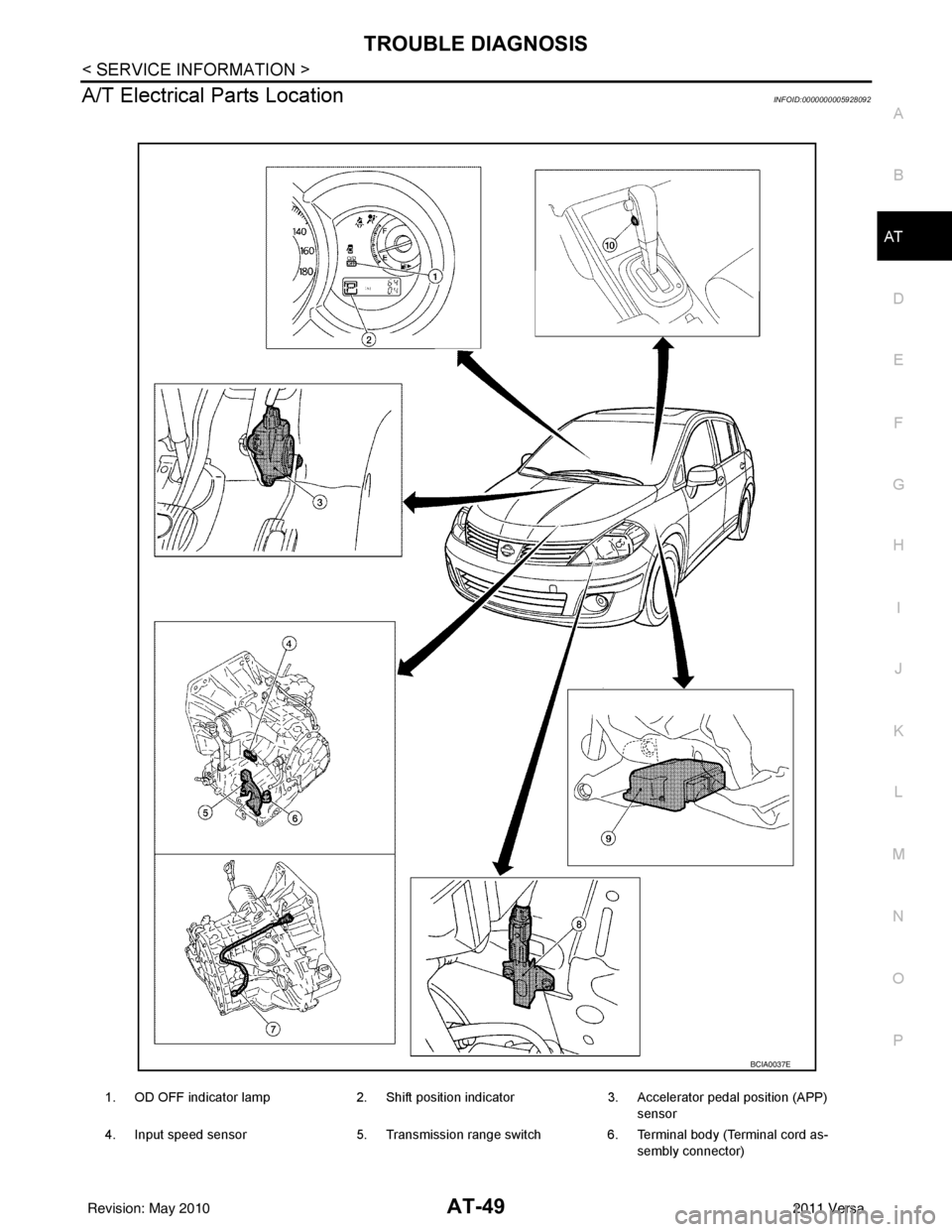

A/T Electrical Parts LocationINFOID:0000000005928092
1. OD OFF indicator lamp 2. Shift position indicator3. Accelerator pedal position (APP)
sensor
4. Input speed sensor 5. Transmission range switch6. Terminal body (Terminal cord as-
sembly connector)
BCIA0037E
Revision: May 2010 2011 Versa

AT-50
< SERVICE INFORMATION >
TROUBLE DIAGNOSIS

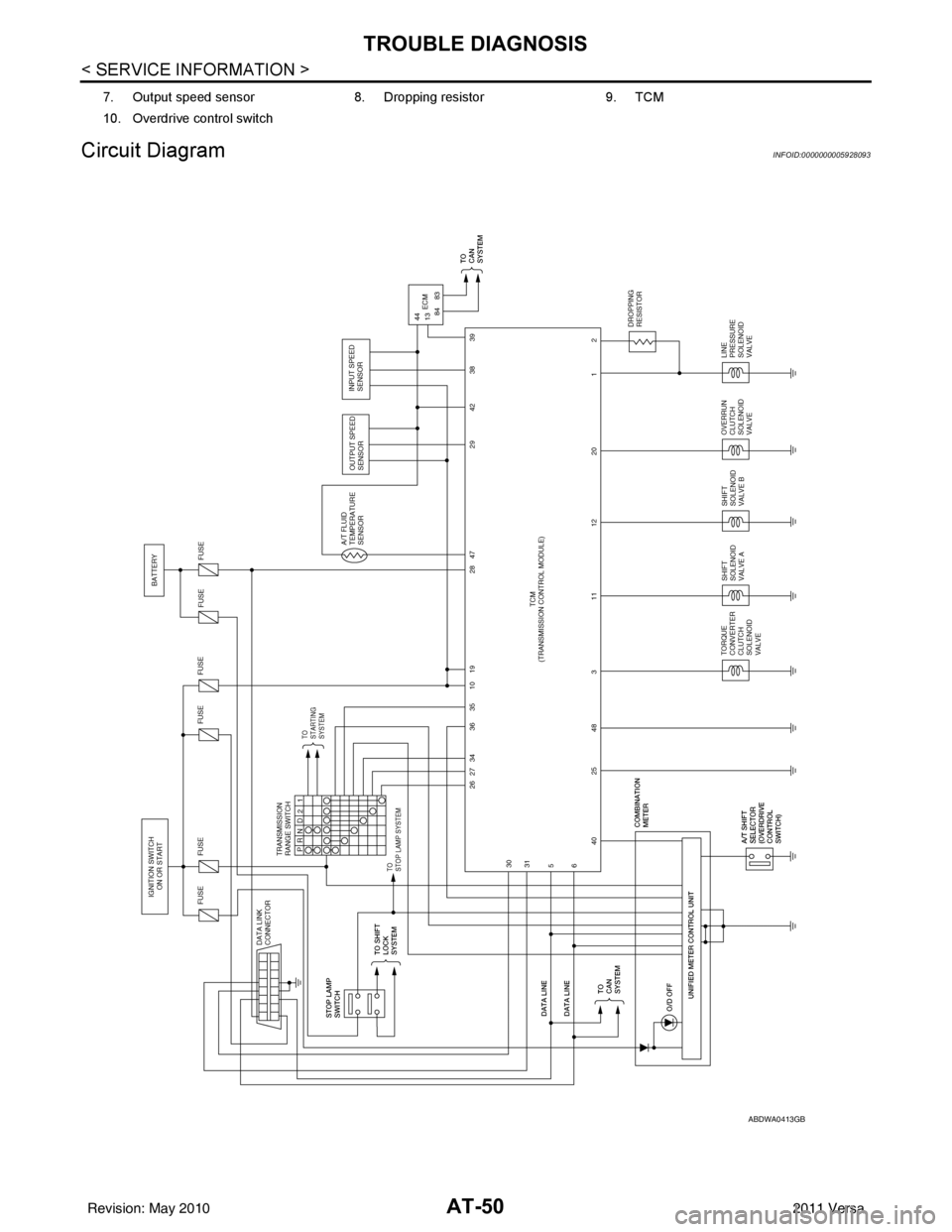

Circuit Diagram
INFOID:0000000005928093
7. Output speed sensor 8. Dropping resistor 9. TCM
10. Overdrive control switch
ABDWA0413GB
Revision: May 2010 2011 Versa

TROUBLE DIAGNOSISAT-51
< SERVICE INFORMATION >
DE
F
G H
I
J
K L
M A
B
AT
N
O P
Inspections Before Trouble DiagnosisINFOID:0000000005928094
A/T FLUID CHECK
Fluid Leakage and Fluid Level Check
Check fluid leakage and check the fluid level. Refer to AT-17, "Checking A/T Fluid".
Fluid Condition Check
Check the A/T fluid condition.
STALL TEST
Stall Test Procedure
1. Check ATF and engine oil levels. If necessary, add ATF and engine oil.
2. Drive vehicle for approximately 10 minutes or until ATF and engine oil reach operating temperature.
3. Set parking brake and block wheels.
4. Install a tachometer where it can be seen by driver during test. •It is good practice to mark the point of specified engine
rpm on indicator.
5. Start engine, apply foot brake, and place selector lever in “D” position.
Fluid status Conceivable Cause Required Operation
Varnished (viscous
varnish state) Clutch, brake
scorchedReplace the ATF and check the A/T
main unit and the vehicle for mal-
functions (wire harnesses, cooler
pipes, etc.)
Milky white or
cloudy Water in the ATFReplace the ATF and check for plac-
es where water is getting in.
Large amount of
metal powder mixed
in Unusual wear of
sliding parts within
A/T
Replace the ATF and check for im-
proper operation of the A/T.
SAT638A
ATF operating temperature: 50 - 80
°C (122 - 176 °F)
SAT647B
SAT513G
SAT775B
Revision: May 2010 2011 Versa

AT-52
< SERVICE INFORMATION >
TROUBLE DIAGNOSIS
6. Accelerate to wide open throttle gradually while applying footbrake.
7. Quickly note the engine stall revolution and immediately release throttle.
CAUTION:
Do not hold down the accelerator pedal for more than 5 sec-
onds during this test.
8. Move selector lever to “N” position.
9. Cool off ATF. CAUTION:
Run the engine at idle for at least 1 minute.
10. Repeat steps 6 through 9 with selector lever in “2”, “1” and “R” positions.

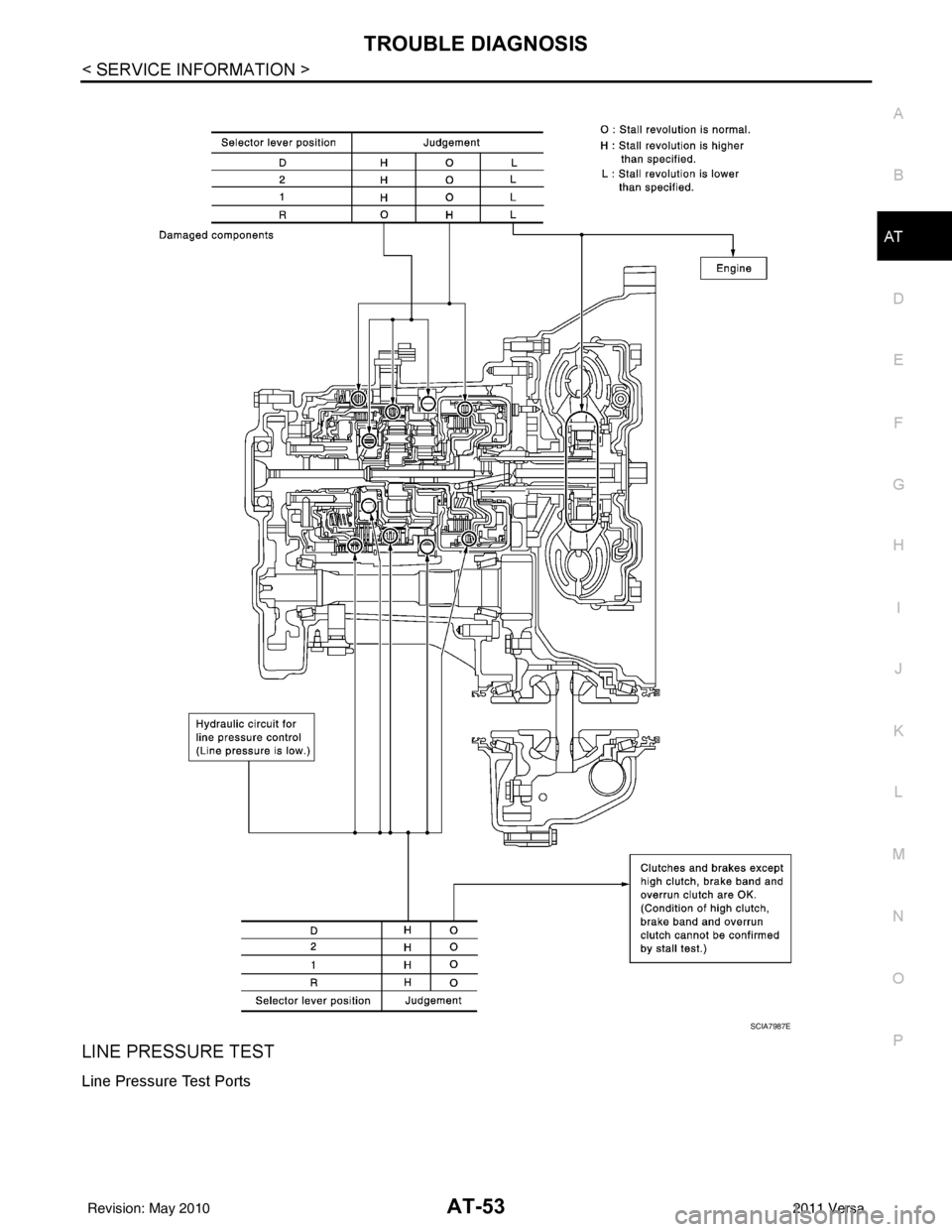

Judgement of Stall Test
The test result and possible damaged components relating to each result are shown in the illustrations on next
page.
In order to pinpoint the possible damaged components, refer to AT-43, "
How to Perform Trouble Diagnosis for
Quick and Accurate Repair".
NOTE:
Stall revolution is too high in “D”, “2”, or “1” position:
• Slippage occurs in 1GR but not in 2GR and 3GR. ..... Low one-way clutch slippage
• Slippage occurs in the following gears:
1GR through 3GR in “D” position and engine brake functions with OD OFF. (OD OFF indicator lamp is on.)
1GR and 2GR in “2” position and engine brake functions with accelerator pedal released (fully closed throt-
tle)...... Forward clutch or forward one-way clutch slippage
Stall revolution is too high in “R” position:
• Engine brake does not function in “1” posit ion. ..... Low & reverse brake slippage
• Engine brake functions in “1” position. ..... Reverse clutch slippage
Stall revolution within specifications:
• Vehicle does not achieve speed of more than 80 km/h ( 50 MPH). ..... One-way clutch seizure in torque con-
verter housing
CAUTION:
Be careful because automatic flui d temperature increases abnormally:
• Slippage occurs in 3GR and 4GR in “D” position. ..... High clutch slippage
• Slippage occurs in 2GR and 4GR in “D” position. ..... Brake band slippage
• Engine brake does not function in 2GR and 3GR in “D” pos ition, 2GR in “2” position, and 1GR in “1” position
with OD OFF. (OD OFF indicator lamp is on.) ..... Overrun clutch slippage
Stall revolution less than specifications:
• Poor acceleration during starts. ..... One-way clutch seizure in torque converter Stall revolution:
AT-374, "
Stall Speed"
SAT514G
SAT771B
Revision: May 2010 2011 Versa

TROUBLE DIAGNOSISAT-53
< SERVICE INFORMATION >
DE
F
G H
I
J
K L
M A
B
AT
N
O P
LINE PRESSURE TEST
Line Pressure Test Ports
SCIA7987E
