Page 221 of 402

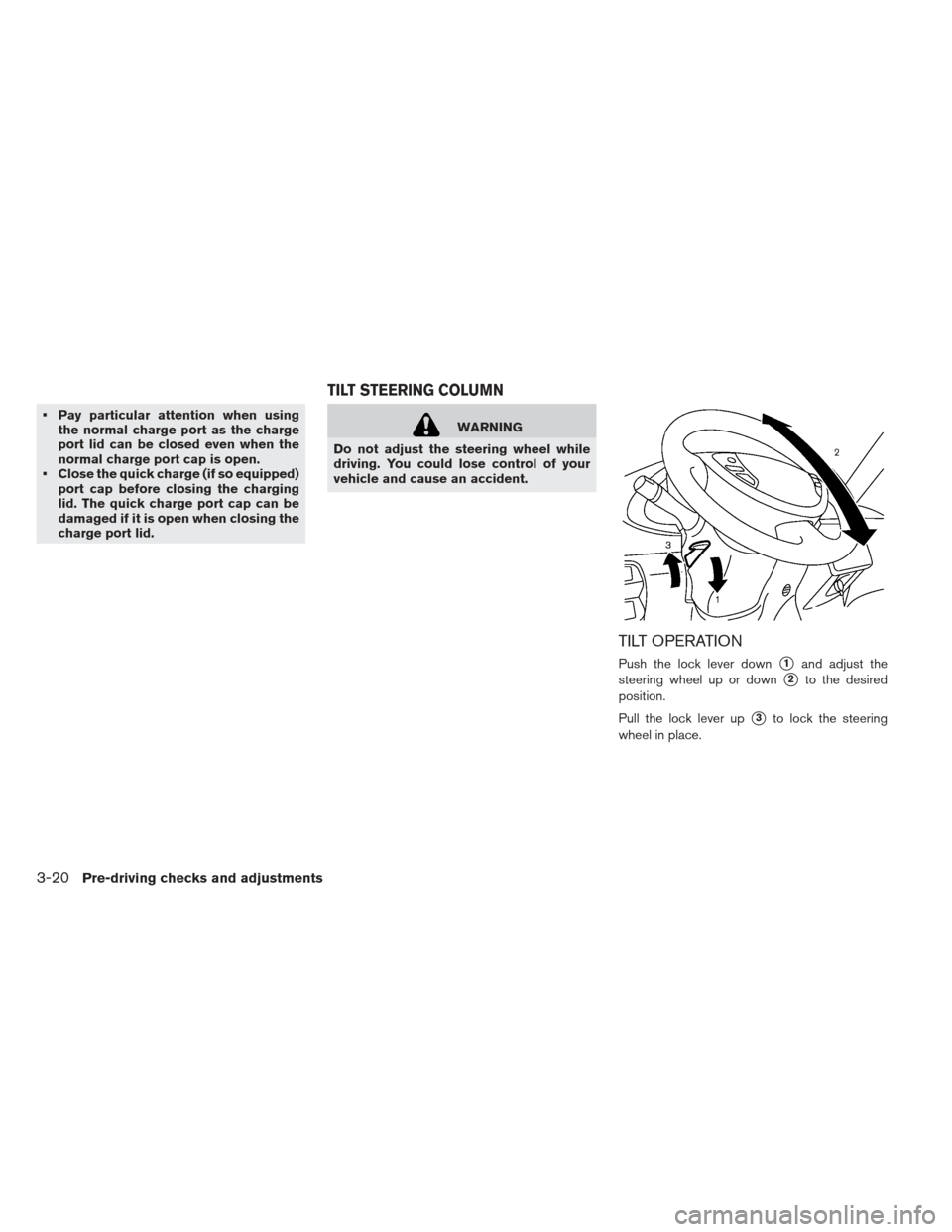

Pay particular attention when usingthe normal charge port as the charge
port lid can be closed even when the
normal charge port cap is open.
Close the quick charge (if so equipped) port cap before closing the charging
lid. The quick charge port cap can be
damaged if it is open when closing the
charge port lid.WARNING
Do not adjust the steering wheel while
driving. You could lose control of your
vehicle and cause an accident.
TILT OPERATION
Push the lock lever down1and adjust the
steering wheel up or down
2to the desired
position.
Pull the lock lever up
3to lock the steering
wheel in place.
TILT STEERING COLUMN
3-20Pre-driving checks and adjustments
Page 222 of 402

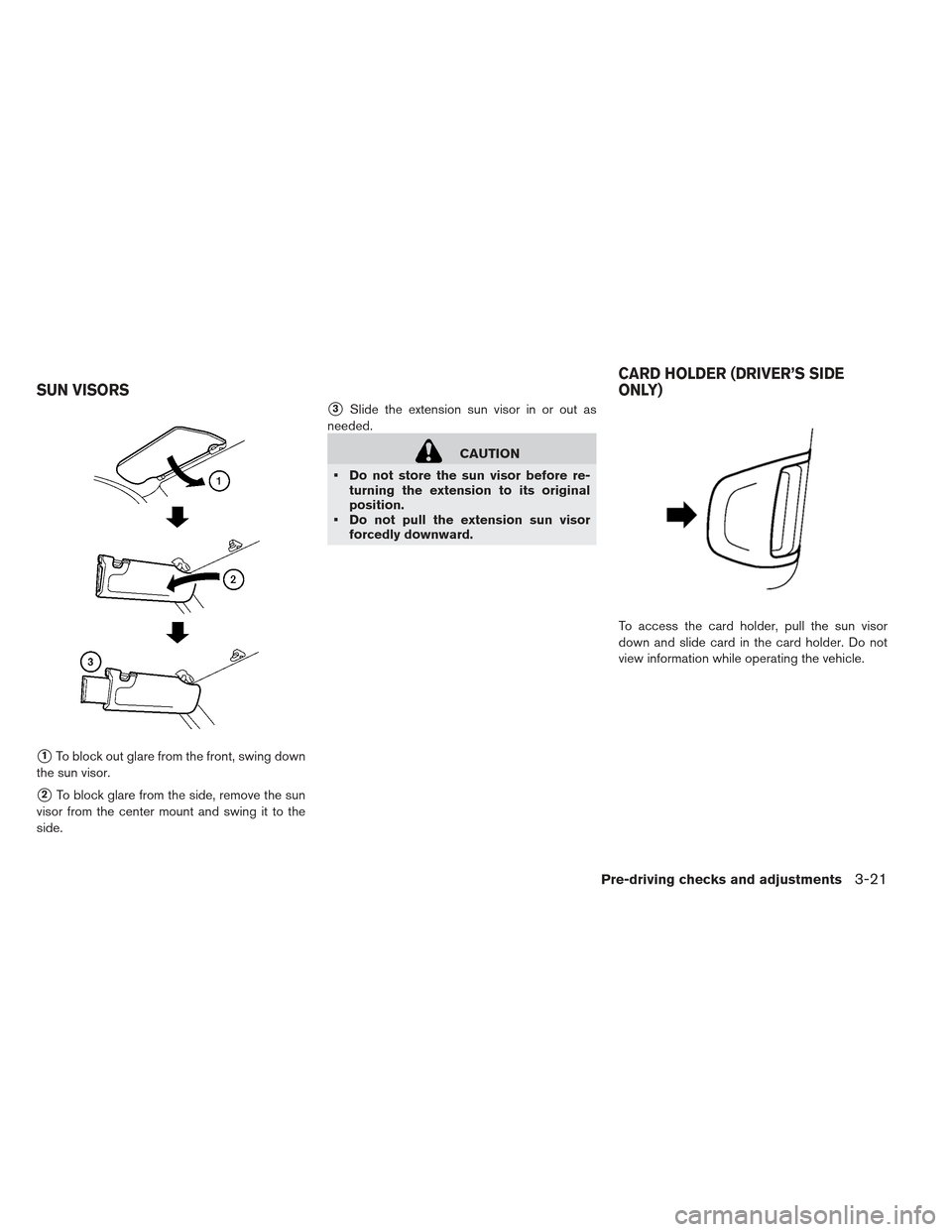

1To block out glare from the front, swing down
the sun visor.
2To block glare from the side, remove the sun
visor from the center mount and swing it to the
side.
3Slide the extension sun visor in or out as
needed.
CAUTION
Do not store the sun visor before re- turning the extension to its original
position.
Do not pull the extension sun visor forcedly downward.
To access the card holder, pull the sun visor
down and slide card in the card holder. Do not
view information while operating the vehicle.
SUN VISORS CARD HOLDER (DRIVER’S SIDE
ONLY)
Pre-driving checks and adjustments3-21
Page 223 of 402

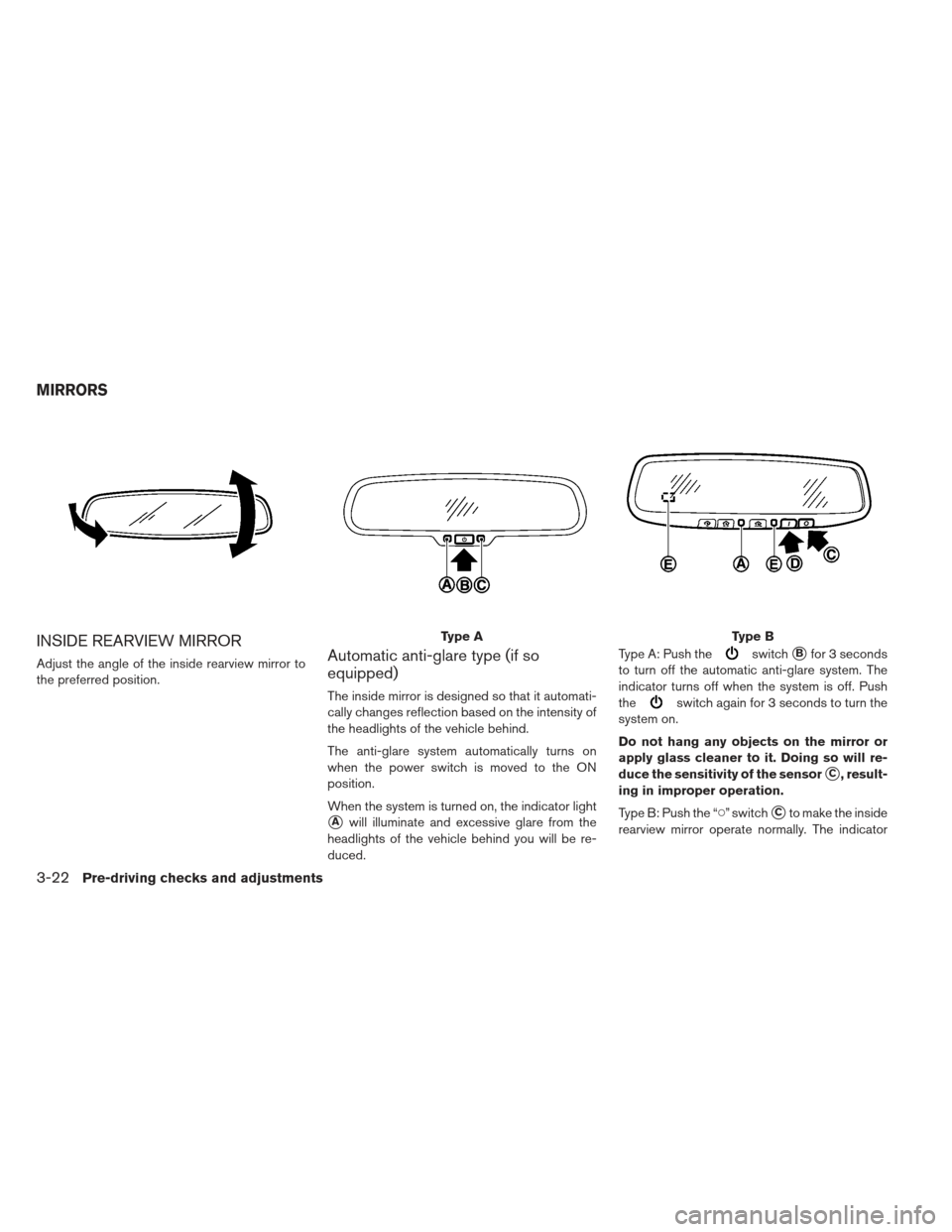

INSIDE REARVIEW MIRROR
Adjust the angle of the inside rearview mirror to
the preferred position.Automatic anti-glare type (if so
equipped)
The inside mirror is designed so that it automati-
cally changes reflection based on the intensity of
the headlights of the vehicle behind.
The anti-glare system automatically turns on
when the power switch is moved to the ON
position.
When the system is turned on, the indicator light
Awill illuminate and excessive glare from the
headlights of the vehicle behind you will be re-
duced. Type A: Push the
switchBfor 3 seconds
to turn off the automatic anti-glare system. The
indicator turns off when the system is off. Push
the
switch again for 3 seconds to turn the
system on.
Do not hang any objects on the mirror or
apply glass cleaner to it. Doing so will re-
duce the sensitivity of the sensor
C, result-
ing in improper operation.
Type B: Push the “” switch
Cto make the inside
rearview mirror operate normally. The indicator
Type AType B
MIRRORS
3-22Pre-driving checks and adjustments
Page 224 of 402
light will turn off. Push the “I” switchDto turn the
system on.
Do not allow any object to cover the sen-
sors
Eor apply glass cleaner on them.
Doing so will reduce the sensitivity of the
sensor, resulting in improper operation.
WARNING
Use the night position only when neces-
sary, because it reduces rear view clarity.

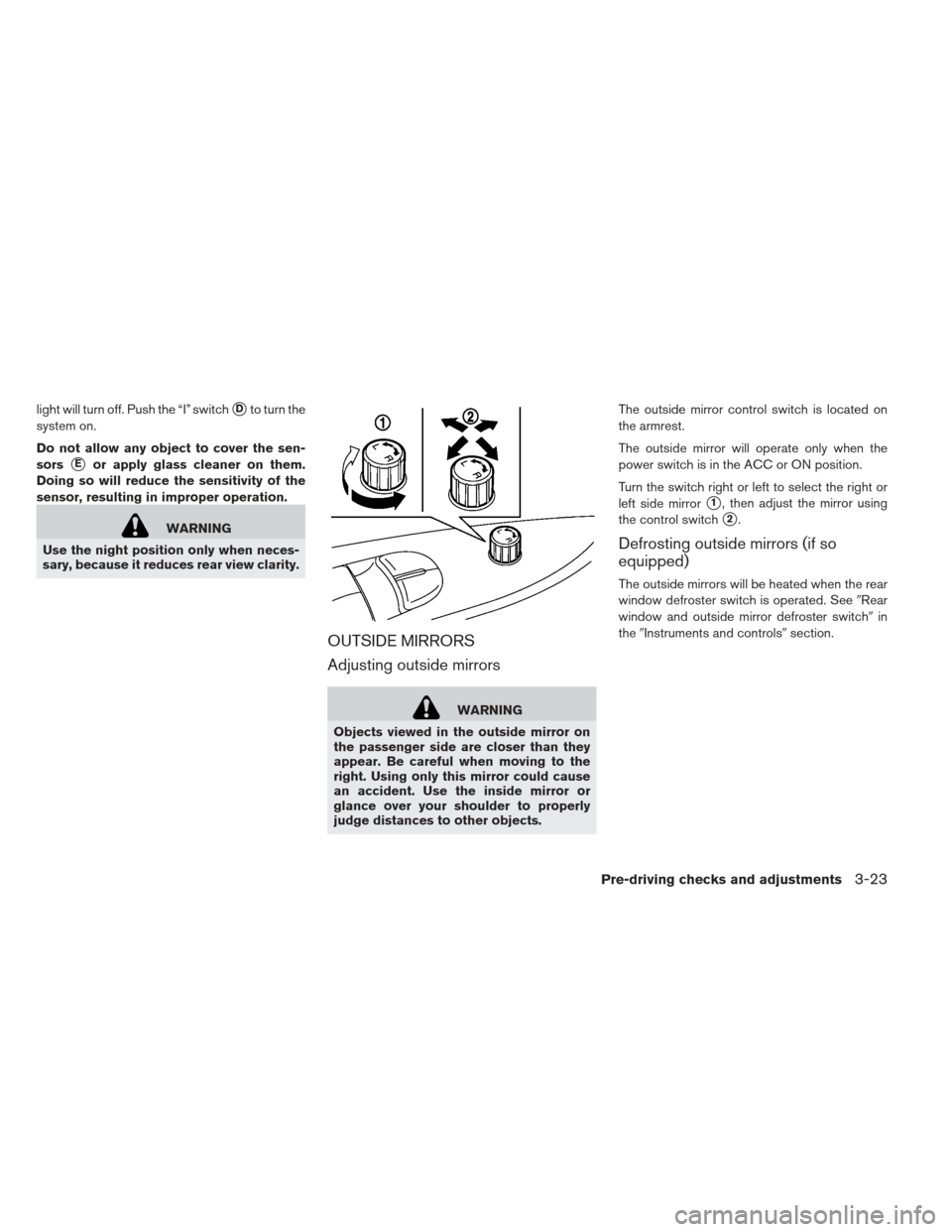

OUTSIDE MIRRORS
Adjusting outside mirrors
WARNING
Objects viewed in the outside mirror on
the passenger side are closer than they
appear. Be careful when moving to the
right. Using only this mirror could cause
an accident. Use the inside mirror or
glance over your shoulder to properly
judge distances to other objects. The outside mirror control switch is located on
the armrest.
The outside mirror will operate only when the
power switch is in the ACC or ON position.
Turn the switch right or left to select the right or
left side mirror
1, then adjust the mirror using
the control switch
2.
Defrosting outside mirrors (if so
equipped)
The outside mirrors will be heated when the rear
window defroster switch is operated. See Rear
window and outside mirror defroster switch in
the Instruments and controls section.
Pre-driving checks and adjustments3-23
Page 225 of 402

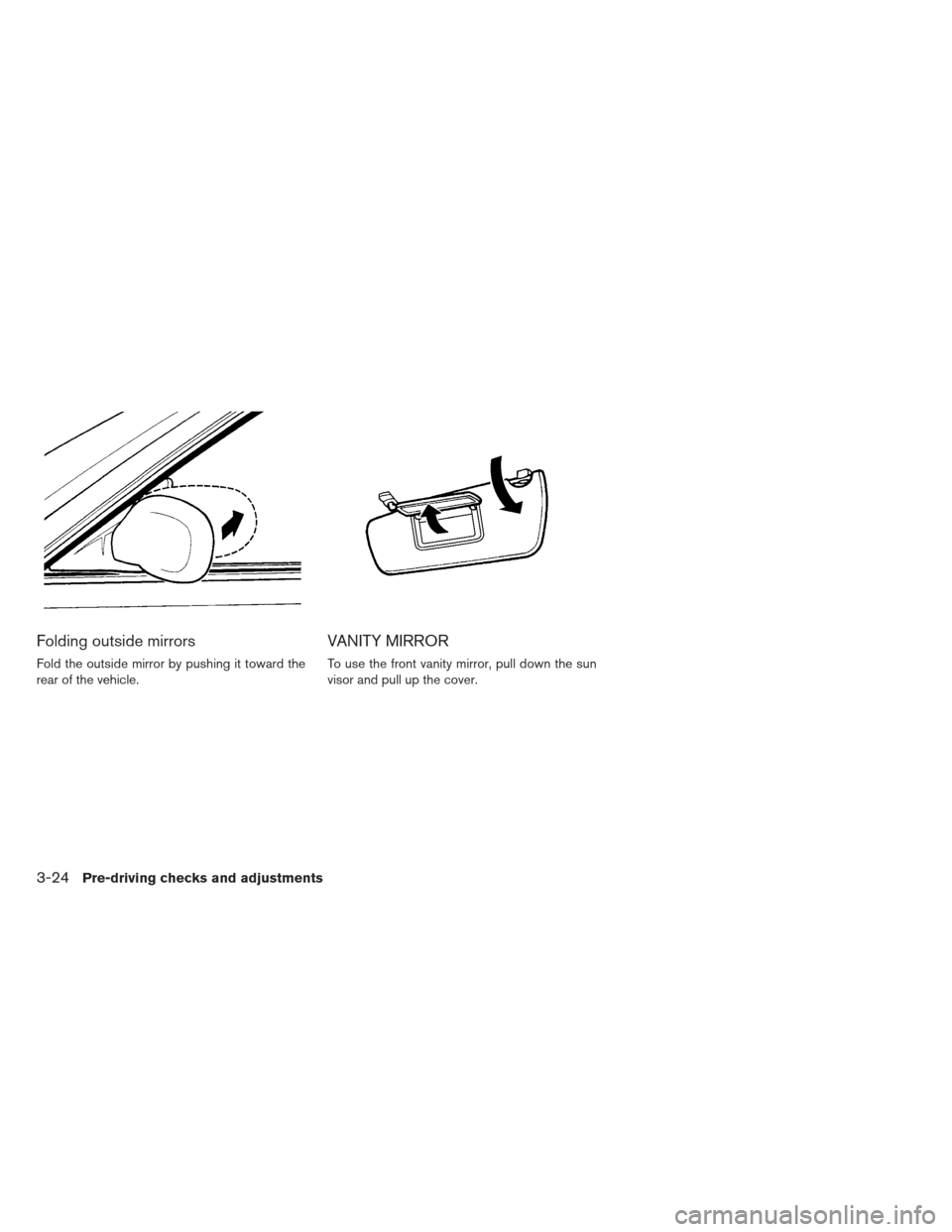

Folding outside mirrors
Fold the outside mirror by pushing it toward the
rear of the vehicle.
VANITY MIRROR
To use the front vanity mirror, pull down the sun
visor and pull up the cover.
3-24Pre-driving checks and adjustments
Page 226 of 402

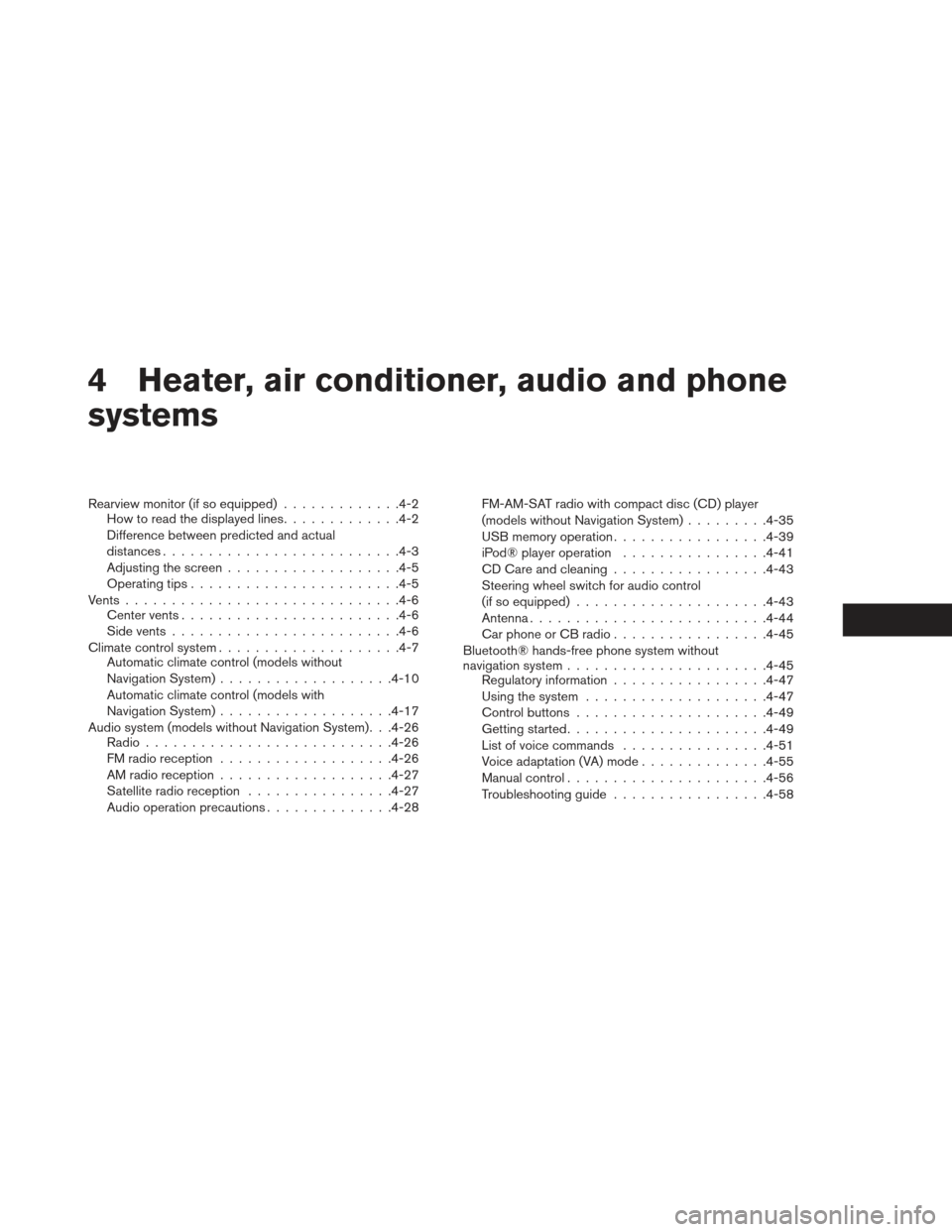

4 Heater, air conditioner, audio and phone
systems
Rearview monitor (if so equipped).............4-2
How to read the displayed lines .............4-2
Difference between predicted and actual
distances ......................... .4-3
Adjusting the screen .................. .4-5
Operating tips ...................... .4-5
Vents ............................. .4-6
Center vents ....................... .4-6
Side vents ........................ .4-6
Climate control system ................... .4-7
Automatic climate control (models without
Navigation System) .................. .4-10
Automatic climate control (models with
Navigation System) .................. .4-17
Audio system (models without Navigation System). . .4-26 Radio .......................... .4-26
FM radio reception .................. .4-26
AM radio reception .................. .4-27
Satellite radio reception ................4-27
Audio operation precautions ..............4-28FM-AM-SAT radio with compact disc (CD) player
(models without Navigation System)
.........4-35
USB memory operation ................ .4-39
iPod® player operation ................4-41
CD Care and cleaning ................ .4-43
Steering wheel switch for audio control
(if so equipped) .................... .4-43
Antenna ......................... .4-44
Car phone or CB radio ................ .4-45
Bluetooth® hands-free phone system without
navigation system ..................... .4-45
Regulatory information ................ .4-47
Using the system ................... .4-47
Control buttons .................... .4-49
Getting started ..................... .4-49
List of voice commands ................4-51
Voice adaptation (VA) mode ..............4-55
Manual control ..................... .4-56
Troubleshooting guide ................ .4-58
Page 227 of 402

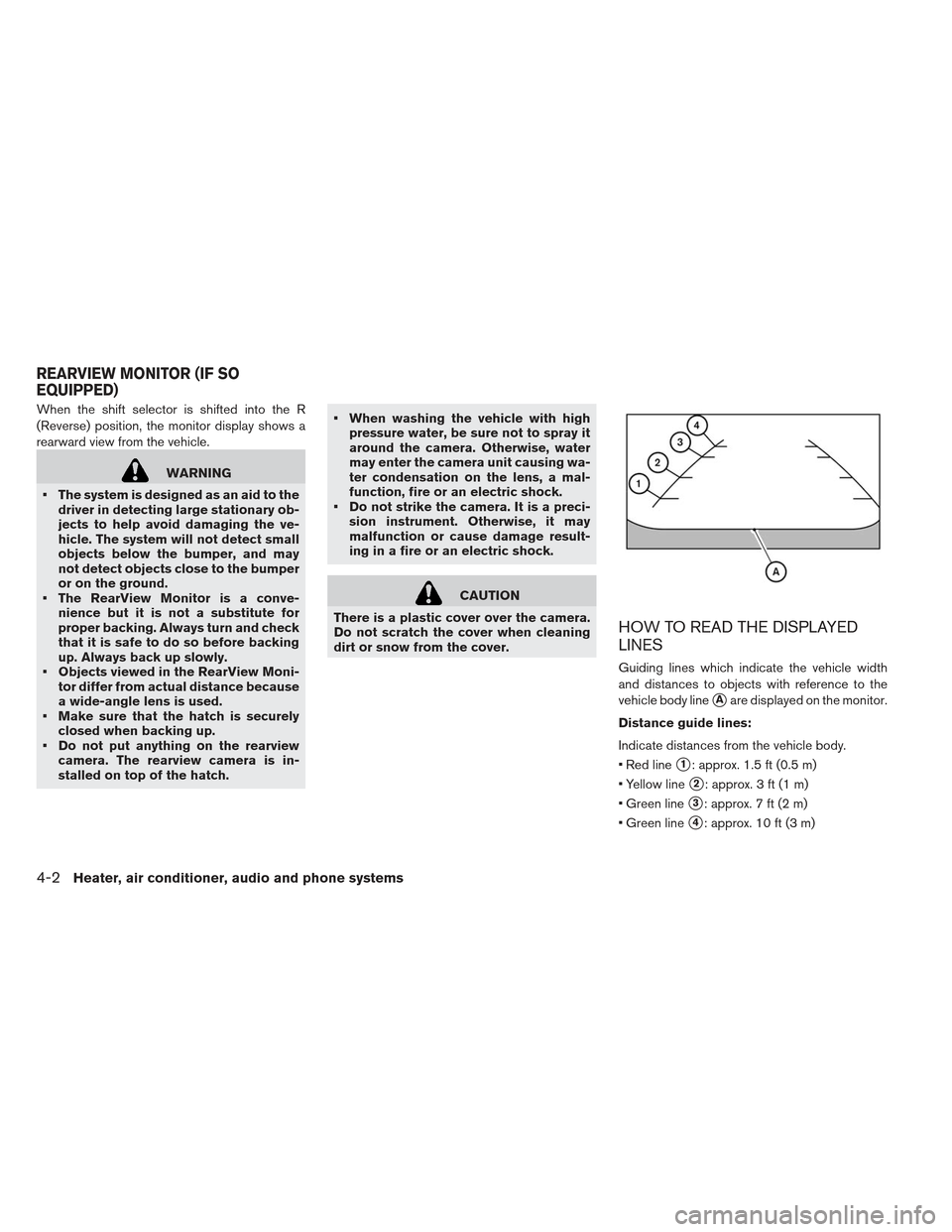

When the shift selector is shifted into the R
(Reverse) position, the monitor display shows a
rearward view from the vehicle.
WARNING
The system is designed as an aid to the driver in detecting large stationary ob-
jects to help avoid damaging the ve-
hicle. The system will not detect small
objects below the bumper, and may
not detect objects close to the bumper
or on the ground.
The RearView Monitor is a conve- nience but it is not a substitute for
proper backing. Always turn and check
that it is safe to do so before backing
up. Always back up slowly.
Objects viewed in the RearView Moni- tor differ from actual distance because
a wide-angle lens is used.
Make sure that the hatch is securely closed when backing up.
Do not put anything on the rearview camera. The rearview camera is in-
stalled on top of the hatch. When washing the vehicle with high
pressure water, be sure not to spray it
around the camera. Otherwise, water
may enter the camera unit causing wa-
ter condensation on the lens, a mal-
function, fire or an electric shock.
Do not strike the camera. It is a preci- sion instrument. Otherwise, it may
malfunction or cause damage result-
ing in a fire or an electric shock.
CAUTION
There is a plastic cover over the camera.
Do not scratch the cover when cleaning
dirt or snow from the cover.
HOW TO READ THE DISPLAYED
LINES
Guiding lines which indicate the vehicle width
and distances to objects with reference to the
vehicle body line
Aare displayed on the monitor.
Distance guide lines:
Indicate distances from the vehicle body.
Red line
1: approx. 1.5 ft (0.5 m)
Yellow line
2: approx. 3 ft (1 m)
Green line
3: approx. 7 ft (2 m)
Green line
4: approx. 10 ft (3 m)
REARVIEW MONITOR (IF SO
EQUIPPED)
4-2Heater, air conditioner, audio and phone systems
Page 228 of 402

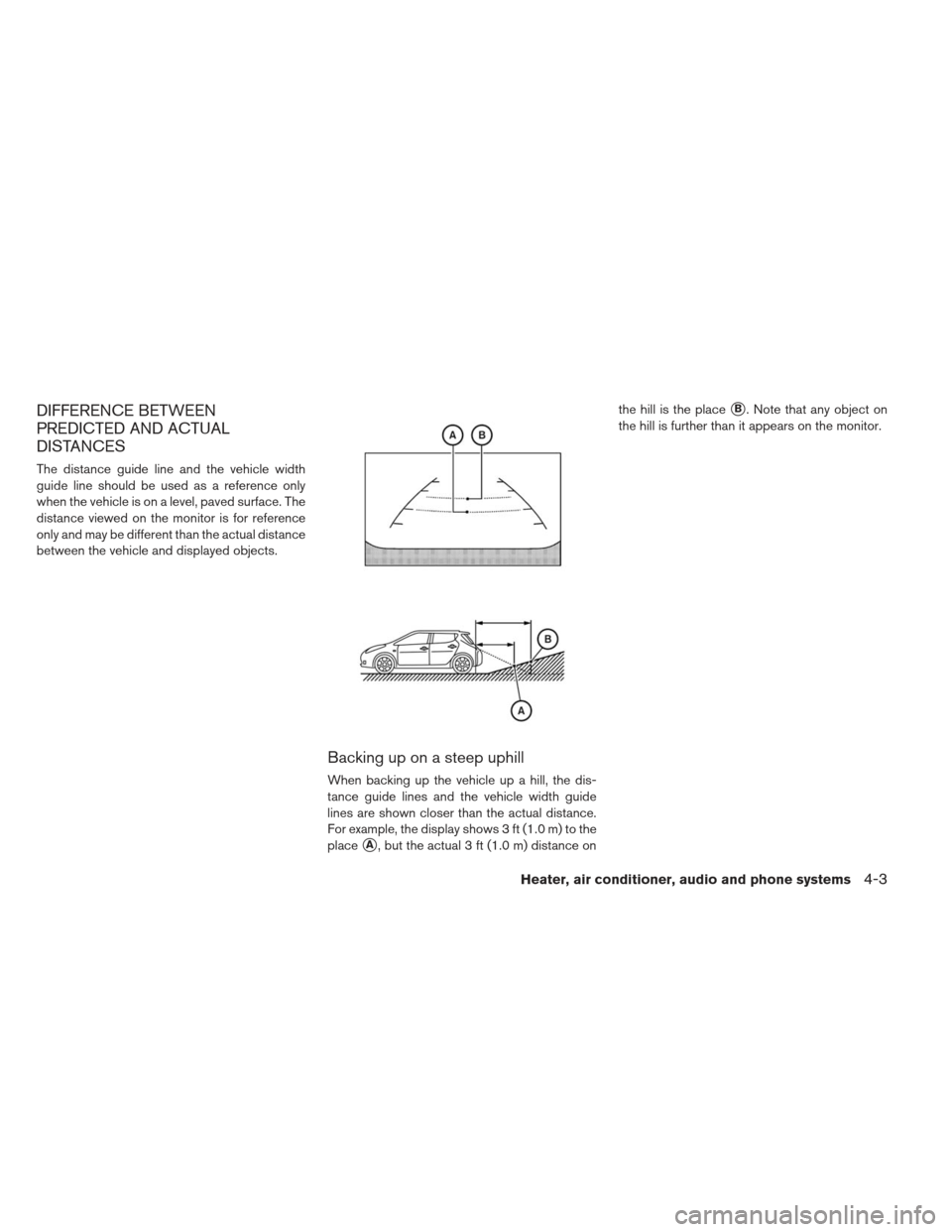

DIFFERENCE BETWEEN
PREDICTED AND ACTUAL
DISTANCES
The distance guide line and the vehicle width
guide line should be used as a reference only
when the vehicle is on a level, paved surface. The
distance viewed on the monitor is for reference
only and may be different than the actual distance
between the vehicle and displayed objects.
Backing up on a steep uphill
When backing up the vehicle up a hill, the dis-
tance guide lines and the vehicle width guide
lines are shown closer than the actual distance.
For example, the display shows 3 ft (1.0 m) to the
place
A, but the actual 3 ft (1.0 m) distance onthe hill is the place
B. Note that any object on
the hill is further than it appears on the monitor.
Heater, air conditioner, audio and phone systems4-3
Page 229 of 402
Backing up on a steep downhill
When backing up the vehicle down a hill, the
distance guide lines and the vehicle width guide
lines are shown farther than the actual distance.
For example, the display shows 3 ft (1.0 m) to the
place
A, but the actual 3 ft (1.0 m) distance onthe hill is the place
B. Note that any object on
the hill is closer than it appears on the monitor.
Backing up behind a projecting object
The positionCis shown farther than the position
Bin the display. However, the positionCis
actually at the same distance as the position
A.
The vehicle may hit the object when backing up to
4-4Heater, air conditioner, audio and phone systems
Page 230 of 402
the positionAif the object projects over the
actual backing up course.

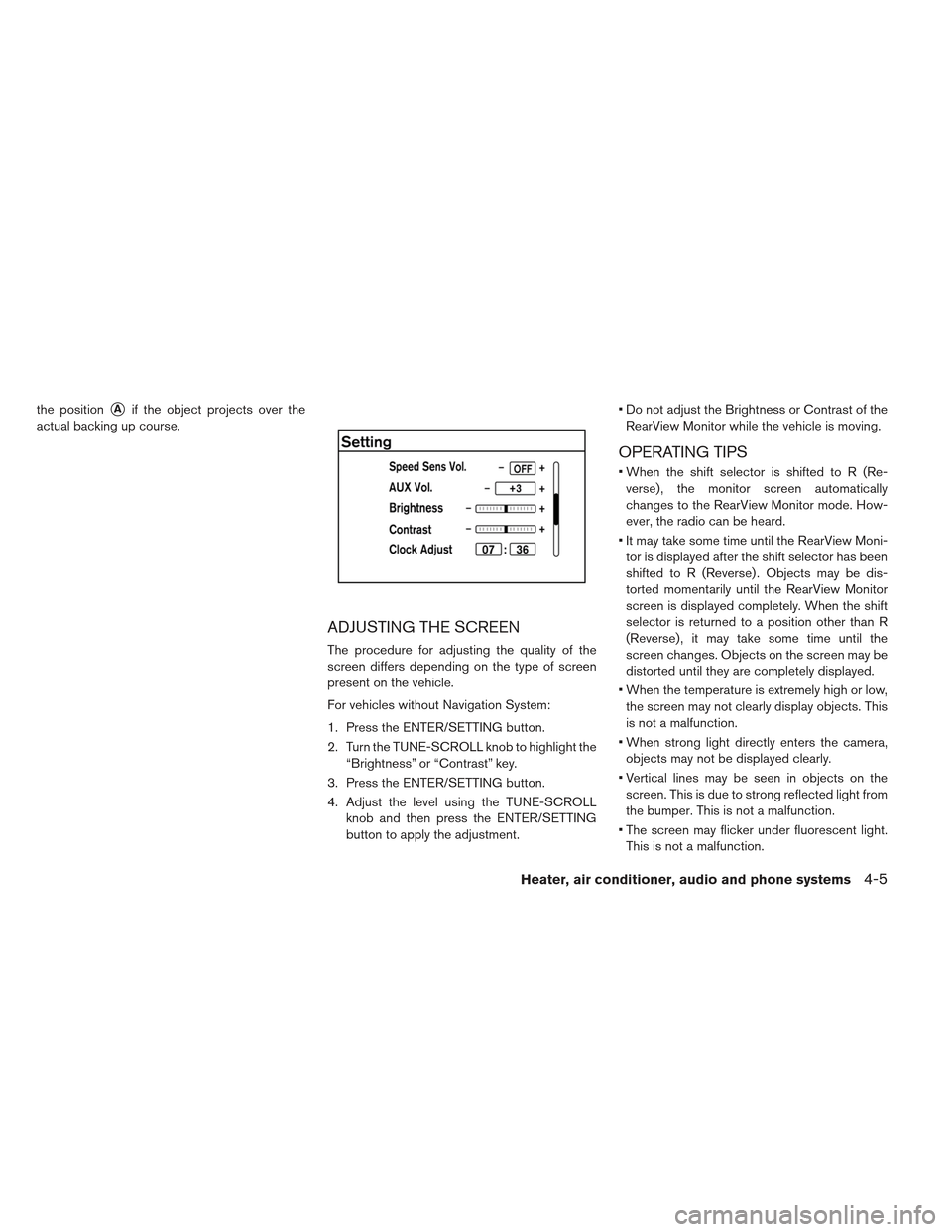

ADJUSTING THE SCREEN
The procedure for adjusting the quality of the
screen differs depending on the type of screen
present on the vehicle.
For vehicles without Navigation System:
1. Press the ENTER/SETTING button.
2. Turn the TUNE-SCROLL knob to highlight the “Brightness” or “Contrast” key.
3. Press the ENTER/SETTING button.
4. Adjust the level using the TUNE-SCROLL knob and then press the ENTER/SETTING
button to apply the adjustment. Do not adjust the Brightness or Contrast of the
RearView Monitor while the vehicle is moving.
OPERATING TIPS
When the shift selector is shifted to R (Re-verse) , the monitor screen automatically
changes to the RearView Monitor mode. How-
ever, the radio can be heard.
It may take some time until the RearView Moni- tor is displayed after the shift selector has been
shifted to R (Reverse) . Objects may be dis-
torted momentarily until the RearView Monitor
screen is displayed completely. When the shift
selector is returned to a position other than R
(Reverse) , it may take some time until the
screen changes. Objects on the screen may be
distorted until they are completely displayed.
When the temperature is extremely high or low, the screen may not clearly display objects. This
is not a malfunction.
When strong light directly enters the camera, objects may not be displayed clearly.
Vertical lines may be seen in objects on the screen. This is due to strong reflected light from
the bumper. This is not a malfunction.
The screen may flicker under fluorescent light. This is not a malfunction.
Heater, air conditioner, audio and phone systems4-5
