NISSAN LEAF 2013 1.G Owners Manual

NISSAN LEAF 2013 1.G Owners Manual LEAF 2013 1.G NISSAN NISSAN https://www.carmanualsonline.info/img/5/325/w960_325-0.png NISSAN LEAF 2013 1.G Owners Manual

Page 211 of 402

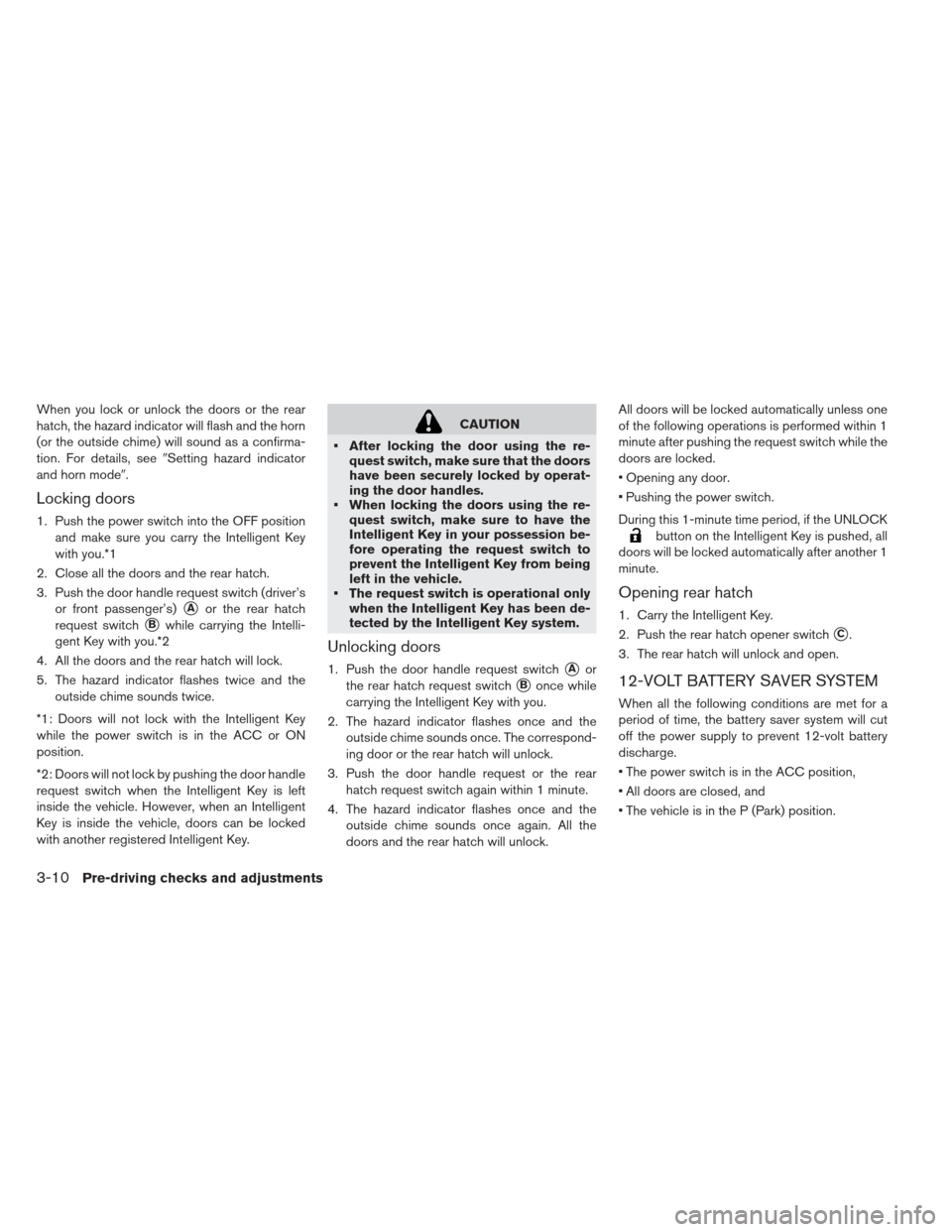

NISSAN LEAF 2013 1.G Owners Manual When you lock or unlock the doors or the rear
hatch, the hazard indicator will flash and the horn
(or the outside chime) will sound as a confirma-
tion. For details, seeSetting hazard indicator
and h

Page 212 of 402

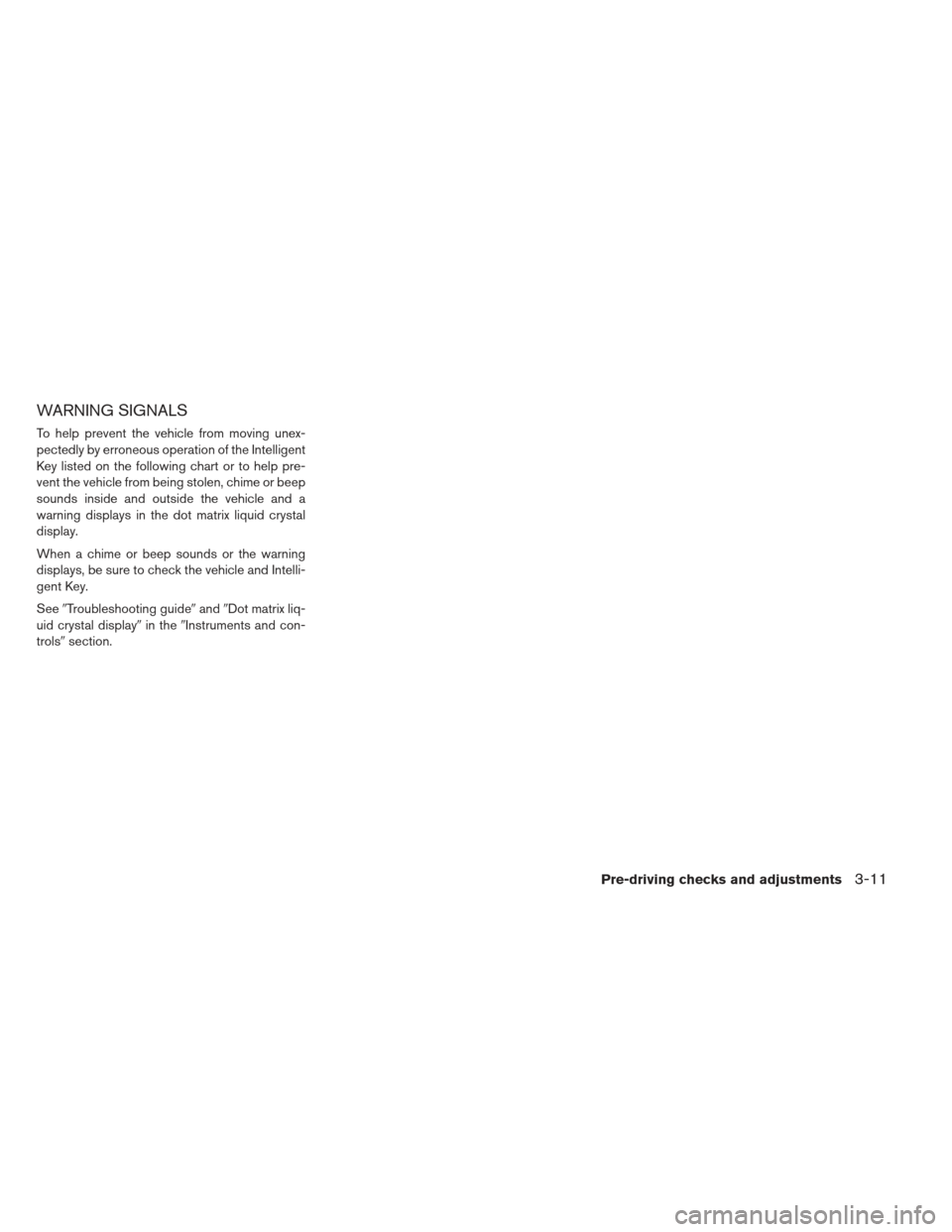

NISSAN LEAF 2013 1.G Owners Manual WARNING SIGNALS
To help prevent the vehicle from moving unex-
pectedly by erroneous operation of the Intelligent
Key listed on the following chart or to help pre-
vent the vehicle from being stolen, c

Page 213 of 402

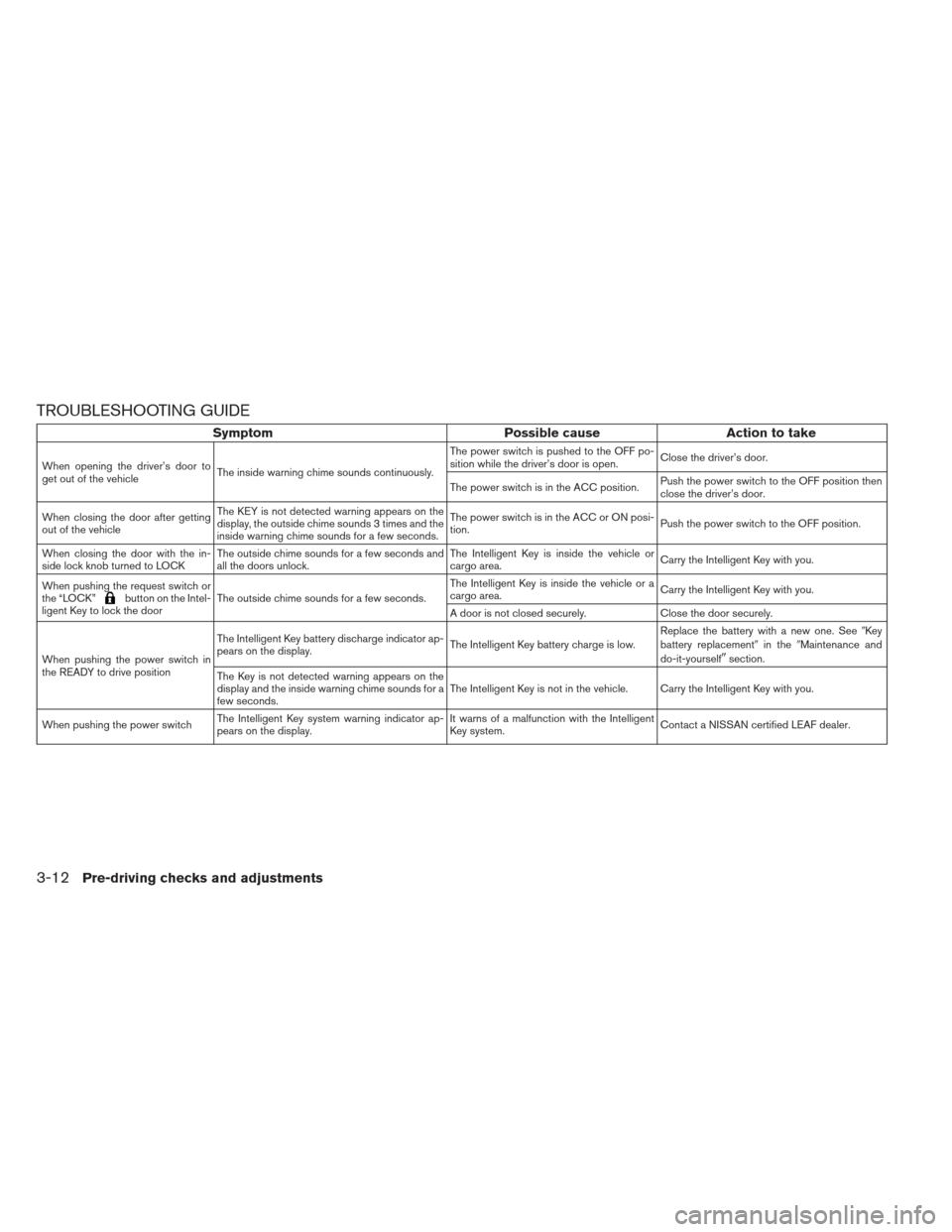

NISSAN LEAF 2013 1.G Owners Manual TROUBLESHOOTING GUIDE
SymptomPossible causeAction to take
When opening the driver’s door to
get out of the vehicleThe inside warning chime sounds continuously. The power switch is pushed to the OFF

Page 214 of 402

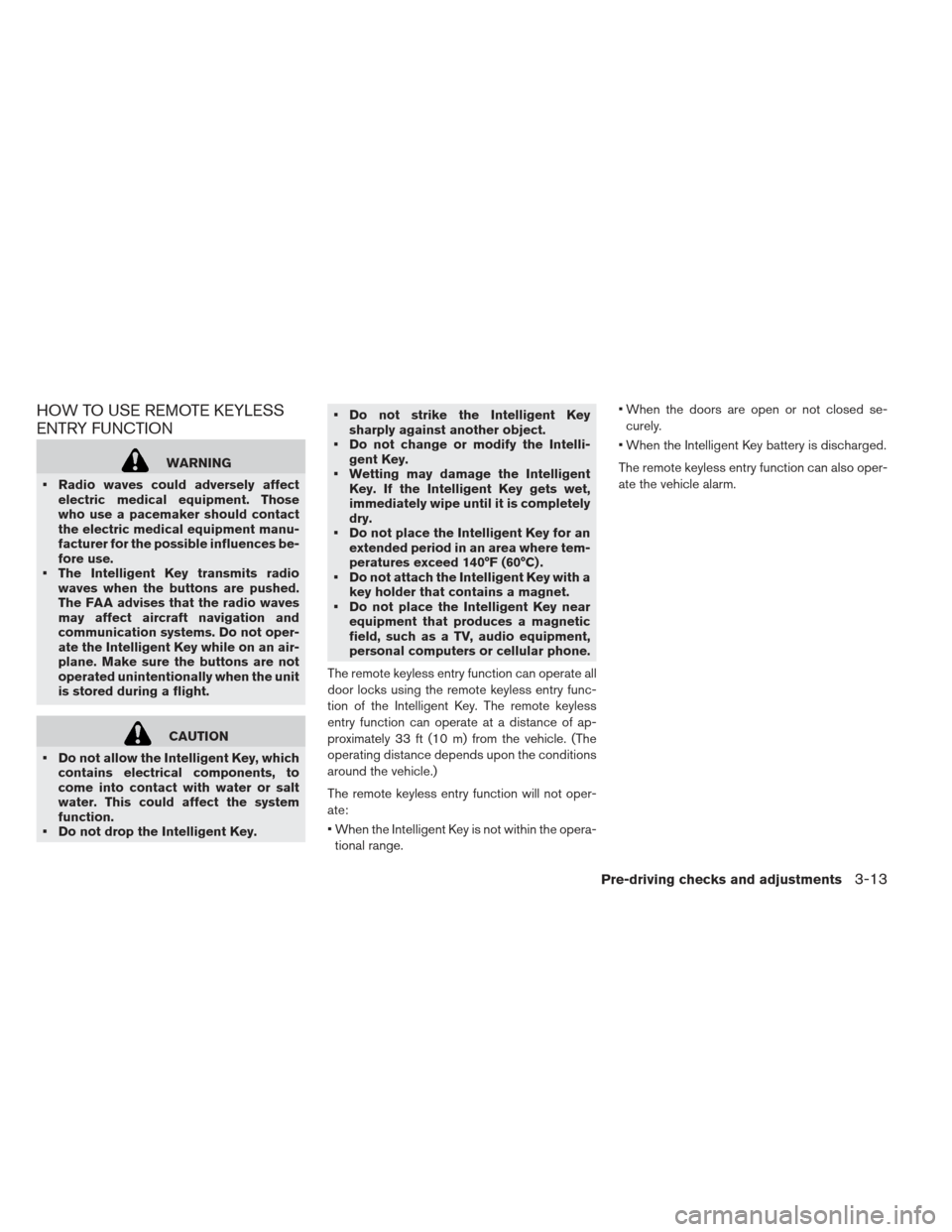

NISSAN LEAF 2013 1.G Owners Manual HOW TO USE REMOTE KEYLESS
ENTRY FUNCTION
WARNING
 Radio waves could adversely affect electric medical equipment. Those
who use a pacemaker should contact
the electric medical equipment manu-
facturer

Page 215 of 402

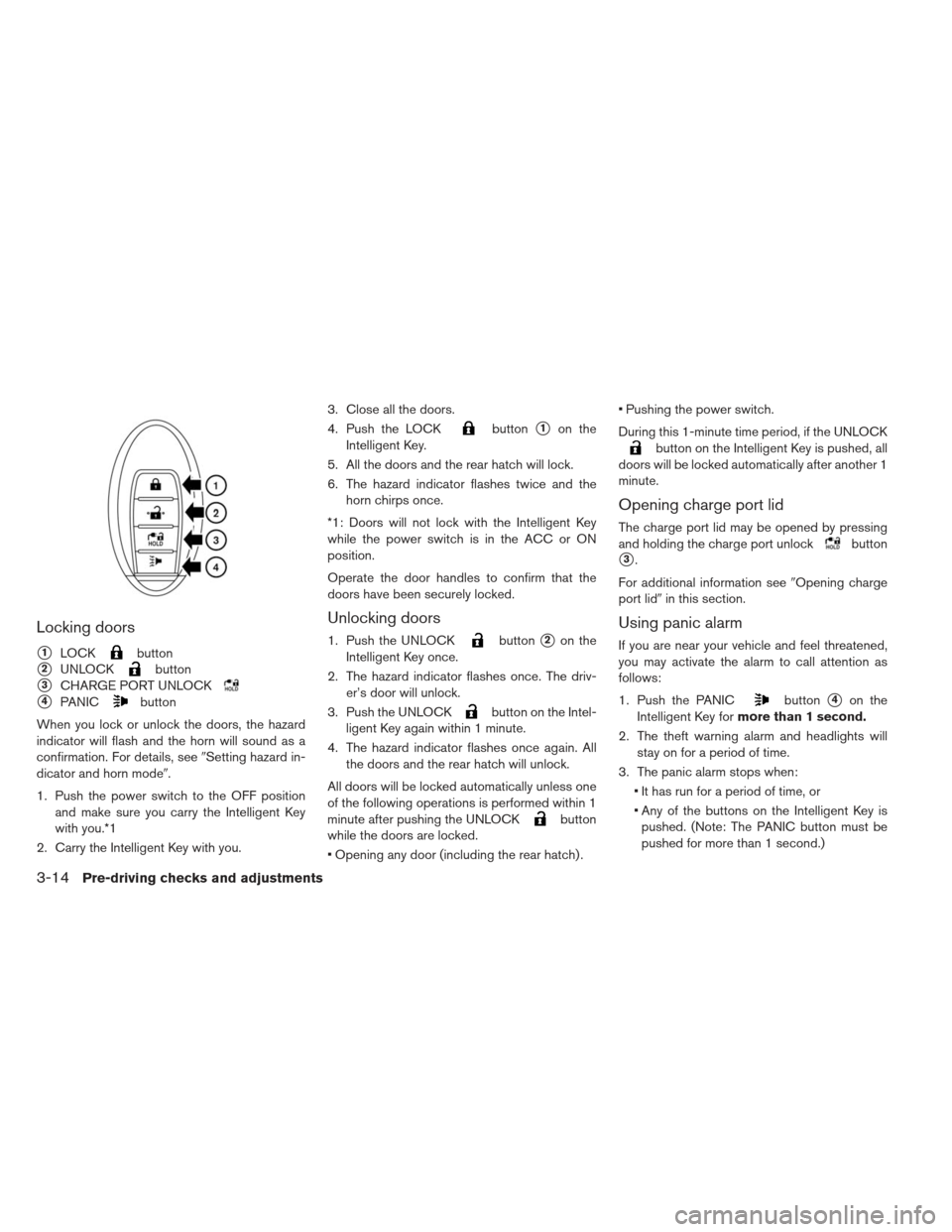

NISSAN LEAF 2013 1.G Owners Manual Locking doors
1LOCKbutton
2UNLOCKbutton
3CHARGE PORT UNLOCK
4PANICbutton
When you lock or unlock the doors, the hazard
indicator will flash and the horn will sound as a
confirmation. For details,

Page 216 of 402

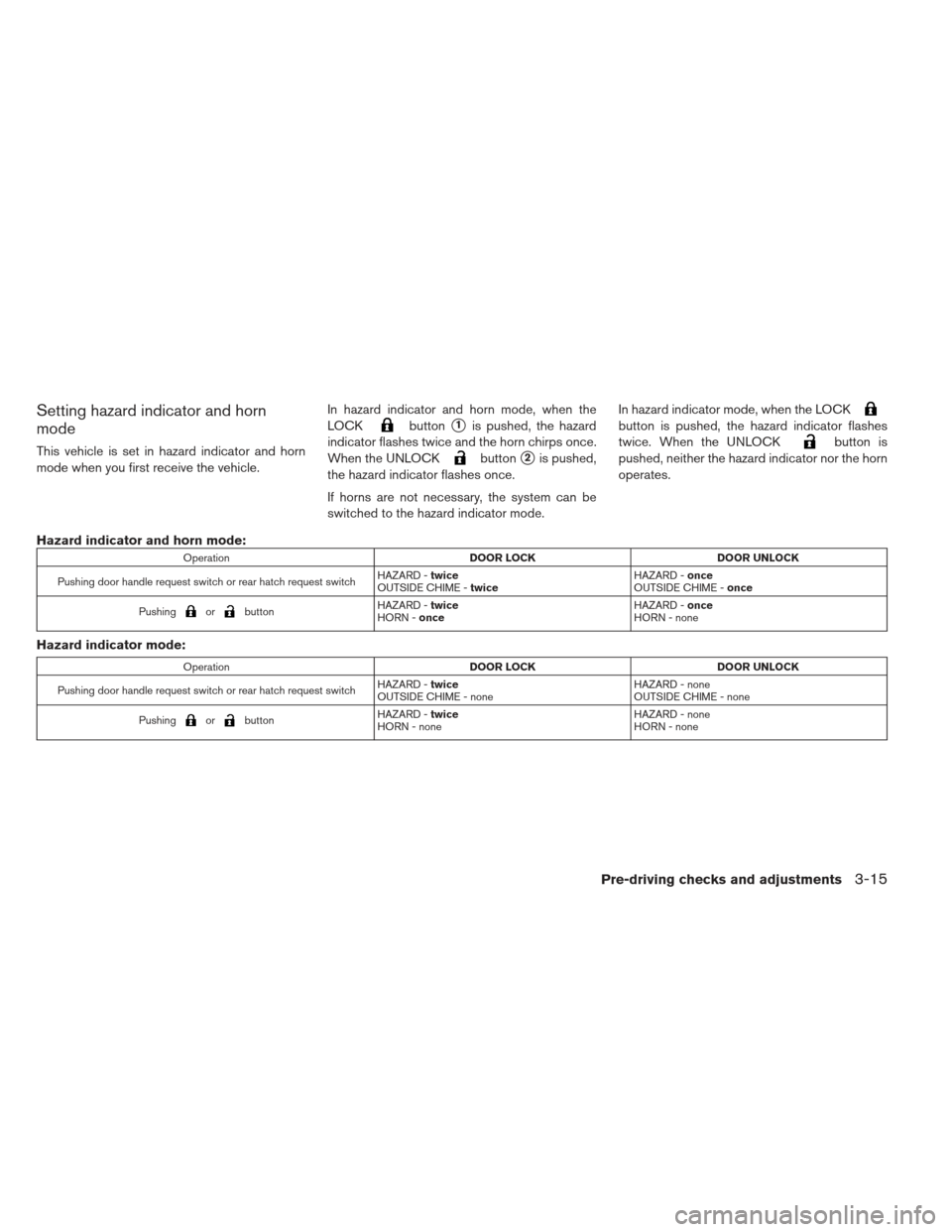

NISSAN LEAF 2013 1.G Owners Manual Setting hazard indicator and horn
mode
This vehicle is set in hazard indicator and horn
mode when you first receive the vehicle.In hazard indicator and horn mode, when the
LOCK
button1is pushed, the

Page 217 of 402

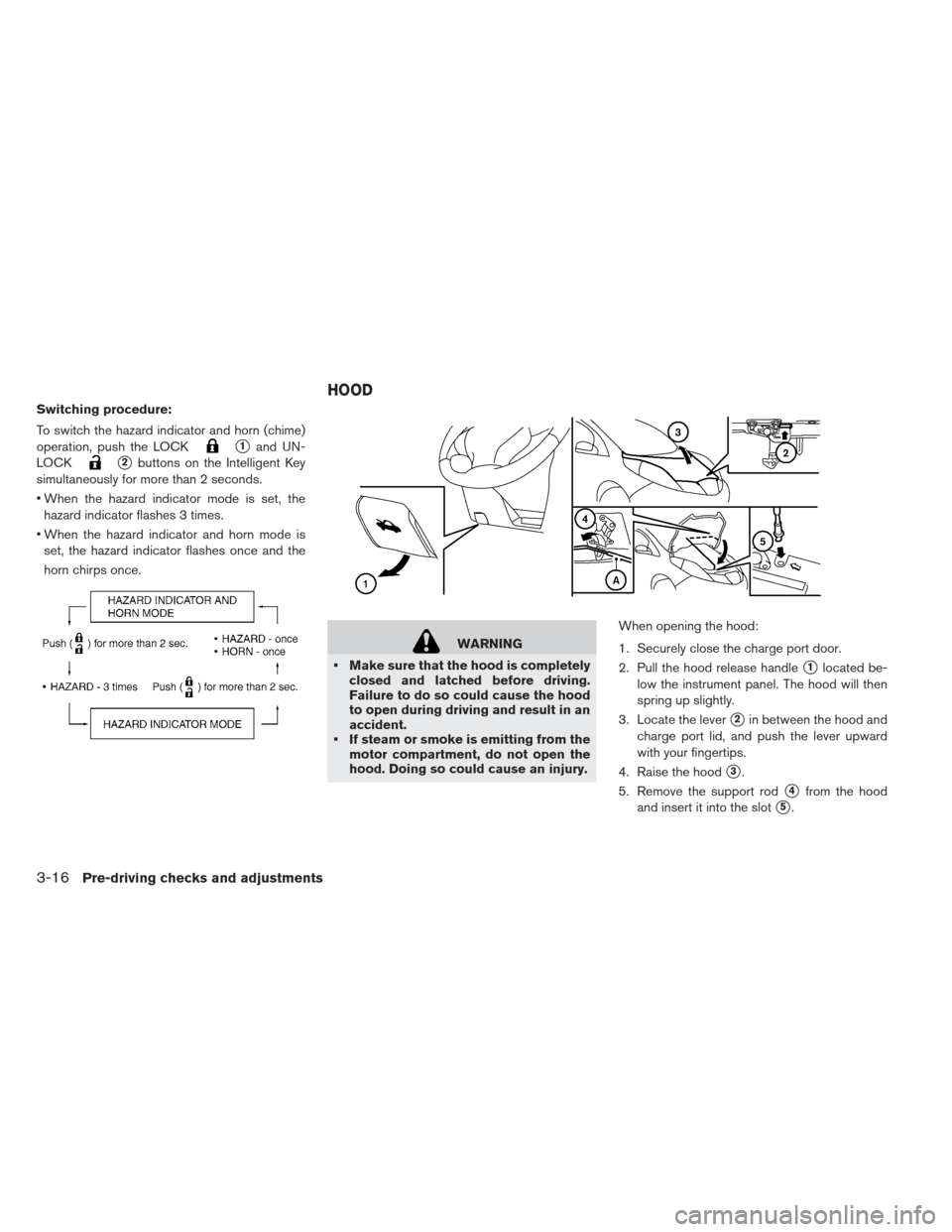

NISSAN LEAF 2013 1.G Owners Manual Switching procedure:
To switch the hazard indicator and horn (chime)
operation, push the LOCK
1and UN-
LOCK
2buttons on the Intelligent Key
simultaneously for more than 2 seconds.
 When the hazard i

Page 218 of 402

NISSAN LEAF 2013 1.G Owners Manual Hold the coated partAwhen removing or
resetting the support rod. Avoid direct con-
tact with the metal parts because they may
be hot immediately after the EV (Electric
Vehicle) system has been stoppe

Page 219 of 402

NISSAN LEAF 2013 1.G Owners Manual SECONDARY REAR HATCH
RELEASE
The secondary rear hatch release mechanism
allows the rear hatch to be opened in the event of
a discharged battery, etc.
Push the lever up to open the rear hatch with a
su

Page 220 of 402

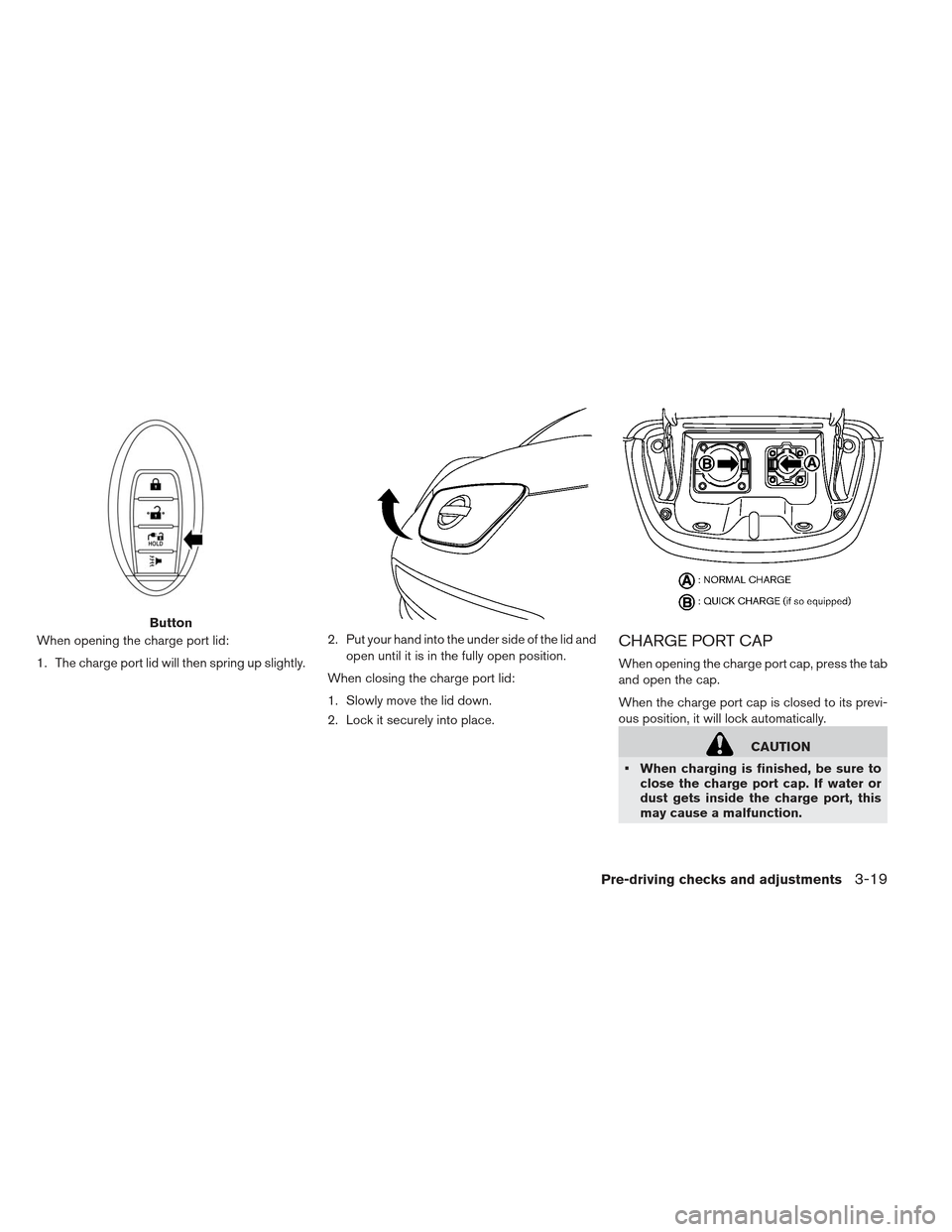

NISSAN LEAF 2013 1.G Owners Manual When opening the charge port lid:
1. The charge port lid will then spring up slightly.2. Put your hand into the under side of the lid and
open until it is in the fully open position.
When closing the
